Presentation Transcript


Per unit system l.jpg

Per-Unit System

EE341 – Energy Conversion

Ali Keyhani

Transformer

Lecture #3


Per unit system2 l.jpg

Per-Unit System

Actual value

Quantity per unit =

Base value of quantity

In the per-unit system, the voltages, currents, powers, impedances, and other electrical quantities are expressed on a per-unit basis by the equation:

It is customary to select two base quantities to define a given per-unit system. The ones usually selected are voltage and power.


Per unit system3 l.jpg

Per-Unit System

Assume:

Then compute base values for currents and impedances:


Per unit system4 l.jpg

Per-Unit System

And the per-unit system is:

Percent of base Z


Example 1 l.jpg

Example 1

  • An electrical lamp is rated 120 volts, 500 watts. Compute the per-unit and percent impedance of the lamp. Give the p.u. equivalent circuit.

  • Solution:

  • Compute lamp resistance

  • power factor = 1.0


Example 16 l.jpg

Example 1

(2) Select base quantities

(3) Compute base impedance

(4) The per-unit impedance is:


Example 17 l.jpg

Example 1

(5) Percent impedance:

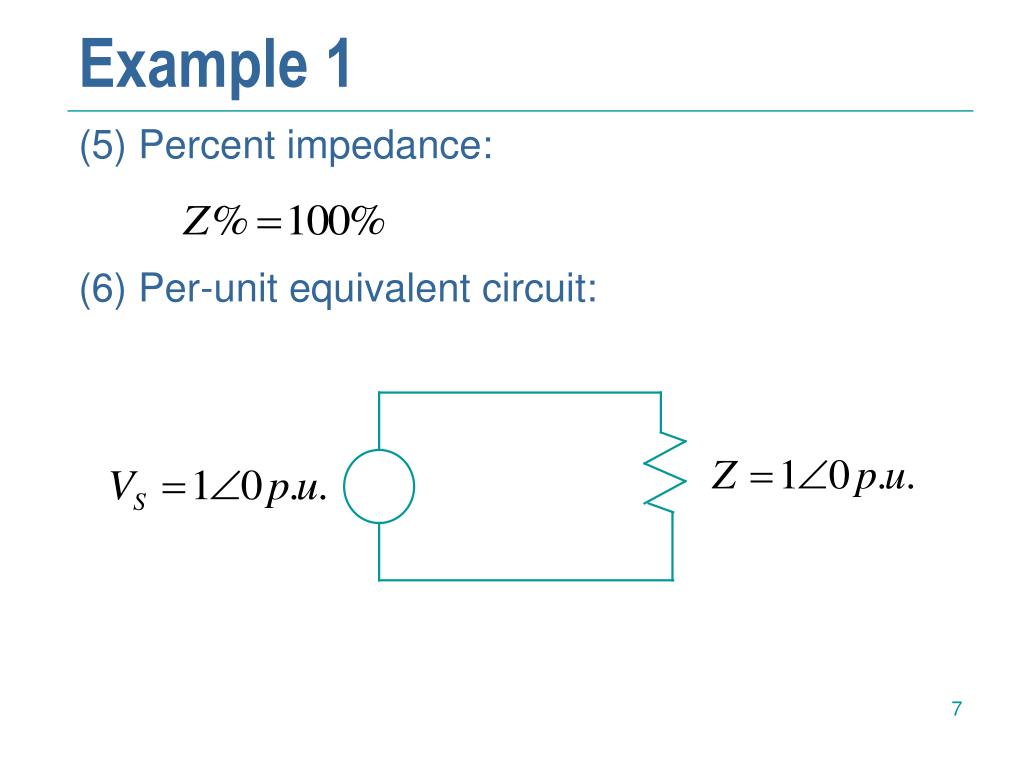

(6) Per-unit equivalent circuit:


Example 2 l.jpg

Example 2

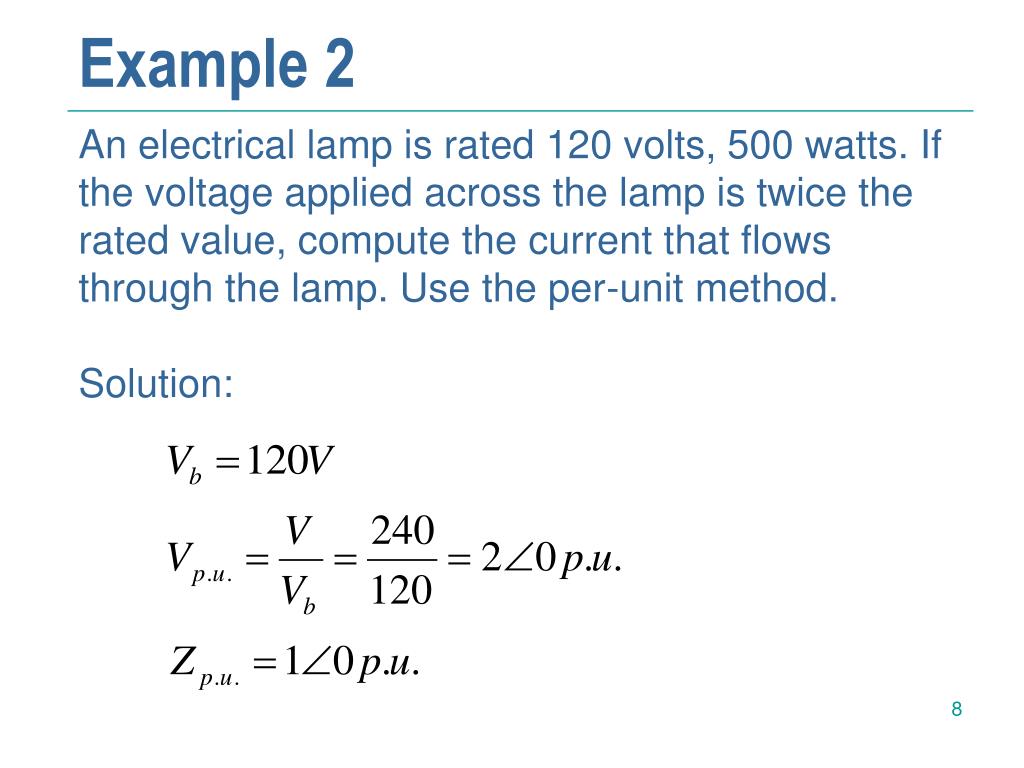

An electrical lamp is rated 120 volts, 500 watts. If the voltage applied across the lamp is twice the rated value, compute the current that flows through the lamp. Use the per-unit method.

Solution:


Example 29 l.jpg

Example 2

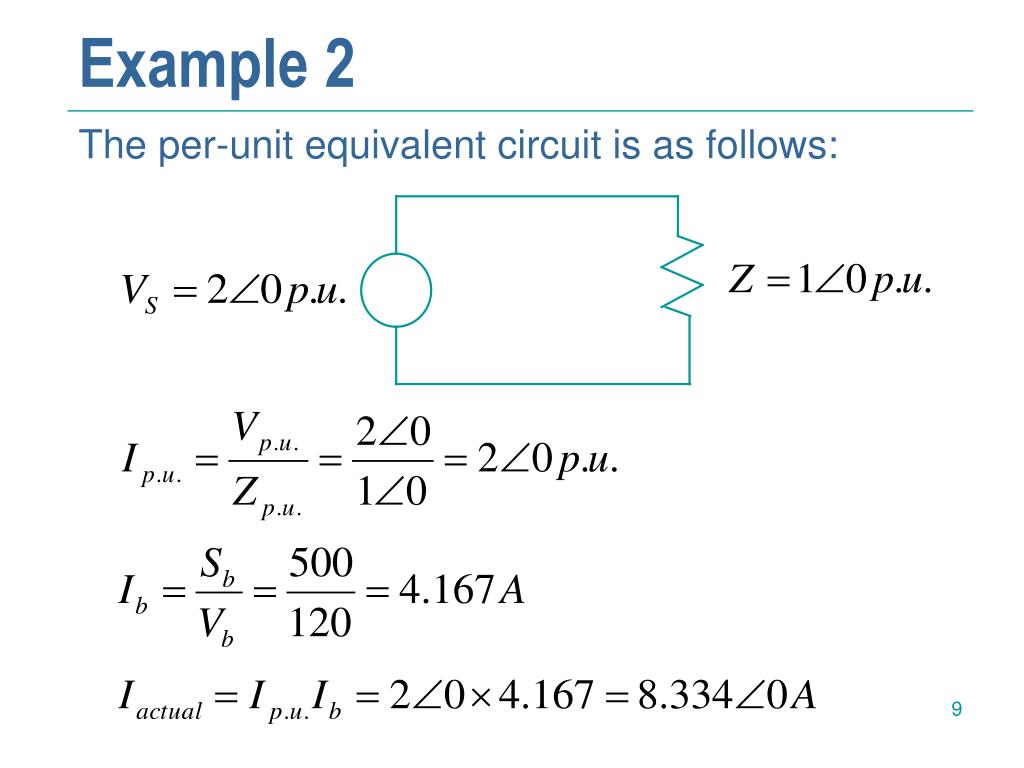

The per-unit equivalent circuit is as follows:


Per unit system for 1 circuits l.jpg

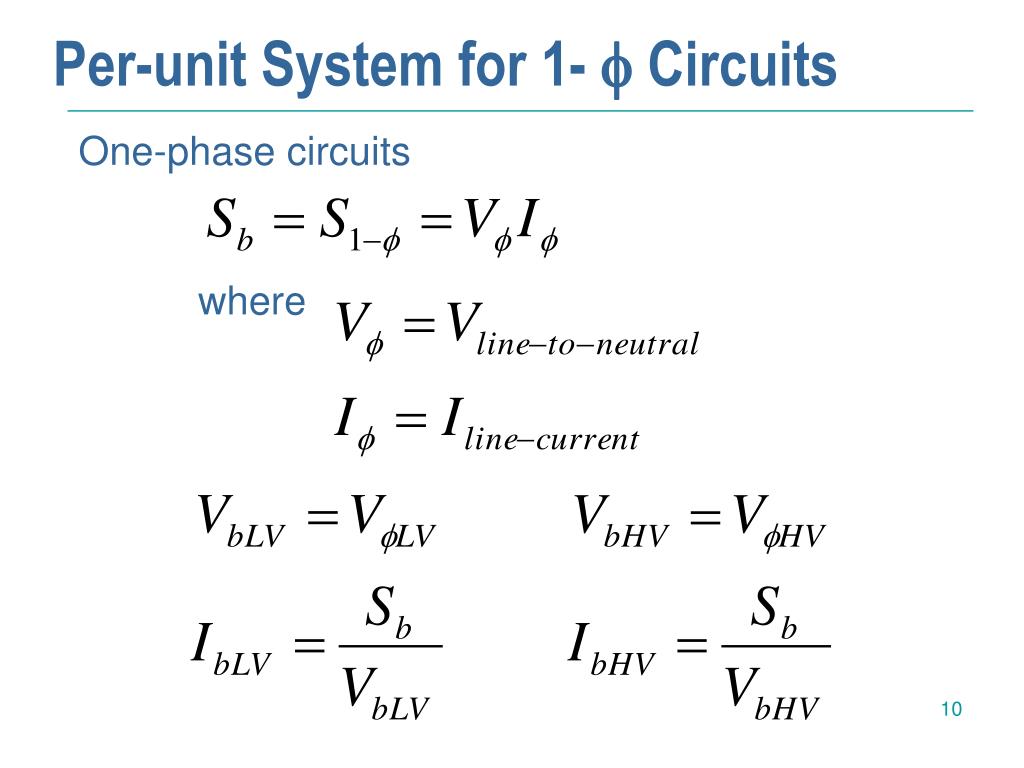

Per-unit System for 1-  Circuits

One-phase circuits

where


Per unit system for 1 circuits11 l.jpg

Per-unit System for 1-  Circuits


Transformation between bases l.jpg

Transformation Between Bases

Selection 1

Then

Selection 2

Then


Transformation between bases13 l.jpg

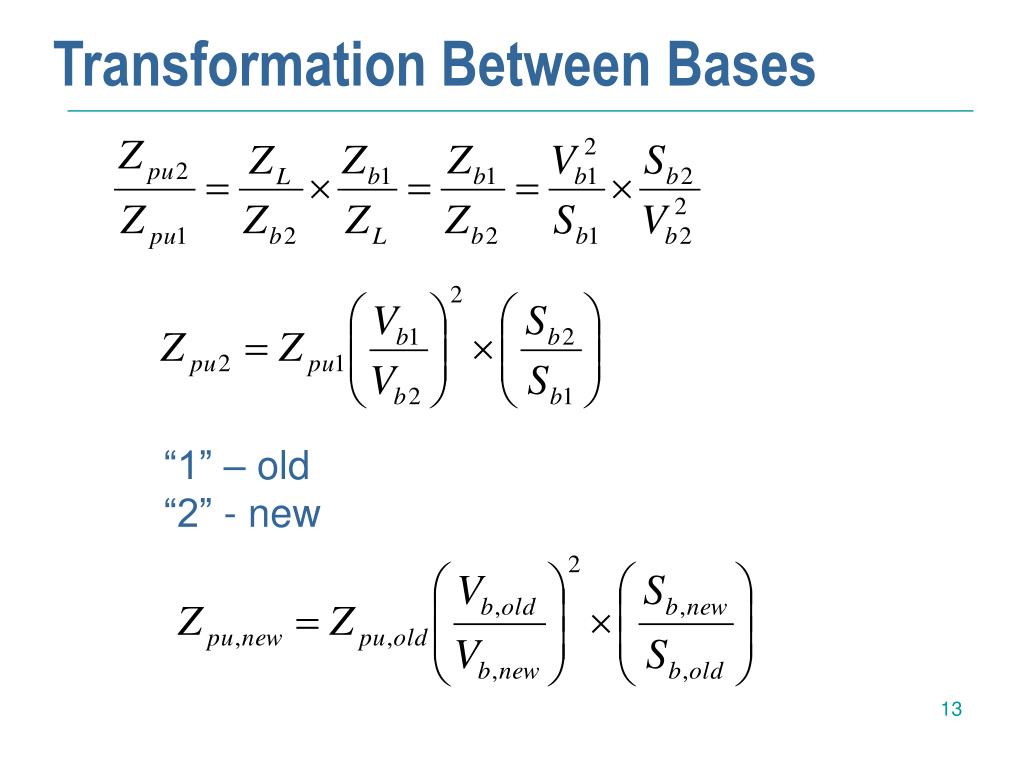

Transformation Between Bases

“1” – old

“2” - new


Transformation between bases14 l.jpg

Transformation Between Bases

Generally per-unit values given to another base can be converted to new base by by the equations:

When performing calculations in a power system, every per-unit value must be converted to the same base.


Per unit system for 1 transformer l.jpg

Per-unit System for 1- Transformer

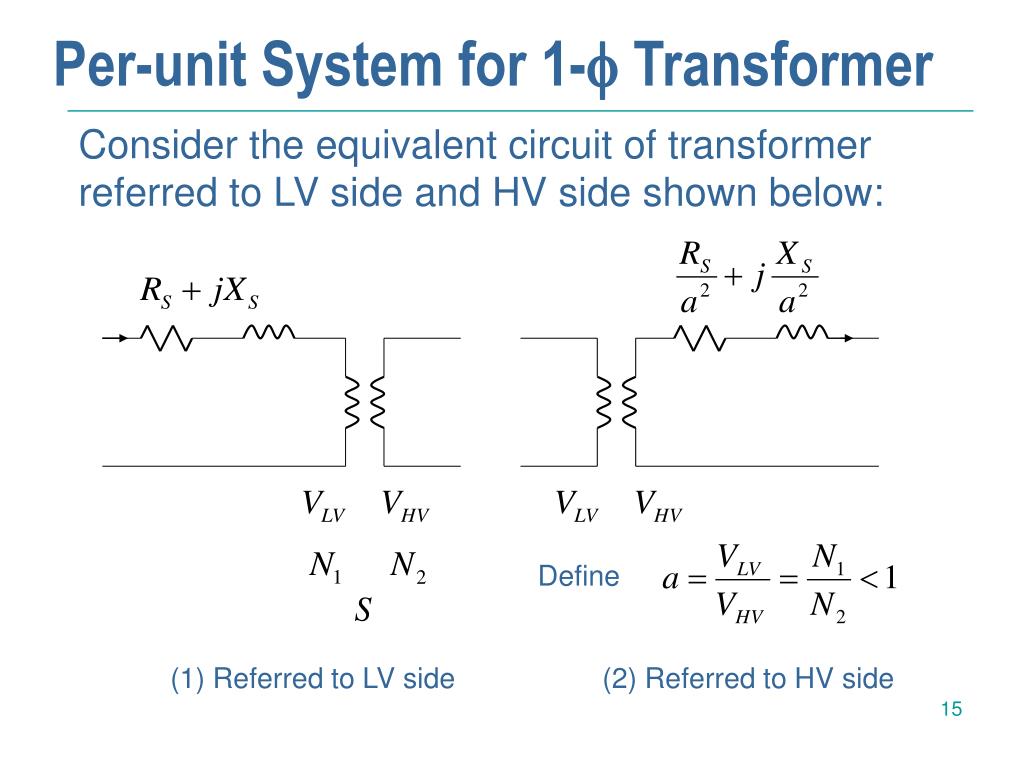

Consider the equivalent circuit of transformer referred to LV side and HV side shown below:

Define

(1) Referred to LV side

(2) Referred to HV side


Per unit system for 1 transformer16 l.jpg

Per-unit System for 1- Transformer

Choose:

Normal choose rated values as base values

Compute:


Per unit system for 1 transformer17 l.jpg

Per-unit System for 1- Transformer

Per-unit impedances are:

Per-unit equivalent circuits of transformer referred to LV side and HV side are identical !!

So:


Per unit eq ckt for 1 transformer l.jpg

Per-unit Eq. Ckt for 1- Transformer

Fig 1. Eq Ckt referred to LV side

Fig 2. Per-unit Eq Ckt referred to LV side Fig 3.


Per unit eq ckt for 1 transformer19 l.jpg

Per-unit Eq. Ckt for 1- Transformer

Fig 4. Eq Ckt referred to HV side

Fig 5. Per-unit Eq Ckt referred to HV side Fig 6.


Voltage regulation l.jpg

Voltage Regulation

Voltage regulation is defined as:

In per-unit system:

Vfull-load: Desired load voltage at full load. It may be equal to, above, or below rated voltage

Vno-load: The no load voltage when the primary voltage is the desired voltage in order the secondary voltage be at its desired value at full load


Voltage regulation example l.jpg

Voltage Regulation Example

A single-phase transformer rated 200-kVA, 200/400-V, and 10% short circuit reactance. Compute the VR when the transformer is fully loaded at unity PF and rated voltage 400-V.

Solution:

Fig 7. Per-unit equivalent circuit


Voltage regulation example22 l.jpg

Voltage Regulation Example

Rated voltage:


Voltage regulation example23 l.jpg

Voltage Regulation Example

Secondary side:

Voltage regulation:


Problem 1 l.jpg

Problem 1

G

20 kV

22kV/220kV

80MVA

14%

220kV/20kV

50MVA

10%

50MVA

0.8 PF lagging

Select Vbase in generator circuit and Sb=100MVA, compute p.u. equivalent circuit.


Per unit system for 3 circuits l.jpg

Per-unit System for 3- Circuits

Three-phase circuits

where


Per unit system for 3 circuits26 l.jpg

Per-unit System for 3- Circuits


Per unit system for 3 transformer l.jpg

Per-unit System for 3- Transformer

Three 25-kVA, 34500/277-V transformers connected in -Y. Short-circuit test on high voltage side:

Determine the per-unit equivalent circuit of the transformer.


Per unit system for 3 transformer28 l.jpg

Per-unit System for 3- Transformer

(a) Using Y-equivalent


Per unit system for 3 transformer29 l.jpg

Per-unit System for 3- Transformer

So


Per unit system for 3 transformer30 l.jpg

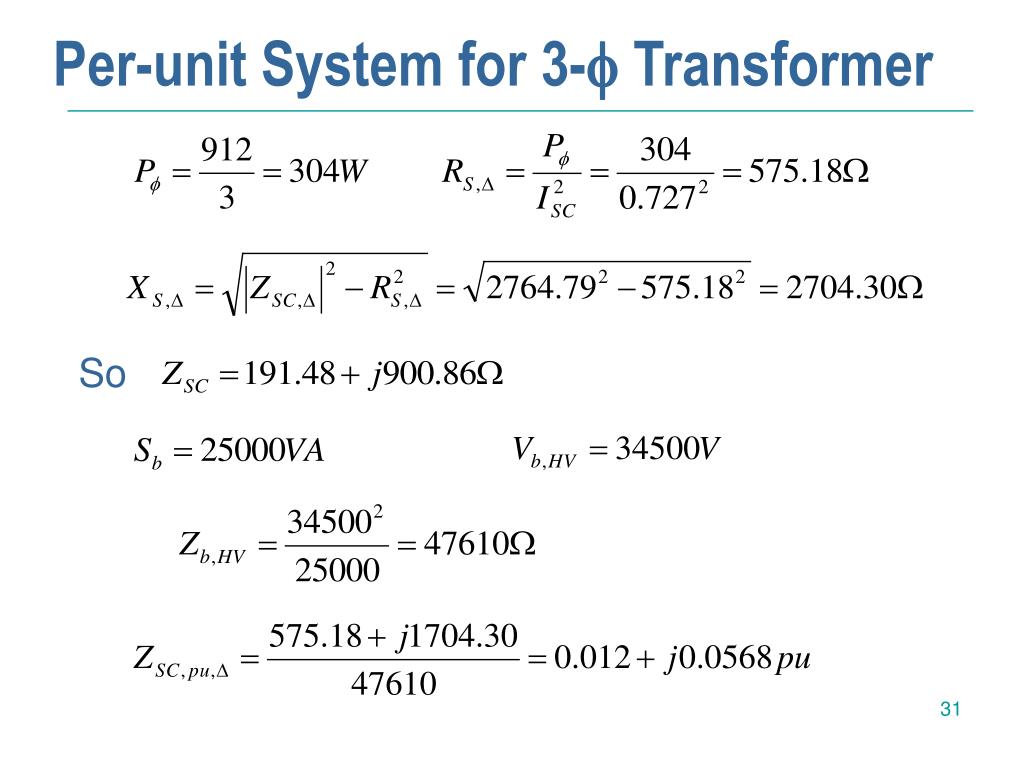

Per-unit System for 3- Transformer

(b) Using -equivalent


Per unit system for 3 transformer31 l.jpg

Per-unit System for 3- Transformer

So


Related materials in textbook l.jpg

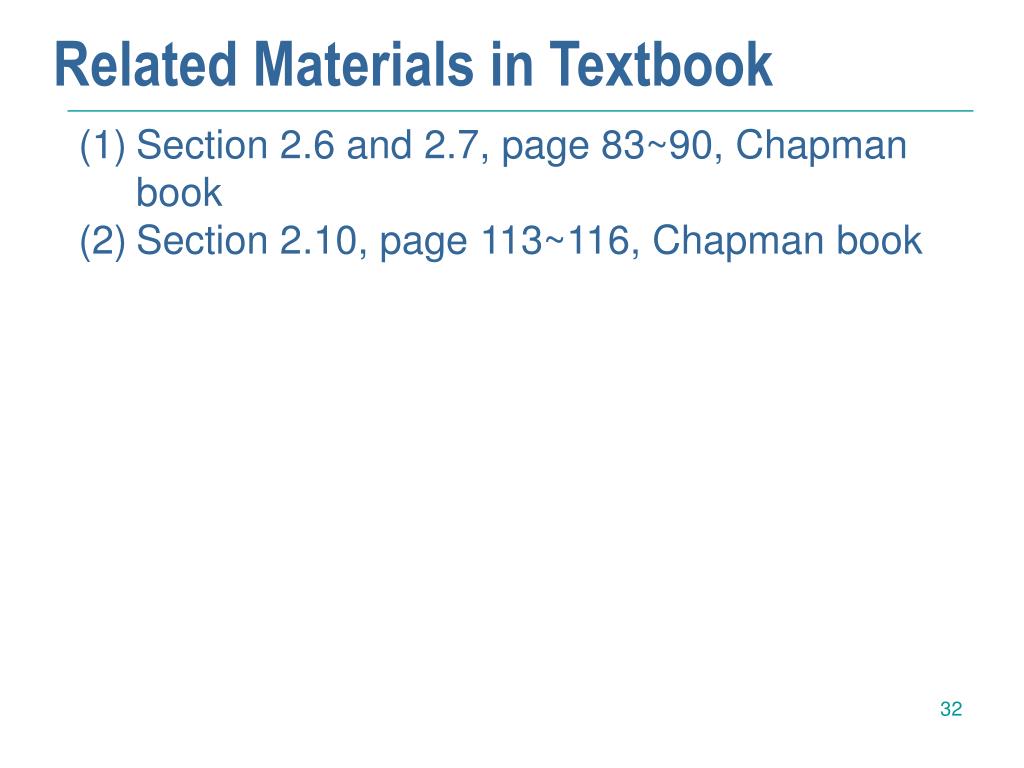

Related Materials in Textbook

  • Section 2.6 and 2.7, page 83~90, Chapman book

  • Section 2.10, page 113~116, Chapman book
