Latex

LaTeX

周志遠

陳韋名


Outline

Outline

  • Introduction

  • Compile

  • Basic use

  • Article structure

  • Form

  • Graph processing

  • Math mode


Introduction

Introduction

  • TeX system : Created by Donald E. Knuth

  • Purpose : For typesetting

  • LaTeX : a macro for TeX (by Leslie Lamport)

  • The applications on different system

    • Unix : teTeX

    • Windows : MiKTeX, fpTeX

    • Mac : iTeXmac


Setup

Setup

  • MiKTeX

  • Texmaker

  • Jabref

  • http://yenlung.math.nccu.edu.tw/~site/drupal-5.1/idisk/installLaTeX.pdf


Compile

Compile

  • latex paper.tex

  • bibtex paper.tex

  • latex paper.tex

  • latex paper.tex (make a .dvi file)

  • dvips paper.dvi -o paper.ps (make a .ps file)

  • ps2pdf paper.ps paper.pdf (make a .pdf file)


Compile1

Compile


Latex

.bib


Jabref

Jabref


Basic use

Basic use

  • 1. % (Comment)

    • Example : It's easy to learn LaTeX. %(Of course not)

  • 2. Quotation marks

    • Example : It's 'wrong' and it's `right'.

    • Example : It's "wrong" and it's ``right''.


Basic use1

Basic use

  • 3. Ellipsis

    • Example : It's difficult... so difficult\ldots\

  • 4. Dash

    • Example : one-dash, two--dash, three---dash


Basic use2

Basic use

  • 5. Line and Page Breaking


Article structure

Article structure

  • Structure

    \documentclass{article}

    <preamble>

    \begin{document}

    <article>

    \end{document}

  • Preamble region :

    • macro, package

    • Some instruction (\linespread)


Article structure1

Article structure

  • Structure

  • Footnote

    • \footnote{}

    • ABC\footnote{abc}


Latex

Form

  • tabbing

    \begin{tabbing}

    column1 \= column2 \= column3 \\

    item1 \> item2 \> item3 \\

    itemA \> itemB \> itemC

    \end{tabbing}

  • tabular

    \begin{tabular}{||c|c|c||}

    \hline

    column1 & column2 & column3 \\

    \hline

    item1 & item2 & item3 \\

    itemA & itemB & itemC \\

    \hline

    \end{tabular}


Latex

Form

  • \documentclass{article}

  • \usepackage{textcomp}

  • \renewcommand{\arraystretch}{1.2}

  • \tabcolsep=12pt

  • \begin{document}

  • \centering

  • \section*{SPECIFIC HEATS (20 \textcelsius\ AND 1 ATM)}

  • \begin{tabular}{@{\sf }lll@{}}

  • \hline

  • & \multicolumn{2}{c}{\bf Specific Heats} \\

  • \cline{2-3}

  • & $c$ (J/kg$\cdot$K) & $C$ (J/mol$\cdot$K) \\

  • \hline Aluminum & 900 & 24.3 \\

  • Copper & 385 & 24.4 \\

  • Gold & 130 & 25.6 \\

  • Steel/Iron & 450 & 25.0 \\

  • Lead & 130 & 26.8 \\

  • Mercury & 140 & 28.0 \\

  • Water & 4190 & 75.4 \\

  • Ice ($-$10 \textcelsius) & 2100 & 38 \\

  • \hline

  • \end{tabular}

  • \end{document}


Graph processing

Graph processing

  • Draw an easy graph

    \documentclass{article}

    \usepackage{epic}

    \begin{document}

    \unitlength=1mm

    \begin{picture}(80, 60)

    \multiput(30, 0)(5, 5){11}{\line(-1, 1){50}}

    \multiput(30, 0)(-5, 5){11}{\line(1, 1){50}}

    \end{picture}

    \end{document}


Graph processing1

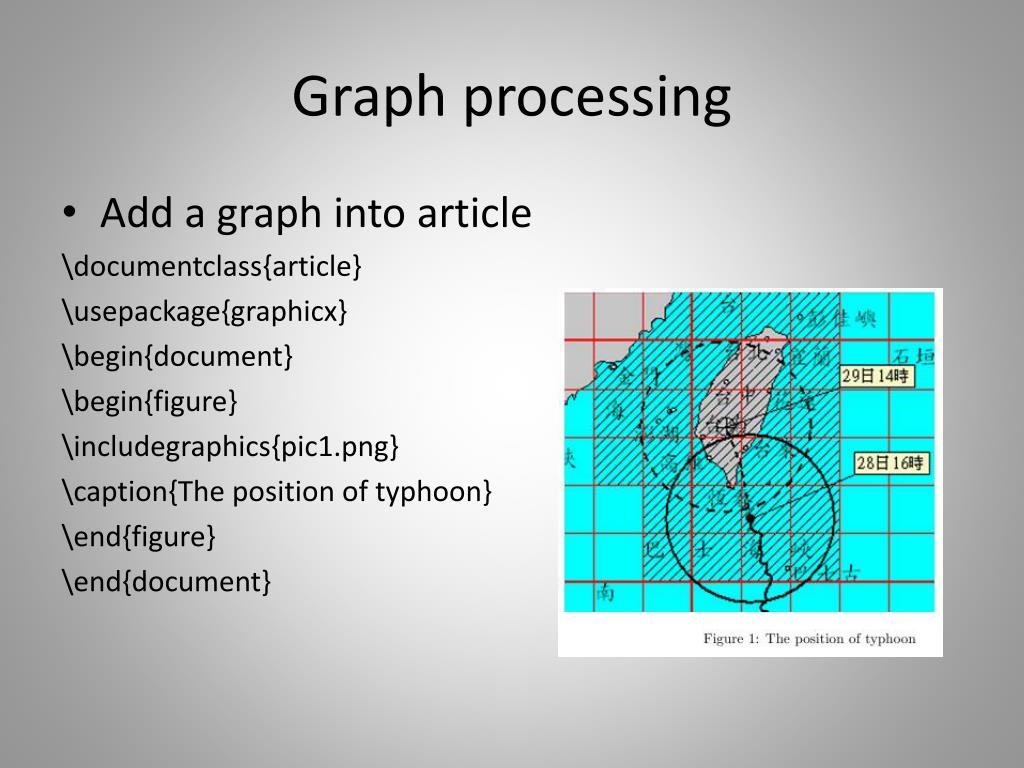

Graph processing

  • Add a graph into article

    \documentclass{article}

    \usepackage{graphicx}

    \begin{document}

    \begin{figure}

    \includegraphics{pic1.png}

    \caption{The position of typhoon}

    \end{figure}

    \end{document}


Math mode

Math mode

  • $ : Into/Leave the math mode

  • ^ : Superscript

  • _ : Subscript

  • {} : The range of effect region

  • math inline mode :

    • \begin{math} 1111 \end{math} or \(1111 \)

  • math display mode

    • \begin{displaymath} 1111 \end{displaymath}

    • or \[ 1111 \]


Math mode1

Math mode

  • $a^{b^{c^{d^{e_{f_{g_{h_{i}}}}}}}}c$

  • $f(x)=2x+3$

  • f(x)=2x+3

  • $\log(xy)=\log(x)+\log(y)$


Math mode2

Math mode

  • \frac (fraction)

  • (2x+3y)/(3x-2y) => $\frac{2x+3y}{3x-2y}$

  • \sqrt (sqrt)

  • sqrt(x+y+z-2) => $\sqrt[3]{x+y+z-2}$


Math mode3

Math mode

  • Integral

  • $L(s)=\int^2_1{x^2}dx$

  • Limit

  • $\lim_{x\rightarrow \infty} {\frac{2x+6}{x-3}}$

  • Module

  • $x \equiv 2 \pmod 3$
