1 / 45

金屬閘極與絕緣層上鍺 晶圓製程 Metal Gate and Ge on Insulator Process

金屬閘極與絕緣層上鍺 晶圓製程 Metal Gate and Ge on Insulator Process. 指導教授:劉致為 博士 學生:李呈峻 臺灣大學電子工程學研究所. Outline. Introduction The Electrical Characteristics of Tantalum Nitride Metal Gate Ge-on-Insulator Substrates Formation by Wafer Bonding and Layer Transfer

slade
Download Presentation

金屬閘極與絕緣層上鍺 晶圓製程 Metal Gate and Ge on Insulator Process

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 金屬閘極與絕緣層上鍺晶圓製程 Metal Gate and Ge on Insulator Process 指導教授:劉致為 博士 學生:李呈峻 臺灣大學電子工程學研究所

  2. Outline • Introduction • The Electrical Characteristics of Tantalum Nitride Metal Gate • Ge-on-Insulator Substrates Formation by Wafer Bonding and Layer Transfer • A Novel 850 nm, 1.3μm and 1.5μm GOI MOS Photodetector for Optical Communication • Summary

  3. Intern’l Technology Roadmap for Semiconductors-- ITRS

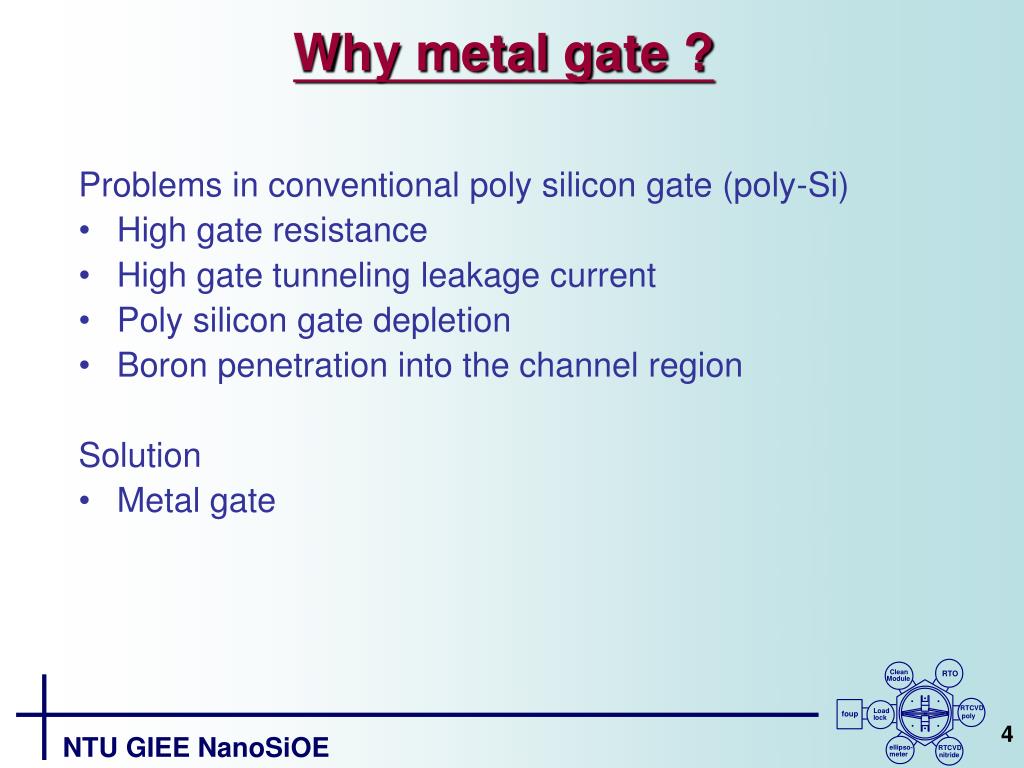

  4. Problems in conventional poly silicon gate (poly-Si) High gate resistance High gate tunneling leakage current Poly silicon gate depletion Boron penetration into the channel region Solution Metal gate Why metal gate ?

  5. Pure Metal Work Functions • The work-function with various pure metals. • The band gap of silicon that between the conduction band (Ec) and valence band (Ev) is 1.12eV at room temperature.

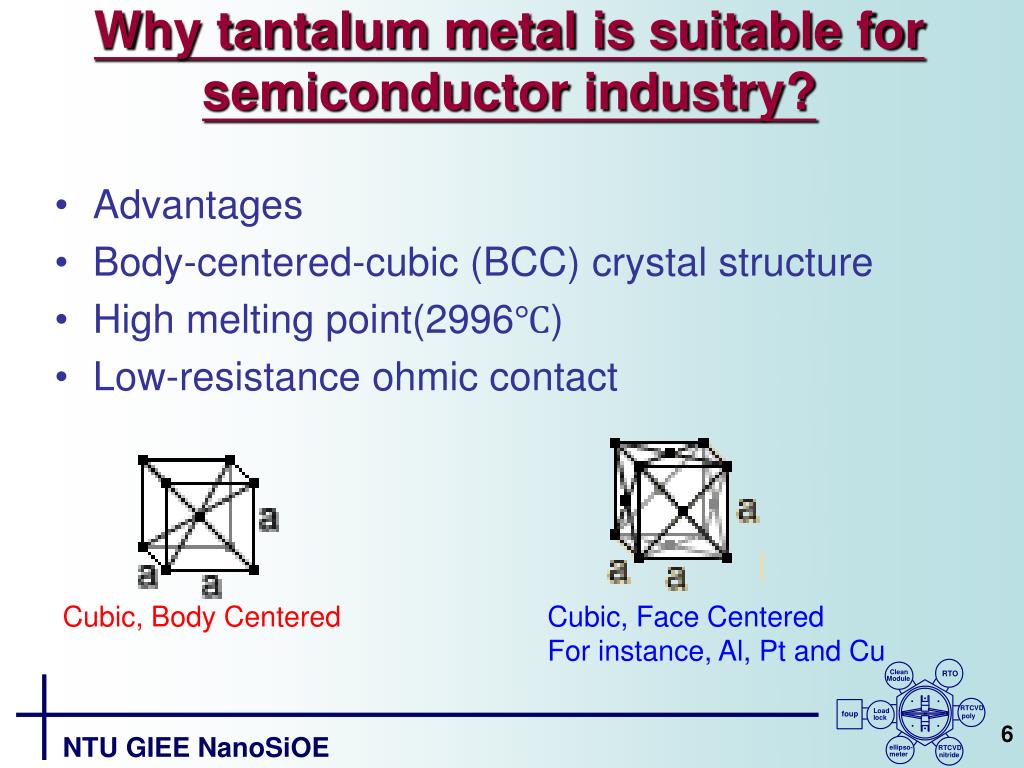

  6. Why tantalum metal is suitable for semiconductor industry? • Advantages • Body-centered-cubic (BCC) crystal structure • High melting point(2996℃) • Low-resistance ohmic contact Cubic, Body Centered Cubic, Face Centered For instance, Al, Pt and Cu

  7. Outline • Introduction • The Electrical Characteristics of Tantalum Nitride Metal Gate • Ge-on-Insulator Substrates Formation by Wafer Bonding and Layer Transfer • A Novel 850nm, 1.3μm, and 1.5μm GOI MOS Photodetector for Optical Communication • Summary

  8. Alloy Work Functions

  9. Experiment Process Flow

  10. C-V Curves of TaN with PMA 400℃ Before N2 Annealing After N2 Annealing • After PMA 5minutes in 400℃, the interface traps of TaN gate device • are significantly reduced by heat treatment.

  11. Calculation of Flat-Band Voltage Cfb Vfb Cox , Vg, A as known Vfb Here LD was the Debye length defined

  12. Flat-Band Voltages Versus Silicon Dioxide Thickness

  13. Flat-Band Voltages Versus Nitrogen Flow Ratio • The VFB converge to a specific value (i.e. -0.42V) • when the N2 flow rate is upto abut twenty.

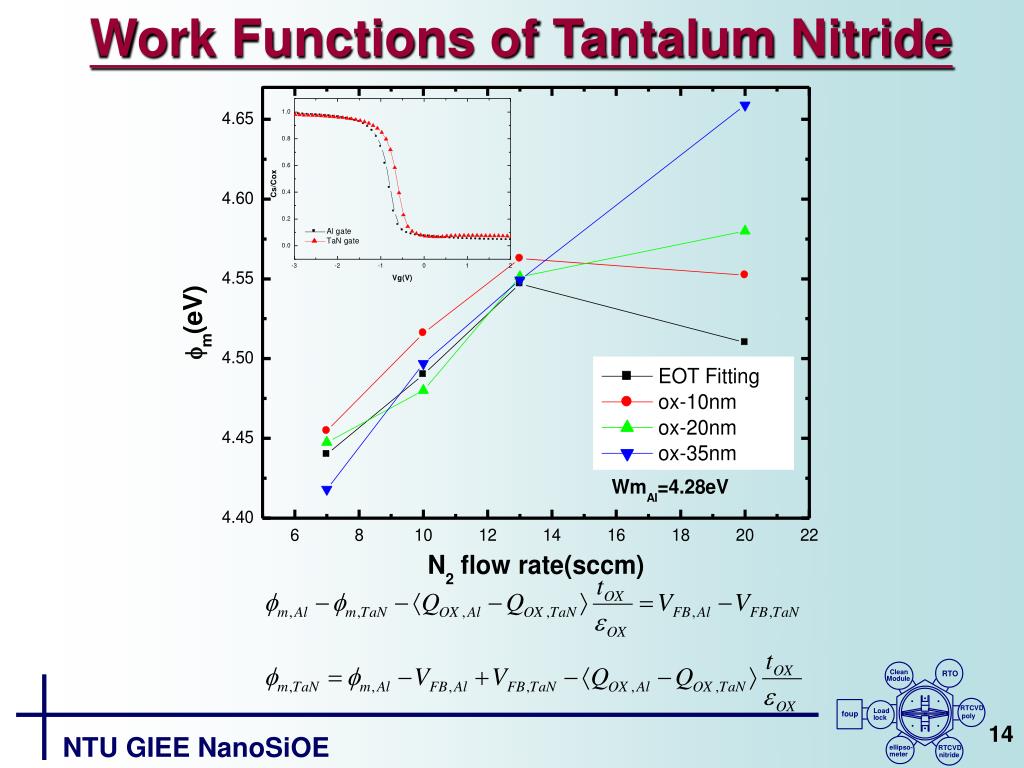

  14. Work Functions of Tantalum Nitride

  15. The C-V Curves Dispersion After PMA 900℃ 20sec • After PMA 900C 20sec, the Cox of TaN gate devices continues • to decrease as nitrogen flow ratio.

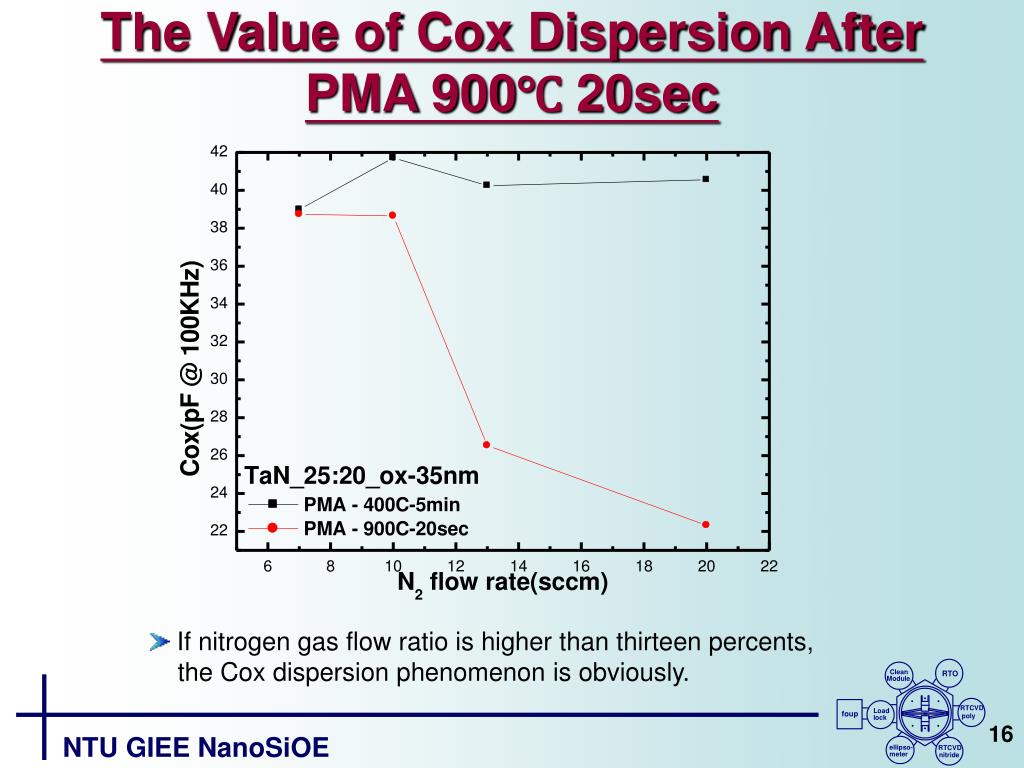

  16. The Value of Cox Dispersion After PMA 900℃ 20sec • If nitrogen gas flow ratio is higher than thirteen percents, • the Cox dispersion phenomenon is obviously.

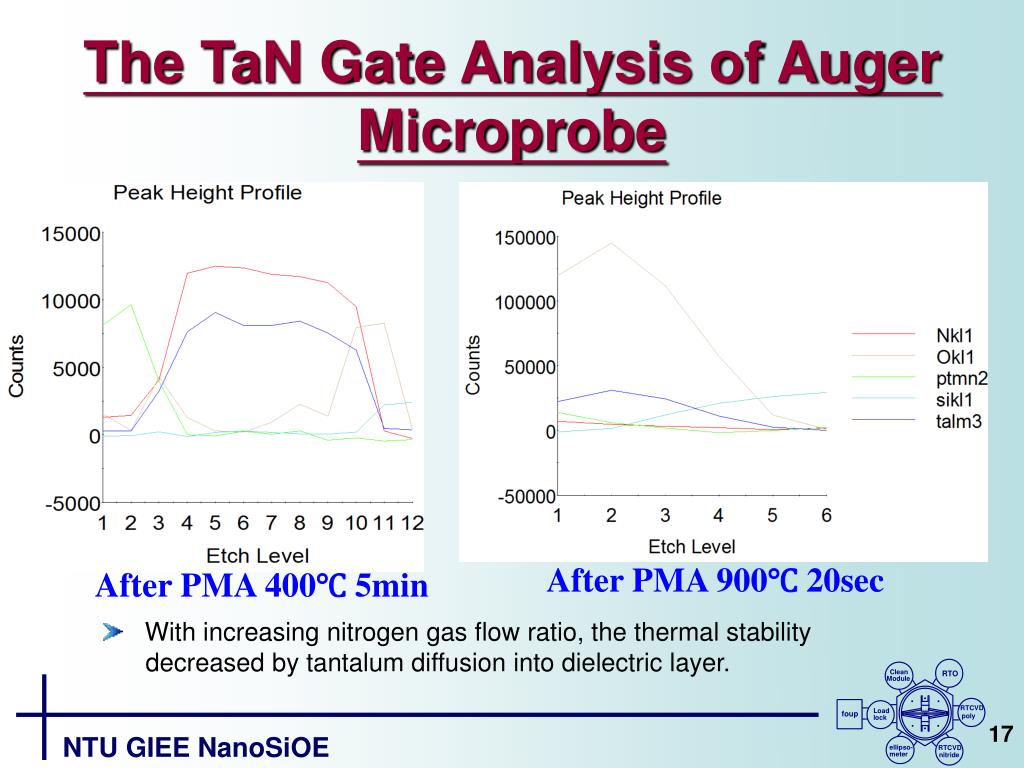

  17. The TaN Gate Analysis of Auger Microprobe After PMA 900℃ 20sec After PMA 400℃ 5min • With increasing nitrogen gas flow ratio, the thermal stability • decreased by tantalum diffusion into dielectric layer.

  18. Outline • Introduction • The Electrical Characteristics of Tantalum Nitride Metal Gate • Ge-on-Insulator Substrates Formation by Wafer Bonding and Layer Transfer • A Novel 850nm, 1.3μm, and 1.5μm GOI MOS Photodetector for Optical Communication • Summary

  19. Roadmap for GOI Process

  20. Direct Wafer Bonding • Megasonic acoustic cleaning • KOH cleaning • KOH:H20 • DI water rinse • Hydrophilic surface (OH-) • SC1 cleaning • NH4OH:H2O2:H2O • DI water rinse • Hydrophilic surface (OH-) • Pre-bonding • Alignment • Form a single bonding wave • High temperature treatment • 6500C, O2, 30min • Strength the chemical bonds

  21. GOI Wafer Formation Wafer Bonding Without Smart-cut Ge BPSG Si • The scanning electron microscopy (SEM) picture of a Ge wafer • bonds to another Si wafer capped with 600 nm BPSG.

  22. 650℃ The hydrogen-induced exfoliation of Germanium • Formation of point defect in the lower concentration of hydrogen implant. • Rearrangement of the defect structure above 650℃. • H2 trap in the microvoids. • Development of these microvoids into cracks leading to complete layer transfer.

  23. GOI Smart Cut Process Flow • Ion Implant (Hydrogen Dose 1E17) • Megasonic acoustic cleaning • Direct Wafer Bonding KOH Cleaning SC1 Cleaning Pre-bonding • H Induced Layer Transfer • High temperature treatment • (650℃ 30min in Oxygen gas) • Surface Roughness Reduction • High temperature annealing • (825℃ 60min in hydrogen gas)

  24. Ion Implantation Depth • The hydrogen implant depth in Ge vs. implant energy. • The longitudinal Straggle in Ge vs. implant energy.

  25. TRIM Simulation • The concentration profile of hydrogen atoms is simulated by TRIM. • The hydrogen implant into germanium with 200KeV implant energy.

  26. SEM of GOI After Smart Cut Process rough Ge BPSG Si • The surface of GOI substrate is rough after smart cut process. • The thin germanium layer (i.e. 1.46μm) transfers upon BPSG.

  27. Microroughness Measurement After Smart-cut With Annealing in F. G. No Annealing After GOI annealed in furnace 825℃ with forming gas , GOI surface roughness reduced to RMS~27nm. GOI surface Roughness-mean-square(RMS)~97nm.

  28. Microroughness Measurement After Smart-cut With Annealing in N2 With Annealing in H2 After GOI annealed in furnace 825 ℃ with N2 gas , GOI surface roughness reduced to RMS~62nm. After GOI annealed in RTP 825 ℃ with H2 gas , GOI surface roughness reduced to RMS~43nm.

  29. GOI Surface Roughness Reduction • Surface microroughness of Ge-on-insulator with different kind of gas, • for an hour annealing at 825℃ in furnace.

  30. Outline • Introduction • The Electrical Characteristics of Tantalum Nitride Metal Gate • Ge-on-Insulator Substrates Formation by Wafer Bonding and Layer Transfer • A Novel 850 nm, 1.3μm and 1.5μm GOI MOS Photodetector for Optical Communication • Summary

  31. Roadmap for GOI Photodetector

  32. GOI Smart Cut at Low Temperature Splitting Annealing • Ion Implant (Hydrogen Dose 1E17) • Megasonic acoustic cleaning • Direct Wafer Bonding KOH Cleaning SC1 Cleaning Pre-bonding • H Induced Layer Transfer • Low temperature splitting annealing • (150℃ 12hr in 10% Oxygen gas)

  33. Ge 800nm 80nm SiO2 Si Low Temperature Splitting Annealing • After splitting, the microroughness of Ge-on-insulator substrate. • The cross-section SEM image of Ge-on-insulator substrate. After low temperature splitting annealing 150℃ with N2 gas , GOI surface roughness is around 6.6nm (r.m.s). After splitting annealing, the germanium layer thickness is 800nm.

  34. Current Reduction by Metal Technique Device Area = 3x10-4 (cm2) Pt is good selection for Ge N(100).

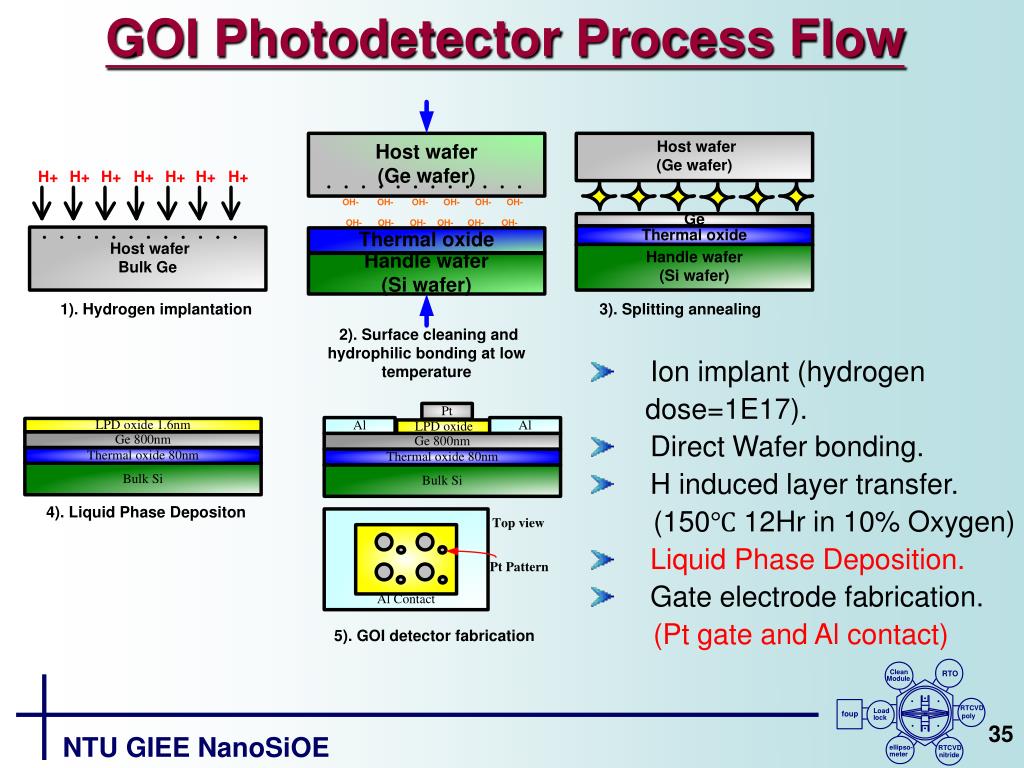

  35. GOI Photodetector Process Flow • Ion implant (hydrogen dose=1E17). • Direct Wafer bonding. • H induced layer transfer. (150℃ 12Hr in 10% Oxygen) • Liquid Phase Deposition. • Gate electrode fabrication. (Pt gate and Al contact)

  36. LPD Pt Ge 800nm Thermal oxide 80nm Si GOI Photodetector Formation • The cross-section TEM image of Ge-on-insulator PMOS devices.

  37. Photocurrent Under 850nm Light Source • The dark and photocurrent of the GOI PMOS detector exposures • to 850nm lightwave with different light intensity. Responsivity = 0.2 (A/W) Bulk Ge MOS detector Responsivity = 0.2 ~ 0.3 (A/W) GOI PMOS Photodetector

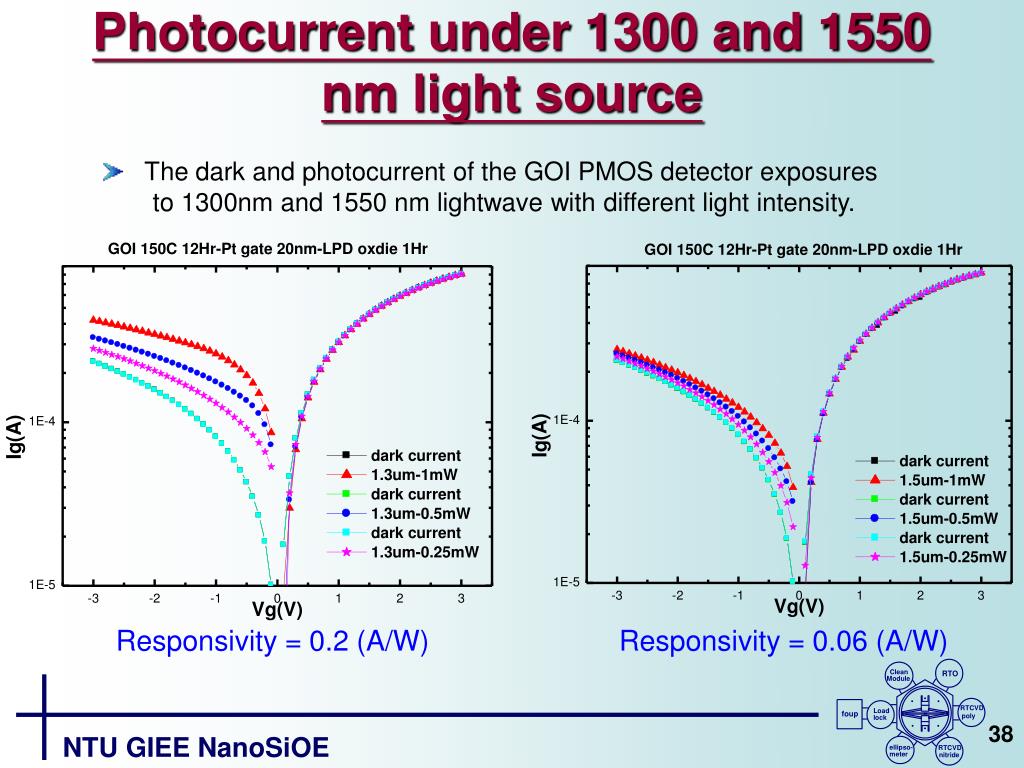

  38. Photocurrent under 1300 and 1550 nm light source • The dark and photocurrent of the GOI PMOS detector exposures • to 1300nm and 1550 nm lightwave with different light intensity. Responsivity = 0.2 (A/W) Responsivity = 0.06 (A/W)

  39. Responsivity and Efficiency • The responsivity of GOI PMOS detector exposures to 850nm, 1.3μm, and 1.5μm • lightwave with different light intensity. • The quantum efficiency (η)of the GOI photodetectors versus power under different • lasers exposure.

  40. Impulse Response Bulk Ge Detector • The Full-Width Half-Maximum (FWHM) is 722 ps for the typical Ge MOS detector • under 850nm pulse measurement. • After fast fourier transform (FFT), the -3 dB bandwidth can be obtained about • 340 MHz.

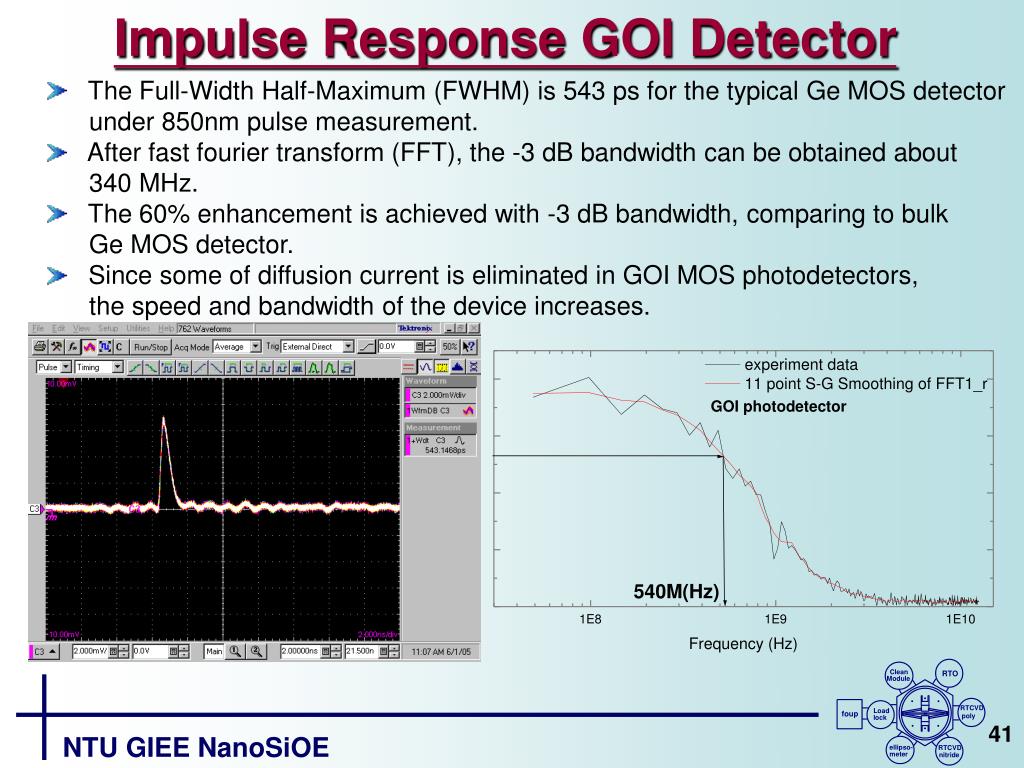

  41. Impulse Response GOI Detector • The Full-Width Half-Maximum (FWHM) is 543 ps for the typical Ge MOS detector • under 850nm pulse measurement. • After fast fourier transform (FFT), the -3 dB bandwidth can be obtained about • 340 MHz. • The 60% enhancement is achieved with -3 dB bandwidth, comparing to bulk • Ge MOS detector. • Since some of diffusion current is eliminated in GOI MOS photodetectors, • the speed and bandwidth of the device increases.

  42. Outline • Introduction • The Electrical Characteristics of Tantalum Nitride Metal Gate • Ge-on-Insulator Substrates Formation by Wafer Bonding and Layer Transfer • A Novel 850nm, 1.3μm, and 1.5μm GOI MOS Photodetector for Optical Communication • Summary

  43. Summary • Tantalum Nitride Metal Gate • In experiment, we obtained that the oxide charges are positive in TEOS and the flat-band voltages concentrated -0.42V at twenty percents nitrogen flow ratio. • With increasing nitrogen gas flow ratio, the thermal stability decreased by tantalum diffusion into dielectric layer. • If nitrogen gas flow ratio is higher than thirteen percents, the tantalum diffusion phenomenon is obviously. • Ge-on-Insulator substrates Formation • The GOI surface roughness is reduced by thermal rapid annealing with hydrogen gas in furnace. • The bonding condition of low temperature heat treatment is at 150℃ with 10% oxygen flow in furnace.

  44. Summary • GOI MOS Photodetector • The leakage current is decreased at inversion bias by platinum gate electrode. • The novel GOI PMOS photodetectors have high responsivity (0.3 A/W) and high quantum efficiency of 40% at 850nm (0.25mW). • The 60% enhancement is achieved with -3 dB bandwidth, comparing to bulk Ge MOS detector.

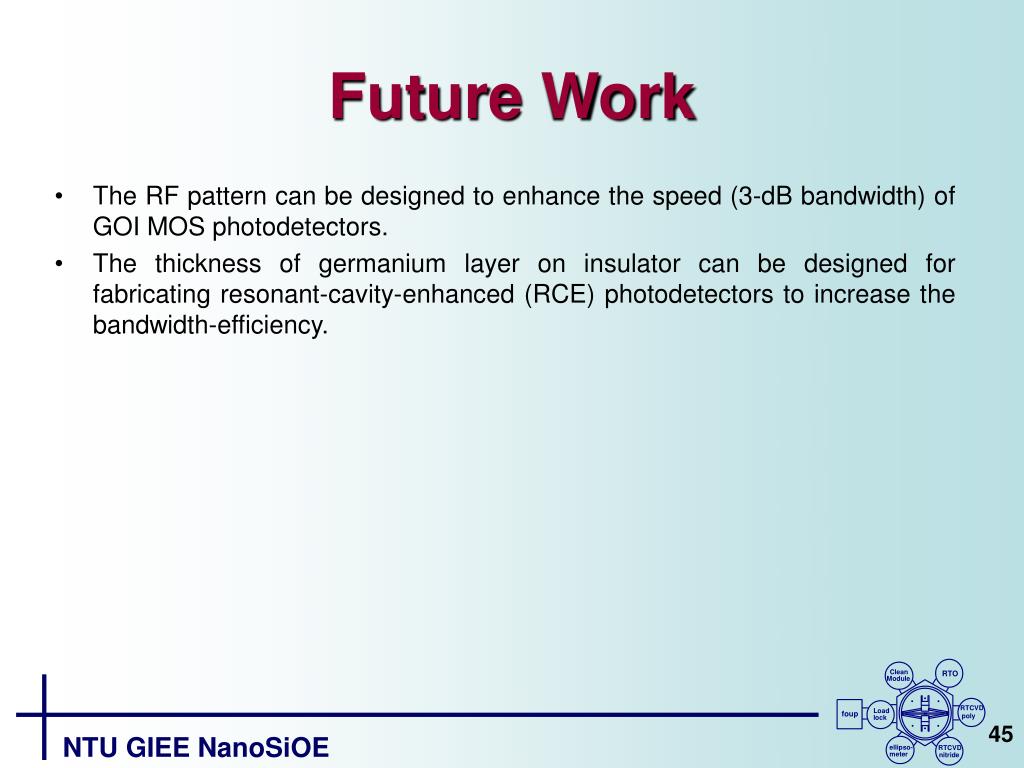

  45. Future Work • The RF pattern can be designed to enhance the speed (3-dB bandwidth) of GOI MOS photodetectors. • The thickness of germanium layer on insulator can be designed for fabricating resonant-cavity-enhanced (RCE) photodetectors to increase the bandwidth-efficiency.

More Related
