  1. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 • Mapping from CH-STRADA data to EuroRoads • & some more examples using INTERLIS • Material and tools • CSL-Workshop EuroRoadS model • Subset of Swiss road model STRADA (Canton Zug) in Intergraph/Geomedia • Thematic information out of STRADA/DB2: unfortunately received to late due to access rights • GeomediaPro (MSAccess), ArcGIS, Topobase (Oracle) with INTERLIS-interfaces • INTERLIS-Toolbox • UML/ili-Editor* • Compiler* • jEdit* • ili-Conversion-System ICS & Checker** • ili-Viewer** • INTERLIS-tools available • as *freeware (see www.interlis.ch ) • or **test-versions (see www.infogrips.ch / www.geocom.ch ) • The 3-level architecture of the „CSL & mapping “-issue • Conceptual, logical & physical level -> Level-interoperability with UML & INTERLIS

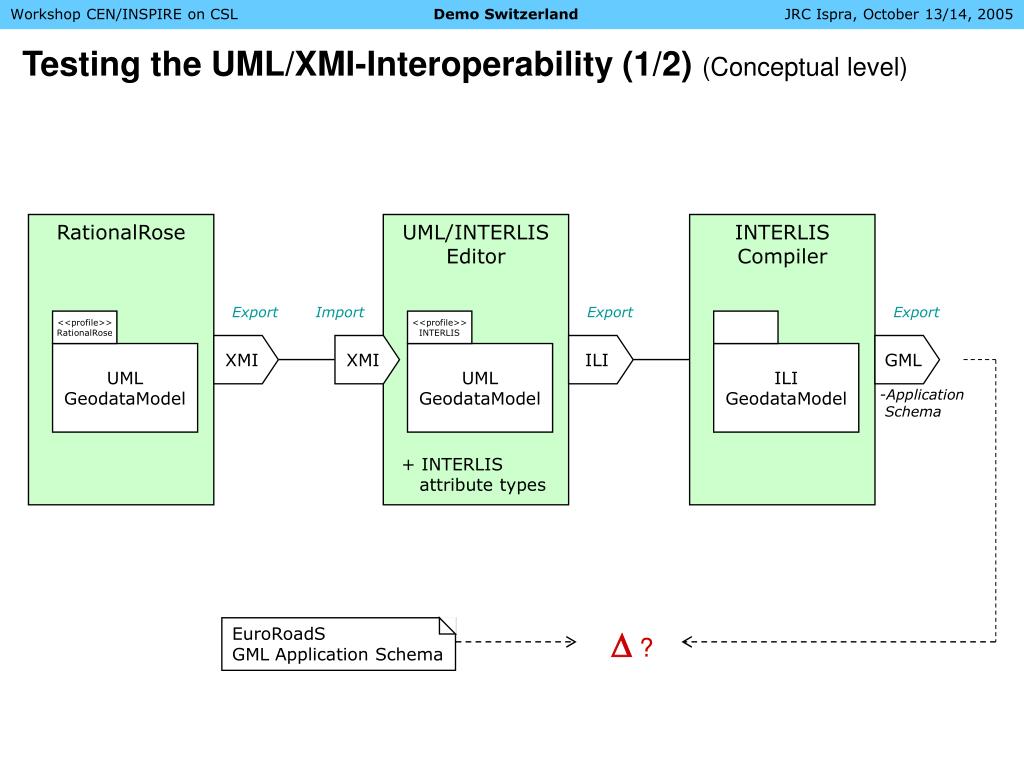

  2. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 RationalRose UML/INTERLIS Editor INTERLIS Compiler Export Export <<profile>> RationalRose <<profile>> INTERLIS XMI XMI ILI GML UML GeodataModel UML GeodataModel ILI GeodataModel + INTERLIS attribute types EuroRoadS GML Application Schema D ? Testing the UML/XMI-Interoperability (1/2) (Conceptual level) Export Import • Application • Schema

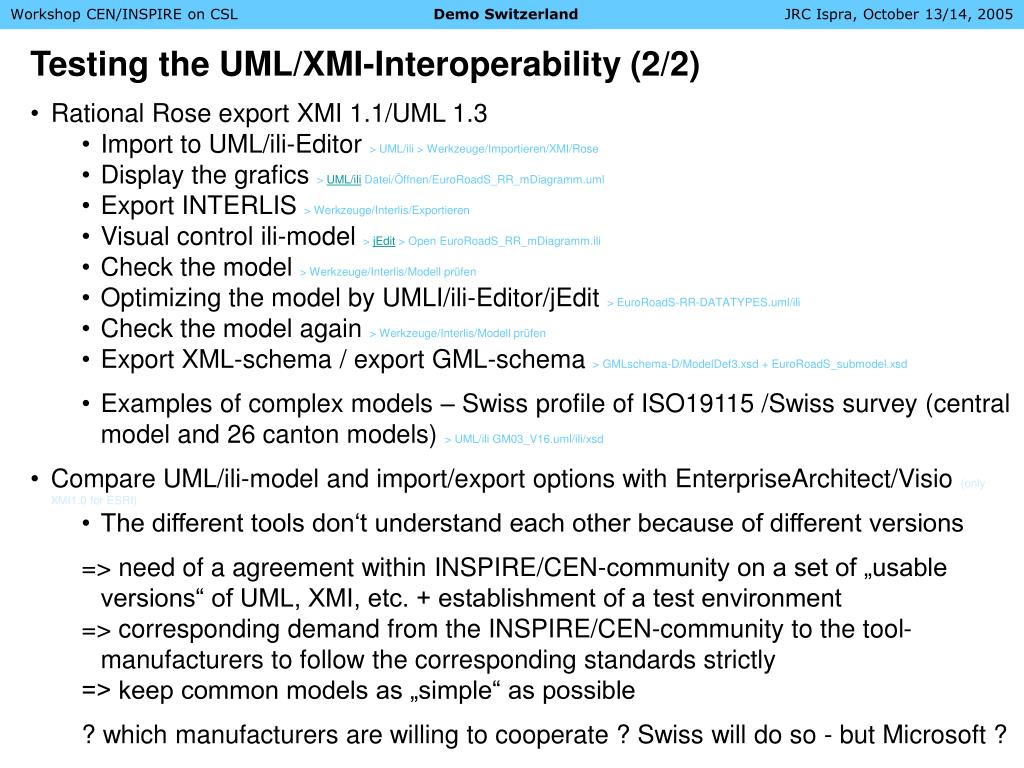

  3. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 • Testing the UML/XMI-Interoperability (2/2) • Rational Rose export XMI 1.1/UML 1.3 • Import to UML/ili-Editor > UML/ili > Werkzeuge/Importieren/XMI/Rose • Display the grafics>UML/iliDatei/Öffnen/EuroRoadS_RR_mDiagramm.uml • Export INTERLIS > Werkzeuge/Interlis/Exportieren • Visual control ili-model >jEdit > Open EuroRoadS_RR_mDiagramm.ili • Check the model > Werkzeuge/Interlis/Modell prüfen • Optimizing the model by UMLI/ili-Editor/jEdit> EuroRoadS-RR-DATATYPES.uml/ili • Check the model again > Werkzeuge/Interlis/Modell prüfen • Export XML-schema / export GML-schema > GMLschema-D/ModelDef3.xsd + EuroRoadS_submodel.xsd • Examples of complex models – Swiss profile of ISO19115 /Swiss survey (central model and 26 canton models) > UML/ili GM03_V16.uml/ili/xsd • Compare UML/ili-model and import/export options with EnterpriseArchitect/Visio (only XMI1.0 for ESRI) • The different tools don‘t understand each other because of different versions • => need of a agreement within INSPIRE/CEN-community on a set of „usable versions“ of UML, XMI, etc. + establishment of a test environment • => corresponding demand from the INSPIRE/CEN-community to the tool-manufacturers to follow the corresponding standards strictly • => keep common models as „simple“ as possible • ? which manufacturers are willing to cooperate ? Swiss will do so - but Microsoft ?

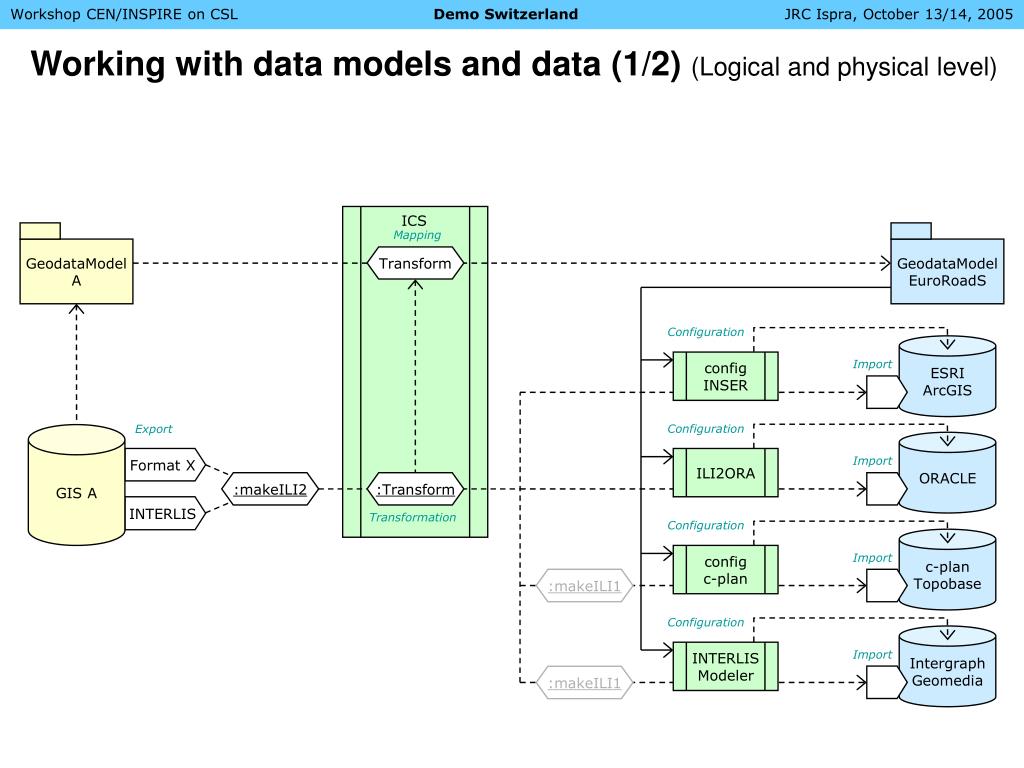

  4. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 ICS Mapping Transform GeodataModel EuroRoadS GeodataModel A Configuration ESRI ArcGIS Import config INSER Configuration Export GIS A ORACLE Format X ILI2ORA Import :makeILI2 :Transform INTERLIS Transformation Configuration c-plan Topobase config c-plan Import :makeILI1 Configuration Intergraph Geomedia INTERLIS Modeler Import :makeILI1 Working with data models and data (1/2) (Logical and physical level)

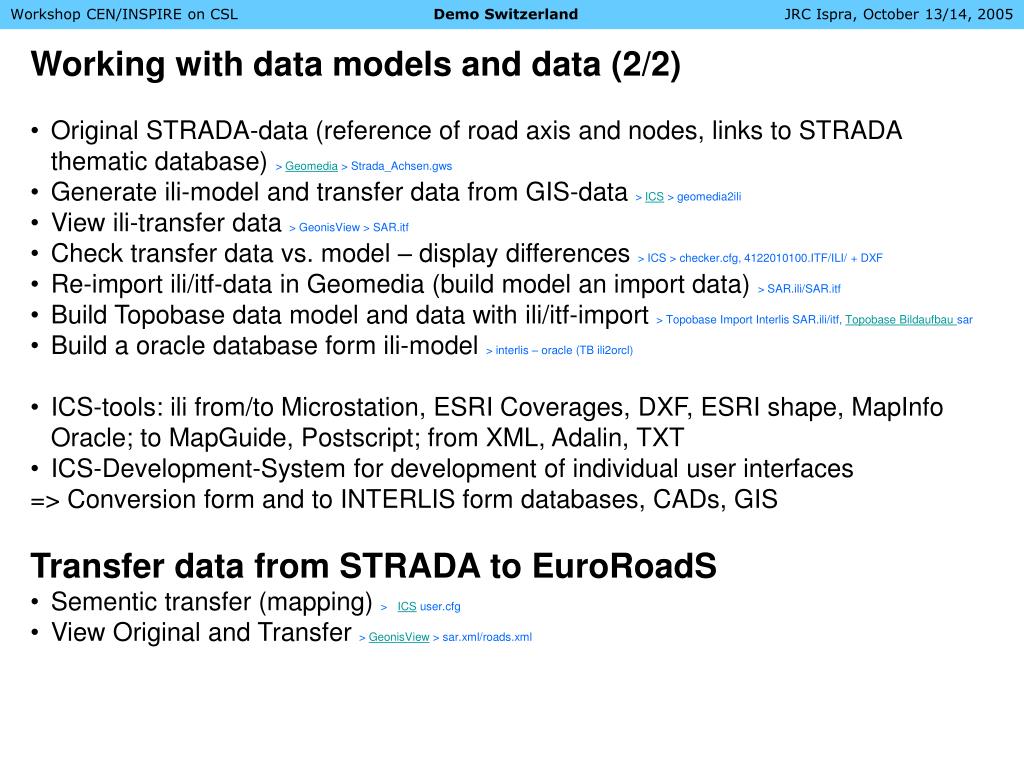

  5. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 • Working with data models and data (2/2) • Original STRADA-data (reference of road axis and nodes, links to STRADA thematic database) >Geomedia> Strada_Achsen.gws • Generate ili-model and transfer data from GIS-data >ICS> geomedia2ili • View ili-transfer data >GeonisView> SAR.itf • Check transfer data vs. model – display differences > ICS > checker.cfg, 4122010100.ITF/ILI/ + DXF • Re-import ili/itf-data in Geomedia (build model an import data) > SAR.ili/SAR.itf • Build Topobase data model and data with ili/itf-import> Topobase Import Interlis SAR.ili/itf, Topobase Bildaufbau sar • Build a oracle database form ili-model > interlis – oracle (TB ili2orcl) • ICS-tools: ili from/to Microstation, ESRI Coverages, DXF, ESRI shape, MapInfo Oracle; to MapGuide, Postscript; from XML, Adalin, TXT • ICS-Development-System for development of individual user interfaces • => Conversion form and to INTERLIS form databases, CADs, GIS • Transfer data from STRADA to EuroRoadS • Sementic transfer (mapping)> ICS user.cfg • View Original and Transfer > GeonisView > sar.xml/roads.xml

  6. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 • Operational portals running with INTERLIS • www.regio-geo.ch daily actual survey data on internet (supports also WMS) • INTERLISQuality check • INTERLISTransfer • INTERLISData model(e.g. survey)

  7. Workshop CEN/INSPIRE on CSL Demo Switzerland JRC Ispra, October 13/14, 2005 • Operational portals running with INTERLIS • www.cadastre2014.ch restrictions on land property and usage by common law
