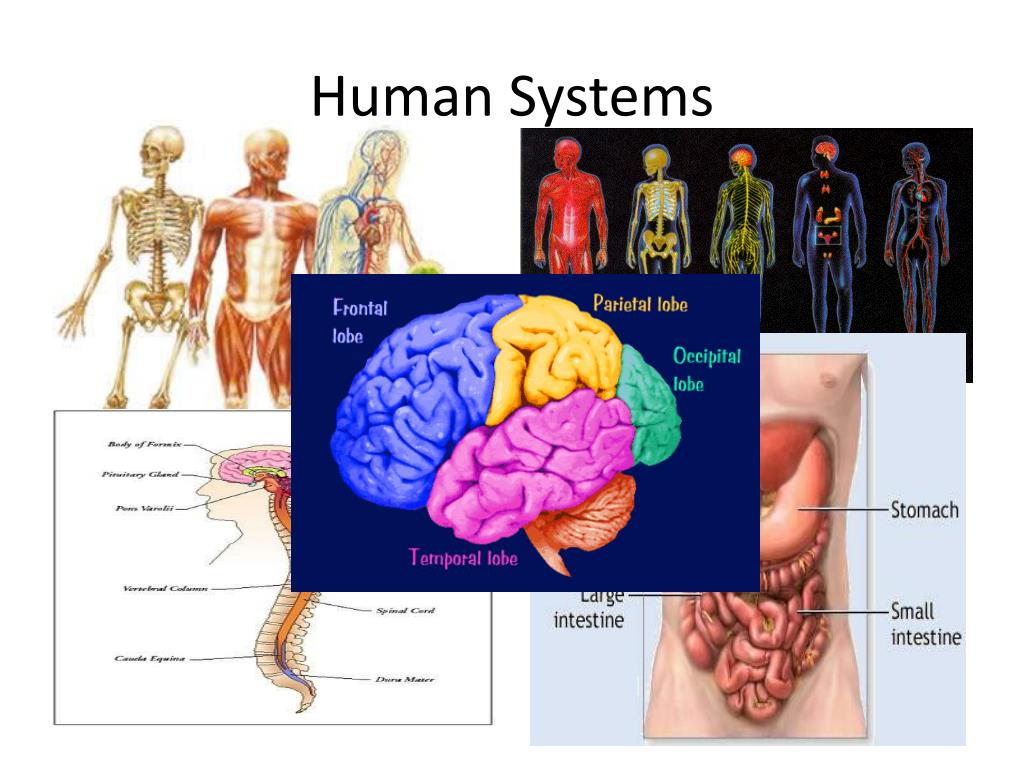

Human systems

Human Systems

Create flow chart graphic organizer

Create Flow Chart Graphic Organizer

Levels of organization

Levels of Organization






Human systems





Main ideas


Copy this diagram in your notebooks.

This is called

Cornell Notes


Human systems


  • Basic unit of structure and function

  • Carries on life functions

  • Organisms are one cell or many cells---Human has over a trillion cells

  • Smallest unit



Are all cells the same?

Unicellular or multicellular

The cell is the basic unit of structure and function in all living things that keeps the organism


Human systems


  • Group of similar cells doing the same job

  • Four types of tissue

  • a. Connective

  • 1. provides support

  • 2. connects all parts of body to each other

  • b. Muscle

  • 1. provides movement

  • 2. contract

  • c. Nerve

  • 1. directs and controls body

  • 2. carries impulses between brain and rest of body

  • d. Epithelial

  • 1. covers surfaces of body—inside and out

  • 2. Protects

  • 3. Releases chemicals


Connective---blood, bone, fat,

tendons, cartilage

Muscle---allows body to move,

moves blood and food

through body

Nerve- - - brain, spinal cord,

senses—hear, smell, think


line digestive system

You write a summary of this slide

Possible Example:

Tissue is the second level of organization. There are four basic types of tissues that do different jobs, connective, muscle, nerve and epithelial.

Human systems


  • 3rd level of organization

  • Example:

  • Heart—pumps blood, Made up of nerve tissue, muscle tissue, connective tissue and epithelial tissue

  • Stomach-churns and mixes food and digestive juices. Made up of smooth muscle tissue, nerve tissue, epithelial tissue


Composed of different tissues working together to perform a specific function.



Write a summary

Possible summary:

The third level of organization is the organ which is composed of different kinds of tissues working together to perform a function.

Human systems

Organ System

  • Fourth level of organization

  • Examples:

  • Circulatory system—heart-artery-vein-capillaries

  • Digestive system-contains organs like esophagus-stomach-small intestine-large intestine

  • Skeletal System-206 different organs (bones) like the femur-patella-cranium-ribs-phalanges

  • Muscular System- over 600 different organs (muscles) like the triceps-biceps-pectorals

  • Nervous System-brain-peripheral nerves-spinal cord

Group of different organs working together to accomplish a specific task

Write your summary

Possible summary:

The fourth level of organization is the organ system. The organ system consists of different organs working together to perform a task. For example, the digestive system is made up of organs like the stomach, small intestine, pancreas etc. that break down food for absorption by the body.

Organ system skeletal system

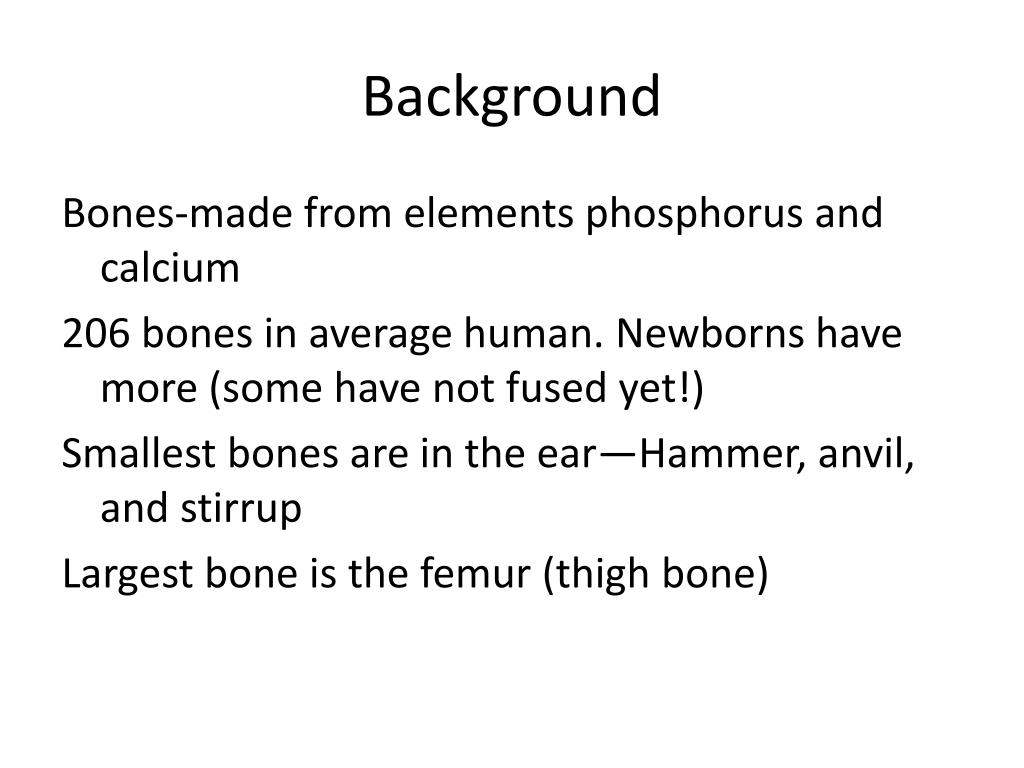

Organ SystemSkeletal System



Bones-made from elements phosphorus and calcium

206 bones in average human. Newborns have more (some have not fused yet!)

Smallest bones are in the ear—Hammer, anvil, and stirrup

Largest bone is the femur (thigh bone)

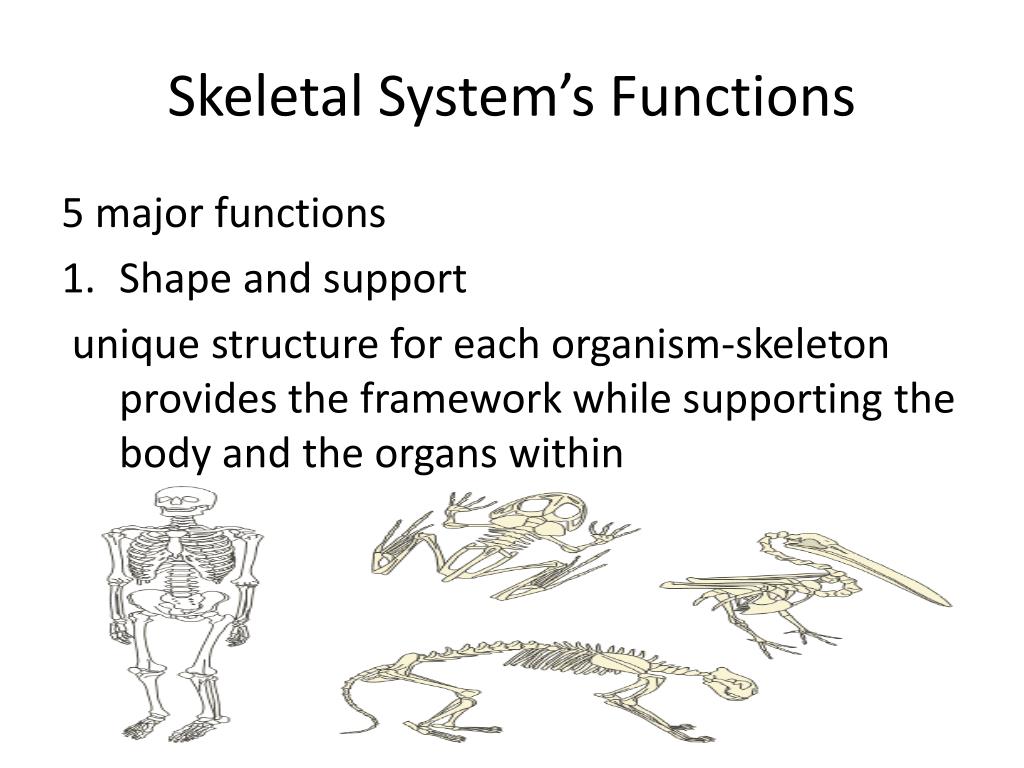

Skeletal system s functions

Skeletal System’s Functions

5 major functions

  • Shape and support

    unique structure for each organism-skeleton provides the framework while supporting the body and the organs within

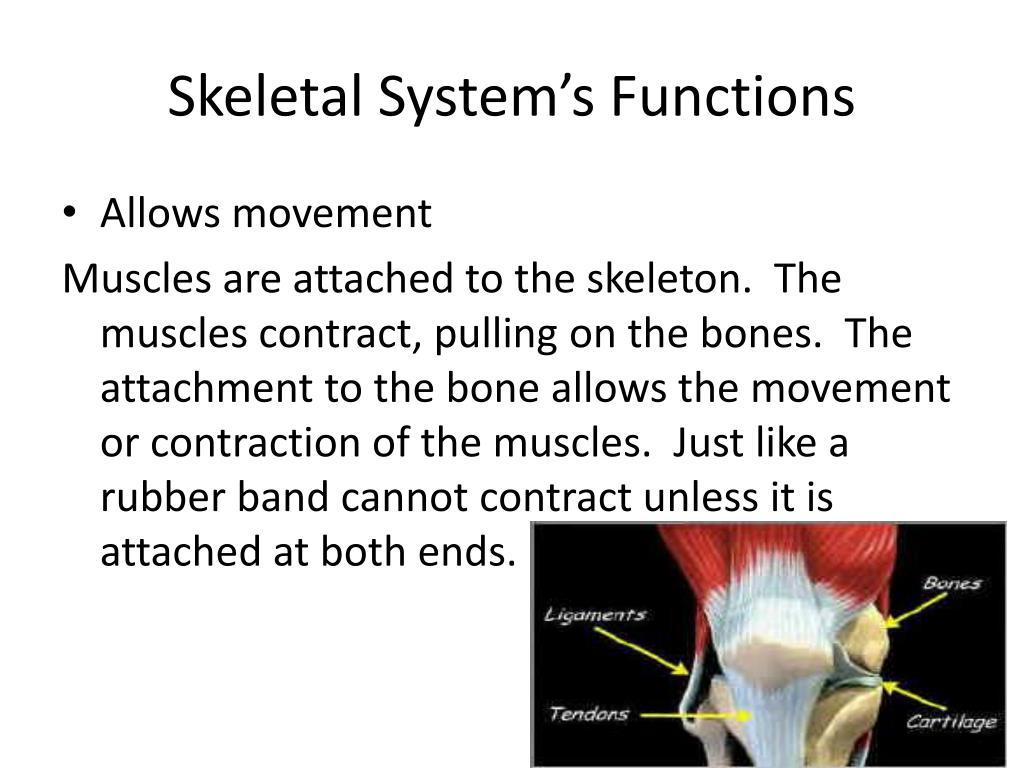

Skeletal system s functions1

Skeletal System’s Functions

  • Allows movement

    Muscles are attached to the skeleton. The muscles contract, pulling on the bones. The attachment to the bone allows the movement or contraction of the muscles. Just like a rubber band cannot contract unless it is attached at both ends.

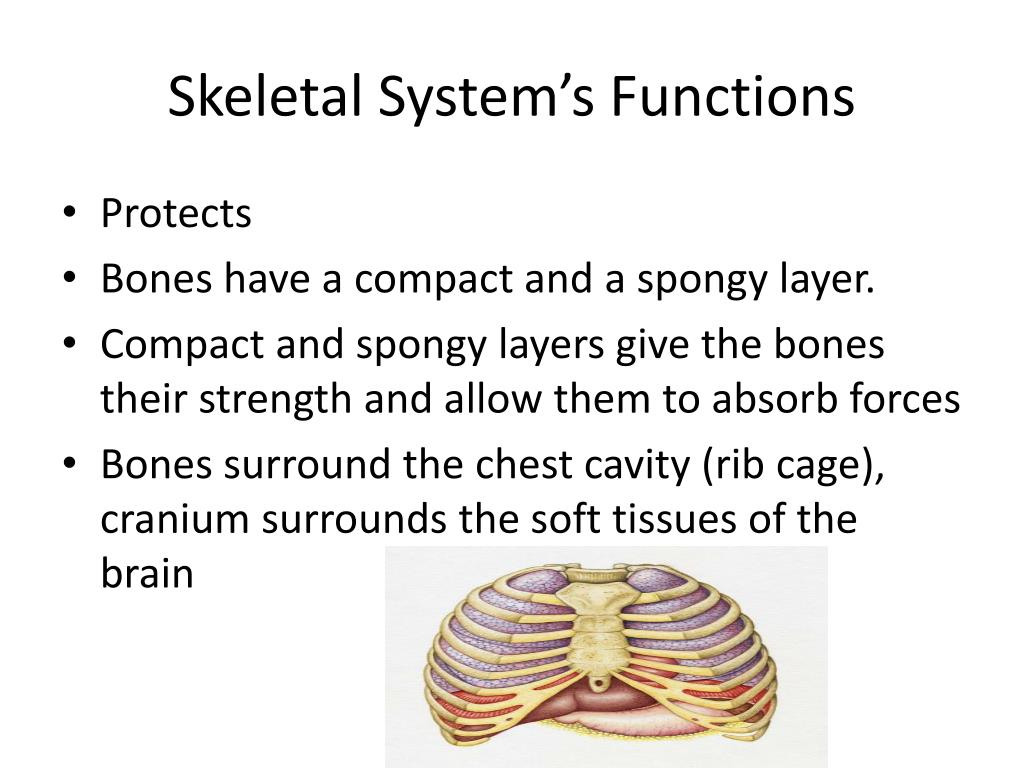

Skeletal system s functions2

Skeletal System’s Functions

  • Protects

  • Bones have a compact and a spongy layer.

  • Compact and spongy layers give the bones their strength and allow them to absorb forces

  • Bones surround the chest cavity (rib cage), cranium surrounds the soft tissues of the brain

Skeletal system s functions3

Skeletal System’s Functions

  • Produces blood cells

  • Certain bones, like the femur, have central layer called red marrow

  • Red marrow produces blood cells for the body

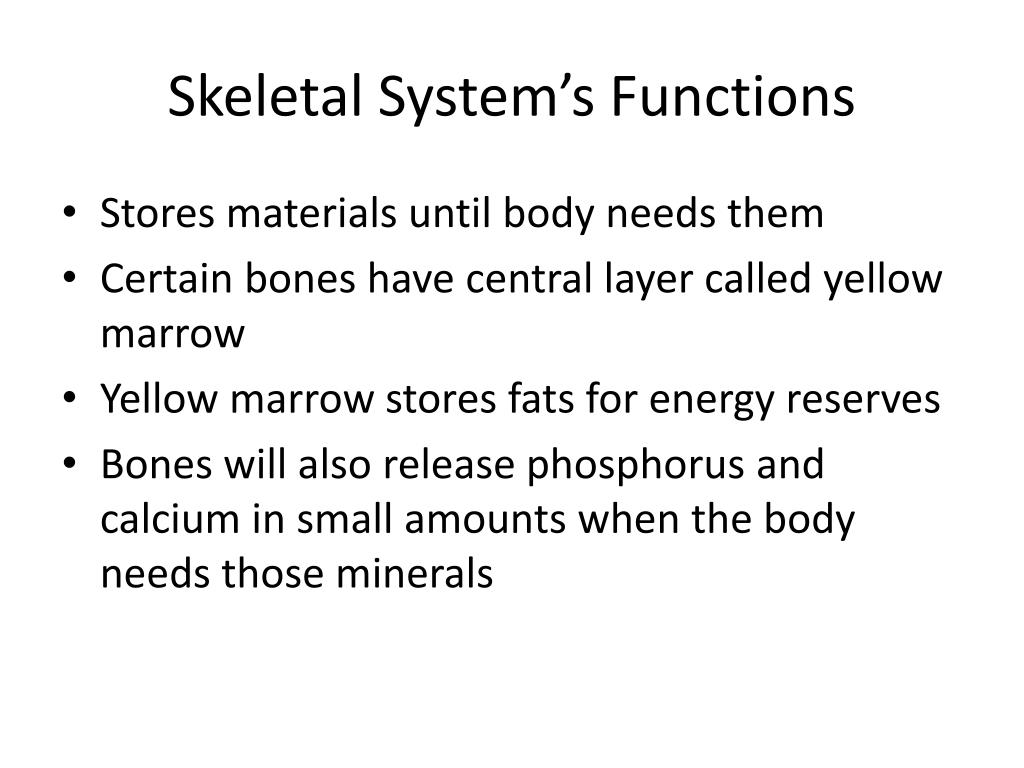

Skeletal system s functions4

Skeletal System’s Functions

  • Stores materials until body needs them

  • Certain bones have central layer called yellow marrow

  • Yellow marrow stores fats for energy reserves

  • Bones will also release phosphorus and calcium in small amounts when the body needs those minerals

Layers of bone

Layers of Bone

  • Four layers:

  • Periosteum—outermost layer, blood vessels enter the bone through this layer

Layers of bone1

Layers of Bone

  • Compact layer— 2nd layer dense material, has canals in it that carry blood vessels and nerve cells

Layers of bone2

Layers of Bone

  • Spongy layer-3rd layer, at ends of bones, has spaces within it. Makes the bones lighter while maintaining the strength

Layers of bone3

Layers of Bone

  • Marrow—innermost layer, red or yellow, soft material, connective tissue

Name the bones

Name the bones

  • 1. cranium 2. mandible

  • 3. clavicle 4. sternum

  • 5. humerus 6. ribs

  • 7. vertebra 8. pelvis

  • 9. radius 10. ulna

  • 11. carpals

  • 12. metacarpals

  • 13.(20) phalanges

  • 14. femur 15. patella

  • 16. tibia 17. fibula

  • 18. tarsals 19. metatarsals

Human systems



2.upper arm 5.Backbone 7.Palm 9.Ribs 11. Collarbone 13. Skull 16. hips 17. shoulder blade


1. breastbone 3. Arch 4. Thigh 6. Ankle 8. Lower leg large bone

9. lower arm near thumb 10. Lower arm near little finger 12. Kneecap 13. Wrist

14. lower leg thin bone 15. toes
