Dryer Descriptions. By: M Gummert J Rickman Agricultural Engineering Unit IRRI, Los Baños , Philippines. IRRI Flat-bed dryer. Kerosene burner. Rice hull furnace. Low-cost seed dryer. Low-cost dryer. Re-circulating batch dryer. Axial-flow blower. Kerosene burner. Control panel.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Dryer Descriptions' - signa


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Dryer descriptions

Dryer Descriptions

By:

M GummertJ Rickman

Agricultural Engineering Unit

IRRI, Los Baños , Philippines

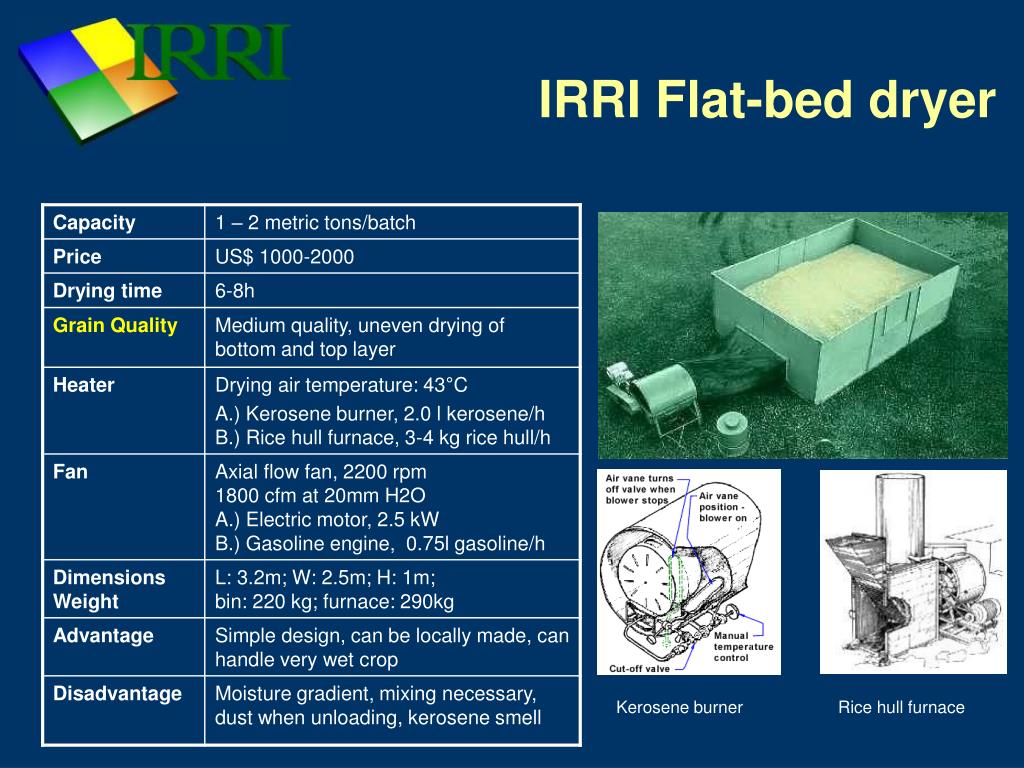

Irri flat bed dryer
IRRI Flat-bed dryer

Kerosene burner

Rice hull furnace

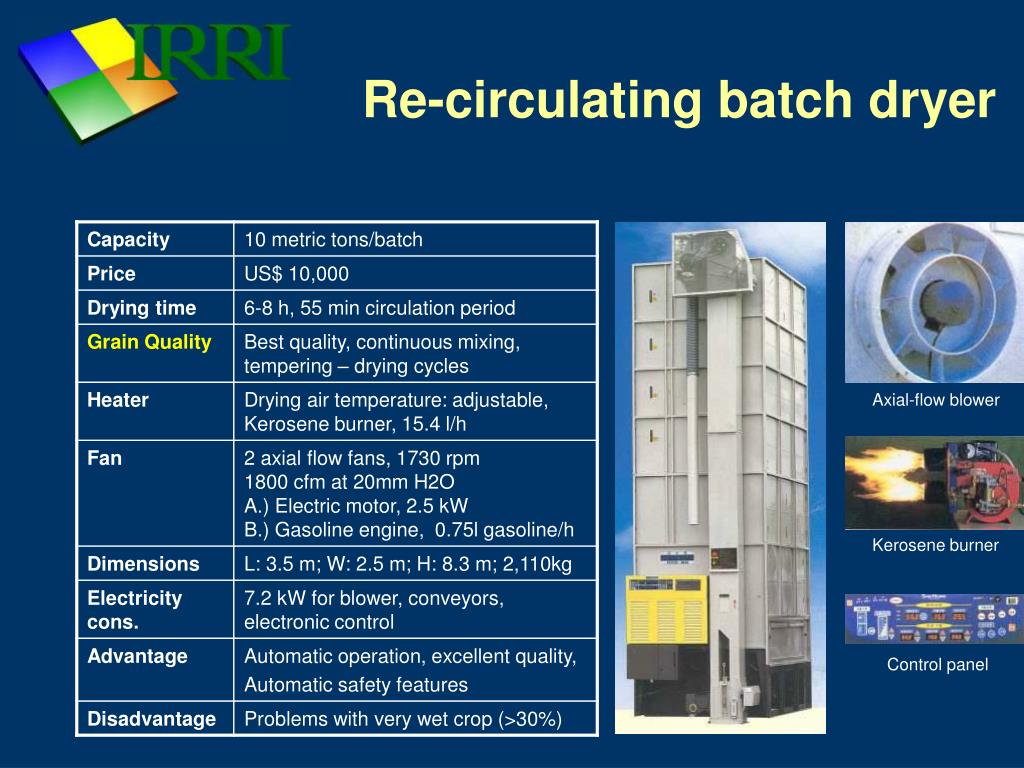

Re circulating batch dryer
Re-circulating batch dryer

Axial-flow blower

Kerosene burner

Control panel
