  1. Dryer

  2. General Description Confidential

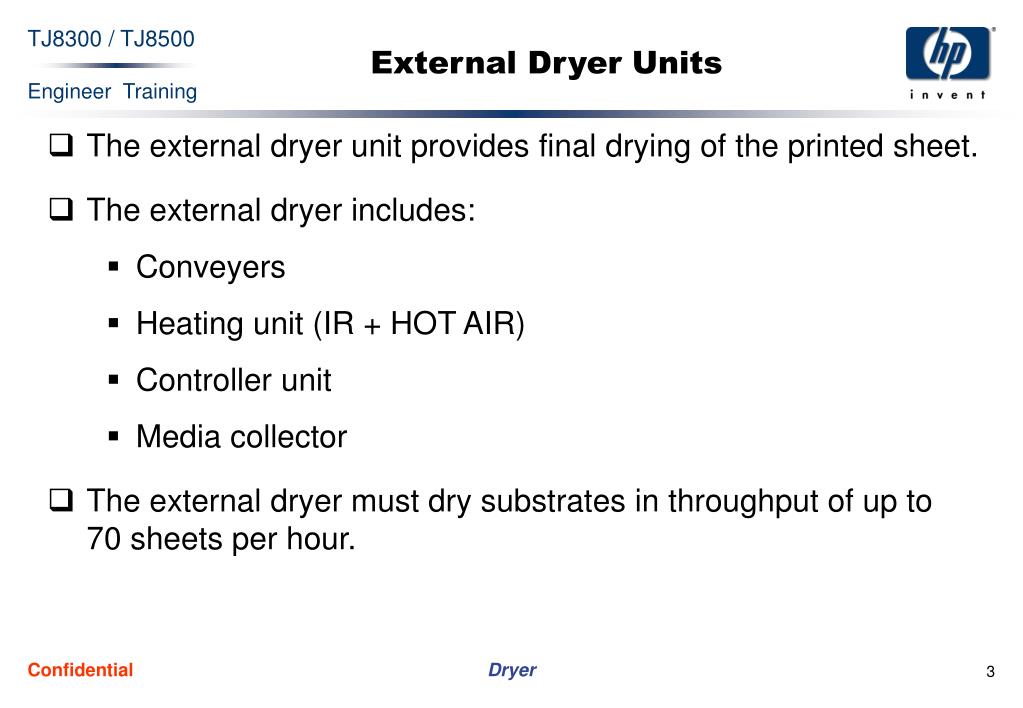

  3. External Dryer Units • The external dryer unit provides final drying of the printed sheet. • The external dryer includes: • Conveyers • Heating unit (IR + HOT AIR) • Controller unit • Media collector • The external dryer must dry substrates in throughput of up to70 sheets per hour. Confidential

  4. Specifications and Configuration • Max. Temp. on Media: 130°C • Total Length: 1290cm • Max. Dryer Width: 225cm • Belt Width: 185cm • Belt Material: Teflon Mesh (2mm × 2mm) • Drying up to 70 sheets/hour Confidential

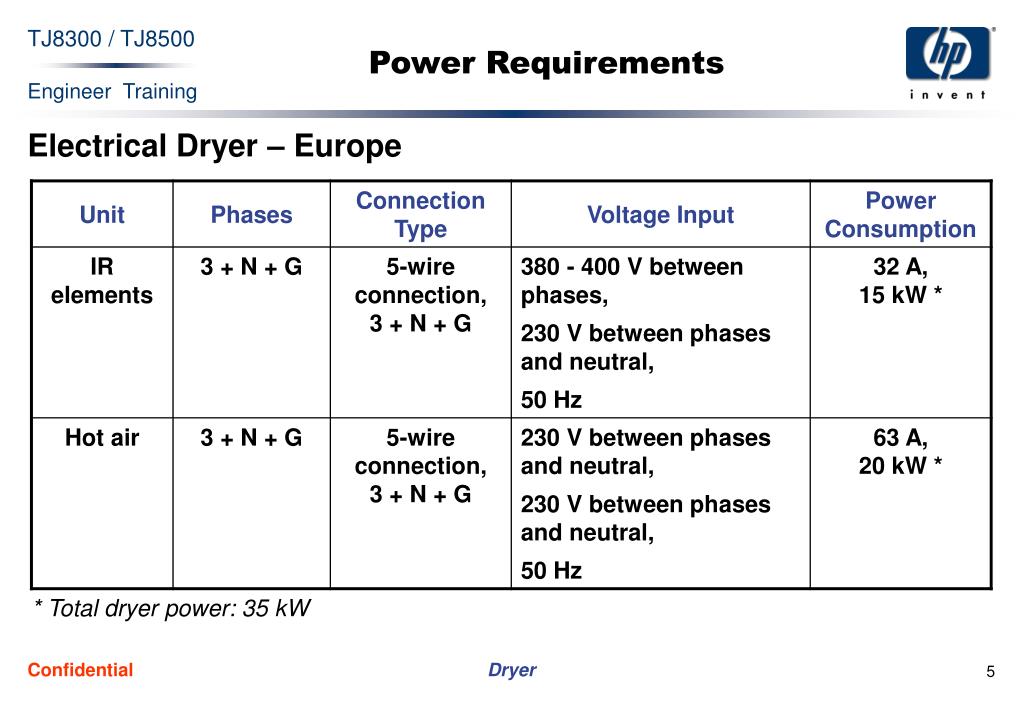

  5. Power Requirements • Electrical Dryer – Europe * Total dryer power: 35 kW Confidential

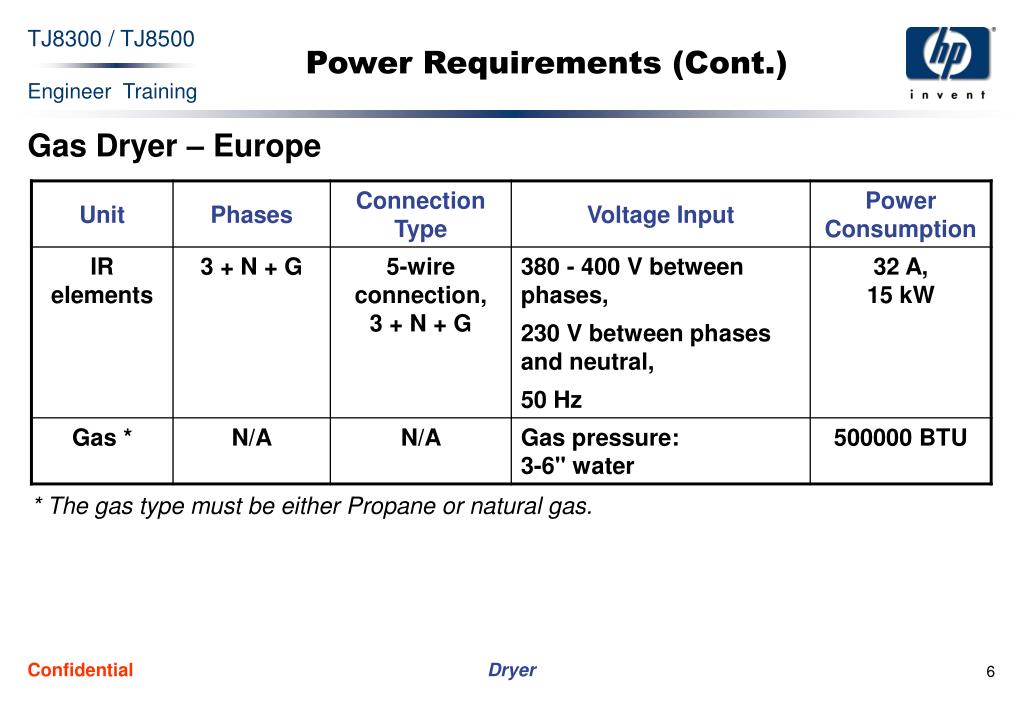

  6. Power Requirements (Cont.) • Gas Dryer – Europe * The gas type must be either Propane or natural gas. Confidential

  7. Power Requirements (Cont.) • Electrical Dryer – USA * Total dryer power: 35 kW Confidential

  8. Power Requirements (Cont.) • Gas Dryer – USA * The gas type must be either Propane or natural gas. Confidential

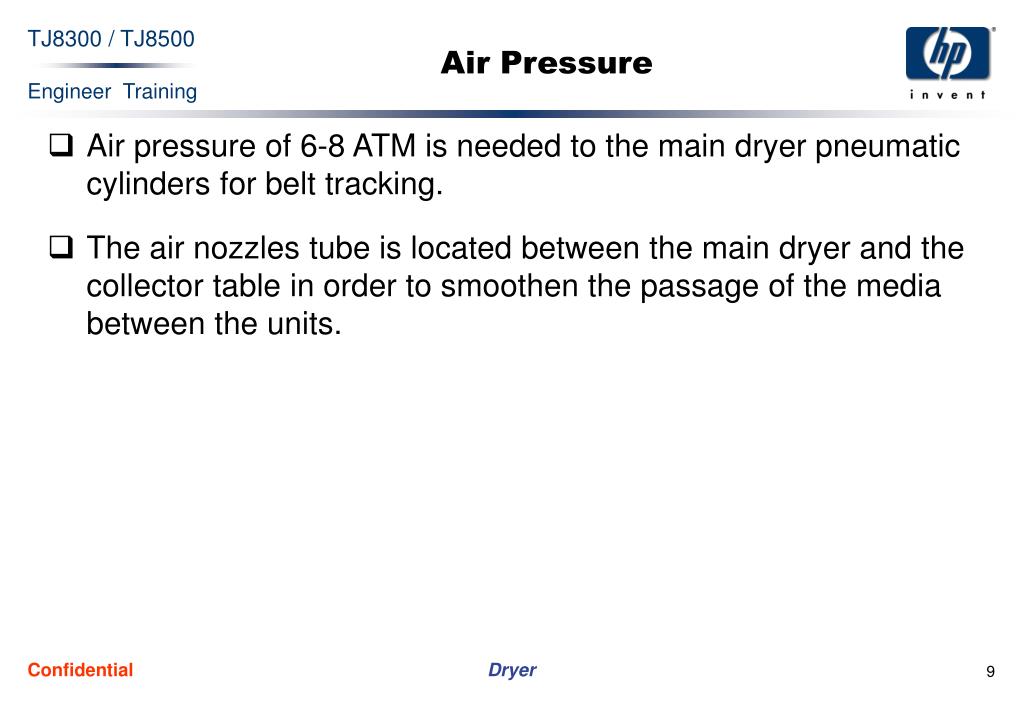

  9. Air Pressure • Air pressure of 6-8 ATM is needed to the main dryer pneumatic cylinders for belt tracking. • The air nozzles tube is located between the main dryer and the collector table in order to smoothen the passage of the media between the units. Confidential

  10. Main Dryer Confidential

  11. Conveyor Confidential

  12. Media Collector Confidential

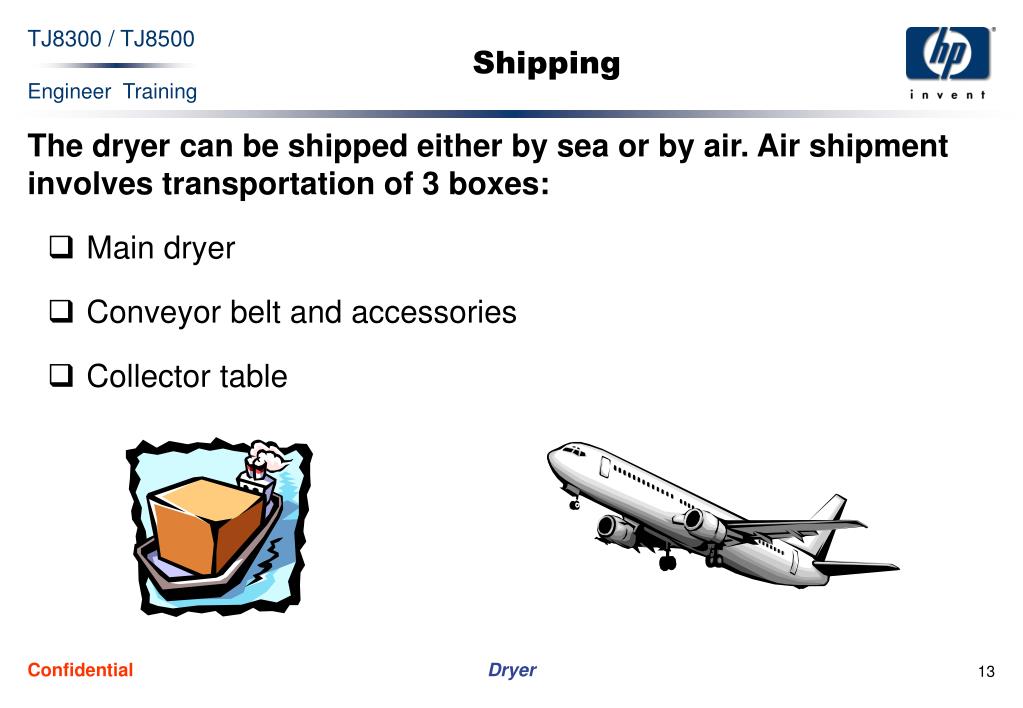

  13. Shipping • The dryer can be shipped either by sea or by air. Air shipment involves transportation of 3 boxes: • Main dryer • Conveyor belt and accessories • Collector table Confidential

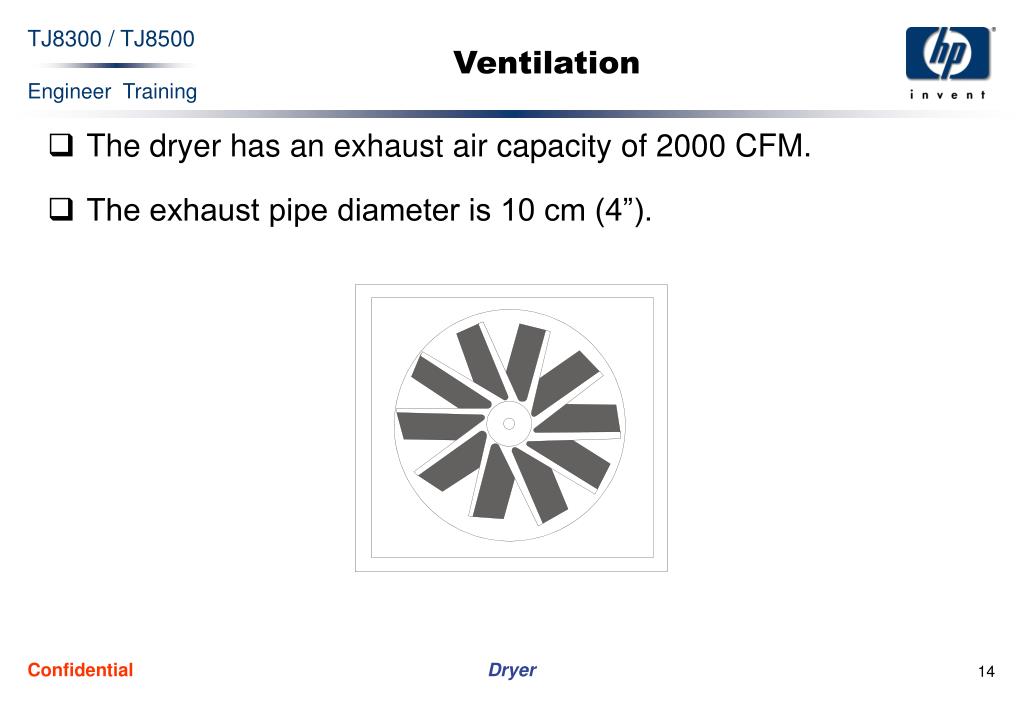

  14. Ventilation • The dryer has an exhaust air capacity of 2000 CFM. • The exhaust pipe diameter is 10 cm (4”). Confidential
