Carbon nanotube quantum resistor

Corso di Nanotecnologie 1

Prof. Di Zitti

Anno accademico 2002-2003

Carbon Nanotube Quantum Resistor

Lotti Christian

Carezzano Linda

SCIENCE,VOL.280,12 JUNE 1998

PHISICAL REVIEW LETTERS,VOL.84,NUM.9,28 FEBRUARY 2000


Carbon nanotube

Carbon Nanotube

  • History and Definition:

  • Nanotube were discovered in 1991 by Sumio Iijima who produced them by vaporizing carbon graphite with an electric arc under an inert atmosphere.

  • Nanotubes are long, cylindrical carbon structures consisting of hexagonal graphite molecules attached at the edges.


Carbon nanotube1

Carbon Nanotube

  • Multiwall Nanotube (MWNT) 1991:

    consist of several nested cylinders with an interlayer spacing of 0.34 – 0.36 nm that is close to the typical spacing of turbostratic graphite.


Carbon nanotube2

Carbon Nanotube

  • Multi-wall Nanotubes by Tunneling Electron Microscope


Carbon nanotube3

Carbon Nanotube

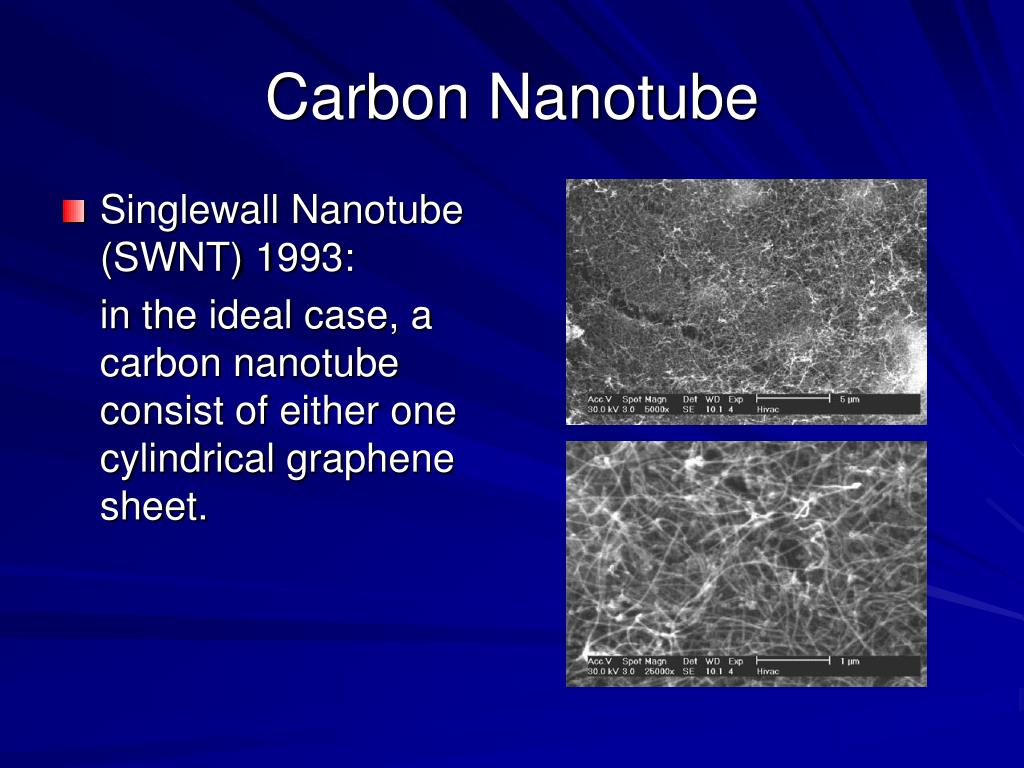

  • Singlewall Nanotube (SWNT) 1993:

    in the ideal case, a carbon nanotube consist of either one cylindrical graphene sheet.


Carbon nanotube4

Carbon Nanotube

  • Carbon nanotubes are now considered to be the building blocks of future nanoscale electronic and mechanical devices. Hence the importance of studing their conducting behaviour.


Quantized conductance

Quantized Conductance

  • Fundamental hypothesis:

    Considering MWNT as an extremely fine and constricted wave guide with a length smaller than the electronic mean free path.

Electronic transport is ballistic: every electron injected into the nanotube at one end come out the other end.


Quantized conductance1

Quantized Conductance

  • Ballistic Transport involved:

  • G0contribute to conductance of every conducting channel.

  • No energy dissipation along the nanotube conductor.


Quantized conductance2

Quantized Conductance

  • G0 is the fundamental quantum of conductance:

  • e is the charge on the electron

  • h is the Planck constant


Multiwall nanotube conductance

Multiwall Nanotube Conductance

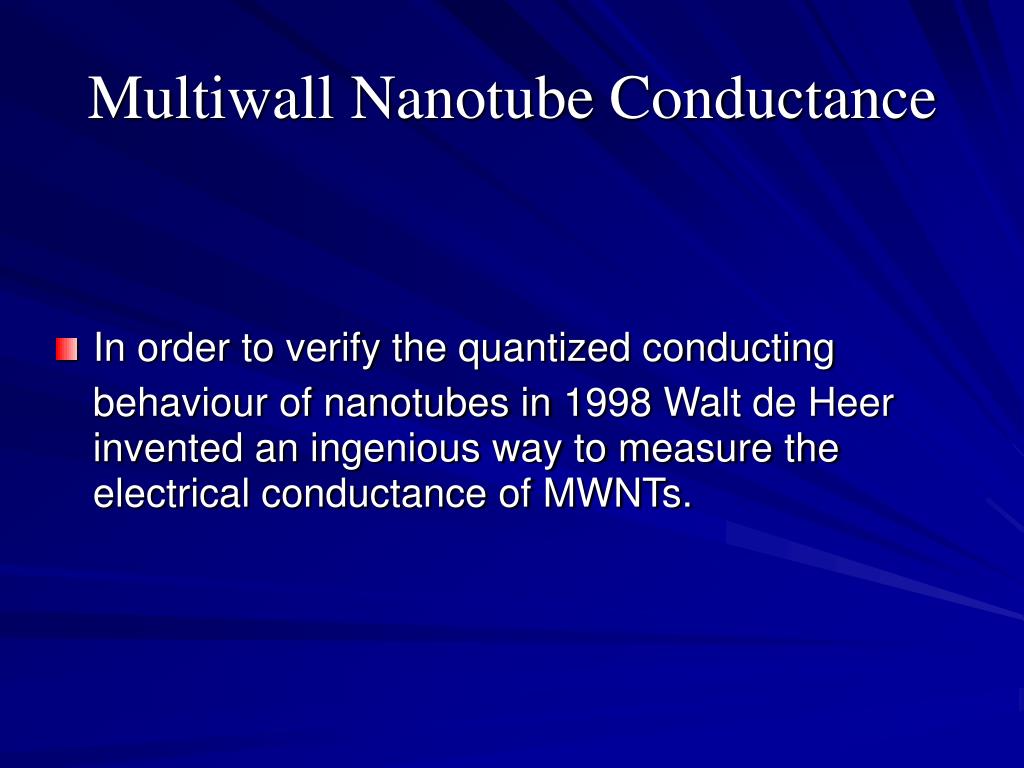

  • In order to verify the quantized conducting

    behaviour of nanotubes in 1998 Walt de Heer invented an ingenious way to measure the electrical conductance of MWNTs.


Experimental scheme

Experimental Scheme

  • Using arc discharge process were produced very fine and compact fibers composed of carbon nanotubes and graphitic particles.

Schematics of an arc discharge


Experimental scheme1

Experimental Scheme

  • The nanotube fiber was attached to a gold wire with colloidal silver paint.

  • The fiber is a bundled of nanotubes with different lenghts and it has been seen that one MWNT protruding from the tip of the fiber.

Carbon fiber TEM micrograpy


Experimental scheme2

Experimental Scheme

  • nanotubes` length 1-10 µm

  • nanotubes` diameter 5-25 nm

Transmission electron micrograph of the end of a nanotube fibe

recovered from a nanotube arc deposit


Experimental scheme3

Experimental Scheme

  • nanotubes` inner cavities 1-4 nm

  • nanotubes` layers up to 15


Experimental scheme4

Experimental Scheme

  • The nanotube contact was installed in place of the tip of a scanning probe microscope. Below the nanotube contact there was a heatable copper reservoir containing mercury.


Experimental scheme5

Experimental Scheme

  • A macroscopic fiber of multiwall nanotubes was lowered into a drop of liquid metal.

    Because individual nanotubes stick out from the fiber, by dipping the nanotubes to different depths is possible to determine the resistance of individual nanotubes.

    Vappotential (10-50 mV) was applied to the contact, the current through the circuit was measured together with the piezo displacement.


Results

Results

  • This figure shows conductance versus time; the nanotube contact is moved at constant speed into and out of the liquid metal.


Results1

Results

  • The period of motion is 2 s, the conductance jumps to ~ 1G0 and then remains constant for ~ 2 µm of its dipping depth.

Nanotube is a quantized conductor


Results2

Results

  • This figurepresents a sequence of steps at 1G0 intervals, because other tubes come into contact with the liquid metal.

    After a dipping distance of 200 nm there is a second step (the second tube comes into contact with the metal ~200nm after the first).


Results3

Results

  • The conductance does not immediately rise to G0 but is ~ 0,5 G0 for the first 25nm

This effect can be related to the tip structure

of the nanotubes.


Results4

Results

  • The ~ 30% of the nanotubes have tapered tips

  • The conductance was reduced due to the presence of the tip-to-shaft interface


Results5

Results

  • This plot (G0 versus z-position) is the tip effect; the scanning range was reduced to 70 nm.


Results6

Results

  • The figure B is the histogram of the conductance data of all 250 traces in the sequence represented in Fig. A.

  • The plateus at 1G0 and at 0 produce peaks in the histogram.


Results7

Results

  • Histogram of a nanotube with several liquid metal (mercury,cerrolow,gallium). The type of liquid metal used in LMC does not effect the properties reported above


Conclusion

Conclusion

  • The nanotubes were not dameged even at high voltages (Vap=6V  J>107Acm-2) for extended times.

    Power dissipated = 3 mW

    Bulk thermal conductivity = 10 Wcm-1K-1

We would attain a temperature Tmax=20000°K

Impossible: nanotubes start to burn at~700°C


Conclusion1

Conclusion

  • Heat is dissipated in the leads to the ballistic element and not in the element itself.


Conclusion2

Conclusion

  • The conductance of MWNTs has been observed to be G~1G0 and it’s independent of the number of layers because by geometrical and energetical evidence only one layer can conduct.


Unsolved problem

Unsolved problem

  • As shown the conductance of nanotubes seems to have a behaviour in disagreement with theoretical prediction: the conductance in MWNTs was observed to be 1G0 instead of 2G0.


Mtwns fractional quantum conductance

MTWNs’ Fractional Quantum Conductance

  • Using a scattering tecnique based on a parametrized linear combination of atomic orbitals Hamiltonian, Sanvito, Kwon, Tomanek and Lambert calculate the conductance and find the reason of the phenomena observed in Walt de Heer’s experiment.


Mtwns fractional quantum conductance1

MTWNs’ Fractional Quantum Conductance

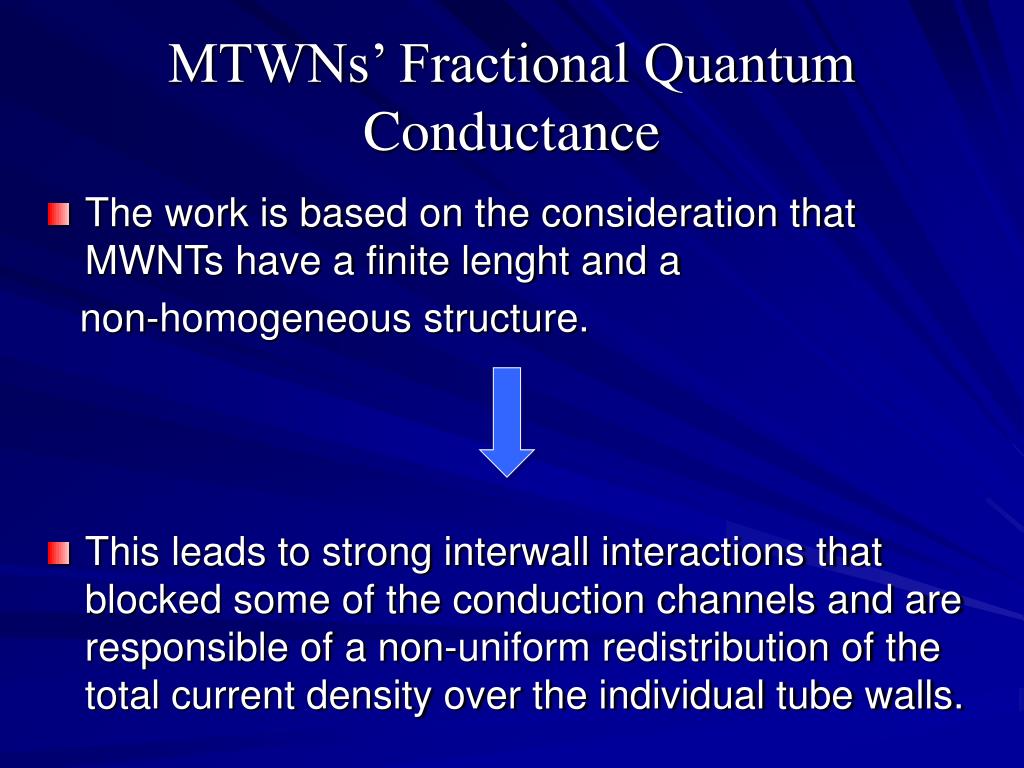

  • The work is based on the consideration that MWNTs have a finite lenght and a

    non-homogeneous structure.

  • This leads to strong interwall interactions that blocked some of the conduction channels and are responsible of a non-uniform redistribution of the total current density over the individual tube walls.


Mtwns fractional quantum conductance2

MTWNs’ Fractional Quantum Conductance

  • The key problem in explaining de Heer’s experimental data was that nothing was known about the MWNTs’ internal structure and about the nature of the contact between nanotubes and Au and Hg electrodes. Tomanek and his group start their calculation assuming the following scenario.


Mtwns fractional quantum conductance3

MTWNs’ Fractional Quantum Conductance

  • Hypotesis:

  • Current injection from the gold electrode occurs only into the outermost tube wall.

  • Chemical potential equals that of mercury, shifted by a contact potential, only within the submersed portion of the tube.


Mtwns fractional quantum conductance4

MTWNs’ Fractional Quantum Conductance

  • This is the scheme of the inhomogenous structure of the MWNT. It’s to note that even if only the outer layer is in direct contact with Hg electrode, we can consider equipotential with mercury all the layers immersed into Hg.

  • Hg(#1) – single-wall MWNT’s portion eq. with Hg.

    Hg(#2) – double-wall MWNT’s portion eq with Hg.

    Hg(#3) – triple-wall MWNT’s portion eq with Hg.


Mtwns fractional quantum conductance5

MTWNs’ Fractional Quantum Conductance

  • (b) the calculation for submersion depth Hg(#1) consider a scattering region consisting in a finite length triple-wall nanotube connected to another finite double-wall nanotube region; this is then connected to an external semi-infinite single-wall SWNT.


Mtwns fractional quantum conductance6

MTWNs’ Fractional Quantum Conductance

  • (c) calculation for depth Hg(#2) consider a scattering region made up of a finite-length triple-wall nanotube segment attached a SWNT on one end and to a double-wall nanotube on the other one.


Mtwns fractional quantum conductance7

MTWNs’ Fractional Quantum Conductance

  • (d) calculation for depth Hg(#3) consider a triple-wall nanotube in contact with a SWNT lead.


Mtwns fractional quantum conductance8

MTWNs’ Fractional Quantum Conductance

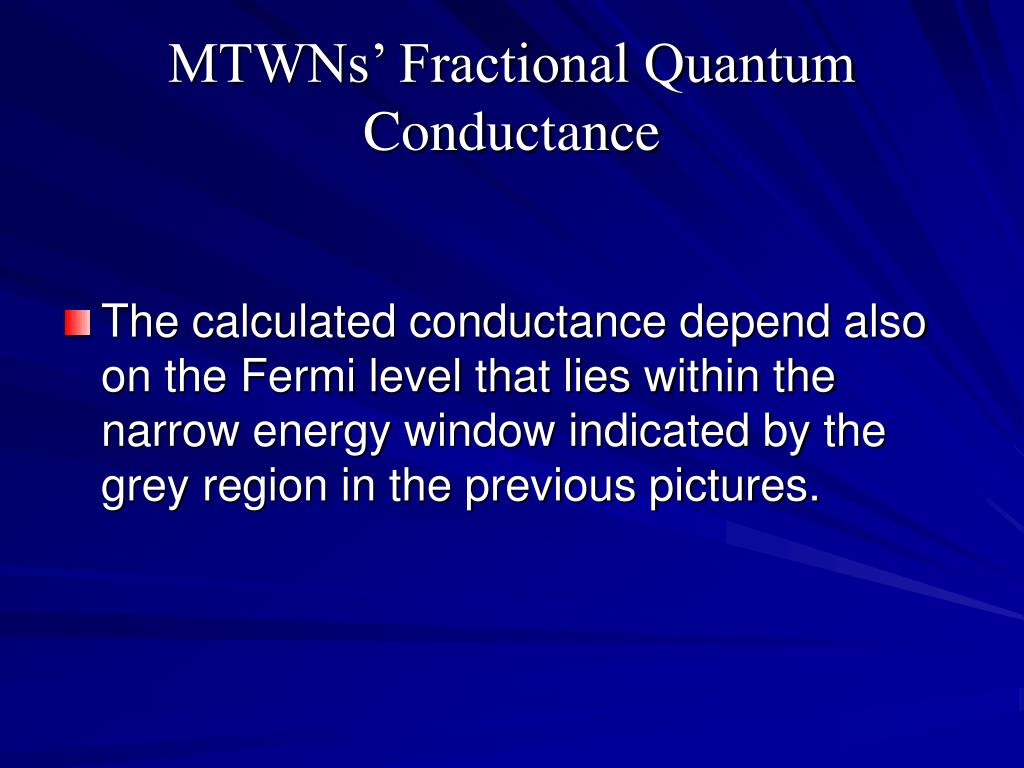

  • The calculated conductance depend also on the Fermi level that lies within the narrow energy window indicated by the grey region in the previous pictures.


Mtwns fractional quantum conductance9

MTWNs’ Fractional Quantum Conductance

  • The results of the calculation show that also in theoretical predictions conductance increase in discrete step of 0.5G0 until the value of 1G0.G does not exceed this value because only the single-wall portion of the MWNT is in direct contact with the gold electrode.


Mtwns fractional quantum conductance10

MTWNs’ Fractional Quantum Conductance

  • In summary it has been shown that fractional quantum conductance may occur in multiwall nanotubes due to interwall interaction that modify the density of state near the Fermi level, and due to tube inhomogeneities, such as a varying number of walls along the tube.
