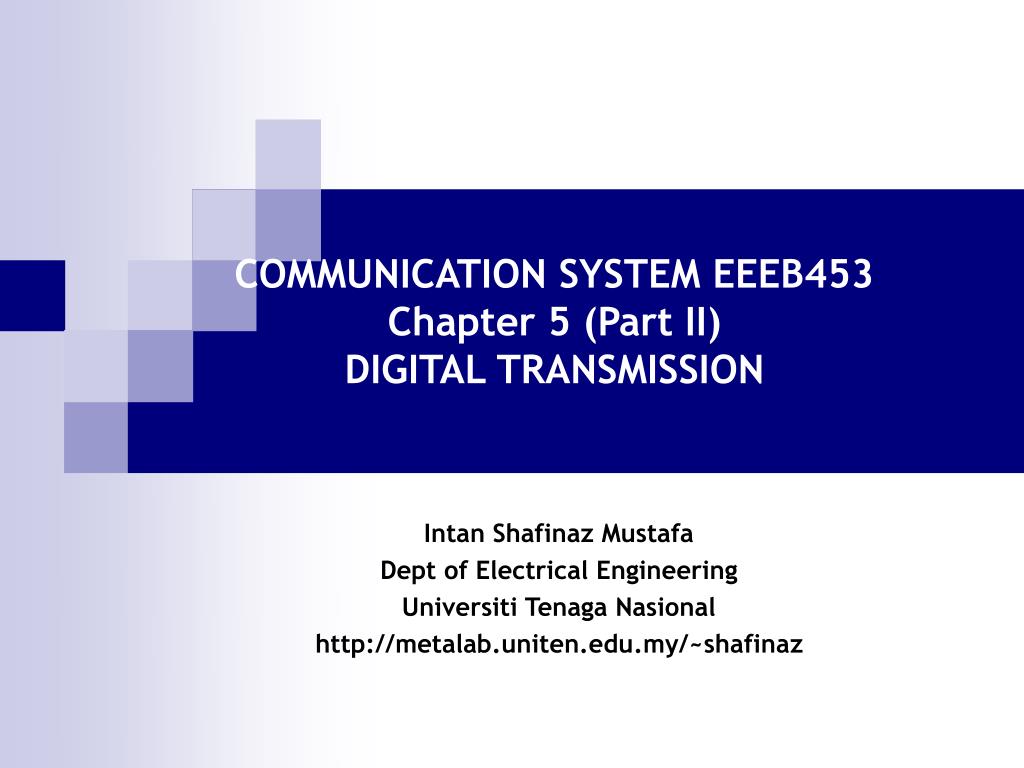

COMMUNICATION SYSTEM EEEB453Chapter 5 (Part II)DIGITAL TRANSMISSION

Intan Shafinaz Mustafa

Dept of Electrical Engineering

Universiti Tenaga Nasional

http://metalab.uniten.edu.my/~shafinaz


Pcm quantization

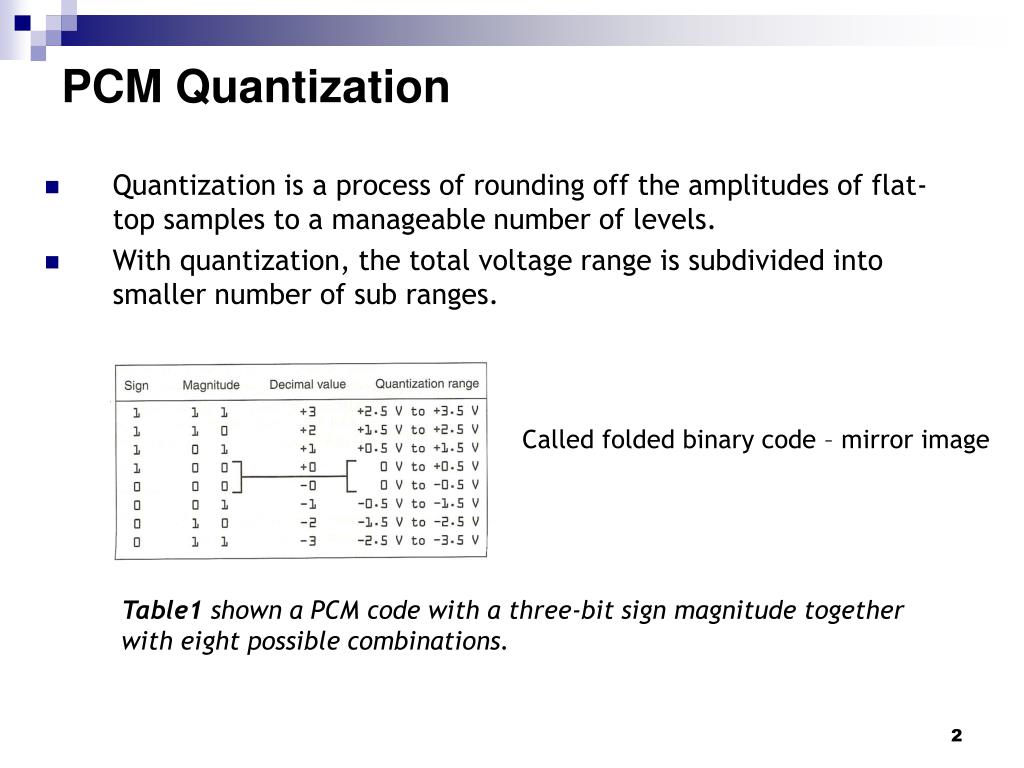

PCM Quantization

  • Quantization is a process of rounding off the amplitudes of flat-top samples to a manageable number of levels.

  • With quantization, the total voltage range is subdivided into smaller number of sub ranges.

Called folded binary code – mirror image

Table1 shown a PCM code with a three-bit sign magnitude together with eight possible combinations.


Pcm quantization1

PCM Quantization

  • Magnitude difference between adjacent steps is called quantization interval or quantum or step size or resolution.

  • Resolution = the magnitude of the minimum step size or, = magnitude of Vlsb .

  • From the Table 1, the quantization interval = 1V

  • The smaller the magnitude of the minimum step size, the better (smaller) the resolution and the more accurate the quantized signal will resembles the original signal.

  • Quantization noise, Qn ≈ Quantization error, Qe is due to any round-off errors (quantization) in the transmitted signal, and the error would be reproduced at the Rx.

  • Mathematically, Qn,e = ½ quantum = Vlsb/2


Communication system eeeb453 chapter 5 part ii digital transmission

  • At t1, Vi = +2V, PCM code = 110, Qe = 0

  • At t2, Vi = -1V, PCM code = 001, Qe = 0

  • At t3, Vi = +2.6V, magnitude of the sample is rounded off to the nearest valid code, i.e +3V, PCM code = 111. The rounding off process results in a quantization error, Qe = 0.4V

(a) Analog input signal(b) sample pulse (c) PAM signal (d) PCM code


Communication system eeeb453 chapter 5 part ii digital transmission

Amplitudes of the signal m(t) lie in the range (-mp.mp), which is partitioned into L intervals.

Then each magnitude, v = 2mp /L

Where L = 2n, and n = number of bits.


Communication system eeeb453 chapter 5 part ii digital transmission

An example of 2-bit quantization.

  • The quality of the PCM signal can be improved by:

    • Using more bits for PCM code

    • Reduce the magnitude of quantum

    • Improve the resolution

    • Sampling at higher rate

An example of 3-bit quantization.

An example of 3-bit quantization with increased sample rate.


Dynamic range dr

Dynamic Range (DR)

  • Define as the ratio of largest possible magnitude to the smallest possible magnitude (other than 0V) that can be decoded by DAC in the Rx.

  • Mathematically, =

    where Vmax = max voltage magnitude,

    Vmin = resolution (quantum value)

  • Dynamic range is generally expressed in dB, therefore,

    DRdB = 20log


Dynamic range dr1

Dynamic Range (DR)

  • The number of bits used for a PCM code depends of the dynamic range i.e

    2n – 1 ≥ DR

    and for a minimum number of bits

    2n – 1 = DR or 2n = DR + 1

    where n = number of bits in a PCM code, excluding the sign bit

    DR = absolute value of dynamic range

    Then DRdB = 20log (2n – 1),

    and for n > 4,

    DRdB ≈ 20log (2n)

    ≈ 6n,


Coding efficiency

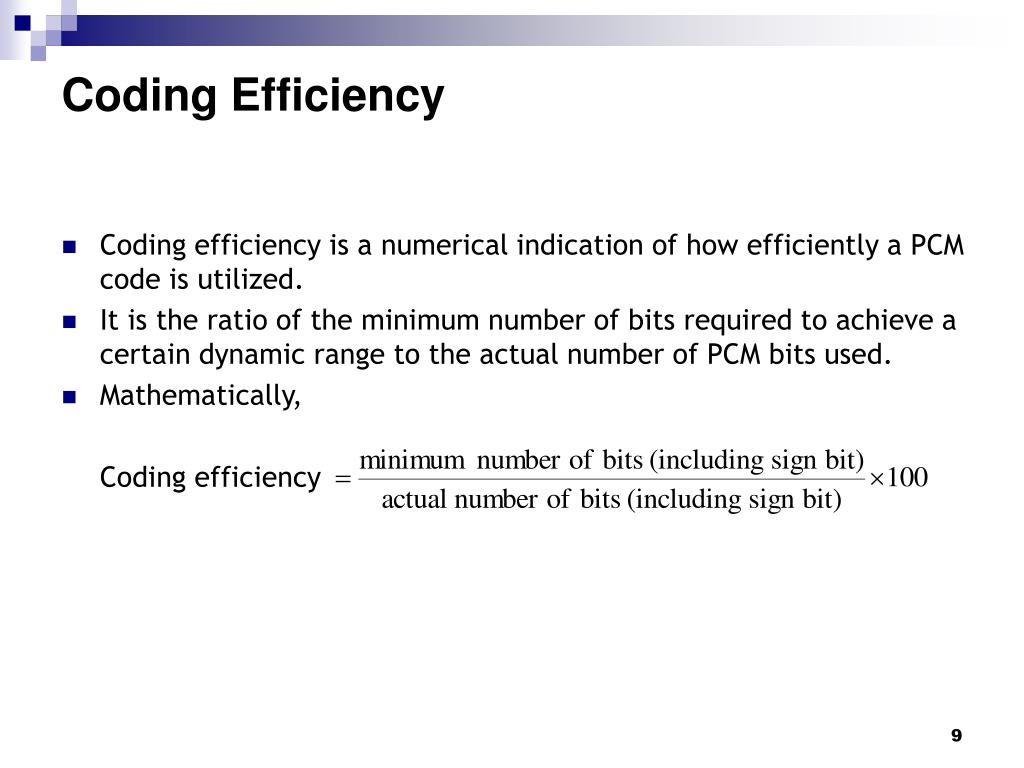

Coding Efficiency

  • Coding efficiency is a numerical indication of how efficiently a PCM code is utilized.

  • It is the ratio of the minimum number of bits required to achieve a certain dynamic range to the actual number of PCM bits used.

  • Mathematically,

    Coding efficiency


Communication system eeeb453 chapter 5 part ii digital transmission

  • Example 3 - For a PCM system with the following parameters, Maximum analog input frequency = 4kHz Maximum decoded voltage at the Rx = 2.55V Minimum dynamic range = 46dB, determine:

    • minimum sample rate

    • minimum number of bits used in the PCM code

    • resolution

    • quantization error

    • coding efficiency

  • Example 4 – In a digital PCM system, the maximum quantization error is 0.6% of the peak amplitude of the modulating signal of 10 Khz. Determine:

    • The number of quantization levels

    • The number of bits per sample

    • Total number of samples

    • Total number of bits.


Signal to quantization noise ratio sqr

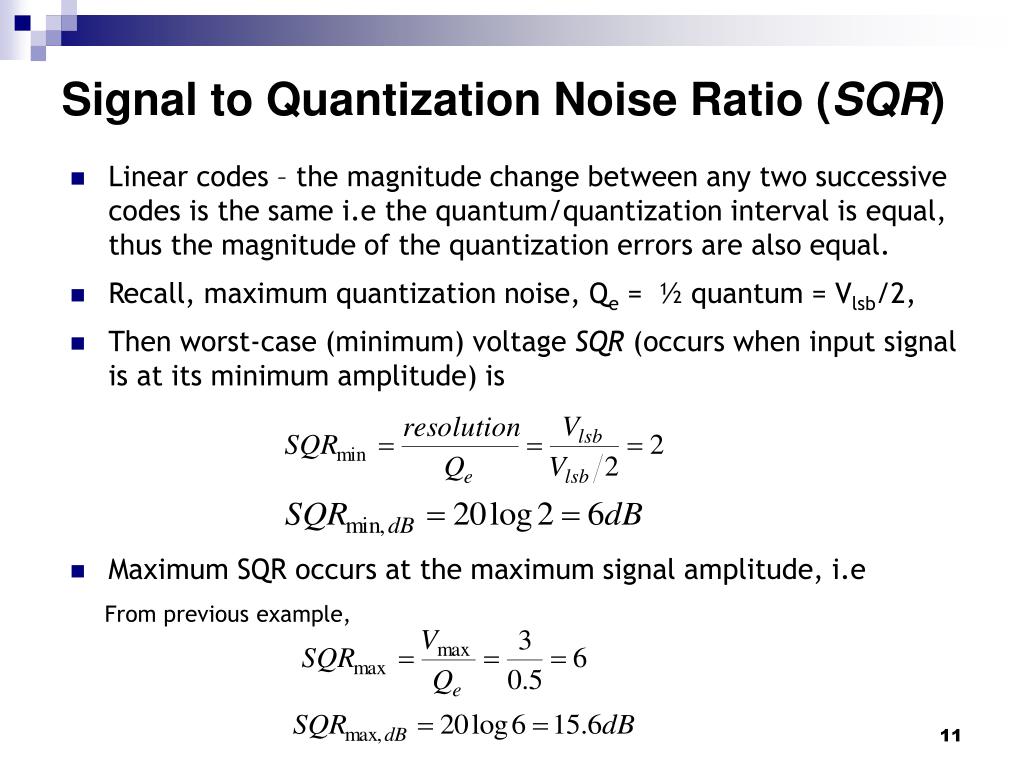

Signal to Quantization Noise Ratio (SQR)

  • Linear codes – the magnitude change between any two successive codes is the same i.e the quantum/quantization interval is equal, thus the magnitude of the quantization errors are also equal.

  • Recall, maximum quantization noise, Qe = ½ quantum = Vlsb/2,

  • Then worst-case (minimum) voltage SQR (occurs when input signal is at its minimum amplitude) is

  • Maximum SQR occurs at the maximum signal amplitude, i.e

    From previous example,


Signal to quantization noise ratio sqr1

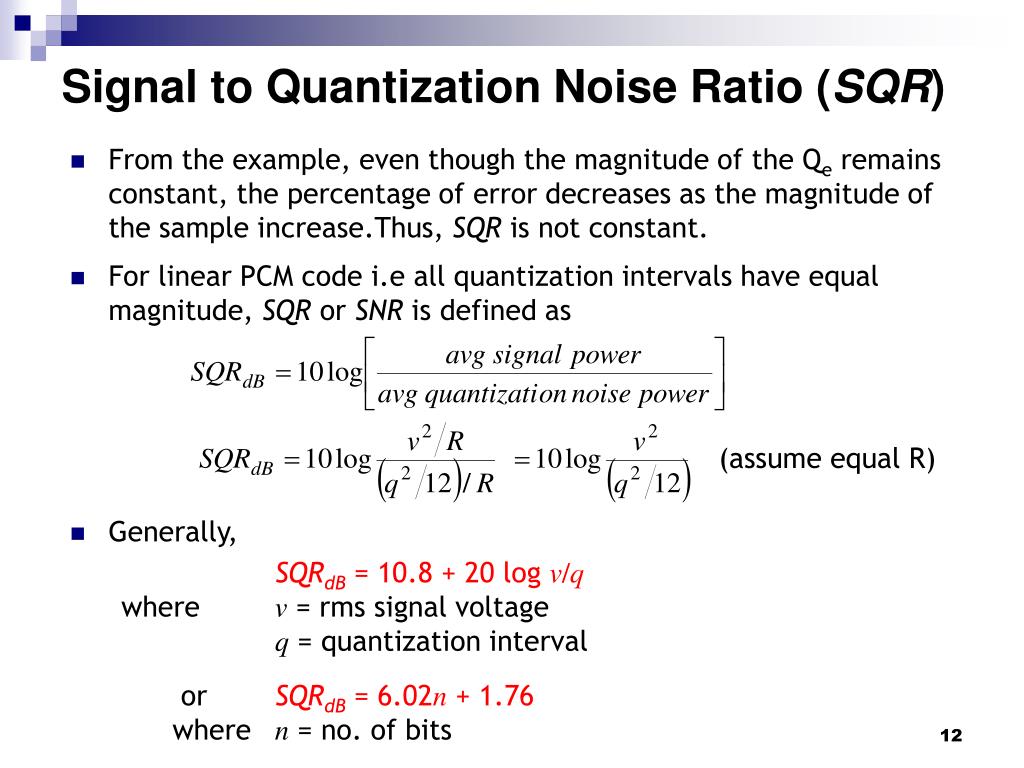

Signal to Quantization Noise Ratio (SQR)

  • From the example, even though the magnitude of the Qe remains constant, the percentage of error decreases as the magnitude of the sample increase.Thus, SQR is not constant.

  • For linear PCM code i.e all quantization intervals have equal magnitude, SQR or SNR is defined as

  • Generally,

    SQRdB = 10.8 + 20 log v/q

    where v = rms signal voltage

    q = quantization interval

    orSQRdB = 6.02n + 1.76

    where n = no. of bits

(assume equal R)


Linear versus nonlinear pcm codes

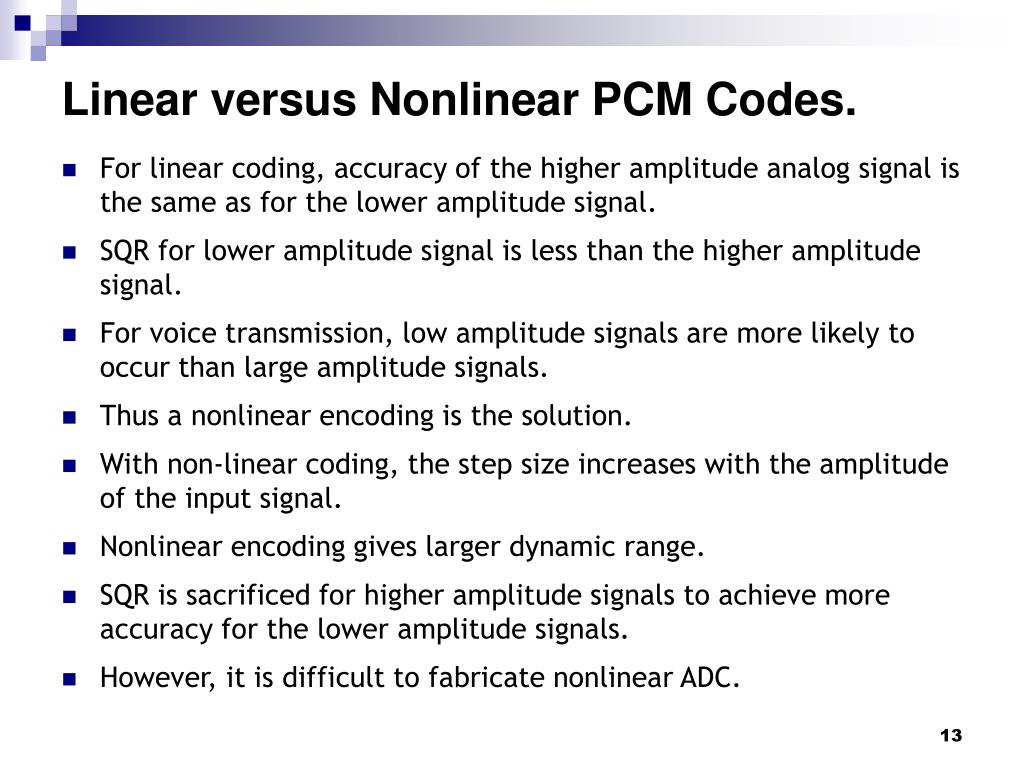

Linear versus Nonlinear PCM Codes.

  • For linear coding, accuracy of the higher amplitude analog signal is the same as for the lower amplitude signal.

  • SQR for lower amplitude signal is less than the higher amplitude signal.

  • For voice transmission, low amplitude signals are more likely to occur than large amplitude signals.

  • Thus a nonlinear encoding is the solution.

  • With non-linear coding, the step size increases with the amplitude of the input signal.

  • Nonlinear encoding gives larger dynamic range.

  • SQR is sacrificed for higher amplitude signals to achieve more accuracy for the lower amplitude signals.

  • However, it is difficult to fabricate nonlinear ADC.


Communication system eeeb453 chapter 5 part ii digital transmission

SQR at lower amplitude < SQR at higher amplitude

Lower amplitude values are relatively more distorted

More of voice signal is at lower amplitude

Reduce step size at lower amplitude

More accuracy at lower amplitude

Sacrifices SQR at higher amplitude

Provides higher dynamic range
