  1. A Bot With a Brain Using infrared obstacle detection circuits to create an autonomous robot that will navigate itself through an obstacle course. Bailey Breaux LacieDuplessis

  2. Abstract • Students create autonomous robot from Parallax Inc.’s BoeBot to compete in obstacle course with a ramp • Requires electrical wiring, computer programming, understanding of sensors • All groups used infrareds, some used accelerometers, one used phototransistor • Two groups using two infrareds & one accelerometer succeeded • One group using three infrareds succeeded • Combination of infrareds and accelerometer proves to make best autonomous robot

  3. Introduction • BoeBotteaches: engineering, electronics, software development • Understand all sensors: • Infrared- detects objects using binary number system • whisker- rubs sensor on robot when it touches an object • phototransistor- detects difference from darkness and light • accelerometer- uses X-Y coordinate system to determine level of ground • Use these to create autonomous robot to navigate obstacle course

  4. Research Questions • Which sensors or combination of sensors will work best? • What should the computer coding look like? • How will a change in wiring the circuit board help? • Are there any glitches in the robot that need to be fixed? • Calibrated servos? • Charged batteries? • Burnt sensors?

  5. Methods • Study problem by determining obstacle and resources • Wire BoeBot with three infrared detection circuits. • Use BASIC stamp software on computer to program robot with a DO LOOP and GOSUB commands • Place the robot in randomly generated obstacle course with a ramp. • Record time it takes to complete the course. • Robot cannot be touched or assisted through course • Course must be completed in 3 min or under • Analyzeand compare robot’s time to other robots’ times to determine which sensors were most effective in creating an autonomous robot

  6. Results • Round 1: Robot flipped on back in middle of maze • Round 2: Robot became stuck in a gap between the maze wall and the ramp wall right at the end of the maze • Round 3: robot finished maze and reached the top of the ramp in 1 min and 14 secs, but did not stop at top

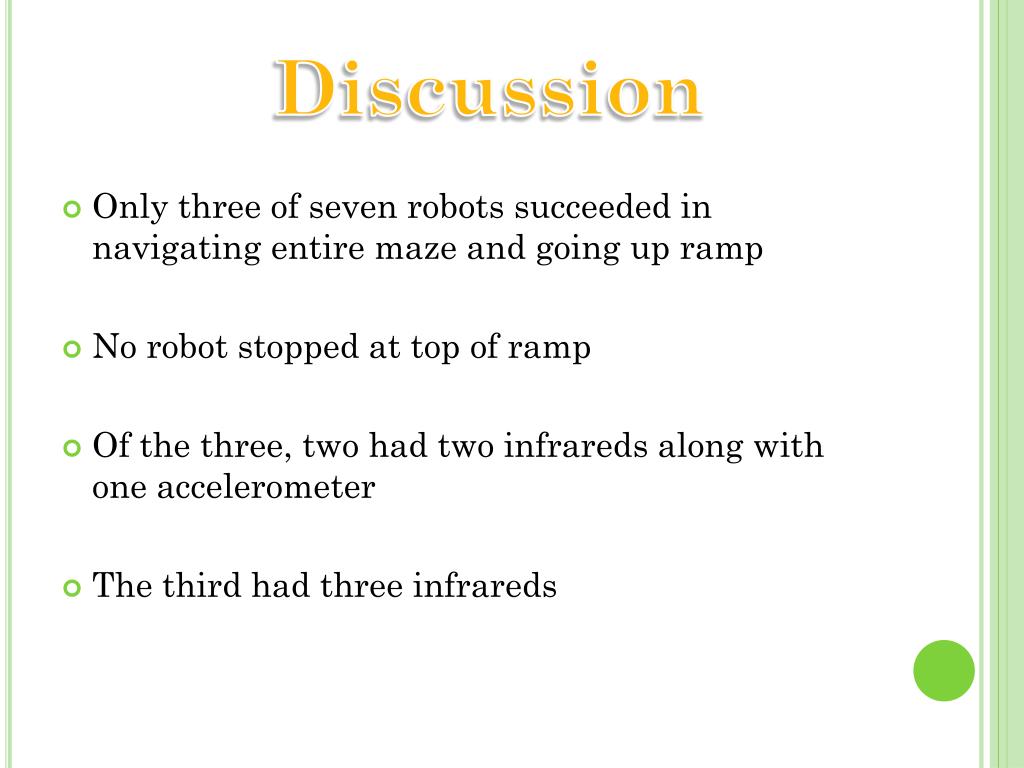

  7. Discussion • Only three of seven robots succeeded in navigating entire maze and going up ramp • No robot stopped at top of ramp • Of the three, two had two infrareds along with one accelerometer • The third had three infrareds

  8. Conclusions • Infrared sensors alone are best navigable sensors • Combination of infrareds and accelerometer is best for creating autonomous robot

  9. References • Lindsay, Andy.Robotics with the Boe-Bot: Student Guide : Version 3.0. [s.l.]: Parallax, 2004. Print.
