  1. Reliable QoS Routing in Ad Hoc Networks K.S. Chan EEE Department The University of Hong Kong

  2. Outlines • Introduction • Bandwidth reservation • Bandwidth measurement on link • Reservation algorithm • Multipath construction • Performance evaluation • Conclusions

  3. Introduction • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector • TORA: Temporally-Ordered Routing Algorithm • single path routing: frequent interruption • Best effort • Multipath routing: • Multiple best-effort maximally disjoint paths • Traffic distribution • Video delivery with MDC

  4. Introduction (cont’d) • IETF drafts: • DSR: Dynamic Source Routing H I G F E D {ABCD} A B C {A} {AB} {ABC}

  5. Introduction (cont’d) • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector H I G F E D {A: C} A B C {A: A} {A: B}

  6. Introduction (cont’d) • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector H I G F E D {A: C} A B C {D: B} {A: A} {D: C} {A: B} {D: D}

  7. Introduction (cont’d) • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector • TORA: Temporally-Ordered Routing Algorithm H I G F E D A B C

  8. Introduction (cont’d) • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector • TORA: Temporally-Ordered Routing Algorithm H I {D: 1} {D: 2} G F {D: 2} E {D: 3} {D: 1} D {D: 0} A B C {D: 3} {D: 2} {D: 1}

  9. Introduction • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector • TORA: Temporally-Ordered Routing Algorithm • single path routing: frequent interruption • Best effort

  10. Introduction • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector • TORA: Temporally-Ordered Routing Algorithm • single path routing: frequent interruption • Best effort • Multipath routing: • Multiple best-effort maximally disjoint paths • Traffic distribution • Video delivery with MDC

  11. Multipath routing • Multipath routing: • Multiple best-effort maximally disjoint paths H I G F E D {ABCD} {ABFGD} {AEFGD} {AEFID} A B C {A} {AB} {ABC}

  12. Introduction • IETF drafts: • DSR: Dynamic Source Routing • AODV: Ad hoc On-demand Distance Vector • TORA: Temporally-Ordered Routing Algorithm • single path routing: frequent interruption • Best effort • Multipath routing: • Multiple best-effort maximally disjoint paths • Traffic distribution • Video delivery with MDC • No reservation

  13. Introduction (cont’d) • QoS routing: • CEDAR: Core-Extraction Distributed Ad hoc Routing • C. R. Lin: JSAC 1999 • Multi-channel • Single path • C. Zhu: infocom2002 • Single channel • Single path

  14. Introduction (cont’d) • QoS routing: • CEDAR: Core-Extraction Distributed Ad hoc Routing D C B A

  15. Introduction (cont’d) • QoS routing: • CEDAR: Core-Extraction Distributed Ad hoc Routing • C. R. Lin: JSAC 1999 • Multi-channel • Single path • C. Zhu: infocom2002 • Single channel • Single path

  16. Introduction (cont’d) • QoS routing: • CEDAR: • C. R. Lin: JSAC 1999 • Multi-channel • The TSs available for both sending and receiving are the same • Single path {0,1} [2,3] F {2,3} [4,5] {} [ ] D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Red: used for sending information Blue: used for receiving information

  17. Introduction (cont’d) • QoS routing: • CEDAR: • C. R. Lin: JSAC 1999 • Multi-channel • Single path • C. Zhu: infocom2002 • Single channel • Single path {0,1} [2,3] F {2,3} [4,5] {} [ ] D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Red: used for sending information Blue: used for receiving information Node B: availaible for sending: 0,1 available for receiving: 2,3

  18. Introduction (cont’d) • Our scheme: • Single channel, frame-based ad hoc network • Efficient bandwidth reservation • Sequential multi-path set up

  19. Link bandwidth measurement {0,1} [2,3] F {2,3} [4,5] {} [ ] D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Red: used for sending information Blue: used for receiving information What is the link bandwidth from node B to node C?

  20. Link bandwidth measurement (cont’d) Some notations: • TK: the set of time slots used by node K for transmission. • RK: the set of time slots used by node K for receiving. • S: the sample space of time slots. • NK : the set including all node K’s neighboring nodes. • TStK: the set of time slots available for transmission at node K. The transmission of node K in these time slots will not cause interference to other nodes’ current receiving. • TSrK: the set of time slots available for receiving at node K. The receiving of node K in these time slots will not be interfered by other nodes’ current transmission.

  21. Link bandwidth measurement (cont’d) We have Then the link bandwidth from node i to node jis TSij= TStiTSrj

  22. An example for the measurement {2,3} [4,5] {0,1} [2,3] F {} [ ] S={0.. 7} D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] TSrB=S-TB-RB-TA-TE-TC={0,1} TStB=S-TB-RB-RA-RE-RC={2,3} TSrC=S-TC-RC-TB-TD={2,3} TSBC= TStBTSrC={2,3}

  23. Bandwidth reservation over a path • Information held on a node, node K: • TK,RK , TStK , TSrK , TSti , TSri , i NK • Initiated from destination • Three cases: • Case 1: last link from source node, reserve on the link • Case 2: the link next to the last: reserve the timeslots not available on the last link • Case 3: others, trying to reserve TSs not available on the links waiting for reservation

  24. Bandwidth reservation algorithm Algorithm: When node i receives reservation request from downstream node, node i-1: do case 1: node i is source node m reserve k timeslots from TSm,m-1 for link m m-1; ENDcase 1 case 2: node i is the node m-1 ; If|S1|>=k reserve k timeslots in set S1 for link m-1m-2; end case 2; else reserve timeslots in S1 for link m-1m-2; k=k-|S1|; reserve k timeslots for link m-1m-2 from set TSm-1,m-2 - S1; ENDcase 2

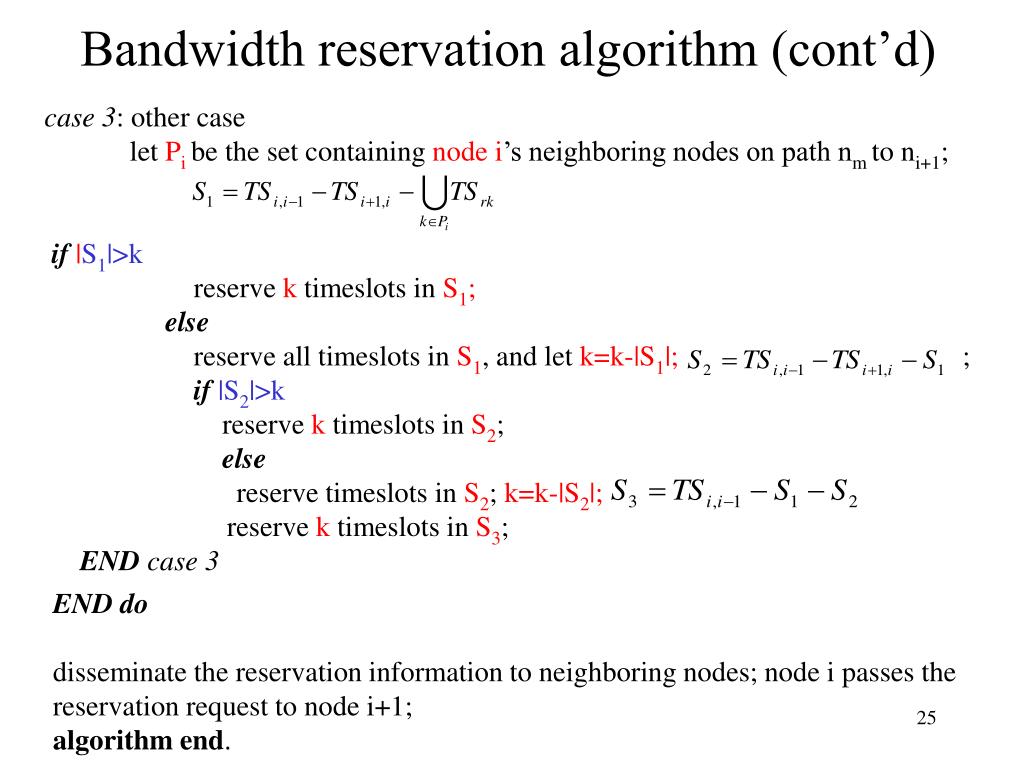

  25. Bandwidth reservation algorithm (cont’d) case 3: other case let Pibe the set containing node i’s neighboring nodes on path nm to ni+1; if|S1|>k reserve k timeslots in S1; else reserve all timeslots in S1, and let k=k-|S1|; ; if|S2|>k reserve k timeslots in S2; else reserve timeslots in S2; k=k-|S2|; reserve k timeslots in S3; END case 3 END do disseminate the reservation information to neighboring nodes; node i passes the reservation request to node i+1; algorithm end.

  26. An example for the algorithm Demand: reserve one timeslot on path A-B-C-D-E-F {0,1} [2,3] TStA={0,1,2,3,4,5} TSrA={0,1,2,3,6,7} TStB={2,3} TSrB={0,1} TStC={4,5} TSrC={2,3} TStD={6,7} TSrD={4,5} TStE={0,1} TSrE={6,7} TStF={0,1,2,3,6,7} TSrF={0,1,4,5,6,7} F {2,3} [4,5] S={0..7} {} [ ] (0,1) D (6,7) E (4,5) A (0,1) B C (2,3) {} [ ] {4,5} [ 6,7] { 6,7} [0,1]

  27. An example (cont’d) {0,1} [2,3] F {2,3} [4,5] TSEF={0,1} TSDE={6,7} TSrB={0,1} TSrD={4,5} {} [ ] D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Step 1: node E reserve 1 TS for link EF Step1_1: choose TS not available on nodes B and D for receiving,No Step 1_2: choose TS not available on link D  E:{0,1}; choose 0.

  28. An example (cont’d) {0,1} [2,3] F {0,2,3} [4,5] TStB={2,3} TSrB: {0,1}{1} TStE: {0,1} {1} TSrE={6,7} TStF: {0,1,2,3,6,7} {1,2,3,6,7} TSrF: {0,1,4,5,6,7} {1,4,5,6,7} {} [0] D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Step 1: node E reserve 1 TS for link E  F Step1_1: choose TS not available for nodes B and D for receiving, No Step 1_2: choose TS not available on link DE: {0,1}; choose 0. Step 1_3: disseminate this reservation.

  29. An example (cont’d) {0,1} [2,3] F {0,2,3} [4,5] TSDE={6,7} TSrC={2,3} {} [0] D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Step 1: node E reserve 1 TS for link EF: TS 0 Step 2: node D reserves 1 TS for link DE Step 2_1: choose TS not available on TSrC :{6,7};choose6

  30. An example (cont’d) {0,1,6} [2,3] F {0,2,3} [4,5,6] {} [0] TStD: {6,7} {7} TSrE={6,7} {7} TStF: {1,2,3,6,7} {1,2,3,7} D E A B C {} [ ] {4,5} [ 6,7] { 6,7} [0,1] Step 1: node E reserve 1 TS for link EF: TS 0 Step 2: node D reserves 1 TS for link DE Step2_1: choose TSs not available on TSrC : {6,7}; choose 6 Step 2_2: notify this reservation

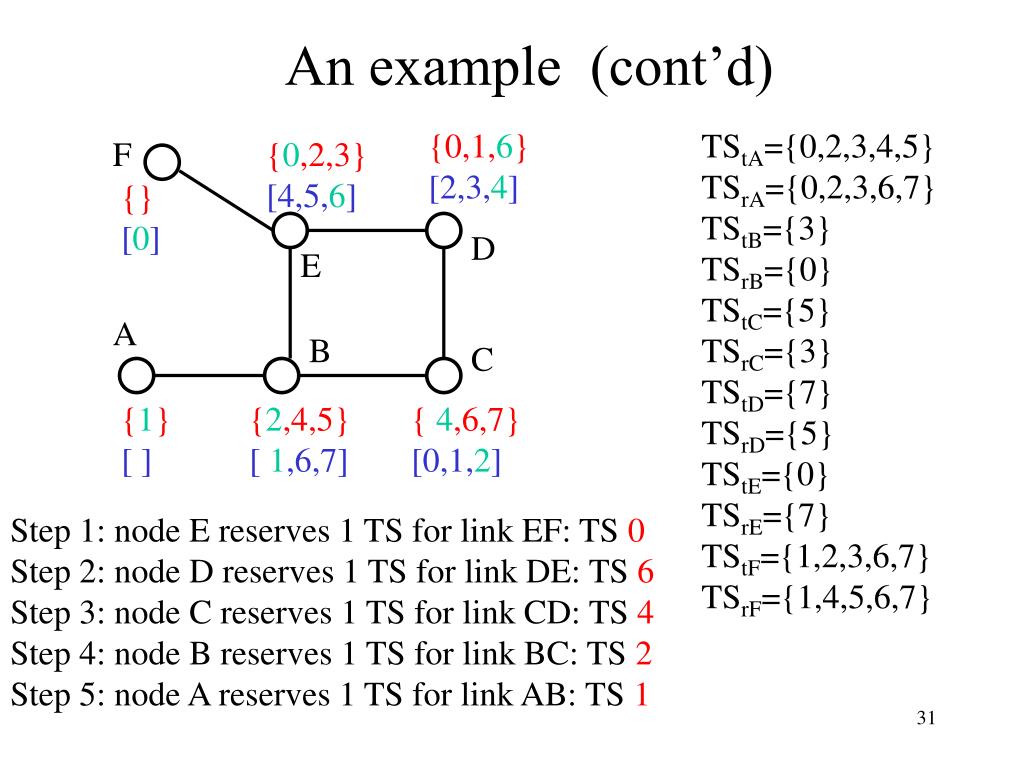

  31. An example (cont’d) {0,1,6} [2,3,4] TStA={0,2,3,4,5} TSrA={0,2,3,6,7} TStB={3} TSrB={0} TStC={5} TSrC={3} TStD={7} TSrD={5} TStE={0} TSrE={7} TStF={1,2,3,6,7} TSrF={1,4,5,6,7} F {0,2,3} [4,5,6] {} [0] D E A B C {1} [ ] {2,4,5} [ 1,6,7] { 4,6,7} [0,1,2] Step 1: node E reserves 1 TS for link EF: TS 0 Step 2: node D reserves 1 TS for link DE: TS 6 Step 3: node C reserves 1 TS for link CD: TS 4 Step 4: node B reserves 1 TS for link BC: TS 2 Step 5: node A reserves 1 TS for link AB: TS 1

  32. Reliability improvement • Multiple maximally disjoint paths • Erasure coding (Nn, m) for error recovery • m slots per frame required, K=m/n • N>K paths set up, each with n slots reserved • Tolerate at most N-K paths breakdown

  33. Sequential multipath setup • Step 1: source S sends a flooding request to destination D: only those links with sufficient bandwidth will forward the request • Step 2: Node D chooses one path for reservation • Step 3: Node S then initiates the second flooding to node D • Step 4: Node D reserves bandwidth for the second path • Step 5: go to step 3, until all N paths have been established

  34. An example for multipath setup H I {0,1} {6,7} {2,3} G F E {7,8} {2,6} {0,1} D {4,5} {1} {4,5} A {0,1} {1,2,3} B C Demand: set up two paths from A D, 2 timeslots each path

  35. An example for multipath setup H I {0,1} {6,7} {2,3} G F E {7,8} {2,6} {0,1} D {4,5} {1} {4,5} A {0,1} {1,2,3} B C Demand: Two paths from A-D, 2 timeslots each path Step 1: Node A initiates flooding to node D

  36. An example for multipath setup H I {0,1} {6,7} {2,3} G F E {7,8} {6} {0,1} D {4,5} {} {4,5} {4,5} {} A {0,1} {0,1} {} {1,2,3} {2,3} {} B C Demand: Two paths from A-D, 2 timeslots each path Step 1: Node A initiates flooding to node D Step 2: node D chooses path ABCD for reservation (red: reserved; blue: after reservation)

  37. An example for multipath setup H I {0,1} {6,7} {2,3} G F E {7,8} {6} {0,1} D {4,5} {} {4,5} {} A {0,1} {} {2,3} {} B C Demand: Two paths from A-D, 2 timeslots each path Step 1: Node A initiates flooding to node D Step 2: node D chooses path ABCD for reservation Step 3: node A sends the second flooding

  38. An example for multipath setup H I {0,1} {6,7} {2,3} G F E {7,8} {} {0,1} D {4,5} {} {4,5} {} A {0,1} {} {2,3} {} B C Demand: Two paths from A-D, 2 timeslots each path Step 1: Node A initiates flooding to node D Step 2: node D chooses path ABCD for reservation Step 3: node A sends the second flooding Step 4: node D chooses path AEHID for reservation

  39. Performance Evaluation • Network simulator ns2 • Simulation area: 720 m2 per node • Frame: 82ms, 50 timeslots • Call arrival: Poisson, 1 call per second • Call holding time: exponential, 20 seconds • Each call: 4 timeslots per frame required • Erasure coding: (6,4) • Multipath: 3 paths • Simulation time: 2500 seconds

  40. Performance evaluation (cont’d) • Moving pattern: • Random movement • Initial position: randomly chosen • Random pause time • For each node: random destination, constant speed randomly chosen from [0, Max_speed] • Random pause at destination

  41. Numerical results Total number of connections supported versus max speed Network size: 20

  42. Numerical results (cont’d) average # of interruptions per connection versus max speed Network size: 20

  43. Numerical results (cont’d) Probability of termination versus max speed Network size: 20

  44. Numerical results (cont’d) Total number of connections supported versus network size Max speed: 20 m/s

  45. Numerical results (cont’d) Average # of interruptions per connection versus network size Max speed: 20 m/s

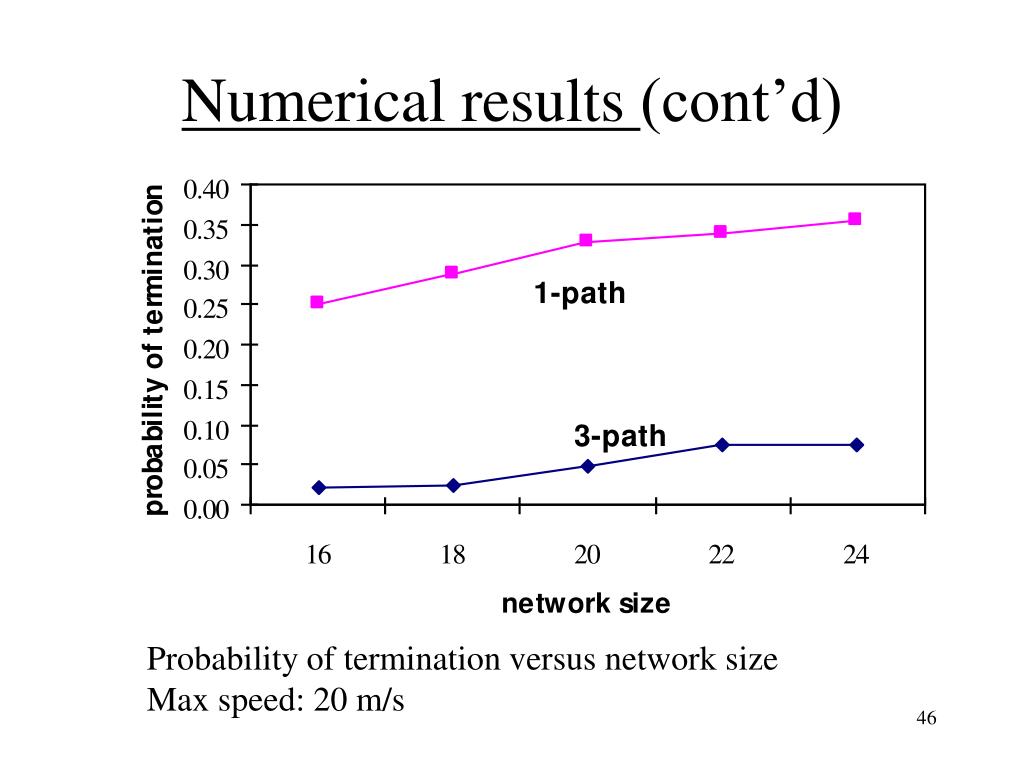

  46. Numerical results (cont’d) Probability of termination versus network size Max speed: 20 m/s

  47. Conclusions • Reliable QoS routing in ad hoc networks proposed • Receiver initiated bandwidth reservation • Sequential maltipath setup • Bandwidth reservation: minimize the impact to further reservation • Not maximum bandwidth calculation • Sequential multipath setup • Avoid collision • Longer path setup

  48. Thank You
