Presentation Transcript
Routing in mobile ad hoc networks l.jpg

Routing in Mobile Ad hoc Networks

Sumesh J. Philip

CSE620 Fall 2004


Contents l.jpg
Contents

  • Introduction to Ad hoc networks

  • Conventional routing drawback

  • Table Driven (WRP, DSDV)

  • On Demand (DSR, AODV, TORA)

  • Performance Evaluation

  • Location based routing (LAR, DREAM)

  • Hybrid routing (ZRP)

  • Summary


Mobile ad hoc network l.jpg
Mobile Ad hoc Network

  • Collection of mobile nodes forming a network

  • Hosts use wireless RF transceivers as network interface

    • Omni directional (broadcast)

    • Highly directional (point – point)

    • Combination

  • Arbitrary movement and coverage pattern

  • Connectivity in the form of random, multi-hop graphs

  • Highly co-operative, each host is an independent router

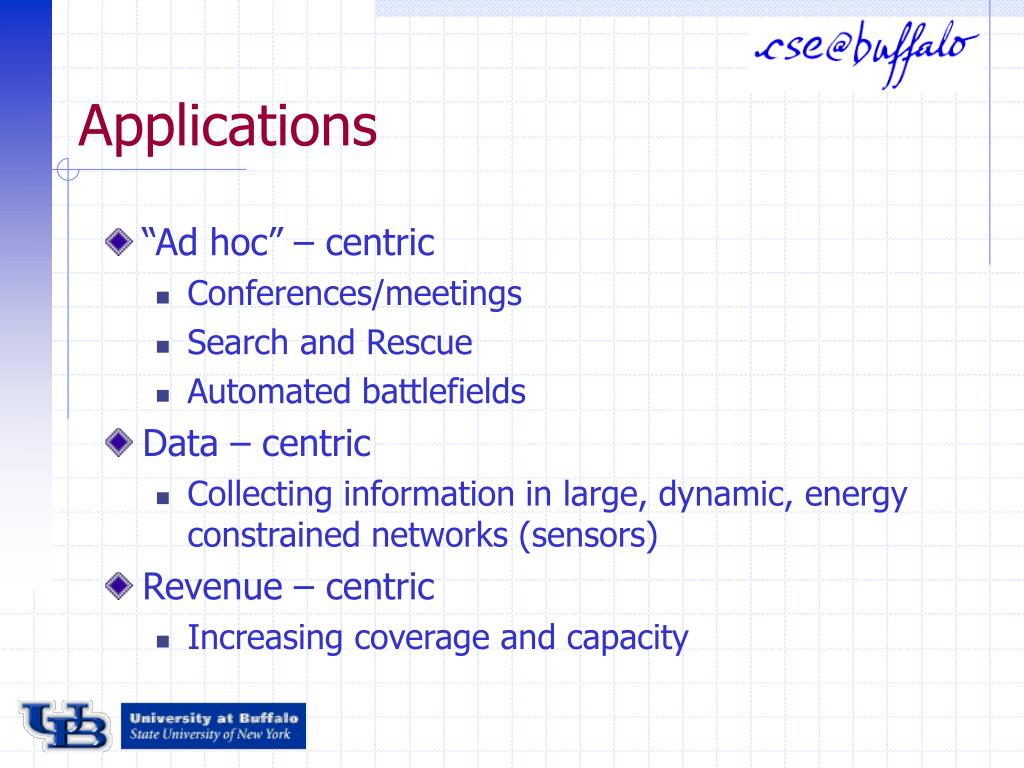

Applications l.jpg
Applications

  • “Ad hoc” – centric

    • Conferences/meetings

    • Search and Rescue

    • Automated battlefields

  • Data – centric

    • Collecting information in large, dynamic, energy constrained networks (sensors)

  • Revenue – centric

    • Increasing coverage and capacity


Constraints and issues l.jpg
Constraints and Issues

  • No centralized administration or standard support services

  • Frequent and unpredictable network topology changes

  • Routing and mobility management

  • Channel access/bandwidth availability

    • Hidden/Exposed station problem

  • Lack of symmetrical links

  • Power limitation


Conventional routing protocols l.jpg
Conventional Routing Protocols ?

  • Not designed for highly dynamic, low bandwidth networks

  • “Count-to-infinity” problem and slow convergence for DV

  • Loop formation during temporary node failures and network partitions

  • Protocols that use flooding techniques (for e.g. LS) create excessive traffic and control overhead


Ad hoc routing protocols l.jpg

Proactive Protocols

Table driven

Continuously evaluate routes

No latency in route discovery

Large capacity to keep network information current

A lot of routing information may never be used

Reactive Protocols

On Demand

Route discovery by global search

Bottleneck due to latency of route discovery

May not be appropriate for real-time communication

Ad hoc Routing Protocols


Wireless routing protocol wrp l.jpg
Wireless Routing Protocol (WRP)

  • Predecessor to destination (next to last hop) in the shortest path used

  • Eliminates the “Count-to-infinity” problem and converges faster

  • Neighbor connectivity via periodic Hello messages

  • Update messages sent upon detecting a change in neighbor link

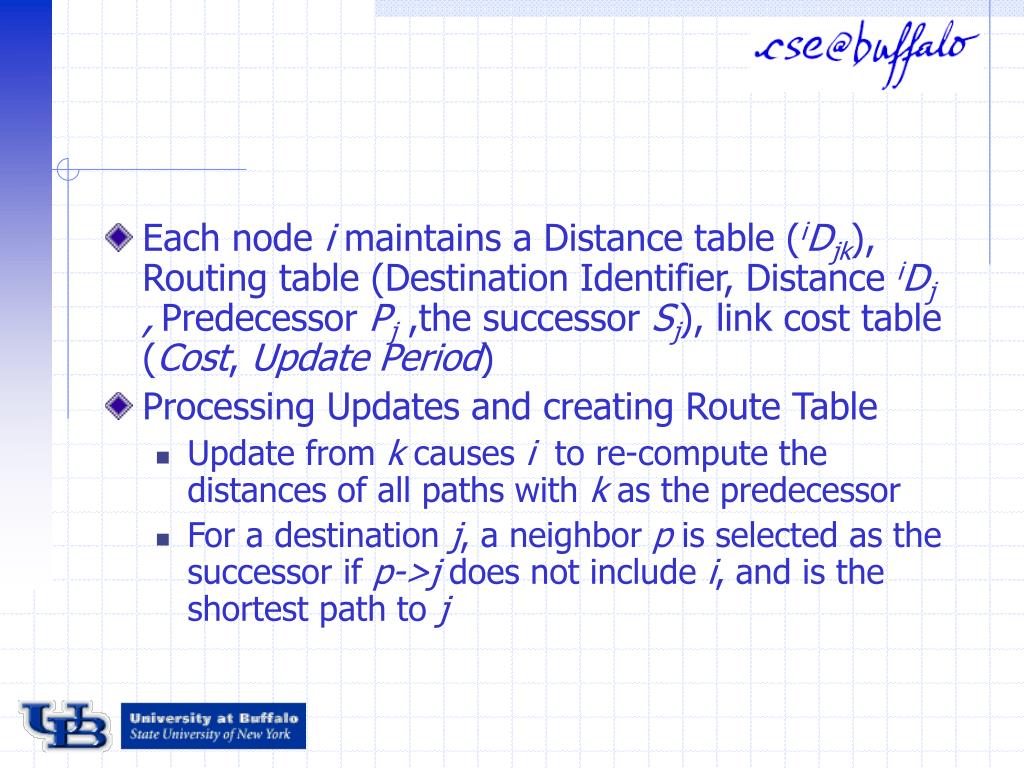

Slide9 l.jpg

  • Each node i maintains a Distance table (iDjk), Routing table (Destination Identifier, Distance iDj ,Predecessor Pj ,the successor Sj), link cost table (Cost, Update Period)

  • Processing Updates and creating Route Table

    • Update from k causes i to re-compute the distances of all paths with k as the predecessor

    • For a destination j, a neighbor p is selected as the successor if p->j does not include i, and is the shortest path to j

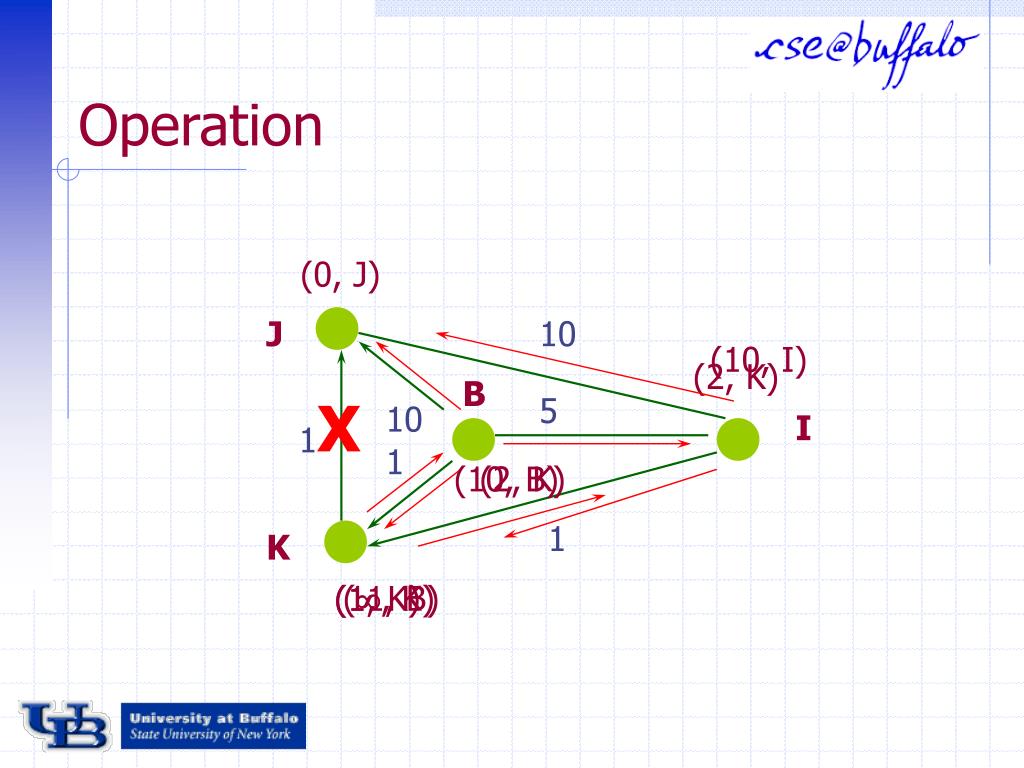

Operation l.jpg

(10, I)

(10, B)

Operation

(0, J)

J

10

(2, K)

B

X

5

10

I

1

1

(2, K)

1

K

(1, K)

(11, B)

(, K)


Destination sequenced distance vector dsdv l.jpg
Destination Sequenced Distance Vector (DSDV)

  • Each Route is tagged with a sequence number originated by destination

  • Hosts perform periodic & triggered updates, issuing a new sequence number

  • Sequence number indicates the “freshness” of a route

    • Routes with more recent sequence numbers are preferred for packet forwarding

    • If same sequence number, one having smallest metric used


Topology changes l.jpg
Topology changes

  • Broken links assigned a metric of ∞

  • Any route through a hop with a broken link is also assigned a metric of ∞

  • “∞ routes” are assigned new sequence numbers by any host and immediately broadcast via a triggered update

  • If a node has an equal/later sequence number with a finite metric for an “∞ route”, a route update is triggered



Damping fluctuations l.jpg
Damping Fluctuations

  • Routes preferred if later sequence numbers, or smaller metric for same sequence numbers

  • Problem : Table fluctuations if worse metrics are received first, causing a ripple of triggered updates

  • Solution : Use average settling time as a parameter before advertising routes

  • Tantamount to using two tables, one for forwarding packets and another for advertising routes


Dynamic source routing dsr l.jpg
Dynamic Source Routing (DSR)

  • Each packet header contains a route, which is represented as a complete sequence of nodes between a source – destination pair

  • Protocol consists of two phases

    • route discovery

    • route maintenance

  • Optimizations for efficiency

    • Route cache

    • Piggybacking

    • Error handling


Dsr route discovery l.jpg
DSR Route Discovery

  • Source broadcasts route request (id, target)

  • Intermediate node action

    • Discard if id is in <initiator, request id> or node is in route record

    • Else append address in route record; rebroadcast

    • If node is the target, route record contains the full route to the target; return a route reply

  • Use existing routes to source to send route reply; else piggyback


Dsr route maintenance l.jpg
DSR Route Maintenance

  • Use acknowledgements or a layer-2 scheme to detect broken links; inform sender via route error packet

  • If no route to the source exists

    • Use piggybacking

    • Send out a route request and buffer route error

  • Sender truncates all routes which use nodes mentioned in route error

  • Initiate route discovery


Optimizations for efficiency l.jpg
Optimizations for efficiency

  • Route Cache

    • Use cached entries for during route discovery

    • Promiscuous mode to add more routes

    • Use hop based delays for local congestion

    • Must be careful to avoid loop formation

    • Expanding ring search


Optimizations l.jpg
Optimizations

  • Piggybacking

    • Data piggybacked on route request Packet

    • Problem : route caching can cause piggybacked data to be discarded

  • Improved Error Handling

    • when network becomes partitioned, buffer packets and use exponential back-off for route discovery

    • Listen to route replies promiscuously to remove entries

    • Use negative information to ignore corrupt replies


Ad hoc on demand distance vector aodv l.jpg
Ad-hoc On DemandDistance Vector (AODV)

  • On demand protocol that uses sequence numbers (DSDV) to build loop free routes

  • Key difference from DSR is that source route is no longer required

  • Path discovery

    • Reverse Path setup

    • Forward path setup

  • Table management and path maintenance

  • Local connectivity management


Aodv reverse path setup l.jpg
AODV Reverse path setup

  • Counters : Sequence number, Broadcast id

  • Reverse Path

    • Broadcast route request (RREQ) < source_addr, source_sequence-# , broadcast_id, dest_addr, dest_sequence_#, hop_cnt >

    • RREQ uniquely identified by <source_addr , broadcast_id>

    • Route reply (RREP) if neighbor is the target, or knows a higher dest_sequence_#

    • Otherwise setup a pointer to the neighbor from whom RREQ was received

    • Maintain reverse path entries based on timeouts


Aodv forward path setup l.jpg
AODV Forward path setup

  • RREQ arrives at a node that has current route to the destination ( larger/same sequence number)

  • Unicast request reply (RREP)<source_addr, dest_addr, dest_sequence_#, hop_cnt,lifetime> to neighbor

  • RREP travels back to the source along reverse path

  • Each upstream node updates dest_sequence_#,sets up a forward pointer to the neighbor who transmit the RREP


Aodv operation l.jpg

X

X

AODV Operation

D

S

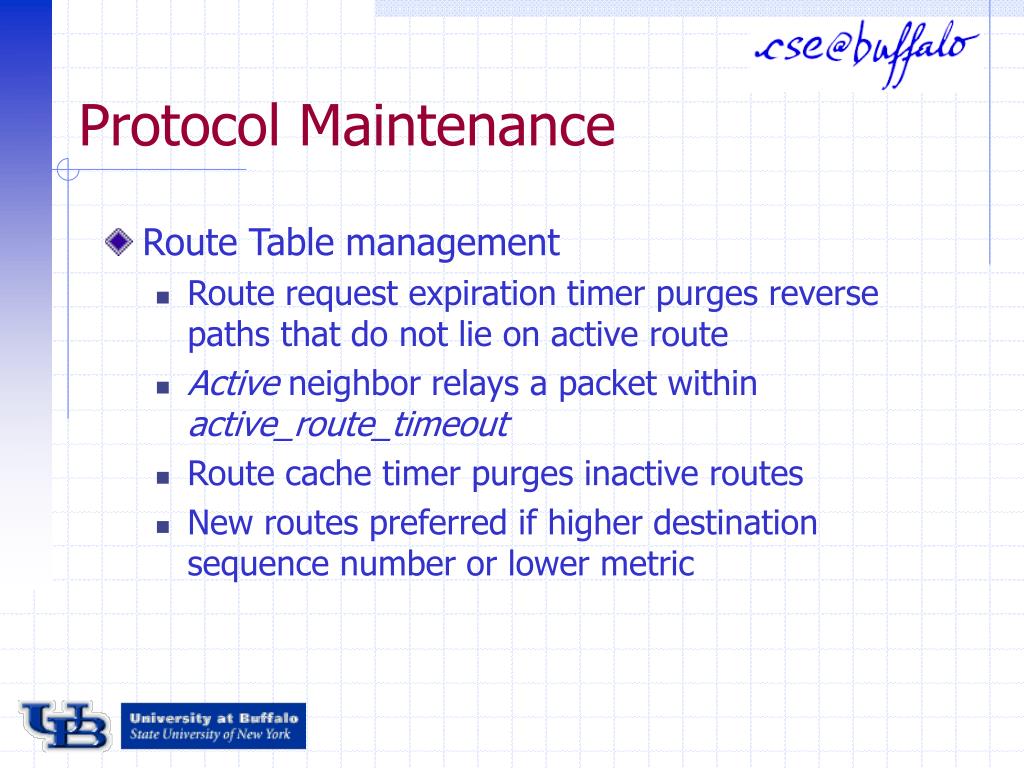

Protocol maintenance l.jpg
Protocol Maintenance

  • Route Table management

    • Route request expiration timer purges reverse paths that do not lie on active route

    • Active neighbor relays a packet within active_route_timeout

    • Route cache timer purges inactive routes

    • New routes preferred if higher destination sequence number or lower metric


Aodv maintenance l.jpg
AODV Maintenance

  • Path maintenance

    • Upon link breakage, affected node propagates an unsolicited RREP <dest_sequence_#+1, ∞> to all upstream nodes

    • Source may restart route discovery process

  • Local connectivity management

    • Broadcasts used to update local connectivity information

    • Inactive nodes in an active path required to send “hello” messages

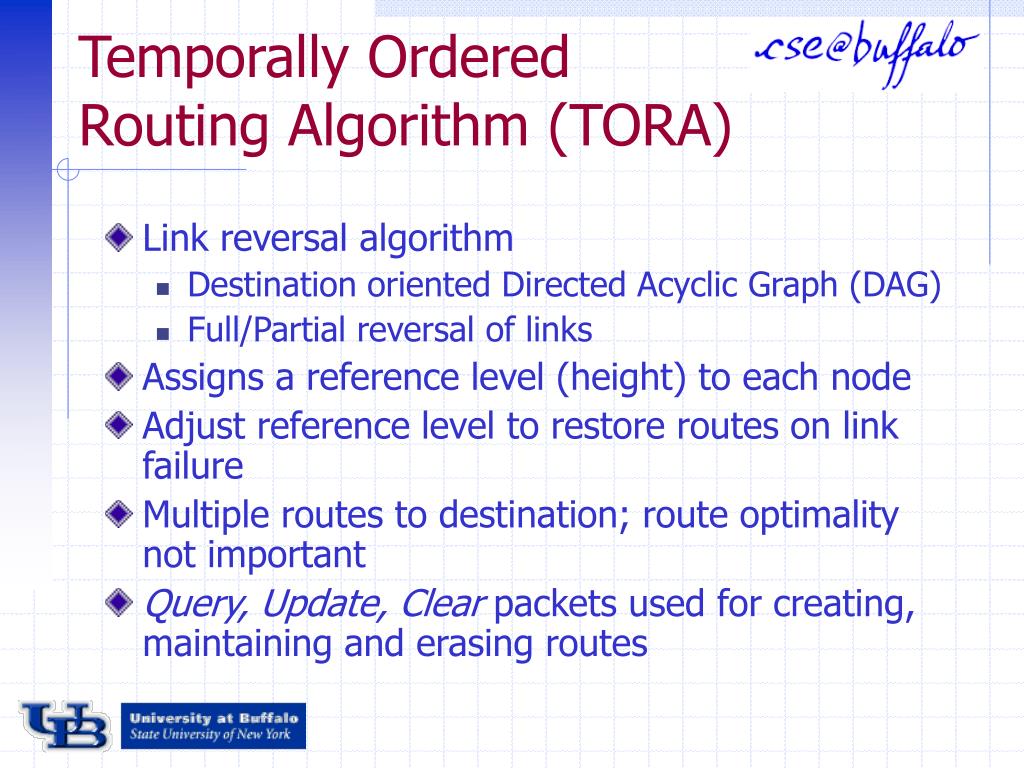

Temporally ordered routing algorithm tora l.jpg
Temporally OrderedRouting Algorithm (TORA)

  • Link reversal algorithm

    • Destination oriented Directed Acyclic Graph (DAG)

    • Full/Partial reversal of links

  • Assigns a reference level (height) to each node

  • Adjust reference level to restore routes on link failure

  • Multiple routes to destination; route optimality not important

  • Query, Update, Clear packets used for creating, maintaining and erasing routes


Creating routes l.jpg

QRY

UPD

QRY

UPD

UPD

UPD

QRY

UPD

QRY

UPD

UPD

Creating Routes

A

B

QRY

E

C

D

G (DEST)

F

H


Route maintenance l.jpg
Route Maintenance

UPD

A

B

UPD

E

C

UPD

D

G (DEST)

X

F

H



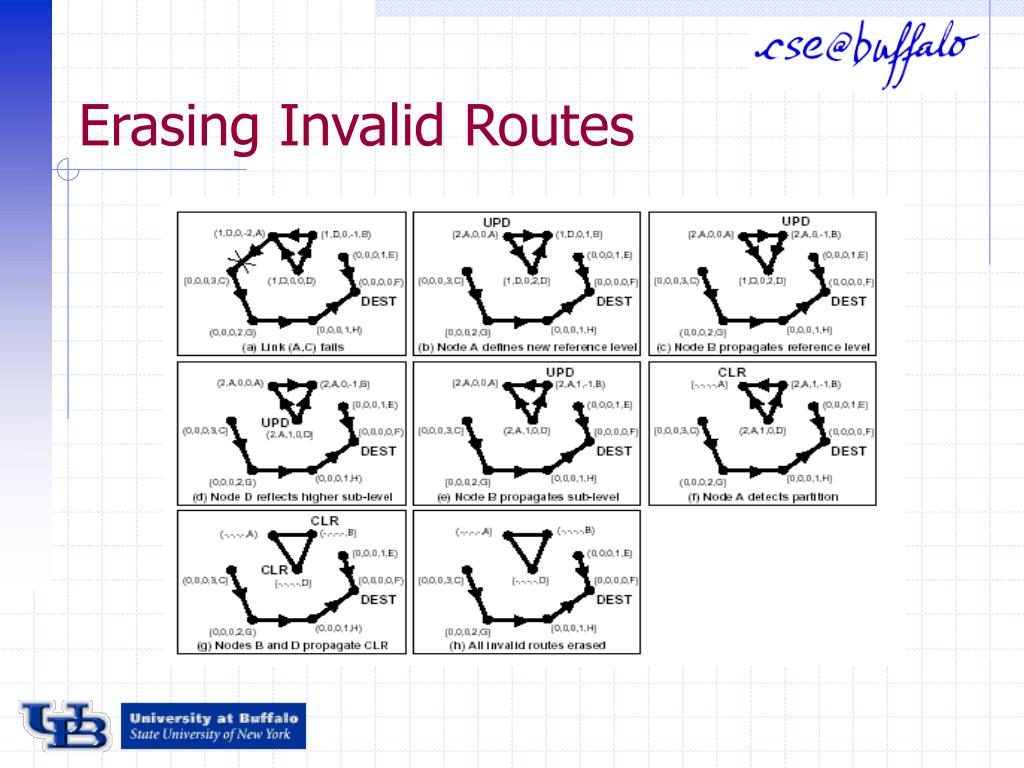

Performance analysis l.jpg
Performance Analysis

  • Simulation Environment

    • Network Simulator, 50 nodes in a 1500x300m rectangular flat grid

    • Random waypoint mobility (Average 10 m/sec)

    • Constant bit rate traffic (UDP)

  • Address resolution : ARP implementation in BSD Unix

  • Medium Access Control : IEEE 802.11

  • Physical Layer model : combines both free space and two ray ground reflection model

  • Protocols studied : DSDV(SQ), AODV-LL, DSR, TORA


Performance analysis31 l.jpg
Performance Analysis

  • Metrics

    • Packet Delivery Ratio : Ratio of number of packets generated by CBR sources to that received by CBR sinks at destination

    • Routing Overhead : number of routing packets sent; each transmission counts as one transmission

    • Path Optimality : Difference between length of actual path took and the length of the shortest path


Packet delivery ratio l.jpg
Packet Delivery Ratio

  • 95-100% in most cases for DSR, AODV

  • Stale route entries in DSDV cause drops

  • Short lived loops in TORA as part of link reversal

  • All protocols perform well when there is low node mobility


Routing overhead packets l.jpg
Routing Overhead (packets)

  • Route caching and non-propagating RREQs in DSR

  • TORA

    • Sum of mobility dependant, independent overhead for TORA

    • Congestive collapse

  • Nearly constant for DSDV due to periodic updates


Routing overhead bytes l.jpg
Routing Overhead (Bytes)

  • DSR more expensive than AODV except at high mobility

  • Smaller packets in AODV, may be more expensive in terms of media access, power and network utilization


Path optimality l.jpg
Path Optimality

  • DSDV, DSR use routes close to optimal

  • TORA not designed to find shortest path

  • TORA, AODV use paths close to optimum when node mobility is low


Using location information l.jpg
Using Location Information

  • Several solutions for locating wireless devices

    • Location represented as {latitude, longitude, altitude}/{x,y,z}

  • Outdoor environment

    • GPS positioning, Cellular Network based

  • Indoor environment

    • RADAR, Cricket system

  • Beacon algorithms for ad hoc networks

    • Ad hoc Positioning System (APS)

  • How to incorporate locations into routing ?


Distance routing effect algorithm for mobility dream l.jpg
Distance Routing EffectAlgorithm for Mobility (DREAM)

  • Proactively disseminate location information

  • Distance Effect :

    • Closer nodes are updated more frequently

    • “age” field in location update

  • Mobility Effect :

    • rate of location update controlled by mobility

    • No bandwidth wastage for no movement

  • Routing policy

    • If no entry for destination in table, flood

    • Otherwise forward data to m neighbors in the direction of destination


Example of dream l.jpg
Example of Dream

How to determine  ?


Location aided routing lar l.jpg
Location Aided Routing (LAR)

  • On Demand protocol; used restricted flooding for locating destination

  • Flooding is restricted to a “request zone”, defined by an “expected zone”

  • A node forwards a route request only if it belongs to the “request zone”

  • Tradeoff between latency of route determination and message overhead

  • Resorts to flooding when prior information of destination is not available


Lar scheme 1 l.jpg
LAR Scheme 1

  • Source calculates the “expected zone”, defines a “request zone” in the request packet and initiates route discovery

  • Node I receiving the route request forwards the request if it falls inside the “request zone”, otherwise discards it

  • When destination receives the request, replies with a route reply including current location, time and average speed

  • Size of request zone is large at low and high node speeds


Lar scheme 2 l.jpg
LAR Scheme 2

  • Source calculates the distance Dists to destination (xd, yd) and initiates route discovery with both parameters

  • Node I calculates it’s distance Disti from (xd, yd) and forwards the request only if Disti<= Dists + δ, otherwise discards the request

  • Node I replaces Dists with Distibefore forwarding the request

  • Non zero δ increases probability of route discovery


Lar schemes l.jpg
LAR schemes

D(xd,yd)

D(xd,yd)

R = v(t-t0)

N

I

N

I

J

J

S (xs,ys)

S (xs,ys)

Scheme 1

Scheme 2


Zone routing protocol zrp l.jpg
Zone Routing Protocol (ZRP)

  • Proactive/reactive protocols have scalability issues for large networks

    • Tables updates

    • Flooding aspect

  • Zone routing

    • Zone (hop based) defined for each node

    • Interior nodes, peripheral nodes

    • Proactive topology maintenance within a zone (IARP)

    • Reactive bordercast within zones (IERP)



Summary l.jpg
Summary

  • Introduced ad hoc networks and multi- hop relaying in wireless environment

  • Mobility imposes considerable challenge in routing

    • Rapidly dynamic topology

    • Conventional routing protocols not designed to withstand such rapid changes

  • Proactive vs. Reactive protocols

  • Presented the tip of an iceberg; literature is filled with routing protocols, performance studies etc.


ad
