Digital logic circuit

Digital Logic Circuit

Analysis & Design

王 军

王晓东


Digital logic circuit

6.2 TOUNTER

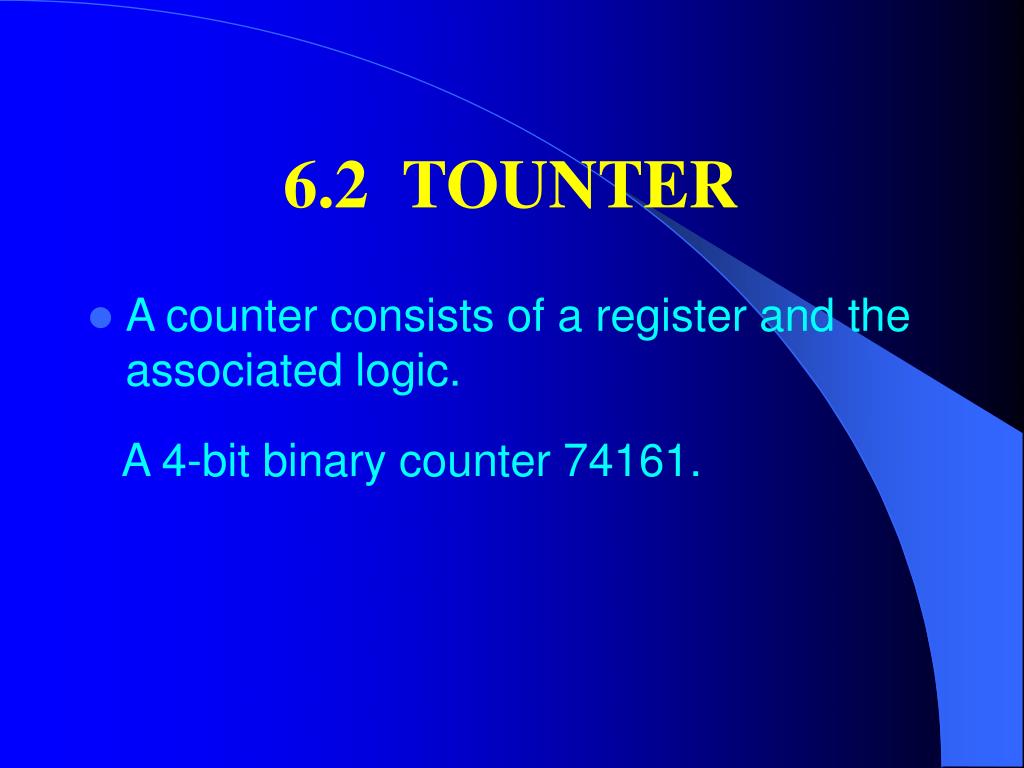

  • A counter consists of a register and the associated logic.

A 4-bit binary counter 74161.


Digital logic circuit

  • CLOCK: synchronous counting input.

  • CLR’: asynchronous clear (active low).

  • Load’: synchronous load (active low).

  • ENT and ENP: count enables (active high).

  • IND,C,B,A: loading inputs.

  • OV: overflow output (reaching the maximum-1111)


An 8 bit binary counter base 28 1

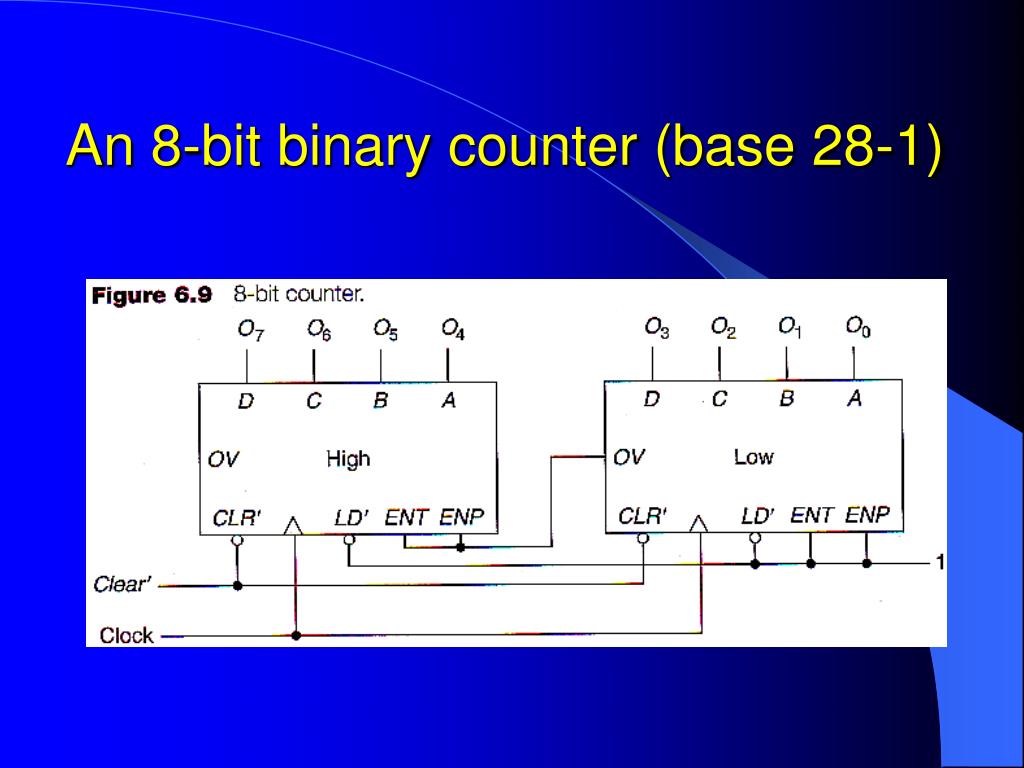

An 8-bit binary counter (base 28-1)


A 4 bit binary down up counter 74191

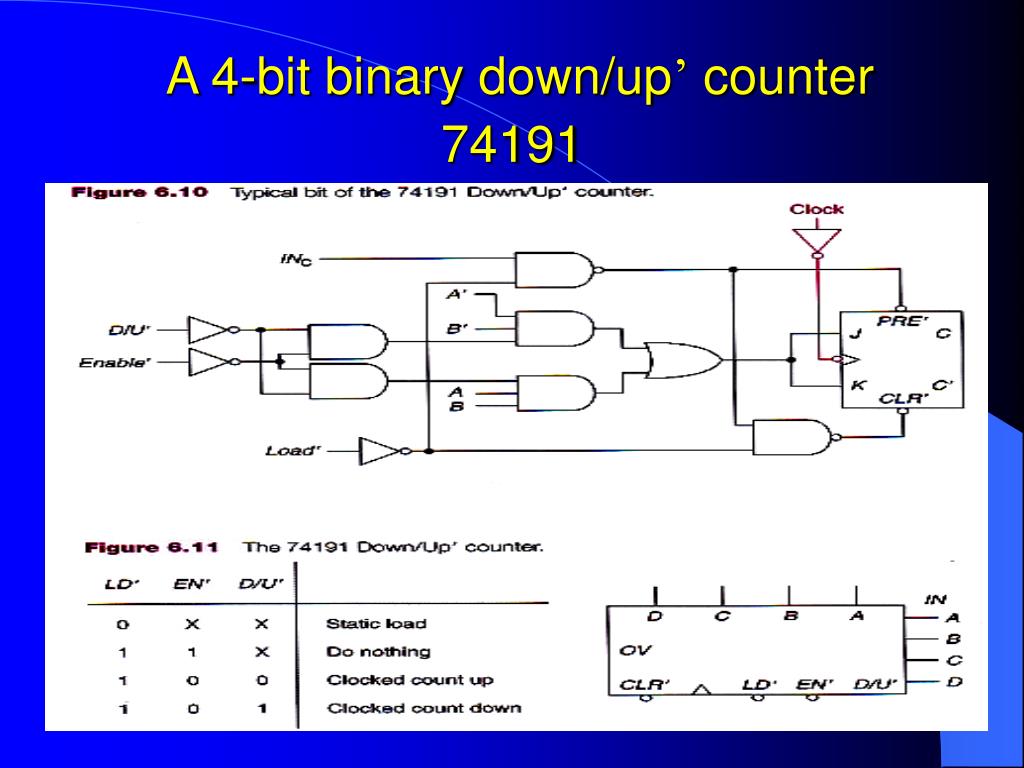

A 4-bit binary down/up’ counter 74191


Base 16 2 8 asynchronous counter 7493

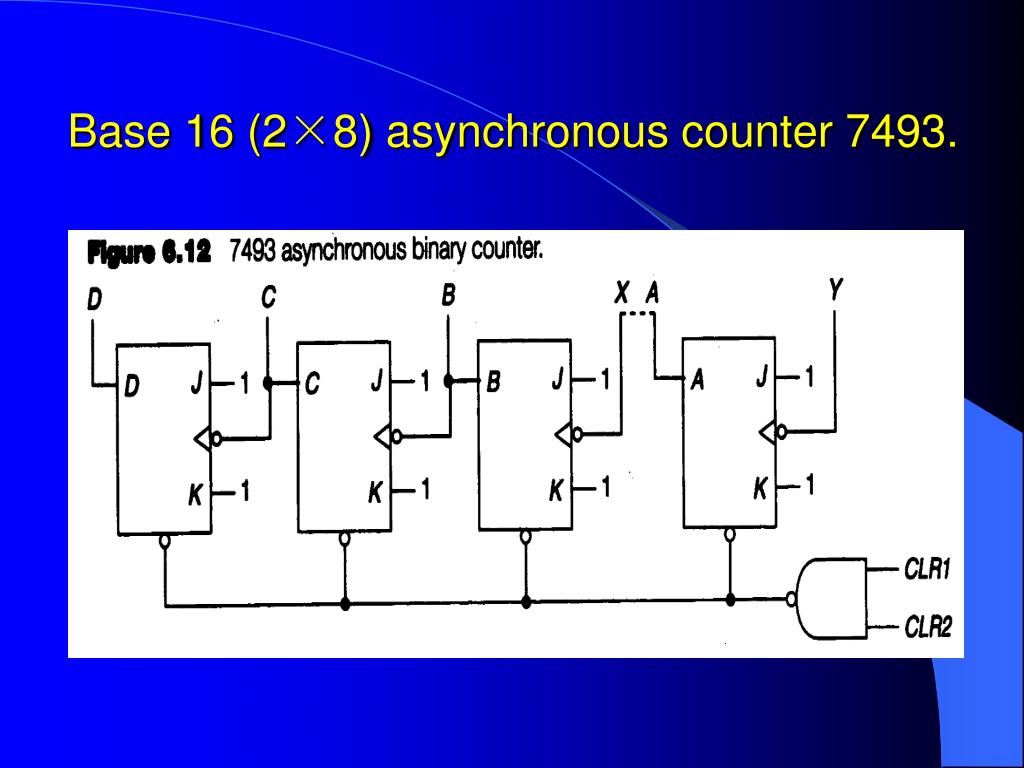

Base 16 (2×8) asynchronous counter 7493.


Digital logic circuit

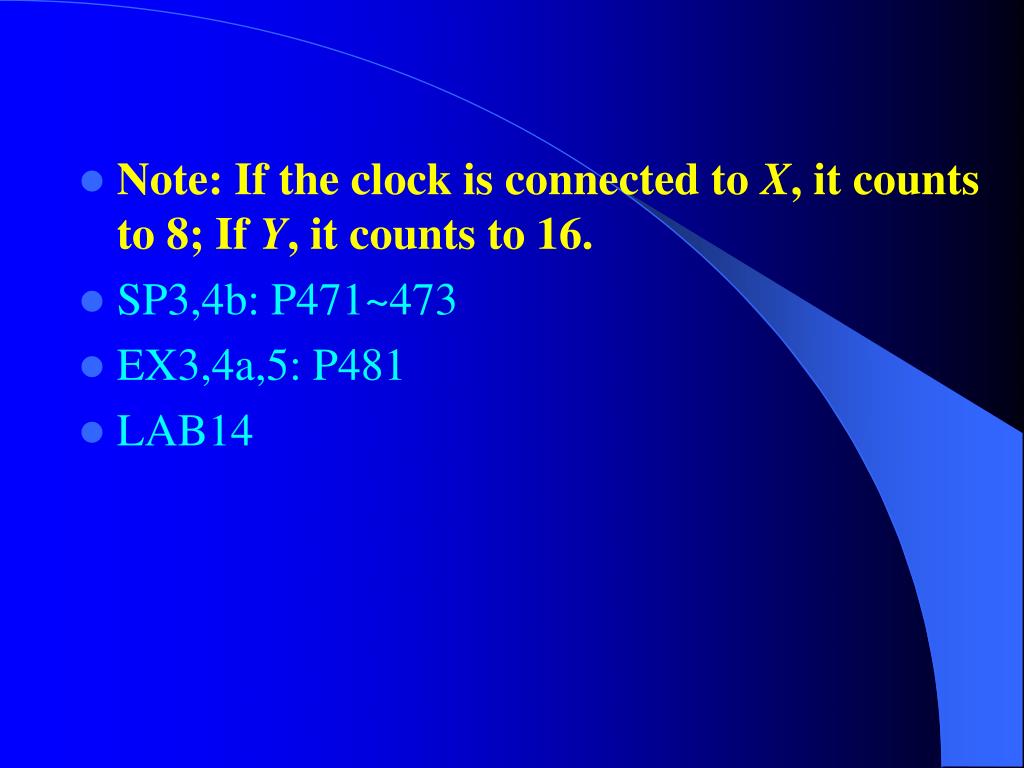

  • Note: If the clock is connected to X, it counts to 8; If Y, it counts to 16.

  • SP3,4b: P471~473

  • EX3,4a,5: P481

  • LAB14


Digital logic circuit

Experiment 14 A Base-60 Counter

Section 1 Introduction and Guidance

a. Introduction: Counters may be synchronous or asynchronous and may be base 10 or 16 or else. Most synchronous counters have parallel loads; they may be preset to a value, using the load signal and an input line for each bit. We will have to understand them well and use them skillfully. The purpose of this experiment is to make students master the designing method of a base-60 counter and consolidate the ability of using seven segment displays.

b. Guidance: Counters are commercial medium-scale integrated circuits. Design a counter that goes from 0 to 59 and display the count on the two seven segment displays.

To implement more complex problems, we definitely choose corresponding chips and gates. Take the following available resources to finish the experiment.

Available Resources:

1. SAC-DS4 LOGIC LAB

2. ALTERA MAX+PLUS II

3. TTL chips: 74160, 74138,74373,7448 and 7473


Digital logic circuit

Section 2 Report Fourteen

Pre-experiment

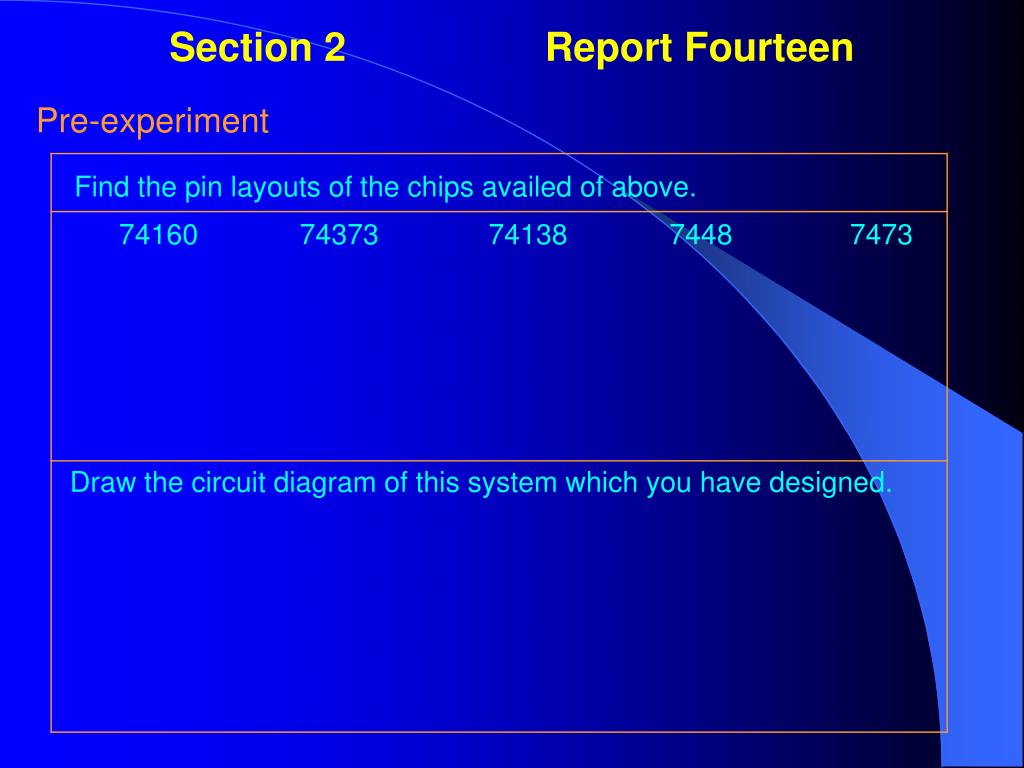

Find the pin layouts of the chips availed of above.

74160 74373 74138 7448 7473

Draw the circuit diagram of this system which you have designed.


Digital logic circuit

In-experiment

Any problem with wiring?

Any problem with chips?

Any other problems?

Testing results in ALTERA MAX+PLUSⅡ(waveform simulations)


Digital logic circuit

Post-experiment

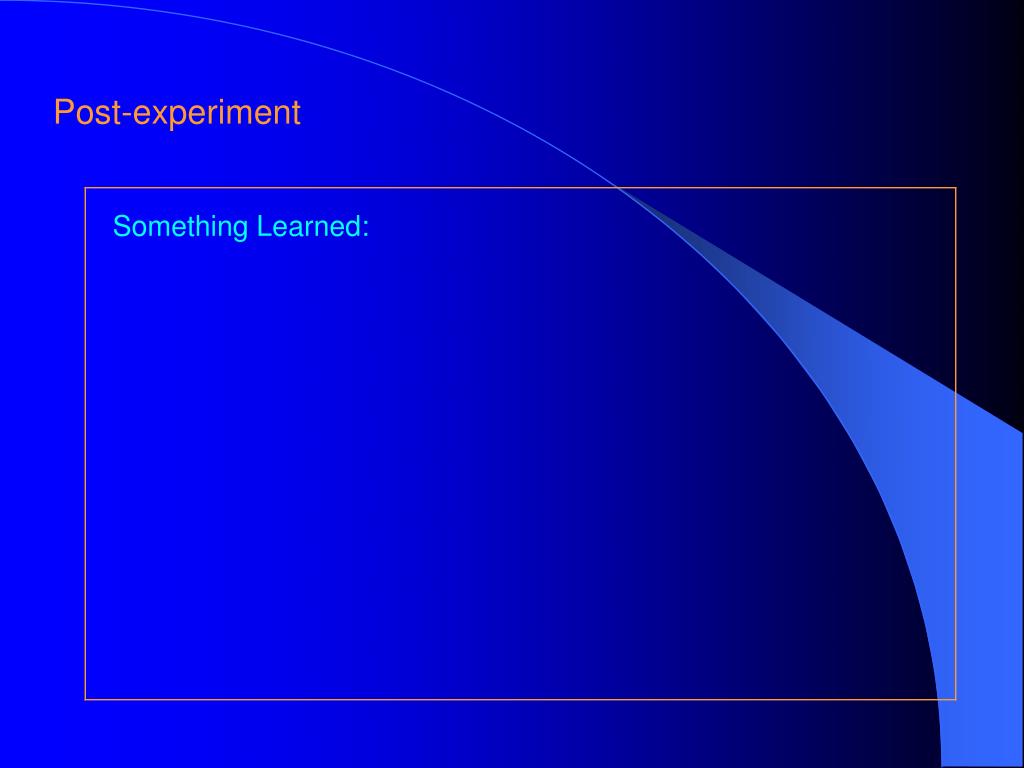

Something Learned:


Digital logic circuit

The end
