General monitoring requirements and options l.jpg

General Monitoring Requirements and Options

Louis Nichols

US EPA, Clean Air Markets Division (CAMD)

June 2007


Monitoring deadlines l.jpg

Monitoring Deadlines

  • Deadlines for Initial Certification for existing units:

    • Annual NOx Trading Program - January 1, 2008

    • SO2 Trading Program – January 1, 2009

    • Ozone Season NOx Trading Program – May 1, 2008


Monitoring regulations l.jpg

Monitoring Regulations

  • 40 CFR Part 72.2

    • Basic Definitions referred to throughout Part 75

  • 40 CFR Part 75 - Continuous Emissions Monitoring

    • Monitoring Provisions

    • Operation and Maintenance Requirements

    • Missing Data Substitution Procedures

    • Record Keeping and Reporting Requirements


Monitoring regulations4 l.jpg

Monitoring Regulations

  • 40 CFR Part 75 - Appendices

    • App A, Specifications and Test Procedures

    • App B, Quality Assurance and Quality Control Procedures

    • App F, Equations, F-factor


Monitoring requirements l.jpg

Monitoring Requirements

  • SO2 Mass Emissions (lb/hr)

  • Heat Input (mmBtu/hr)

  • NOx Mass Emissions (lb/hr) – Subpart H (§§75.70-75.75)


Reporting requirements subpart h nox monitoring l.jpg

Reporting Requirements -Subpart H NOx Monitoring

  • Annual Reporting

    • Submit quarterly Electronic Data Reports (EDR or ECMPS)

    • Only the NOx mass data from the Ozone Season is used for emissions trading for ozone season trading program

    • Follow standard Part 75 QA/QC timelines and data validation procedures

    • A must for Acid Rain units

    • May be required by the State rule (check with state)

  • Ozone Season Only Reporting

    • Only submit 2nd and 3rd quarterly electronic reports

    • Follow special QA/QC timelines and data validation procedures described in §75.74(c)

    • This option is a choice not a requirement

    • Do not get same grace period as annual reporters


Monitoring options for determining no x mass emissions l.jpg

Monitoring Options for DeterminingNOx Mass Emissions

  • NOx Concentration (ppm) & Stack Flow Rate (scfh)

  • NOx Emission Rate (lb/mmBtu) & Heat Input Rate (mmBtu/hr)

  • http://www.epa.gov/airmarkets/progsregs/cair/docs/ CAIR_NOx_Monitoring_Final_04-23-07.pdf


So 2 mass monitoring options l.jpg

SO2 Mass Monitoring Options

  • SO2 Mass

    • SO2 and Stack flow monitor, or

    • Part 75, Appendix D (for gas or oil fired peaking units)

    • LME Method §75.19


No x emission rate monitoring options l.jpg

NOx Emission Rate Monitoring Options

  • NOx Emission Rate

    • NOx-Diluent CEMS, or

    • Part 75, Appendix E (for gas or oil fired peaking units)

    • LME Default NOx Emission Rate


No x diluent cems l.jpg

NOx-Diluent CEMS

  • Two components

    • NOx Concentration Analyzer &

    • CO2 or O2 Concentration Analyzer as the Diluent

  • Part 75, Appendix F, section 3, provides the equations that are used to compute NOx emission rate (lb/mmBtu) given:

    • NOx concentration

    • CO2 or O2 concentration

    • F-factor for the fuel combusted


Part 75 appendix e l.jpg

Part 75, Appendix E

  • May be used in lieu of a NOx-diluent CEMS for determining hourly NOx emission rate (lb/mmBtu)

  • Applicable only to Gas and Oil-Fired Peaking Units


Part 75 appendix e12 l.jpg

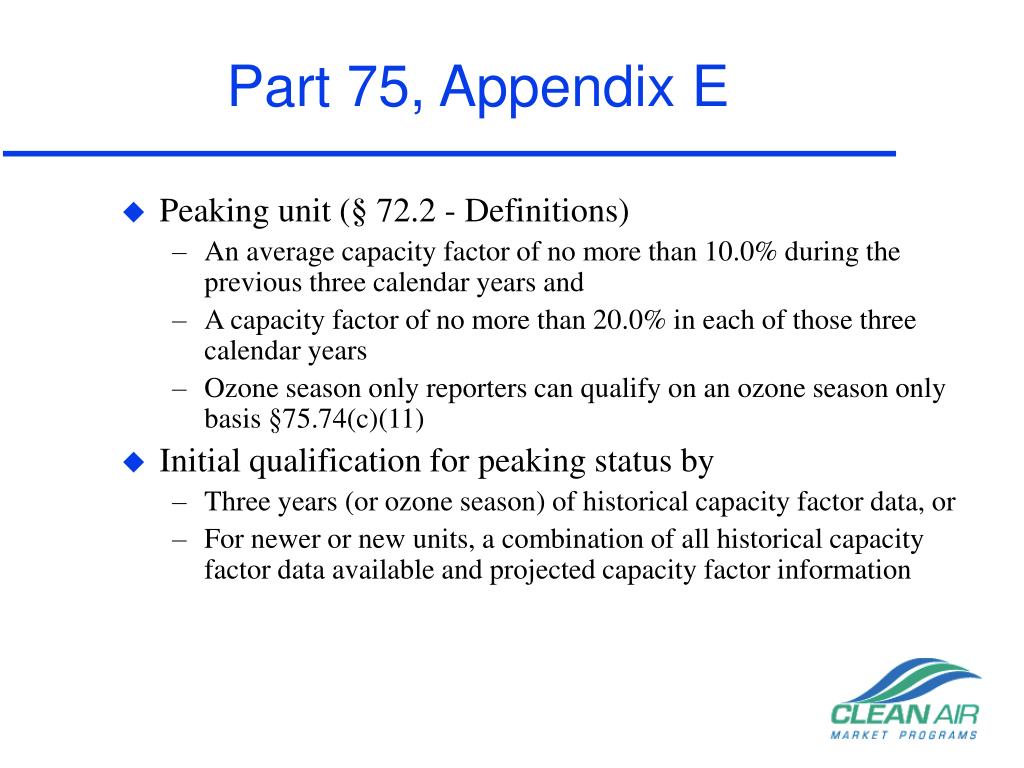

Part 75, Appendix E

  • Peaking unit (§ 72.2 - Definitions)

    • An average capacity factor of no more than 10.0% during the previous three calendar years and

    • A capacity factor of no more than 20.0% in each of those three calendar years

    • Ozone season only reporters can qualify on an ozone season only basis §75.74(c)(11)

  • Initial qualification for peaking status by

    • Three years (or ozone season) of historical capacity factor data, or

    • For newer or new units, a combination of all historical capacity factor data available and projected capacity factor information


Part 75 appendix e13 l.jpg

Part 75, Appendix E

  • For units that make a change in capacity factor may qualify by:

    • Collecting three calendar years of data following the change to meet the historical capacity factor specification, or

    • Collect one calendar year of data following the change showing a capacity factor of less than 10.0% and provide a statement that the change is considered permanent


Part 75 appendix e14 l.jpg

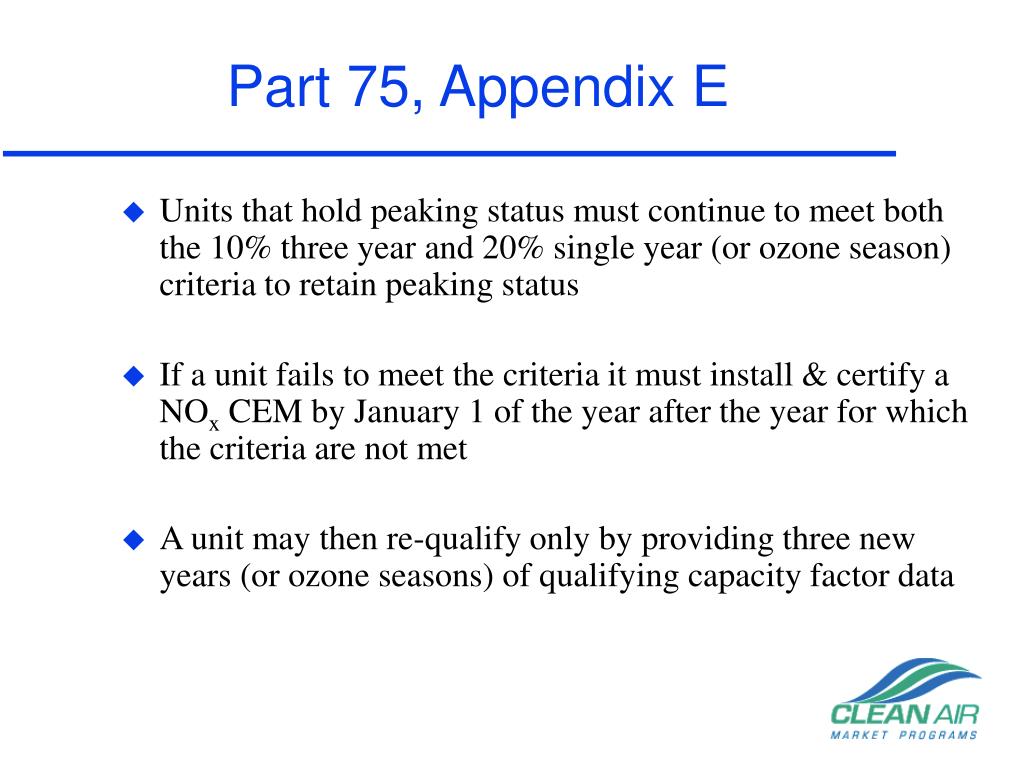

Part 75, Appendix E

  • Units that hold peaking status must continue to meet both the 10% three year and 20% single year (or ozone season) criteria to retain peaking status

  • If a unit fails to meet the criteria it must install & certify a NOx CEM by January 1 of the year after the year for which the criteria are not met

  • A unit may then re-qualify only by providing three new years (or ozone seasons) of qualifying capacity factor data


Part 75 appendix e15 l.jpg

Part 75, Appendix E

  • The average NOx emission rate (lb/mmBtu) is determined from

    • Periodic fuel specific NOx emission rate testing at four, equally spaced load levels

      • Boilers

        • Method 7E for NOx

        • Method 3A for the diluent

      • Stationary gas turbines

        • Method 7E for NOx

        • Method 3A for the diluent


Part 75 appendix e16 l.jpg

Part 75, Appendix E

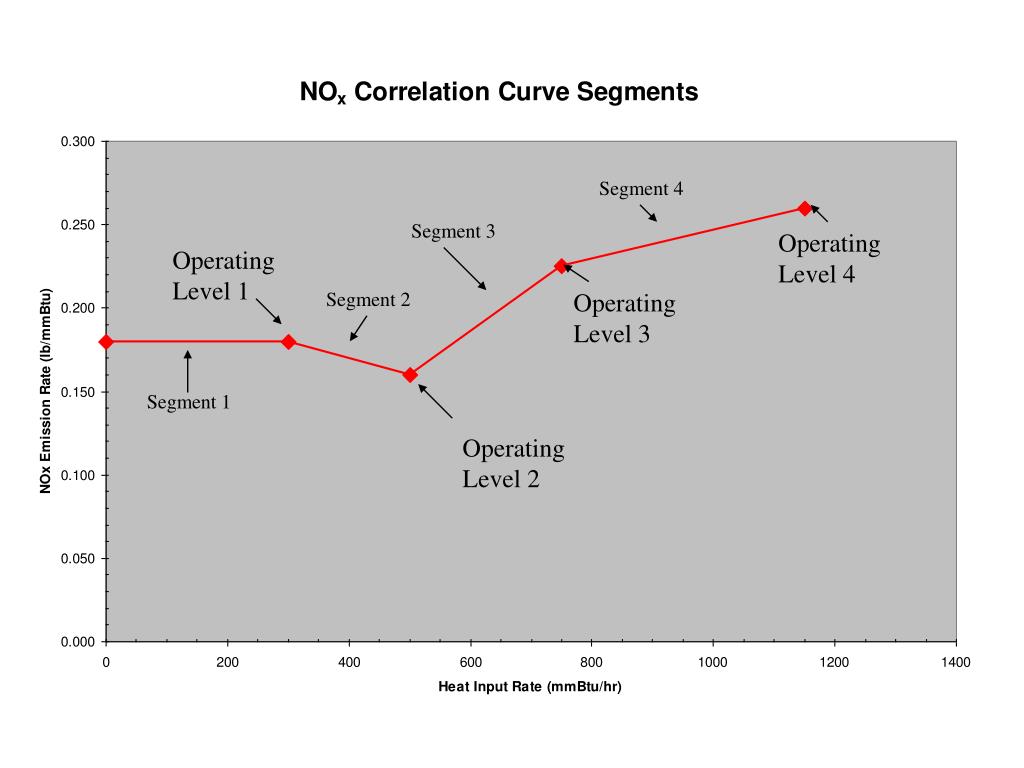

  • Plot the NOx Emission Rate vs. Heat Input Rate

  • Use the graph of the baseline correlation results to determine the NOx emission rate corresponding to the heat input rate for the hour

    • Linearly interpolate between reference points to the nearest 0.001 lb/mmBtu using heat input values rounded to the nearest 0.1 mmBtu/hr


Slide17 l.jpg

Segment 4

Segment 3

Operating Level 4

Operating Level 1

Segment 2

Operating Level 3

Segment 1

Operating Level 2


Heat input rate monitoring options l.jpg

Heat Input Rate Monitoring Options

  • Heat Input Rate

    • Stack Flow & *Diluent (%CO2 or O2) CEMS, or

    • Fuel flow monitoring via Part 75, Appendix D, or

    • LME Long term fuel flow or Max Rated HI

      *Note: If the diluent is on dry basis must correct for moisture


Heat input rate from stack flow and diluent system l.jpg

Heat Input Rate from Stack Flow and Diluent System

  • Components for a Stack Flow-Diluent Heat Input System

    • Stack Flow Monitor &

    • CO2 or O2 Concentration Analyzer as the Diluent

    • Moisture monitor if necessary

  • Part 75, Appendix F § 5, provides the equations that are used to compute the heat input rate (mmBtu/hr) given:

    • Volumetric Stack flow

    • CO2 or O2 concentration

    • F-factor for the fuel combusted

    • Moisture correction


Part 75 appendix d fuel flow monitoring l.jpg

Part 75, Appendix D Fuel Flow Monitoring

  • Applicability

    • May be used in lieu of flow monitoring systems for the purpose of determining the hourly heat input rate and SO2 mass emissions

    • Gas and Oil fired units only

  • Heat input rate (mmBtu/hr) is determined from the:

    • Fuel Flow Rate (fuel flowmeter), and

    • Gross Calorific Value (GCV) of the fuel

    • Sulfur content of fuel


Part 75 appendix d l.jpg

Part 75, Appendix D

  • Fuel Flowmeters

    • Must meet the fuel flowmeter accuracy specification for initial certification (App D § 2.1.5)

    • Visual inspection of orifice, nozzle, and venturi meters every 3 years

    • Must pass a fuel flowmeter accuracy test at least once every four QA operating quarters (App D § 2.1.6)

    • Fuel flowmeter accuracy < 2% of the flowmeter’s upper range value


Part 75 appendix d22 l.jpg

Part 75, Appendix D

  • Fuel Flowmeters Certified by Design

    • Orifice Plate

    • Nozzle

    • Venturi

  • Fuel Flowmeters Certified by Accuracy testing

    • Coriolis

    • Annubars

    • Vortex

    • Turbine meters

    • others


Appendix d basic fuel sampling options l.jpg

Appendix D Basic Fuel Sampling Options

  • Oil Sampling

    • Flow proportional/weekly composite

    • Daily manual sampling

    • Storage tank sampling (after each addition)

    • As delivered (sample from delivery vessel)

  • Gas Sampling

    • Monthly Samples (pipeline natural gas, or natural gas, or any gaseous fuel having demonstrated a “low GCV or sulfur variability”)

    • Daily or Hourly Samples (any gaseous fuel not having a “low GCV or sulfur variability”)

    • Lot sampling (upon receipt of each lot or shipment)


Lme monitoring option l.jpg

LME Monitoring Option

Low Mass Emissions Units

§75.19


Overview of the certification process l.jpg

Overview of the Certification Process

  • Submit an initial monitoring plan and notification of initial certification testing 45 days prior to starting certification testing (§75.61 & §75.62)

  • Conduct all required testing for the system(s) to be certified

    • DAHS Verification

    • 7-day Calibration Error

    • Cycle Time

    • Linearity

    • RATA & Bias Test


Overview of the certification process cont l.jpg

Overview of the Certification Process (cont.)

  • Upon successful completion of all certification tests, the system(s) are provisionally certified

  • The completed certification application is submitted within 45 days after completing all initial certification tests

  • Permitting Authority has 120 days after receipt of a complete certification application to review the application and approve or disapprove certification


Initial certification timeline l.jpg

Initial Certification Timeline

Submit Monitoring Plan & Certification Test Notification

Certification Application Submitted (Electronic and Hardcopy)

Start of the Certification Test Period

Deadline for Certification Approval

Date of Provisional Certification

Certification Testing Deadline

All Certification Testing Completed

No later than 120 Days after receipt of completed Certification Application Package

First certification test performed

45 Days Prior to the first day of Initial Certification Testing

No later than 45 days after completion of Certification Testing

Monitoring

Deadline in SIP

(January 1, 2008 Annual NOx

May 1, 2008 Ozone Season NOx

January 1, 2009 SO2)


Required certification tests for nox and so 2 concentration systems l.jpg

Required Certification Testsfor NOx and SO2 Concentration Systems

  • 7-day Calibration Error Test

  • Linearity Check

  • RATA

  • Bias Test

  • Cycle Time Test

  • DAHS Verification


Required certification tests for nox diluent systems l.jpg

Required Certification Tests for NOx-Diluent Systems

  • 7-day Calibration Error Test performed on both the NOx Concentration and Diluent components

  • Linearity Check performed on both the NOx Concentration and Diluent components

  • RATA and Bias Test

  • Cycle Time Test performed on both the NOx Concentration and Diluent components; cycle time for the system is the highest of the components

  • DAHS Verification


Types of electronic reports l.jpg

Types of Electronic Reports

  • Initial Monitoring Plans

  • Certification Application

  • Quarterly Electronic Data Report*

    • Includes:

      • Most up-to-date version of the Monitoring Plan

      • Latest Certification and/or QA Tests information

        * ECMPS is different
