Nachos introduction

Nachos introduction. Outline. NachOS Overview NachOS Install Assignment. Nachos Overview. NachOS. An instructional operating system Includes many facets of a real OS: Threads Interrupts Virtual Memory I/O driven by interrupts You can (and will) modify and extend it. NachOS.

Download Presentation

Nachos introduction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Nachos introduction

  2. Outline • NachOS Overview • NachOS Install • Assignment

  3. Nachos Overview

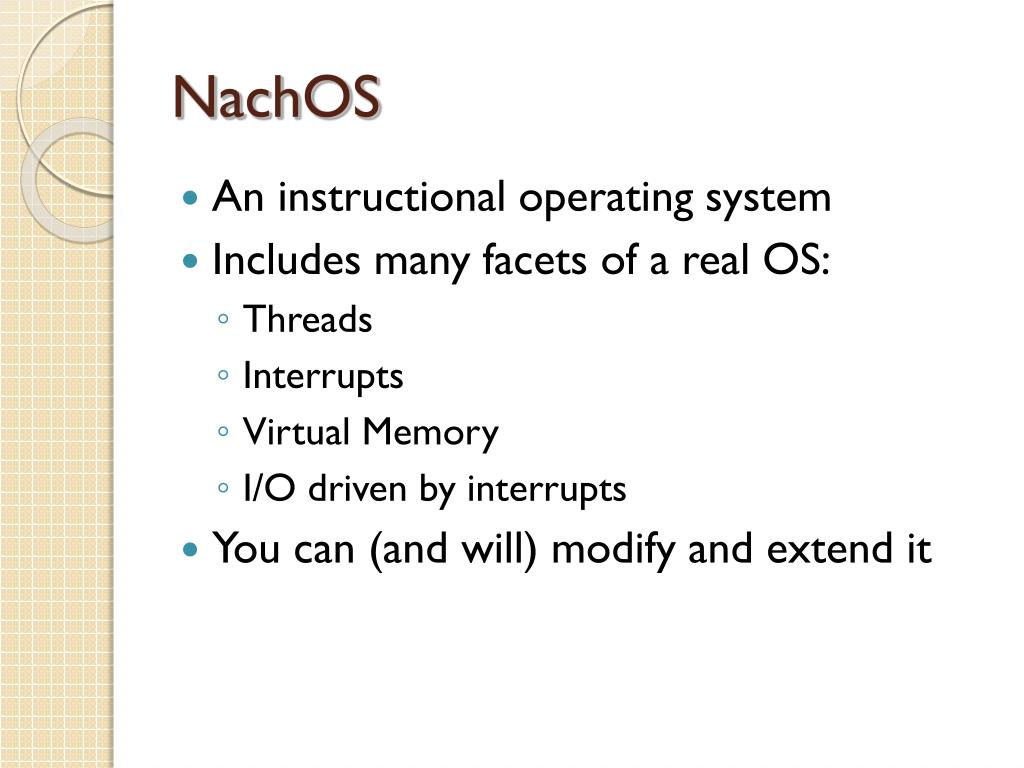

  4. NachOS • An instructional operating system • Includes many facets of a real OS: • Threads • Interrupts • Virtual Memory • I/O driven by interrupts • You can (and will) modify and extend it

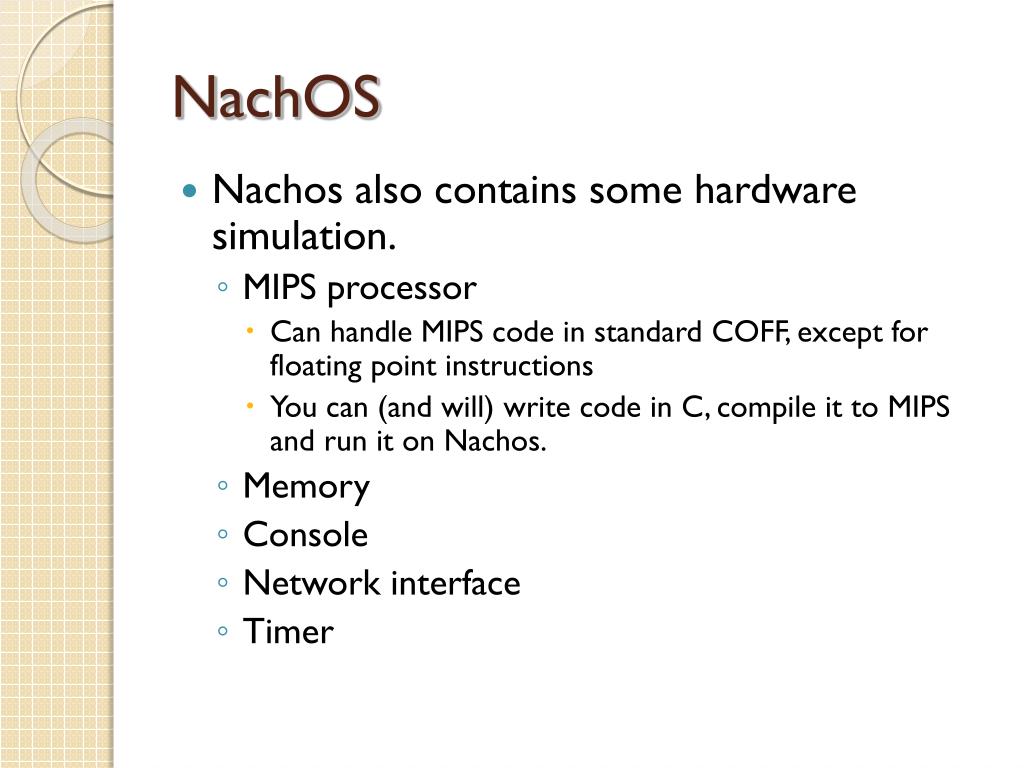

  5. NachOS • Nachos also contains some hardware simulation. • MIPS processor • Can handle MIPS code in standard COFF, except for floating point instructions • You can (and will) write code in C, compile it to MIPS and run it on Nachos. • Memory • Console • Network interface • Timer

  6. NachOS Structure

  7. NachOS Install

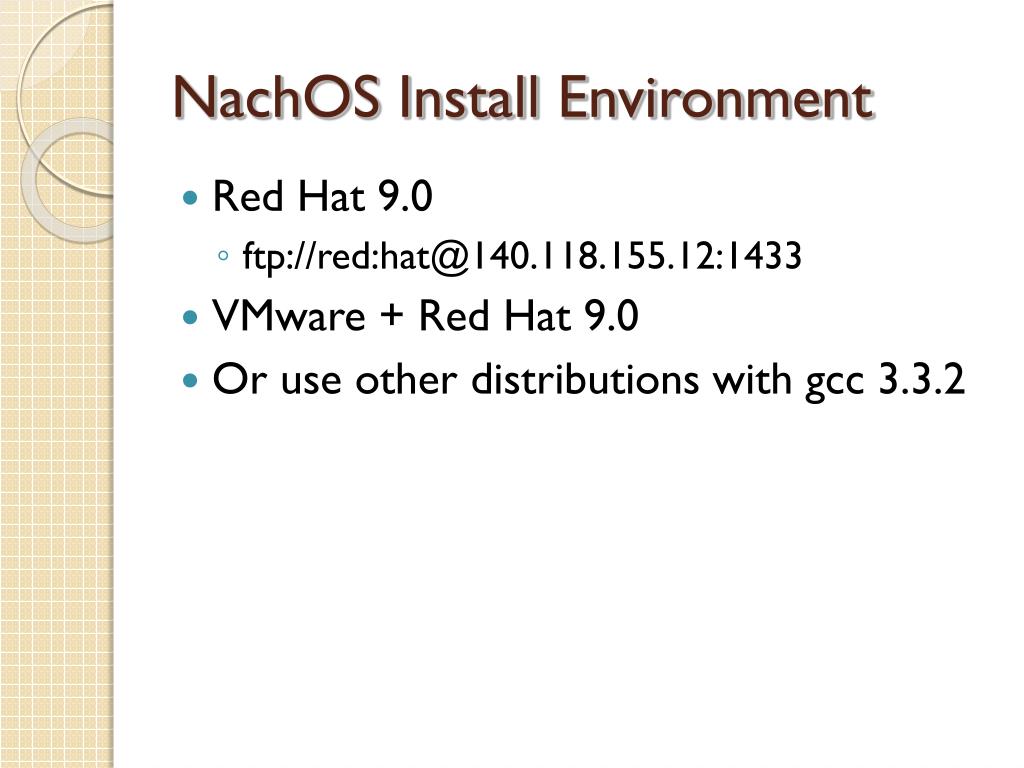

  8. NachOS Install Environment • Red Hat 9.0 • ftp://red:hat@140.118.155.12:1433 • VMware + Red Hat 9.0 • Or use other distributions with gcc 3.3.2

  9. NachOS Install • #download NachOSwget http://neuron.csie.ntust.edu.tw/homework/97/OS/materials/nachos-4.0.tar.gz #unzip NachOStar -zxvf nachos-4.0.tar.gz#download cross-compilerwget http://neuron.csie.ntust.edu.tw/homework/97/OS/materials/mips-decstation.linux-xgcc.gz #move cross-compiler to root directory(/)#It can be changed by modify nachos/code/test/Makefile: GCCDIRmv ./mips-decstation.linux-xgcc.tgz /cd /#cross-compiler need not unzip, it’s already an executable filetar zxvf mips-decstation.linux-xgcc.tgz#Now compile NachOS. If you don’t have cross-compiler, compile will error.cd root/nachos-4.0/code/makecd userprog/ls

  10. Test NachOS #execute a test file./nachos -e ../test/test1 Total threads number is 1Thread test/test1 is executing.Print integer:9Print integer:8Print integer:7Print integer:6return value:0No threads ready or runnable, and no pending interrupts.Assuming the program completed.Machine halting!Ticks: total 200, idle 66, system 40, user 94Disk I/O: reads 0, writes 0Console I/O: reads 0, writes 0Paging: faults 0Network I/O: packets received 0, sent 0
