2. Nachos Tutorial Image courtesy of Thomas Andersen: http://www.cs.washington.edu/homes/tom/nachos/

3. What is Nachos? • Nachos is instructional software that allows students to study and modify a real, working operating system • How does it work? • How do I get started?

4. Important URLs Nachos Home page: http://http.cs.berkeley.edu/~tea/nachos/

5. Nachos Overview • A paper that comes with the Nachos distribution, by Tom Anderson at Berkeley. A bit dated, but contains some good advice. • Appendix C The Nachos System • This pdf file is a description of Nachos written by Tom Anderson at Berkeley. It is published on-line by Wiley as an appendix to the text. • A Road Map Through Nachos • A local copy of Thomas Narten's explanation of Nachos from Duke University. • SALSA. • A Nachos tutorial and guide developed at the University of Massachusetts.

6. The Nachos Code. • Browse the Nachos source code for the current lab exercise. • The Nachos Man page • Run time options for Nachos. • The Nachos Makefiles • A brief introduction to Nachos' makefiles from CMP 111 at the University of California, Santa Cruz. • http://www.mcs.vuw.ac.nz/courses/COMP305/2004T1/Tutorials/

7. You need good C++ background. • Good command of the concept of your OS course. A Quick Introduction to C++ can be found in this link (pdf) • Nachos is coded in a subset of C++; a • A strong WILL to Work in a team!! • Good Luck 

8. First step: Installing Nachos Obtaining the source code (use the link below to get the nachos code). Download Nachos. Installation steps: To install Nachos you need to: 1. download Nachos sources from the above link.

9. 2. unpack. (suppose you saved the source in file "nachos.tar.gz") linux% gunzip -c nachos.tar.gz 3. unarchive the file linux% tar -xvf nachos.tar 4. configure for OS For a linux machine: linux% cd Nachos linux% cp makefile.dep.linux Makefile.dep

10. 5. compile. linux% make Running Nachos

11. What parts of Nachos should we modify? • Don’t Panic  • you may find the nature of the Nachos projects confusing, because there is a significant amount of code already written and it is not always clear what to change

12. In most cases, you will be adding new code to the existing framework, mostly in new procedures or classes that you define and create. • In a few cases you will be extending or "filling in" C++ classes or methods that are already defined. • Very rarely will it be necessary to delete or rewrite code that already exists, or to add code in areas outside of the main focus of each assignment

13. the simplest and most direct solutions for each assignment do not require you to modify code outside of the primary area of focus for each assignment. • under no circumstances should you modify the behavior of the "hardware" as defined by the machine simulation software in the machine/ subdirectory • It is acceptable to change #define directives that determine the machine or system parameters (e.g., size of physical memory or size of the default stack)

14. Tracing and debugging Nachos programs There are at least three ways to trace execution: (1) add printf (or fprintf) statements to the code, (2) use the gdb debugger or another debugger of your choosing, and (3) insert calls to the DEBUG function that Nachos provides.

15. different components of Nachos • As in an actual operating system, there is a Scheduler that keeps track of all the processes in the system and switches between them periodically. It maintains a list of processes, readyList, for this purpose.

16. All processes within Nachos execute as threads. This means that all programs that run on Nachos are implemented as threads

18. The time slice for which each process executes is determined by the Timer which causes an interrupt when the time slice for the currently executing process is over. The Interrupt component handles all interrupts generated by the Timer. The cause of the interrupts may be device I/O, e.g. a write to a file by a process, a request by some process to take input from the console (screen) or it may be a signal for the scheduler to switch to another process.

19. In Nachos, the global variable currentThread always points to the thread currently occupying the CPU. Do not worry about threadToBeDestroyed for now, that is explained in the Threads section. • All operating systems need some hardware to execute processes. The Nachos Machine provides this functionality - it simulates the MIPS architecture

20. All operating systems need some hardware to execute processes. The Nachos Machine provides this functionality - it simulates the MIPS architecture. The FileSystem component manages all file operations. SynchDisk provides synchronized access to the disk. To connect our machine to other machines, we have a PostOffice that manages receipt and sending of messages across the network. Stats is a component within Nachos that maintains certain statistics about the execution and performance of the system. For example, it may keep track of how many characters have been written to the screen, how many page faults have occurred, how many packets have been received across the network etc.

21. - • the names are very descriptive of what these actually contain.

22. Remember that in any program, execution always begins from the main() routine. For Nachos, this routine is contained in main.cc in the threads directory. For each lab, execution always begins in main.cc but flow of control depends on which lab you are attempting. This functionality is provided through the #ifdef directives in main.cc. The arguments to this directive are defined in the makefiles.

23. What are they?A traditional process has a single thread of control and a single program counter. Modern operating systems provide multiple threads of control within a process - these are called Threads or lightweight processes. All threads within a process share the same address space. This means that a thread shares its code and data section with other threads. Each, however, has its own program counter, stack and register set. The program counter determines which instruction the thread is currently executing.

24. This may or may not be the same as that for other threads. The register set is needed because when threads are suspended, their state must be saved. Upon resumption, this state is loaded into the machine registers. • Like traditional processes, threads can be in different states - running, ready or blocked .

25. Why have them?To see why multiple threads of control within a process are useful, consider what a web browser such as Netscape must do to load a web page containing multiple images. For each image, it must set up a separate connection to the page's home site and request the image. By having multiple threads within the browser process, the images can be requested in parallel with the user scrolling through the content that has already been received, greatly enhancing the response time for the user.

26. Also, extensive sharing of resources makes CPU switching between threads inexpensive, compared with switching between traditional or heavyweight processes. A register-set switch is still required but no memory-management related work needs to be done

27. How? Two kinds of implementation schemes are in vogue for threads - user-level and kernel-level. User-level threads are managed entirely in user space. The operating system is not aware of their existence. Thread switching does not involve a call to the operating system or an interrupt to the kernel. Switching is thus independent of the operating system and very quick. One disadvantage of this scheme is that if a user-level thread blocks while executing a system call, the kernel blocks the entire process since it is not even aware that other threads exist

28. In systems supporting kernel-level threads, the operating system is aware of the existence of multiple threads per process, so when a thread blocks, the operating system chooses the next one to run, either from the same process or a different one. • Some systems support a hybrid approach in which both user-level and kernel-level threads are supported. Solaris 2 is one such system.

29. Threads in Nachos • In the discussion that follows, we explain all operations on threads in Nachos, focusing on implementation details to enable you to understand what happens inside Nachos when you invoke those operations

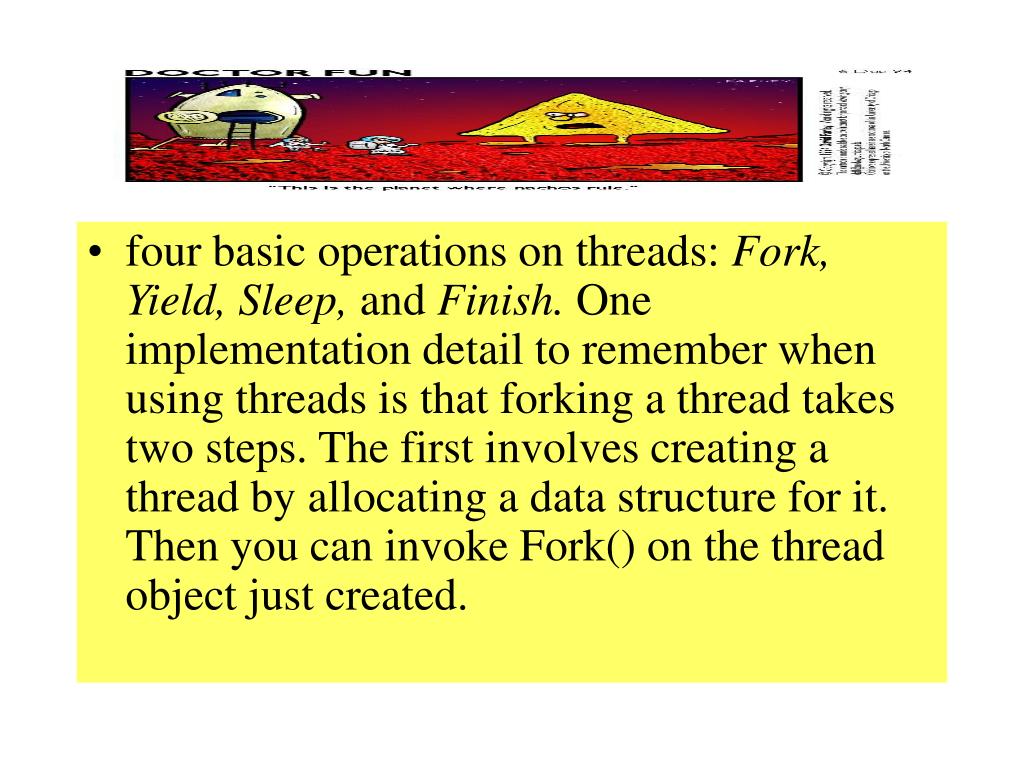

30. four basic operations on threads: Fork, Yield, Sleep, and Finish. One implementation detail to remember when using threads is that forking a thread takes two steps. The first involves creating a thread by allocating a data structure for it. Then you can invoke Fork() on the thread object just created.

32. The above code creates 4 threads using the constructor function for the class Thread. The constructor function simply allocates space for thread and sets its status to JUST_CREATED. Note that in Nachos, a "main" thread is created as part of system initialization (see system.cc in code/threads ). Thus, the above code is executed by "main". Note that the ready list remains empty upon creation of these threads. • In Nachos, the global variable currentThread always points to the thread currently occupying the CPU.

34. The above code completes the job of forking off the threads. Fork() allocates a stack for the thread which invokes it, and adds it to the ready list maintained by the scheduler (see scheduler.cc in code/threads ). "somefunction" is the name of the function that the thread will execute upon occupying the CPU. 0 is the argument to that function. The routine StackAllocate() allocates and initializes the execution stack for the thread. A C routine ThreadRoot() is called which calls the function "somefunction" and upon its return, calls ThreadFinish(). Note that now, we have all four threads in the ready list with their status set to READY. currentThread still points to "main".

35. Thread Switching • The figure shows the CPU switching between threads t0 and t1. After the switch, t0 is back in the ready list and t1 occupies the CPU. The switch takes place when the routine Run() is invoked. This routine is part of the Scheduler class (see scheduler.cc in the threads directory). Upon invocation, the routine saves the state of the thread currently occupying the CPU and loads the state of the thread being switched to, into the machine registers.

36. The actual switch takes place by calling the machine dependent context switch routine, SWITCH, defined in switch.s in the threads directory. An important point to note in the Run() routine is what happens after the SWITCH routine returns. All the statements in the Run() routine after the call to SWITCH are executed by the new thread we just switched to! Thus, the thread that invoked the Run() routine is not the same as the one that finishes its execution

37. Thread Finish and Sleep • Finish() is called when a thread is done executing its forked procedure. As a result, the thread invoking Finish() ceases to exist and the thread at the head of the ready list is assigned the CPU. Thus, a switch takes place here as well. In Nachos, the global variable threadToBeDestroyed always points to the thread that is to be deallocated. Its default value is NULL and is set by a thread that invokes Finish().

38. Assume the CPU is occupied by thread t2 and the following code is executed: • currentThread->Finish(); As a first step, the thread that invokes Finish(), sets the variable threadToBeDestroyed to itself and then invokes Sleep .

40. The above figure shows the state of the system right before Sleep() is invoked by currentThread. Remember that currentThread is also the thread that invoked Finish() .

42. The Sleep() routine sets the status of the invoking thread to BLOCKED and invokes Run() to switch to the thread at the front of the ready list. The thread is actually deallocated inside the Run() routine since it can only be deallocated after it has given up the CPU.

43. Sleep() can be invoked by either a thread that wants to finish or when it is blocked waiting on a synchronization variable. In the first case, the finishing thread sets threadToBeDestroyed causing it to be deallocated by the thread being switched to inside the Run() routine. In the second case, the blocked thread will eventually be woken up by some other thread and put back on the ready list.
