Presentation Transcript

  1. CAMTASIA STUDIO 數位教材製作

  2. Camtasia Studio • 總共內建有 5 個程式 • 聲音工具 Audio editor • 選單製作 Menu Maker • 錄製工具 Recorder • 出版工具 Theater • 播放工具 Player

  3. Camtasia Studio功能摘要－錄製 • 錄製 • 可錄製全螢幕或部份螢幕之畫面 • 可錄製網路攝影機之視訊 • 可錄製旁白及系統音訊 • 可錄製滑鼠點擊動作或鍵盤敲擊動作 • 可加上重點標示及改變滑鼠游標等視覺效果 • 可加入選擇題模式之測驗 • 可使用快速鍵放大或縮小 • 加入浮水印 • 錄製的同時，可加入文字筆記

  4. Camtasia Studio功能摘要－編輯 • 編輯 • 影片插入（WMV、MPEG 及 AVI 格式） • 聲音插入（WAV 及 MP3） • 圖片插入（BMP、JPG 及 GIF） • 提供使用者可點擊的區域，以變換至其他影格或網站連結 • 可從應用程式錄製音訊 • 為單一圖片錄製、編輯音效

  5. 發佈出版 可發佈輸出成工業標準格式： AVI Macromedia Flash (SWF) Macromedia Flash Video (FLV) Microsoft Windows Media (WMV) RealNetworks RealMedia (RM) QuickTime (MOV) 可輸出成 Animated GIF 格式（ Animated GIF） 可發佈成 EXE 可執行檔格式 (EXE) 可選擇輸出色彩深度及影格速率 可選擇輸出之聲音品質 可建立 CD-ROM 選單 可自訂選單文字、水平文字以及字型 可於 Flash 影片建立自訂的網頁選單 輸出成 HTML 網頁格式 自訂設定值以 XML 格式輸出 Camtasia Studio功能摘要－發佈出版

  6. Camtasia Studio系統需求(一) • 發佈者系統需求： • Microsoft Windows 2000 / XP / Vista • Microsoft DirectX 9.0 或以上之版本 • 至少 1.0 GHz 之 CPU；建議 2.5 GHz 之 CPU • 至少 550 MB 之系統記憶體；建議 1 GB 之系統記憶體 • 至少 60 MB 之硬碟可用空間以供軟體之安裝 • Camtasia Studio Add-in for PowerPoint 至少需 PowerPoint 2000 或更新的版本 • 如果要發佈成 Apple iPod 格式，必需安裝 QuickTime 7.1 或更新的版本

  7. Camtasia Studio系統需求(二) • 觀看者系統需求： • Microsoft Windows 95 / 98 /  ME / NT / 2000 / XP / Vista • 166 MHz 之 CPU • 32 MB 之系統記憶體

  8. Camtasia Studio Accessories and Tools • Camtasia Player 2.0.1 • 專門用來播放 Camtasia 錄製的螢幕紀錄 AVI 影片。 • Download Player • TechSmith Screen Capture Codec (TSCC) • Download TSCC Codec • Camtasia Studio PowerPoint Backgrounds • Power Point template • 其他 • http://www.techsmith.com/download/accessories/default.asp

  9. Camtasia Studio參考資訊 • 試用版下載 • http://www.techsmith.com/camtasia.asp • 使用與教學資訊 • http://www.techsmith.com/camtasia.asp • 官方 PDF 格式說明手冊（英文） • 官方網站詳細功能列表（英文） • 官方網站Camtasia Studio 各版本之比較（英文） • 快速使用影片 • http://video.techsmith.com/camtasia/5/edu/quickstart/enu/gettingstarted/gettingstarted.html

  10. Camtasia Studio教材製作流程 • 錄製教材 • 麥克風設定 • 錄製範圍設定 • 錄製檔案類型設定 • 動畫效果設定 • 編輯錄影檔 • Project設定 • 滙入數位教學素材 • 加入標題，Quiz等 • 出版 • 選擇出版品的檔案格式 • 選單製作 • Web Menu • CD Menu

  11. Record錄製 • 可錄製的素材 • Power Point presentation • Software Application • Web Page • Multimedia player • 在你螢幕上出現的資訊

  12. 一、Power Point範例【TOC版】 • 說明 • 如何錄製PPT • 如何編輯 • 加入特效 • 出版與分享 • TOC版型 • 範例 • 綜合範例(voice,title,callouts,survey) • express show with TOC • 練習檔案 • 2-edit-TitleClipt-ppt-stam-source • 2-cut-PI-source-Bookmark • 教學影片: How to Record PPT

  13. 二、軟體操作範例【Express show版】 • 說明 • 如何錄製screen • Express show • 範例 • PhotoImpact CH8 • Quiz, Table of content • 網頁元件製作 • 練習檔案 • screen錄製練習 • 利用範例一之.camproj練習 • 2-audio-survey

  14. 三、快速法範例【Web Menu】 • 說明 • Batch Production • Web Menu • 範例 • Camtasia Theater(bookmark) • 練習檔案 • 轉檔練習：2-batch-production-avi-carec • Web Menu練習：加入2-web-menu-swf中的檔案 • 教學影片：BatchProduction

  15. Q&A

  16. Record a PowerPoint Presentation • From within Camtasia Studio • Welcome window • Task List> Record PowerPoint.

  17. Record a PowerPoint Presentation • From within Power Point • PowerPoint add-in toolbar. • To record voice narration, click Record Audio . • To record camera video (Picture-in-Picture), click Record Camera . • To preview the camera stream while recording, click CameraPreview . • Click Camtasia Studio recording options to change settings. • Click the Recordbutton. • The recording of the presentation is saved as a Camtasia Studio recording file (.camrec).

  18. 編輯

  19. Edit • For the best video editing, complete your edits in the following order. • Import still images, video clips, recording files, and audio tracks and arrange the clips on the Timeline. • Make basic edits to clips on the Timeline • Cut and split a clip, move clips, add a marker, etc. • Record camera video or add a Picture-in-Picture to the video. • Edit the audio • Add voice narration and audio enhancements. • Add title clips and transitions. • Add effects, such as callouts, flash quizzes and surveys, and captions.

  20. Create a Camtasia Studio Project • Choose any of the following to start a new Camtasia Studio project: • Welcome window > Import Media. • Task List > Import Media. • File >New Project. • After completing a recording, Edit my recording

  21. Project Settings • File > Project Settings • Presets • Select one of the following preset options: • Preset dimensions. • Custom dimensions. • Recording source clip dimensions.

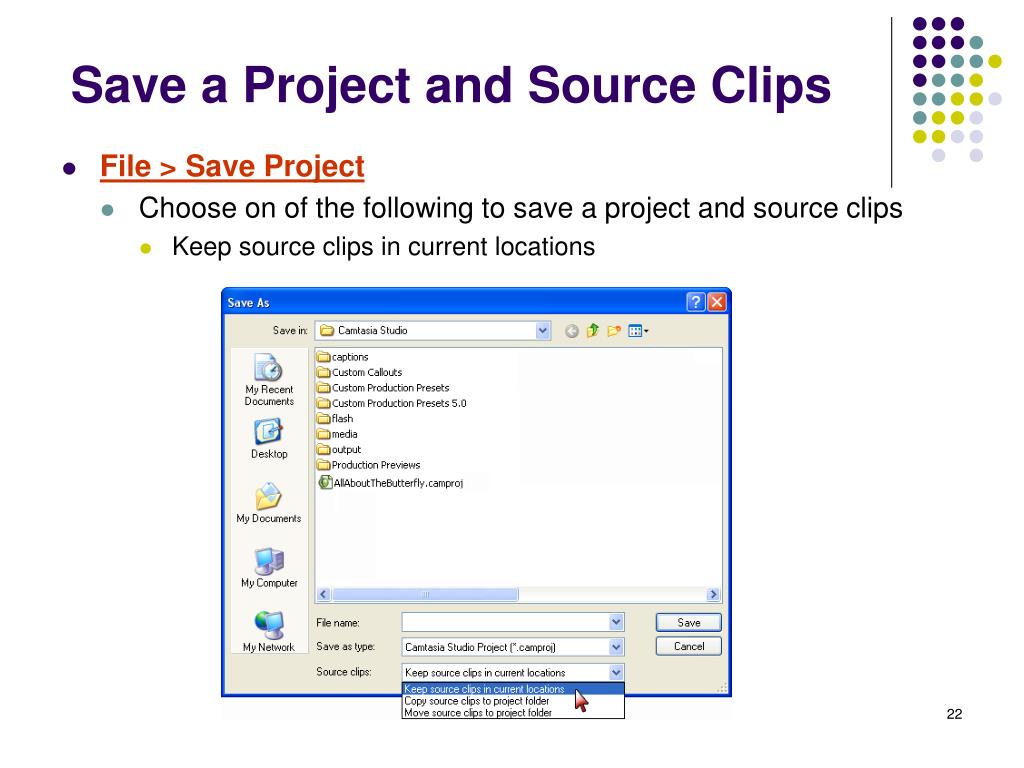

  22. Save a Project and Source Clips • File > Save Project • Choose on of the following to save a project and source clips • Keep source clips in current locations

  23. Save a Project and Source Clips • Copy source clips to project folder:Copies all files in the Clip Bin to the selected file location. Use this option if existing projects use the same source clips. • Move source clips to project folder:Moves all files in the Clip Bin from their original file location and adds the files to selected file location

  24. Screen Recording Enhancements and Professional Quality Effects

  25. Add Effects • Screen Recording Enhancements • Record Camera Video in Camtasia Studio • Record Voice Narration • Audio Enhancements • Professional Quality Effects • Create a Title Clip • Add a Transition • Add a Callout • Apply SmartFocus to Entire Timeline • Manually Add a Zoom-n-Pan Keyframe • Add a Caption • Flash Quiz and Survey

  26. Record the Screen－開始

  27. ➋ ➊ ➌ Record the Screen －錄製設定 • 設定microphone • 設定webcam • 設定錄製區域 • 第一次使用select area to record

  28. Record the Screen • Choose one of the following to record your video: • Record with a Preset Size. • Record with Custom Dimension. • Record the Full Screen.

  29. Record the Screen － Recording File Format Change the Recording File Format Camtasia Recorder Tools > Options • You can record the screen in the following file formats: • Camtasia Recording File (.camrec): • the default recording file format. • apply SmartFocus during the editing process, record using the .camrec file format. • Audio Video Interleave (.avi): • Use AVI files to immediately share the recording outside of Camtasia Studio. • If you record with AVI as the default output, you cannot simultaneously record camera video and cannot add markers while recording.

  30. Record the Screen Recorder Hotkeys • F9 record錄影 • 於錄影中按 F9 為pause/resume • resume 滑鼠回到原來的地方 • F10或stop鍵結束

  31. Add Effects while Recording

  32. Annotation Effect Add an Annotation Effect while Recording • Camtasia Recorder > Effects > Options > Annotation tab • The ScreenDraw tools include: • Frame, Highlight, Ellipse, Pen, Line, and Arrow.

  33. Cursor Effect Add a Cursor Effect while Recording • Camtasia Recorder > Effects > Options > Cursor tab

  34. Record the Screen Recorder Hotkeys • Marker <CTRL + SHIFT + M> • Creates a navigation point in the CAMREC recording file. • Markers are visible on the Timeline once the CAMREC recording is imported into Camtasia Studio. • ScreenDraw <CTRL + SHIFT + D> • Enables ScreenDraw while recording

  35. Publish and Share

  36. Publish and Share Adobe Flash (SWF/FLV) • Choose Adobe Flash (SWF) for the following: • Low motion screen recording • PowerPoint recording • Choose Adobe Flash (FLV) for the following: • WMV or MPEG clipsCamera video (PIP) • Videos containing several transitions on the Storyboard • Videos containing several Zoom-n-Pan keyframes • Photographic content, such as a picture slide show

  37. Publish and Share • Task List > Produce video as>Custom Production Settings >1.Flash (SWF/FLV) >2. Flash Templates screen> Flash Options button > Video or Audio tab • SWF Recommended Settings • FLV Recommended Settings

  38. Publish and Share －Flash Template 2. Flash Templates • Flash Templates: Legacy SWF output • Camtasia Theater使用的版面 • If the Timeline contains any of the following elements or video clips, do not use the Legacy SWF output Flash template: • Quizzes or surveys • Callouts with hotspots • Full motion or real-world video • Picture-in-Picture (PIP) video • Long PowerPoint presentations • PowerPoint presentations with animation or transition effects

  39. Publish and Share －Flash Template 2. Flash Templates screen Flash Template with TOC • To edit the table of contents entries

  40. Publish and Share • Two videos side-by-side with TOC輸出結果

  41. ➊ ➋ Publish and Share －Flash Template 2. Flash Templates Customize the Start and End Screens in ExpressShow • Flash Templates: ExpressShow> Flash Options button > Controls tab > Start and End Screen

  42. Publish and Share －Flash Template

  43. Batch Production • Add files or projects to be produced • Video file • .camrec .avi .mpg .mpeg .wmv • Project file • .campro

  44. Create Web Menu • 使用Theater將多個SWF檔案成整合成一個含有選單的Flash檔案 • Task list > Produce>Create Web Menu • 使用Legacy SWF output template在 Menu List box中加入SWF檔案 • 不可使用Flash FLV 檔案 • 最後按Export Flash Menu鈕

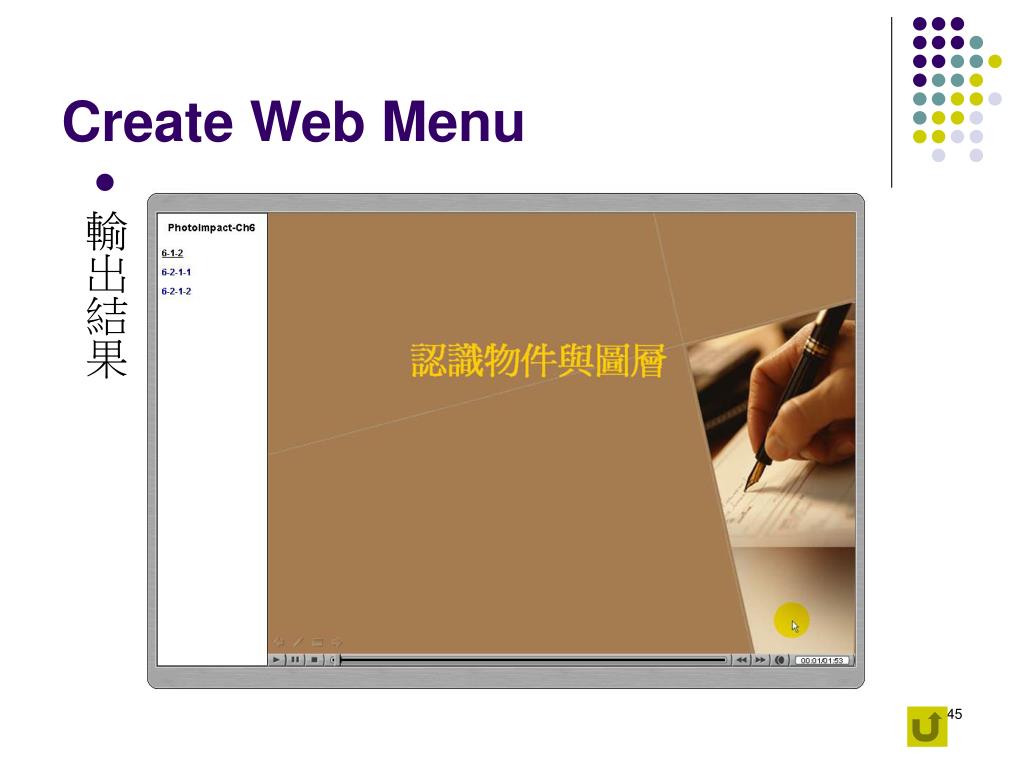

  45. Create Web Menu • 輸出結果
