Conic Sections

Conic Sections. The conic sections are curves that can be constructed from the intersection of a plane with a cone. All of these curves can be written in the form: Ax 2 + Bxy + Cy 2 + Dx + Ey + F = 0. A and C same sign A ≠ C. A = C.

shamus
Download Presentation

Conic Sections

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

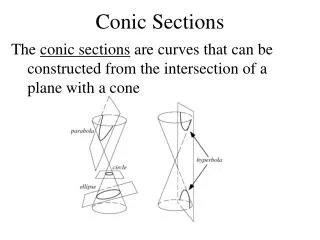

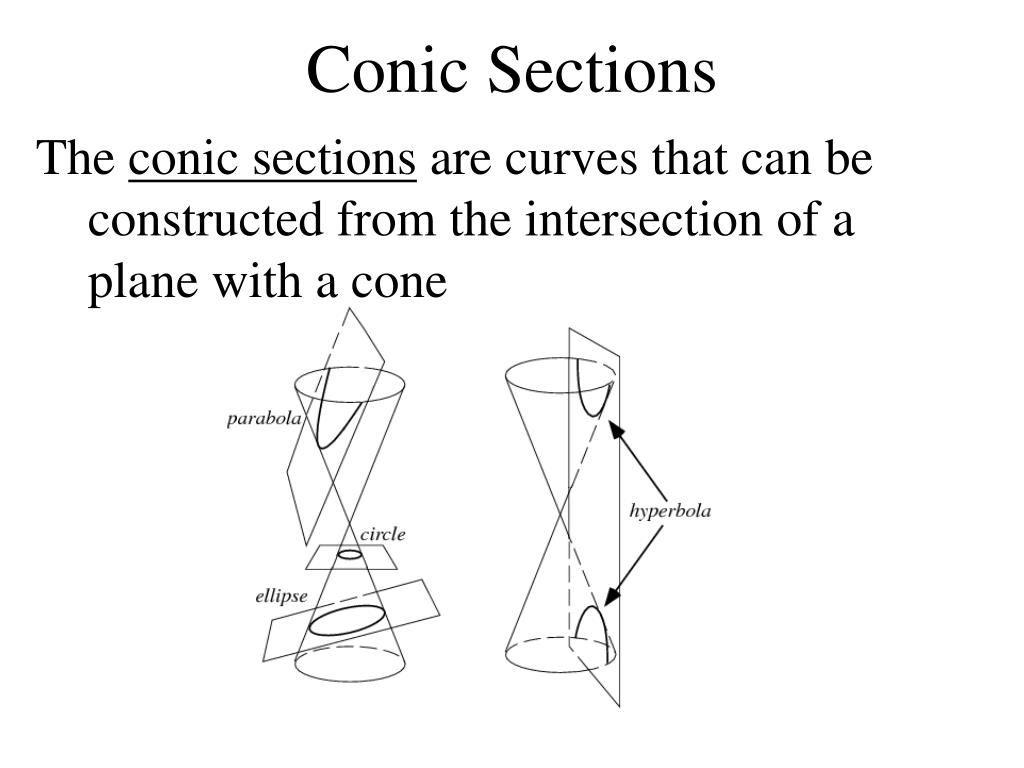

  1. Conic Sections The conic sections are curves that can be constructed from the intersection of a plane with a cone

  2. All of these curves can be written in the form: Ax2 + Bxy + Cy2 + Dx + Ey + F = 0 A and C same sign A ≠ C A = C

  3. All of these curves can be written in the form: Ax2 + Bxy + Cy2 + Dx + Ey + F = 0 A = 0 or C = 0 (only one variable squared) A and C diff. sign

  4. Ex. Classify the conic • 6x2 + 6y2 – 162 = 0 • x2 – 8y = 0 • 4x2 + 2y2 – 8 = 0 • 4y2 – x2 + 4 = 0 • x2 + y2 + 6y – 27 = 0 • x2 – y2 + 8x – 16 = 0

  5. Pract. Classify the conic • 3x2 + 4y2 + 8y – 8 = 0 • x2 + y2 – 8y + 11 = 0 • 9x2 + 25y2 – 54x – 50y – 119 = 0 • 25x2 – 9y2 – 18y + 219 = 0 • x2 + 8x + y + 23 = 0

  6. Circles General form is Ax2 + Bxy + Cy2 + Dx + Ey + F = 0 where A = C Standard form: Center: Radius:

  7. Ex. Write the equation of the circle. • Find the center • Find the radius • Simplify

  8. 1) Write the equation of the circle.

  9. 2) Write the equation of the circle with center at (-3,10) and a radius of .

  10. 1) Graph the circle x2 + (y – 3)2 = 9

  11. If necessary, put in standard form by completing the square. 2) Graph the circle x2 + y2 = 14x – 24

  12. 3) Graph the circle x2 + y2 – 4x + 6y + 4 = 0

  13. Every homework assignment this chapter will include review from previous chapters  The test will include review problems
