Delamination of stiff islands on stretchable substrates

Delamination of stiff islands on stretchable substrates

Zhigang Suo

Harvard University

Lu, Yoon, Suo

Int. J. Mater. Res. 98, 717 (2007)


The future of knowledge?

Information

Display

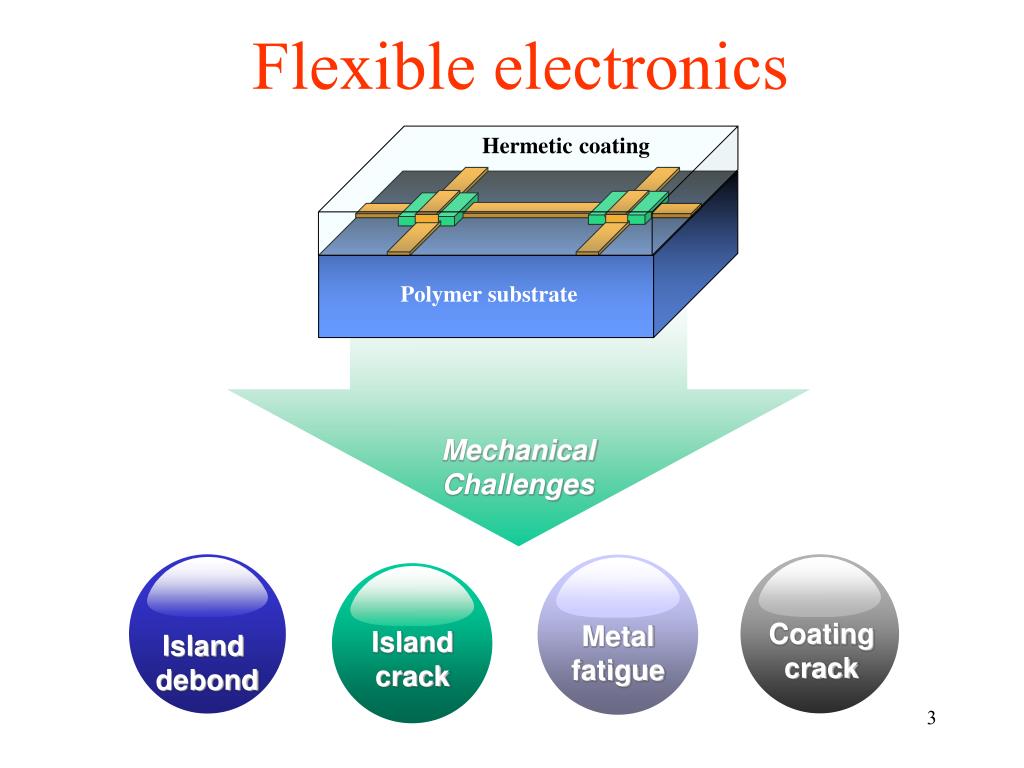

Flexible electronics

Hermetic coating

Polymer substrate

Mechanical

Challenges

Island

crack

Coating

crack

Metal fatigue

Island

debond

Flexible electronics


Island debond
Island debond

No debond at 25% strain

Debond at 5.6% strain

Bhattacharya, Salomon & Wagner, 2006

Lacour, Wagner, Narayan, Li, Suo, 2006




Steady state

G

Gss

a

Steady state

h

Suo and Hutchinson, IJF (1990)


Converging debond

Ligament length 2c

He, Evans & Hutchinson, 1996



G max o vershoots g ss
Gmaxovershoots Gss

Overshooting

Gss


Critical island size

With the same interface toughness and the same applied strain, more compliant substrate allows larger critical island size


Summary
Summary

  • Islands debond when exceeding critical size.

  • Gmax overshoots Gss.

  • Critical island size is large when the substrate is compliant.

Lu, Yoon, Suo, Int. J. Mater. Res. 98, 717 (2007)
