  1. Unit 3: evaluation

  2. 3.1Cognitive Walkthrough What is wanted Analysis Design Evaluation

  3. Cognitive Walkthrough • Exploratory learning • Users tend to love learning by exploration • Similar to software code walkthrough

  4. Inputs of Cognitive Walkthrough

  5. Questions Asked by Evaluator

  6. Train ticket vending machine from [Newman & Lamming 1995] 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change Cognitive Walkthrough Example

  7. Scenario A user wants to buy a one-way ticket to New Brunswick. She has a $5 bill in her pocket + some change. Task-definition question Q0: “What is the user trying to achieve?” Answer: “Purchase a one-way ticket to New Brunswick.” Cognitive Walkthrough Example

  8. 1. Will the correct action be evident to the user? 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change Cognitive Walkthrough Example

  9. 1. Will the correct action be evident to the user? (subgoals provided to user) Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip Yes 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  10. 2. Will the user connect the correct action’s description/label with his/her intent? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  11. 2. Will the user connect the correct action’s description/label with his/her intent? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip Yes 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  12. 3. Will the user properly interpret the system’s response? (know if chose right/wrong?) Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  13. 3. Will the user properly interpret the system’s response? (know if chose right/wrong?) Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip Yes (if button lights up…) 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  14. 1. Will the correct action be evident to the user? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

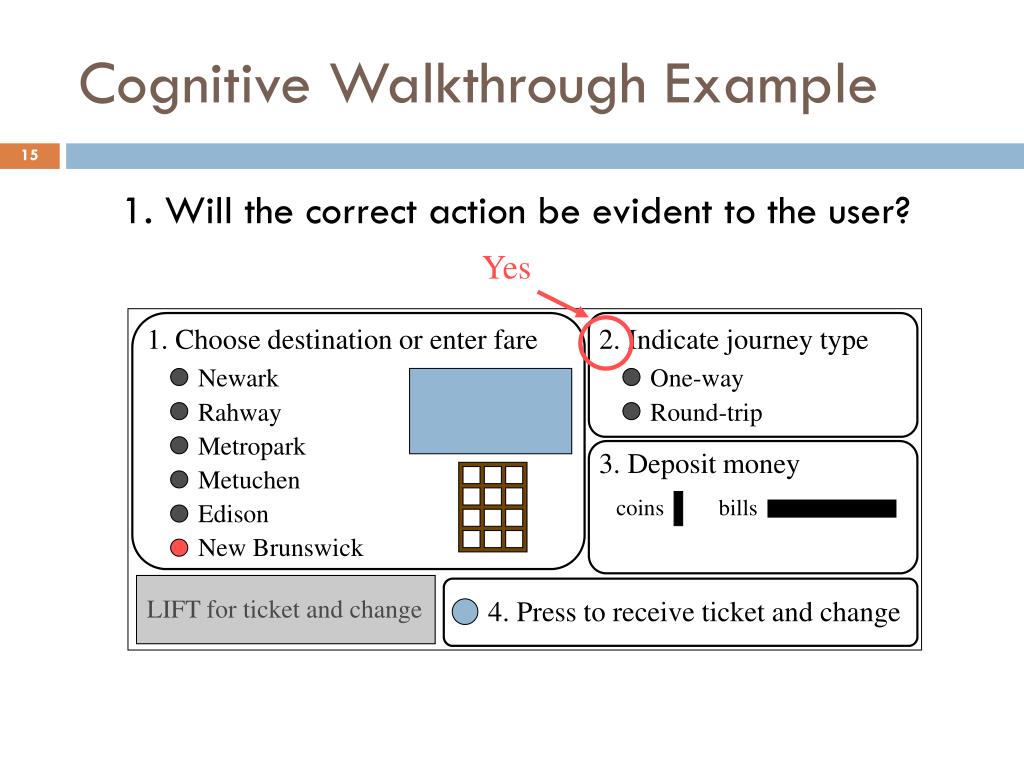

  15. 1. Will the correct action be evident to the user? Cognitive Walkthrough Example Yes 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  16. 2. Will the user connect the correct action’s description/label with his/her intent? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  17. 2. Will the user connect the correct action’s description/label with his/her intent? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip Yes 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  18. 3. Will the user properly interpret the system’s response? (know if chose right/wrong?) Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  19. 3. Will the user properly interpret the system’s response? (know if chose right/wrong?) Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip Yes … One-way $6.35 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  20. 1. Will the correct action be evident to the user? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  21. 1. Will the correct action be evident to the user? Cognitive Walkthrough Example Yes 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  22. 2. Will the user connect the correct action’s description/label with his/her intent? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change

  23. 2. Will the user connect the correct action’s description/label with his/her intent? Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 3. Deposit money Yes coins bills LIFT for ticket and change 4. Press to receive ticket and change

  24. 3. Will the user properly interpret the system’s response? (know if chose right/wrong?) Cognitive Walkthrough Example 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 3. Deposit money coins bills $5 LIFT for ticket and change 4. Press to receive ticket and change

  25. 3. Will the user properly interpret the system’s response? (know if chose right/wrong?) 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 Recv’d: $5.00 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change Cognitive Walkthrough Example No, need feedback!  Add received amount display

  26. Not enough $… 1. Will the correct action be evident? 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 Recv’d: $5.00 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change Cognitive Walkthrough Example

  27. Not enough $… 1. Will the correct action be evident? 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 Recv’d: $5.00 3. Deposit money coins bills LIFT for ticket and change 4. Press to receive ticket and change Cognitive Walkthrough Example Probably not! ? ? ?

  28. Not enough $… 1. Will the correct action be evident? Cognitive Walkthrough Example Probably not! Add a new UI element to make it clear! 1. Choose destination or enter fare Newark Rahway Metropark Metuchen Edison New Brunswick 2. Indicate journey type One-way Round-trip One-way $6.35 Recv’d: $5.00 3. Deposit money coins bills Cancel & return money LIFT for ticket and change 4. Press to receive ticket and change

  29. Sample Cover Form for Cognitive Walkthrough

  30. Initial Design of VCR Remote Control

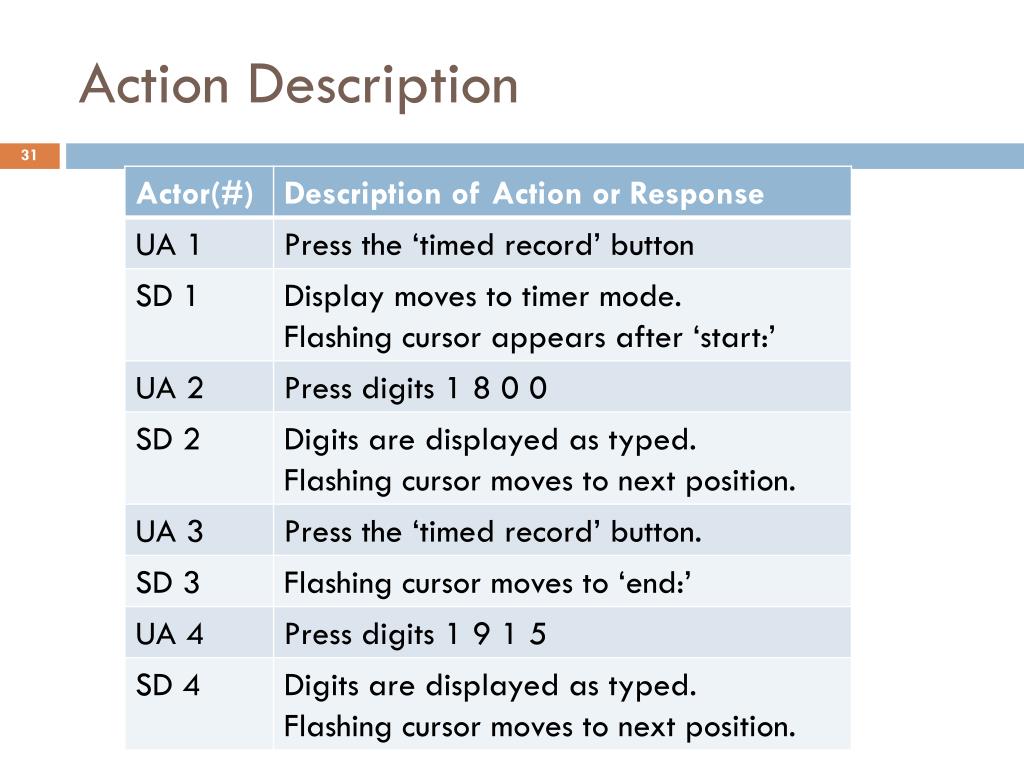

  31. Action Description

  32. Sample Form for Cognitive Walkthrough
