  1. Accelerator Progress, Plans, and Strategies R. Dixon

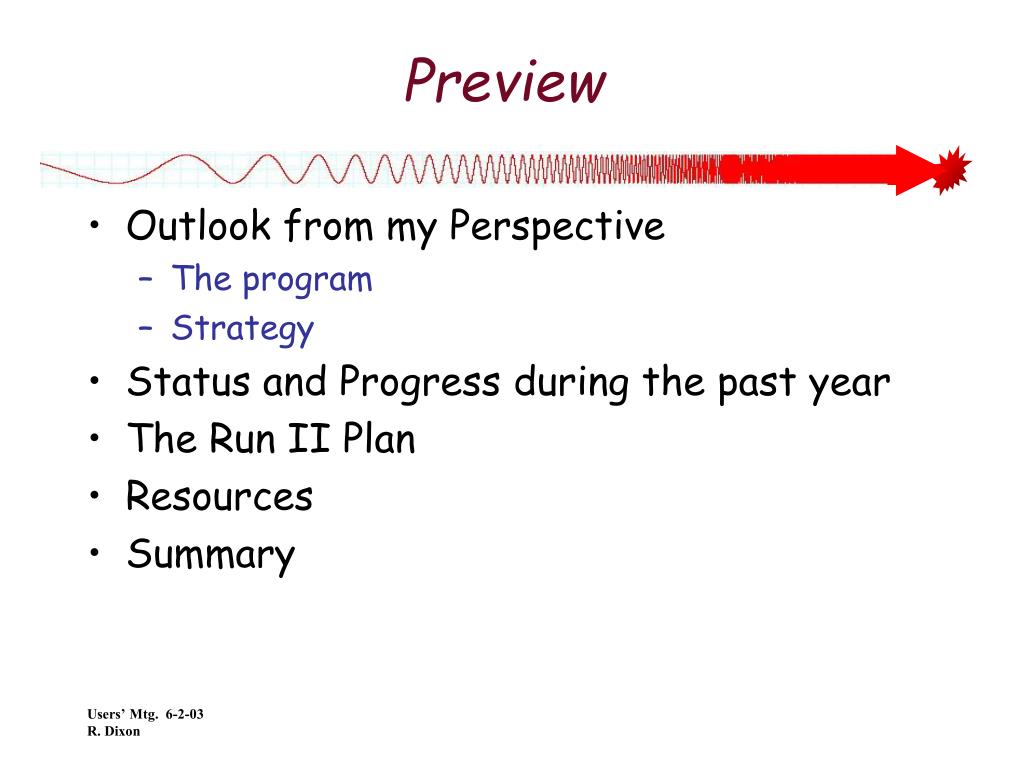

  2. Preview • Outlook from my Perspective • The program • Strategy • Status and Progress during the past year • The Run II Plan • Resources • Summary

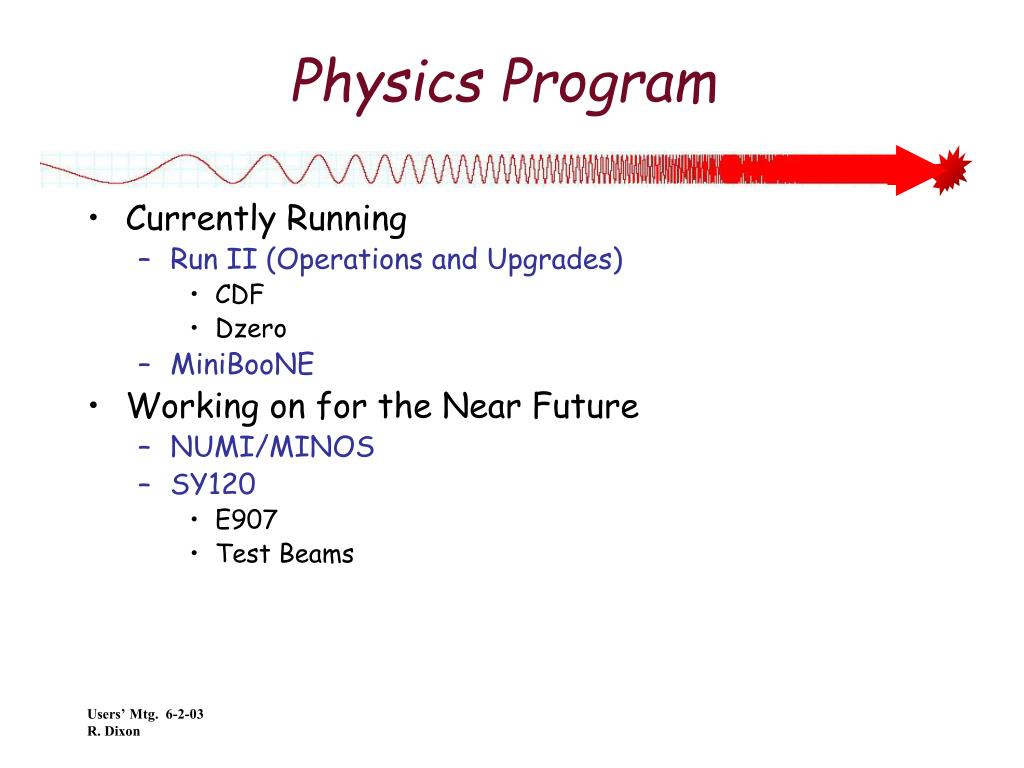

  3. Physics Program • Currently Running • Run II (Operations and Upgrades) • CDF • Dzero • MiniBooNE • Working on for the Near Future • NUMI/MINOS • SY120 • E907 • Test Beams

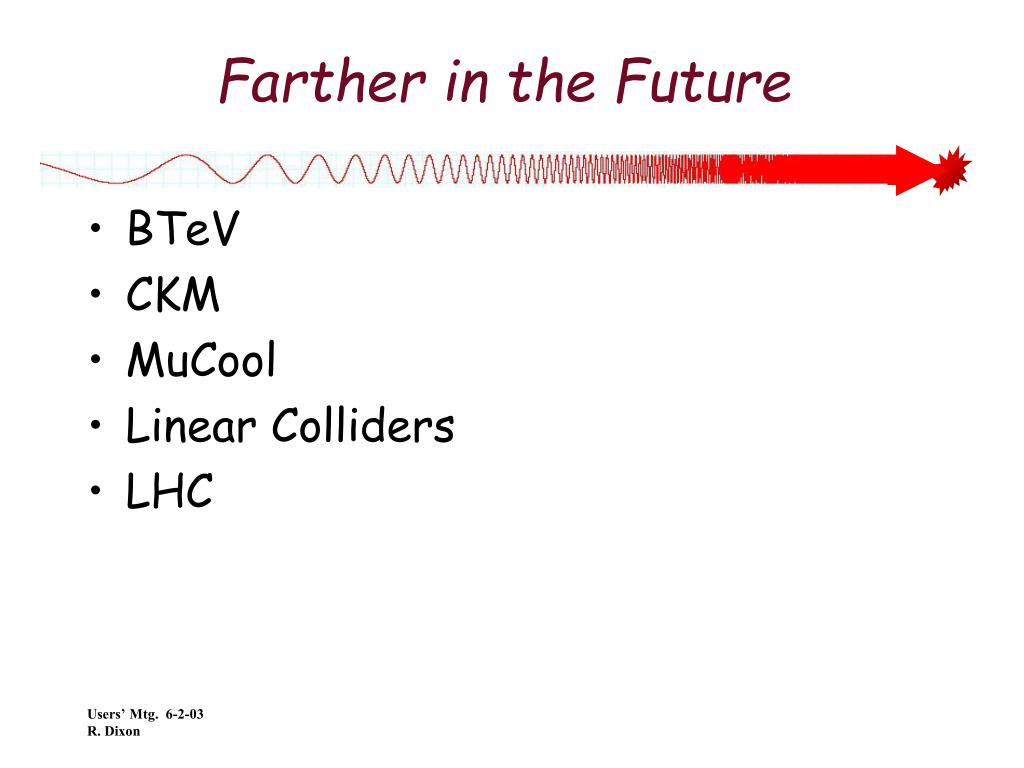

  4. Farther in the Future • BTeV • CKM • MuCool • Linear Colliders • LHC

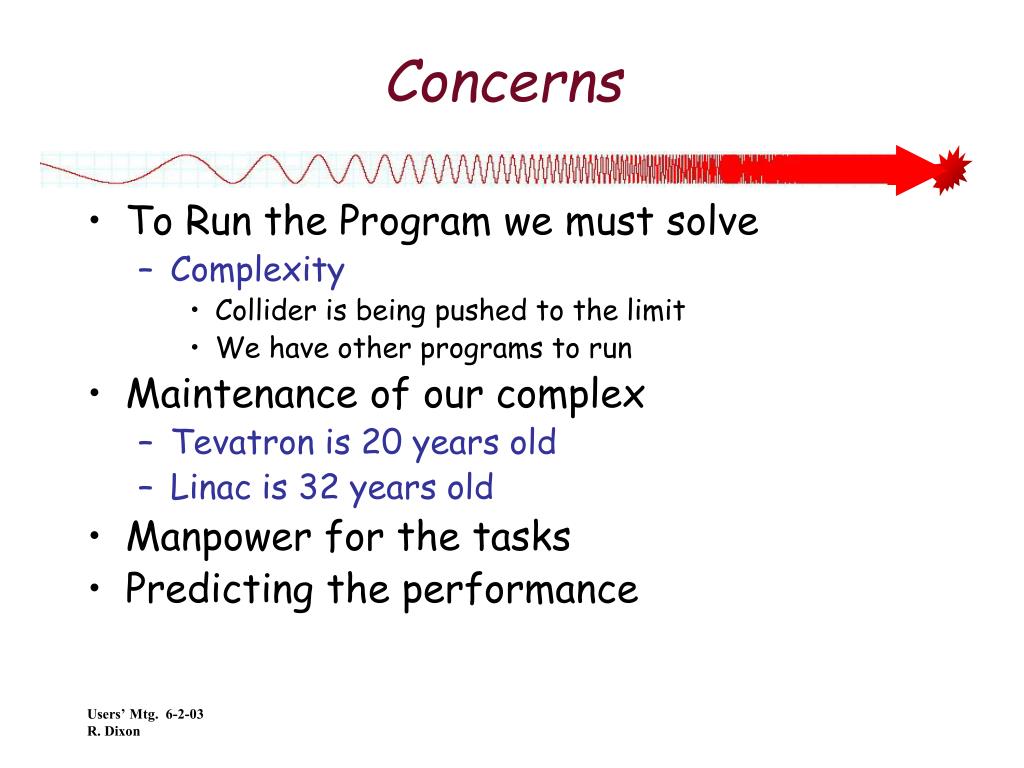

  5. Concerns • To Run the Program we must solve • Complexity • Collider is being pushed to the limit • We have other programs to run • Maintenance of our complex • Tevatron is 20 years old • Linac is 32 years old • Manpower for the tasks • Predicting the performance

  6. Summary of Concerns • The budget has effectively gone down while the our program has become more complicated, and the complex has grown old.

  7. Strategy • Increase our efficiency within the Division • Better integration • More predictability • Modeling • Configuration control • Effective use of task forces that span Divisions

  8. Strategy (Con’t.) • More collaboration • Inter Divisional • With Users • Bring in analysis and DAQ skills • With other Laboratories

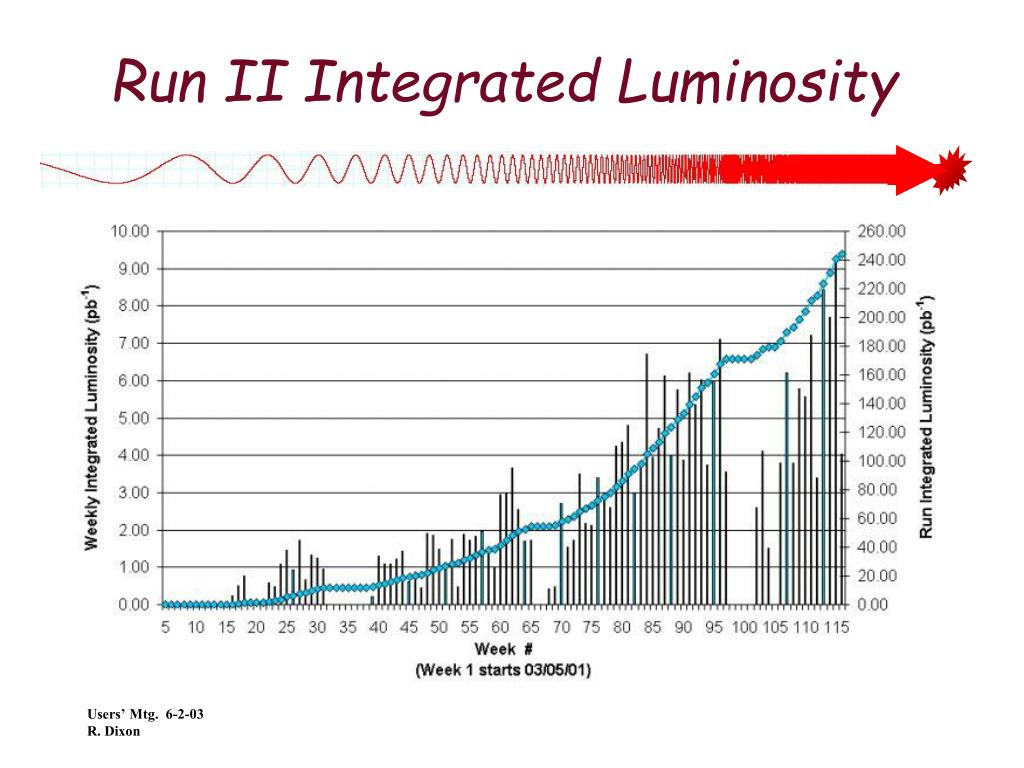

  9. Run II Integrated Luminosity

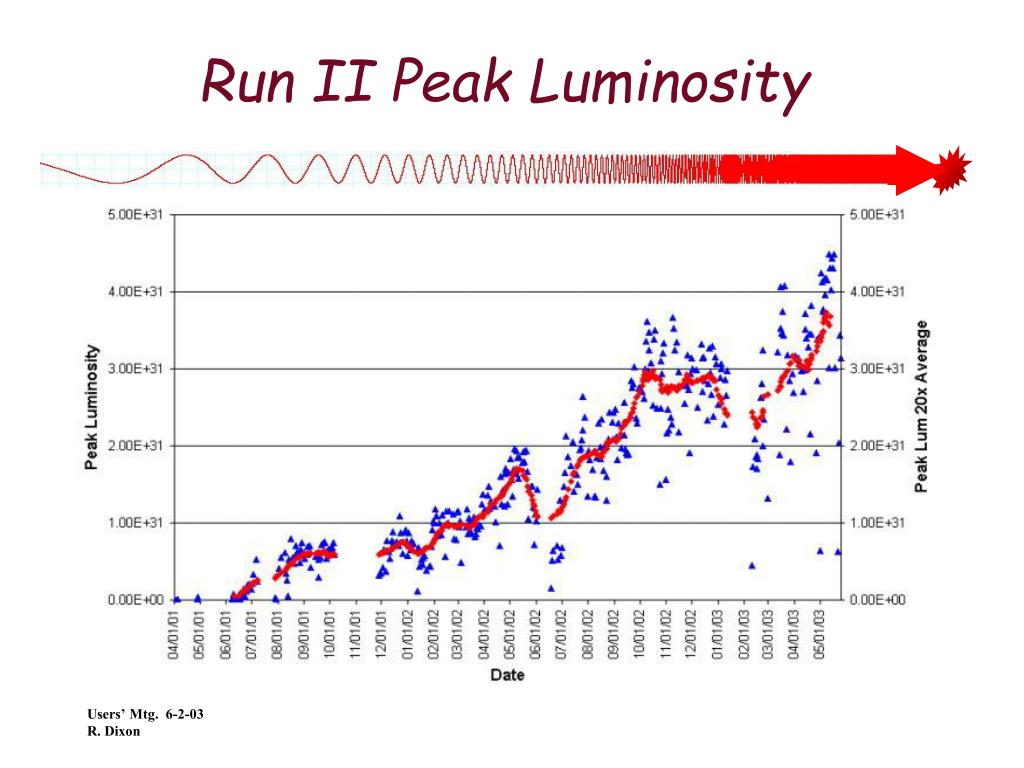

  10. Run II Peak Luminosity

  11. Hours per Week

  12. Luminosity vs Proton and Pbars From Mike Church

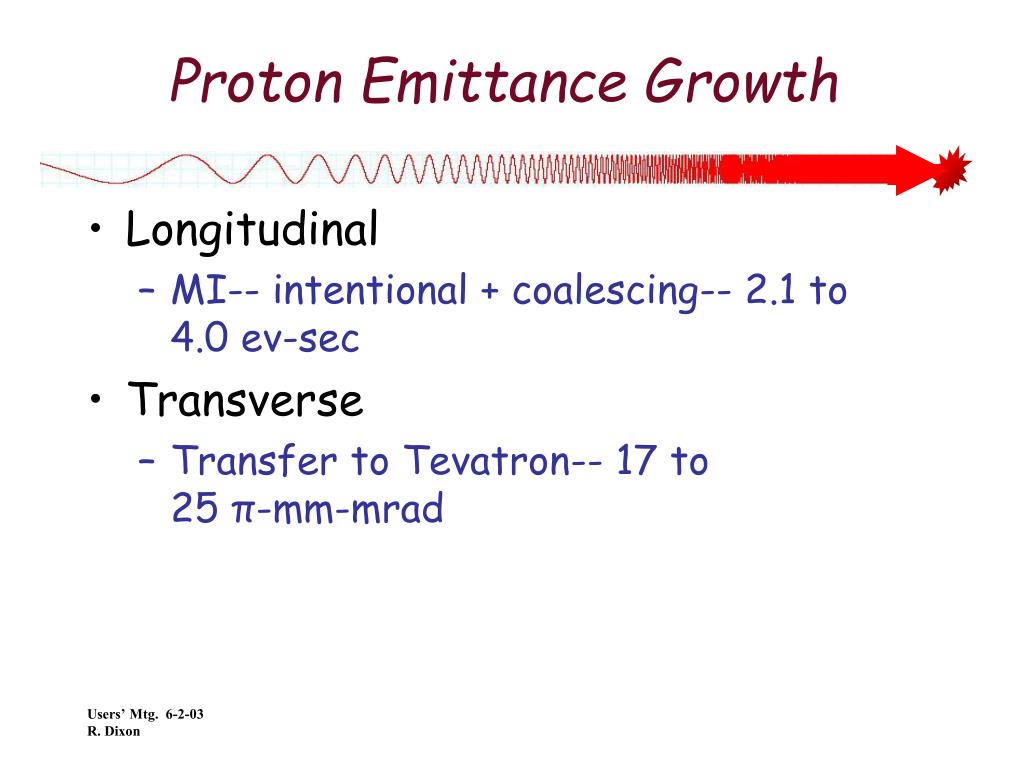

  13. Proton Emittance Growth • Longitudinal • MI-- intentional + coalescing-- 2.1 to 4.0 ev-sec • Transverse • Transfer to Tevatron-- 17 to 25 π-mm-mrad

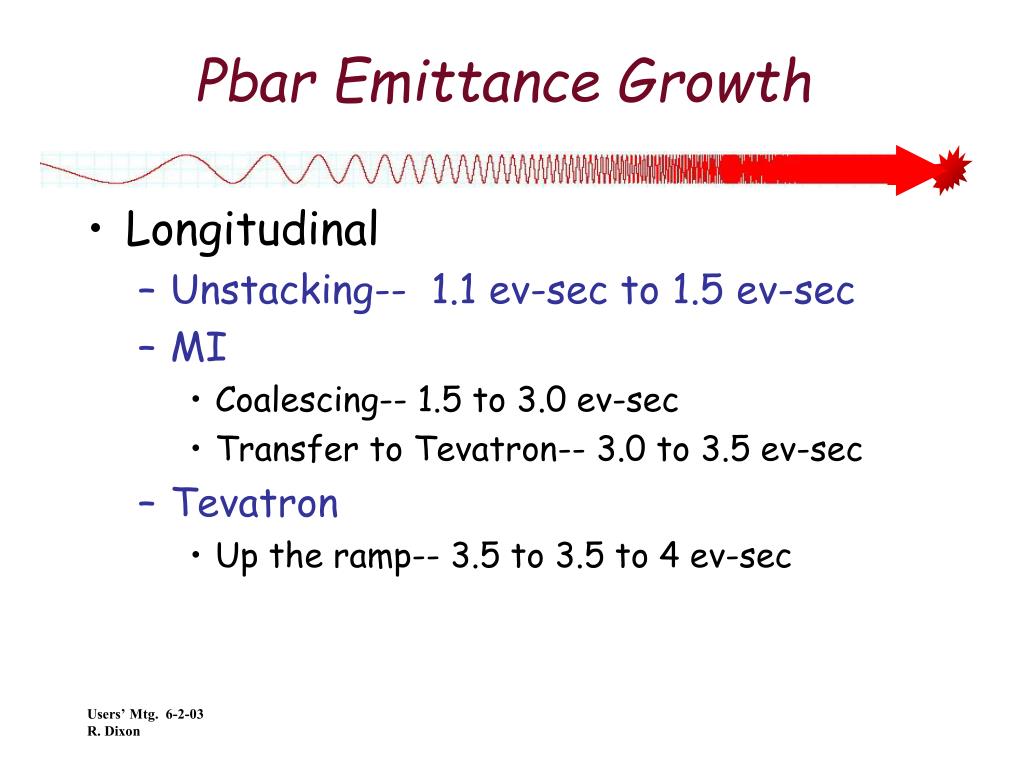

  14. Pbar Emittance Growth • Longitudinal • Unstacking-- 1.1 ev-sec to 1.5 ev-sec • MI • Coalescing-- 1.5 to 3.0 ev-sec • Transfer to Tevatron-- 3.0 to 3.5 ev-sec • Tevatron • Up the ramp-- 3.5 to 3.5 to 4 ev-sec

  15. Pbar Emittance Growth • Transverse • Mostly in the transfer from MI to Tevatron-- 8 π-mm-mrad to 20 to 25 π-mm-mrad

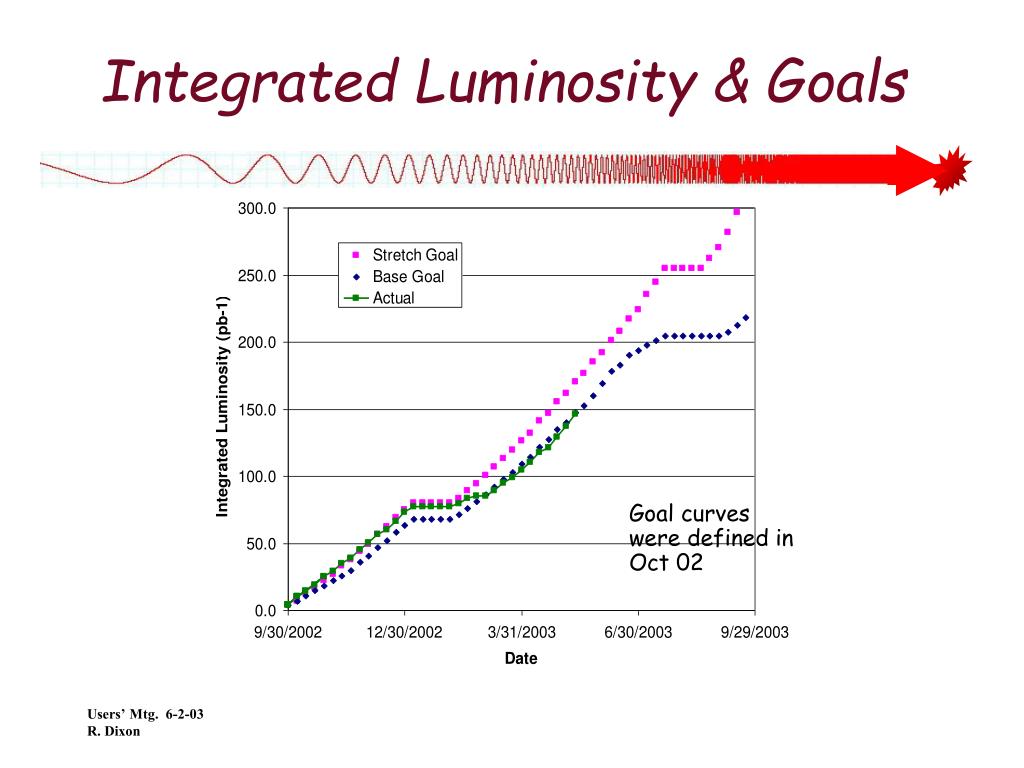

  16. Integrated Luminosity & Goals Goal curves were defined in Oct 02

  17. Recent Improvements • Removal of the C0 Lambertson • Allows increased separation of the helices • Reduces impedance seen by beam • Accumulator stochastic cooling bands 2&3 equalizers • Tevatron Transverse Dampers • Booster Dogleg Improvements

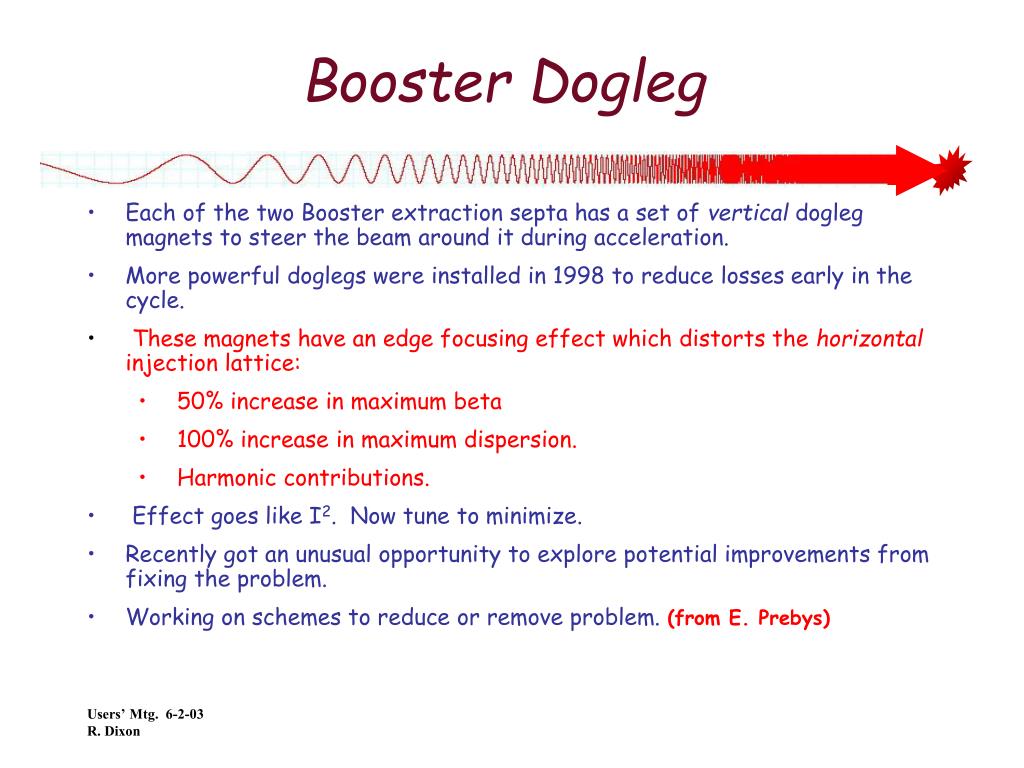

  18. Booster Dogleg • Each of the two Booster extraction septa has a set of vertical dogleg magnets to steer the beam around it during acceleration. • More powerful doglegs were installed in 1998 to reduce losses early in the cycle. • These magnets have an edge focusing effect which distorts the horizontal injection lattice: • 50% increase in maximum beta • 100% increase in maximum dispersion. • Harmonic contributions. • Effect goes like I2. Now tune to minimize. • Recently got an unusual opportunity to explore potential improvements from fixing the problem. • Working on schemes to reduce or remove problem. (from E. Prebys)

  19. Booster Dogleg (continued) March 6, 7 turns, 1 dog March 3, 7 turns, both dogs (from E. Prebys)

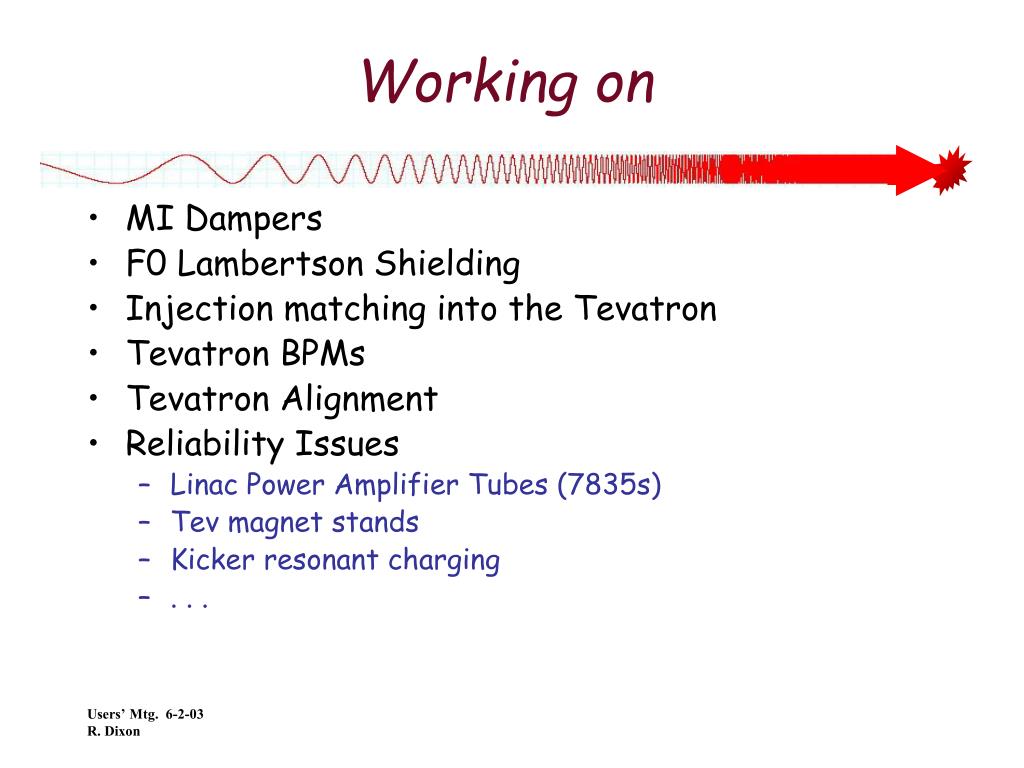

  20. Working on • MI Dampers • F0 Lambertson Shielding • Injection matching into the Tevatron • Tevatron BPMs • Tevatron Alignment • Reliability Issues • Linac Power Amplifier Tubes (7835s) • Tev magnet stands • Kicker resonant charging • . . .

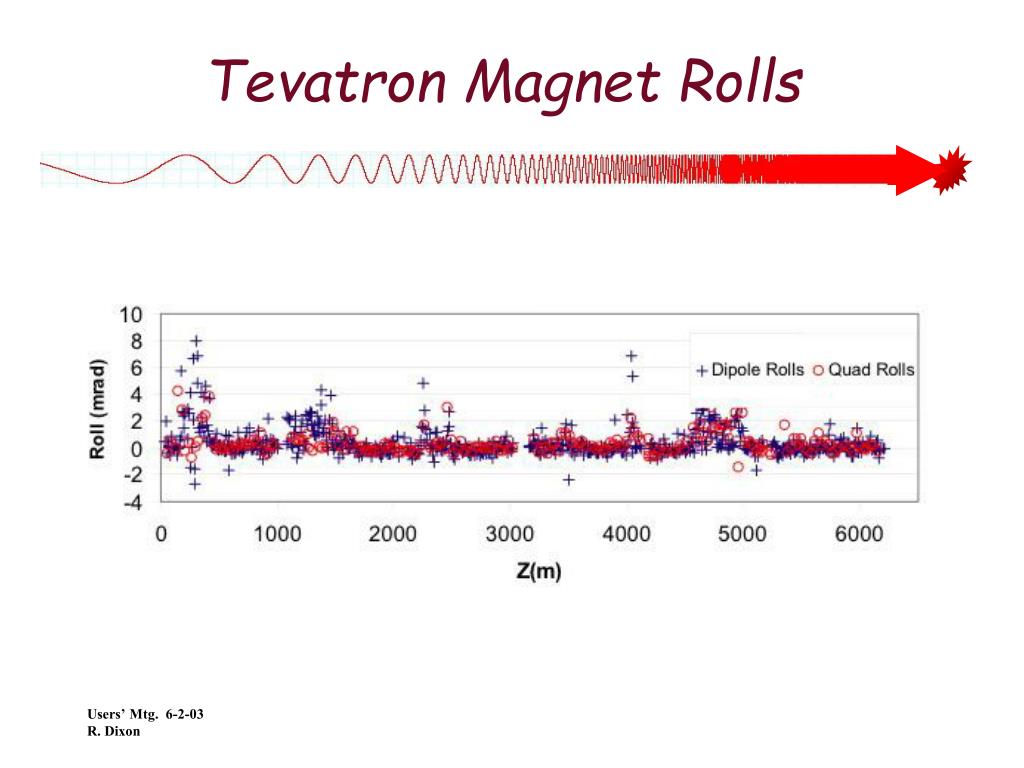

  21. Tevatron Magnet Rolls

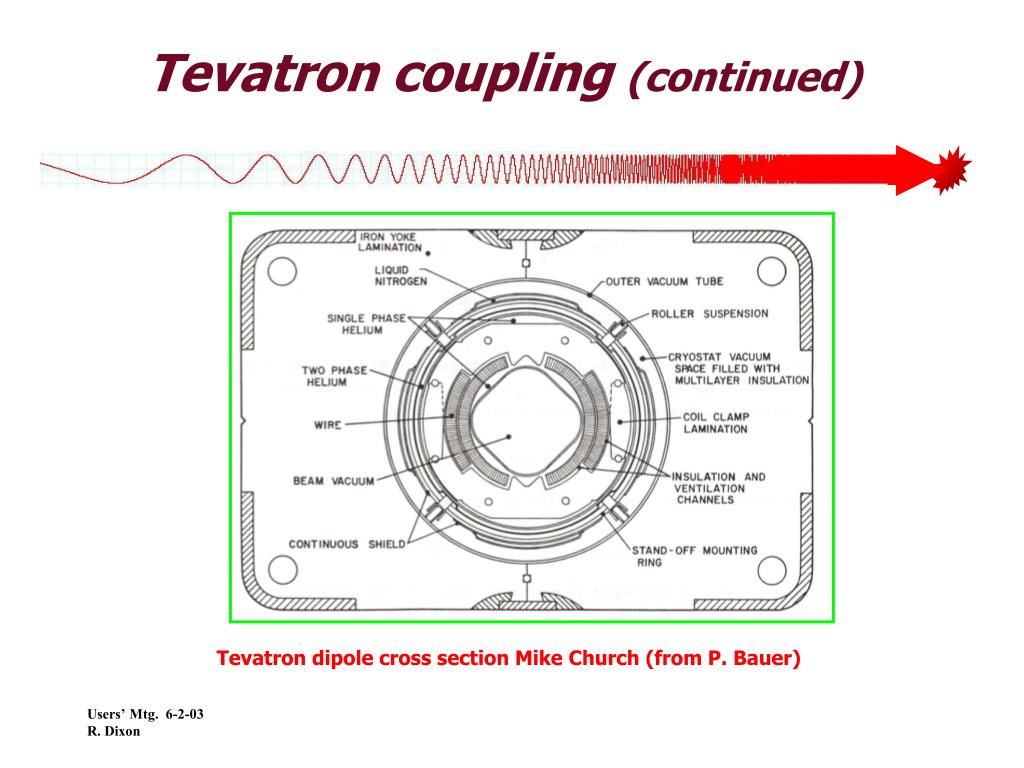

  22. Tevatron coupling (continued) Tevatron dipole cross section Mike Church (from P. Bauer)

  23. Tevatron coupling Data shows in-plane and out-of-plane difference orbits after single horizontal kick. Data is for 1st 5 turns in Tevatron. (from M. Syphers) Coupling in Tevatron is ~uniform around the ring and is consistent with ~1.5 units of a1 per dipole. This is compensated by a distributed skew quad circuit of 42 elements.

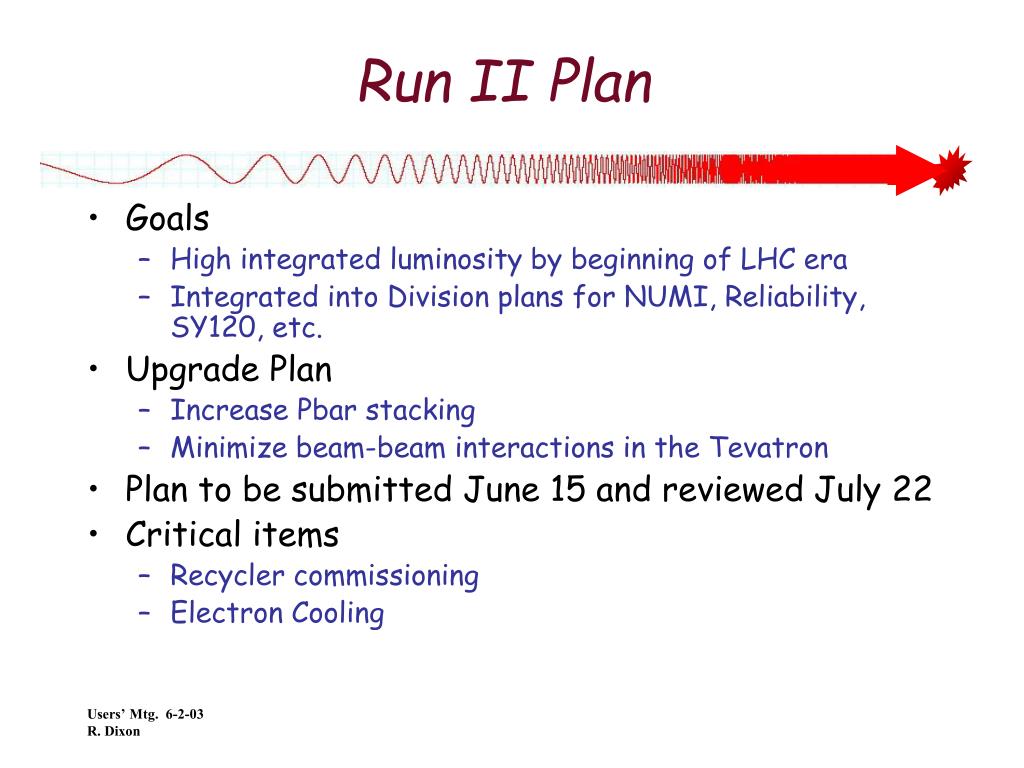

  24. Run II Plan • Goals • High integrated luminosity by beginning of LHC era • Integrated into Division plans for NUMI, Reliability, SY120, etc. • Upgrade Plan • Increase Pbar stacking • Minimize beam-beam interactions in the Tevatron • Plan to be submitted June 15 and reviewed July 22 • Critical items • Recycler commissioning • Electron Cooling

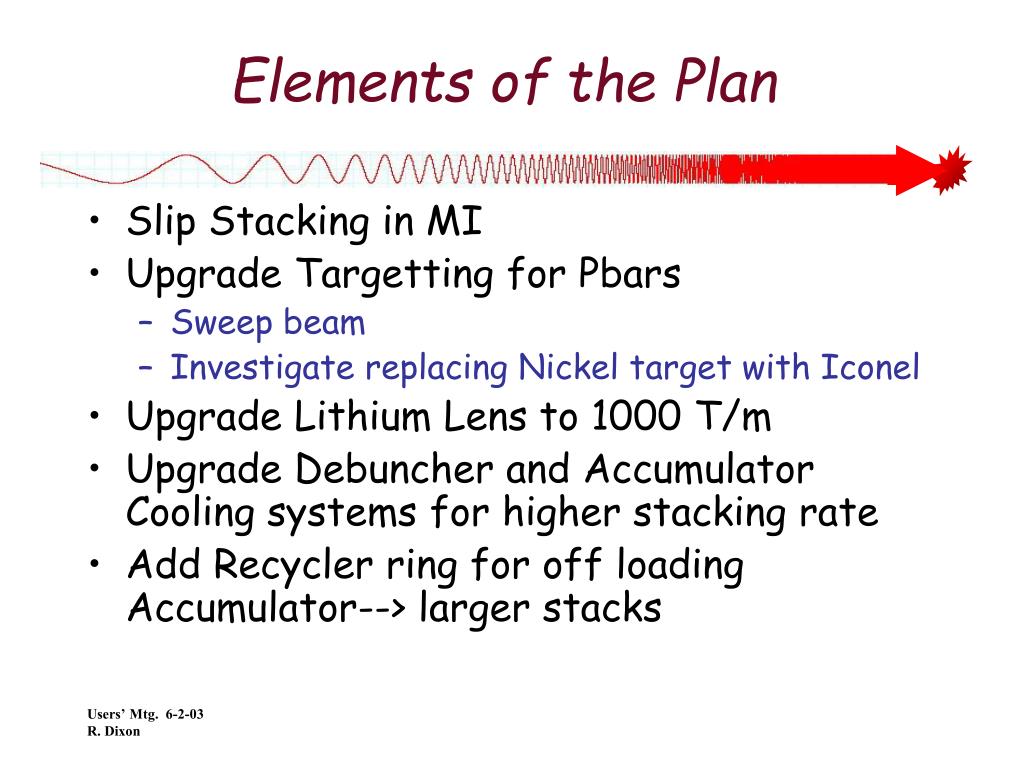

  25. Elements of the Plan • Slip Stacking in MI • Upgrade Targetting for Pbars • Sweep beam • Investigate replacing Nickel target with Iconel • Upgrade Lithium Lens to 1000 T/m • Upgrade Debuncher and Accumulator Cooling systems for higher stacking rate • Add Recycler ring for off loading Accumulator--> larger stacks

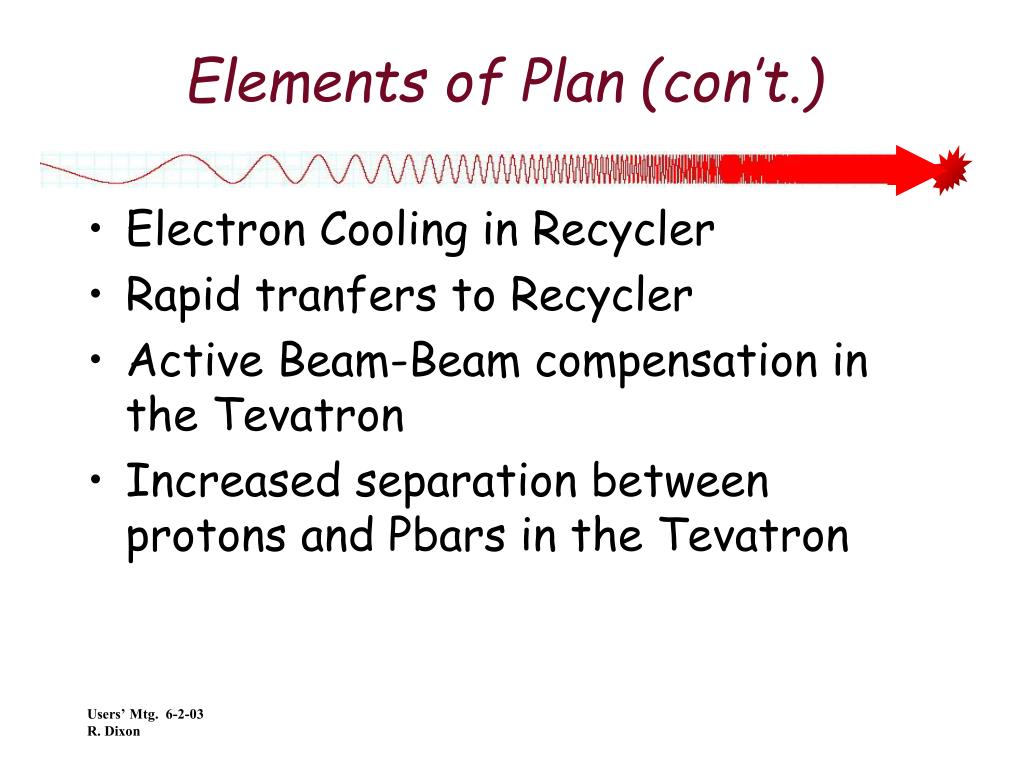

  26. Elements of Plan (con’t.) • Electron Cooling in Recycler • Rapid tranfers to Recycler • Active Beam-Beam compensation in the Tevatron • Increased separation between protons and Pbars in the Tevatron

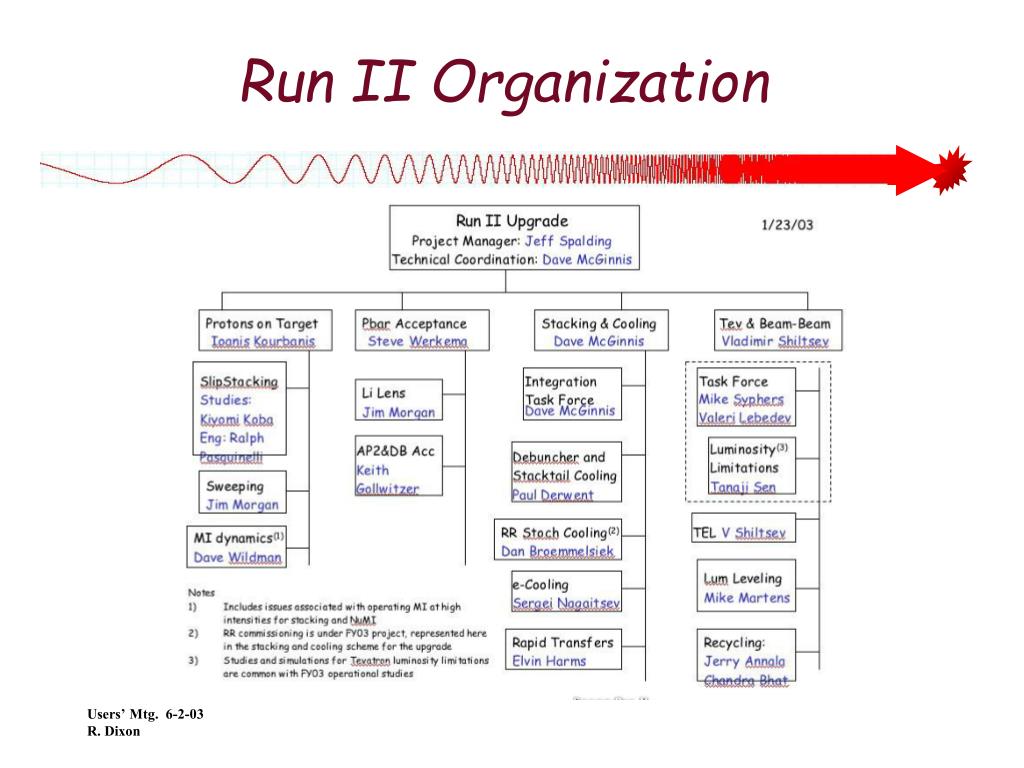

  27. Run II Organization

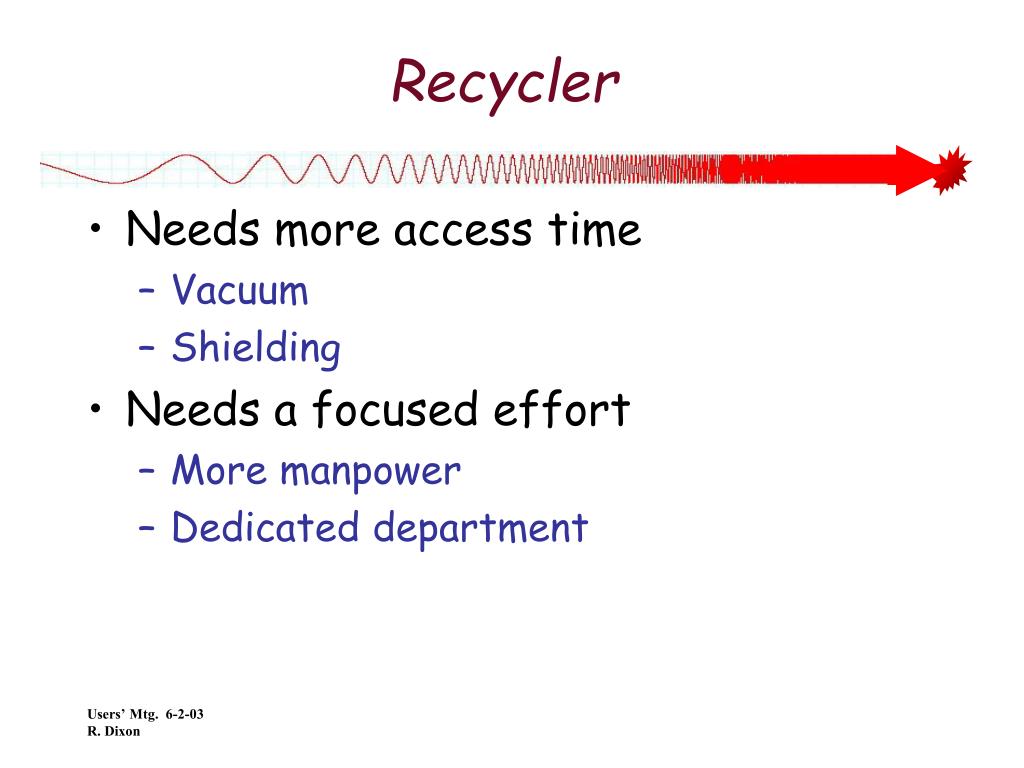

  28. Recycler • Needs more access time • Vacuum • Shielding • Needs a focused effort • More manpower • Dedicated department

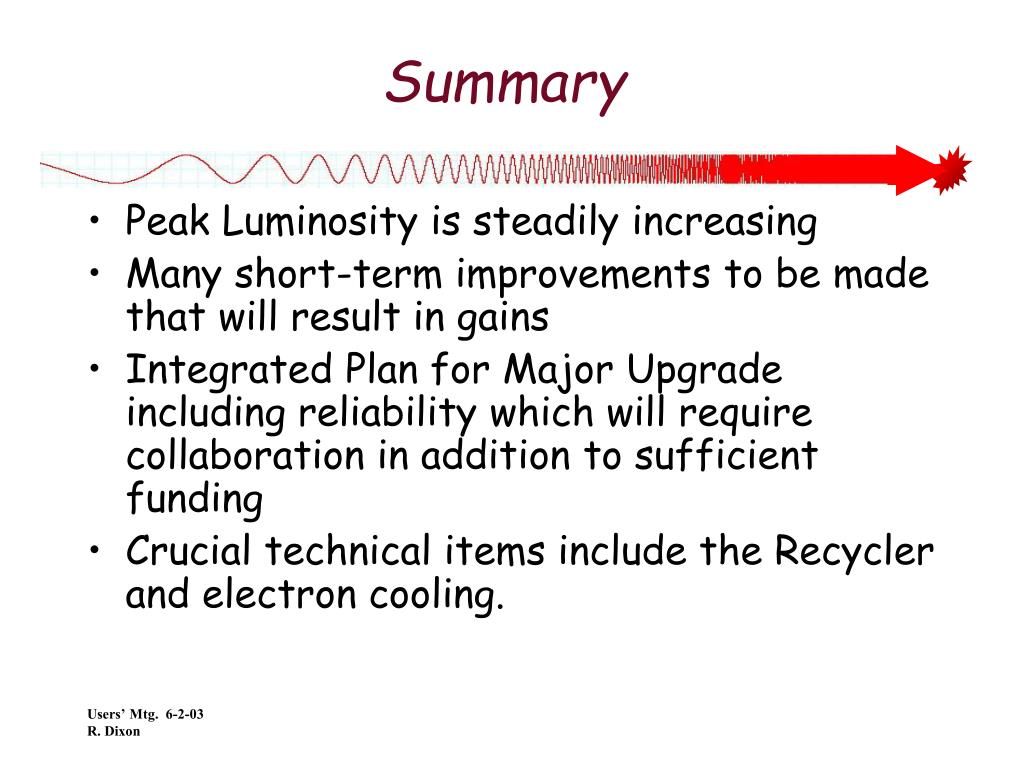

  29. Summary • Peak Luminosity is steadily increasing • Many short-term improvements to be made that will result in gains • Integrated Plan for Major Upgrade including reliability which will require collaboration in addition to sufficient funding • Crucial technical items include the Recycler and electron cooling.
