Chilled Iron Grits-converted

Chilled Iron Grits - Manufacturer, Supplier & Exporter in Jodhpur, Rajasthan, India at low price with the best quality for sale

sandblastseo
Download Presentation

Chilled Iron Grits-converted

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

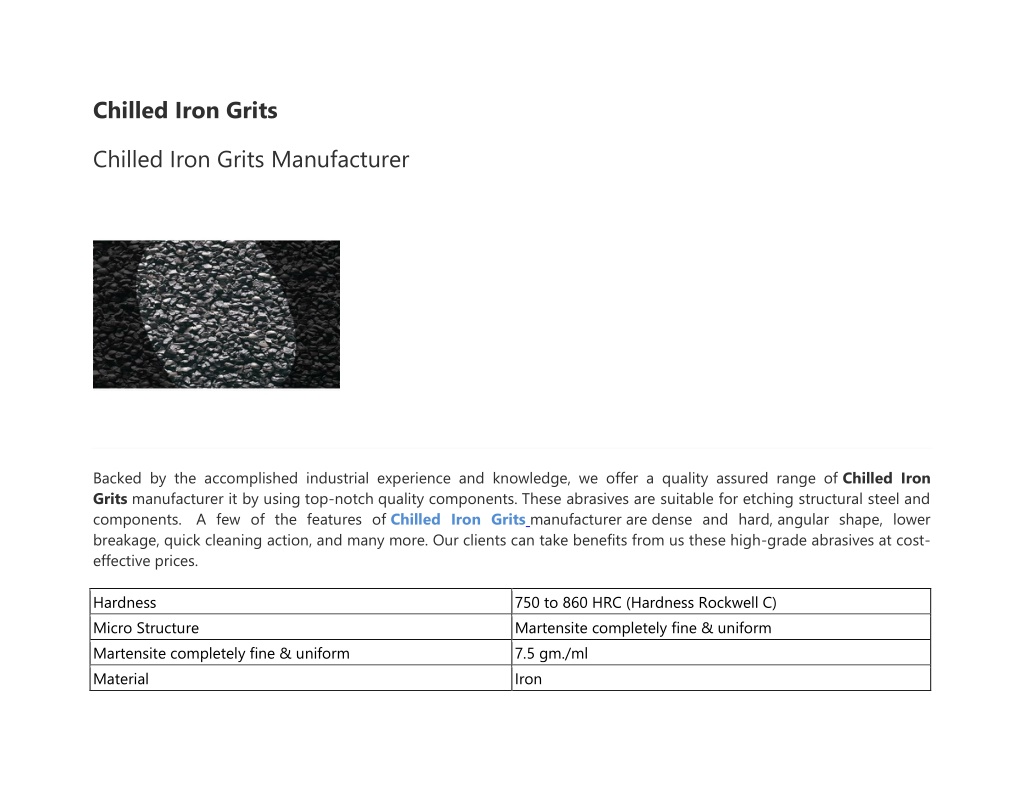

  1. Chilled Iron Grits Chilled Iron Grits Manufacturer Backed by the accomplished industrial experience and knowledge, we offer a quality assured range of Chilled Iron Grits manufacturer it by using top-notch quality components. These abrasives are suitable for etching structural steel and components. A few of the features of Chilled Iron Grits manufacturer are dense and hard, angular shape, lower breakage, quick cleaning action,and many more. Our clients can take benefits from us these high-grade abrasives at cost- effective prices. Hardness Micro Structure Martensite completely fine & uniform Material 750 to 860 HRC (Hardness Rockwell C) Martensite completely fine & uniform 7.5 gm./ml Iron

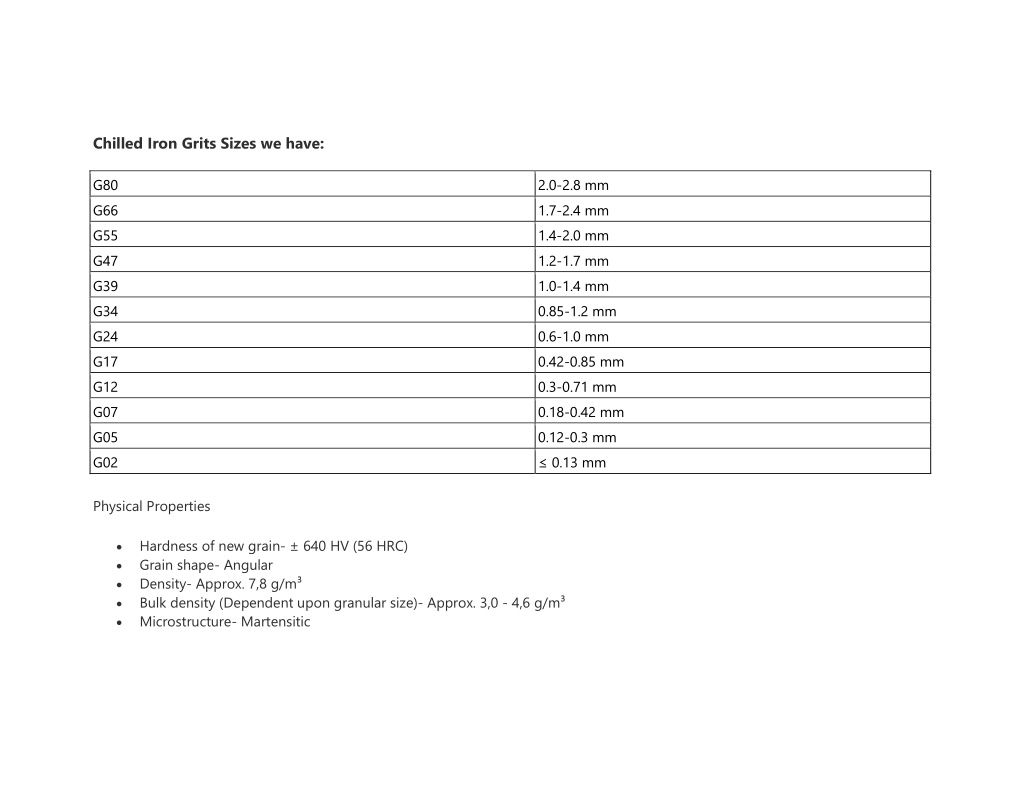

  2. Chilled Iron Grits Sizes we have: G80 G66 G55 G47 G39 G34 G24 G17 G12 G07 G05 G02 Physical Properties 2.0-2.8 mm 1.7-2.4 mm 1.4-2.0 mm 1.2-1.7 mm 1.0-1.4 mm 0.85-1.2 mm 0.6-1.0 mm 0.42-0.85 mm 0.3-0.71 mm 0.18-0.42 mm 0.12-0.3 mm ≤ 0.13 mm Hardness of new grain- ± 640 HV (56 HRC) Grain shape- Angular Density- Approx. 7,8 g/m³ Bulk density (Dependent upon granular size)- Approx. 3,0 - 4,6 g/m³ Microstructure- Martensitic • • • • •

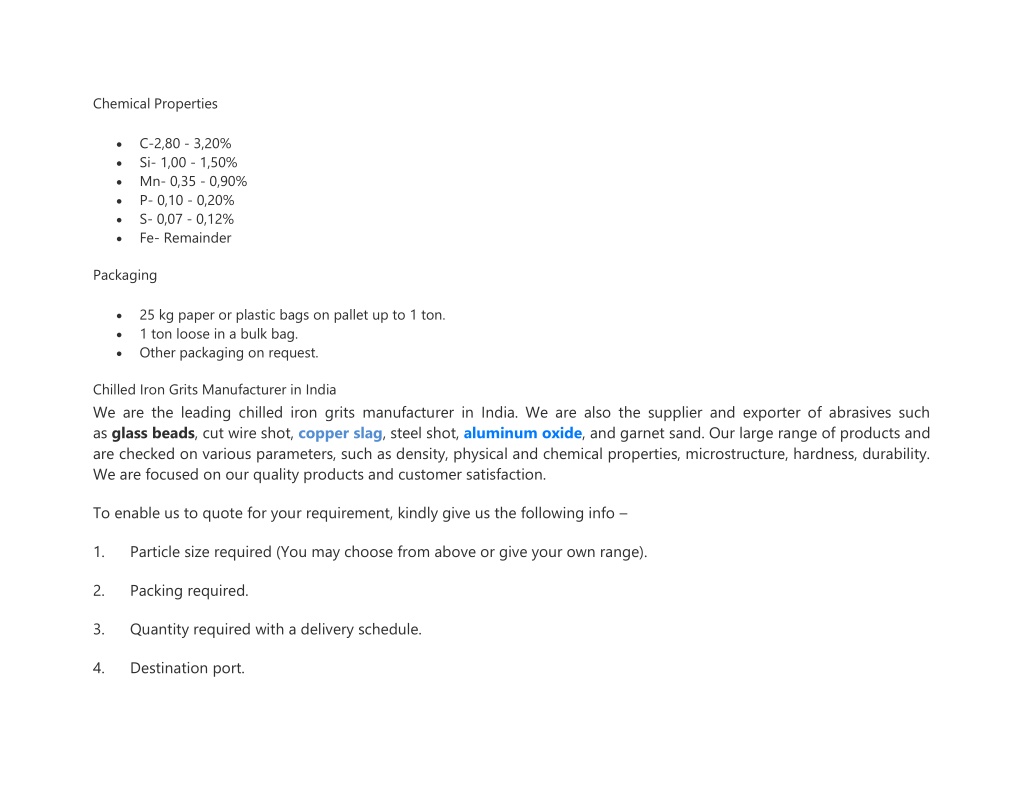

  3. Chemical Properties C-2,80 - 3,20% Si- 1,00 - 1,50% Mn- 0,35 - 0,90% P- 0,10 - 0,20% S- 0,07 - 0,12% Fe- Remainder • • • • • • Packaging 25 kg paper or plastic bags on pallet up to 1 ton. 1 ton loose in a bulk bag. Other packaging on request. • • • Chilled Iron Grits Manufacturer in India We are the leading chilled iron grits manufacturer in India. We are also the supplier and exporter of abrasives such as glass beads, cut wire shot, copper slag, steel shot, aluminum oxide, and garnet sand. Our large range of products and are checked on various parameters, such as density, physical and chemical properties, microstructure, hardness, durability. We are focused on our quality products and customer satisfaction. To enable us to quote for your requirement, kindly give us the following info – 1. Particle size required (You may choose from above or give your own range). 2. Packing required. 3. Quantity required with a delivery schedule. 4. Destination port.

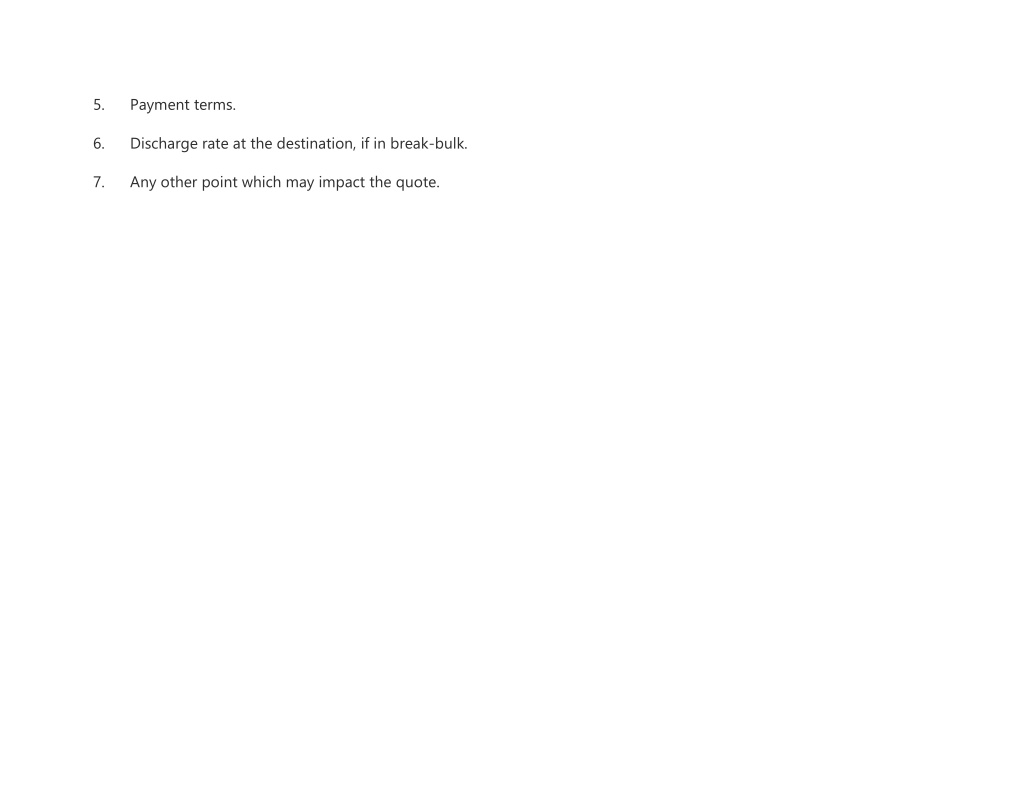

  4. 5. Payment terms. 6. Discharge rate at the destination, if in break-bulk. 7. Any other point which may impact the quote.
