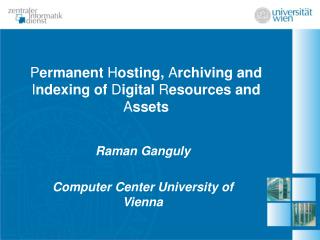

  1. Permanent Hosting, Archiving and Indexing of Digital Resources and Assets Raman Ganguly Computer Center University of Vienna

  2. Agenda • Used technologies • Architecture & Security • Phaidra Core • Metadata schema • Content models • Supported formats • Book Viewer • Forecast

  3. Used technologies • Web-Frontend: Perl applications • Catalyst: MVC-Framework for Perl Templateing: Perl Template Toolkit • Fedora 3.3 at Red Hat Enterprise 6, Tomcat 6, Apache 2 as Frontend Server • Databases: Oracle 11 & MySQL 5

  4. Architecture

  5. Security • Authentification over LDAP: differ between staff, students, external (planed is the use of Shibboleth)‏ • Authorisation over XACML: who is allowed to use which API-(A|M)-functions under which terms • Phaidra: all users are allowed to use (certain) API-(A|M)-functions, not only admins. XACML not sufficient!

  6. Phaidra Core • APIs for Perl, PHP and Java • Abilities to search: Fulltext, Metadata, „Google Search“, Browse (Lucene)‏ • User-Interface: fully localized in german; usability very important • Unicode (UTF-8)‏

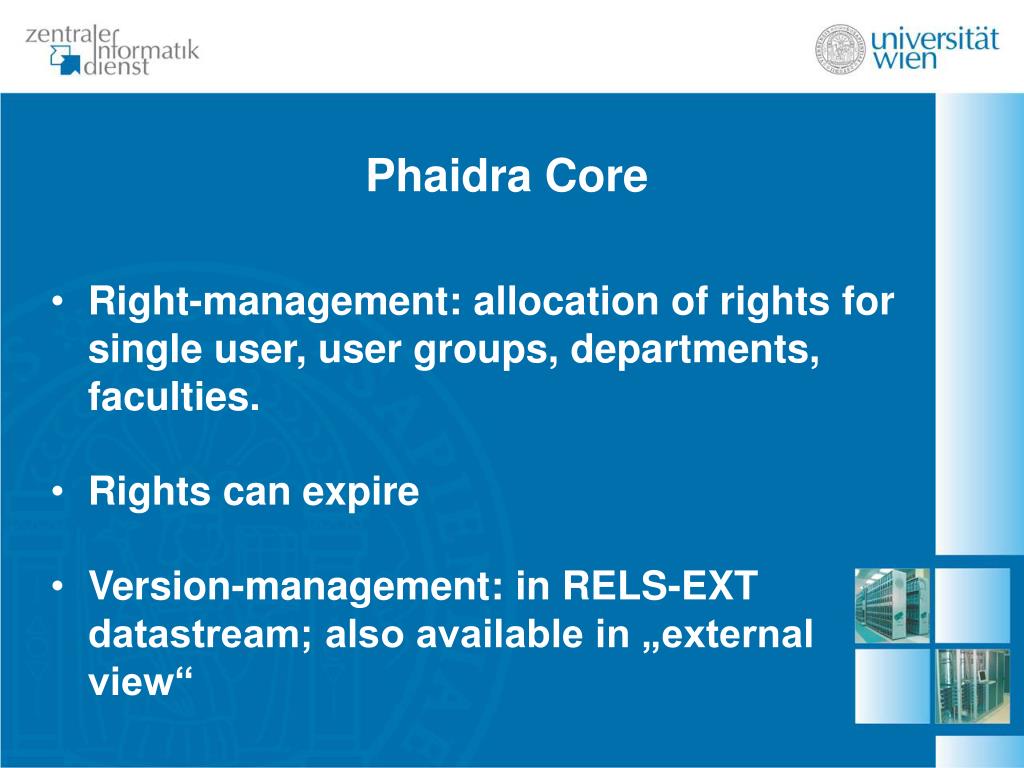

  7. Phaidra Core • Right-management: allocation of rights for single user, user groups, departments, faculties. • Rights can expire • Version-management: in RELS-EXT datastream; also available in „external view“

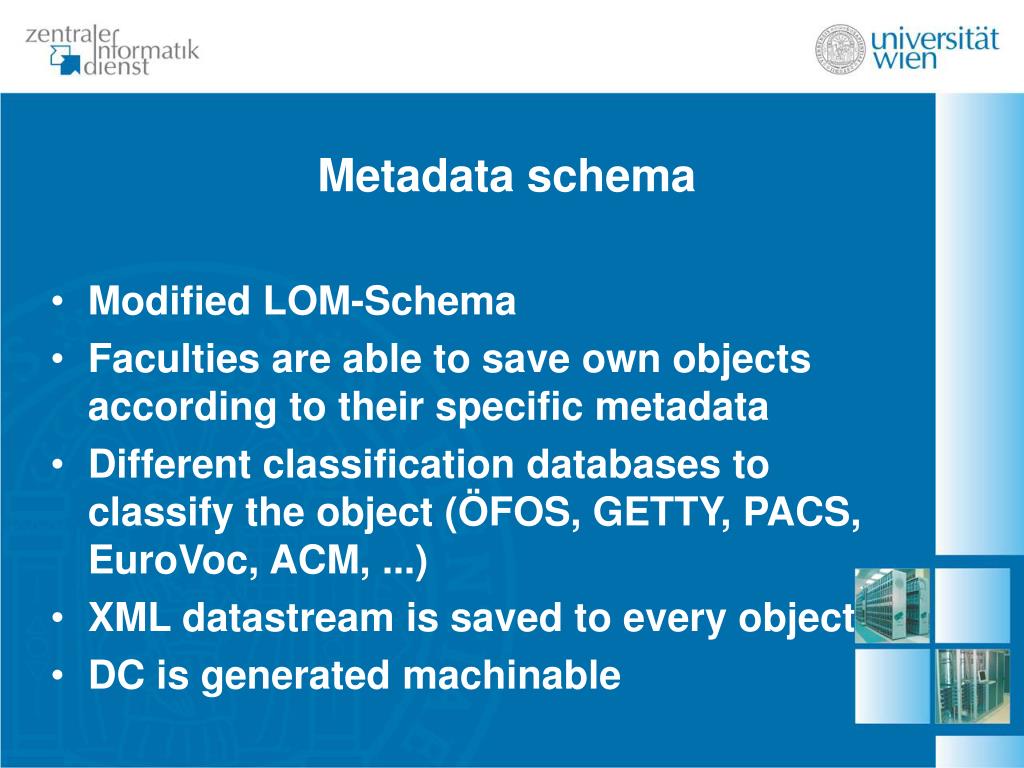

  8. Metadata schema • Modified LOM-Schema • Faculties are able to save own objects according to their specific metadata • Different classification databases to classify the object (ÖFOS, GETTY, PACS, EuroVoc, ACM, ...)‏ • XML datastream is saved to every object • DC is generated machinable

  9. Content models 4 Object groups: Single File 1 Content DS: picture, document, audio, ... Collection No content but members in RELS-EXT DS Container Multiple content datastreams Paper 1 Content DS (picture, document, audio) with relations to other objects

  10. Content model • Object types: Picture, Document, Audio, Video, Ressource, Book, Page, Container, Collection • Design of a typical Phaidra object: DC POLICY RELS-EXT OCTETS UWMETADATA RIGHTS STYLESHEET THUMBNAIL bdef:Asset bdef:ImageManip

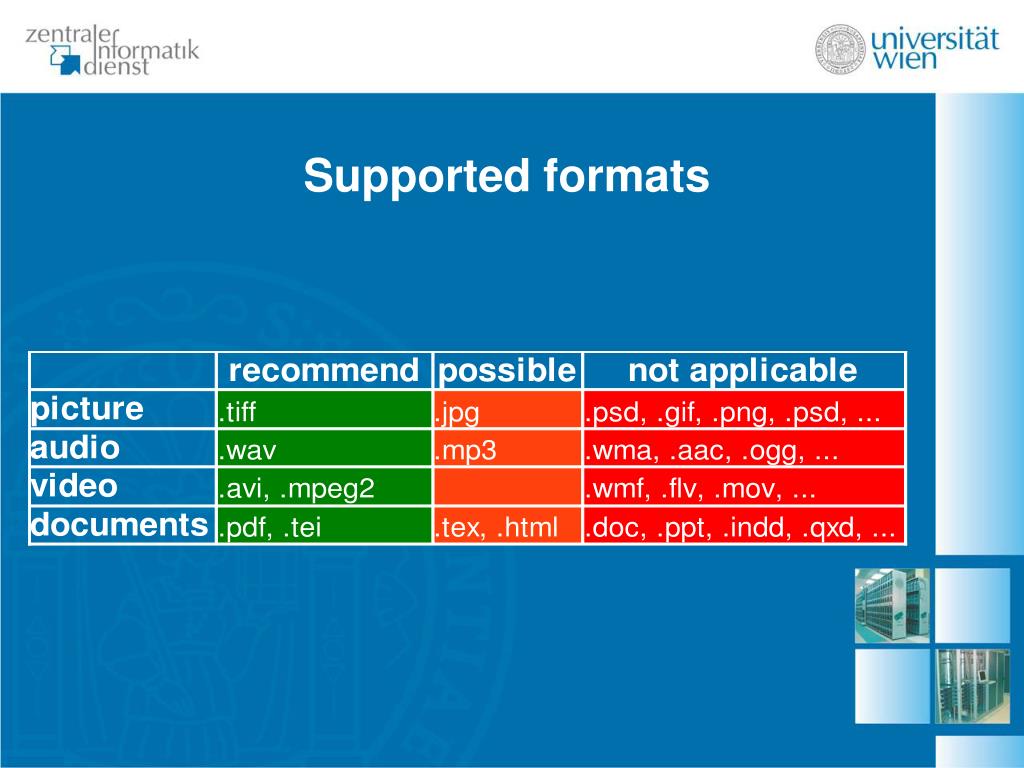

  11. Supported formats

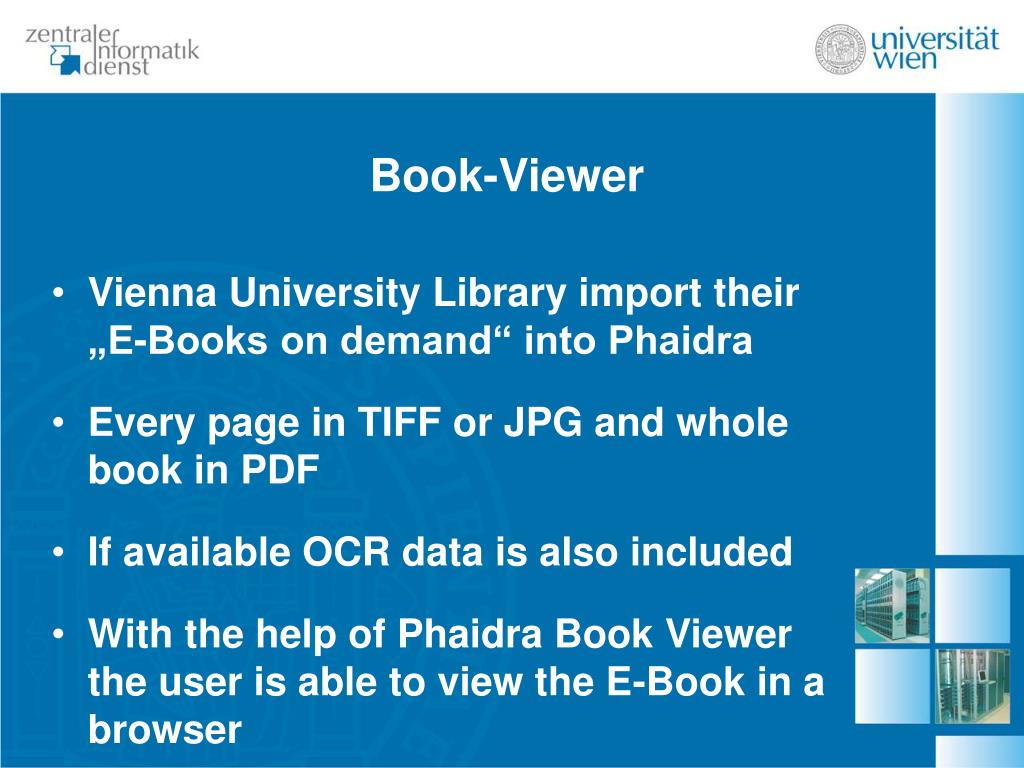

  12. Book-Viewer • Vienna University Library import their „E-Books on demand“ into Phaidra • Every page in TIFF or JPG and whole book in PDF • If available OCR data is also included • With the help of Phaidra Book Viewer the user is able to view the E-Book in a browser

  13. Book Viewer • Main functions: stepless zoom, navigate through the book, full-screen view, download pages in JPG or PDF, ... • Communication with Fedora over AJAX • Search and highlighting of words or phrases is supported if OCR is available

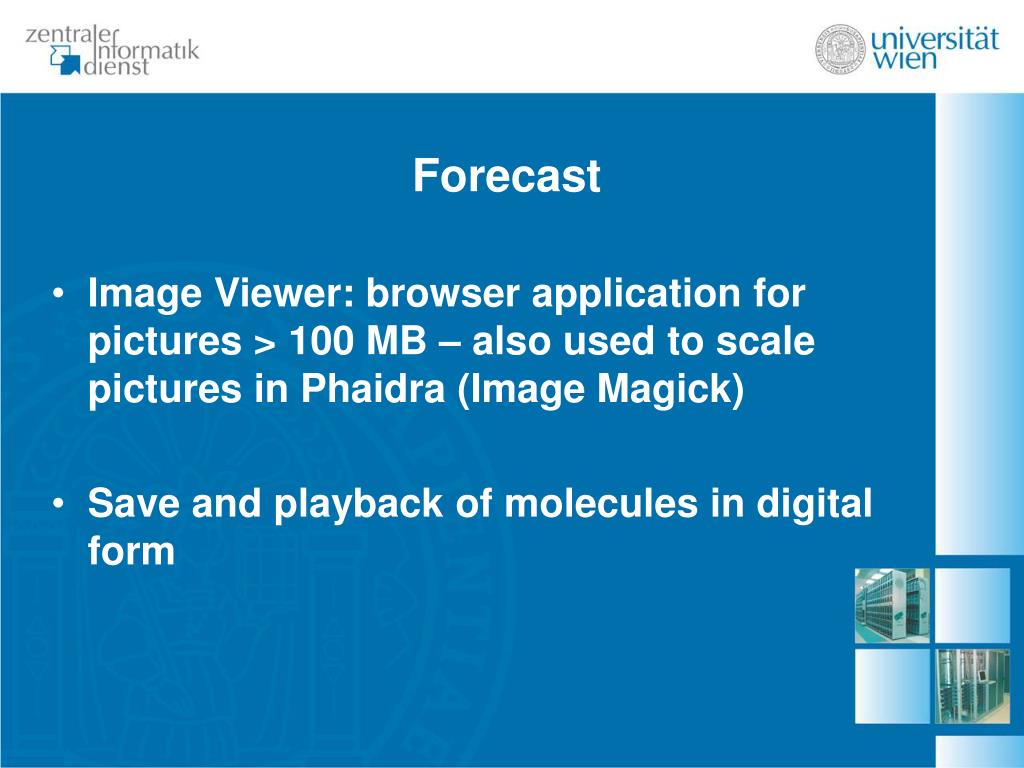

  14. Forecast • Image Viewer: browser application for pictures > 100 MB – also used to scale pictures in Phaidra (Image Magick)‏ • Save and playback of molecules in digital form

  15. Forecast • Book Importer • Integration into existing systems(Fronter, TYPO3, ...)‏ • Upgrade to Fedora 3.5

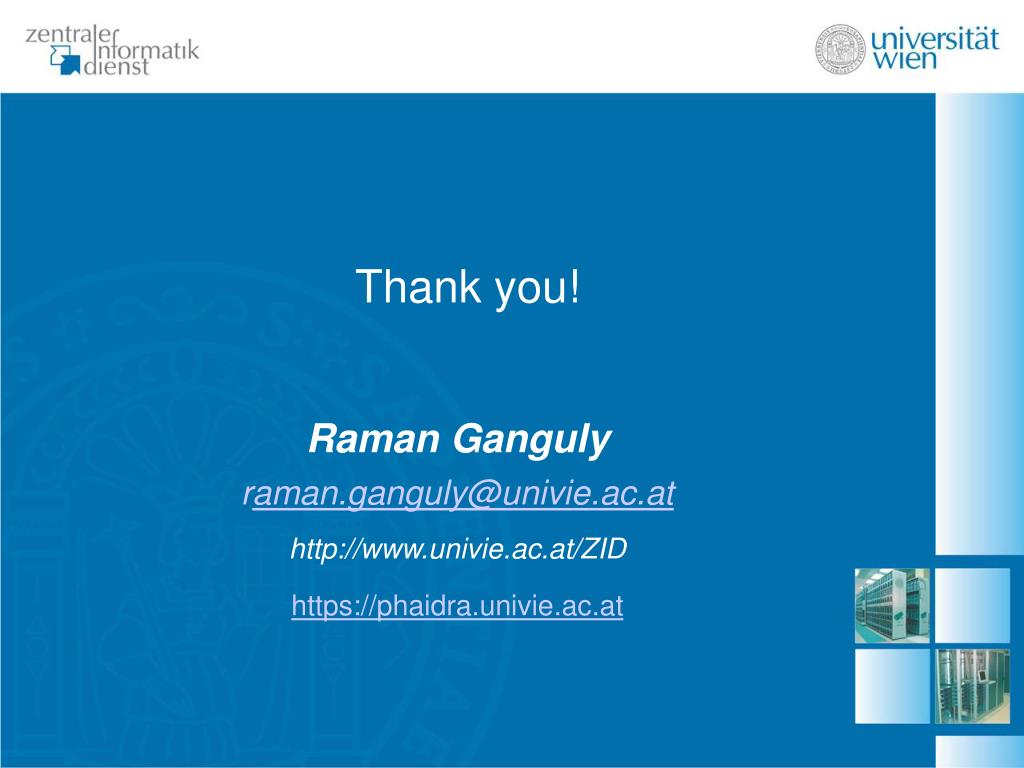

  16. Thank you! Raman Ganguly raman.ganguly@univie.ac.at http://www.univie.ac.at/ZID https://phaidra.univie.ac.at
