Pipelined control chapter 6

Pipelined ControlChapter 6

Vishwani D. Agrawal

James J. Danaher Professor

Department of Electrical and Computer Engineering

Auburn University

http://www.eng.auburn.edu/~vagrawal

[email protected]

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

Pipelined Datapath (without Jump)

IF/ID

ID/EX

EX/MEM

MEM/WB

4

1 mux 0

Add

ALU

opcode

Shift

left 2

26-31

zero

21-25

Instr

mem

ALU

PC

16-20

Data

mem.

Reg. File

1 mux 0

0 mux 1

Sign

ext.

16-20 for I-type lw

11-15 for R-type

1 mux 0

0-15

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

Mem. and Reg. File Need Controls

IF/ID

ID/EX

EX/MEM

MEM/WB

4

1 mux 0

Add

ALU

opcode

Shift

left 2

RegWrite

26-31

MemWrite

MemRead

zero

21-25

Instr

mem

ALU

PC

16-20

Data

mem.

Reg. File

1 mux 0

0 mux 1

Sign

ext.

16-20 for I-type lw

11-15 for R-type

1 mux 0

0-15

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

Multiplexers Need Controls

IF/ID

ID/EX

EX/MEM

MEM/WB

4

1 mux 0

Add

ALU

Shift

left 2

opcode

RegWrite

PCSrc

Branch

26-31

MemWrite

MemRead

MemtoReg

zero

ALUSrc

21-25

Instr

mem

ALU

PC

16-20

Data

mem.

Reg. File

1 mux 0

0 mux 1

Sign

ext.

16-20 for I-type lw

11-15 for R-type

1 mux 0

RegDst

0-15

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

ALU Needs a Control

IF/ID

ID/EX

EX/MEM

MEM/WB

4

1 mux 0

Add

ALU

Shift

left 2

opcode

RegWrite

PCSrc

Branch

26-31

MemWrite

MemRead

MemtoReg

zero

ALUSrc

21-25

Instr

mem

PC

ALU

16-20

Data

mem.

Reg. File

1 mux 0

0 mux 1

ALU

cont.

Sign

ext.

0-5

ALUOp

16-20 for I-type lw

11-15 for R-type

1 mux 0

RegDst

0-15

ELEC 5200-001/6200-001 Lecture 13


Compare with single cycle control

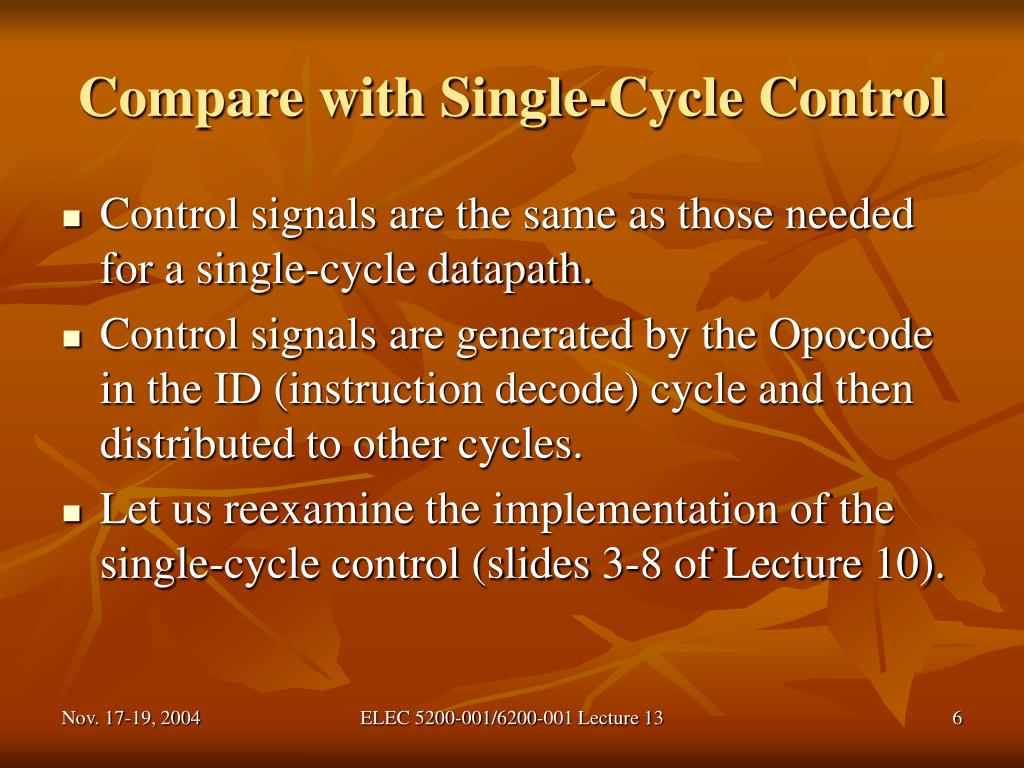

Compare with Single-Cycle Control

  • Control signals are the same as those needed for a single-cycle datapath.

  • Control signals are generated by the Opocode in the ID (instruction decode) cycle and then distributed to other cycles.

  • Let us reexamine the implementation of the single-cycle control (slides 3-8 of Lecture 10).

ELEC 5200-001/6200-001 Lecture 13


Hardwired cu single cycle

Hardwired CU: Single-Cycle

  • Implemented by combinational logic.

Control

logic

Datapath

6

funct.

code

Control

signals

To ALU

6

opcode

3

ALU

control

ALUOp

2

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

Jump

0-25

Shift

left2

0 mux 1

4

Add

1 mux 0

ALU

Branch

opcode

MemtoReg

CONTROL

26-31

RegWrite

ALUSrc

21-25

zero

MemWrite

MemRead

ALU

Instr.

mem.

PC

Reg. File

Data

mem.

1 mux 0

16-20

0 mux 1

1 mux 0

11-15

Single-cycle

Datapath

RegDst

ALUOp

ALU

Cont.

Sign

ext.

Shift

left 2

0-15

0-5

ELEC 5200-001/6200-001 Lecture 13


Single cycle control logic

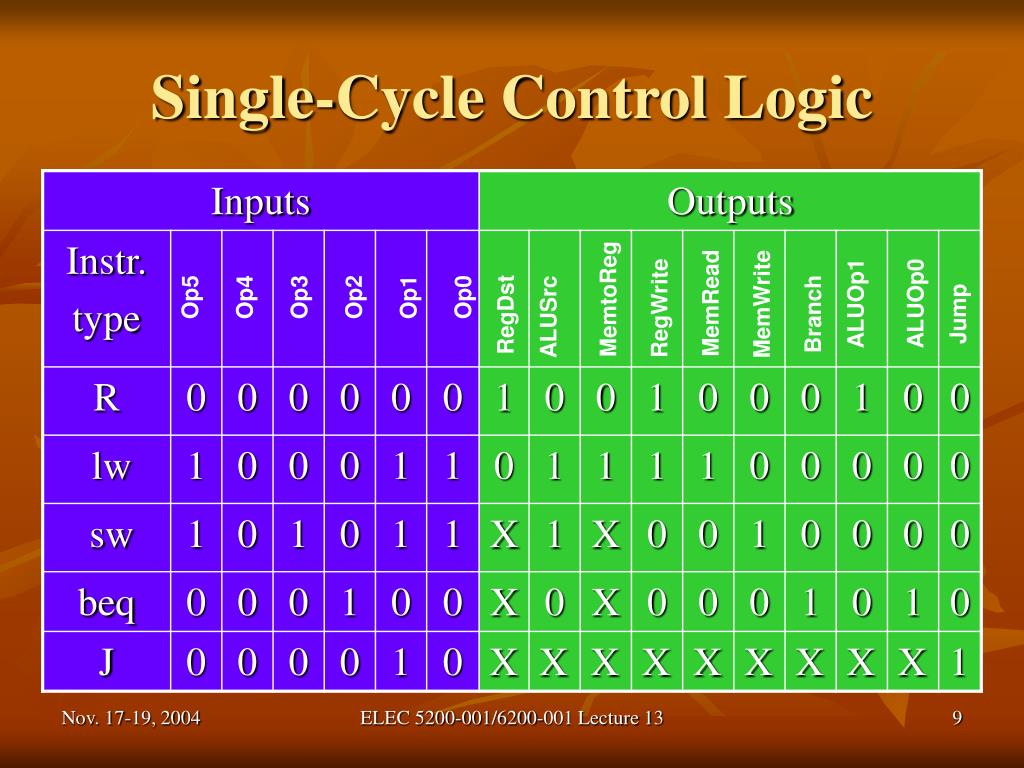

Single-Cycle Control Logic

Op5

Op4

Op3

Op2

Op1

Op0

ALUOp1

MemtoReg

MemRead

ALUOp0

MemWrite

RegWrite

Jump

Branch

RegDst

ALUSrc

ELEC 5200-001/6200-001 Lecture 13


Single cycle control circuit

Single-Cycle Control Circuit

Op5

Op4

Op3

Op2

Op1

Op0

lw

R

sw

beq

J

RegDst

ALUSrc

MemtoReg

RegWrite

MemRead

MemWrite

Branch

ALUOp1

ALUOp0

Jump

ELEC 5200-001/6200-001 Lecture 13


Alu control logic

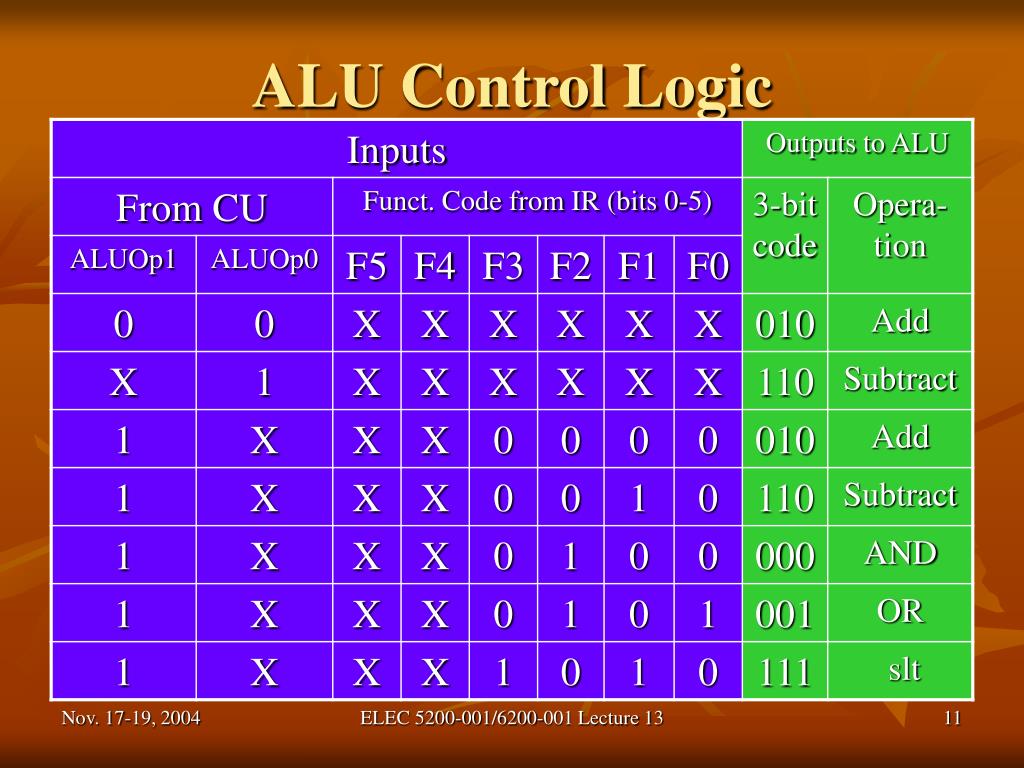

ALU Control Logic

ELEC 5200-001/6200-001 Lecture 13


Alu control

ALU Control

Operation

select

from control

From Control Circuit

ALUOp1 ALUOp0

3

zero

ALU

result

F3

F2

F1

F0

overflow

Operation selectALU function

000AND

001OR

010Add

110Subtract

111Set on less than

ELEC 5200-001/6200-001 Lecture 13


Returning to pipelined control

Returning to Pipelined Control

  • Opcode input to control is supplied by the pipeline register IF/ID in the ID (instruction decode) cycle.

  • Nine control signals are generated in the ID cycle, but none is used. They are saved in the pipeline register ID/EX.

  • ALUSrc, RegDst and ALUOp (2 bits) are used in the EX (execute) cycle. Remaining 5 control signals are saved in the pipeline register EX/MEM.

  • Branch, MemWrite and MemRead are used in the MEM (memory access) cycle. Remaining 2 control signals are saved in the pipeline register MEM/WB.

  • MemtoReg and RegWrite are used in the WB (write back) cycle.

  • Pipelined control is shown without Jump.

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

Placing Control in Pipelined Datapath

IF/ID

ID/EX

EX/MEM

MEM/WB

4

1 mux 0

Add

ALU

opcode

Shift

left 2

CONTROL

26-31

RegWrite

PCSrc

Branch

MemWrite

MemRead

MemtoReg

zero

ALUSrc

Instr

mem

21-25

PC

ALU

16-20

Data

mem.

Reg. File

1 mux 0

0 mux 1

ALU

cont.

Sign

ext.

ALUOp

0-5

16-20 for I-type lw

11-15 for R-type

1 mux 0

RegDst

0-15

ELEC 5200-001/6200-001 Lecture 13


Pipelined control chapter 6

Highlighted Pipelined Control

IF/ID

ID/EX

EX/MEM

MEM/WB

4

Add

1 mux 0

ALU

opcode

Shift

left 2

CONTROL

26-31

RegWrite

PCSrc

Branch

MemWrite

MemRead

MemtoReg

zero

ALUSrc

Instr

mem

21-25

PC

ALU

16-20

Data

mem

Reg. File

1 mux 0

0 mux 1

ALU

cont.

Sign

ext.

ALUOp

0-5

16-20 for I-type lw

11-15 for R-type

1 mux 0

RegDst

0-15

ELEC 5200-001/6200-001 Lecture 13


Single cycle performance

Single-Cycle Performance

  • Assume

    • 200 ps for memory access

    • 100 ps for ALU operation

    • 50 ps for register file read or write

  • Cycle time set according to longest instruction:

    lw ≡ IF + ID/RegRead + ALU + MEM + RegWrite

    = 200 + 50 +100 + 200 + 50

    = 600 ps

  • Instruction time = 600 ps

  • ELEC 5200-001/6200-001 Lecture 13


    Multicycle performance

    Multicycle Performance

    • Consider SPECINT2000 instruction mix:

      • 25% lw5 cycles

      • 10% sw4 cycles

      • 11% branch3 cycles

      • 2% jump3 cycles

      • 52% ALU instr.4 cycles

  • Av. CPI= 0.25×5 + 0.10×4 + 0.11×3 + 0.02×3 + 0.52×4

    = 4.12

  • Clock cycle time determined from longest operation (memory access) = 200 ps

  • Average instruction time = 4.12×200 = 824 ps

  • ELEC 5200-001/6200-001 Lecture 13


    Pipeline performance

    Pipeline Performance

    • Neglect initial latency (ok for long programs).

    • One instruction completed every clock cycle unless delayed by hazard. Average CPI:

      • lw2 cycles 50% times due to hazard1.5 cycles

      • sw1 cycle

      • ALU1 cycle

      • branch2 cycles 25% times due to hazard 1.25 cycles

      • jump2 cycles

  • For SPECINT2000

    Av. CPI= 0.25×1.5 + 0.10×1 + 0.11×1.25 + 0.02×2.0 + 0.52×1

    = 1.17

  • Clock cycle time from longest operation (memory access) = 200 ps

  • Average instruction time = 1.17×200 = 234 ps

  • ELEC 5200-001/6200-001 Lecture 13


    Comparing alternatives

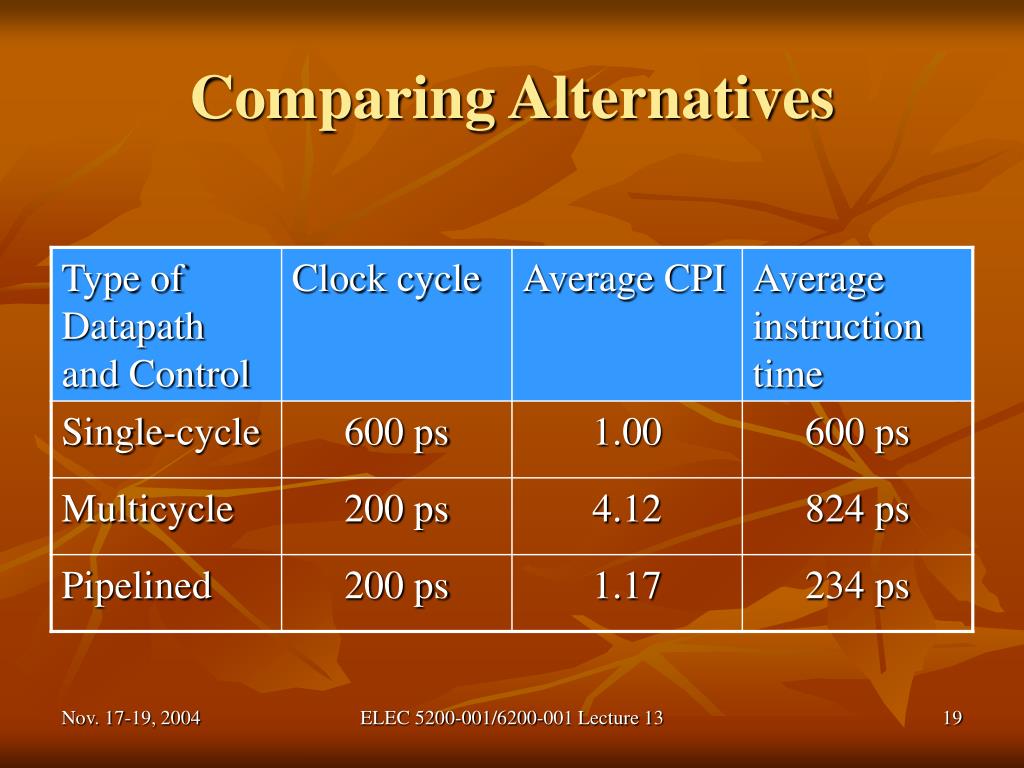

    Comparing Alternatives

    ELEC 5200-001/6200-001 Lecture 13


    Pipelined control chapter 6

    Next

    • Forwarding

    • Stall

    • Branch hazard and branch prediction

    • Instruction flush

    • Exceptions

    ELEC 5200-001/6200-001 Lecture 13


    Forwarding

    MEM:DM

    MEM:DM

    IF: IM

    IF: IM

    EX: ALU

    EX: ALU

    WB: REG.

    WRITE

    WB: REG.

    WRITE

    ID: REG. FILE

    READ

    ID: REG. FILE

    READ

    EX/MEM

    EX/MEM

    IF/ID

    IF/ID

    ID/EX

    ID/EX

    MEM/WB

    MEM/WB

    Forwarding

    • Consider a data hazard:

      sub$2, $1, $3# computes result in CC3, writes in $2 in CC5

      and$12, $2, $5# reads $2 in CC3, adds in CC4

    CC1 CC2 CC3 CC4 CC5 CC6 CC7 CC8

    CC3: sub saves new

    data in EX/MEM,

    to be written to $2

    in CC5

    sub $2, $1, $3

    and $12, $2, $5

    CC3: and reads $2

    to ID/EX, but the

    correct data is

    in EX/MEM

    CC4: forwarding allows

    execution of and with

    correct data

    ELEC 5200-001/6200-001 Lecture 13


    Understanding forwarding

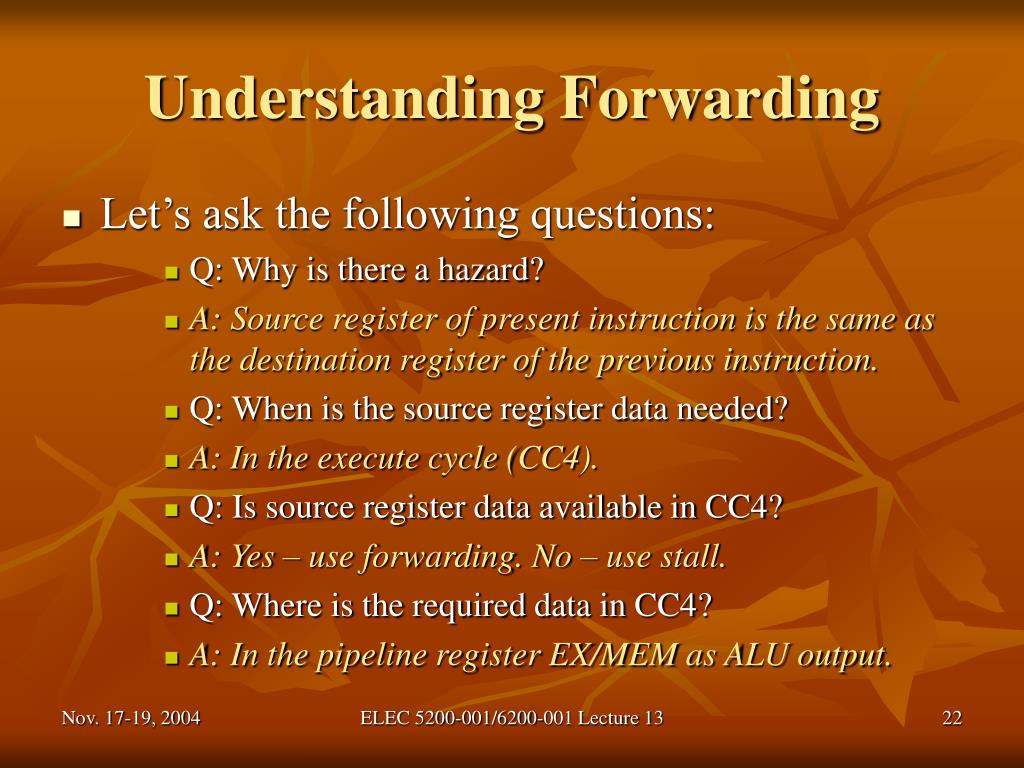

    Understanding Forwarding

    • Let’s ask the following questions:

      • Q: Why is there a hazard?

      • A:Source register of present instruction is the same as the destination register of the previous instruction.

      • Q: When is the source register data needed?

      • A: In the execute cycle (CC4).

      • Q: Issource register data available in CC4?

      • A: Yes – use forwarding. No – use stall.

      • Q: Where is the required data in CC4?

      • A: In the pipeline register EX/MEM as ALU output.

    ELEC 5200-001/6200-001 Lecture 13


    Forwarding hardware

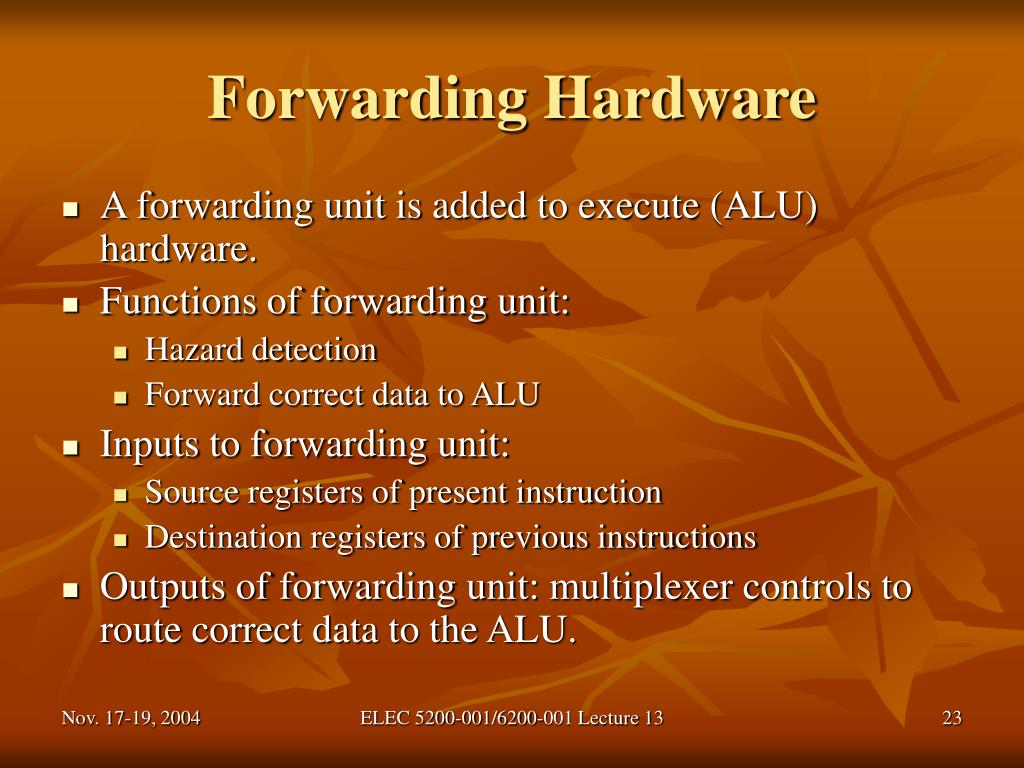

    Forwarding Hardware

    • A forwarding unit is added to execute (ALU) hardware.

    • Functions of forwarding unit:

      • Hazard detection

      • Forward correct data to ALU

    • Inputs to forwarding unit:

      • Source registers of present instruction

      • Destination registers of previous instructions

    • Outputs of forwarding unit: multiplexer controls to route correct data to the ALU.

    ELEC 5200-001/6200-001 Lecture 13


    Recall register definitions

    Recall Register Definitions

    • R-type instruction (add, sub, and, or, . . . )

      opcodeRsRtRdshamtfunct

    • I-type instruction (beq, lw, sw, addi, . . . )

      opcodeRsRtconstant_or_address

    • J-type instruction (j, jal, jr)

      opcodea___d___d___r___e___s___s

    • Where

      • Rs is the first source register

      • Rt is the second source register

      • Rd is the destination register

    ELEC 5200-001/6200-001 Lecture 13


    Pipelined control chapter 6

    Forwarding Implemented

    ID/EX

    EX/MEM

    MEM/WB

    IF/ID

    Branch

    addr.

    PC+4

    ALU

    opcode

    Shift

    left 2

    26-31

    Addr

    mem

    21-25

    zero

    MUX

    16-20

    Reg. File

    ALU

    Data

    mem.

    1 mux 0

    0 mux 1

    MUX

    Sign

    ext.

    16-20

    11-15

    1 mux 0

    Rd

    Rs

    21-25

    Forwarding

    unit

    16-20

    Rt

    Rd

    0-15

    ELEC 5200-001/6200-001 Lecture 13


    Stall

    DM

    DM

    IM

    IM

    ID, REG. FILE

    READ

    ID, REG. FILE

    READ

    ALU

    ALU

    REG. FILE

    WRITE

    REG. FILE

    WRITE

    MEM/WB

    MEM/WB

    IF/ID

    IF/ID

    ID/EX

    ID/EX

    EX/MEM

    EX/MEM

    Stall

    • Delay next instruction by sending noop through pipeline.

    • Necessary when hazard not resolved by forwarding.

    CC1 CC2 CC3 CC4 CC5 CC6

    CC4: new data

    in MEM/WB, to

    be written to $2

    lw $2, 20($1)

    and $4, $2, $5

    CC4: execution of and

    is impossible; correct data

    unavailable until end of CC4

    ELEC 5200-001/6200-001 Lecture 13


    Detecting hazard requiring stall

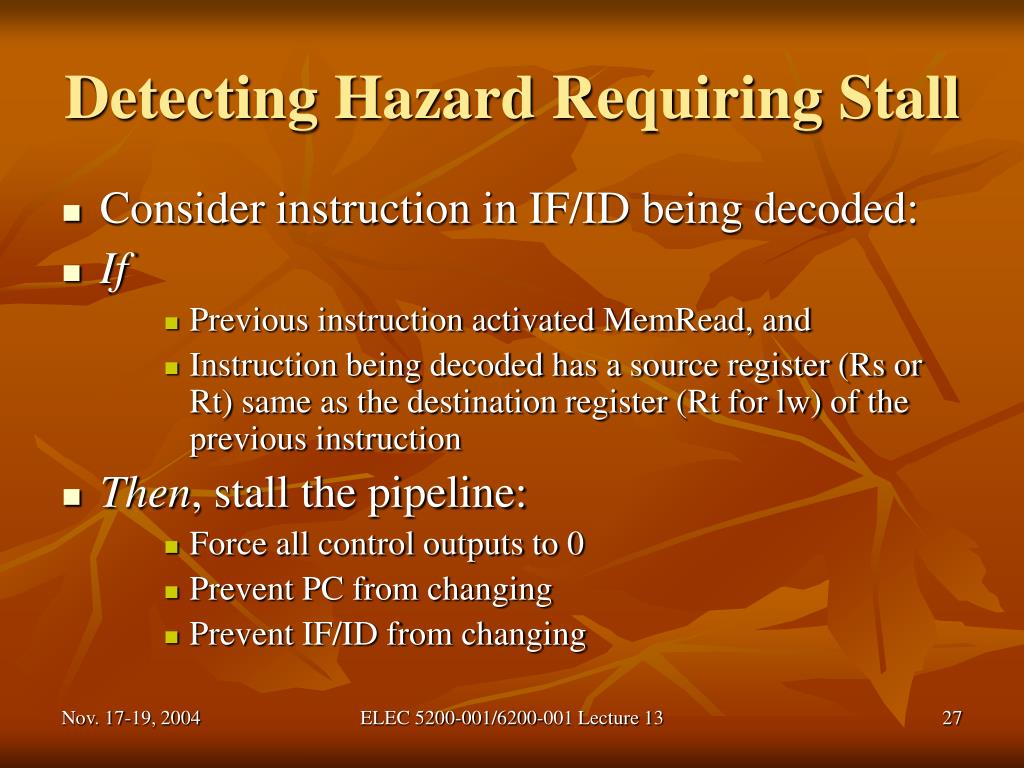

    Detecting Hazard Requiring Stall

    • Consider instruction in IF/ID being decoded:

    • If

      • Previous instruction activated MemRead, and

      • Instruction being decoded has a source register (Rs or Rt) same as the destination register (Rt for lw) of the previous instruction

  • Then, stall the pipeline:

    • Force all control outputs to 0

    • Prevent PC from changing

    • Prevent IF/ID from changing

  • ELEC 5200-001/6200-001 Lecture 13


    Pipelined control chapter 6

    Stall Implementation

    Rt

    MemRead

    Hazard

    detection

    unit

    PCWrite

    IF/IDWrite

    Rs

    ID/EX

    EX/MEM

    MEM/WB

    opcode

    IF/ID

    Control

    26-31

    MUX

    0

    Shift

    left 2

    21-25

    zero

    MUX

    PC

    Addr mem

    Reg. File

    16-20

    ALU

    1 mux 0

    Data

    mem.

    0 mux 1

    MUX

    Sign

    ext.

    16-20

    11-15

    1 mux 0

    Rd

    Rs

    21-25

    Forwarding

    unit

    16-20

    Rt

    Rd

    0-15

    ELEC 5200-001/6200-001 Lecture 13


    Stall1

    MEM:DM

    EX: ALU

    WB: REG.

    WRITE

    ID: REG. FILE

    READ

    EX/MEM

    IF/ID

    ID/EX

    MEM/WB

    MEM:DM

    MEM:DM

    MEM:DM

    IF: IM

    IF: IM

    IF: IM

    EX: ALU

    EX: ALU

    EX: ALU

    WB: REG.

    WRITE

    WB: REG.

    WRITE

    WB: REG.

    WRITE

    ID: REG. FILE

    READ

    ID: REG. FILE

    READ

    ID: REG. FILE

    READ

    EX/MEM

    EX/MEM

    EX/MEM

    IF/ID

    IF/ID

    IF/ID

    ID/EX

    ID/EX

    ID/EX

    MEM/WB

    MEM/WB

    MEM/WB

    Stall

    • Execution with stall and forwarding:

    CC1 CC2 CC3 CC4 CC5 CC6 CC7

    CC4: new data

    in MEM/WB, to

    be written to $2

    lw $2, 20($1)

    bubble

    (nop)

    and $4, $2, $5

    State of IF/ID

    is frozen in CC3

    next is fetched

    twice since PC

    was frozen

    IF: IM

    IF/ID

    next

    ELEC 5200-001/6200-001 Lecture 13


    Branch hazard

    Branch Hazard

    • Consider heuristic – branch not taken.

    • Continue fetching instructions in sequence following the branch instructions.

    • If branch is taken (indicated by zero output of ALU):

      • Control generates branch signal in ID cycle.

      • branch activates PCSource signal in the MEM cycle to change PC with the branch address.

      • Three instructions in the pipeline must be flushed.

    ELEC 5200-001/6200-001 Lecture 13


    Pipelined control chapter 6

    Branch Hazard

    IF/ID

    ID/EX

    EX/MEM

    MEM/WB

    4

    1 mux 0

    Add

    ALU

    opcode

    Shift

    left 2

    CONTROL

    26-31

    RegWrite

    PCSrc

    Branch

    MemWrite

    MemRead

    MemtoReg

    beq

    ALUSrc

    zero

    Instr

    mem

    21-25

    PC

    ALU

    16-20

    Data

    mem.

    Reg. File

    1 mux 0

    0 mux 1

    ALU

    cont.

    Sign

    ext.

    ALUOp

    0-5

    16-20 for I-type lw

    11-15 for R-type

    1 mux 0

    RegDst

    0-15

    ELEC 5200-001/6200-001 Lecture 13


    Pipeline flush

    Pipeline Flush

    • If branch is taken (as indicated by zero), then control does the following:

      • Change all control signals to 0, similar to the case of stall for data hazard, i.e., insert bubble in the pipeline.

      • Generate a signal IF.Flush that changes the instruction in the pipeline register IF/ID to 0 (nop).

    • Penalty of branch hazard is reduced by

      • Adding branch detection and address generation hardware in the decode cycle.

      • Using complex (static or dynamic) branch prediction.

    ELEC 5200-001/6200-001 Lecture 13


    Branch prediction

    Branch Prediction

    • Useful for program loops.

    • Uses a two-bit state machine

    Not taken

    Predict

    branch

    taken

    00

    Predict

    branch

    taken

    01

    taken

    taken

    Not taken

    taken

    Not taken

    Predict

    branch

    not taken

    10

    Predict

    branch

    not taken

    11

    Not taken

    taken

    ELEC 5200-001/6200-001 Lecture 13


    Exceptions

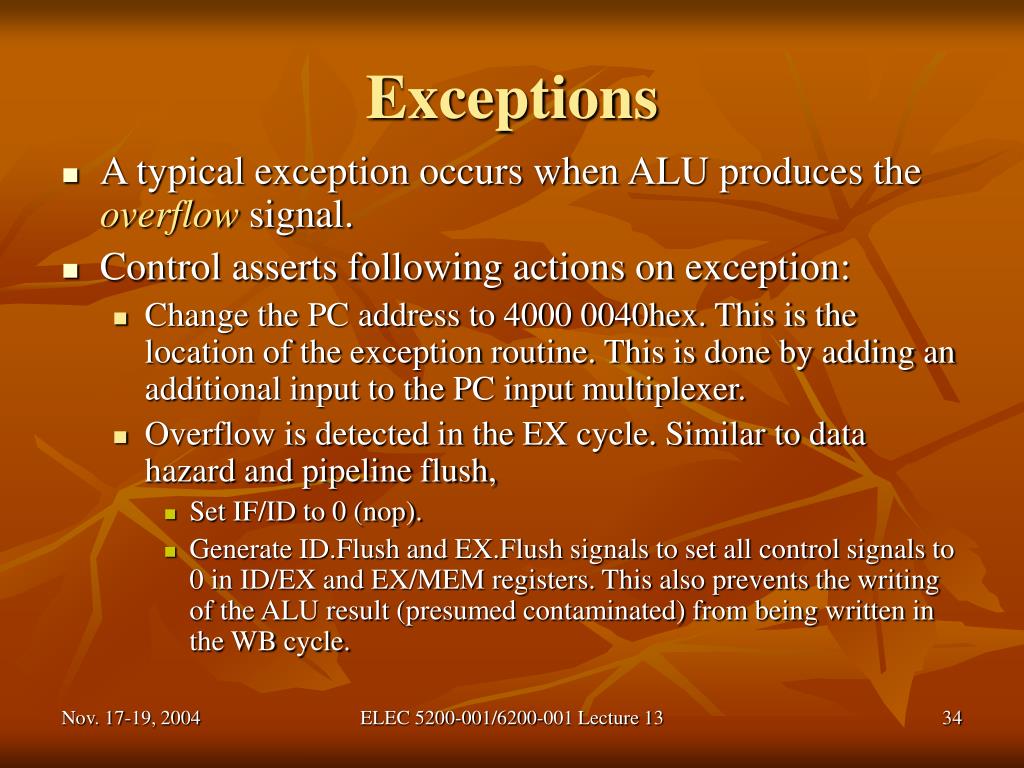

    Exceptions

    • A typical exception occurs when ALU produces the overflow signal.

    • Control asserts following actions on exception:

      • Change the PC address to 4000 0040hex. This is the location of the exception routine. This is done by adding an additional input to the PC input multiplexer.

      • Overflow is detected in the EX cycle. Similar to data hazard and pipeline flush,

        • Set IF/ID to 0 (nop).

        • Generate ID.Flush and EX.Flush signals to set all control signals to 0 in ID/EX and EX/MEM registers. This also prevents the writing of the ALU result (presumed contaminated) from being written in the WB cycle.

    ELEC 5200-001/6200-001 Lecture 13


  • Login
