Chapter 6 event control blocks

Chapter 6Event Control Blocks

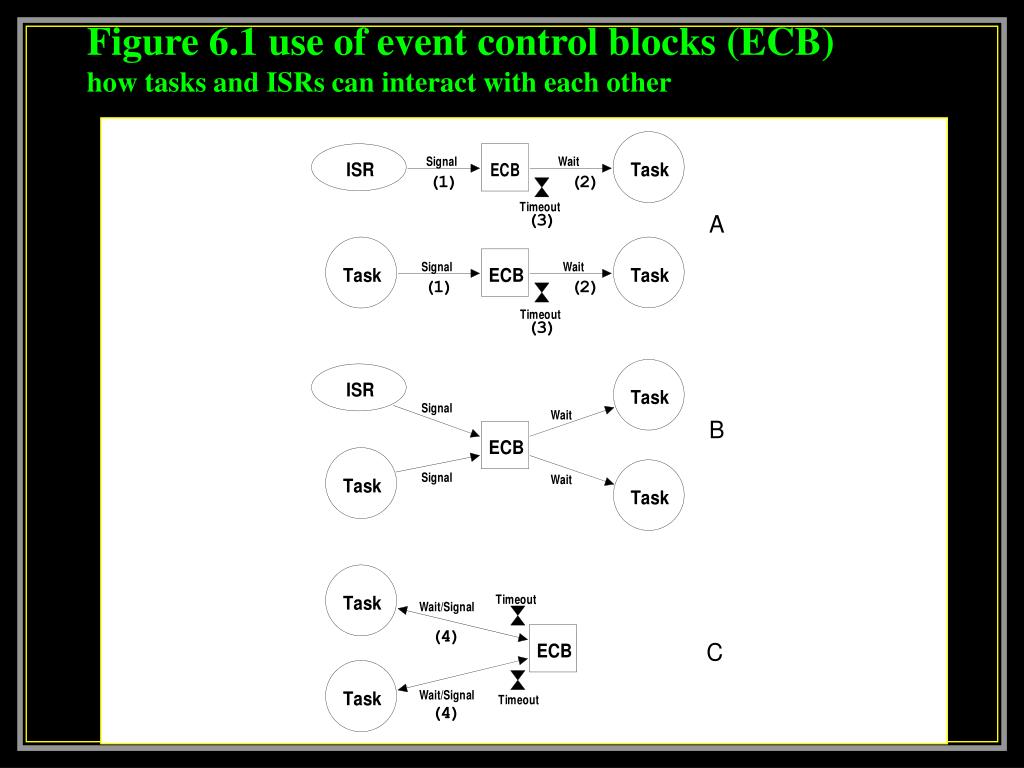

Figure 6 1 use of event control blocks ecb how tasks and isrs can interact with each other

Figure 6.1 use of event control blocks (ECB)how tasks and ISRs can interact with each other


Event control blocks

Event Control Blocks

typedef struct {

INT8U OSEventType; /* Event type */

INT8U OSEventGrp; /* Group for wait list */

INT16U OSEventCnt; /* Count (when event is a semaphore) */

void *OSEventPtr; /* Ptr to message or queue structure */

INT8U OSEventTbl[OS_EVENT_TBL_SIZE]; /* Wait list for event to occur */

} OS_EVENT;

  • Each semaphore, mailbox, and queue is assigned an ECB

  • OSEventType: contains the type associated with the ECB

    • OS_EVENT_SEM, OS_EVENT_TYPE_MUTEX, OS_EVENT_TYPE_MBOX, OS_EVENT_TYPE_Q

  • OSEventPtr: only used when the ECB is assigned to a mailbox or a queue

  • OSEventTbl[] and OSEventGrp

    • similar to OSRdyTbl[ and OSRdyGrp

    • Contain a list of tasks waiting on the event instead of a list of tasks ready to run

  • OSEventCnt: used to hold the semaphore count


Event control block ecb

Event Control Block (ECB)

  • Each task that needs to wait for the event to occur is placed in the wait list

    • Consist of the two variables: OSEventGrp and OSEventTbl[ ]

OS_EVENT

pevent

OSEvnetType

OSEvnetCnt

OSEvnetPtr

OSEvnetGrp

7

6

5

4

3

2

1

0

OSEventTbl[ ]

63

62

61

60

59

58

57

56


Figure 6 3 wait list for task waiting for an event to occur

Figure 6.3 Wait list for task waiting for an event to occur


Chapter 6 event control blocks

pevent->OSEventGrp |= OSMapTbl[prio >> 3];

pevent->OSEventTbl[prio >> 3] |= OSMapTbl[prio & 0x07];

Making a task wait for an event

Removing a task from a wait list

if ((pevent->OSEventTbl[prio >> 3] &= ~OSMapTbl[prio & 0x07]) == 0) {

pevent->OSEventGrp &= ~OSMapTbl[prio >> 3];

}

Finding the highest priority task waiting for the event

y = OSUnMapTbl[pevent->OSEventGrp];

x = OSUnMapTbl[pevent->OSEventTbl[y]];

prio = (y << 3) + x;


Chapter 6 event control blocks

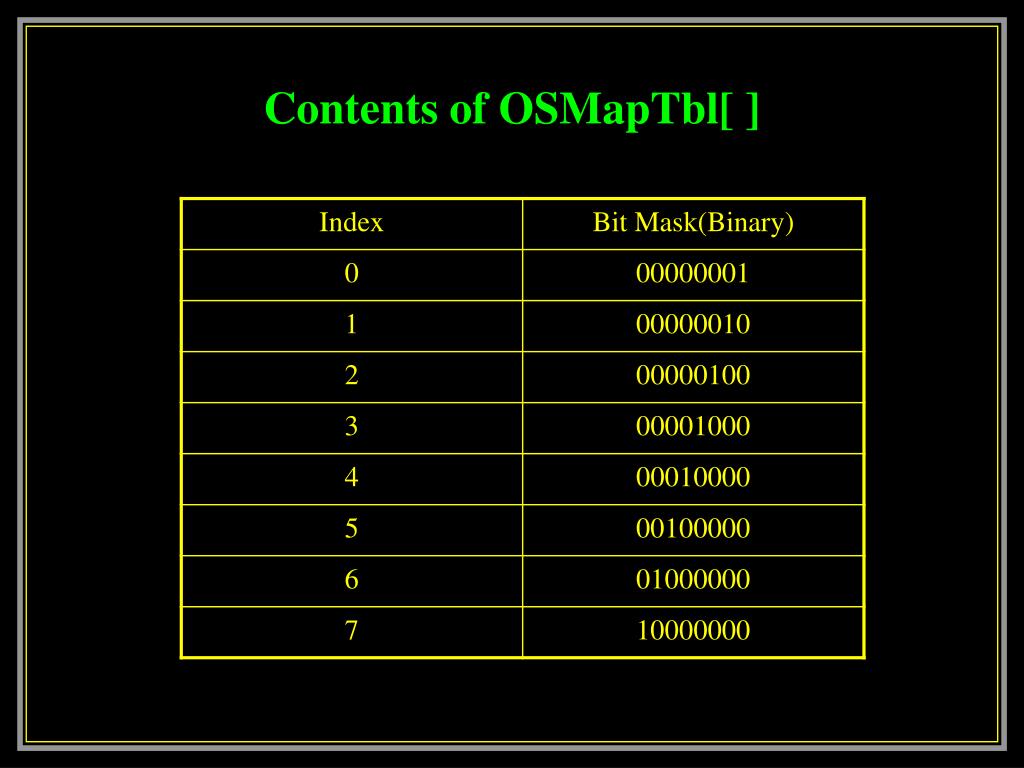

Contents of OSMapTbl[ ]


Osunmaptbl

OSUnMapTbl[ ]

INT8U const OSUnMapTbl[] = {

0, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

6, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

7, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

6, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0,

4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0

};


Example of ecb wait list

Example of ECB wait list

  • OSEventGrp = 11001000 => OSUnMapTbl[OSEventGrp] = 3

  • OSEventTbl[3] = 00010000  OSUnMapTbl[OSEventTbl[3] ] = 4

  • The priority of the task waiting is 3*8+4 = 28


Figure 6 3 list of free ecbs

OS_EVENT

pevent

OSEvnetType

OSEvnetCnt

OSEvnetPtr

OSEvnetGrp

7

6

5

4

3

2

1

0

63

62

61

60

59

58

57

56

Figure 6.3 List of free ECBs

  • The number of ECBs to allocate depends on the number of semaphores, mailboxes, and queues needed for your application

  • When OSInit() is called, all ECBs are linked in a singly linked list

    • The list of free ECBs


Chapter 6 event control blocks

  • Four common operations can be performed on ECBs

    • Initialize an ECB

    • Make a task ready

    • Make a task wait for an event

    • Make a task ready because a timeout occurred while waiting for an event

  • Four functions have been created to performs these operations

    • OSEventWaitListInit(): called when a semaphore, mutex, message mailbos, or message queue is created

    • OSEventTaskRdy()

    • OSEventWait()

    • OSEventTO()


Initializing an ecb oseventwaitlistinit

Initializing an ECBOSEventWaitListInit()

  • Is called by OSSemCreate(), OSMutexCreate() OSMboxCreate (), OSQCreate ()

    • No task is waiting on the ECB

new version

void OSEventWaitListInit (OS_EVENT *pevent)

{

INT8U *ptbl;

pevent->OSEventGrp = 0x00;

ptlb = & pevent->OSEventTbl[0];

#if OS_EVENT_TBL_SIZE > 0

*ptbl++ = 0x00;

#endif

#if OS_EVENT_TBL_SIZE > 1

*ptbl++ = 0x00;

#endif

.

.

.

}

Old version

void OSEventWaitListInit (OS_EVENT *pevent)

{

INT8U i;

pevent->OSEventGrp = 0x00;

for (i = 0; i < OS_EVENT_TBL_SIZE; i++) {

pevent->OSEventTbl[i] = 0x00;

}

}

The code is implemented inline to avoid

the overhead of a for loop


Making a task ready oseventtaskrdy

Making a task readyOSEventTaskRdy()

  • This function is called by

    • OSSemPost(), OSMutexPost(), OSMbosPost(), OSQPost(), and OSQPostFront()

  • Removes the highest priority task (HPT) from the wait list of the ECB and makes this task ready to run

void OSEventTaskRdy (OS_EVENT *pevent, void *msg, INT8U msk)

{

OS_TCB *ptcb;

INT8U x;

INT8U y;

INT8U bitx;

INT8U bity;

INT8U prio;


Oseventtaskrdy cont d

y = OSUnMapTbl[pevent->OSEventGrp]; (1)

bity = OSMapTbl[y]; (2)

x = OSUnMapTbl[pevent->OSEventTbl[y]]; (3)

bitx = OSMapTbl[x]; (4)

prio = (INT8U)((y << 3) + x); (5)

if ((pevent->OSEventTbl[y] &= ~bitx) == 0) { (6)

pevent->OSEventGrp &= ~bity;

}

ptcb = OSTCBPrioTbl[prio]; (7)

ptcb->OSTCBDly = 0; (8)

ptcb->OSTCBEventPtr = (OS_EVENT *)0; (9)

#if (OS_Q_EN && (OS_MAX_QS >= 2)) || OS_MBOX_EN

ptcb->OSTCBMsg = msg; (10)

#else

msg = msg; //avoid a warning message in compiler

#endif

ptcb->OSTCBStat &= ~msk; //OS_STAT_SEM, OS_STAT_MUTEX, OS_STAT_MBOX, OS_STAT_Q (11)

if (ptcb->OSTCBStat == OS_STAT_RDY) { (12)

OSRdyGrp |= bity; (13)

OSRdyTbl[y] |= bitx;

}

}

OSEventTaskRdy (cont’d)


Figure 6 4 making a task ready to run

Figure 6.4 Making a task ready to run


Making a task wait for an event oseventtaskwait

Making a task wait for an eventOSEventTaskWait()

  • Called by OSSemPend(), OSMutexPend(), OSMboxPend, and OSQPend() when a task must wait on an ECB

  • OSEventTaskWait() removes the current task from the ready list and places it in the wait list of the ECB

void OSEventTaskWait (OS_EVENT *pevent)

{

OSTCBCur->OSTCBEventPtr = pevent; (1)

if ((OSRdyTbl[OSTCBCur->OSTCBY] &= ~OSTCBCur->OSTCBBitX) == 0) { (2)

OSRdyGrp &= ~OSTCBCur->OSTCBBitY;

}

pevent->OSEventTbl[OSTCBCur->OSTCBY] |= OSTCBCur->OSTCBBitX; (3)

pevent->OSEventGrp |= OSTCBCur->OSTCBBitY;

}


Making a task ready because of a timeout oseventto

Making a task ready because of a timeoutOSEventTO()

  • Called by OSSemPend(), OSMboxPend(), OSQPend() when a task has been made ready to run by OSTimeTick()

  • OSEventTO() must remove the task from the wait list of the ECB and mark the task as being ready

void OSEventTO (OS_EVENT *pevent)

{

if ((pevent->OSEventTbl[OSTCBCur->OSTCBY] &= ~OSTCBCur->OSTCBBitX) == 0) { (1)

pevent->OSEventGrp &= ~OSTCBCur->OSTCBBitY;

}

OSTCBCur->OSTCBStat = OS_STAT_RDY; (2)

OSTCBCur->OSTCBEventPtr = (OS_EVENT *)0; (3)

}
