  1. HCI and Software Engineering Lynne Hall

  2. History (still ongoing…)HCI and Structured Methods • HCI input mainly in • Requirements analysis stage • Testing • Rollout • Some methodologies (SSADM 4.0) have specific HCI steps in various stages • Possible to incorporate HCI but often as add-ins to the methodology

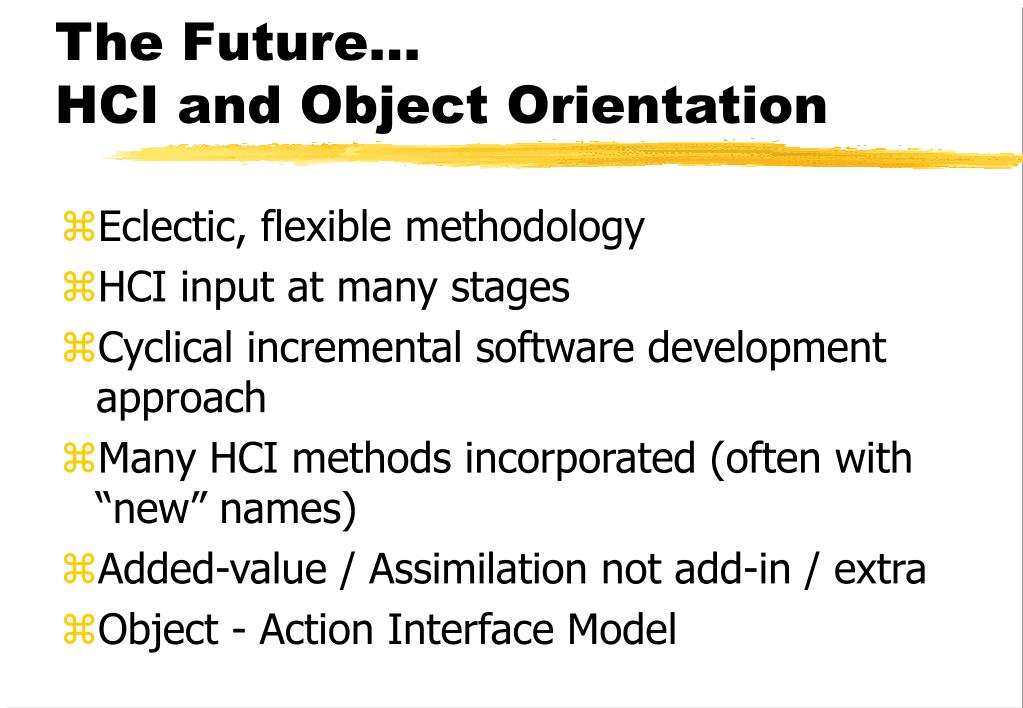

  3. The Future…HCI and Object Orientation • Eclectic, flexible methodology • HCI input at many stages • Cyclical incremental software development approach • Many HCI methods incorporated (often with “new” names) • Added-value / Assimilation not add-in / extra • Object - Action Interface Model

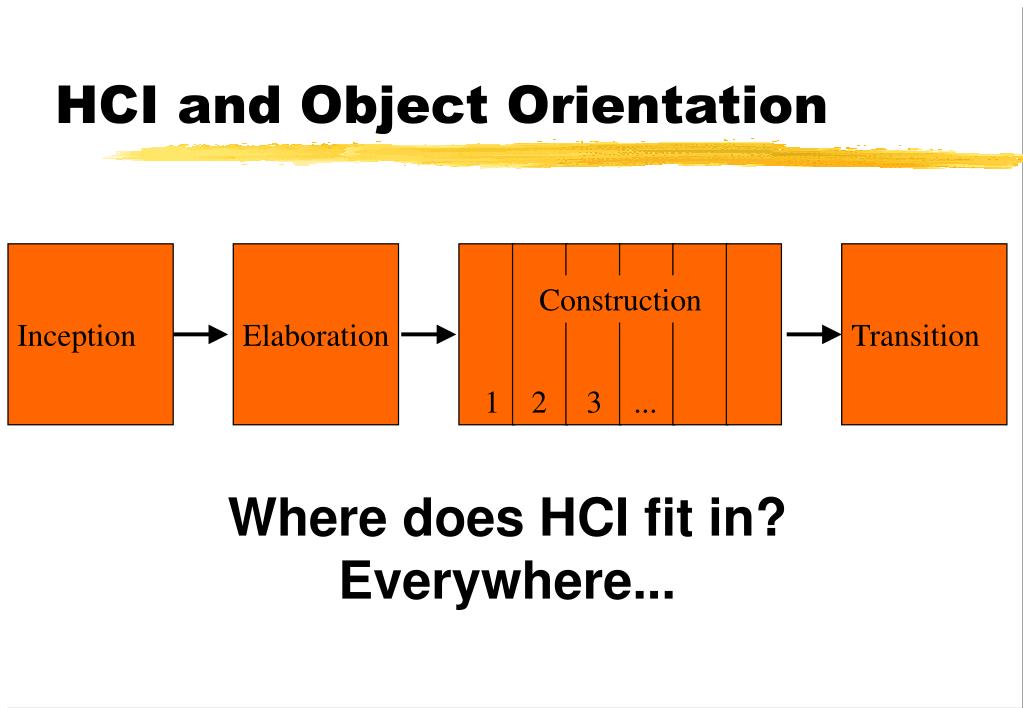

  4. Construction Inception Elaboration Transition 1 2 3 ... HCI and Object Orientation Where does HCI fit in? Everywhere...

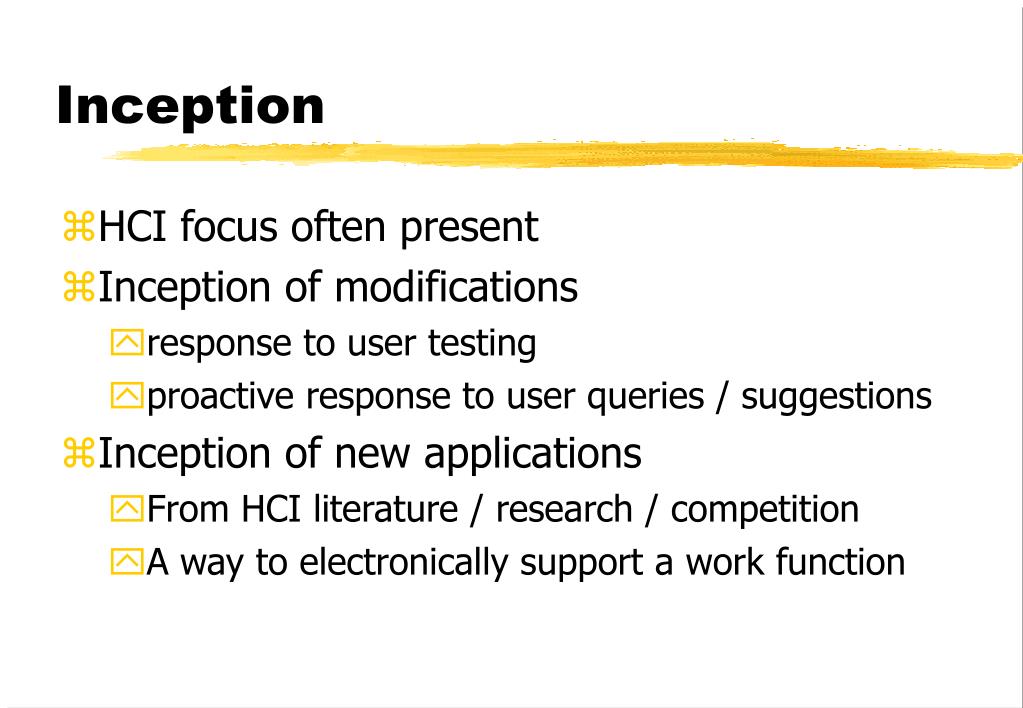

  5. Inception • HCI focus often present • Inception of modifications • response to user testing • proactive response to user queries / suggestions • Inception of new applications • From HCI literature / research / competition • A way to electronically support a work function

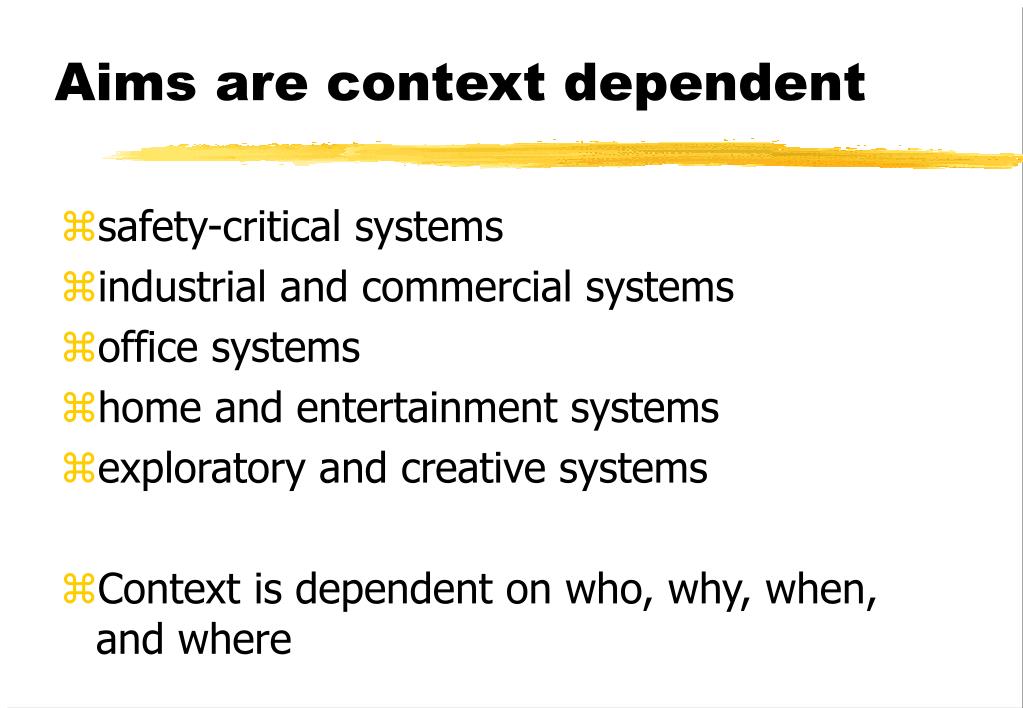

  6. Aims are context dependent • safety-critical systems • industrial and commercial systems • office systems • home and entertainment systems • exploratory and creative systems • Context is dependent on who, why, when, and where

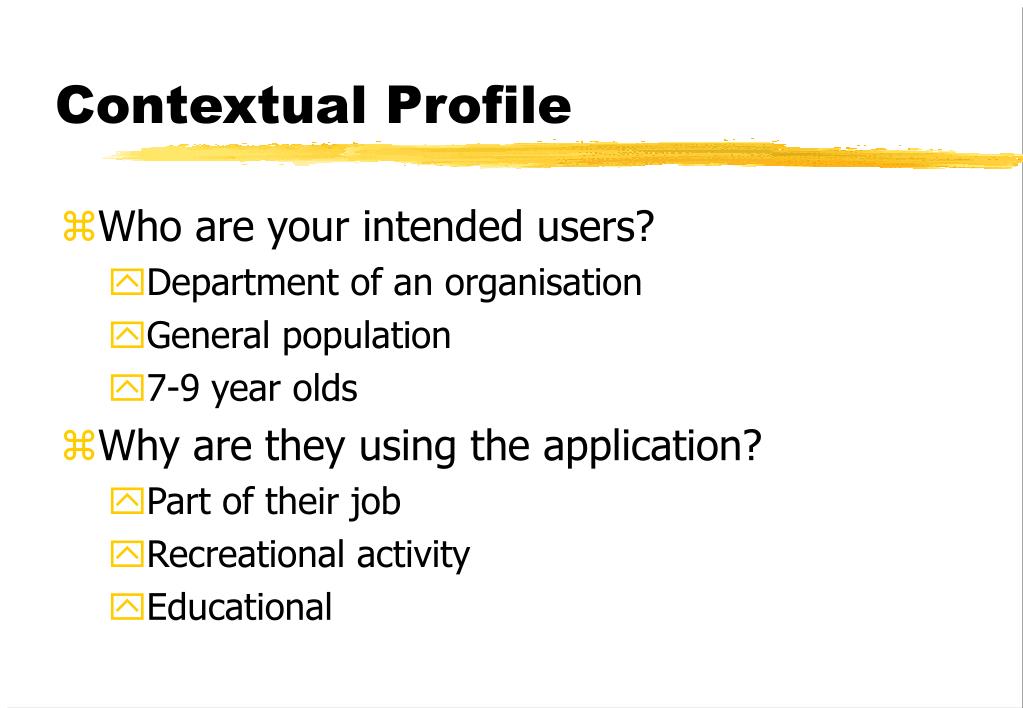

  7. Contextual Profile • Who are your intended users? • Department of an organisation • General population • 7-9 year olds • Why are they using the application? • Part of their job • Recreational activity • Educational

  8. Contextual Profile 2 • Where are they using the application • work-based • home-based • web-based • When does the user use the application • Part of a specific weekly performed task • Whenever they want • In set time periods

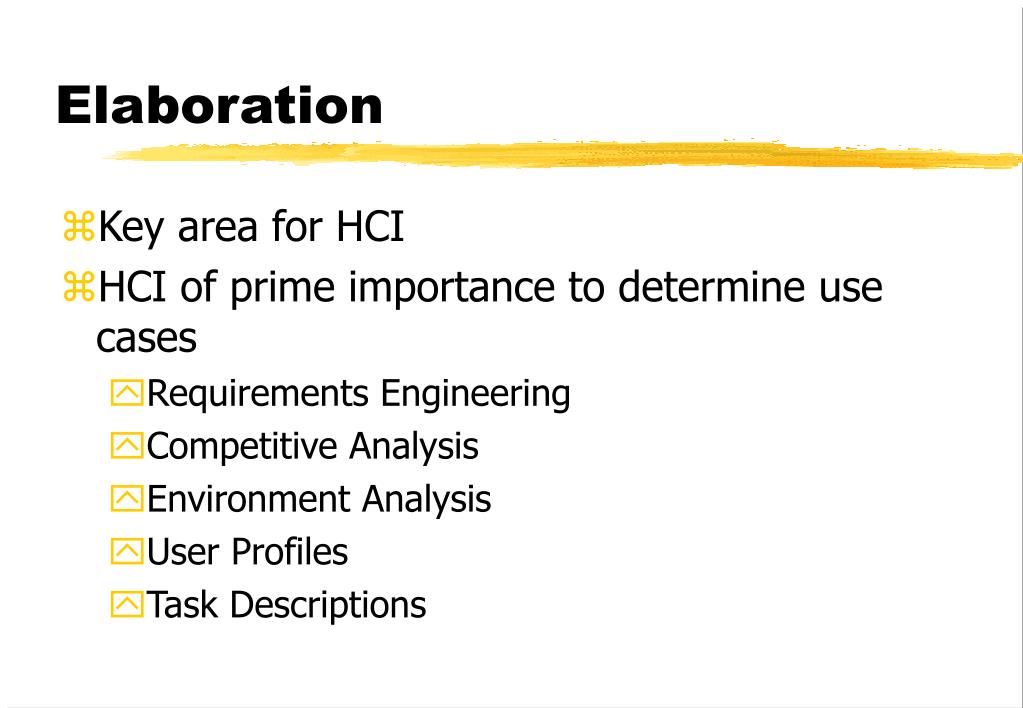

  9. Elaboration • Key area for HCI • HCI of prime importance to determine use cases • Requirements Engineering • Competitive Analysis • Environment Analysis • User Profiles • Task Descriptions

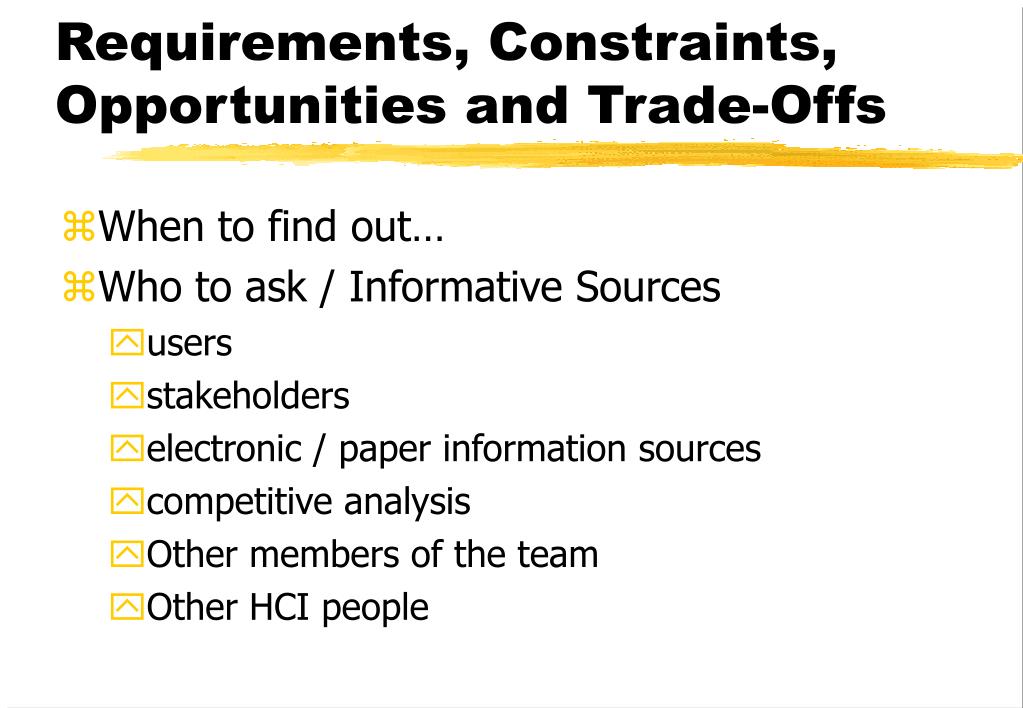

  10. Requirements, Constraints, Opportunities and Trade-Offs • When to find out… • Who to ask / Informative Sources • users • stakeholders • electronic / paper information sources • competitive analysis • Other members of the team • Other HCI people

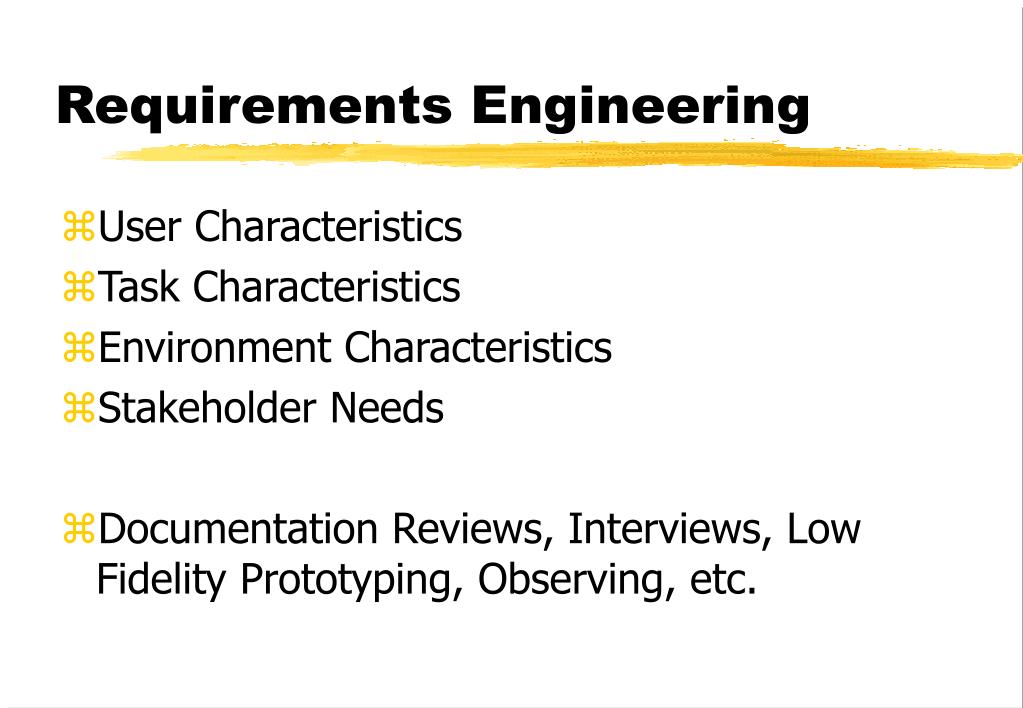

  11. Requirements Engineering • User Characteristics • Task Characteristics • Environment Characteristics • Stakeholder Needs • Documentation Reviews, Interviews, Low Fidelity Prototyping, Observing, etc.

  12. Construction • Series of iterations • Each iteration is based on a use case and involves: • analysis • design • coding • testing • integration

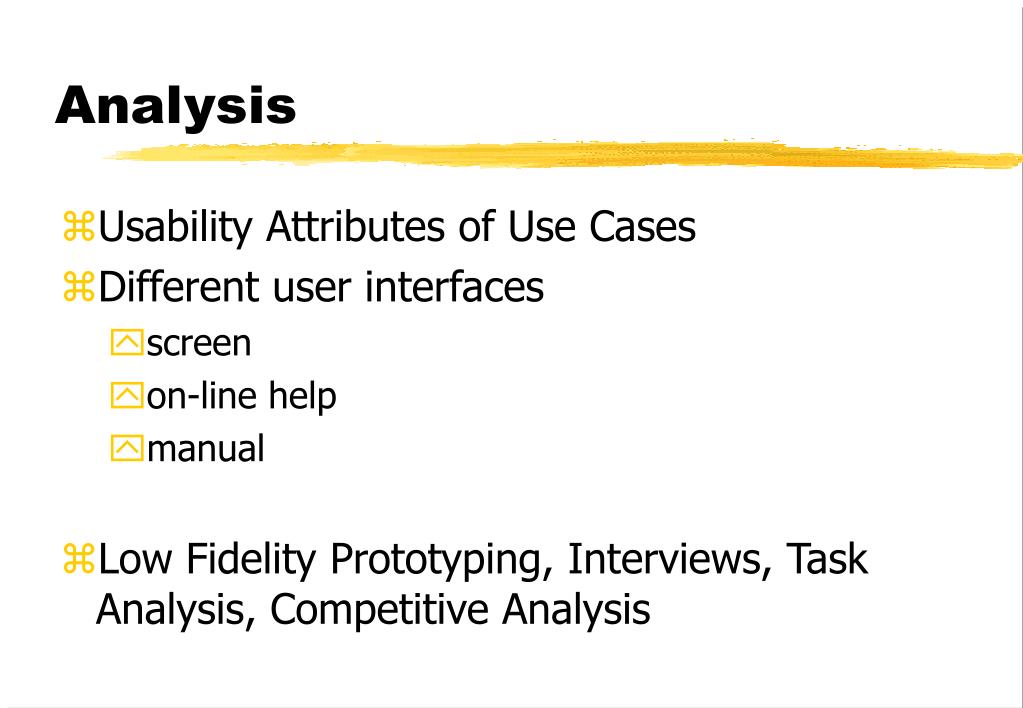

  13. Analysis • Usability Attributes of Use Cases • Different user interfaces • screen • on-line help • manual • Low Fidelity Prototyping, Interviews, Task Analysis, Competitive Analysis

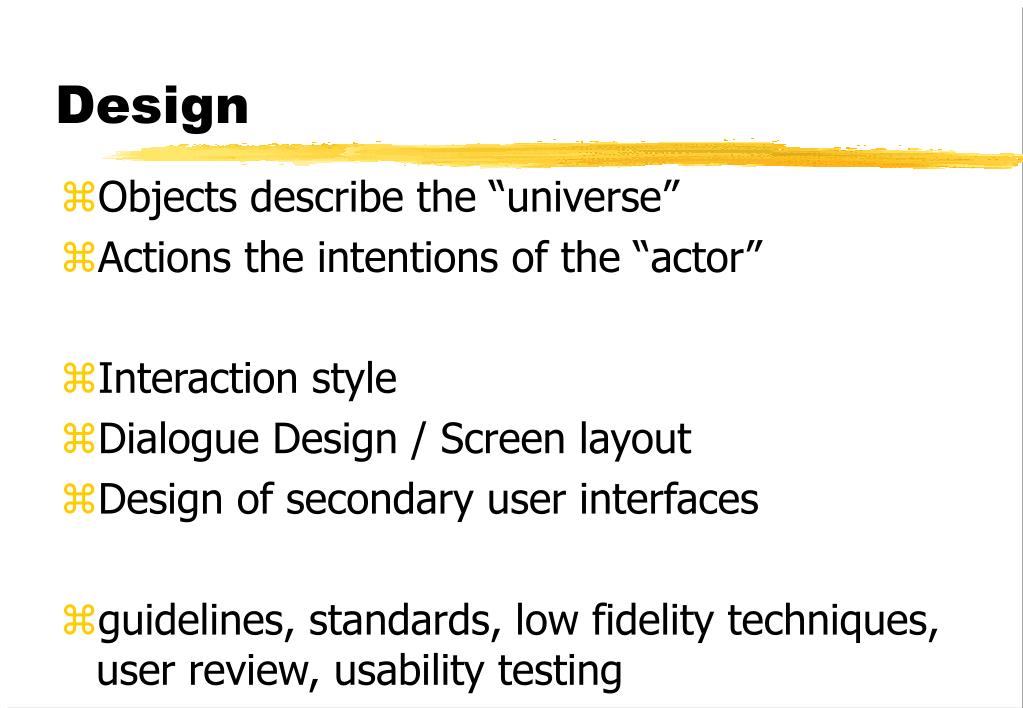

  14. Design • Objects describe the “universe” • Actions the intentions of the “actor” • Interaction style • Dialogue Design / Screen layout • Design of secondary user interfaces • guidelines, standards, low fidelity techniques, user review, usability testing

  15. Coding • High Fidelity Prototyping • Programming • Development of interface objects (graphical) • High Fidelity Prototyping tools, programming languages, graphical development environments, scanned-in artwork etc.

  16. Testing • Testing is vital. • No interface design / code should be built unless you know how to test it • Until the testing is complete, the software is still prototypical • usability test plan, heuristic evaluation, guidelines, usability metrics

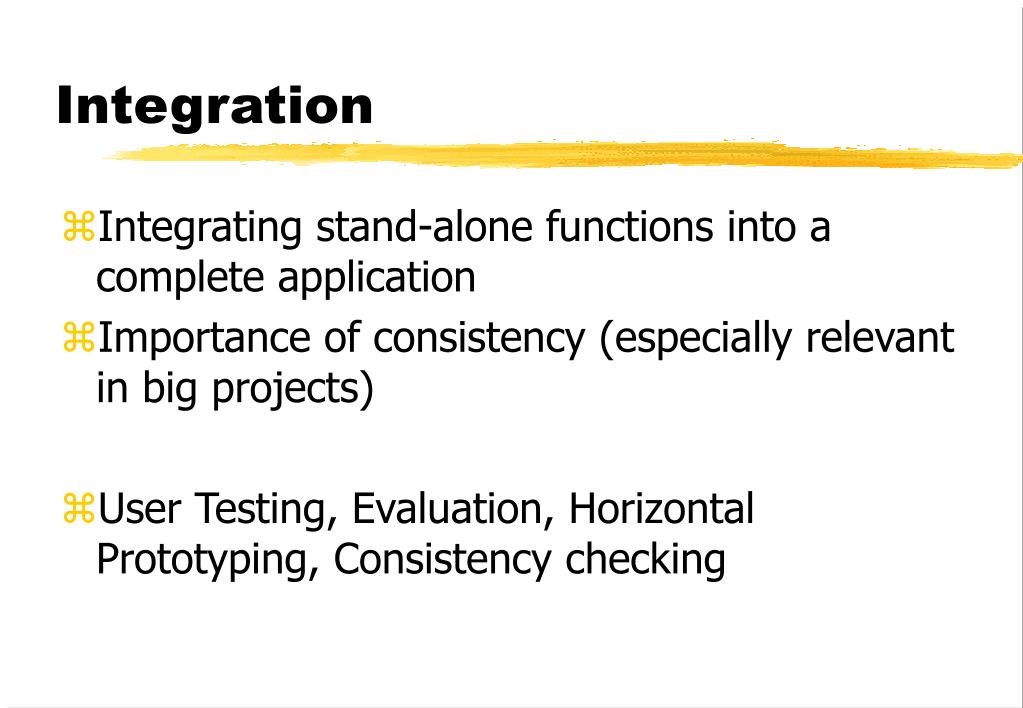

  17. Integration • Integrating stand-alone functions into a complete application • Importance of consistency (especially relevant in big projects) • User Testing, Evaluation, Horizontal Prototyping, Consistency checking

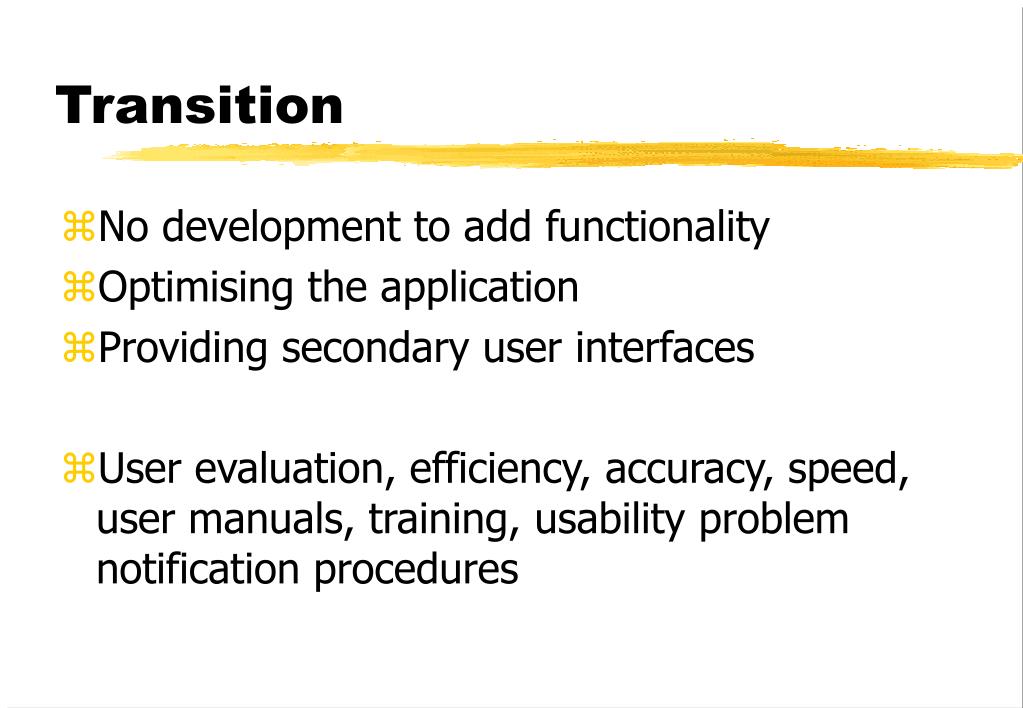

  18. Transition • No development to add functionality • Optimising the application • Providing secondary user interfaces • User evaluation, efficiency, accuracy, speed, user manuals, training, usability problem notification procedures
