  1. A View from the Engine Room: Computational Support for Symbolic Model Checking Randal E. Bryant Carnegie Mellon University http://www.cs.cmu.edu/~bryant

  2. Outline • Boolean Reasoning as Engine for Model Checking • BDDs & SAT • An Evaluation of SAT • Current capabilities & limitations • Making further progress • Beyond SAT • Enhancing DPLL to do more than find single solution

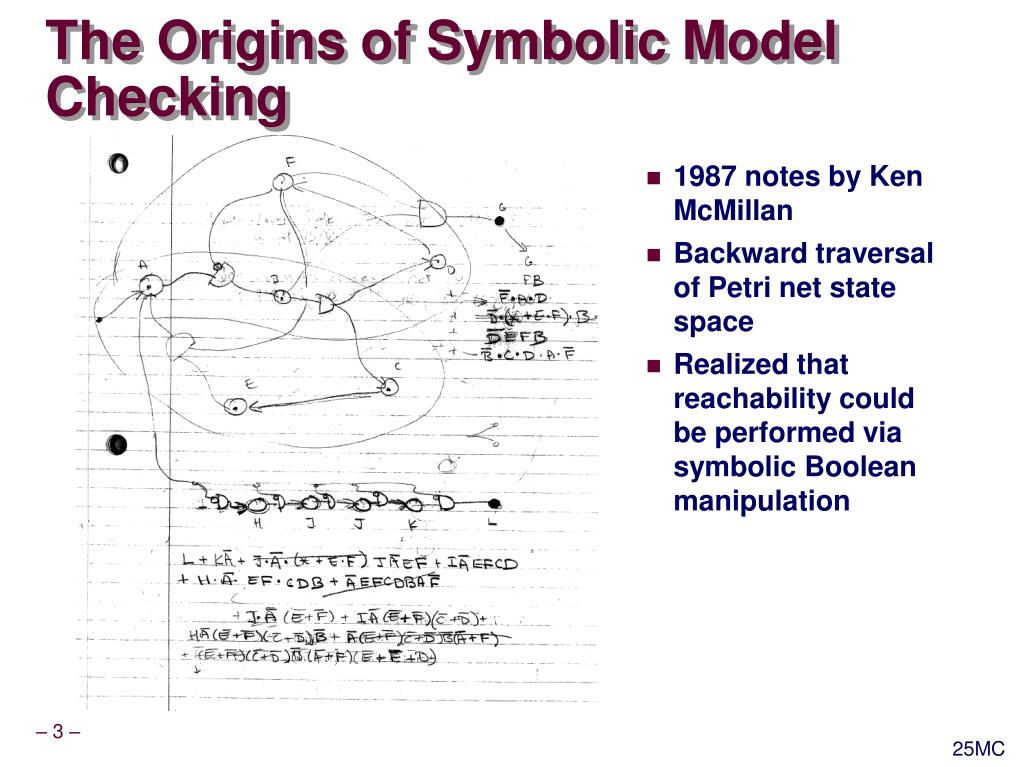

  3. The Origins of Symbolic Model Checking • 1987 notes by Ken McMillan • Backward traversal of Petri net state space • Realized that reachability could be performed via symbolic Boolean manipulation

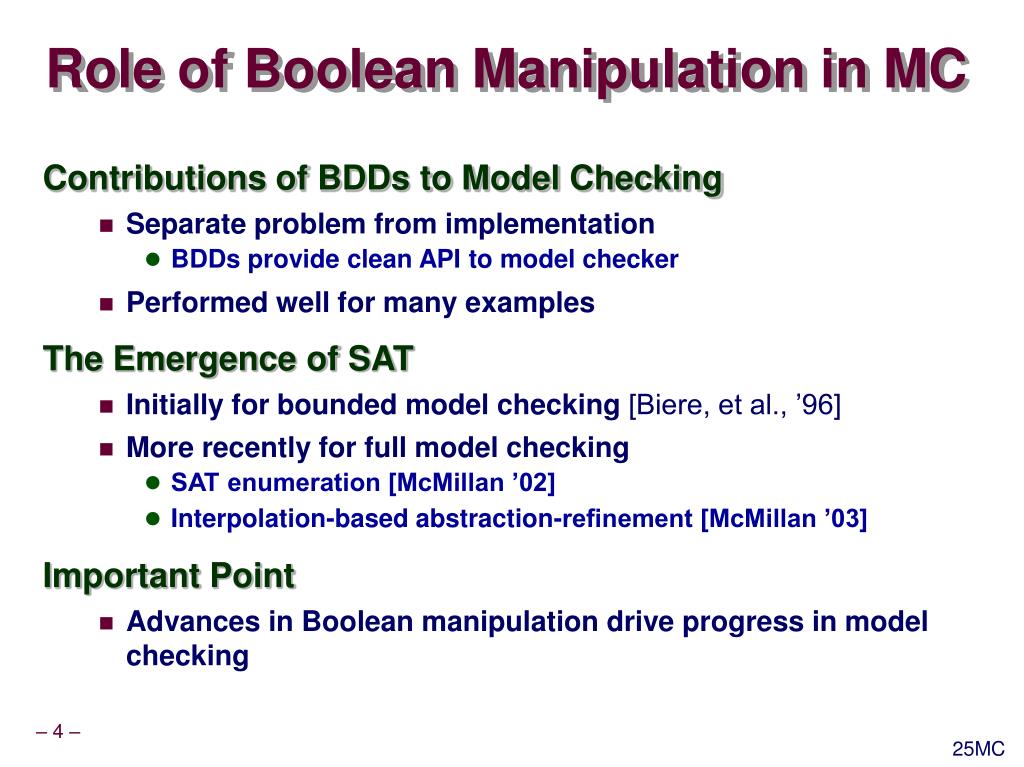

  4. Role of Boolean Manipulation in MC • Contributions of BDDs to Model Checking • Separate problem from implementation • BDDs provide clean API to model checker • Performed well for many examples • The Emergence of SAT • Initially for bounded model checking [Biere, et al., ’96] • More recently for full model checking • SAT enumeration [McMillan ’02] • Interpolation-based abstraction-refinement [McMillan ’03] • Important Point • Advances in Boolean manipulation drive progress in model checking

  5. Recent Progress in SAT Solving

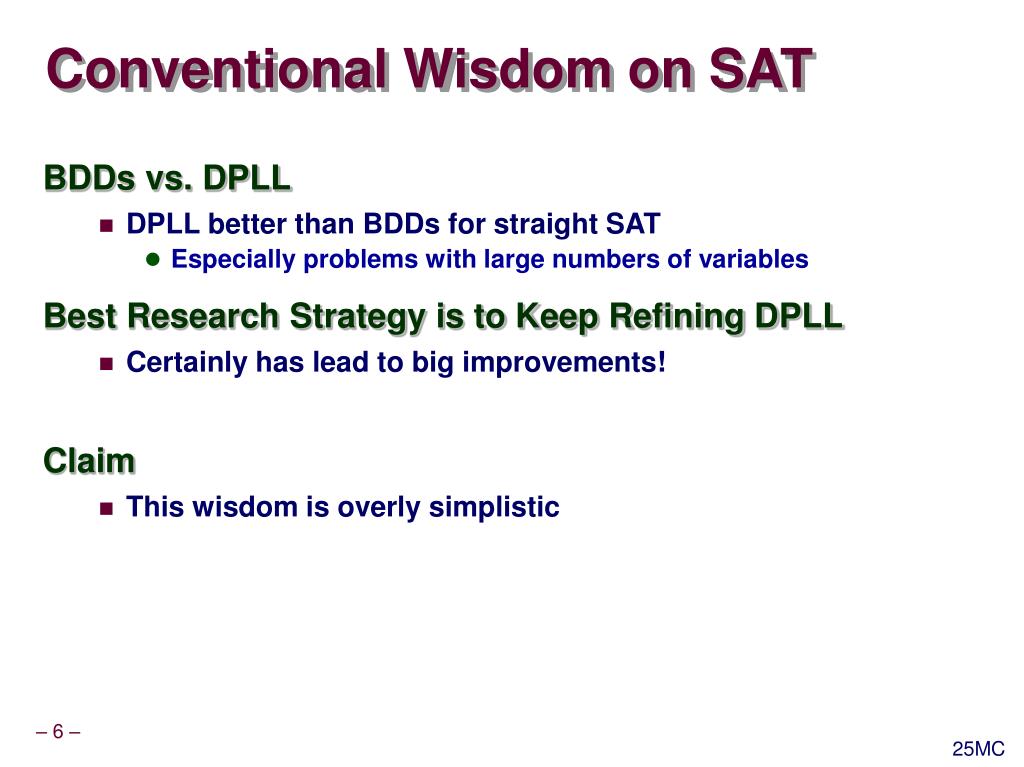

  6. Conventional Wisdom on SAT • BDDs vs. DPLL • DPLL better than BDDs for straight SAT • Especially problems with large numbers of variables • Best Research Strategy is to Keep Refining DPLL • Certainly has lead to big improvements! • Claim • This wisdom is overly simplistic

  7. Comparing Parity Trees • Compare linear chain of XORs to randomly trees • Known hard problem for resolution-based SAT solvers • 16 n-input trees for different values of n

  8. Parity: Exhaustive Testing • Testing  109 cases is no big deal

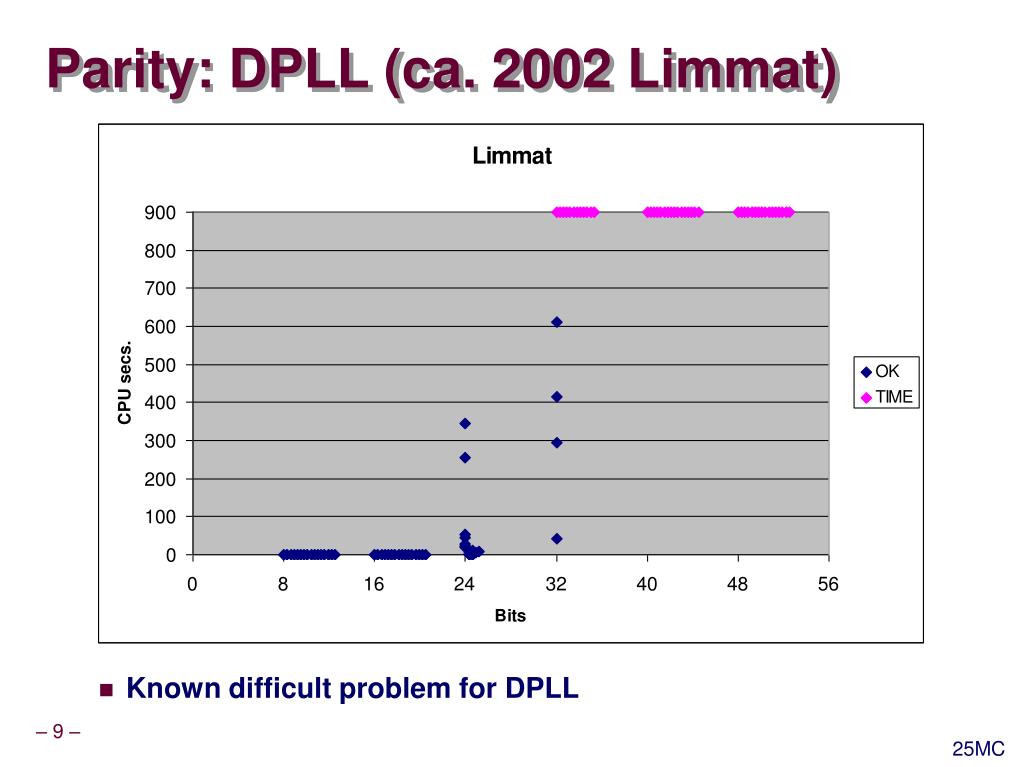

  9. Parity: DPLL (ca. 2002 Limmat) • Known difficult problem for DPLL

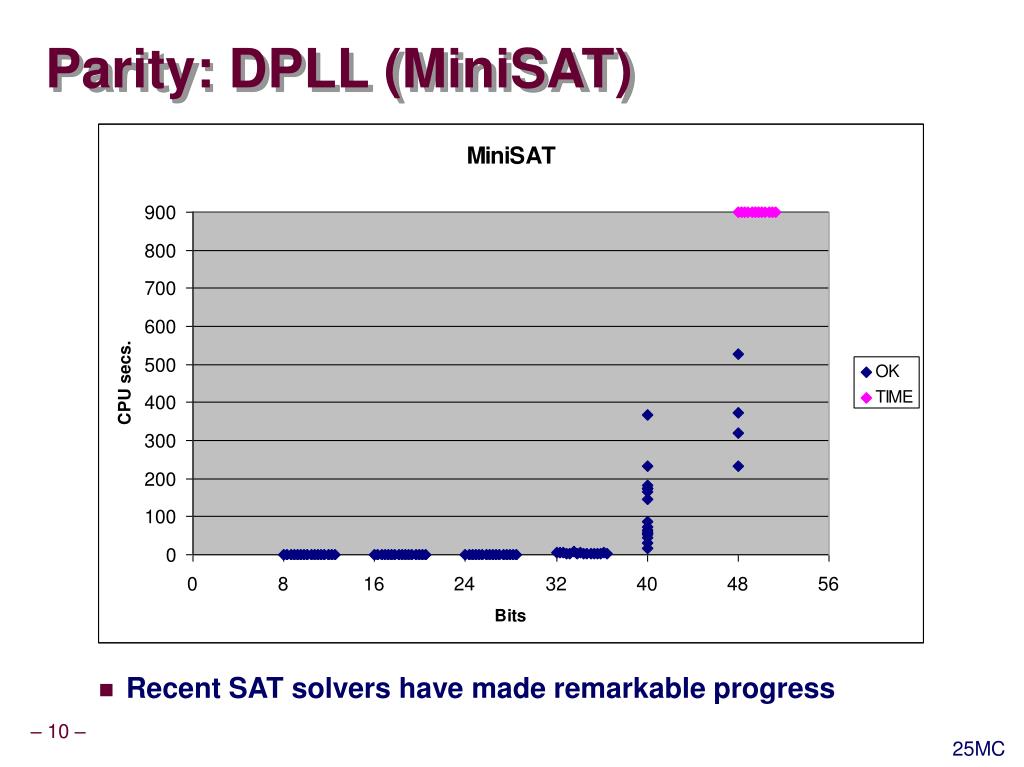

  10. Parity: DPLL (MiniSAT) • Recent SAT solvers have made remarkable progress

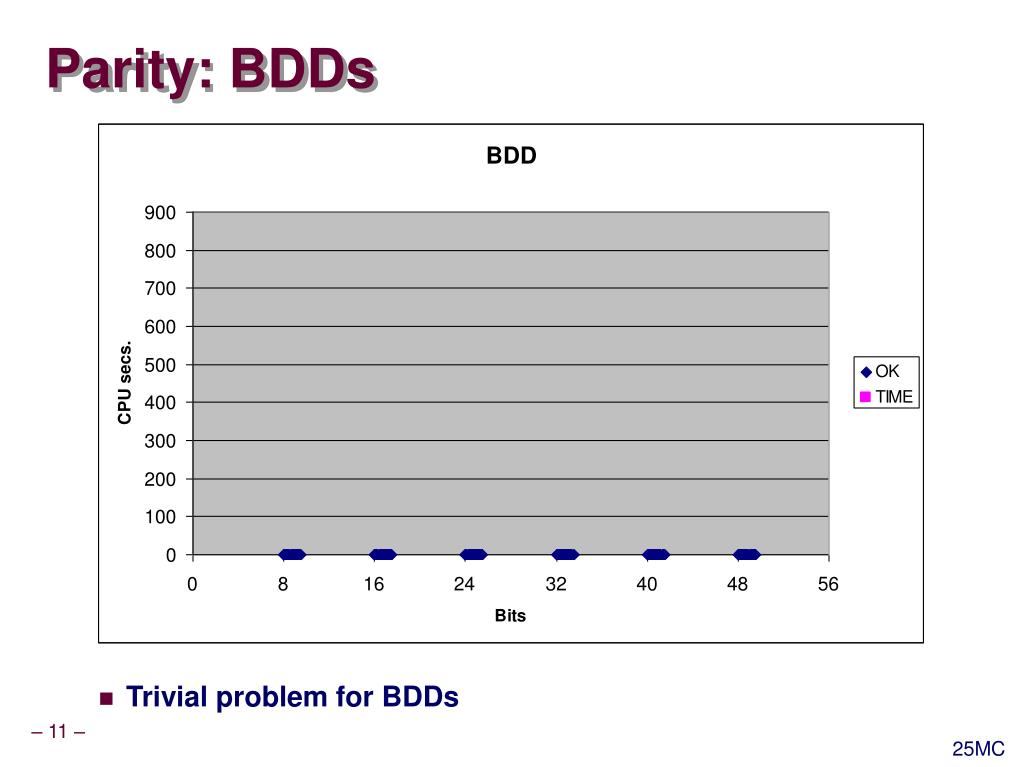

  11. Parity: BDDs • Trivial problem for BDDs

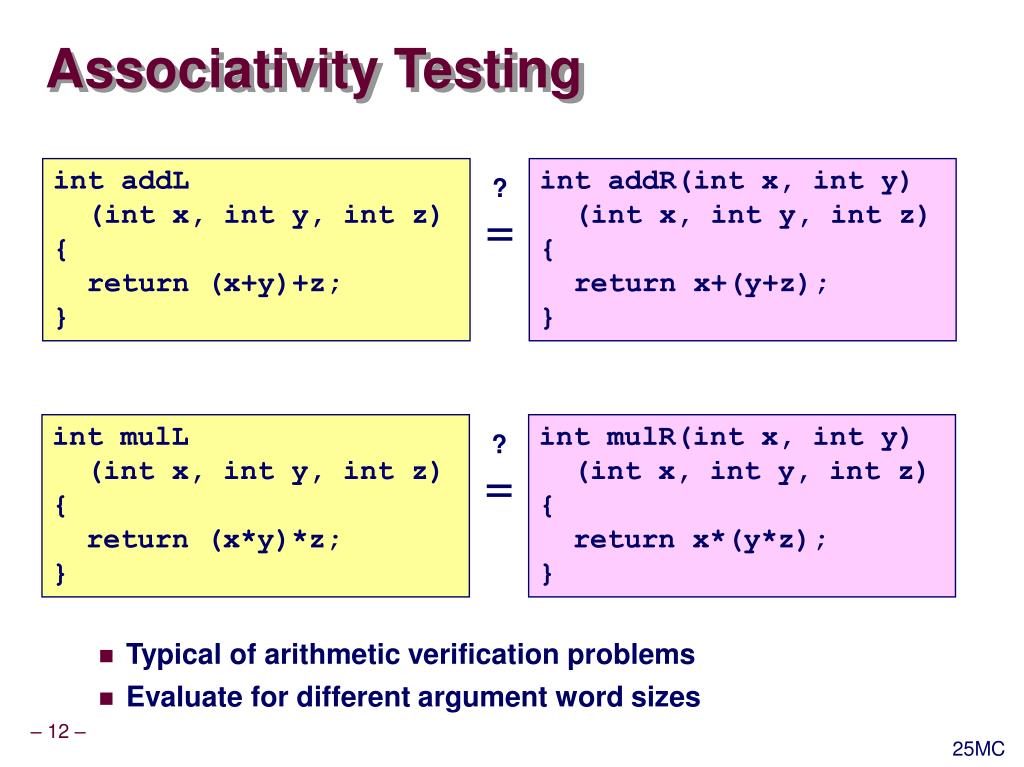

  12. Associativity Testing • Typical of arithmetic verification problems • Evaluate for different argument word sizes int addL (int x, int y, int z) { return (x+y)+z; } int addR(int x, int y) (int x, int y, int z) { return x+(y+z); } ? = int mulL (int x, int y, int z) { return (x*y)*z; } int mulR(int x, int y) (int x, int y, int z) { return x*(y*z); } ? =

  13. Associativity of Addition • Easy for BDDs • Recent DPLL handle readily

  14. Associativity of Multiplication • BDDs better than DPLL

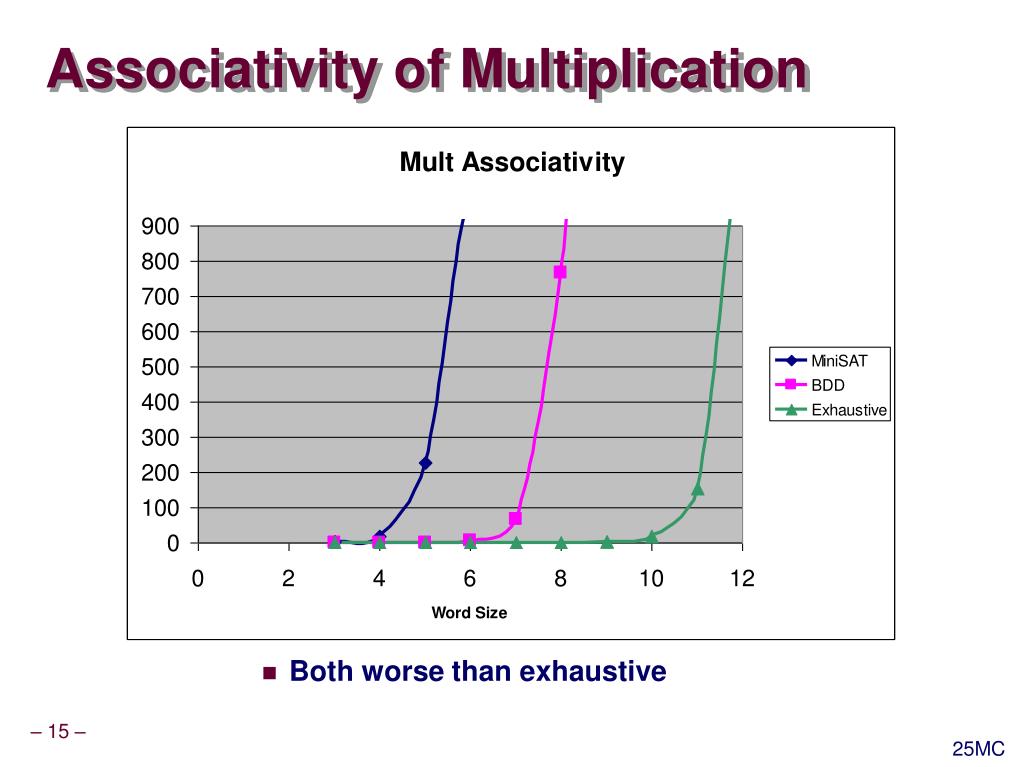

  15. Associativity of Multiplication • Both worse than exhaustive

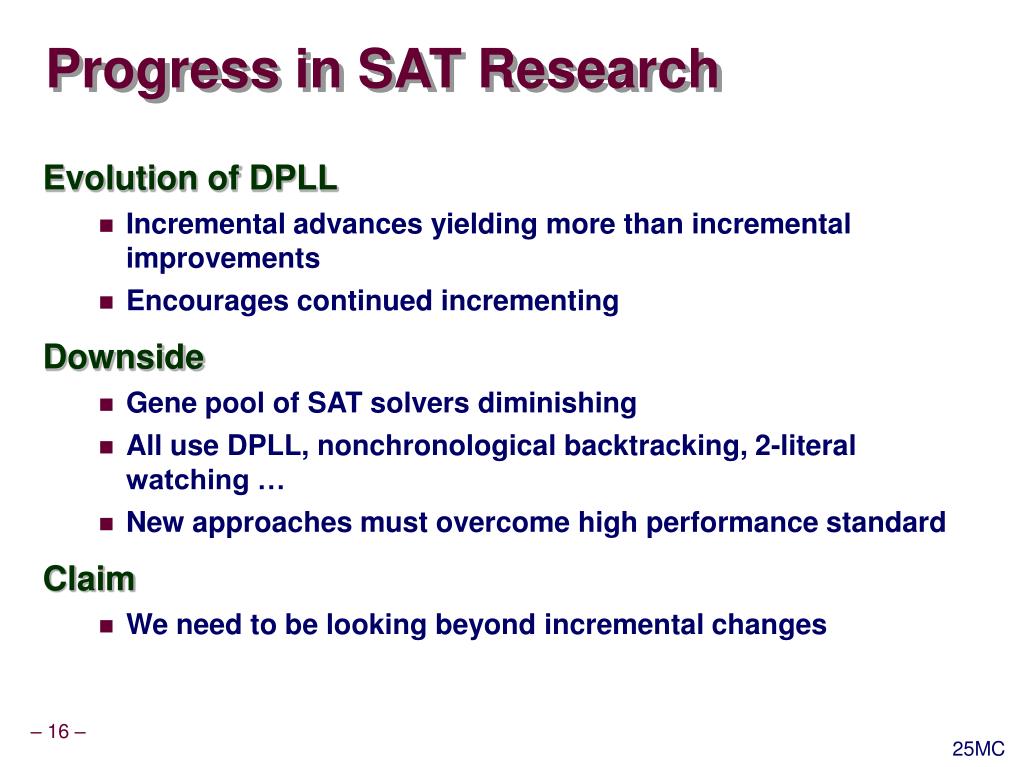

  16. Progress in SAT Research • Evolution of DPLL • Incremental advances yielding more than incremental improvements • Encourages continued incrementing • Downside • Gene pool of SAT solvers diminishing • All use DPLL, nonchronological backtracking, 2-literal watching … • New approaches must overcome high performance standard • Claim • We need to be looking beyond incremental changes

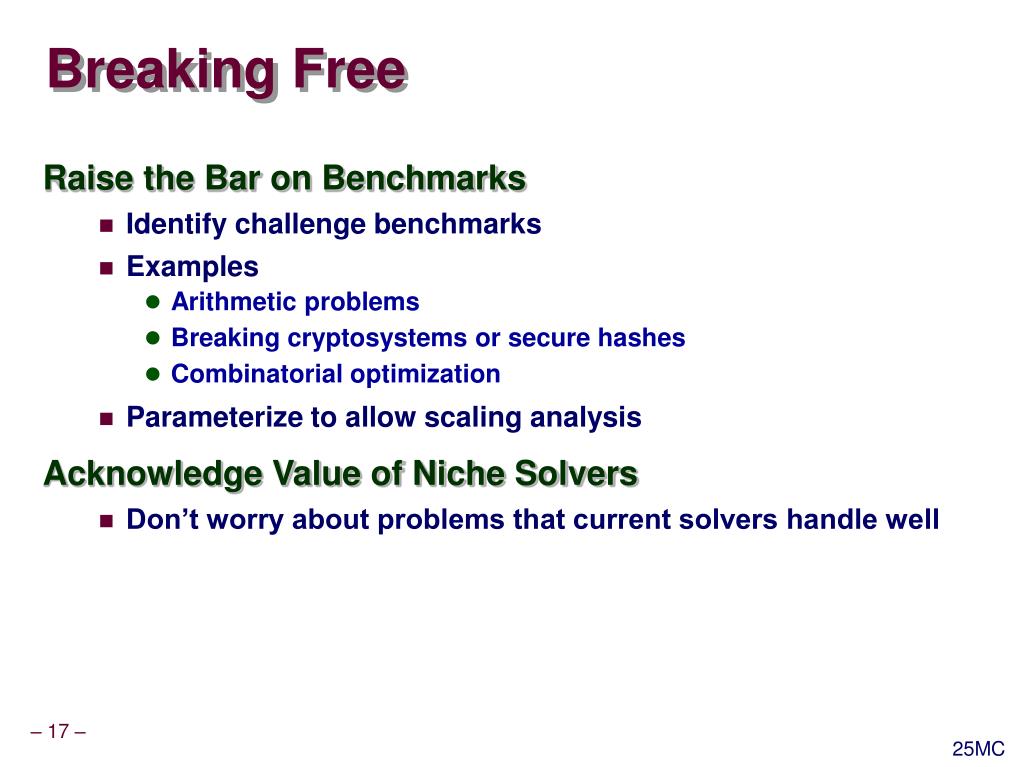

  17. Breaking Free • Raise the Bar on Benchmarks • Identify challenge benchmarks • Examples • Arithmetic problems • Breaking cryptosystems or secure hashes • Combinatorial optimization • Parameterize to allow scaling analysis • Acknowledge Value of Niche Solvers • Don’t worry about problems that current solvers handle well

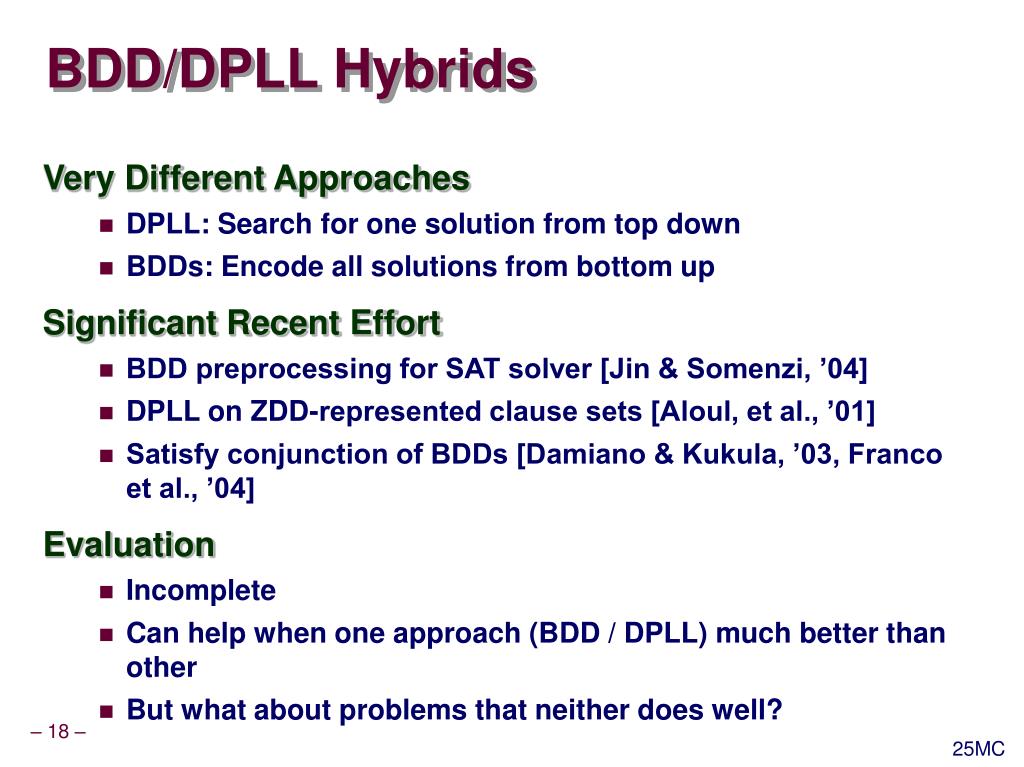

  18. BDD/DPLL Hybrids • Very Different Approaches • DPLL: Search for one solution from top down • BDDs: Encode all solutions from bottom up • Significant Recent Effort • BDD preprocessing for SAT solver [Jin & Somenzi, ’04] • DPLL on ZDD-represented clause sets [Aloul, et al., ’01] • Satisfy conjunction of BDDs [Damiano & Kukula, ’03, Franco et al., ’04] • Evaluation • Incomplete • Can help when one approach (BDD / DPLL) much better than other • But what about problems that neither does well?

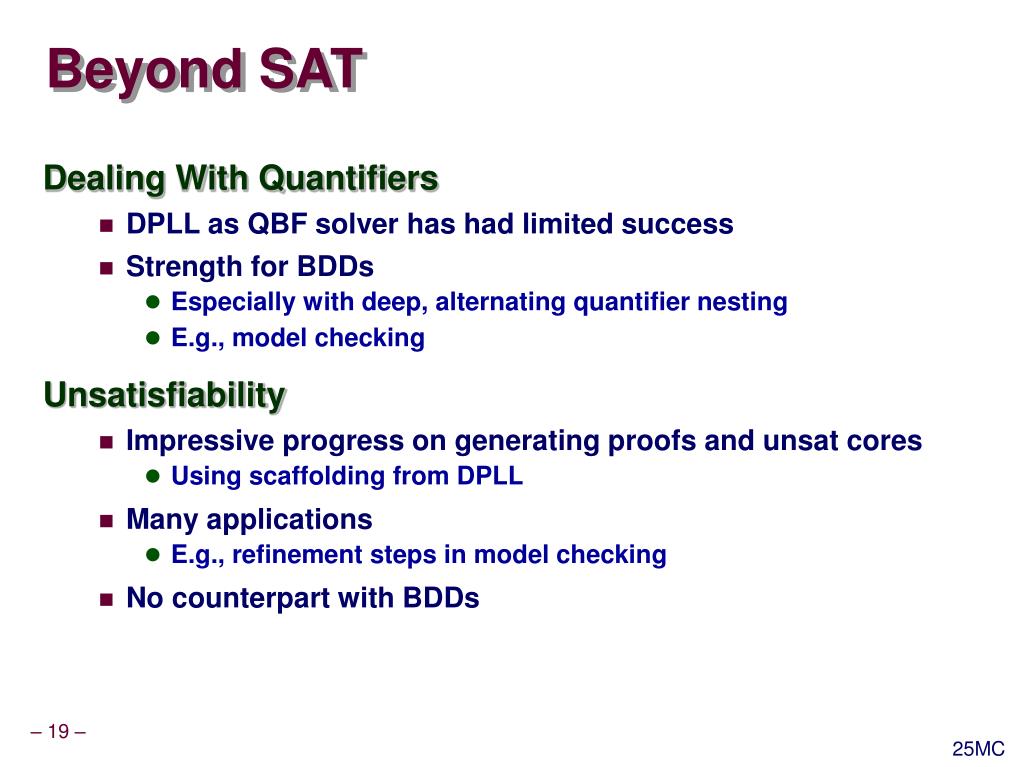

  19. Beyond SAT • Dealing With Quantifiers • DPLL as QBF solver has had limited success • Strength for BDDs • Especially with deep, alternating quantifier nesting • E.g., model checking • Unsatisfiability • Impressive progress on generating proofs and unsat cores • Using scaffolding from DPLL • Many applications • E.g., refinement steps in model checking • No counterpart with BDDs

  20. F X . . . G Y Y . . . . . . Challenge Problem: Quantifier Elimination • Core Problem For Model Checking • Bit-level: Relational product • Predicate abstraction • Flanagan & Qadeer, ’02, Lahiri, Bryant, Cook, ’03 • Methods • BDDs: quantifier elimination • Use early quantification • DPLL: SAT enumeration • Plaisted, ’00, Gupta, et al., ’00, McMillan ’02, Clarke et al., ’03 G = X F 

  21. x1, x2, x3, x4, x5, x6 [ (x1 x2 x3 x4x5 x6)  (x1 x2 x3 x4x5 x6) ] Current State (x2 y2) (y2 y1) (x4 x6 y1) x3y4 x4y3 x5y6x6y5 Transition Constraints Quantifier Elimination Example • Example from Predicate Abstraction • Lahiri, Bryant, Cook, ’03 • G = X F • Current state variables X • Next state variables Y

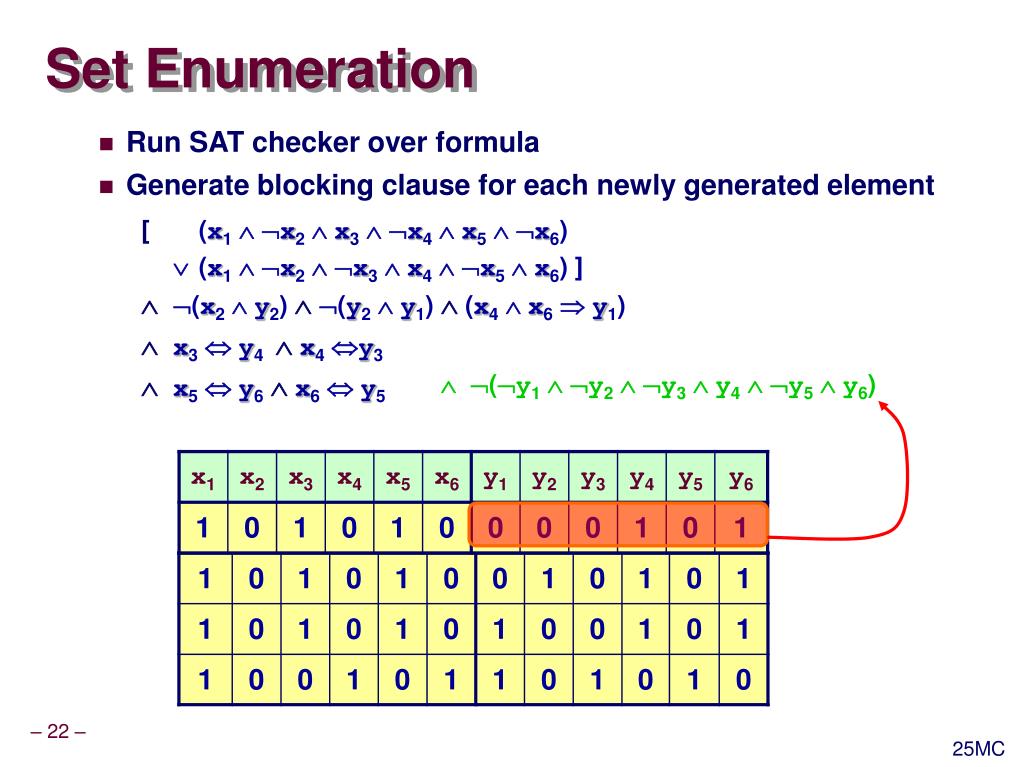

  22.  (y1 y2 y3 y4y5 y6) Set Enumeration • Run SAT checker over formula • Generate blocking clause for each newly generated element (x2 y2) (y2 y1) (x4 x6 y1) x3y4 x4y3 x5y6x6y5 [ (x1 x2 x3 x4x5 x6)  (x1 x2 x3 x4x5 x6) ]

  23. Compressing Set Representation • Disjunct set elements to form BDD • Extract prime implicants from BDD • Experience: 10X reduction in number of terms BDD Rep.

  24. SAT Enumeration Observations • Performance • Better than BDDs when |X| >>|Y| • Only have to enumerate for unique assignments to Y • Improvements • Attempt to enlarge solution as enumerate [McMillan ’02] • Build into DPLL search loop • Lahiri, Nieuwenhuis, Oliveras, ’06 • Handle successful cases similarly to failures • Make solver stop before it assigns values to all variables • Implemented? • Observation • Enumerative methods seem inelegant

  25. Conclusions • 25MC = 20OBDD • Boolean methods have driven much of the progress in model checking • BDDs & SAT • SAT Progress • Impressive, but still room for improvement • Beyond SAT • Quantifiers • Unsatisfiability
