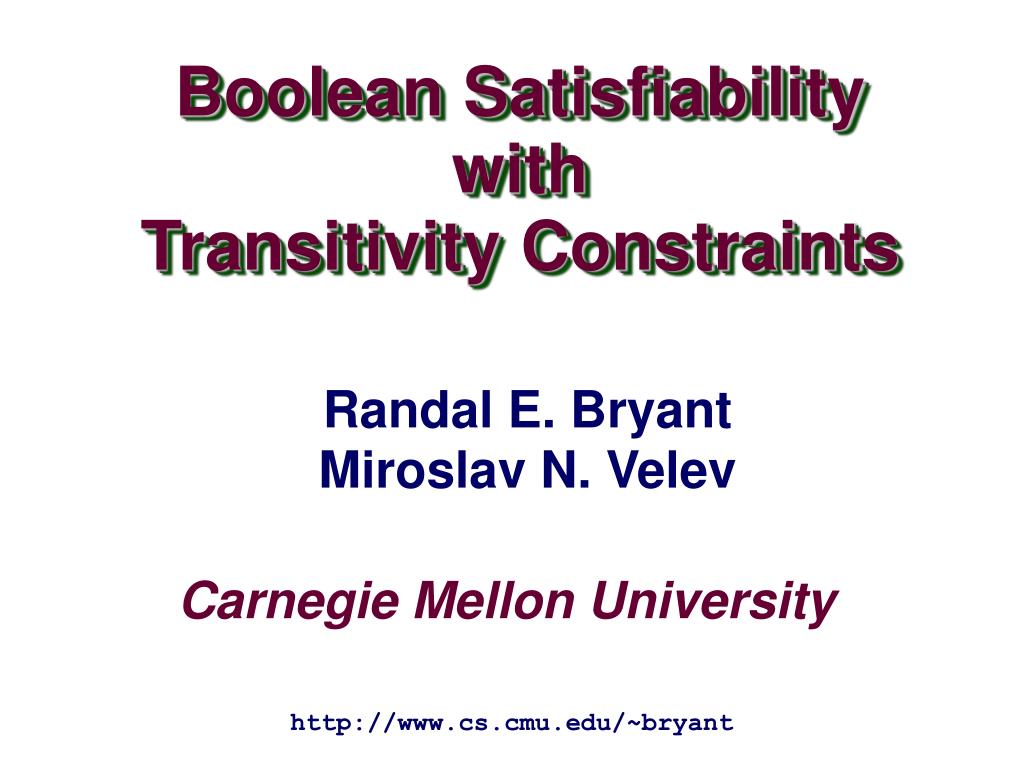

Carnegie mellon university

Boolean Satisfiability

with

Transitivity Constraints

Randal E. Bryant

Miroslav N. Velev

Carnegie Mellon University

http://www.cs.cmu.edu/~bryant

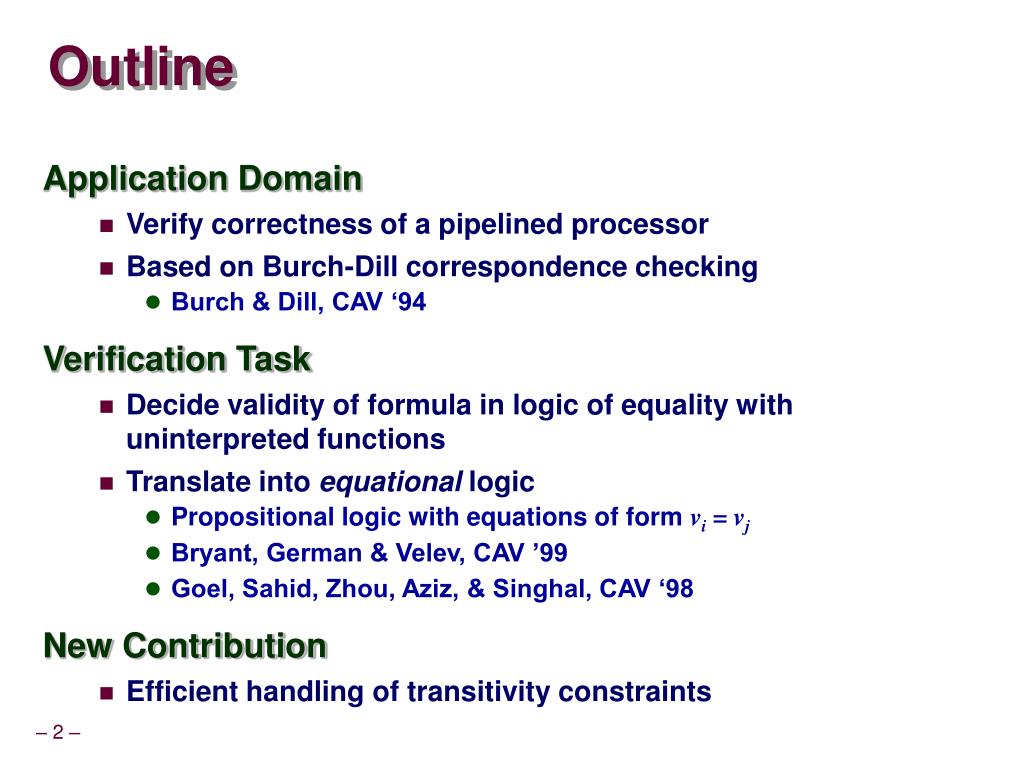

Outline

Outline

  • Application Domain

    • Verify correctness of a pipelined processor

    • Based on Burch-Dill correspondence checking

      • Burch & Dill, CAV ‘94

  • Verification Task

    • Decide validity of formula in logic of equality with uninterpreted functions

    • Translate into equational logic

      • Propositional logic with equations of form vi = vj

      • Bryant, German & Velev, CAV ’99

      • Goel, Sahid, Zhou, Aziz, & Singhal, CAV ‘98

  • New Contribution

    • Efficient handling of transitivity constraints


Decision problem

e

1

f

T

F

Ù

e

Ø

0

=

x

f

0

T

Ú

=

F

T

F

d

0

Decision Problem

  • Logic of Equality with Uninterpreted Functions (EUF)

    • Truth Values

      • Dashed Lines

      • Model control signals

    • Domain Values

      • Solid lines

      • Model data words

  • Task

    • Determine whether formula is universally valid

      • True for all interpretations of variables and function symbols


Eliminating function applications

Eliminating Function Applications

  • Verification Task

    • Prove:x = f(f(x))  x = f(f(f(x)))  x = f(x)

      • Instance of:x = y x = f(y) x = f(x)

  • Ackermann’s Method

    • Replace: f(x)  f1 f(f(x))  f2 f(f(f(x)))  f3

    • Gives:x = f2 x = f3 x = f1

  • Functional Consistency Constraints

    x = f1f1 = f2

    f1= f2f2 = f3

    x = f2f1 = f3

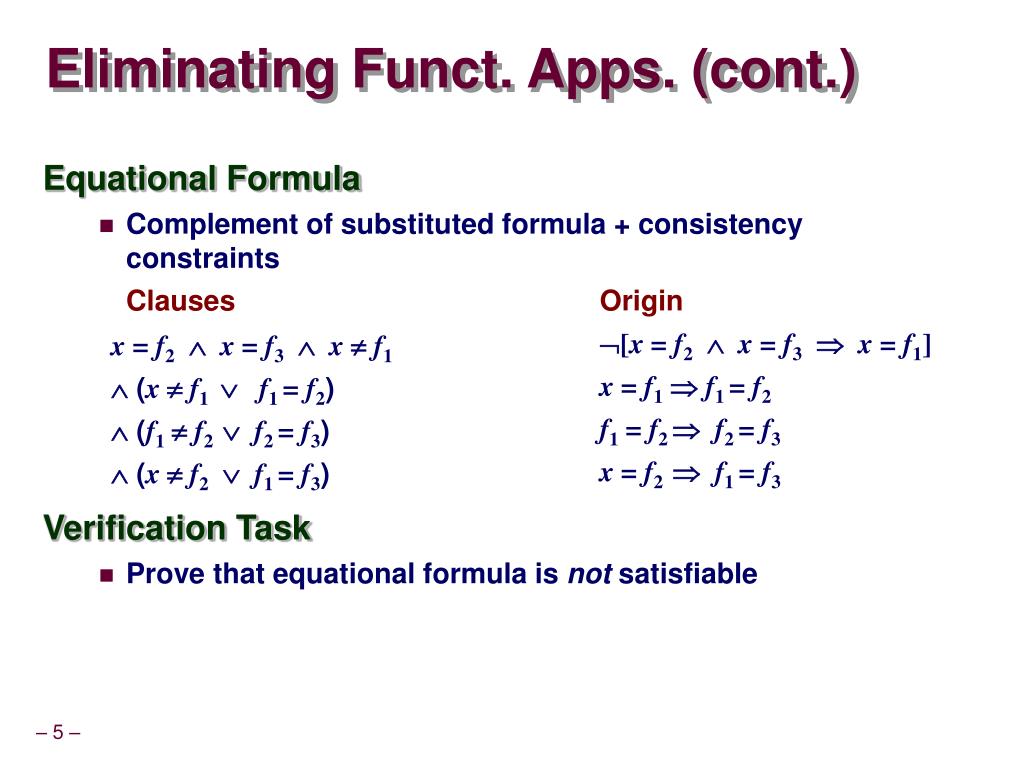

Eliminating funct apps cont

Eliminating Funct. Apps. (cont.)

  • Equational Formula

    • Complement of substituted formula + consistency constraints

      ClausesOrigin

      x = f2 x = f3x f1[x = f2 x = f3 x = f1]

       (x f1  f1 = f2) x= f1 f1 = f2

       (f1f2  f2 = f3) f1= f2  f2 = f3

       (x f2 f1 = f3) x = f2  f1 = f3

  • Verification Task

    • Prove that equational formula is not satisfiable

x = f2 x = f3x f1

 (x f1  f1 = f2)

 (f1f2  f2 = f3)

 (x f2 f1 = f3)


Solving equational formulas

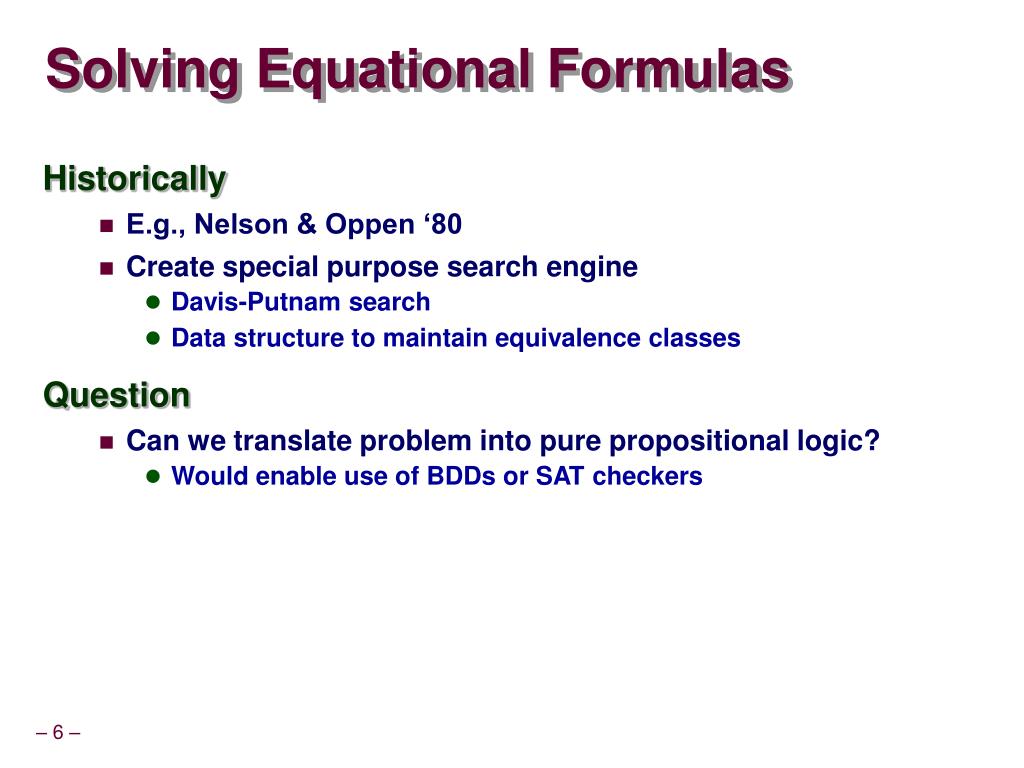

Solving Equational Formulas

  • Historically

    • E.g., Nelson & Oppen ‘80

    • Create special purpose search engine

      • Davis-Putnam search

      • Data structure to maintain equivalence classes

  • Question

    • Can we translate problem into pure propositional logic?

      • Would enable use of BDDs or SAT checkers


Replacing equations by variables

Replacing Equations by Variables

  • Relational Variables

    • Goel, Sahid, Zhou, Aziz, & Singhal, CAV ‘98

    • Replace vi = vj by propositional variable ei,j

  • Propositional Formula Fsat

    • Relabeling: x v1f1  v2f2  v3f3  v4

      ClausesOrigin

      e13 e14e12x = f2 x = f3x f1

       (e12 e23)  (x f1  f1 = f2)

       (e23 e34)  (f1f2  f2 = f3)

       (e13 e24)  (x f2 f1 = f3)

e13 e14e12

 (e12 e23)

 (e23 e34)

 (e13 e24)


Need for transitivity constraints

Need for Transitivity Constraints

  • Propositional Formula Fsat

    e13 e14e12

     (e12 e23)

     (e23 e34)

     (e13 e24)

  • Solution

    e13 = true e14 = true e12 = false e23 = true e34 = true e24 = true

  • Transitivity Violation in Solution

    e13 = true e23 = true e12 = false

    • Corresponds to x = f2andf2= f1butx f1


Handling transitivity constraints goel et al cav 98

Handling Transitivity Constraints: Goel, et al., CAV ’98

  • Complexity

    • Finding solution to Fsat that satisfies transitivity constraints is NP-Hard

    • Even when Fsat represented as OBDD

  • Their method

    • Enumerate implicants of Fsat from OBDD representation

    • Discard any implicant that contains transitivity violation

    • Eventually find solution or run out of implicants

  • Our Experiments

    • Works well for small benchmarks

    • Far too many implicants for larger benchmarks


Handling transitivity constraints our method

Handling Transitivity Constraints: Our Method

  • Idea

    • Generate propositional formula Ftrans expressing transitivity constraints

    • Satisfy formula FsatFtrans

      • Using OBDDs or SAT checker

  • Sources of Efficiency

    • Equational structure very sparse

      • Far fewer than n(n-1)/2 relational variables

      • Only need to enforce limited set of transitivity constraints

    • With OBDDs, can reduce set of relational variables

      • Only those in true support of Fsat


Benchmark circuits

Benchmark Circuits

  • Single Issue Pipeline: 1xDLX-C

    • Analogous to DLX model in Hennessy & Patterson

    • Verified in ‘94 by Burch & Dill

  • Dual Issue Pipeline #1: 2xDLX-CA

    • Second pipeline can only handle R-R and R-I instructions

    • Burch (DAC ‘96) required 28 manual case splits, 3 commutative diagrams, and 1800s.

  • Dual Issue Pipeline #2: 2xDLX-CC

    • Second pipeline can also handle all instructions


Verifying original benchmarks

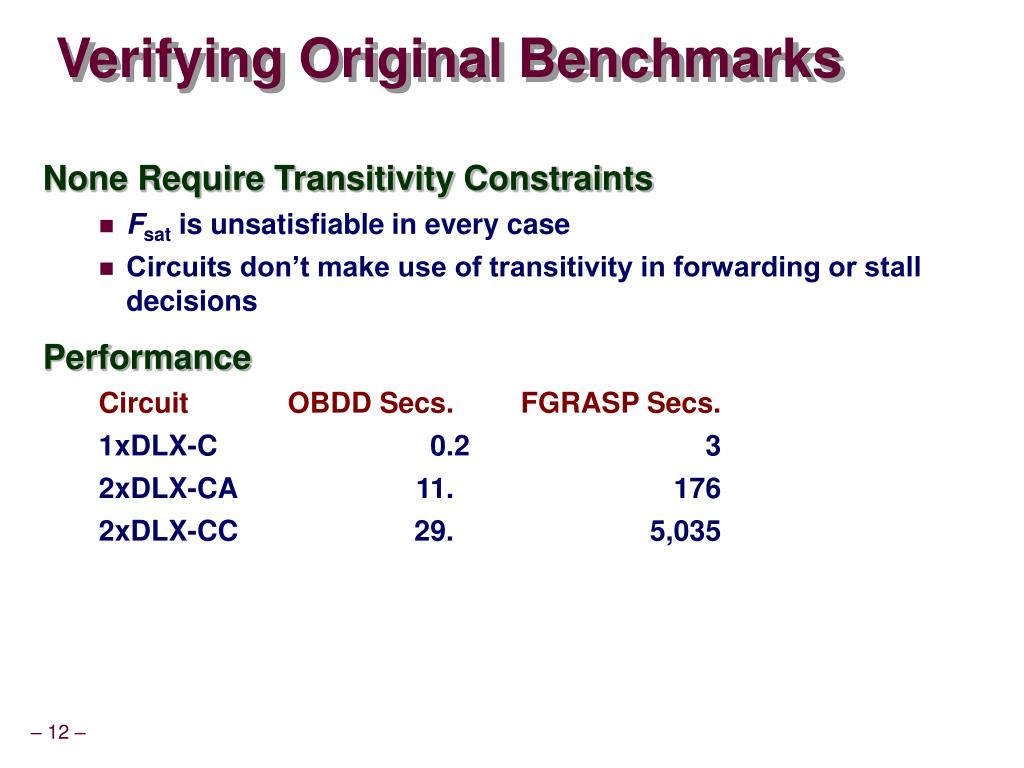

Verifying Original Benchmarks

  • None Require Transitivity Constraints

    • Fsat is unsatisfiable in every case

    • Circuits don’t make use of transitivity in forwarding or stall decisions

  • Performance

    CircuitOBDD Secs.FGRASP Secs.

    1xDLX-C0.23

    2xDLX-CA11.176

    2xDLX-CC29.5,035


Transitivity benchmarks

Transitivity Benchmarks

  • Modified, but Correct Circuits

    • Modify forwarding logic

      ESrc1=MDest

      ESrc1=MDest (ESrc1=ESrc2ESrc2=MDest)

      • Equivalent under transitivity

    • Circuit names 1xDLX-Ct, 2xDLX-CAt, 2xDLX-CCt

  • Buggy Circuits

    • 100 buggy versions of 2xDLX-CC

      • Each contains single modification of control logic

    • Must ensure that counterexample satisfies transitivity constraints


1xdlx c equation structure

1xDLX-C Equation Structure

  • Vertices

    • For each vi

    • 13 different register identifiers

  • Edges

    • For each equation

    • Control stalling and forwarding logic

    • 27 relational variables

      • Out of 78 possible


2dlx cct equation structure

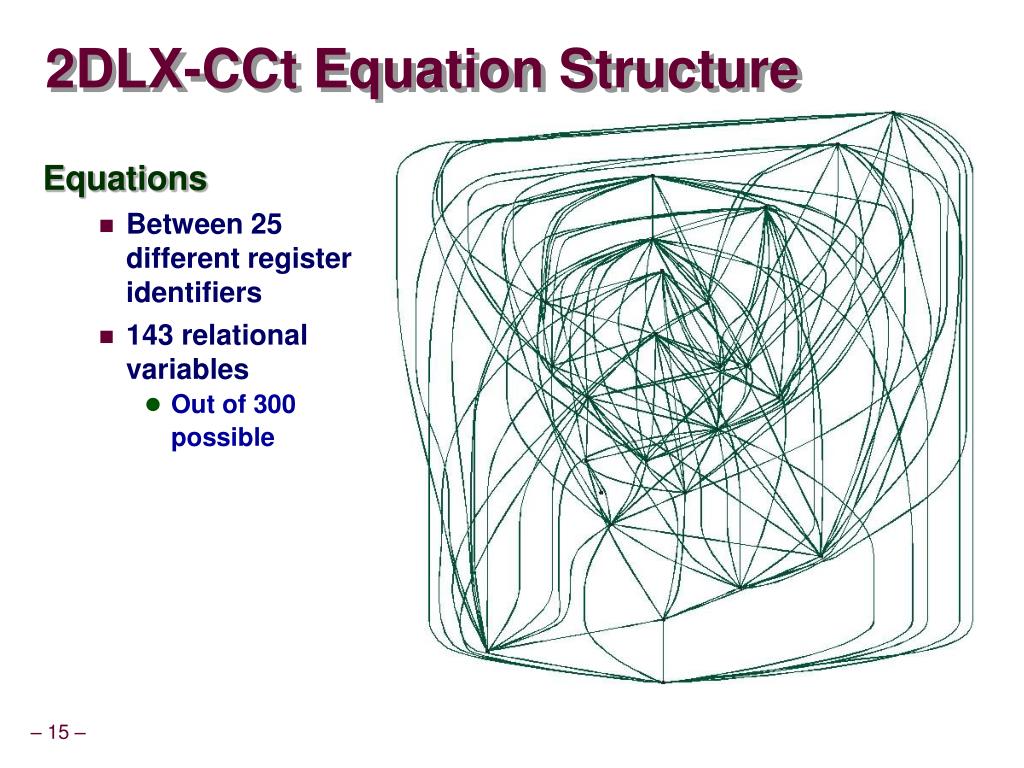

2DLX-CCt Equation Structure

  • Equations

    • Between 25 different register identifiers

    • 143 relational variables

      • Out of 300 possible

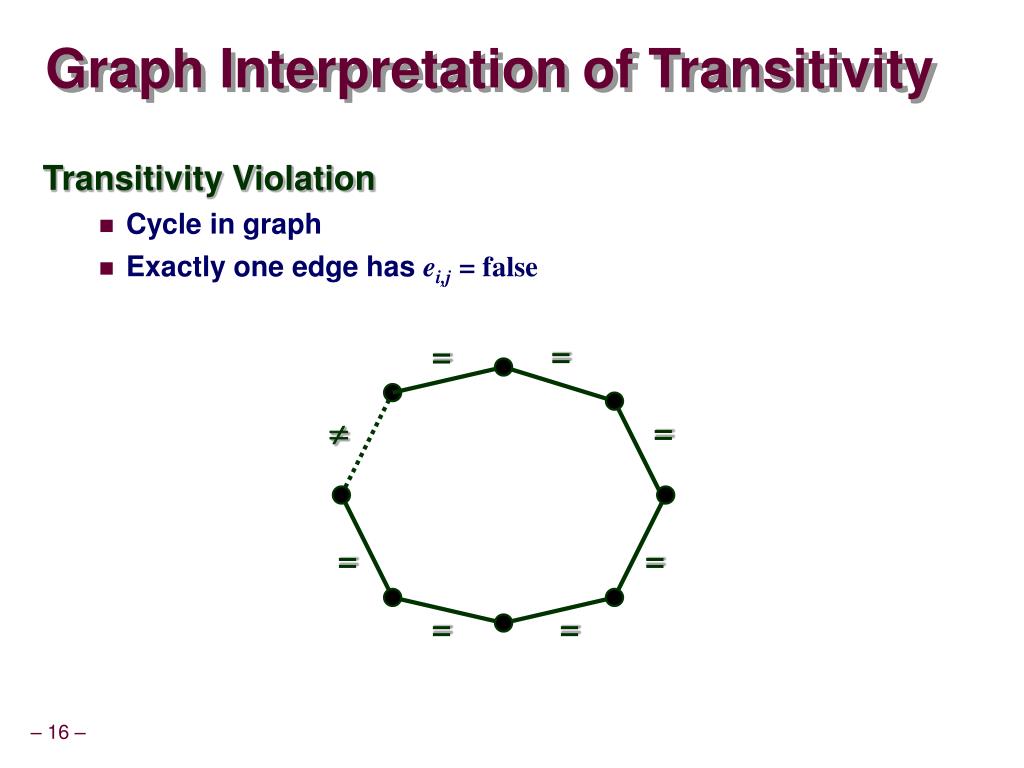

Graph interpretation of transitivity

=

=

=

=

=

=

=

Graph Interpretation of Transitivity

  • Transitivity Violation

    • Cycle in graph

    • Exactly one edge has ei,j= false

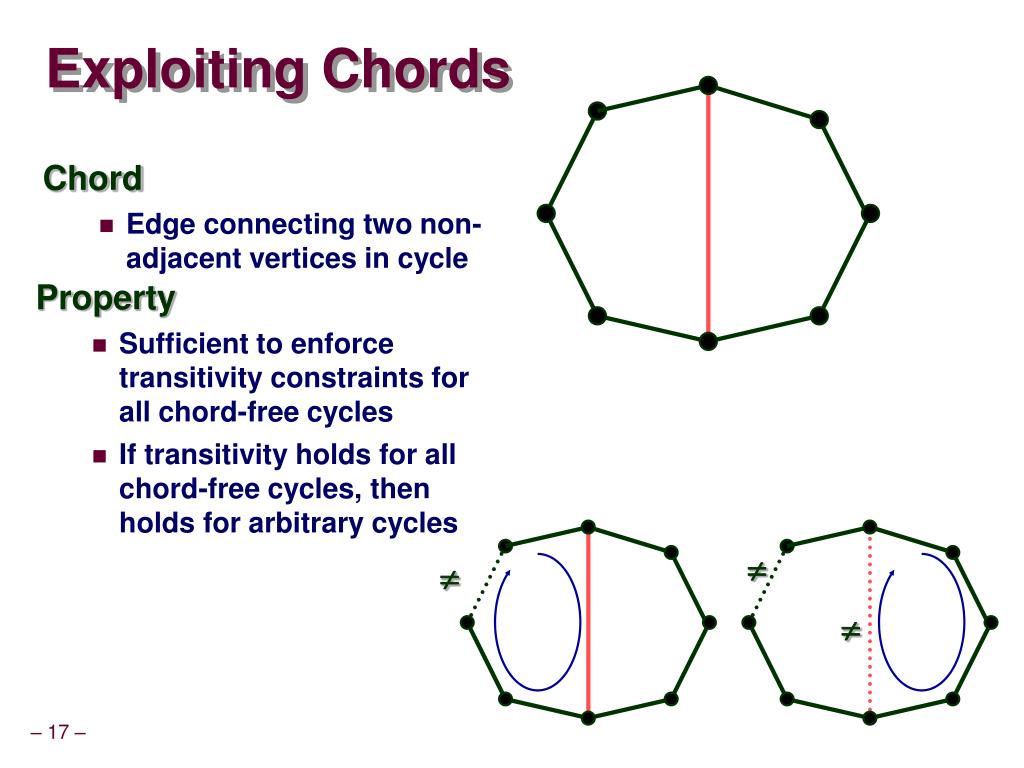

Exploiting chords

Exploiting Chords

  • Chord

    • Edge connecting two non-adjacent vertices in cycle

Property

  • Sufficient to enforce transitivity constraints for all chord-free cycles

  • If transitivity holds for all chord-free cycles, then holds for arbitrary cycles

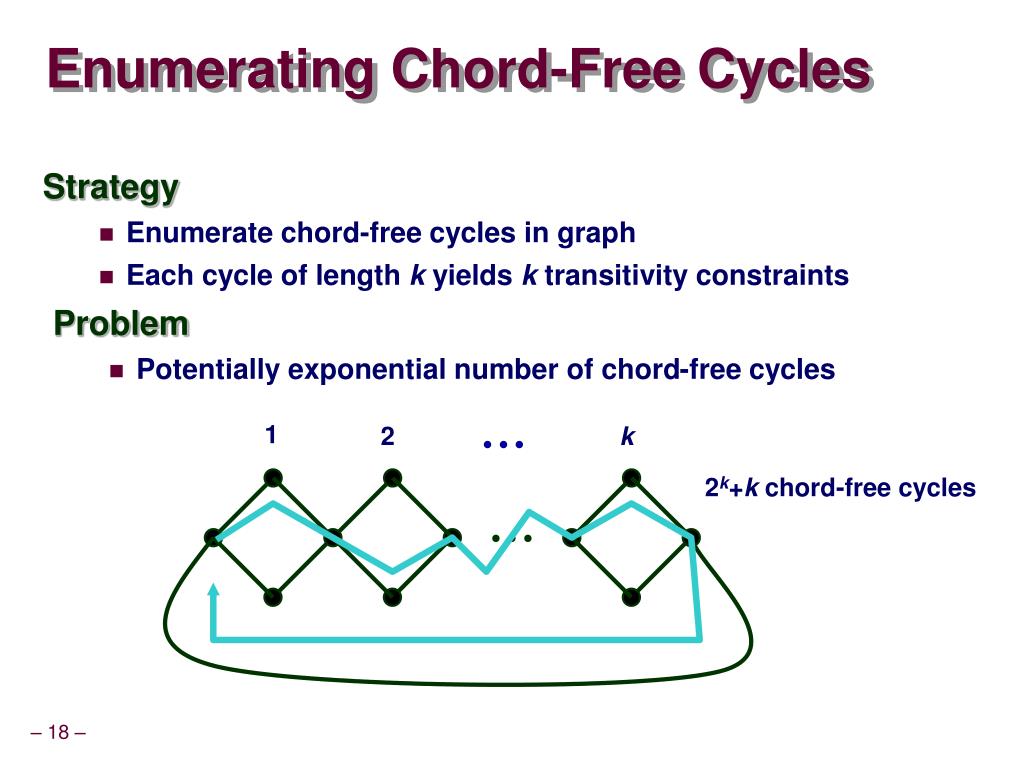

Enumerating chord free cycles

Enumerating Chord-Free Cycles

  • Strategy

    • Enumerate chord-free cycles in graph

    • Each cycle of length k yields k transitivity constraints

Problem

  • Potentially exponential number of chord-free cycles

1

2

k

• • •

2k+k chord-free cycles

• • •


Adding chords

2k+1 chord-free cycles

Adding Chords

  • Strategy

    • Add edges to graph to reduce number of chord-free cycles

1

2

k

• • •

2k+k chord-free cycles

• • •

Trade-Off

  • Reduces formula size

  • Increases number of relational variables


Chordal graph

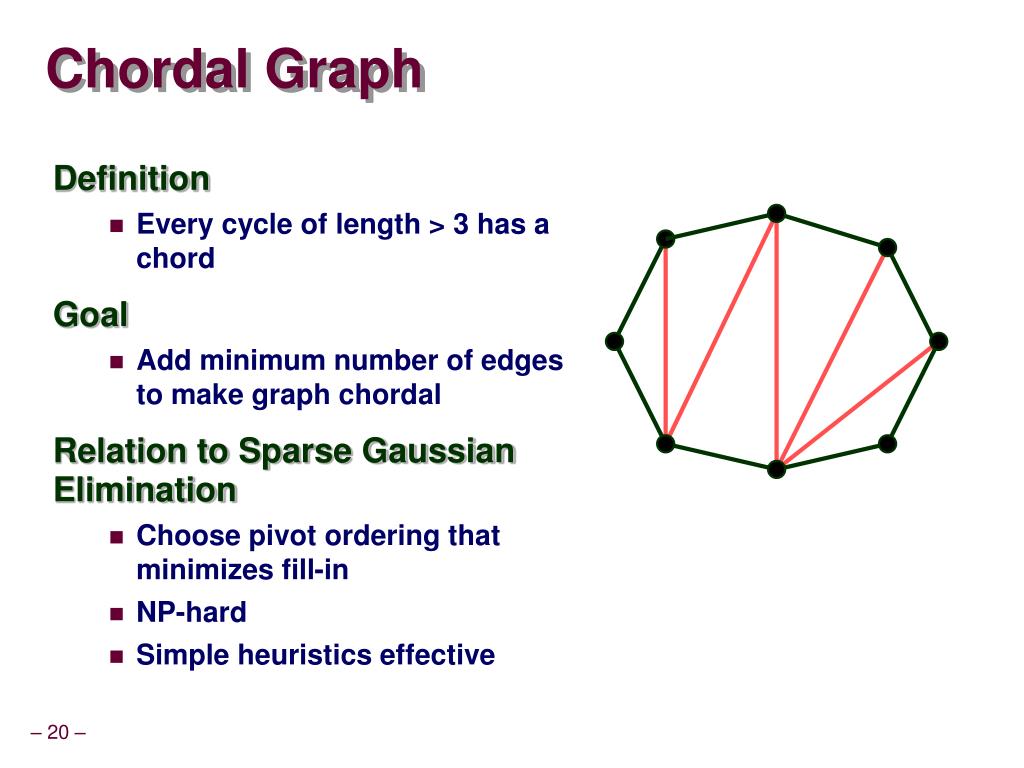

Chordal Graph

  • Definition

    • Every cycle of length > 3 has a chord

  • Goal

    • Add minimum number of edges to make graph chordal

  • Relation to Sparse Gaussian Elimination

    • Choose pivot ordering that minimizes fill-in

    • NP-hard

    • Simple heuristics effective


Adding chordal edges to 1xdlx c

Original

27 relational variables

286 cycles

858 clauses

Augmented

33 relational variables

40 cycles

120 clauses

Adding Chordal Edges to 1xDLX-C

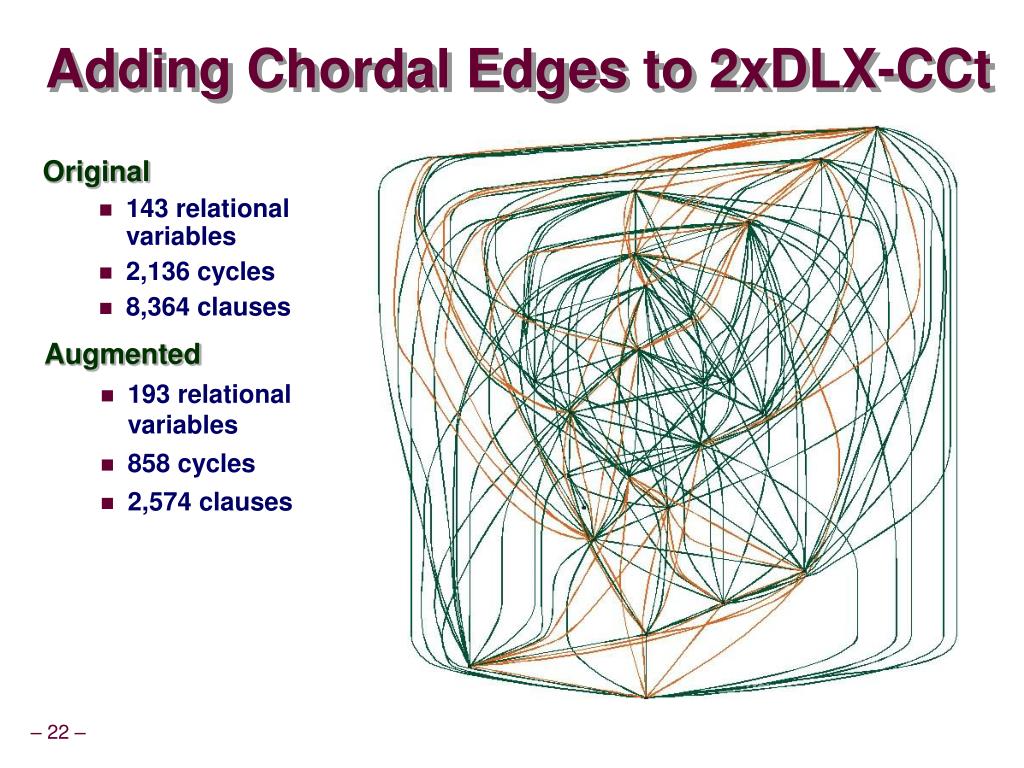

Adding chordal edges to 2xdlx cct

Original

143 relational variables

2,136 cycles

8,364 clauses

Augmented

193 relational variables

858 cycles

2,574 clauses

Adding Chordal Edges to 2xDLX-CCt

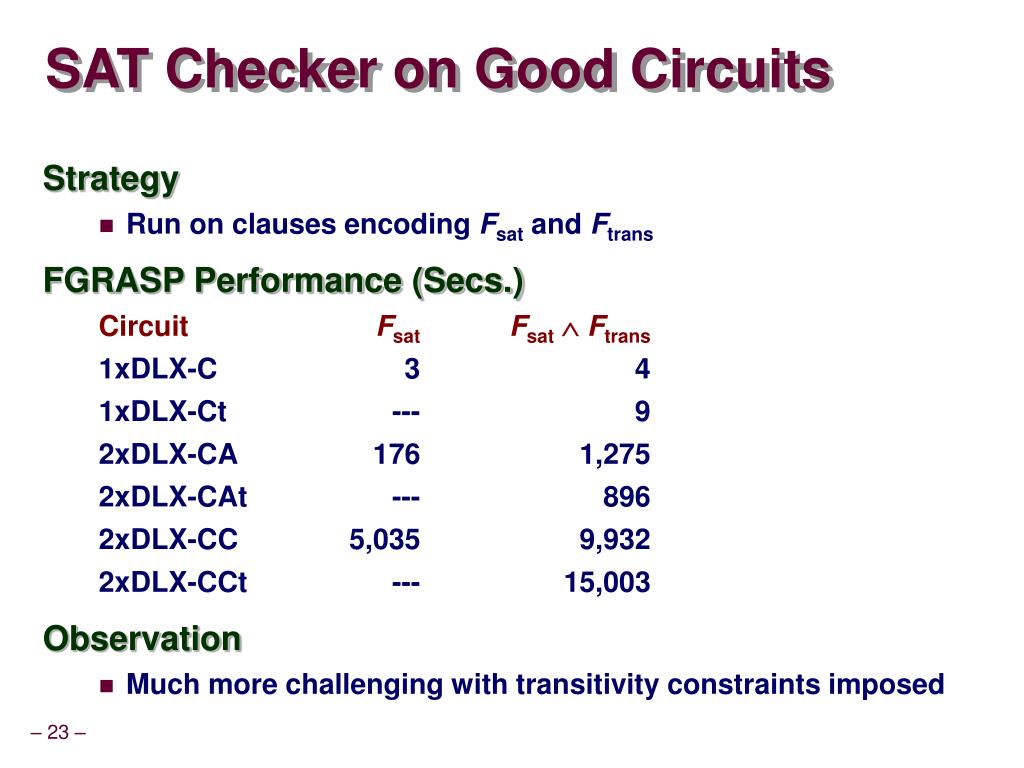

Sat checker on good circuits

SAT Checker on Good Circuits

  • Strategy

    • Run on clauses encoding Fsat and Ftrans

  • FGRASP Performance (Secs.)

    Circuit FsatFsatFtrans

    1xDLX-C34

    1xDLX-Ct---9

    2xDLX-CA1761,275

    2xDLX-CAt---896

    2xDLX-CC5,0359,932

    2xDLX-CCt---15,003

  • Observation

    • Much more challenging with transitivity constraints imposed


Sat checker on buggy circuits

SAT Checker on Buggy Circuits

  • Performance Penalty with Transitivity Constraints

    • Geometric average slowdown = 2.3X

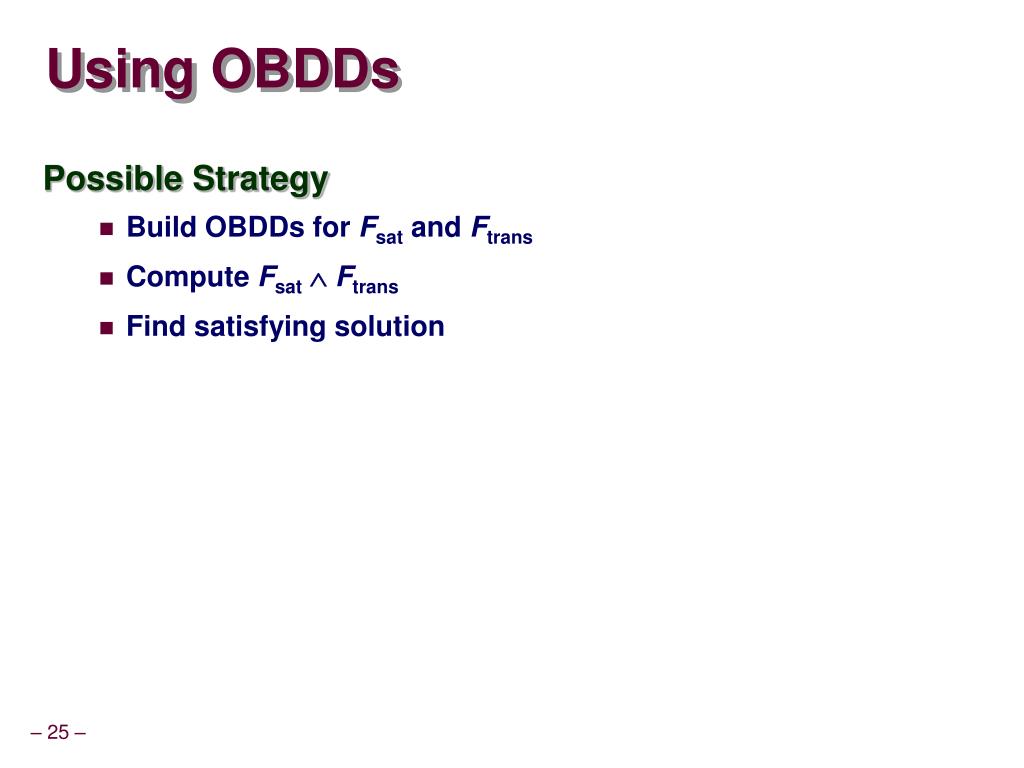

Using obdds

Using OBDDs

  • Possible Strategy

    • Build OBDDs for Fsat and Ftrans

    • Compute FsatFtrans

    • Find satisfying solution


Limitation of obdds

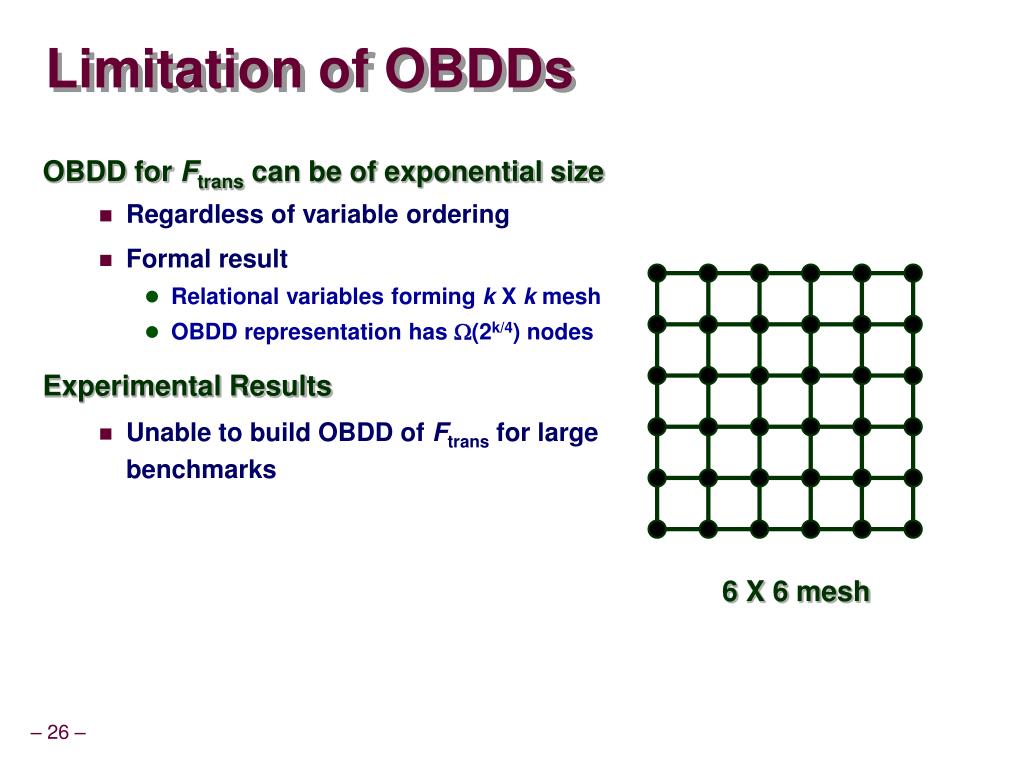

Limitation of OBDDs

  • OBDD for Ftrans can be of exponential size

    • Regardless of variable ordering

    • Formal result

      • Relational variables forming k X k mesh

      • OBDD representation has (2k/4) nodes

  • Experimental Results

    • Unable to build OBDD of Ftrans for large benchmarks

6 X 6 mesh


Better use of obdds

Better Use of OBDDs

  • Strategy

    • Build OBDD for Fsat

    • Determine relational variables in true support

      • Easy with OBDD

    • Generate Ftrans for these variables

    • Compute conjunction and find satisfying solution

  • Performance

    • When Fsat unsatisfiable, no further steps required

    • For other benchmarks, yields tractable Ftrans

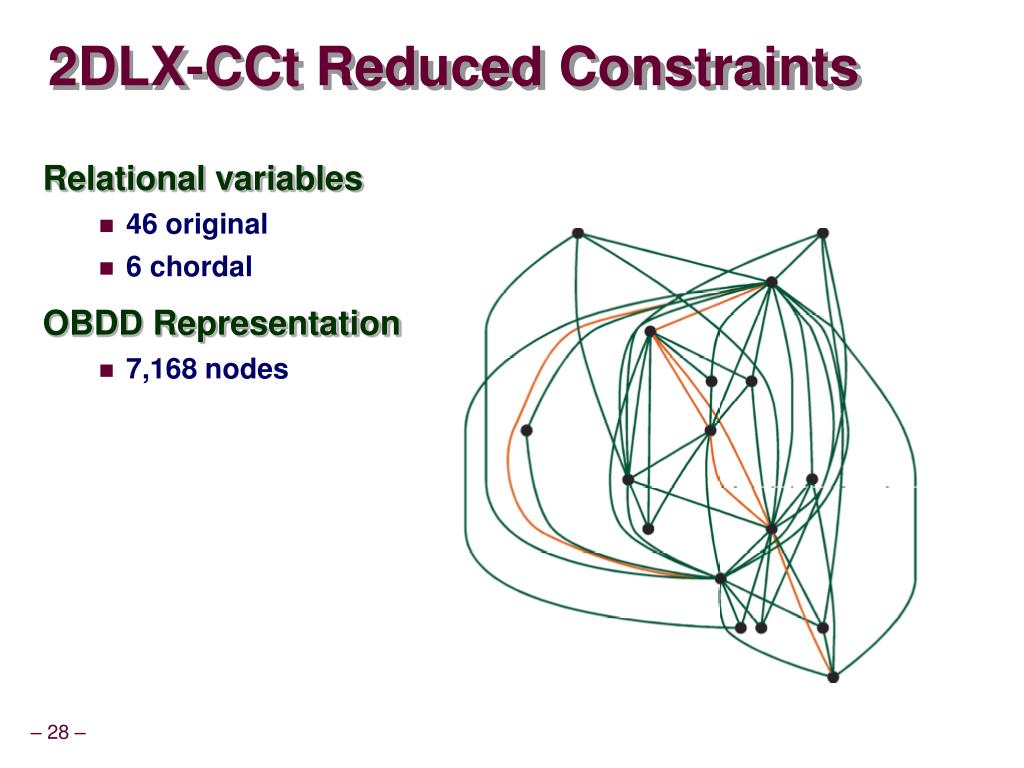

2dlx cct reduced constraints

2DLX-CCt Reduced Constraints

  • Relational variables

    • 46 original

    • 6 chordal

  • OBDD Representation

    • 7,168 nodes


Reduced constraints average case buggy circuit

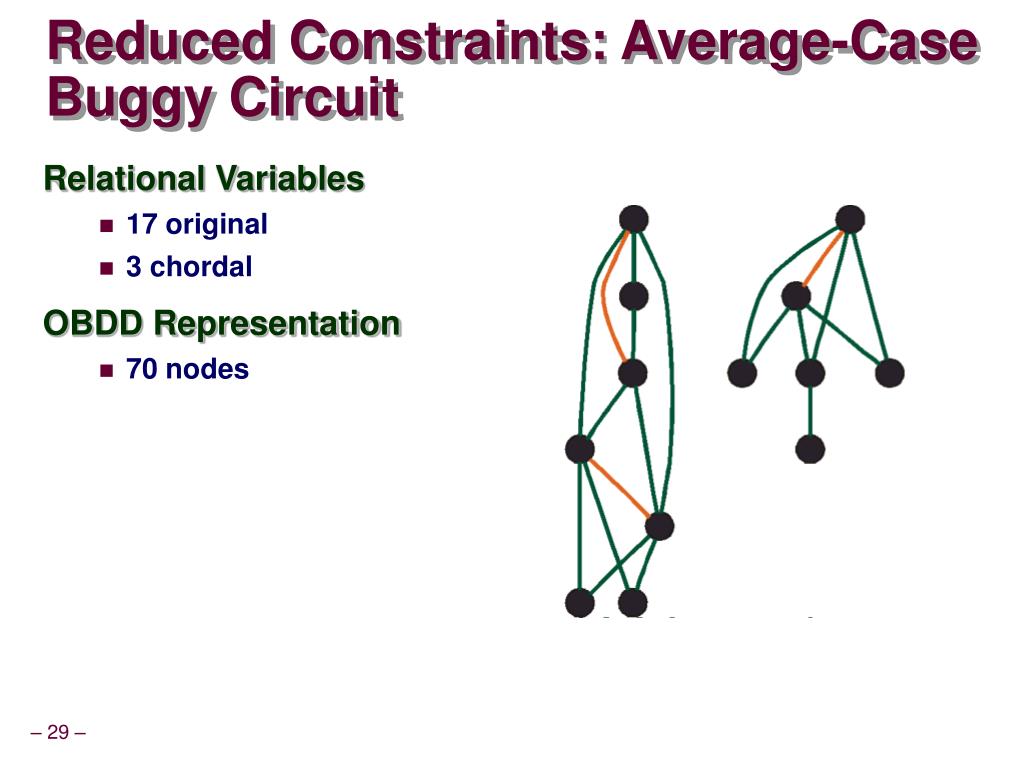

Reduced Constraints: Average-Case Buggy Circuit

  • Relational Variables

    • 17 original

    • 3 chordal

  • OBDD Representation

    • 70 nodes


Reduced constraints worst case buggy circuit

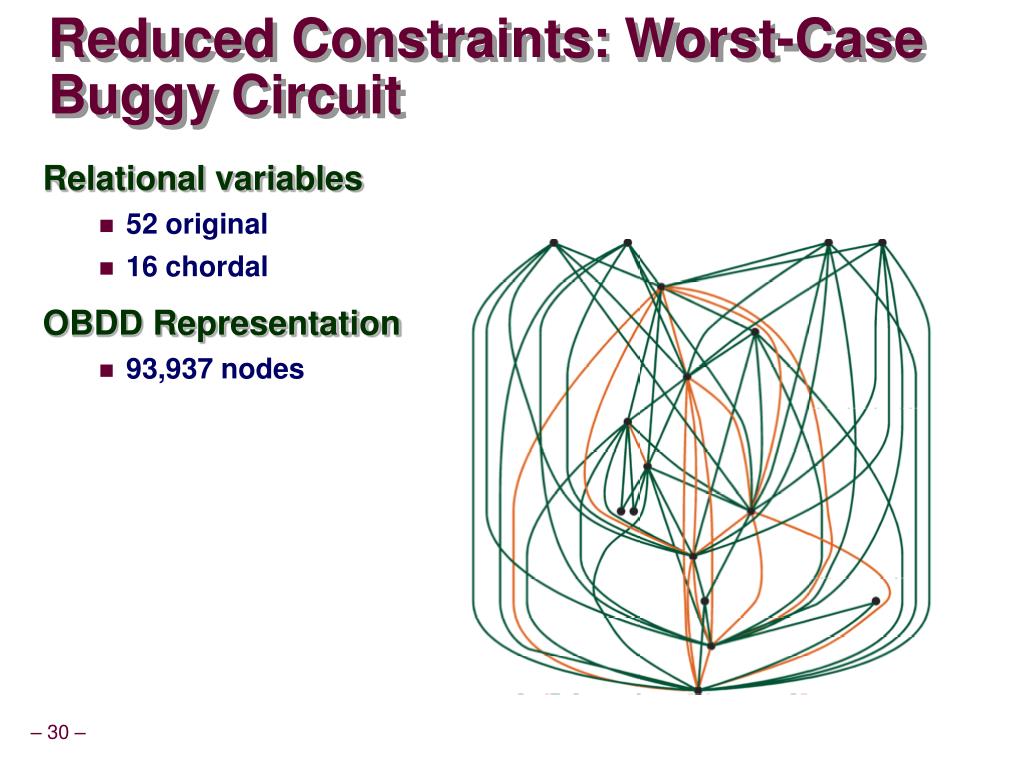

Reduced Constraints: Worst-Case Buggy Circuit

  • Relational variables

    • 52 original

    • 16 chordal

  • OBDD Representation

    • 93,937 nodes


Obdds on good circuits

OBDDs on Good Circuits

  • CUDD Performance (Secs.)

    Circuit Time

    1xDLX-C0.2

    1xDLX-Ct2

    2xDLX-CA11

    2xDLX-CAt109

    2xDLX-CC29

    2xDLX-CCt441

  • Observation

    • Significantly more effort with transitivity constraints

    • Better performance than FGRASP


Obdds on buggy circuits

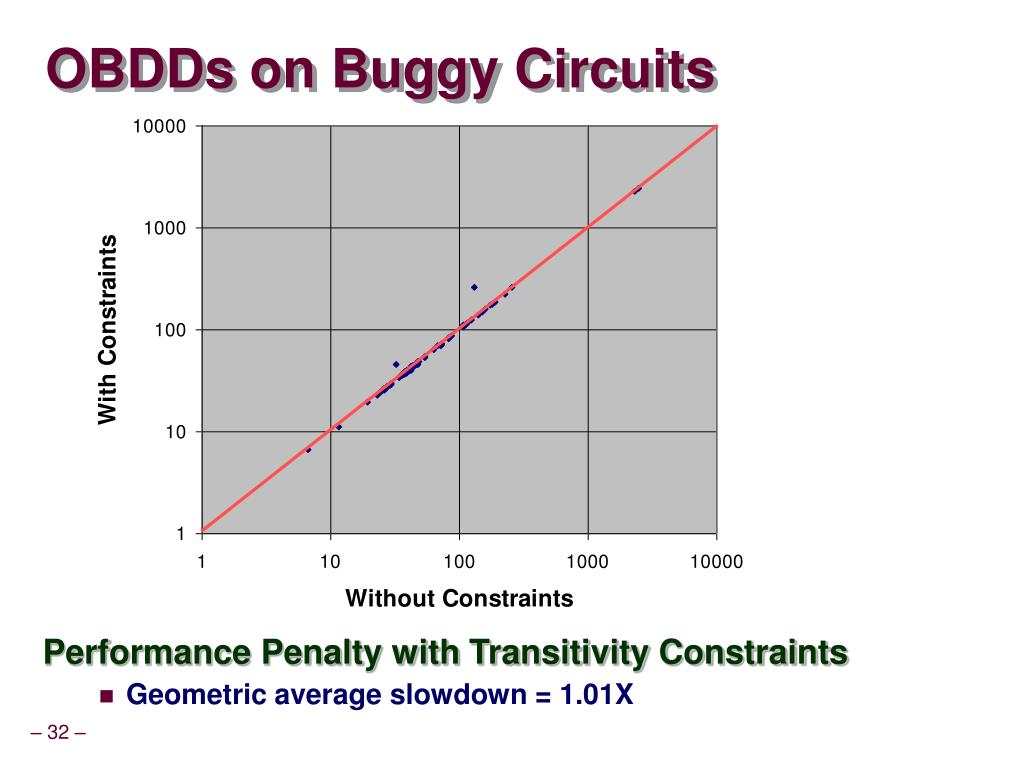

OBDDs on Buggy Circuits

  • Performance Penalty with Transitivity Constraints

    • Geometric average slowdown = 1.01X

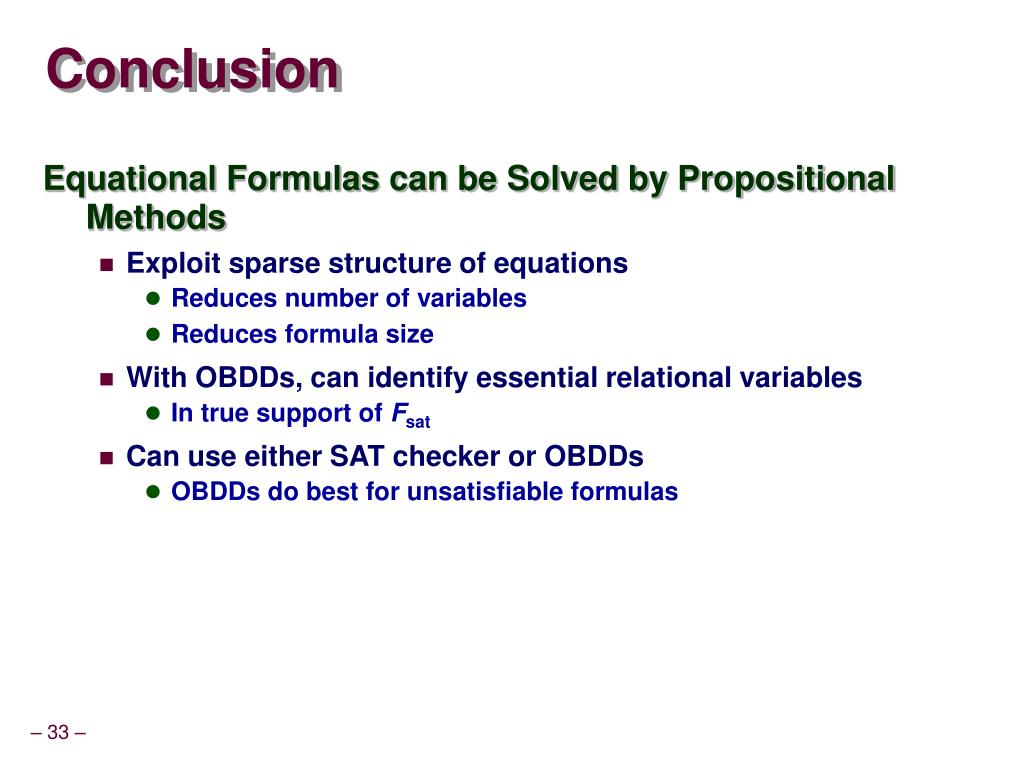

Conclusion

Conclusion

  • Equational Formulas can be Solved by Propositional Methods

    • Exploit sparse structure of equations

      • Reduces number of variables

      • Reduces formula size

    • With OBDDs, can identify essential relational variables

      • In true support of Fsat

    • Can use either SAT checker or OBDDs

      • OBDDs do best for unsatisfiable formulas

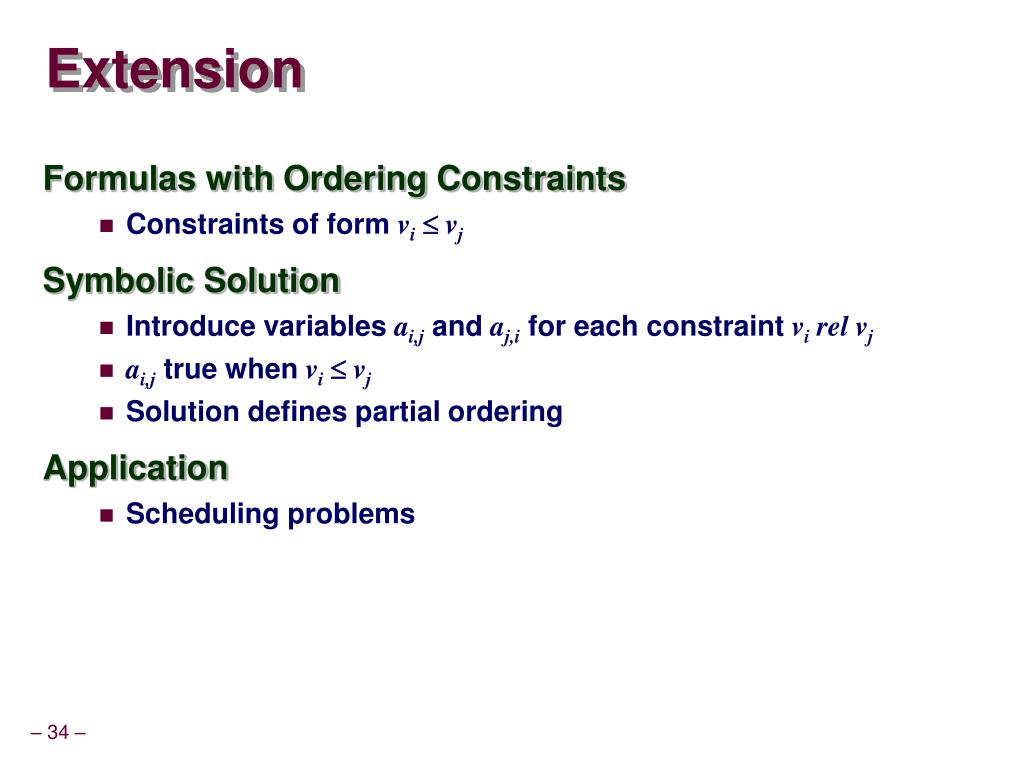

Extension

Extension

  • Formulas with Ordering Constraints

    • Constraints of form vivj

  • Symbolic Solution

    • Introduce variables ai,j and aj,i for each constraint virelvj

    • ai,j true when vivj

    • Solution defines partial ordering

  • Application

    • Scheduling problems
