  1. KPI and Analytics Workshop itSMF – May 2014

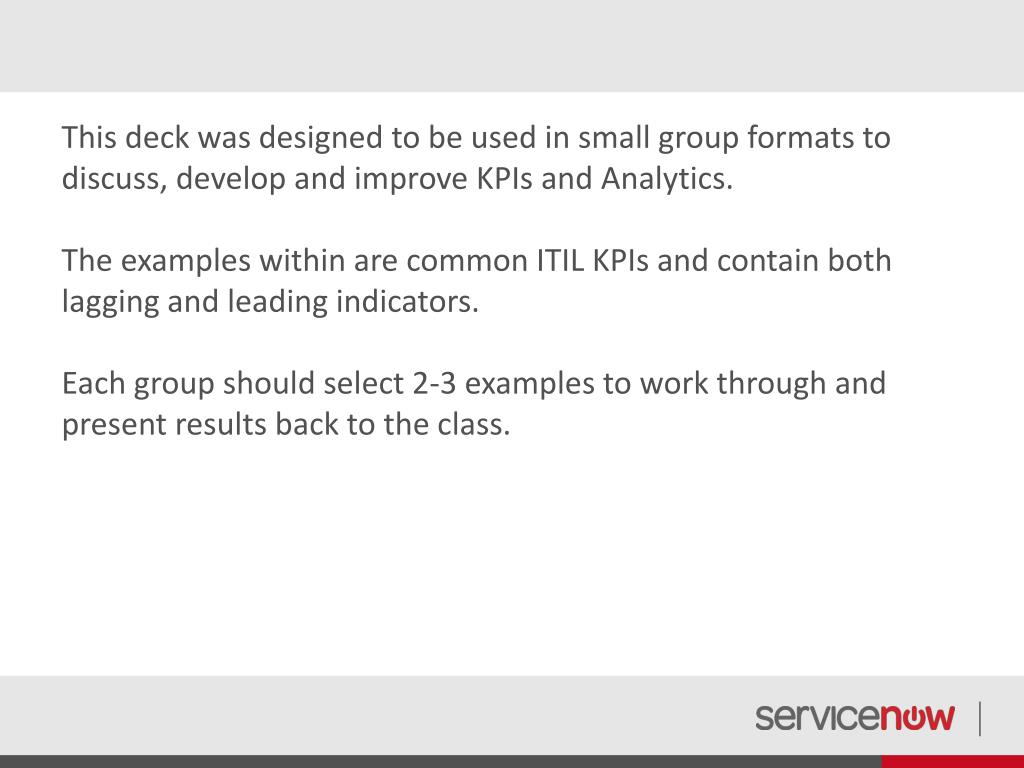

  2. This deck was designed to be used in small group formats to discuss, develop and improve KPIs and Analytics. The examples within are common ITIL KPIs and contain both lagging and leading indicators. Each group should select 2-3 examples to work through and present results back to the class.

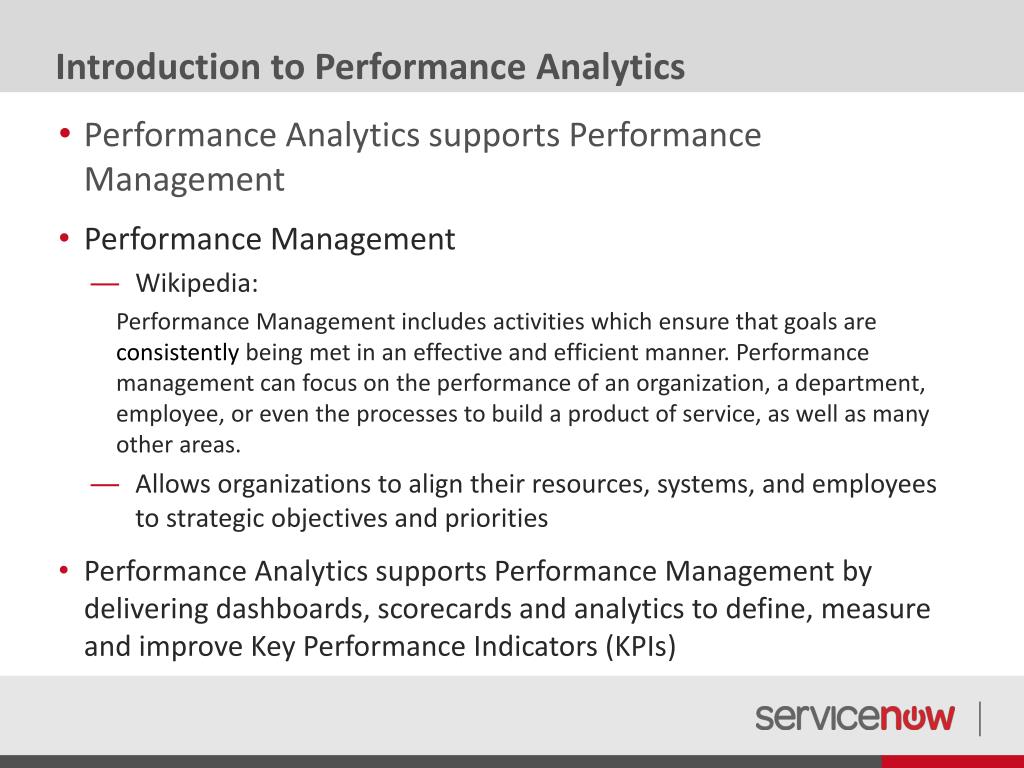

  3. Introduction to Performance Analytics • Performance Analytics supports Performance Management • Performance Management • Wikipedia: Performance Management includes activities which ensure that goals are consistently being met in an effective and efficient manner. Performance management can focus on the performance of an organization, a department, employee, or even the processes to build a product of service, as well as many other areas. • Allows organizations to align their resources, systems, and employees to strategic objectives and priorities • Performance Analytics supports Performance Management by delivering dashboards, scorecards and analytics to define, measure and improve Key Performance Indicators (KPIs)

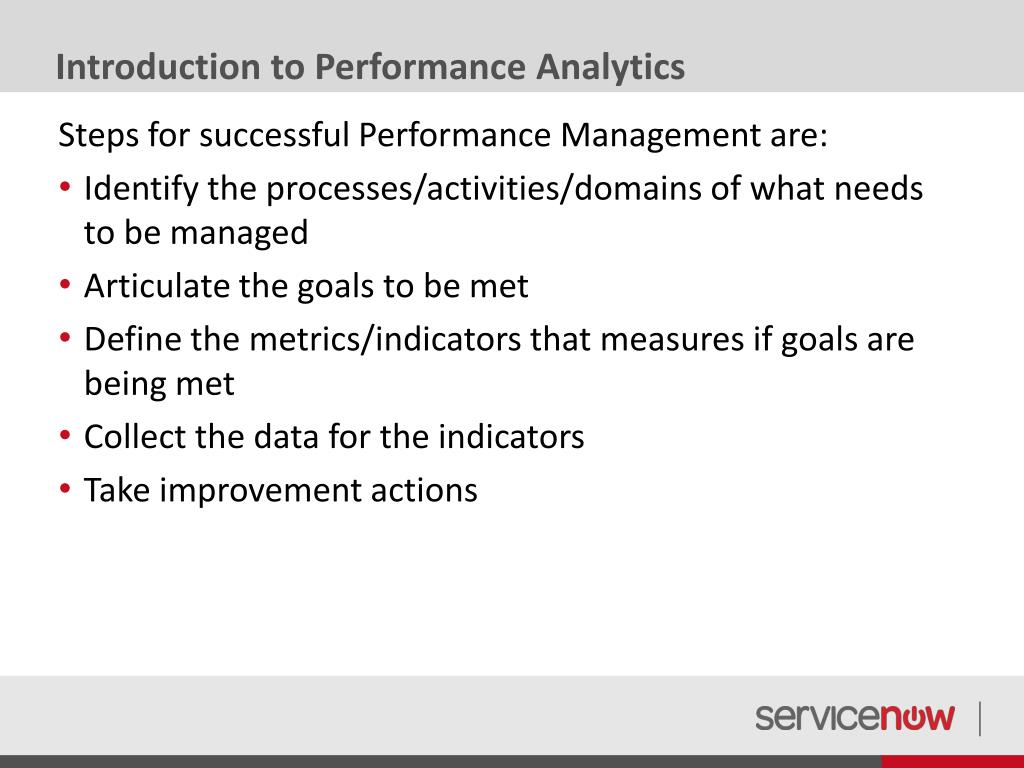

  4. Introduction to Performance Analytics Steps for successful Performance Management are: • Identify the processes/activities/domains of what needs to be managed • Articulate the goals to be met • Define the metrics/indicators that measures if goals are being met • Collect the data for the indicators • Take improvement actions

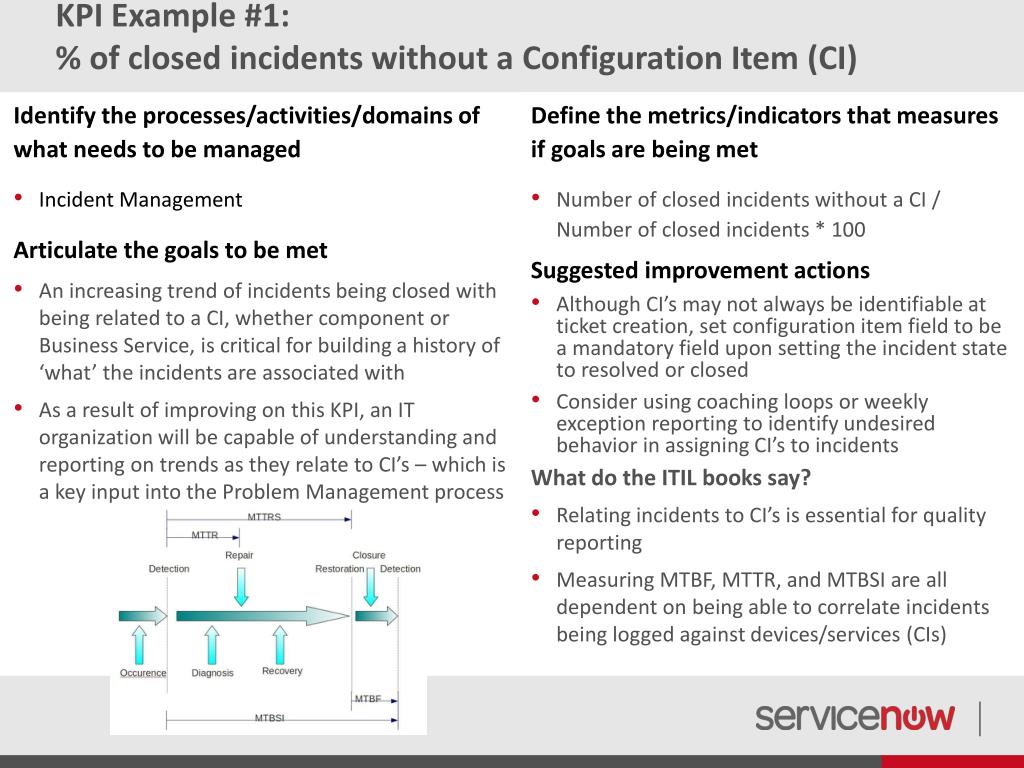

  5. KPI Example #1: % of closed incidents without a Configuration Item (CI) Define the metrics/indicators that measures if goals are being met • Number of closed incidents without a CI / Number of closed incidents * 100 Suggested improvement actions • Although CI’s may not always be identifiable at ticket creation, set configuration item field to be a mandatory field upon setting the incident state to resolved or closed • Consider using coaching loops or weekly exception reporting to identify undesired behavior in assigning CI’s to incidents What do the ITIL books say? • Relating incidents to CI’s is essential for quality reporting • Measuring MTBF, MTTR, and MTBSI are all dependent on being able to correlate incidents being logged against devices/services (CIs) Identify the processes/activities/domains of what needs to be managed Incident Management Articulate the goals to be met An increasing trend of incidents being closed with being related to a CI, whether component or Business Service, is critical for building a history of ‘what’ the incidents are associated with As a result of improving on this KPI, an IT organization will be capable of understanding and reporting on trends as they relate to CI’s – which is a key input into the Problem Management process

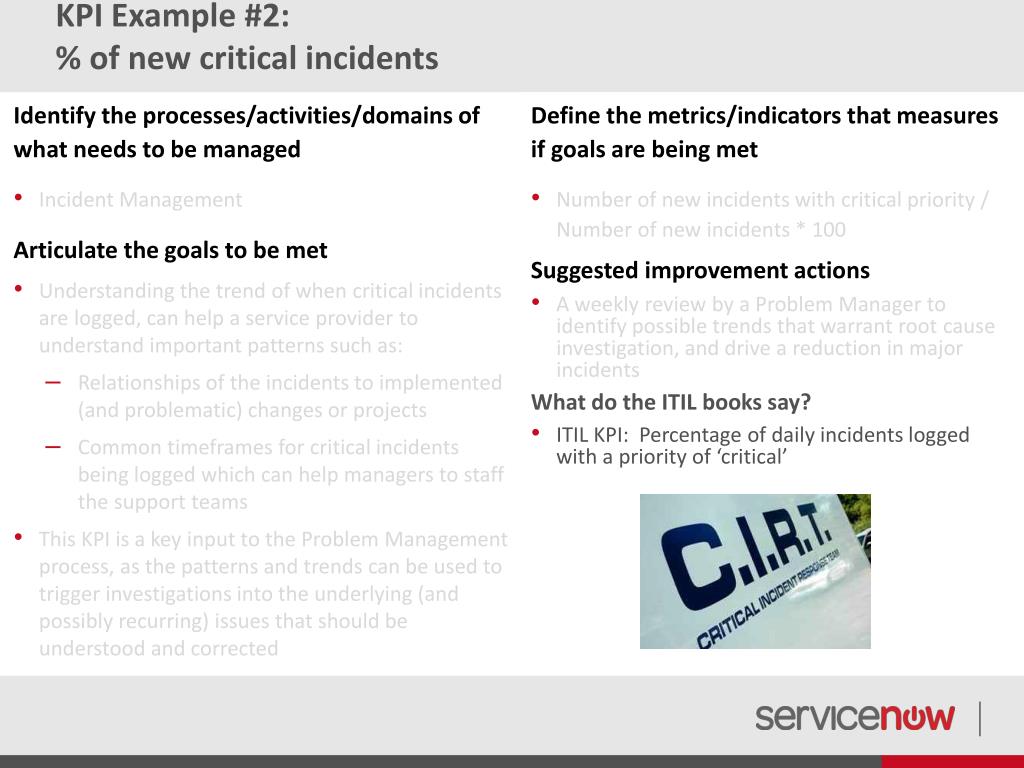

  6. KPI Example #2: % of new critical incidents Define the metrics/indicators that measures if goals are being met • Number of new incidents with critical priority / Number of new incidents * 100 Suggested improvement actions • A weekly review by a Problem Manager to identify possible trends that warrant root cause investigation, and drive a reduction in major incidents What do the ITIL books say? • ITIL KPI: Percentage of daily incidents logged with a priority of ‘critical’ Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • Understanding the trend of when critical incidents are logged, can help a service provider to understand important patterns such as: • Relationships of the incidents to implemented (and problematic) changes or projects • Common timeframes for critical incidents being logged which can help managers to staff the support teams • This KPI is a key input to the Problem Management process, as the patterns and trends can be used to trigger investigations into the underlying (and possibly recurring) issues that should be understood and corrected

  7. KPI Example #3: % of open and overdue incidents Define the metrics/indicators that measures if goals are being met • Number of overdue incidents (not closed and not solved within the established time frame) relative to the number of open (not closed) Suggested improvement actions • Use notifications to escalate SLA thresholds • A daily review of previous the previous days SLAs targets to identify breaches What do the ITIL books say? • ITIL KPI: Percentage of open incidents that have not been resolved within agreed timelines (SLA) • The desired direction for this KPI is for it to be reducing Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • A key element of quality service delivery is meeting and exceeding the expectations of your customers. • Customer expectations should be managed by quantifying (with customers) them into measureable SLAs. • Service providers who cannot consistently meet the agreed upon expectations of customers, will quickly be perceived as incapable. • These perceptions are very difficult to change, once they have been formed.

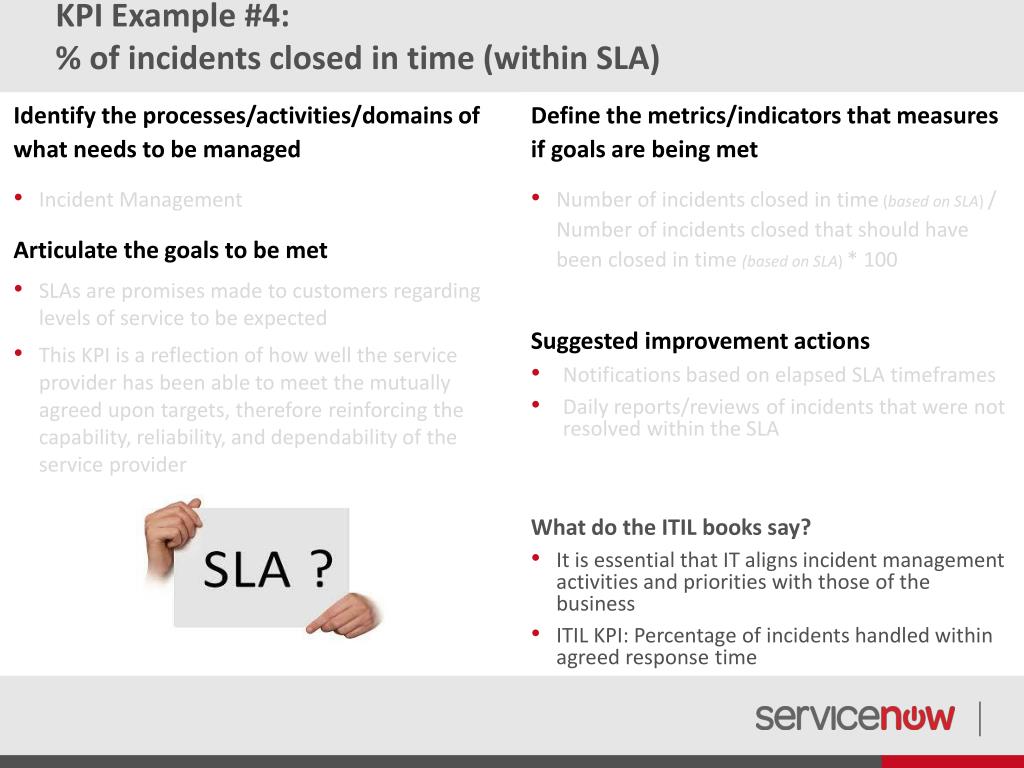

  8. KPI Example #4: % of incidents closed in time (within SLA) Define the metrics/indicators that measures if goals are being met • Number of incidents closed in time (based on SLA) / Number of incidents closed that should have been closed in time (based on SLA) * 100 Suggested improvement actions • Notifications based on elapsed SLA timeframes • Daily reports/reviews of incidents that were not resolved within the SLA What do the ITIL books say? • It is essential that IT aligns incident management activities and priorities with those of the business • ITIL KPI: Percentage of incidents handled within agreed response time Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • SLAs are promises made to customers regarding levels of service to be expected • This KPI is a reflection of how well the service provider has been able to meet the mutually agreed upon targets, therefore reinforcing the capability, reliability, and dependability of the service provider

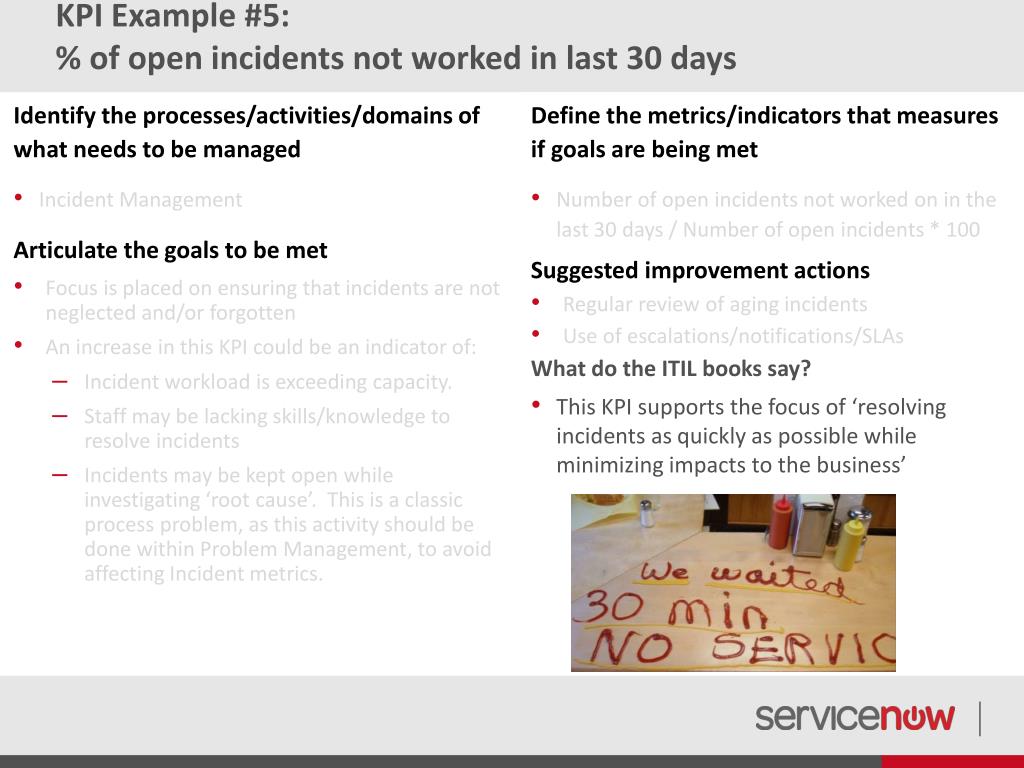

  9. KPI Example #5: % of open incidents not worked in last 30 days Define the metrics/indicators that measures if goals are being met • Number of open incidents not worked on in the last 30 days / Number of open incidents * 100 Suggested improvement actions • Regular review of aging incidents • Use of escalations/notifications/SLAs What do the ITIL books say? • This KPI supports the focus of ‘resolving incidents as quickly as possible while minimizing impacts to the business’ Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • Focus is placed on ensuring that incidents are not neglected and/or forgotten • An increase in this KPI could be an indicator of: • Incident workload is exceeding capacity. • Staff may be lacking skills/knowledge to resolve incidents • Incidents may be kept open while investigating ‘root cause’. This is a classic process problem, as this activity should be done within Problem Management, to avoid affecting Incident metrics.

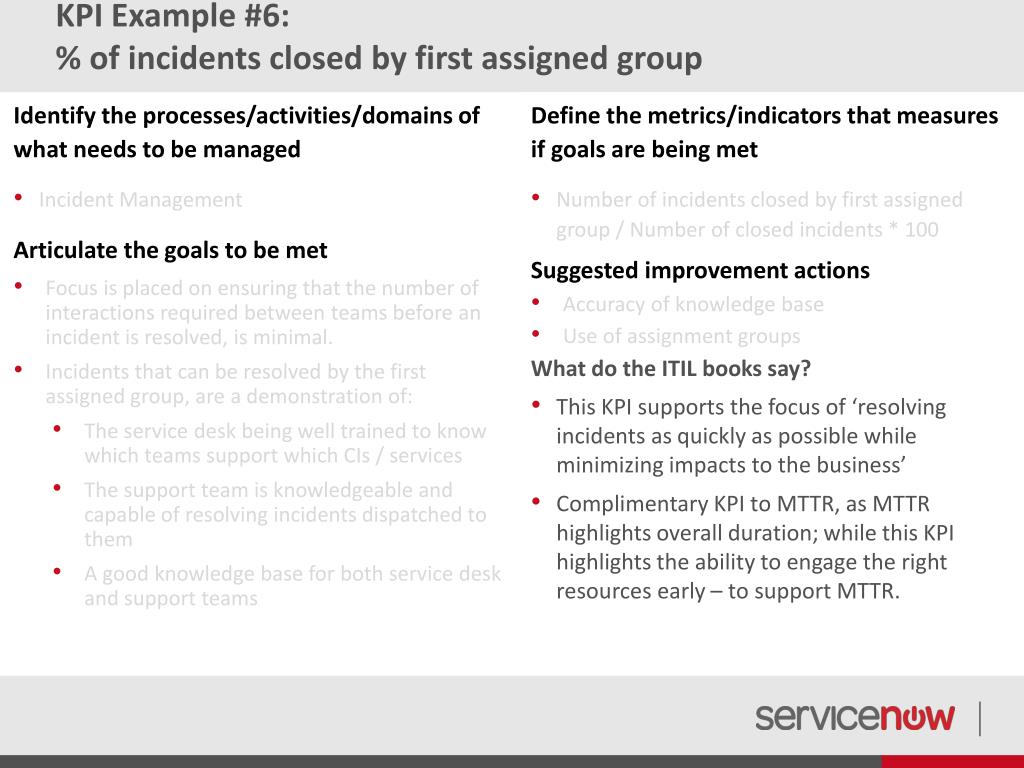

  10. KPI Example #6: % of incidents closed by first assigned group Define the metrics/indicators that measures if goals are being met • Number of incidents closed by first assigned group / Number of closed incidents * 100 Suggested improvement actions • Accuracy of knowledge base • Use of assignment groups What do the ITIL books say? • This KPI supports the focus of ‘resolving incidents as quickly as possible while minimizing impacts to the business’ • Complimentary KPI to MTTR, as MTTR highlights overall duration; while this KPI highlights the ability to engage the right resources early – to support MTTR. Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • Focus is placed on ensuring that the number of interactions required between teams before an incident is resolved, is minimal. • Incidents that can be resolved by the first assigned group, are a demonstration of: • The service desk being well trained to know which teams support which CIs / services • The support team is knowledgeable and capable of resolving incidents dispatched to them • A good knowledge base for both service desk and support teams

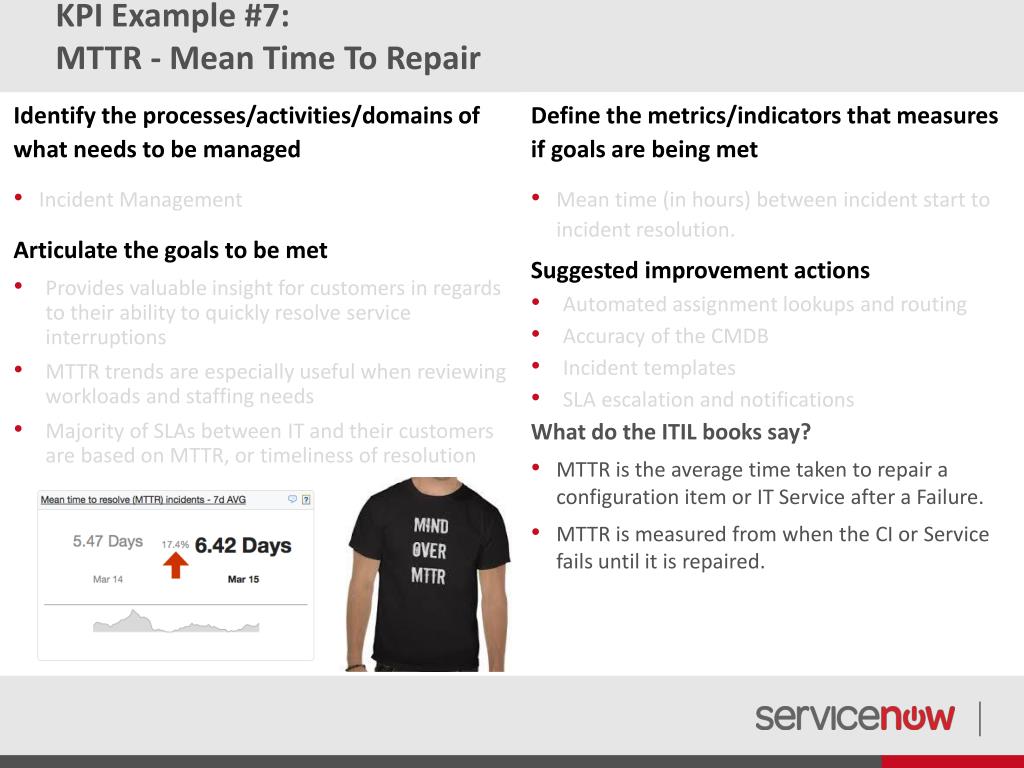

  11. KPI Example #7: MTTR - Mean Time To Repair Define the metrics/indicators that measures if goals are being met • Mean time (in hours) between incident start to incident resolution. Suggested improvement actions • Automated assignment lookups and routing • Accuracy of the CMDB • Incident templates • SLA escalation and notifications What do the ITIL books say? • MTTR is the average time taken to repair a configuration item or IT Service after a Failure. • MTTR is measured from when the CI or Service fails until it is repaired. Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • Provides valuable insight for customers in regards to their ability to quickly resolve service interruptions • MTTR trends are especially useful when reviewing workloads and staffing needs • Majority of SLAs between IT and their customers are based on MTTR, or timeliness of resolution

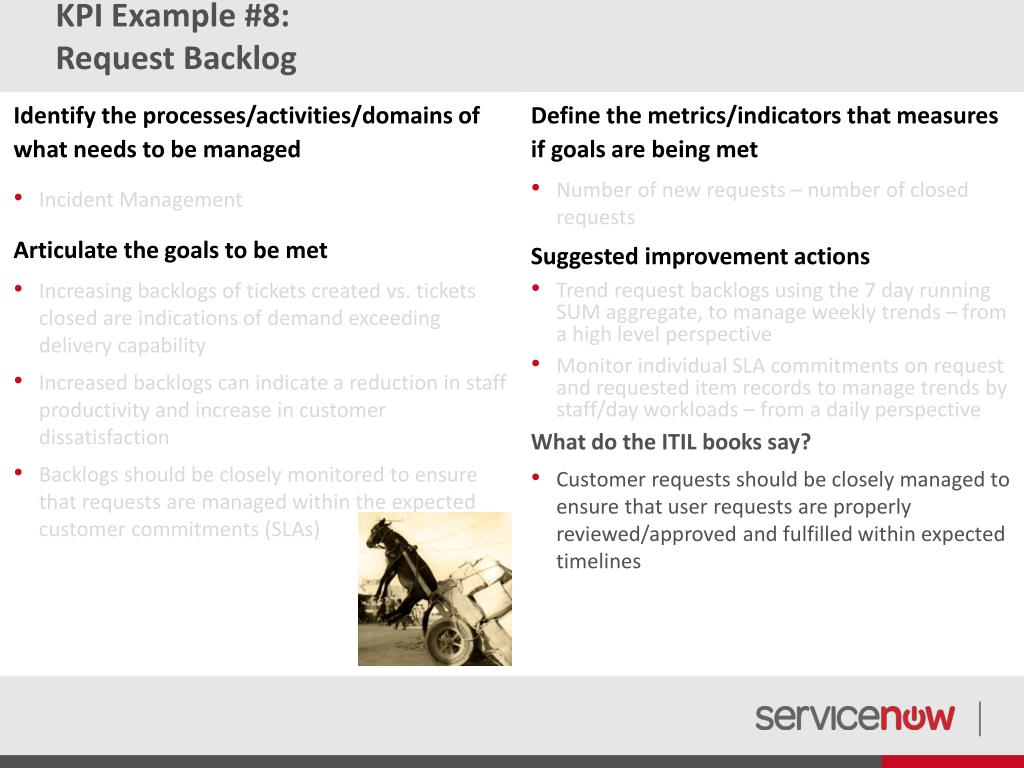

  12. KPI Example #8: Request Backlog Define the metrics/indicators that measures if goals are being met • Number of new requests – number of closed requests Suggested improvement actions • Trend request backlogs using the 7 day running SUM aggregate, to manage weekly trends – from a high level perspective • Monitor individual SLA commitments on request and requested item records to manage trends by staff/day workloads – from a daily perspective What do the ITIL books say? • Customer requests should be closely managed to ensure that user requests are properly reviewed/approved and fulfilled within expected timelines Identify the processes/activities/domains of what needs to be managed Incident Management Articulate the goals to be met Increasing backlogs of tickets created vs. tickets closed are indications of demand exceeding delivery capability Increased backlogs can indicate a reduction in staff productivity and increase in customer dissatisfaction Backlogs should be closely monitored to ensure that requests are managed within the expected customer commitments (SLAs)

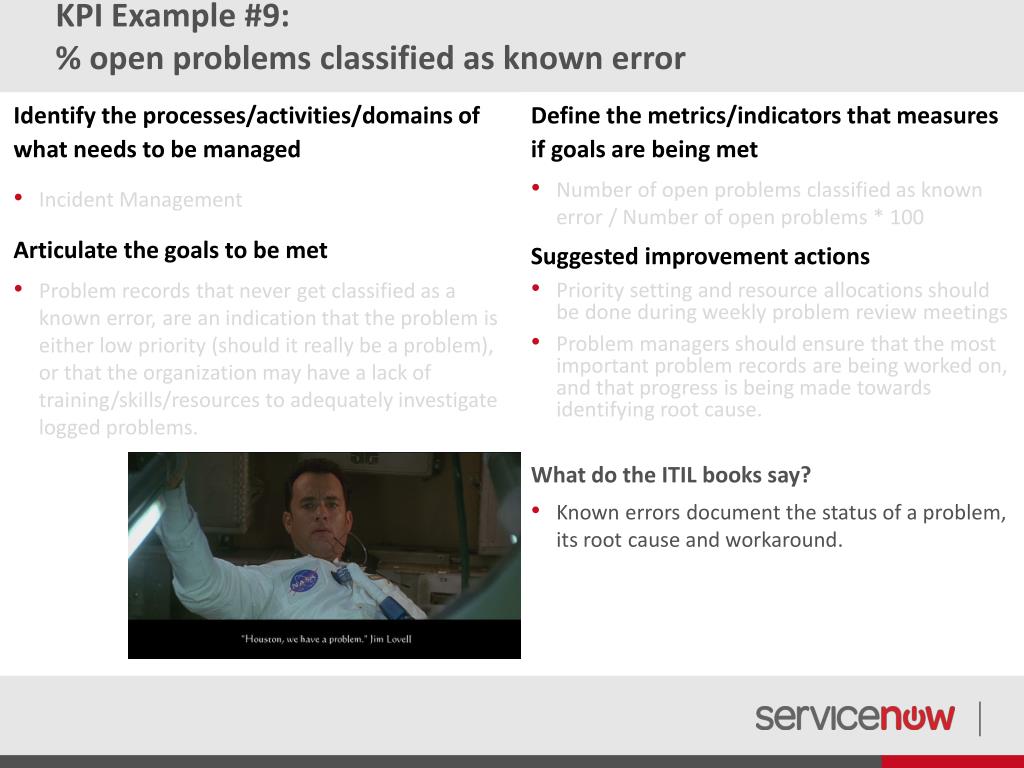

  13. KPI Example #9: % open problems classified as known error Define the metrics/indicators that measures if goals are being met • Number of open problems classified as known error / Number of open problems * 100 Suggested improvement actions • Priority setting and resource allocations should be done during weekly problem review meetings • Problem managers should ensure that the most important problem records are being worked on, and that progress is being made towards identifying root cause. What do the ITIL books say? • Known errors document the status of a problem, its root cause and workaround. Identify the processes/activities/domains of what needs to be managed Incident Management Articulate the goals to be met Problem records that never get classified as a known error, are an indication that the problem is either low priority (should it really be a problem), or that the organization may have a lack of training/skills/resources to adequately investigate logged problems.

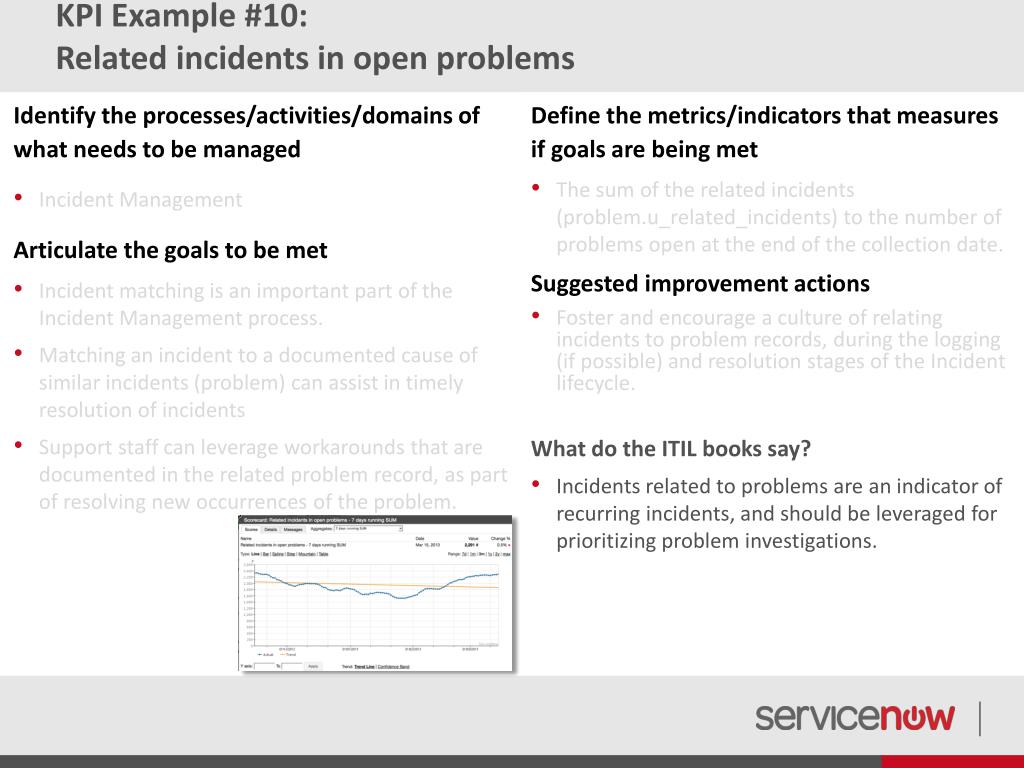

  14. KPI Example #10: Related incidents in open problems Define the metrics/indicators that measures if goals are being met • The sum of the related incidents (problem.u_related_incidents) to the number of problems open at the end of the collection date. Suggested improvement actions • Foster and encourage a culture of relating incidents to problem records, during the logging (if possible) and resolution stages of the Incident lifecycle. What do the ITIL books say? • Incidents related to problems are an indicator of recurring incidents, and should be leveraged for prioritizing problem investigations. Identify the processes/activities/domains of what needs to be managed Incident Management Articulate the goals to be met Incident matching is an important part of the Incident Management process. Matching an incident to a documented cause of similar incidents (problem) can assist in timely resolution of incidents Support staff can leverage workarounds that are documented in the related problem record, as part of resolving new occurrences of the problem.

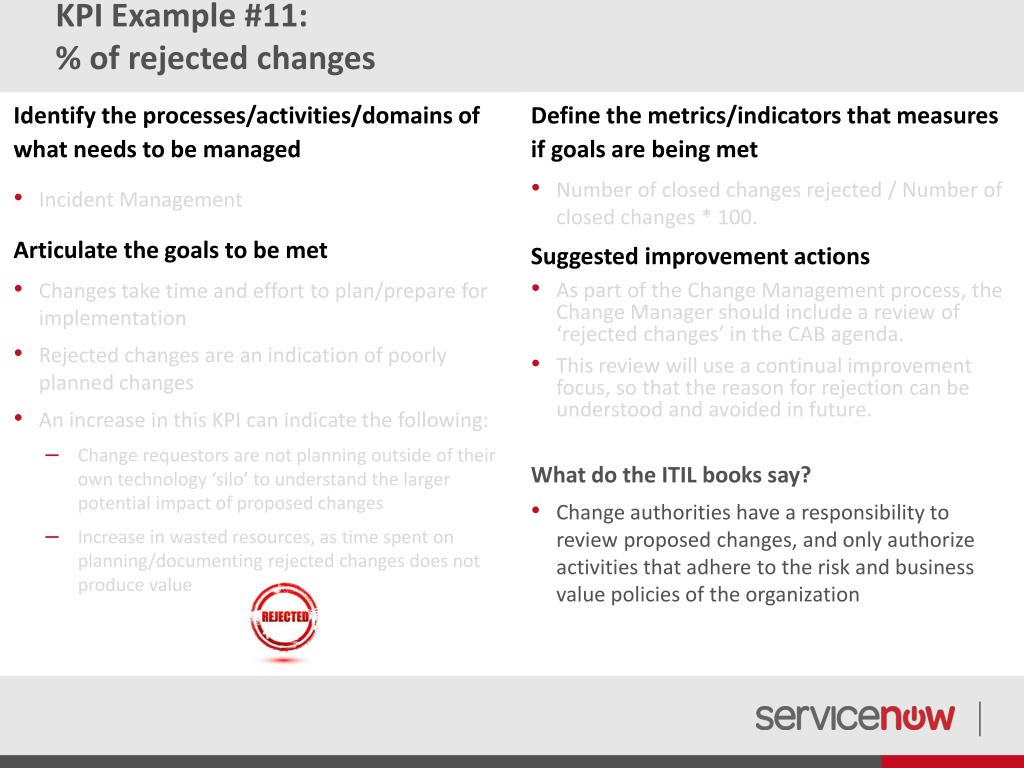

  15. KPI Example #11: % of rejected changes Define the metrics/indicators that measures if goals are being met • Number of closed changes rejected / Number of closed changes * 100. Suggested improvement actions • As part of the Change Management process, the Change Manager should include a review of ‘rejected changes’ in the CAB agenda. • This review will use a continual improvement focus, so that the reason for rejection can be understood and avoided in future. What do the ITIL books say? • Change authorities have a responsibility to review proposed changes, and only authorize activities that adhere to the risk and business value policies of the organization Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • Changes take time and effort to plan/prepare for implementation • Rejected changes are an indication of poorly planned changes • An increase in this KPI can indicate the following: • Change requestors are not planning outside of their own technology ‘silo’ to understand the larger potential impact of proposed changes • Increase in wasted resources, as time spent on planning/documenting rejected changes does not produce value

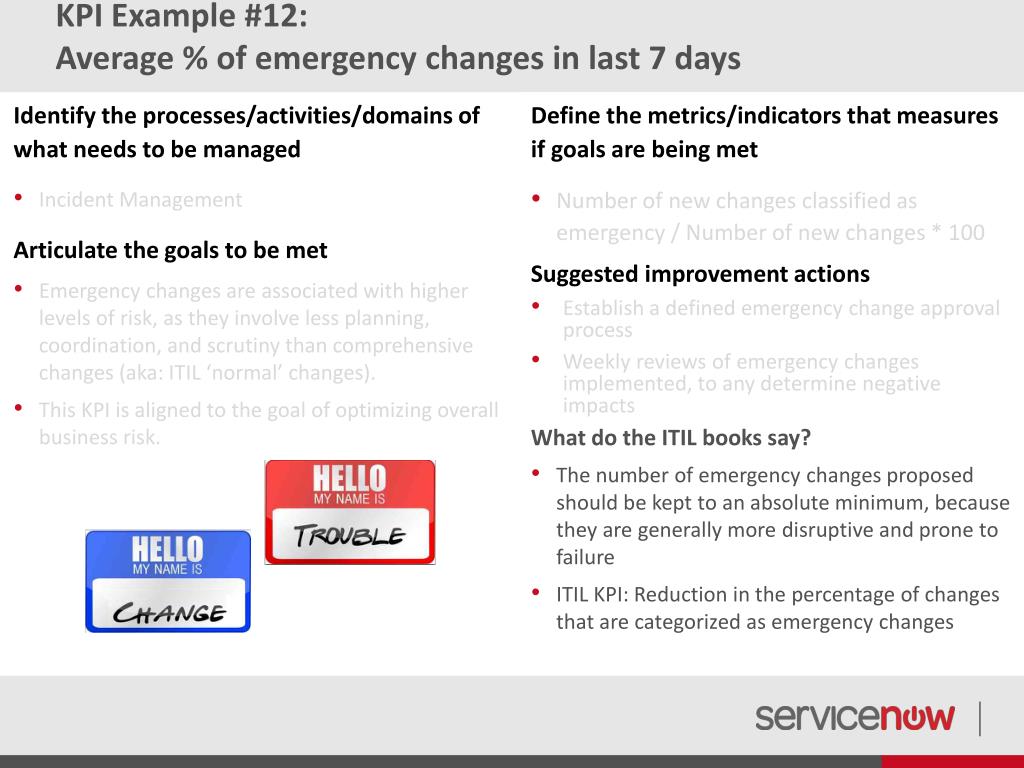

  16. KPI Example #12: Average % of emergency changes in last 7 days Define the metrics/indicators that measures if goals are being met • Number of new changes classified as emergency / Number of new changes * 100 Suggested improvement actions • Establish a defined emergency change approval process • Weekly reviews of emergency changes implemented, to any determine negative impacts What do the ITIL books say? • The number of emergency changes proposed should be kept to an absolute minimum, because they are generally more disruptive and prone to failure • ITIL KPI: Reduction in the percentage of changes that are categorized as emergency changes Identify the processes/activities/domains of what needs to be managed • Incident Management Articulate the goals to be met • Emergency changes are associated with higher levels of risk, as they involve less planning, coordination, and scrutiny than comprehensive changes (aka: ITIL ‘normal’ changes). • This KPI is aligned to the goal of optimizing overall business risk.

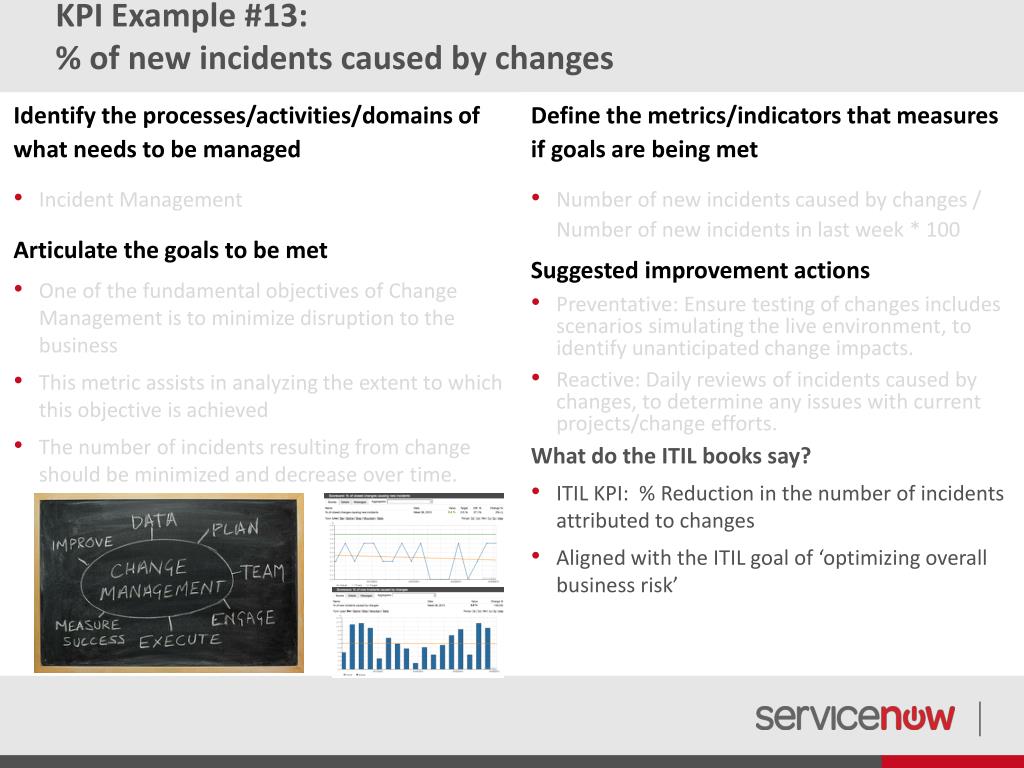

  17. KPI Example #13: % of new incidents caused by changes Define the metrics/indicators that measures if goals are being met • Number of new incidents caused by changes / Number of new incidents in last week * 100 Suggested improvement actions • Preventative: Ensure testing of changes includes scenarios simulating the live environment, to identify unanticipated change impacts. • Reactive: Daily reviews of incidents caused by changes, to determine any issues with current projects/change efforts. What do the ITIL books say? • ITIL KPI: % Reduction in the number of incidents attributed to changes • Aligned with the ITIL goal of ‘optimizing overall business risk’ Identify the processes/activities/domains of what needs to be managed Incident Management Articulate the goals to be met One of the fundamental objectives of Change Management is to minimize disruption to the business This metric assists in analyzing the extent to which this objective is achieved The number of incidents resulting from change should be minimized and decrease over time.

  18. KPI Example Bonus: Lost production days of closed incidents Define the metrics/indicators that measures if goals are being met ((([Closed incidents for Priority-Critical]a=0 * [Mean time to resolve (MTTR) incidents - Cumulative AVERAGE year to date]a=6 * [critical-incident people affected] * [Organization Size]) + ([Closed incidents for Priority-Urgent]a=4 * [Mean time to resolve (MTTR) incidents - Cumulative AVERAGE year to date]a=6 * [urgent-incidents affected people] * [Organization Size]) + ([Closed incidents for Priority-Moderate]a=18 * [Mean time to resolve (MTTR) incidents - Cumulative AVERAGE year to date]a=6 * [moderate-incidents affected people] * [Organization Size]) + ([Closed incidents for Priority-Normal]a=8 * [Mean time to resolve (MTTR) incidents - Cumulative AVERAGE year to date]a=6 * [normal-incidents affected people] * [Organization Size]) + ([Closed incidents for Priority-Low]a=6 *[Mean time to resolve (MTTR) incidents - Cumulative AVERAGE year to date]a=6 * [low-incidents affected people] * [Organization Size])) / 24) * [Productivity loss] What do the ITIL books say? • It is critically important to measure and understand the impact to the Business, or Service interruptions (aka: incidents) Identify the processes/activities/domains of what needs to be managed Incident Management Articulate the goals to be met To the Business, a loss of productivity means fewer products shipped, less items sold, more paid resources doing less It is important for service providers to understand the impact that IT services are having on the Business IT needs to be efficient and effective when delivering IT services, but must never lose visibility of the impact the quality of services has on its customers
