Presentation Transcript


Peripheral nerve injury l.jpg

Peripheral Nerve Injury

Neurosurgeon

Yoon Seung-Hwan


Anatomy l.jpg

Anatomy

  • Connective tissue

    - major tissue componant

    - epineurium, perineurium, endoneurium

  • Nerve tissue

    - axon, schwann cell


Peripheral nerve injury4 l.jpg

Peripheral Nerve Injury

  • Acute injury

  • Chronic injury

    (entrapment neuropathy)


Slide5 l.jpg

Classification


Neuropraxia l.jpg

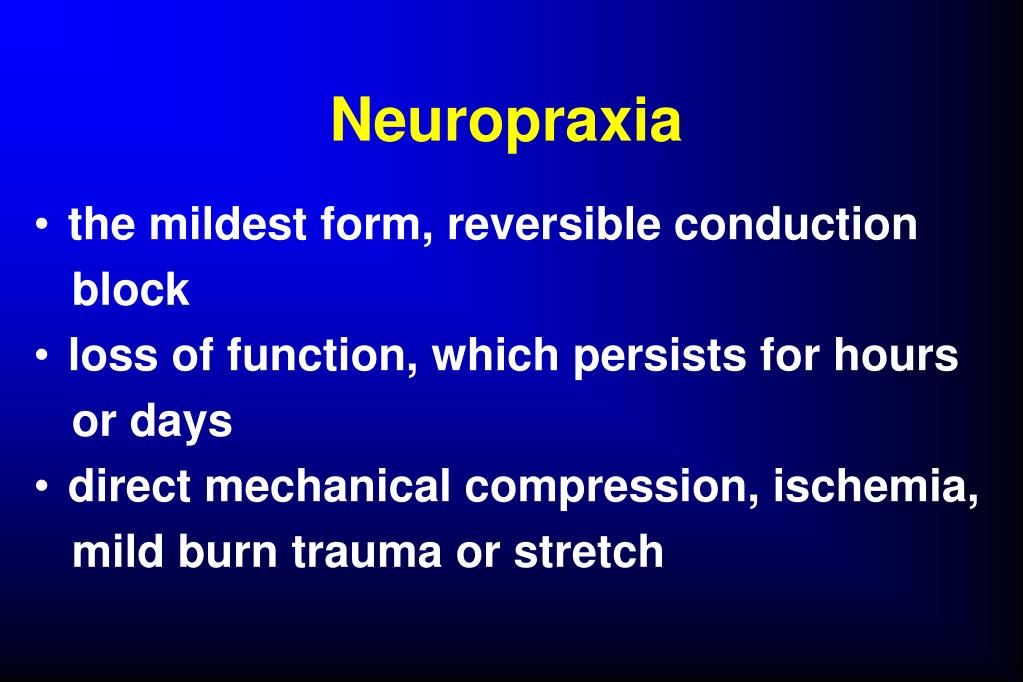

Neuropraxia

  • the mildest form, reversible conduction

    block

  • loss of function, which persists for hours

    or days

  • direct mechanical compression, ischemia,

    mild burn trauma or stretch


Axontmetic l.jpg

Axontmetic

  • axon continuity is disrupted

  • fascicular integrity is maintained

  • Wallerian degeneration occurs


Neurotmesis l.jpg

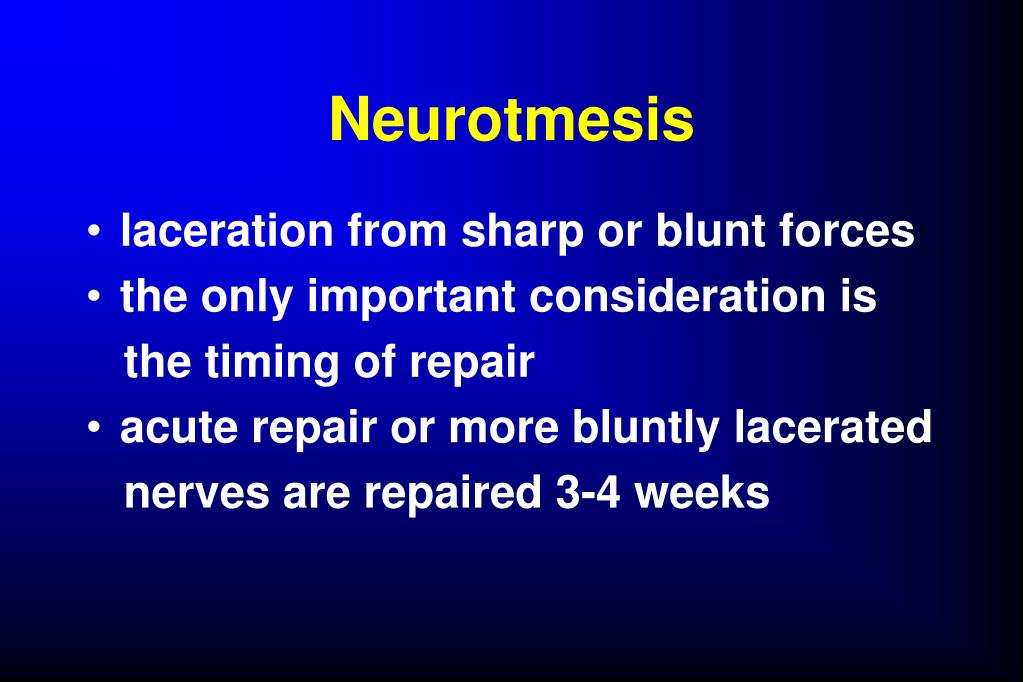

Neurotmesis

  • laceration from sharp or blunt forces

  • the only important consideration is

    the timing of repair

  • acute repair or more bluntly lacerated

    nerves are repaired 3-4 weeks


Factor s for decision making l.jpg

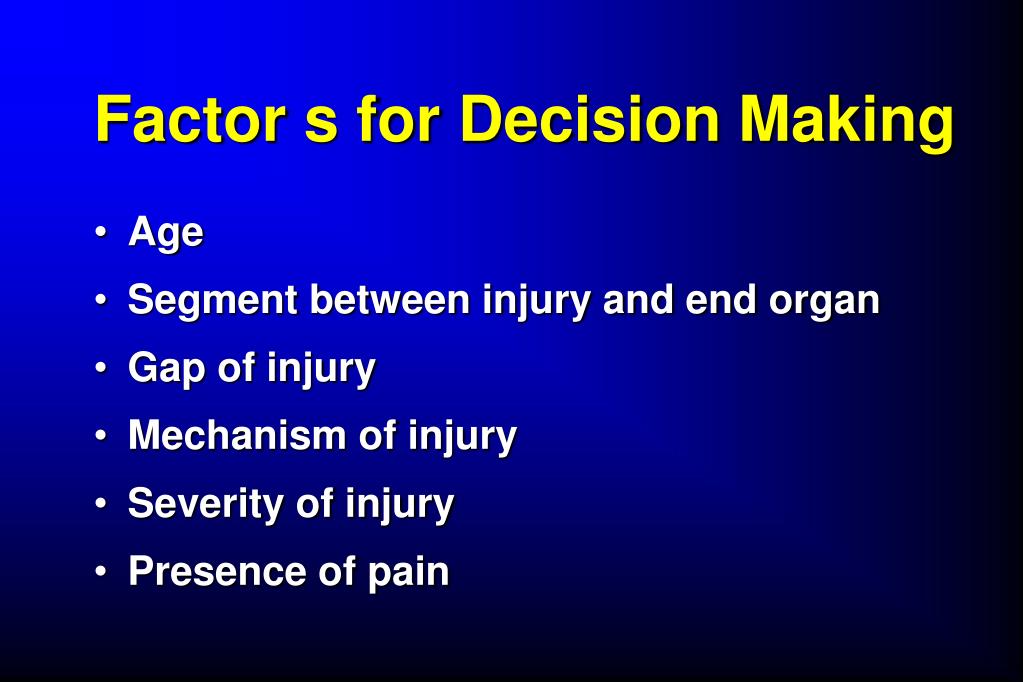

Factor s for Decision Making

  • Age

  • Segment between injury and end organ

  • Gap of injury

  • Mechanism of injury

  • Severity of injury

  • Presence of pain


Axonal regeneration l.jpg

Axonal Regeneration

  • Initial delay

    to the distal stump : 1-2 week delay

  • Growth rate

    1mm/day, 1 inch/month

  • Terminal delay

    several weeks-several months

    Recovery within 6 weeks good prognosis


Slide11 l.jpg

Acute Denervation

Fibrillation potentials and

positive sharp waves


Slide12 l.jpg

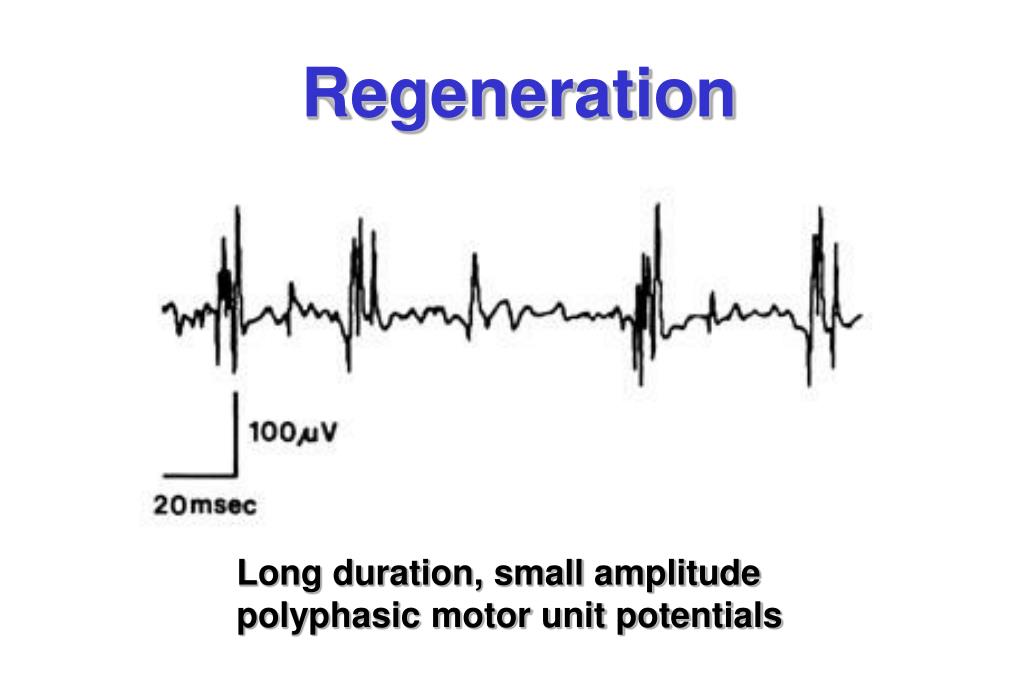

Regeneration

Long duration, small amplitude

polyphasic motor unit potentials


Clinical signs l.jpg

Diagnosis

Clinical Signs

  • Motor function

  • Tinel’s sign

    positive-sensory function

    negative(after 4-6weeks)-total interruption

  • Sweating-sympathetic fiber

  • Sensory function


Tinel s sign l.jpg

Tinel’s sign

  • advancing along the anatomical distribution of the nerve, particularly if it is does so at the expected rate of nerve regeneration, then this provides evidence of ongoing regeneration.


Electrophysiological tests l.jpg

Diagnosis

Electrophysiological Tests

  • EMG

  • SNAP

  • SSEP

  • Intraoperative NAP


Slide16 l.jpg

EMG

SNAP


Slide17 l.jpg

SSEP


Slide18 l.jpg

Intraoperative NAP


Muscle atrophy l.jpg

Muscle Atrophy

  • 24 month rule

    -2년 이상 지속 시 muscle scar tissue로 대치되기 때문 에 (비가역변화) 회복불가

  • Muscle atrophy

    start : post-injury 1 month

    peak : 3rd - 4th month

  • Segment between injury and end organ


Time of operation l.jpg

Treatment

Time of Operation

  • Open injury

    Early intervention

    Delayed intervention

  • Closed injury

    Delayed intervention


Early intervention l.jpg

Early Intervention

  • Enlarging hematoma/aneurysmal sac

  • Predisposing to Volkmann’s ischemic contracture

  • Severe noncausalsic pain SD

  • Injury to N. in areas of potential entrapment

  • Simple, clean lacerating injury


Delayed intervention l.jpg

Delayed Intervention

  • 2-3 months after injury

  • No clinical or substantial recovery

  • 장점

    1. 손상범위를 정확히 알 수 있다.

    2. 동반손상의 치유로 감염을 줄인다.

    3. Epineurium이 두꺼워져 봉합이 쉽다.

    4. 계획수술로 정확한 수술이 가능하다.


Operations l.jpg

Operations

  • Neurolysis : internal/external

  • Nerve repair

    end-to-end repair : epineural/fascicular

    autologous graft : sural N.

  • Neurotization

    intercostal N./accessory N./cervical plexus

    within 1 year

  • Muscle and tendon transfer


Slide24 l.jpg

Epineural Repair


Slide25 l.jpg

Fascicular Repair


Slide26 l.jpg

Nerve Graft

# leading cause of failure of nerve graft

  • Inadequate resection

  • Distraction of repair site


Postoperative care l.jpg

Postoperative Care

  • Neurolysis : 수술직후부터 운동시작

  • End-to-end repair :3주 이상 고정

    6주까지 서서히 운동

  • Graft:좀 더 일찍 운동 허용

    과도한 관절운동은 피한다


Slide28 l.jpg

Injured Peripheral Nerve


Slide29 l.jpg

Evaluation of Closed Injury


Conclusions l.jpg

Conclusions

1. Immediate primary repair in sharp injuries with suspected transsection of nerve

Immediate repair is especially important for brachial plexus and sciatic nerve transsections because delay leads not only to retraction but also to severe scaring

Bluntly transsected nerve best repaired after a delay of several weeks.

  • A focally injured nerve should be explored if no functional return within 8-10 weeks

    3. Decision - making as to whether neurolysis or resection & repair in a lesion in gross continuity based on intraoperative electrophysiological evaluation


Slide31 l.jpg

Conclusions

4. Split repair with usually graft - lesion in continuity가 partial function or undergoing partial regeneration

5. Careful patient selection for operation

- 특히 plexus involved 시

6. Nerve anastomosis 의 failure 주원인은

① inadequate resectin of scarred nerve ends

② nerve suture distration

7. A good end result requiring rehabilitation from onset of treatment. Prevention of disuse, relief of pain, predicting probable end results of operative procedures.


Chronic injuries of peripheral nerves by entrapment l.jpg

Chronic Injuries of Peripheral Nerves by Entrapment

  • Pain

  • Paresthesia

  • Loss of function


Pathophysiology of entrapment l.jpg

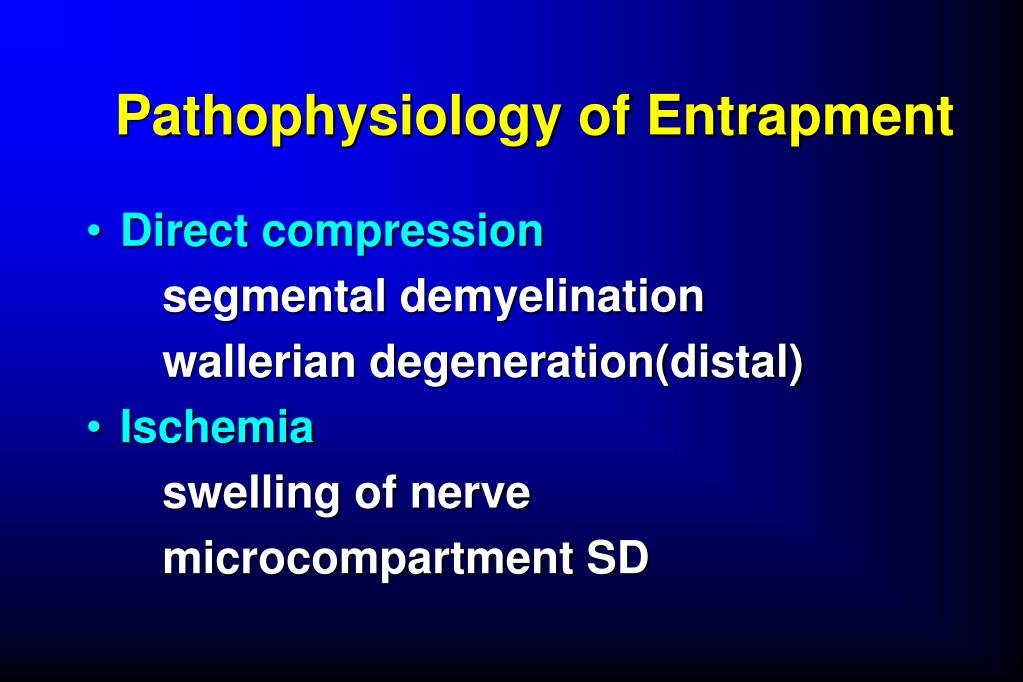

Pathophysiology of Entrapment

  • Direct compression

    segmental demyelination

    wallerian degeneration(distal)

  • Ischemia

    swelling of nerve

    microcompartment SD


Conservative tx l.jpg

Treatment

Conservative Tx

  • Indications

    not long history

    mild-moderate, intermittent

    reversible cause

    pregnancy, oral contraceptive, endocrine abnormalities(DM…), type writer

  • Method

    nonsteroidal anti-inflammatory drugs

    splint


Surgical indications l.jpg

Treatment

Surgical Indications

  • Failed conservative tx

  • Typical clinical finding

    with electrodiagnostic data

  • Severe

    sensory loss

    muscle atrophy

    motor weakness


Slide36 l.jpg

Entrapment of Thoracic Outlet

  • 원 인

    -Cervial rib or anomalous transverse process of C7

    -Fibromuscular bands or scalene muscle abnomality

  • 진 단

    - X-ray

    - NCV & EMG

    - Angiography – vascular anomaly

  • Tx : Supraclavicular approach

    - Best op. management


Slide37 l.jpg

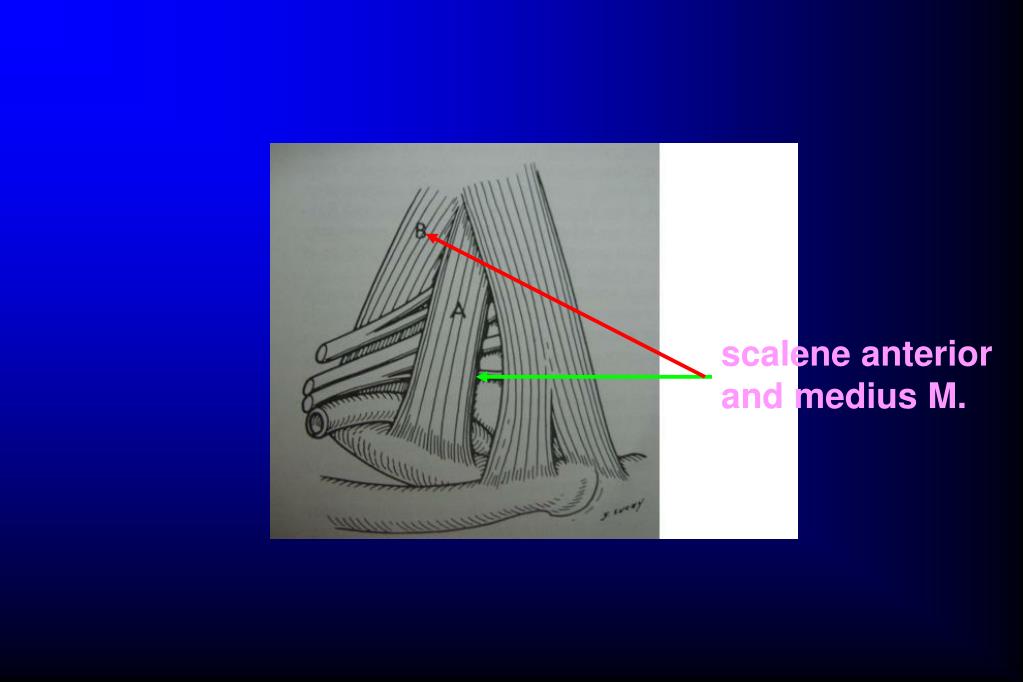

scalene anterior

and medius M.


Slide38 l.jpg

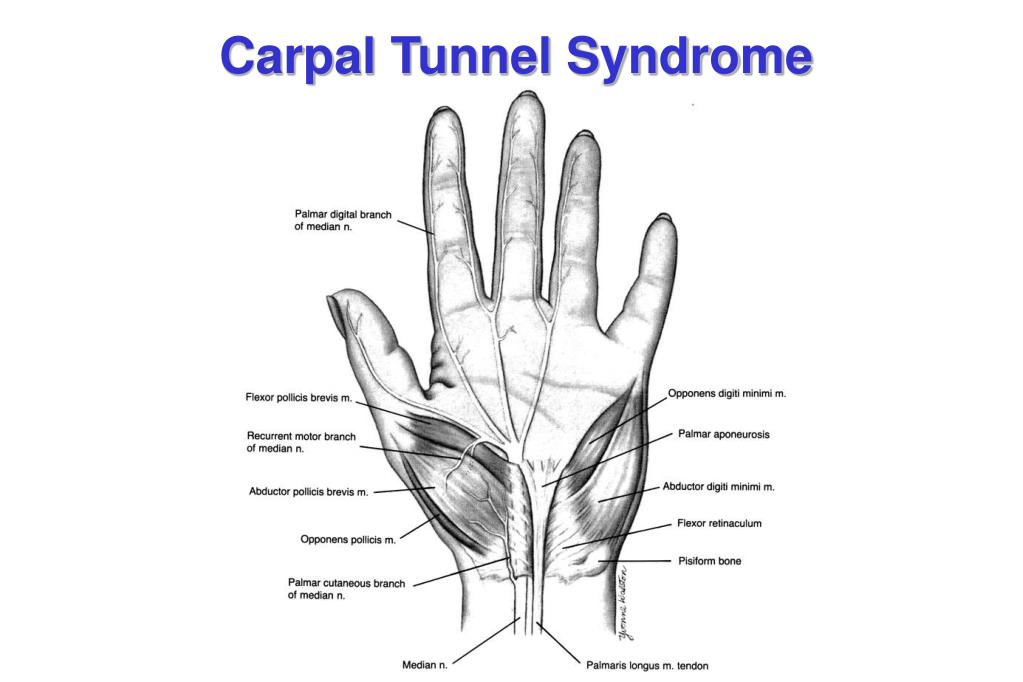

Carpal Tunnel Syndrome


Slide39 l.jpg

thenal atrophy


Slide42 l.jpg

Entrapment of Radial Nerve


Slide43 l.jpg

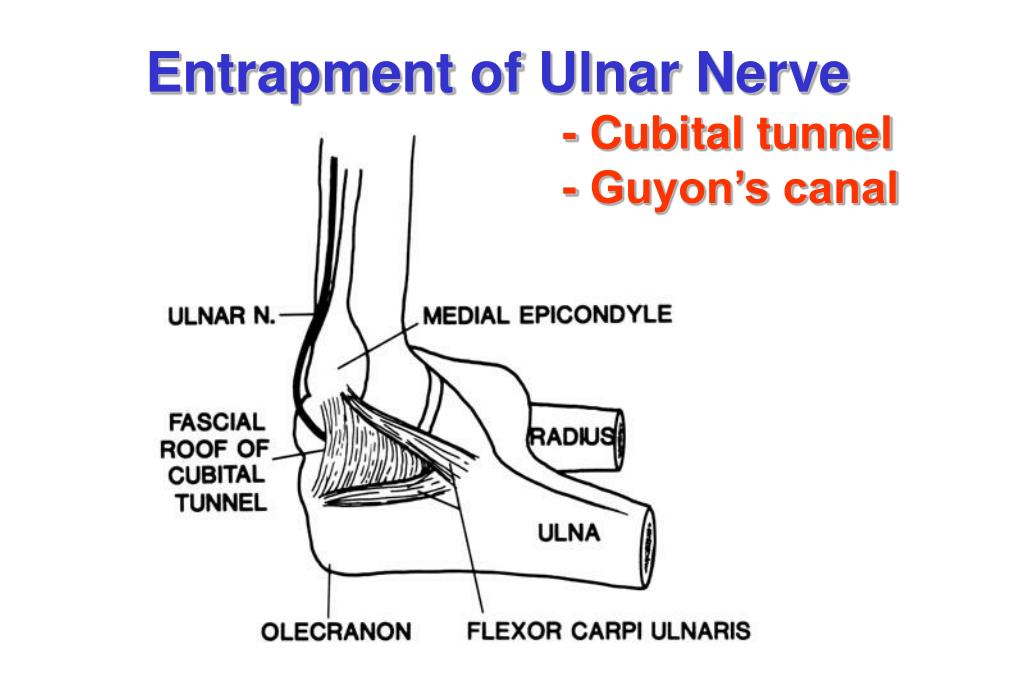

Entrapment of Ulnar Nerve

- Cubital tunnel

- Guyon’s canal


Slide44 l.jpg

Motor Deficit of Ulnar Nerve

  • Bediction posture:clawing of ring & small finger

  • Froment’s sign : weakness of adductor pollicis, there will be flexion of the interphalangeal joint of the thumb because of substitution of the median innervated flexior pollicus longus for a weak adductor pollicis


Slide47 l.jpg

Meralgia Paresthesia

Lateral femoral cutaneous nerve injury (L1-2)


Slide48 l.jpg

Tarsal Tunnel Syndrome
