V. I. R. V = IR. Ohm’s Law. V = voltage, units are Volts (V) I = current, units are Amperes or Amps (A) R = resistance, units are ohms ( ). Example:. 1. What voltage is needed to produce a 0.3 A current through a 100  resistor?. V = IR. = (0.3 A)(100 ). = 30 V. 20 . 10 .

roch
Download Presentation

V = IR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. V I R V = IR Ohm’s Law V = voltage, units are Volts (V) I = current, units are Amperes or Amps (A) R = resistance, units are ohms () Example: 1. What voltage is needed to produce a 0.3 A current through a 100  resistor? V = IR = (0.3 A)(100 ) = 30 V

  2. 20  10  V = 9 V Simple Circuits: One resistor R = 10  I = V/R = (10 V)/(10 ) = 1 A V = 10 V Circuits with more than one resistor in SERIES The current has to go through both resistors so the two resistances add together Rtot = 10  + 20  = 30  I = V/Rtot = (9 V)/(30 ) = 0.3 A

  3. 20  10  V = 9 V How much voltage is lost at each resistor? Already know that the current through the circuit is 0.3 A so... V = IR = (0.3 A)(10 ) = 3 V V = IR = (0.3 A)(20 ) = 6 V The total voltage dropped at all of the resistors in the circuit have to add up to the voltage of the original power source.

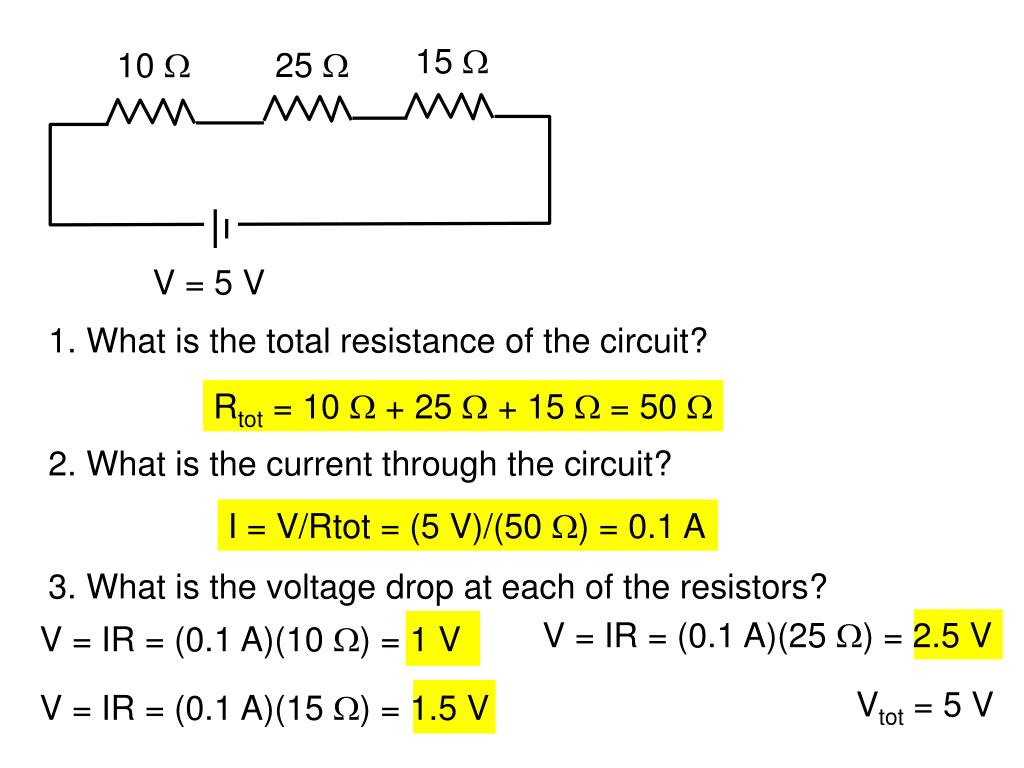

  4. 15  25  10  V = 5 V V = IR = (0.1 A)(25 ) = 2.5 V V = IR = (0.1 A)(10 ) = 1 V V = IR = (0.1 A)(15 ) = 1.5 V 1. What is the total resistance of the circuit? 2. What is the current through the circuit? 3. What is the voltage drop at each of the resistors? Rtot = 10  + 25  + 15  = 50  I = V/Rtot = (5 V)/(50 ) = 0.1 A Vtot = 5 V

  5. 10  5  V = 10 V What does the current do if the resistors are in PARALLEL? The voltage source ‘sees’ the two resistors as being just ONE. The voltage drop across both of them is the same. The current through the 10  branch of the circuit is: I = V/R = (10 V)/(10 ) = 1 A The current through the 5  branch of the circuit is: I = V/R = (10 V)/(5 ) = 2 A The total current through the circuit is 3 A.

  6. 10  5  V = 10 V How do the resistors combine in a Parallel circuit? Rtot = 3.3  Just to check: I = V/R = (10 V)/(3.3 ) = 3 A

  7. P = IV P = V2 R Power Like with work, electrical power is the amount of electrical work done per second. The units of power are Watts (W) It can be calculated from current and voltage using: Or it can be calculated from voltage and resistance using:

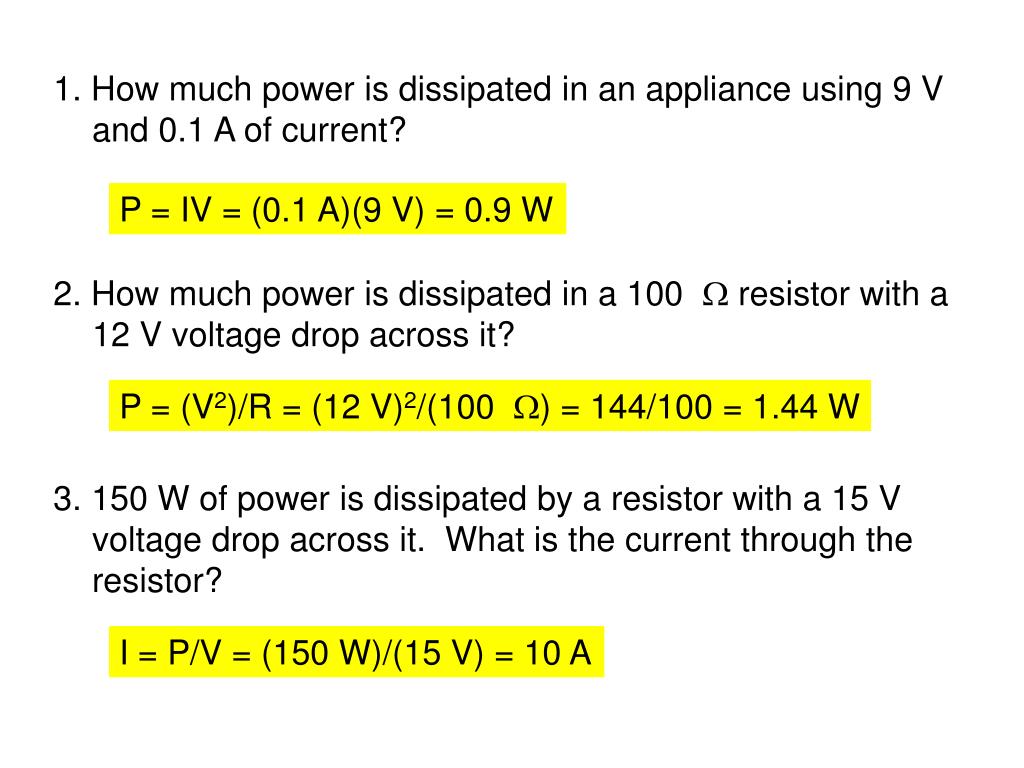

  8. 1. How much power is dissipated in an appliance using 9 V and 0.1 A of current? 2. How much power is dissipated in a 100  resistor with a 12 V voltage drop across it? 3. 150 W of power is dissipated by a resistor with a 15 V voltage drop across it. What is the current through the resistor? P = IV = (0.1 A)(9 V) = 0.9 W P = (V2)/R = (12 V)2/(100 ) = 144/100 = 1.44 W I = P/V = (150 W)/(15 V) = 10 A
