Reliable Distributed Systems

Reliable Distributed Systems Fault Tolerance (Recoverability  High Availability)

Reliability and transactions • Transactions are well matched to database model and recoverability goals • Transactions don’t work well for non-database applications (general purpose O/S applications) or availability goals (systems that must keep running if applications fail) • When building high availability systems, encounter replication issue

Types of reliability • Recoverability • Server can restart without intervention in a sensible state • Transactions do give us this • High availability • System remains operational during failure • Challenge is to replicate critical data needed for continued operation

Replicating a transactional server • Two broad approaches • Just use distributed transactions to update multiple copies of each replicated data item • We already know how to do this, with 2PC • Each server has “equal status” • Somehow treat replication as a special situation • Leads to a primary server approach with a “warm standby”

Replication with 2PC • Our goal will be “1-copy serializability” • Defined to mean that the multi-copy system behaves indistinguishably from a single-copy system • Considerable form and theoretical work has been done on this • As a practical matter • Replicate each data item • Transaction manager • Reads any single copy • Updates all copies

Observation • Notice that transaction manager must know where the copies reside • In fact there are two models • Static replication set: basically, the set is fixed, although some members may be down • Dynamic: the set changes while the system runs, but only has operational members listed within it • Today stick to the static case

Replication and Availability • A series of potential issues • How can we update an object during periods when one of its replicas may be inaccessible? • How can 2PC protocol be made fault-tolerant? • A topic we’ll study in more depth • But the bottom line is: we can’t!

Usual responses? • Quorum methods: • Each replicated object has an update and a read quorum • Designed so Qu+Qr > # replicas and Qu+Qu > # replicas • Idea is that any read or update will overlap with the last update

Quorum example • X is replicated at {a,b,c,d,e} • Possible values? • Qu = 1, Qr = 5 (violates QU+Qu > 5) • Qu = 2, Qr = 4 (same issue) • Qu = 3, Qr = 3 • Qu = 4, Qr = 2 • Qu = 5, Qr = 1 (violates availability) • Probably prefer Qu=4, Qr=2

Things to notice • Even reading a data item requires that multiple copies be accessed! • This could be much slower than normal local access performance • Also, notice that we won’t know if we succeeded in reaching the update quorum until we get responses • Implies that any quorum replication scheme needs a 2PC protocol to commit

Next issue? • Now we know that we can solve the availability problem for reads and updates if we have enough copies • What about for 2PC? • Need to tolerate crashes before or during runs of the protocol • A well-known problem

Availability of 2PC • It is easy to see that 2PC is not able to guarantee availability • Suppose that manager talks to 3 processes • And suppose 1 process and manager fail • The other 2 are “stuck” and can’t terminate the protocol

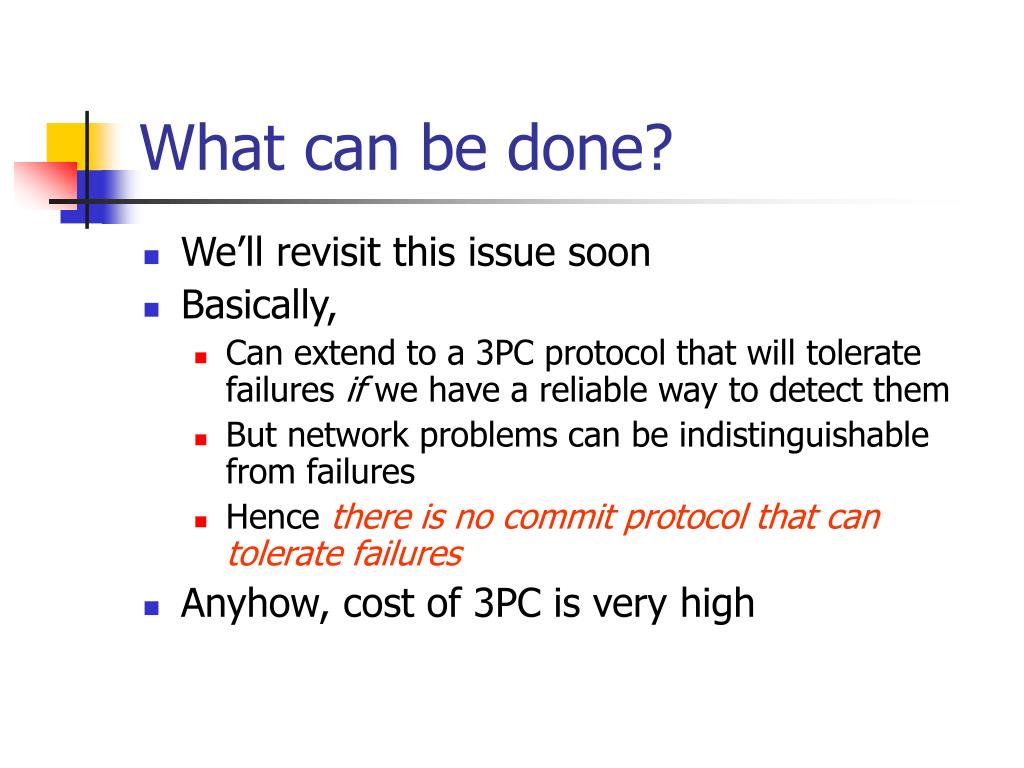

What can be done? • We’ll revisit this issue soon • Basically, • Can extend to a 3PC protocol that will tolerate failures if we have a reliable way to detect them • But network problems can be indistinguishable from failures • Hence there is no commit protocol that can tolerate failures • Anyhow, cost of 3PC is very high

A quandry? • We set out to replicate data for increased availability • And concluded that • Quorum scheme works for updates • But commit is required • And represents a vulnerability • Other options?

Other options • We mentioned primary-backup schemes • These are a second way to solve the problem • Based on the log at the data manager

Server replication • Suppose the primary sends the log to the backup server • It replays the log and applies committed transactions to its replicated state • If primary crashes, the backup soon catches up and can take over

Primary/backup primary backup log Clients initially connected to primary, which keeps backup up to date. Backup tracks log

Primary/backup primary backup Primary crashes. Backup sees the channel break, applies committed updates. But it may have missedthe last few updates!

Primary/backup primary backup Clients detect the failure and reconnect to backup. Butsome clients may have “gone away”. Backup state couldbe slightly stale. New transactions might suffer from this

Issues? • Under what conditions should backup take over • Revisits the consistency problem seen earlier with clients and servers • Could end up with a “split brain” • Also notice that still needs 2PC to ensure that primary and backup stay in same states!

Split brain: reminder primary backup log Clients initially connected to primary, which keeps backup up to date. Backup follows log

Split brain: reminder primary backup Transient problem causes some links to break but not all. Backup thinks it is now primary, primary thinks backup is down

Split brain: reminder primary backup Some clients still connected to primary, but one has switched to backup and one is completely disconnected from both

Implication? • A strict interpretation of ACID leads to conclusions that • There are no ACID replication schemes that provide high availability • Most real systems solve by weakening ACID

Real systems • They use primary-backup with logging • But they simply omit the 2PC • Server might take over in the wrong state (may lag state of primary) • Can use hardware to reduce or eliminate split brain problem

How does hardware help? • Idea is that primary and backup share a disk • Hardware is configured so only one can write the disk • If server takes over it grabs the “token” • Token loss causes primary to shut down (if it hasn’t actually crashed)

Reconciliation • This is the problem of fixing the transactions impacted by lack of 2PC • Usually just a handful of transactions • They committed but backup doesn’t know because never saw commit record • Later. server recovers and we discover the problem • Need to apply the missing ones • Also causes cascaded rollback • Worst case may require human intervention

Summary • Reliability can be understood in terms of • Availability: system keeps running during a crash • Recoverability: system can recover automatically • Transactions are best for latter • Some systems need both sorts of mechanisms, but there are “deep” tradeoffs involved

Replication and High Availability • All is not lost! • Suppose we move away from the transactional model • Can we replicate data at lower cost and with high availability? • Leads to “virtual synchrony” model • Treats data as the “state” of a group of participating processes • Replicated update: done with multicast

Steps to a solution • First look more closely at 2PC, 3PC, failure detection • 2PC and 3PC both “block” in real settings • But we can replace failure detection by consensus on membership • Then these protocols become non-blocking (although solving a slightly different problem) • Generalized approach leads to ordered atomic multicast in dynamic process groups

Non-blocking Commit • Goal: a protocol that allows all operational processes to terminate the protocol even if some subset crash • Needed if we are to build high availability transactional systems (or systems that use quorum replication)

Definition of problem • Given a set of processes, one of which wants to initiate an action • Participants may vote for or against the action • Originator will perform the action only if all vote in favor; if any votes against (or don’t vote), we will “abort” the protocol and not take the action • Goal is all-or-nothing outcome

Non-triviality • Want to avoid solutions that do nothing (trivial case of “all or none”) • Would like to say that if all vote for commit, protocol will commit ... but in distributed systems we can’t be sure votes will reach the coordinator! • any “live” protocol risks making a mistake and counting a live process that voted to commit as a failed process, leading to an abort • Hence, non-triviality condition is hard to capture

Typical protocol • Coordinator asks all processes if they can take the action • Processes decide if they can and send back “ok” or “abort” • Coordinator collects all the answers (or times out) • Coordinator computes outcome and sends it back

Commit protocol illustrated ok to commit?

Commit protocol illustrated ok to commit? ok with us

Commit protocol illustrated ok to commit? ok with us commit Note: garbage collection protocol not shown here

Failure issues • So far, have implicitly assumed that processes fail by halting (and hence not voting) • In real systems a process could fail in arbitrary ways, even maliciously • This has lead to work on the “Byzantine generals” problem, which is a variation on commit set in a “synchronous” model with malicious failures

Failure model impacts costs! • Byzantine model is very costly: 3t+1 processes needed to overcome t failures, protocol runs in t+1 rounds • This cost is unacceptable for most real systems, hence protocols are rarely used • Main area of application: hardware fault-tolerance, security systems • For these reasons, we won’t study such protocols

Commit with simpler failure model • Assume processes fail by halting • Coordinator detects failures (unreliably) using timouts. It can make mistakes! • Now the challenge is to terminate the protocol if the coordinator fails instead of, or in addition to, a participant!

Commit protocol illustrated ok to commit? ok with us crashed! … times outabort! Note: garbage collection protocol not shown here

Example of a hard scenario • Coordinator starts the protocol • One participant votes to abort, all others to commit • Coordinator and one participant now fail ... we now lack the information to correctly terminate the protocol!

Commit protocol illustrated ok to commit? vote unknown! ok decision unknown! ok

Example of a hard scenario • Problem is that if coordinator told the failed participant to abort, all must abort • If it voted for commit and was told to commit, all must commit • Surviving participants can’t deduce the outcome without knowing how failed participant voted • Thus protocol “blocks” until recovery occurs

Skeen: Three-phase commit • Seeks to increase availability • Makes an unrealistic assumption that failures are accurately detectable • With this, can terminate the protocol even if a failure does occur

Skeen: Three-phase commit • Coordinator starts protocol by sending request • Participants vote to commit or to abort • Coordinator collects votes, decides on outcome • Coordinator can abort immediately • To commit, coordinator first sends a “prepare to commit” message • Participants acknowledge, commit occurs during a final round of “commit” messages

ok to commit? prepare to commit commit Three phase commit protocol illustrated ok .... prepared... Note: garbage collection protocol not shown here

Observations about 3PC • If any process is in “prepare to commit” all voted for commit • Protocol commits only when all surviving processes have acknowledged prepare to commit • After coordinator fails, it is easy to run the protocol forward to commit state (or back to abort state)

Assumptions about failures • If the coordinator suspects a failure, the failure is “real” and the faulty process, if it later recovers, will know it was faulty • Failures are detectable with bounded delay • On recovery, process must go through a reconnection protocol to rejoin the system! (Find out status of pending protocols that terminated while it was not operational)

Problems with 3PC • With realistic failure detectors (that can make mistakes), protocol still blocks! • Bad case arises during “network partitioning” when the network splits the participating processes into two or more sets of operational processes • Can prove that this problem is not avoidable: there are no non-blocking commit protocols for asynchronous networks
