1 / 24

Statistics in Hydrology

Statistics in Hydrology. Mean, median and mode (central tendency) Dispersion: the spread of the items in a data set around its central value. Statistics in Hydrology. Measure of central tendency Measure of dispersion Mode Range Median Quartile deviation Mean Standard dev.

rico
Download Presentation

Statistics in Hydrology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

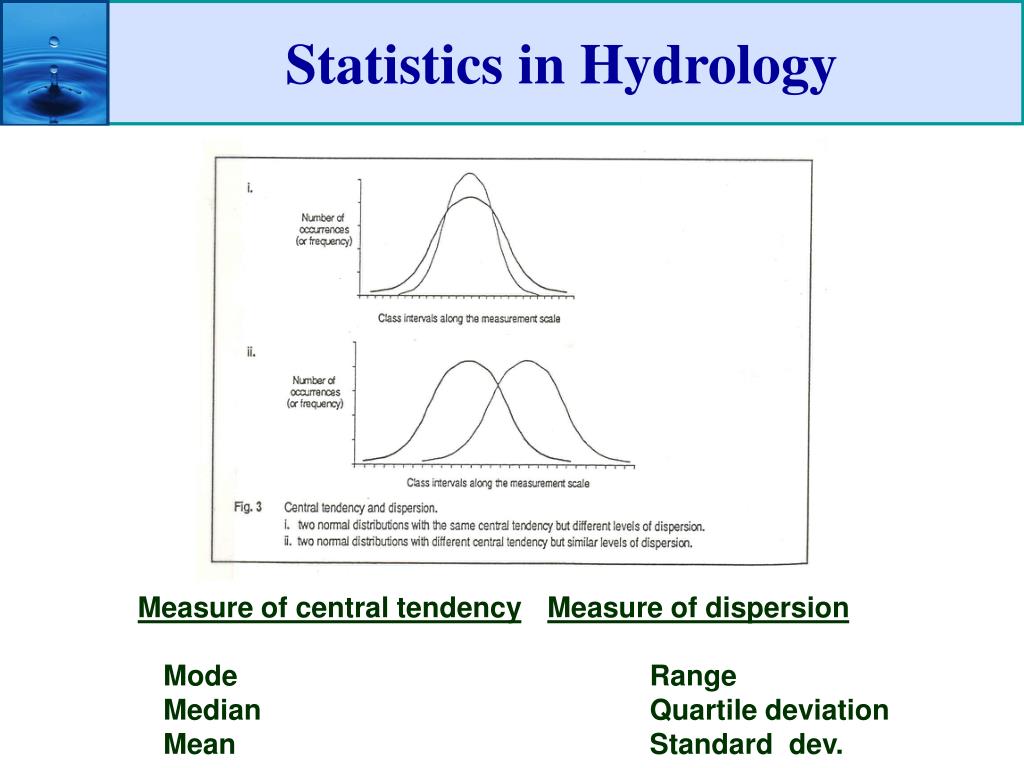

  1. Statistics in Hydrology • Mean, median and mode (central tendency) • Dispersion: the spread of the items in a data set around its central value

  2. Statistics in Hydrology Measure of central tendencyMeasure of dispersion Mode Range Median Quartile deviation Mean Standard dev.

  3. Statistics in Hydrology

  4. Statistics in Hydrology Why do we need to include variance/SD?

  5. Probability • We need to know its probability of occurrence (the level of peak Q likely to occur/100 years (moving to inferential stats)

  6. Probability

  7. Probability

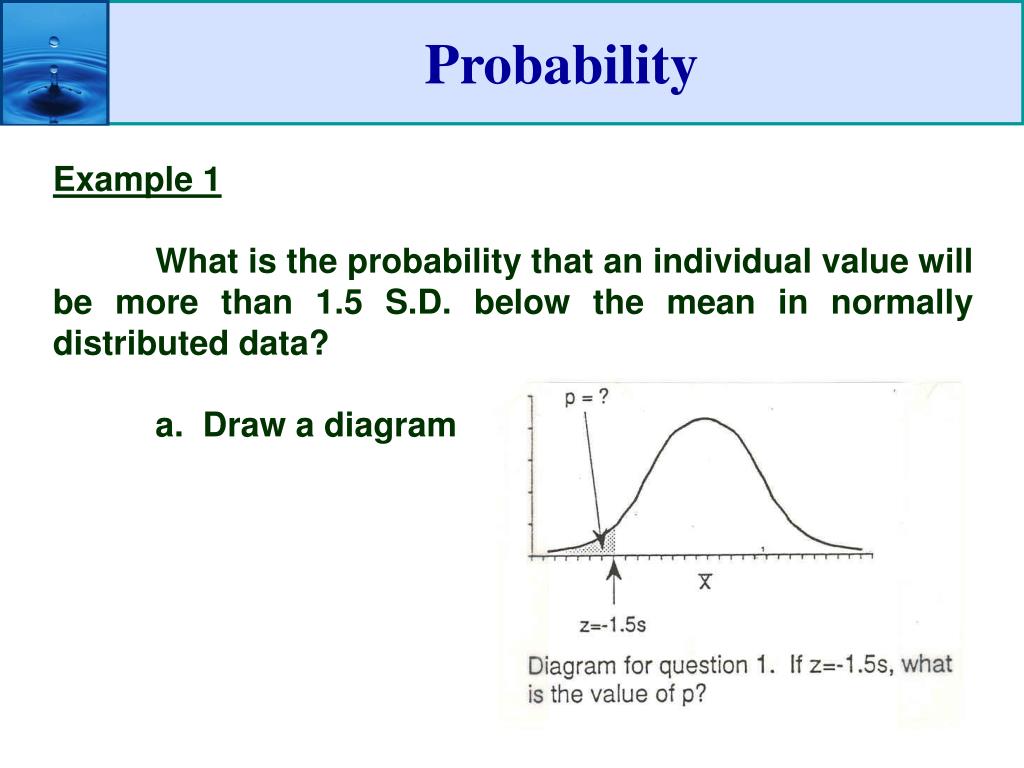

  8. Probability Example 1 What is the probability that an individual value will be more than 1.5 S.D. below the mean in normally distributed data? a. Draw a diagram

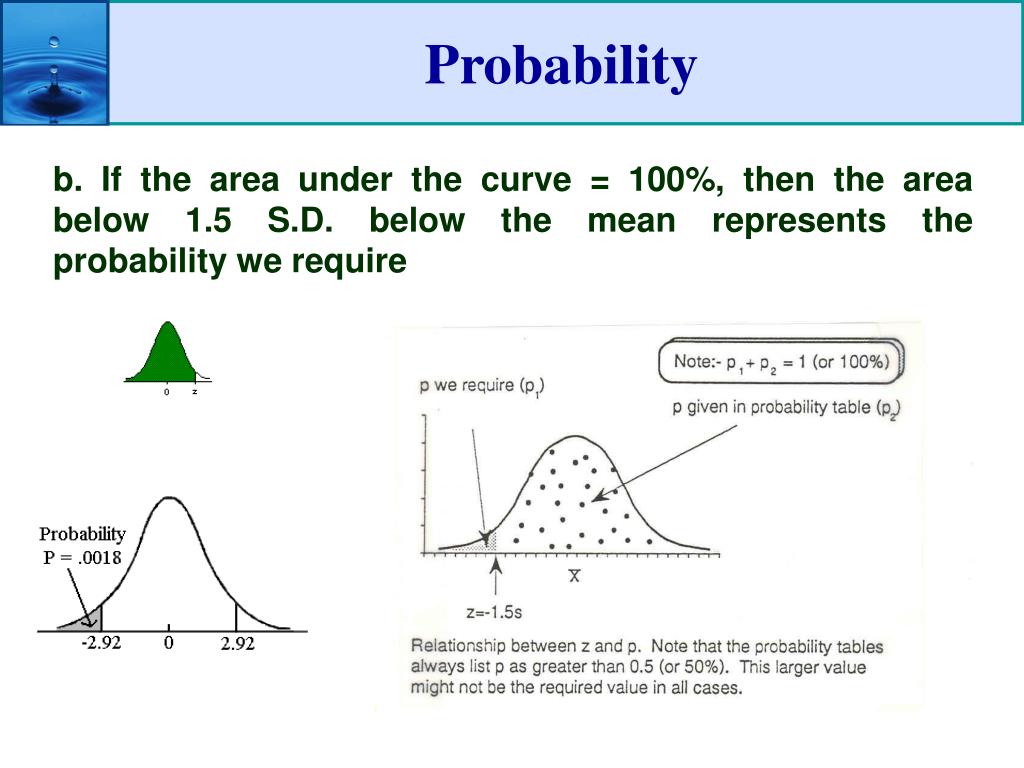

  9. Probability b. If the area under the curve = 100%, then the area below 1.5 S.D. below the mean represents the probability we require

  10. Probability

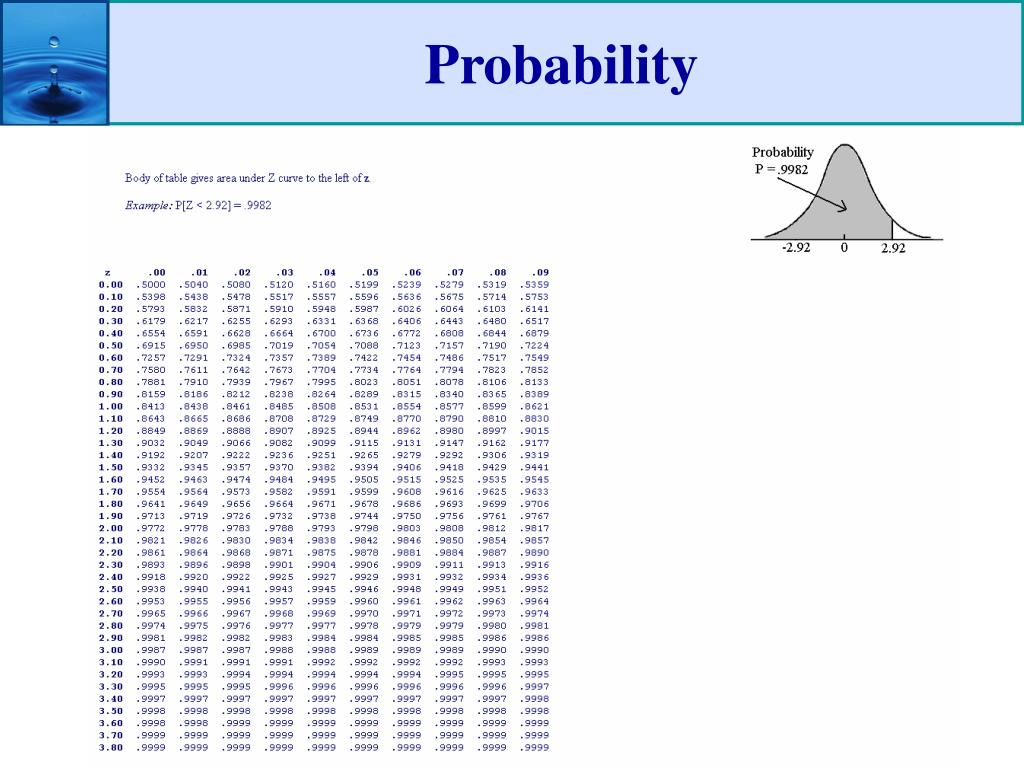

  11. Probability c. With z = 1.5 then p = 0.9932%. Look at the table again! It lists p values > 50% (not always required value); be careful!

  12. Probability d.  the probability we require is 1 - 0.9332 = 0.0668 e. The probability that an individual value will be more than 1.5 S.D. below the mean in the data set is 6.68% At home: What is the probability of getting less than 500 mm of rainfall in any one year in Edinburgh, Scotland given a mean annual rainfall of 664 mm and a S.D. of 120 mm?

  13. Risk Risk = probability * consequence

  14. Probability Fi = m/(n + 1) * 100 where Fi = cum. % frequency

  15. Hypothesis Testing • Sampling from a larger population Null hypothesis: no significant difference between the figures (H0) Alternative hypothesis: is a significant difference between the figures (H1) • Level of significance (0.05 and 0.01)

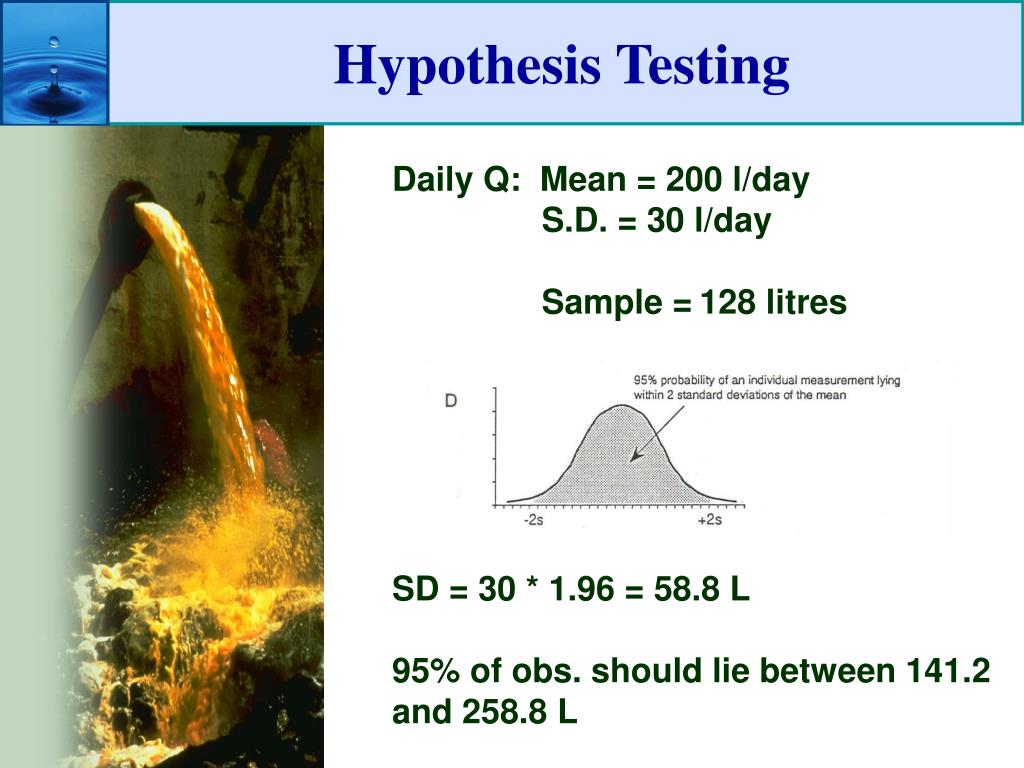

  16. Hypothesis Testing Daily Q: Mean = 200 l/day S.D. = 30 l/day Sample = 128 litres SD = 30 * 1.96 = 58.8 L 95% of obs. should lie between 141.2 and 258.8 L

  17. Observation Oil consumption (gallons) Temperature (oC) 1 11.5 11.5 2 13.5 11.0 3 13.8 10.5 4 15.0 7.5 5 16.2 8.0 6 17.0 7.0 7 18.5 7.5 8 22.0 3.5 9 22.3 3 Correlation and Regression

  18. Correlation and Regression 25 20 15 Oil consumption (g) 10 5 0 0 2 4 6 8 10 12 Temperature (C)

  19. Correlation and Regression Correlation coefficient (r) Coefficient of determination (r2) Lies between 0 and 1 Proportion of variation of Y associated with variations in X r = 0.96; r2 = 0.92

  20. Correlation and Regression y = a + bx (y = mx + c) y = 1 + 0.5x

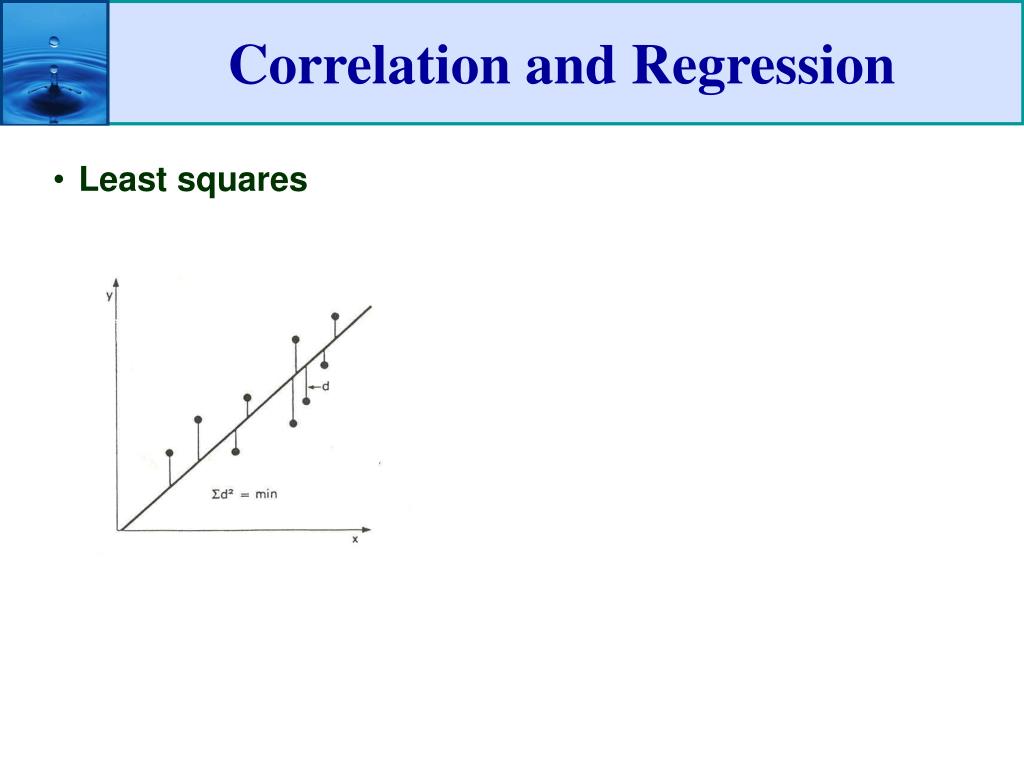

  21. Correlation and Regression • Least squares

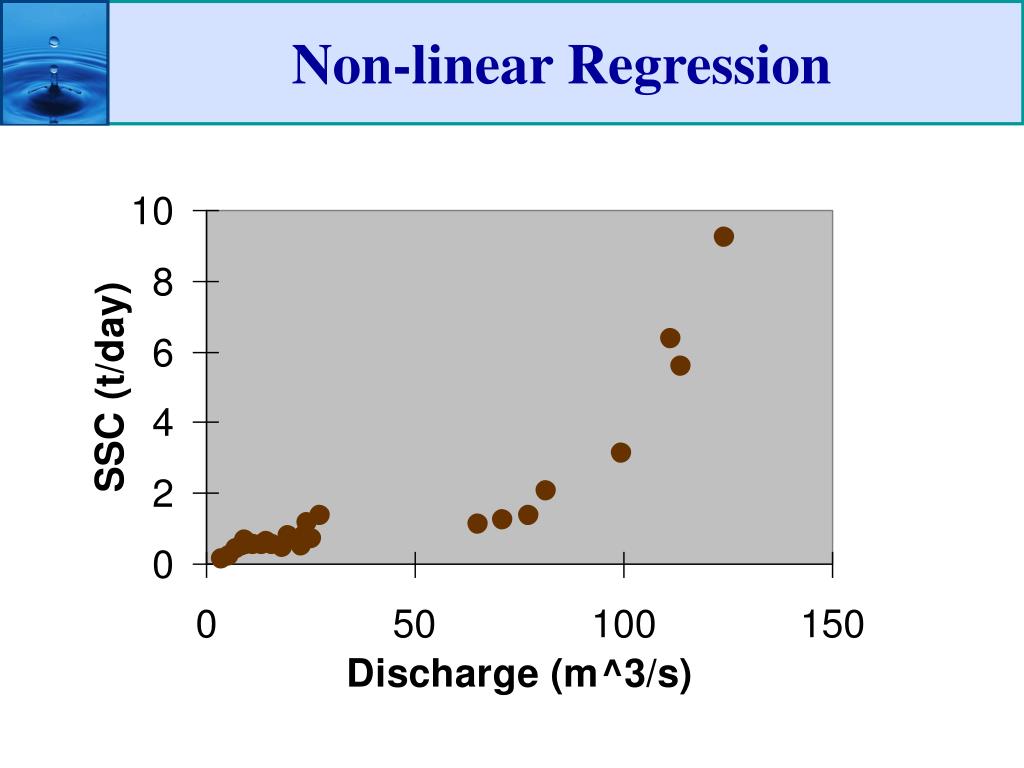

  22. Non-linear Regression

  23. Non-linear Regression

  24. Non-linear Regression
