Current Sources

Current Sources. Ever wonder how we make one of these?. I out. Current Sink. V out. V b. M 5. GND. Current Sources. Ever wonder how we make one of these?. I out. Current Sink. V out. V b. M 5. GND. V dd. Current Source. V 1. M 6. I out. Current Sources. Ever wonder how

rich
Download Presentation

Current Sources

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Current Sources Ever wonder how we make one of these?

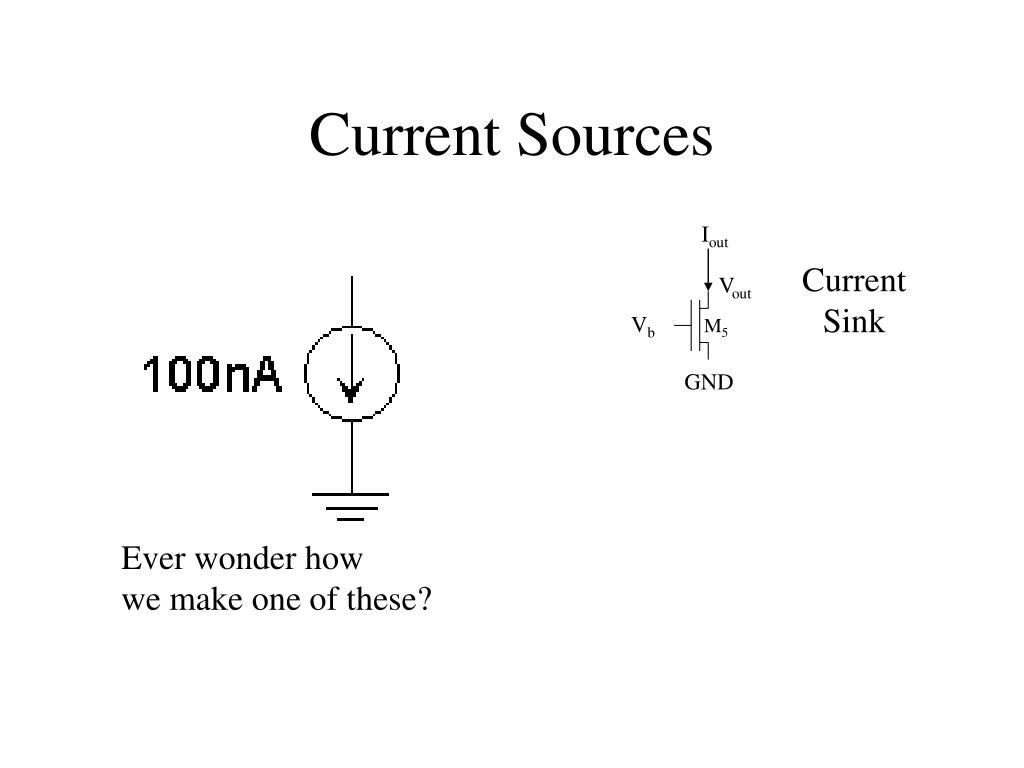

  2. Iout Current Sink Vout Vb M5 GND Current Sources Ever wonder how we make one of these?

  3. Iout Current Sink Vout Vb M5 GND Vdd Current Source V1 M6 Iout Current Sources Ever wonder how we make one of these?

  4. Iout Current Sink Vout Vb M5 GND Vdd Current Source V1 M6 Iout Current Sources Ever wonder how we make one of these? How “good” a current source? Early Effect

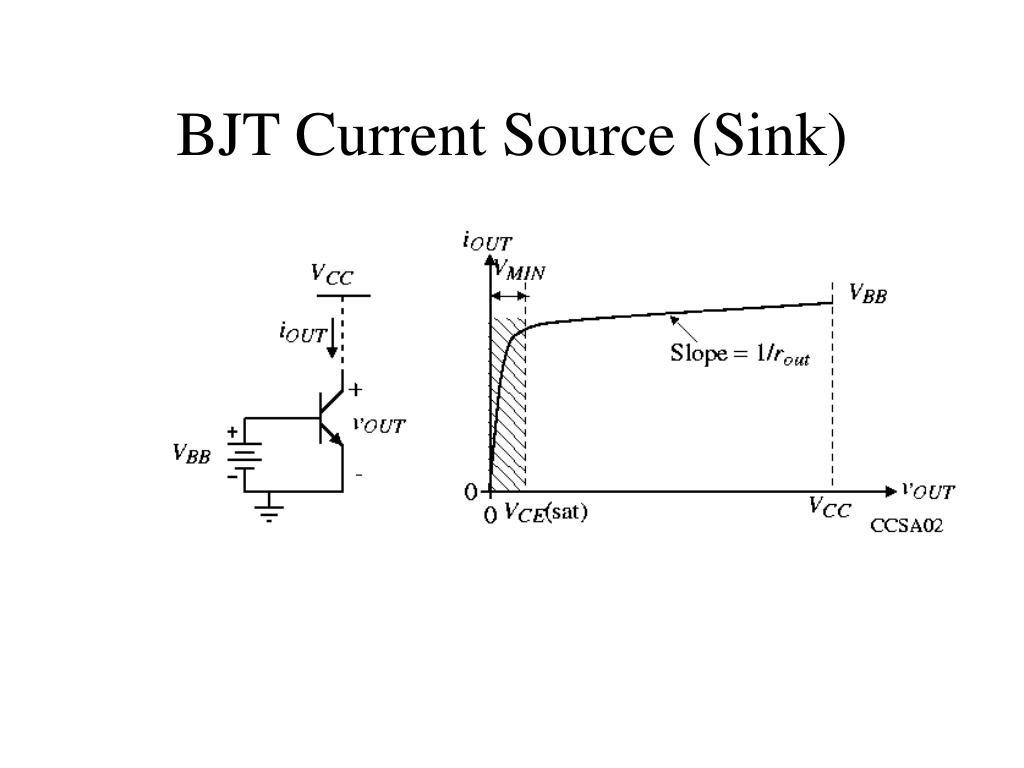

  5. BJT Current Source (Sink)

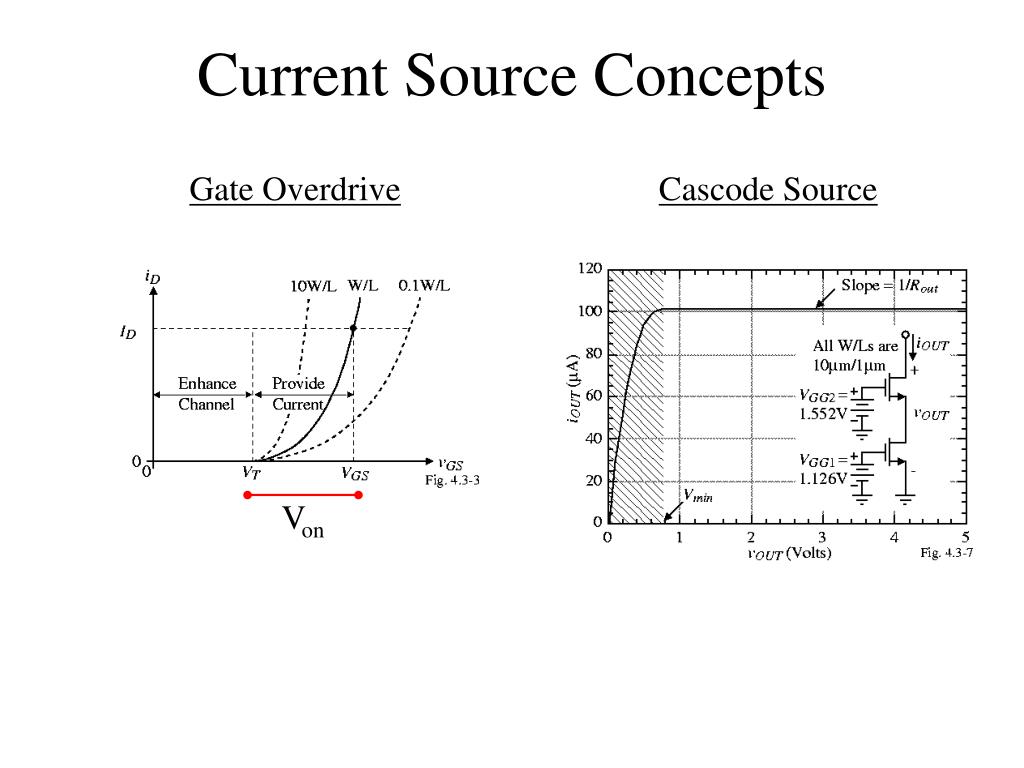

  6. Gate Overdrive Cascode Source Von Current Source Concepts

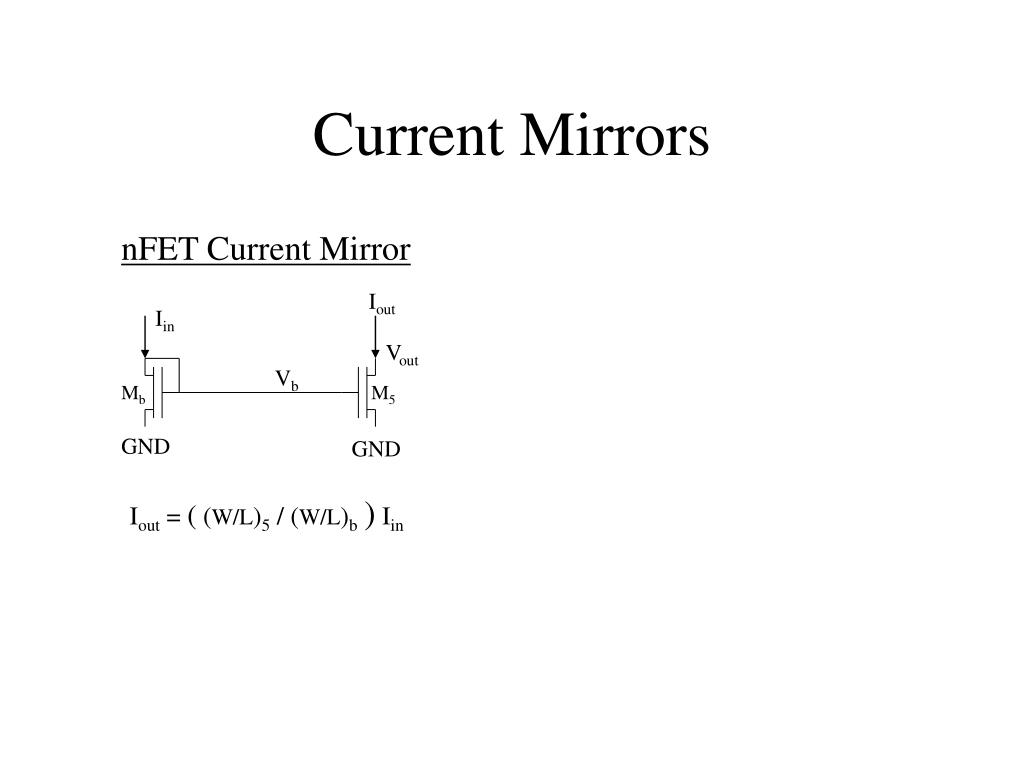

  7. Iout Iin Vout Vb Mb M5 GND GND Current Mirrors nFET Current Mirror

  8. Iout Iin Vout Vb Mb M5 GND GND Current Mirrors nFET Current Mirror Iout = ( (W/L)5 / (W/L)b) Iin

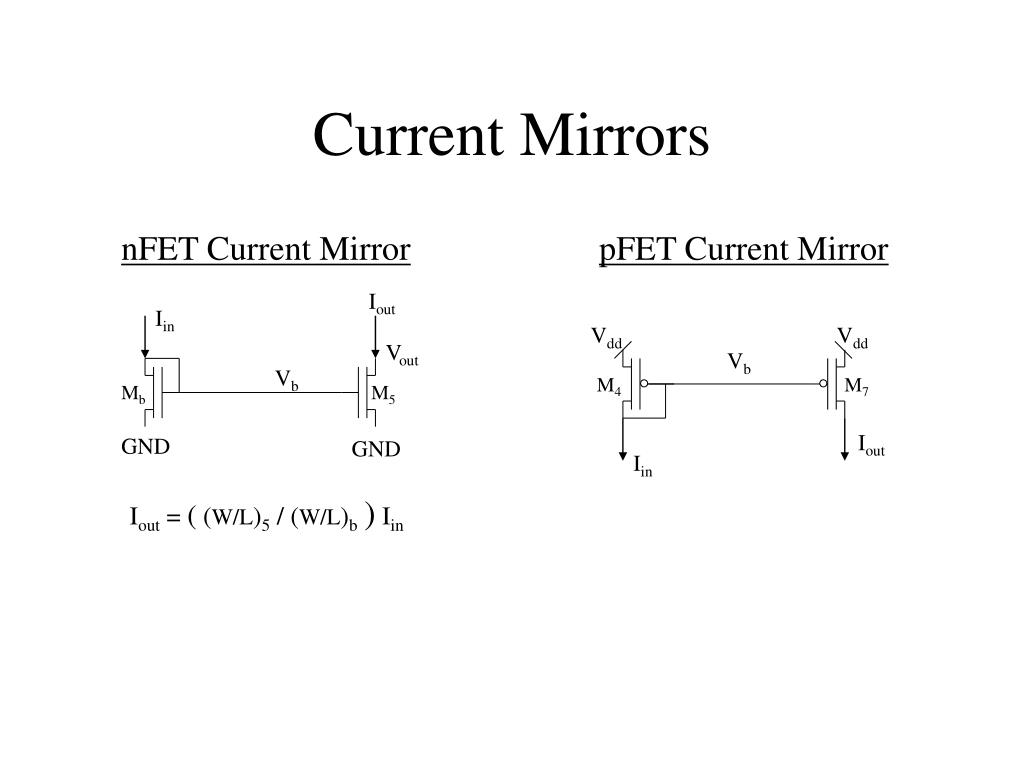

  9. Iout Iin Vdd Vdd Vout Vb Vb M4 M7 Mb M5 Iout GND GND Iin Current Mirrors nFET Current Mirror pFET Current Mirror Iout = ( (W/L)5 / (W/L)b) Iin

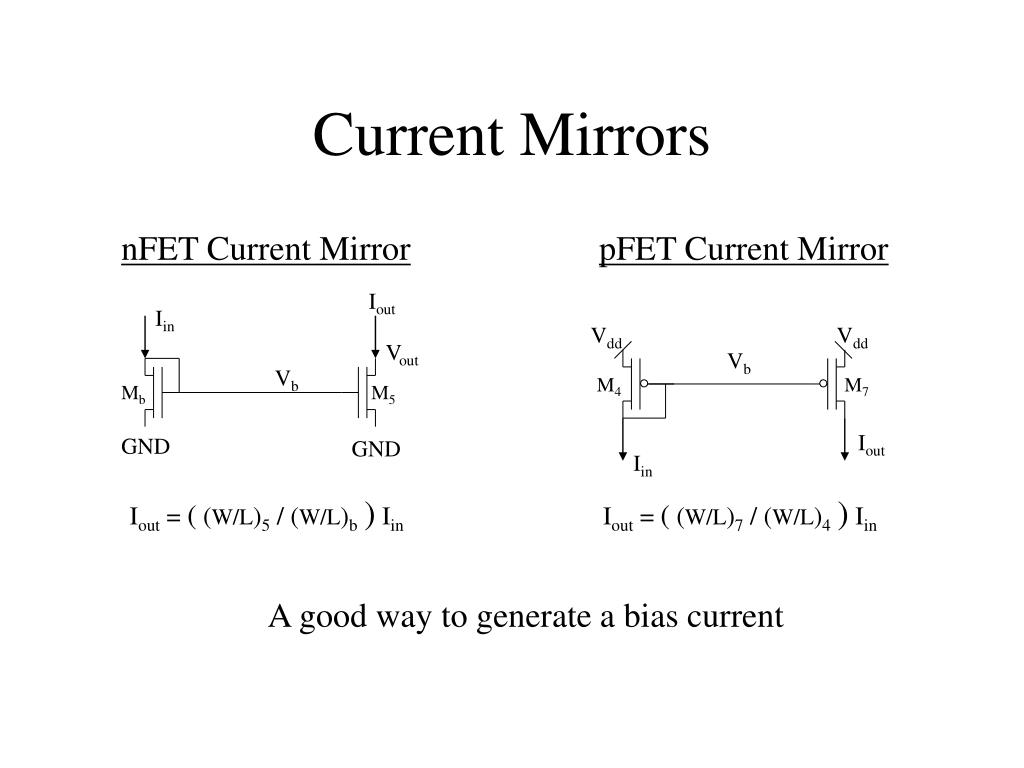

  10. Iout Iin Vdd Vdd Vout Vb Vb M4 M7 Mb M5 Iout GND GND Iin Current Mirrors nFET Current Mirror pFET Current Mirror Iout = ( (W/L)5 / (W/L)b) Iin Iout = ( (W/L)7 / (W/L)4) Iin A good way to generate a bias current

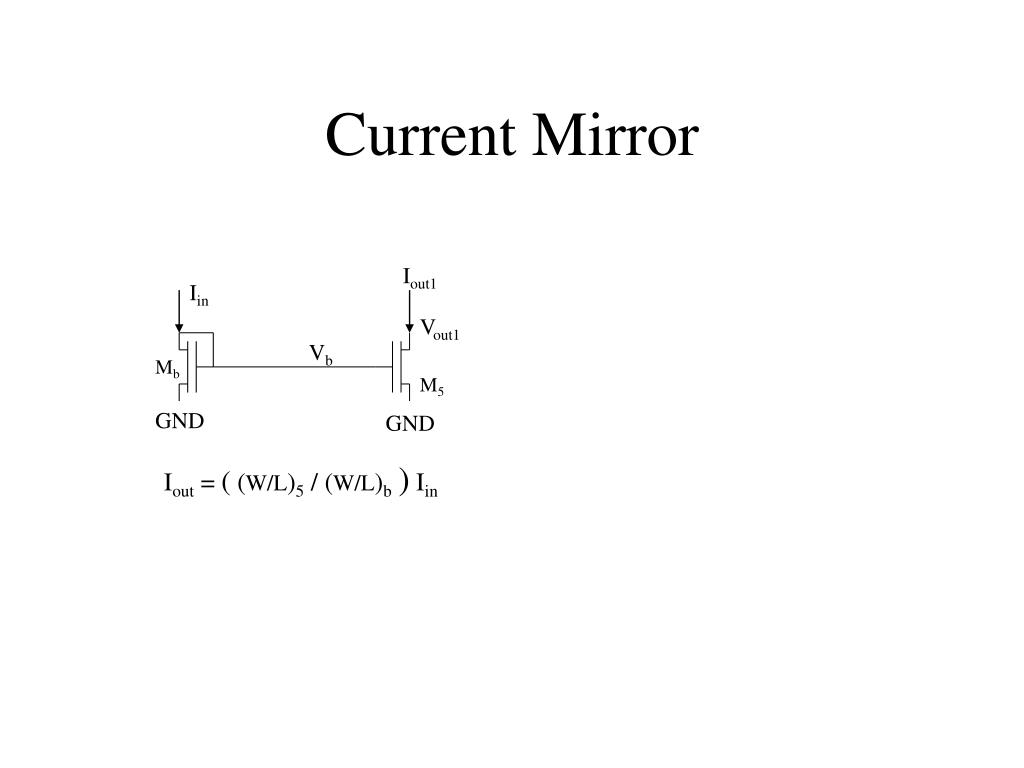

  11. Current Mirror Iout1 Iin Vout1 Vb Mb M5 GND GND Iout = ( (W/L)5 / (W/L)b) Iin

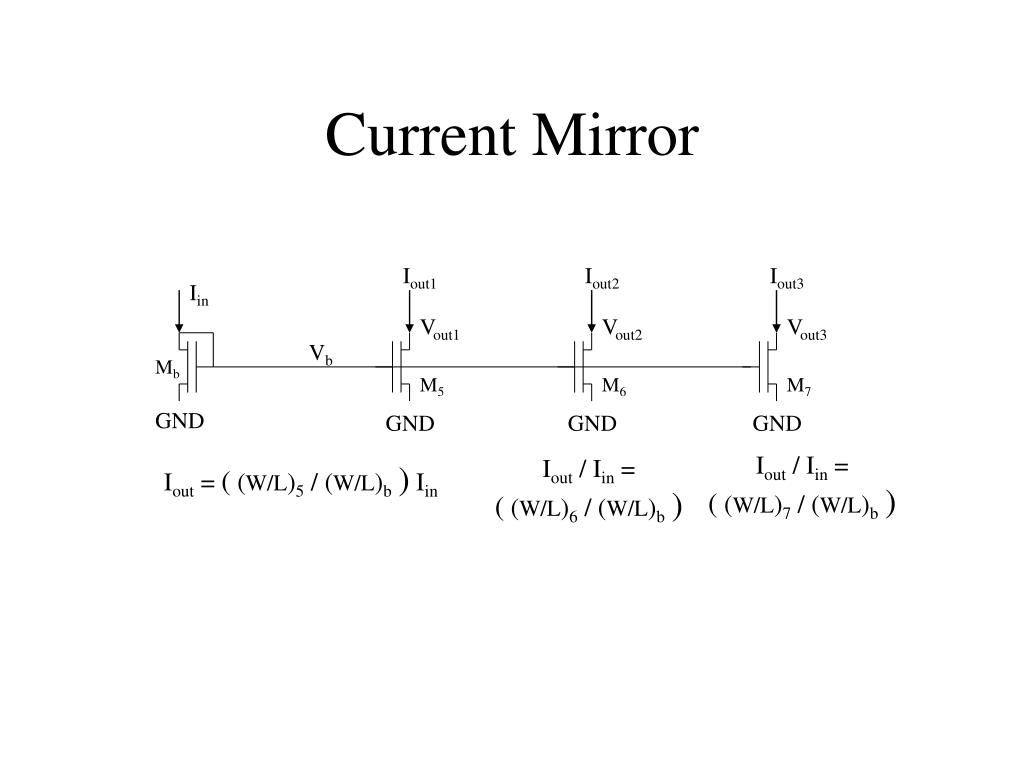

  12. Current Mirror Iout1 Iout2 Iout3 Iin Vout1 Vout2 Vout3 Vb Mb M5 M6 M7 GND GND GND GND Iout = ( (W/L)5 / (W/L)b) Iin

  13. Current Mirror Iout1 Iout2 Iout3 Iin Vout1 Vout2 Vout3 Vb Mb M5 M6 M7 GND GND GND GND Iout / Iin = ( (W/L)6 / (W/L)b) Iout = ( (W/L)5 / (W/L)b) Iin

  14. Current Mirror Iout1 Iout2 Iout3 Iin Vout1 Vout2 Vout3 Vb Mb M5 M6 M7 GND GND GND GND Iout / Iin = ( (W/L)7 / (W/L)b) Iout / Iin = ( (W/L)6 / (W/L)b) Iout = ( (W/L)5 / (W/L)b) Iin

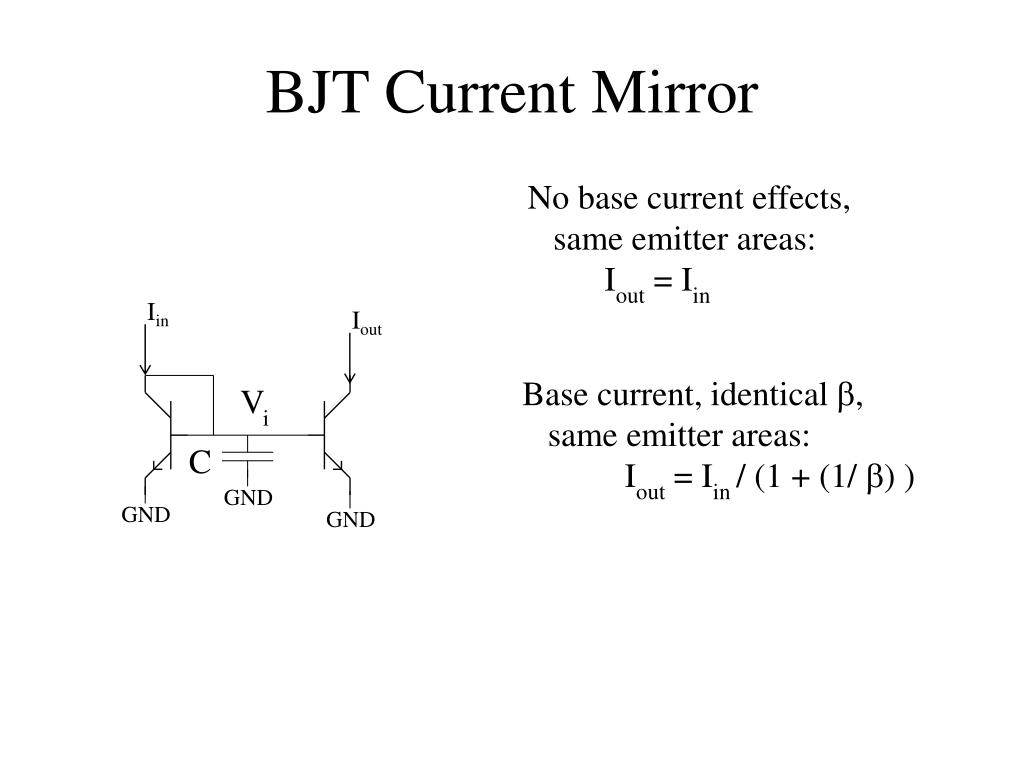

  15. GND GND GND BJT Current Mirror No base current effects, same emitter areas: Iout = Iin Iin Iout Vi C

  16. GND GND GND BJT Current Mirror No base current effects, same emitter areas: Iout = Iin Iin Iout Base current, identical b, same emitter areas: Iout = Iin / (1 + (1/ b) ) Vi C

  17. GND GND GND BJT Current Mirror No base current effects, same emitter areas: Iout = Iin Iin Iout Base current, identical b, same emitter areas: Iout = Iin / (1 + (1/ b) ) Vi C Base current, n outputs, identical b, same emitter areas: Iout = Iin / (1 + (1/ b) )

  18. GND GND GND Diode-Capacitor Dynamics Iin Iout C (dVi/dt) = Iin - Iso exp(Vi/UT) Iout = Ico exp(Vi/UT) Vi C (C / Iout) (d Iout /dt) = Iin - Iout C (d Iout /dt) = Iout( Iin - Iout )

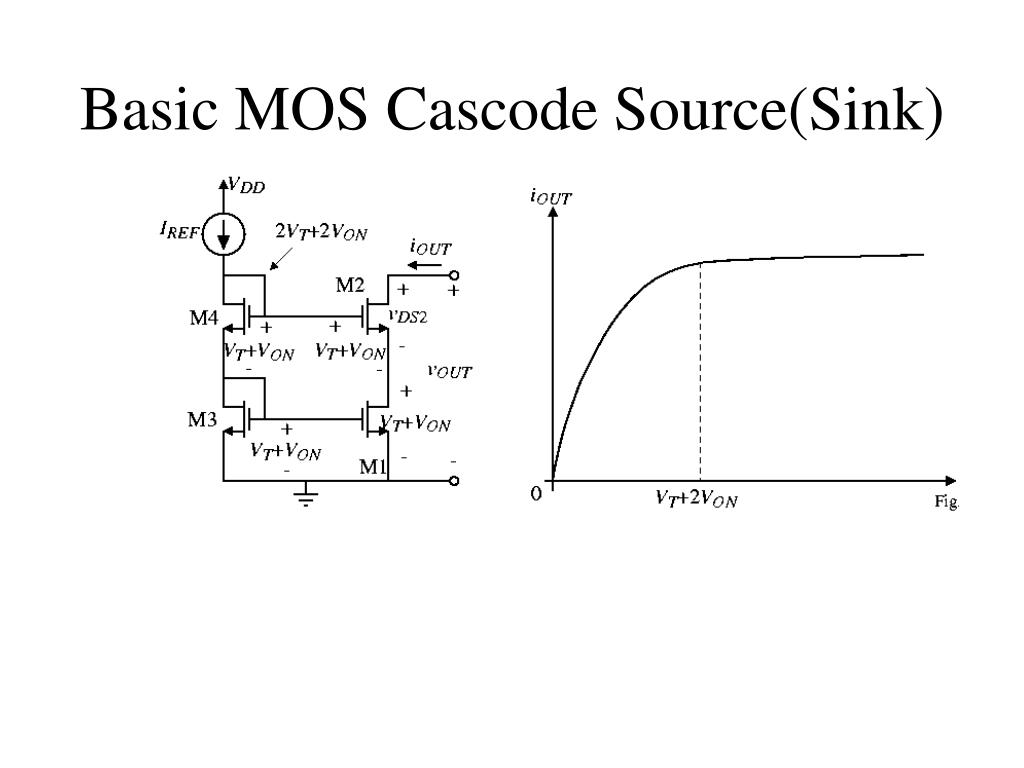

  19. Basic MOS Cascode Source(Sink)

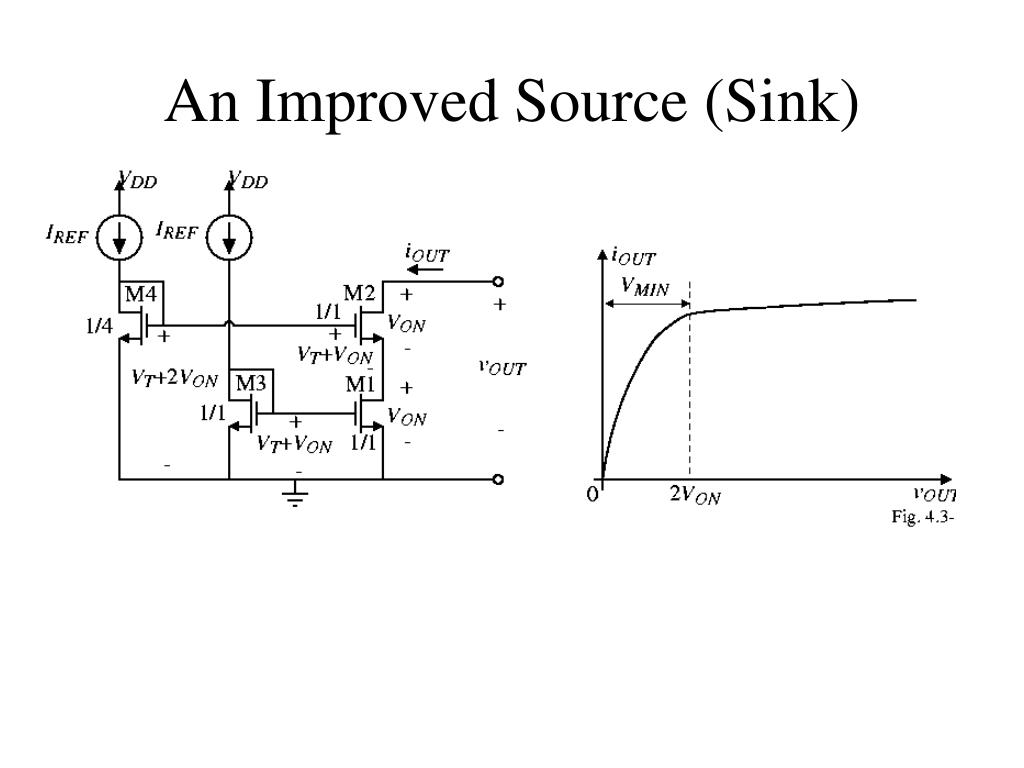

  20. An Improved Source (Sink)

  21. One Further Improvement

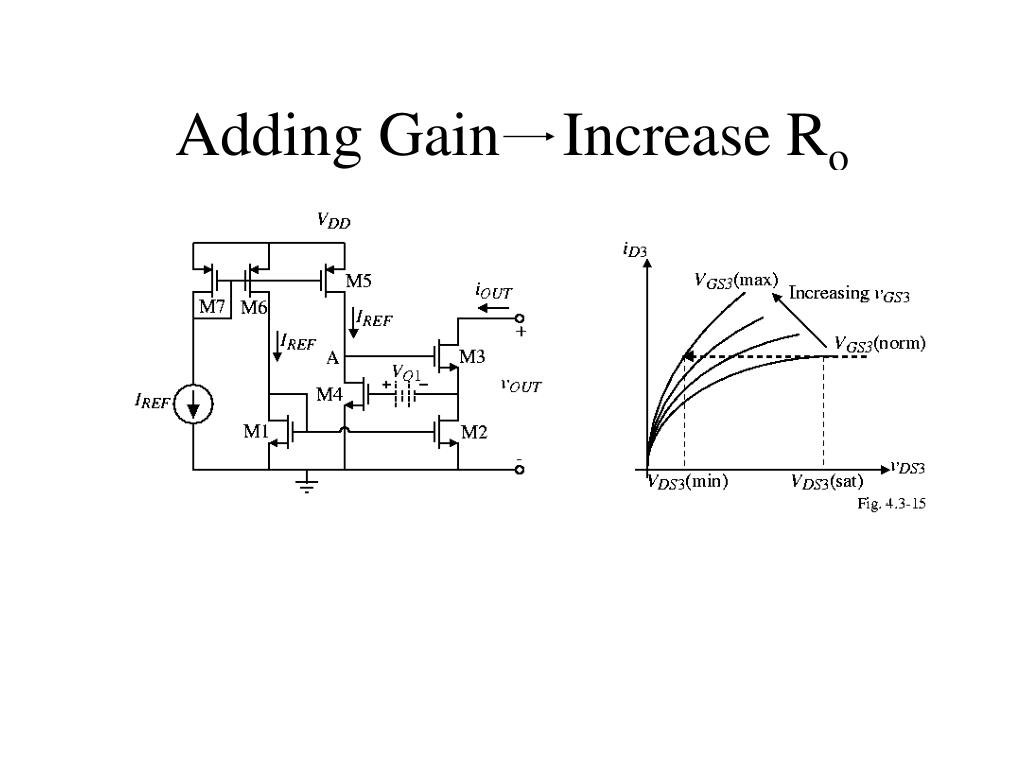

  22. Adding Gain Increase Ro

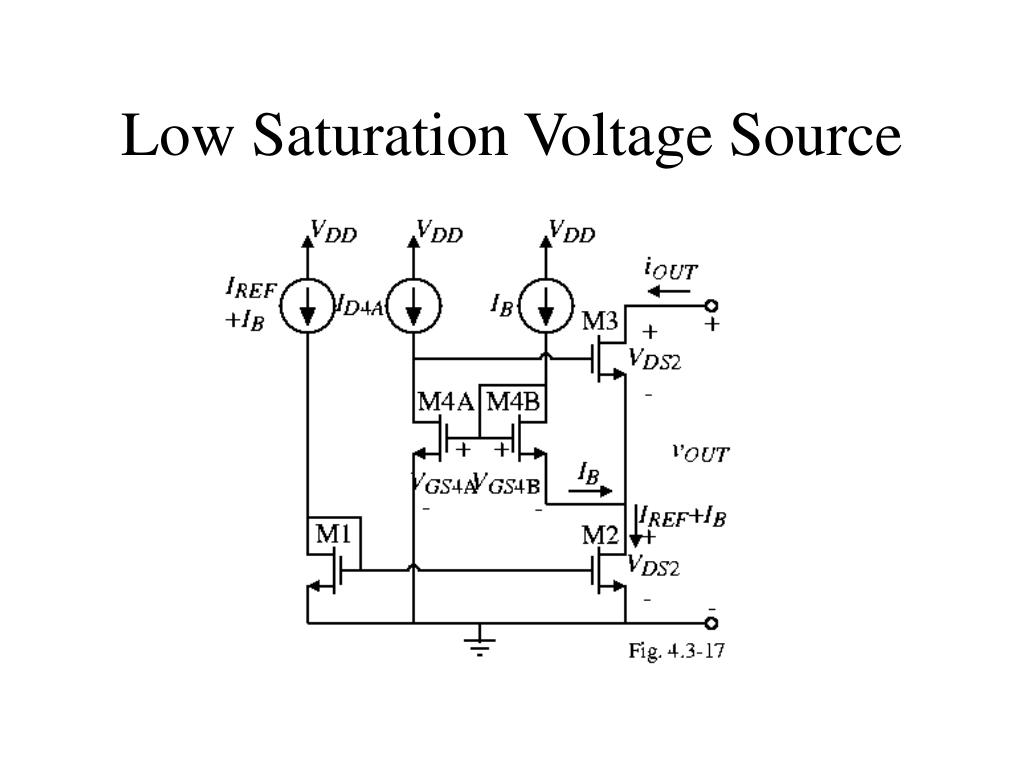

  23. Low Saturation Voltage Source

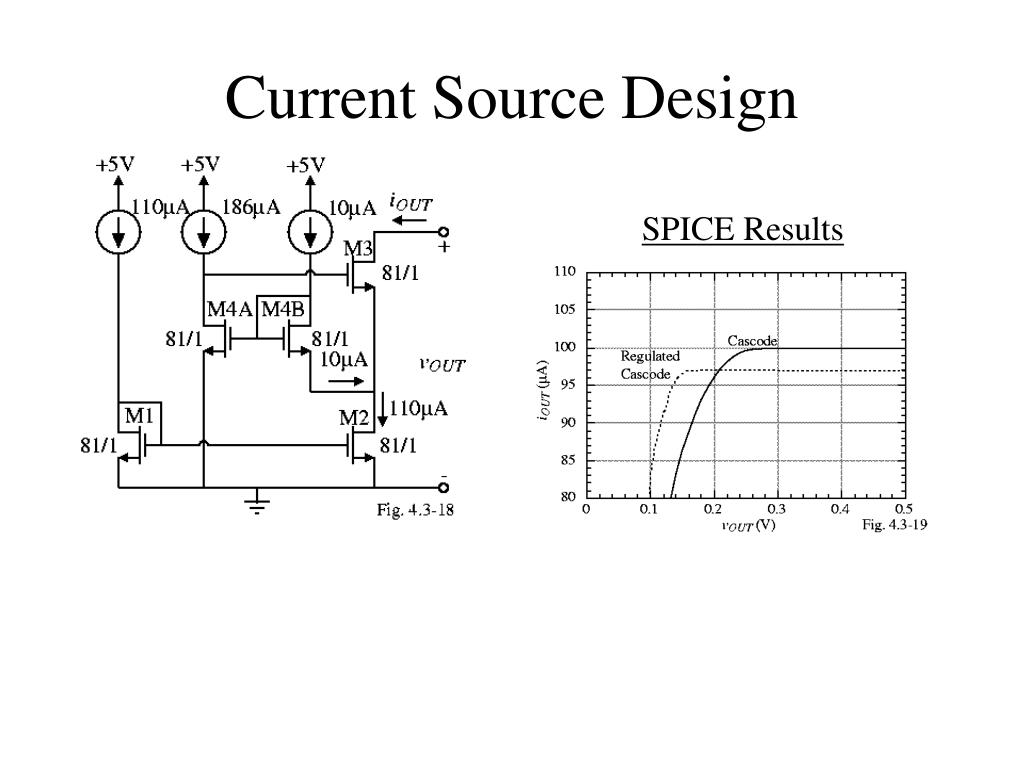

  24. Current Source Design SPICE Results

  25. Current Sources • Basic concepts • Cascode Circuits • Advanced Cascode Circuits
