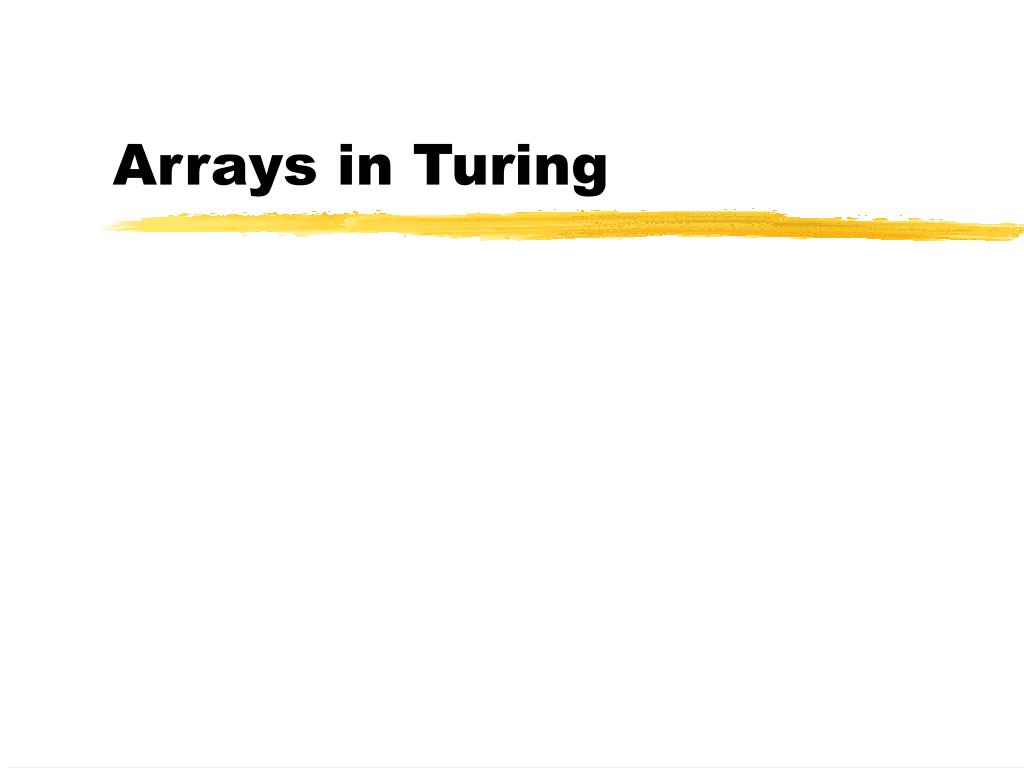

  1. Arrays in Turing

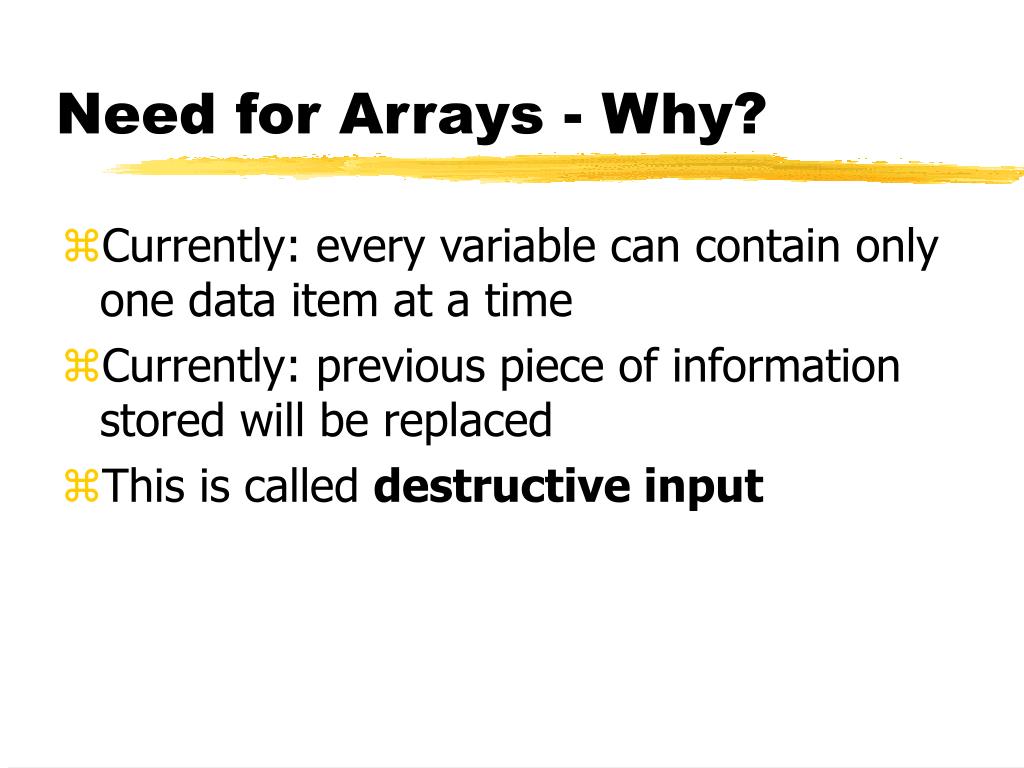

  2. Need for Arrays - Why? • Currently: every variable can contain only one data item at a time • Currently: previous piece of information stored will be replaced • This is called destructive input

  3. Destructive Input Example: • var name : string name := "Fred Flintstone • put "The name is ", name, "." • name := "Barney Rubble" • put "The contents of name is ", name, "." • name := "George Jetson" • put "The contents of name is now ", name, "."

  4. Arrays • Provide a mechanism so that all contents can be stored under one variable • No more destructive input • Each element is accessed by the name of the variable and number of the content (subscript)

  5. Arrays: Ordering • Use arrays to organize data in a specific order (e.g. alphabetical/numerical) • Sorting requires the items to be available in memory simultaneously for comparison

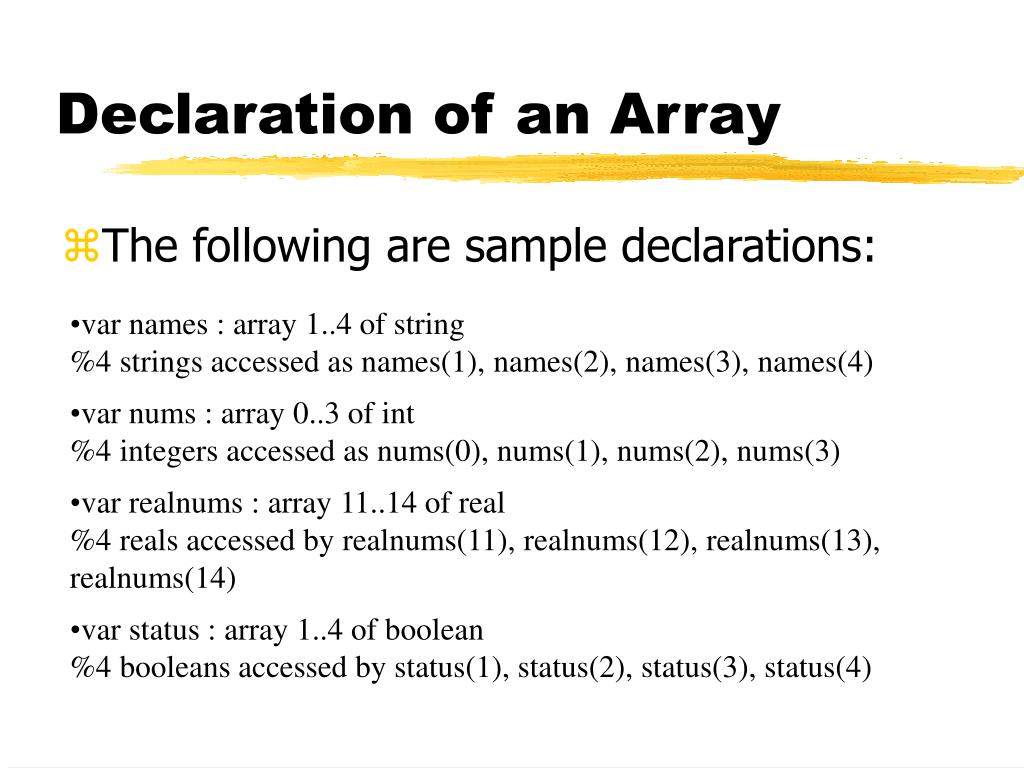

  6. Declaration of an Array • The following are sample declarations: • var names : array 1..4 of string%4 strings accessed as names(1), names(2), names(3), names(4) • var nums : array 0..3 of int%4 integers accessed as nums(0), nums(1), nums(2), nums(3) • var realnums : array 11..14 of real%4 reals accessed by realnums(11), realnums(12), realnums(13), realnums(14) • var status : array 1..4 of boolean%4 booleans accessed by status(1), status(2), status(3), status(4)

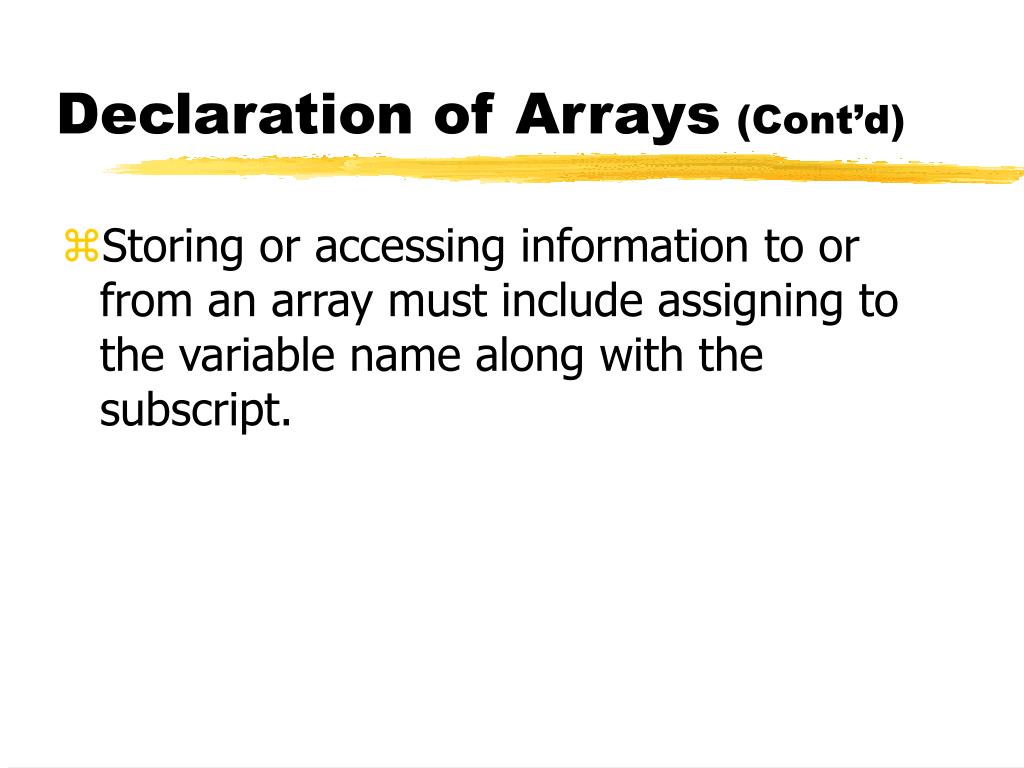

  7. Declaration of Arrays(Cont’d) • Storing or accessing information to or from an array must include assigning to the variable name along with the subscript.

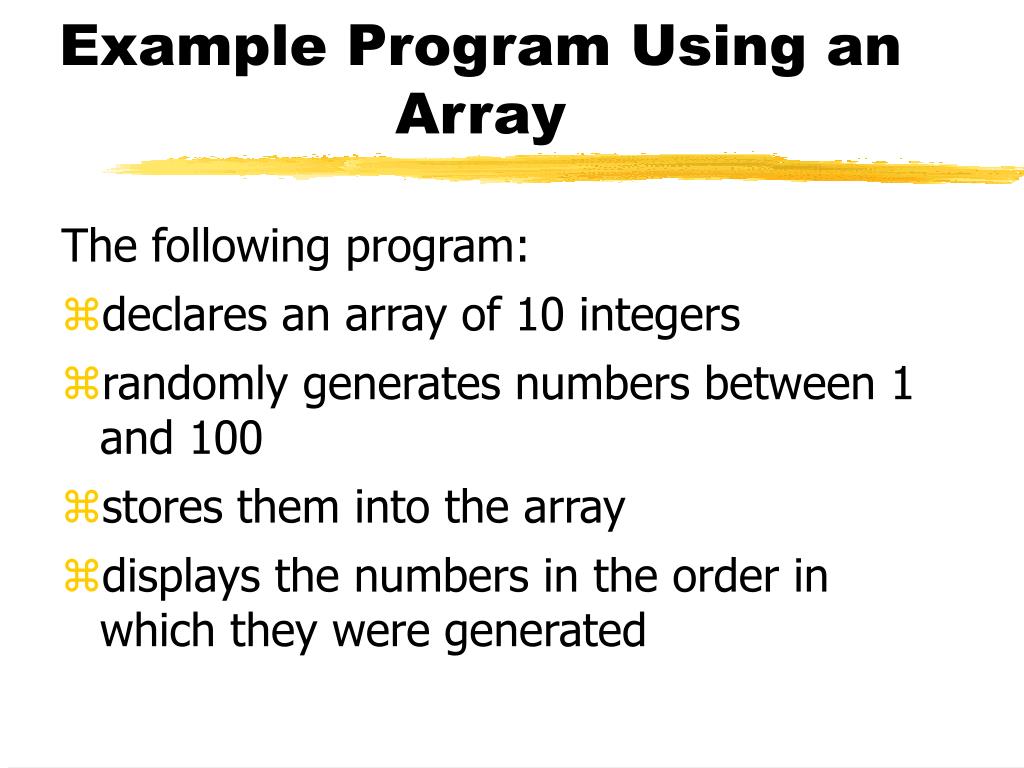

  8. Example Program Using an Array The following program: • declares an array of 10 integers • randomly generates numbers between 1 and 100 • stores them into the array • displays the numbers in the order in which they were generated

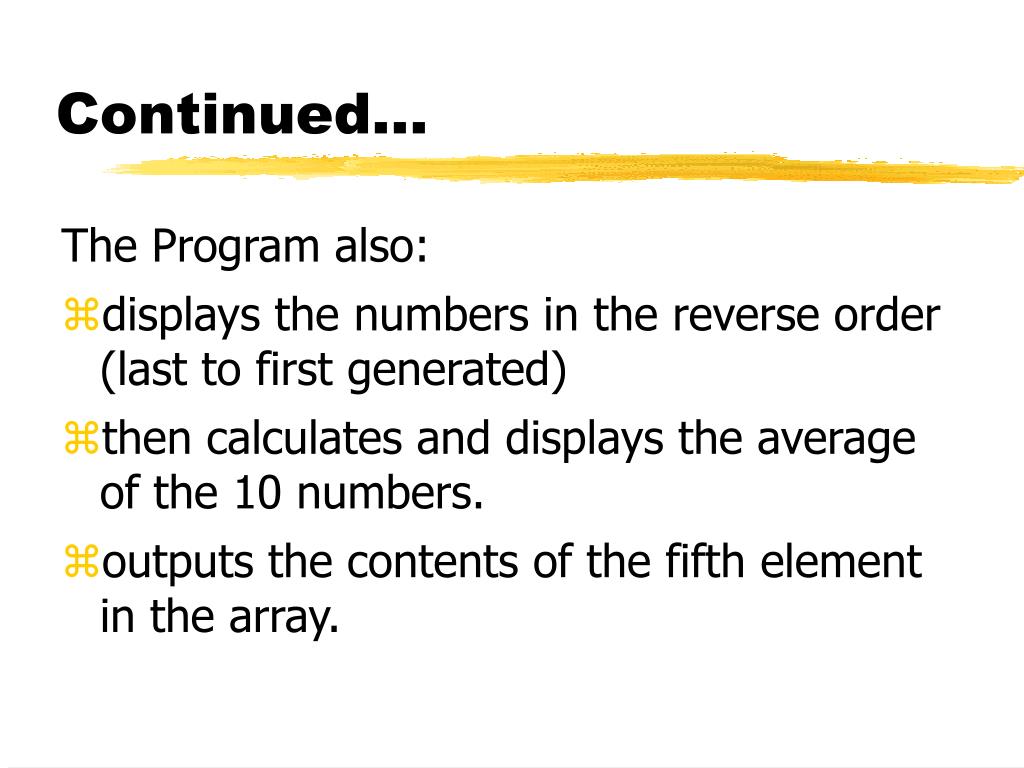

  9. Continued... The Program also: • displays the numbers in the reverse order (last to first generated) • then calculates and displays the average of the 10 numbers. • outputs the contents of the fifth element in the array.

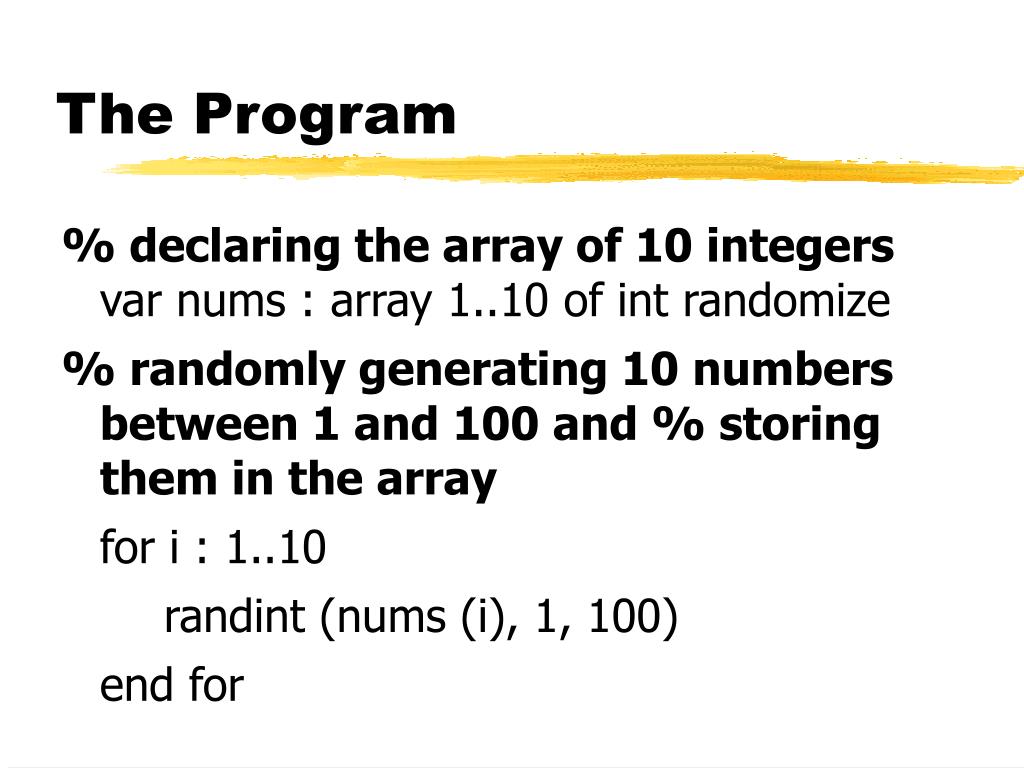

  10. The Program % declaring the array of 10 integers var nums : array 1..10 of int randomize % randomly generating 10 numbers between 1 and 100 and % storing them in the array for i : 1..10 randint (nums (i), 1, 100) end for

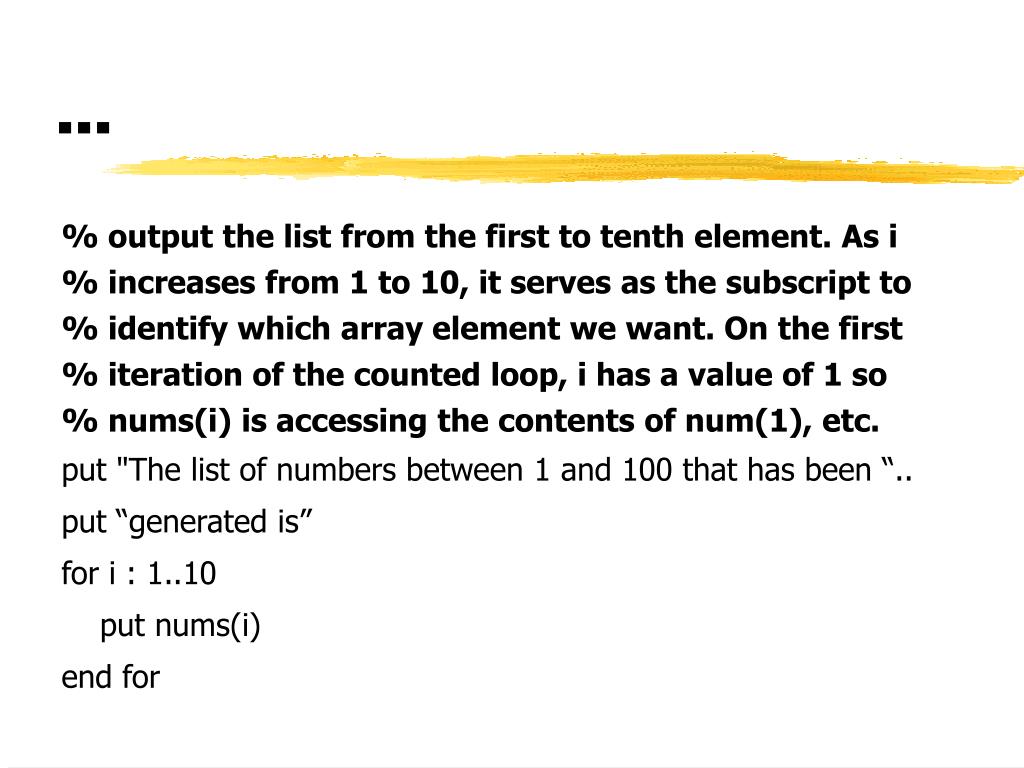

  11. ... % output the list from the first to tenth element. As i % increases from 1 to 10, it serves as the subscript to % identify which array element we want. On the first % iteration of the counted loop, i has a value of 1 so % nums(i) is accessing the contents of num(1), etc. put "The list of numbers between 1 and 100 that has been “.. put “generated is” for i : 1..10 put nums(i) end for
