  1. Map, Set & Bit-Vector Discrete Mathematics and Its Applications Baojian Hua bjhua@ustc.edu.cn

  2. Map

  3. Map Interface signature type map type key type value map newMap (); void mapInsert (map m, key k, value v); value mapLookup (map m, key k); void mapDelete (map m, key k); … end

  4. Interface in C #ifndef MAP_H #define MAP_H typedef struct map *map; // type map typedef void *poly; // type key, value map newMap (); void mapInsert (map m, poly k, poly v); poly mapLookup (map m, poly k); void mapDelete (map m, poly k); … #endif

  5. Implementation in C #include “map.h” struct map { // your favorite concrete representation }; map newMap () { // real code goes here } …

  6. Sample Impl’ Using Linked List #include “linkedList.h” #include “map.h” struct map { linkedList list; };

  7. m list Sample Impl’ Using Linked List // functions map newMap () { map m = malloc (sizeof (*m)); m->list = newLinkedList (); return m; }

  8. Sample Impl’ Using Linked List // functions void mapInsert (map m, poly k, poly v) { linkList list = m->list; linkedListInsert (list, newTuple (k, v)); return; } m list

  9. Sample Impl’ Using Linked List // functions poly mapLookup (map m, poly k) { linkList list = s->list; while(…) { // scan the list and lookup key k // return v, if found } return NULL; } m list

  10. Set

  11. Set Interface signature type set // set type type t // element type set newSet (); int setSize (set s); void setInsert (set s, t x); set setUnion (set s1, set s2); … end

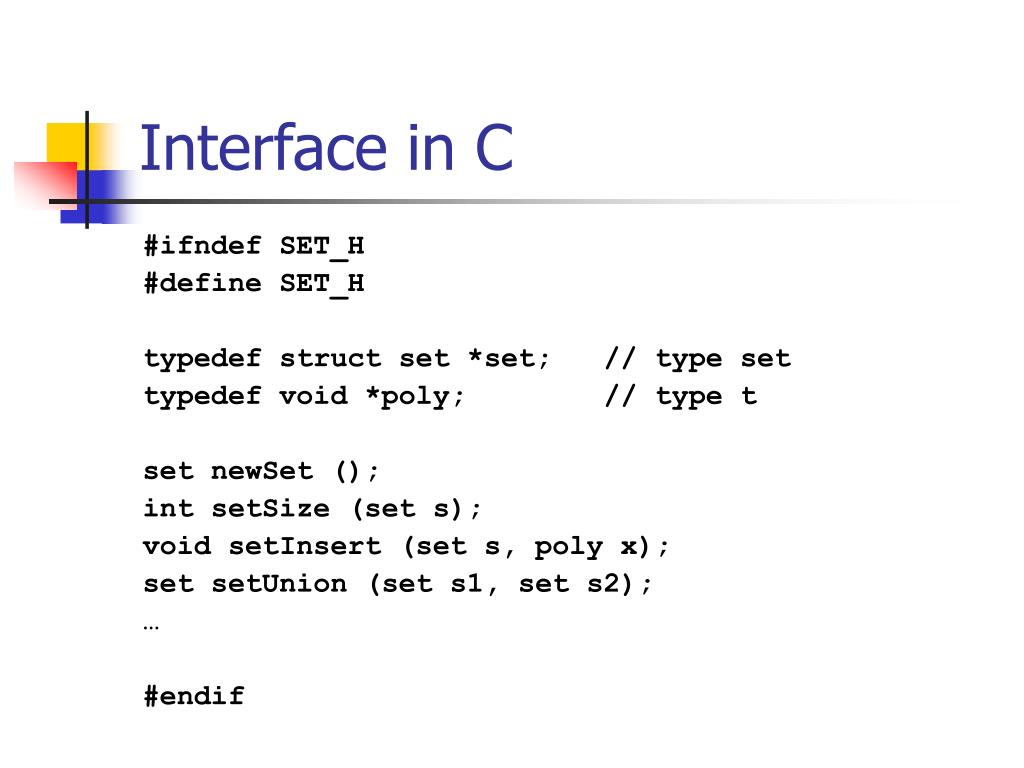

  12. Interface in C #ifndef SET_H #define SET_H typedef struct set *set; // type set typedef void *poly; // type t set newSet (); int setSize (set s); void setInsert (set s, poly x); set setUnion (set s1, set s2); … #endif

  13. Implementation in C #include “set.h” struct set { // your favorite concrete representation }; set newSet () { // real code goes here } …

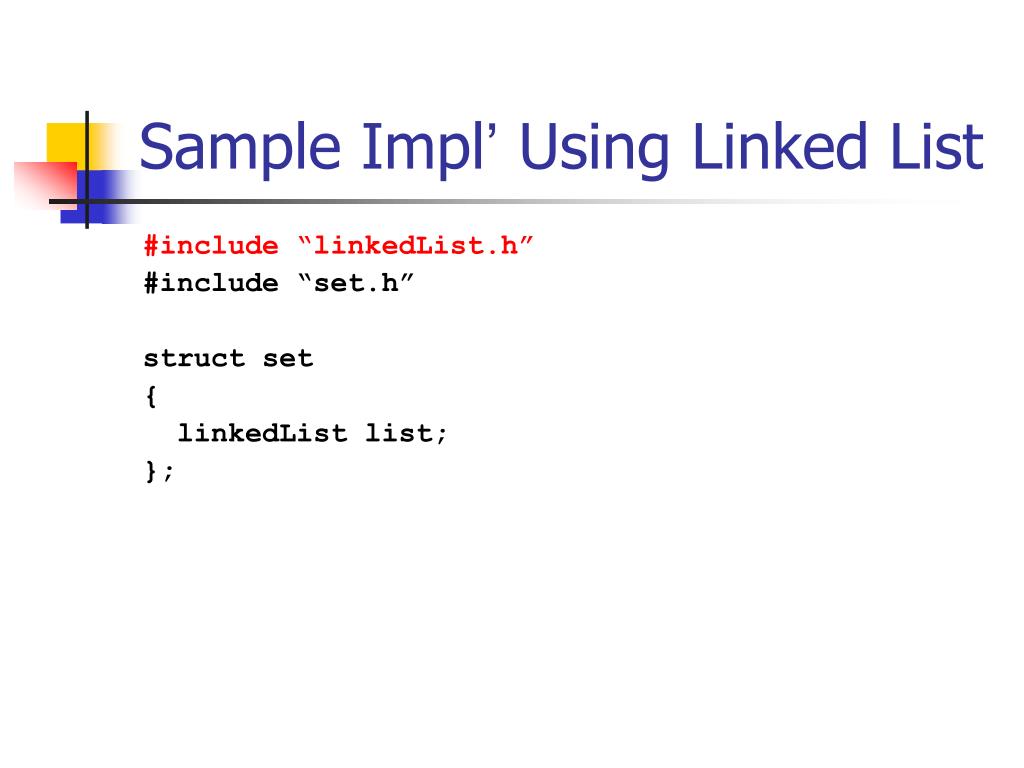

  14. Sample Impl’ Using Linked List #include “linkedList.h” #include “set.h” struct set { linkedList list; };

  15. s list Sample Impl’ Using Linked List // functions set newSet () { set s = malloc (sizeof (*s)); s->list = newLinkedList (); return s; }

  16. Sample Impl’ Using Linked List // functions int setSize (set s) { linkList l = s->list; return linkedListSize (l); } s list

  17. Sample Impl’ Using Linked List // functions void setInsert (set s, poly x) { if (setExists (s, x)) return; linkedListInsert (s->list, x); return; }

  18. Sample Impl’ Using Linked List // functions int setExist (set s, poly x) { return linkedListExists (s->list, x); }

  19. Equality Testing How to do equality testing on “polymorphic” data? 1. “equals” function pointer as argument. int linkedListExist (linkedList list, poly x, tyEq equals); 2. “equals” function pointers in data. int linkedListExist (linkedList list, poly x) { for (…p…) (p->data)->equals (p->data, x); } // As we can see next in C++ or Java.

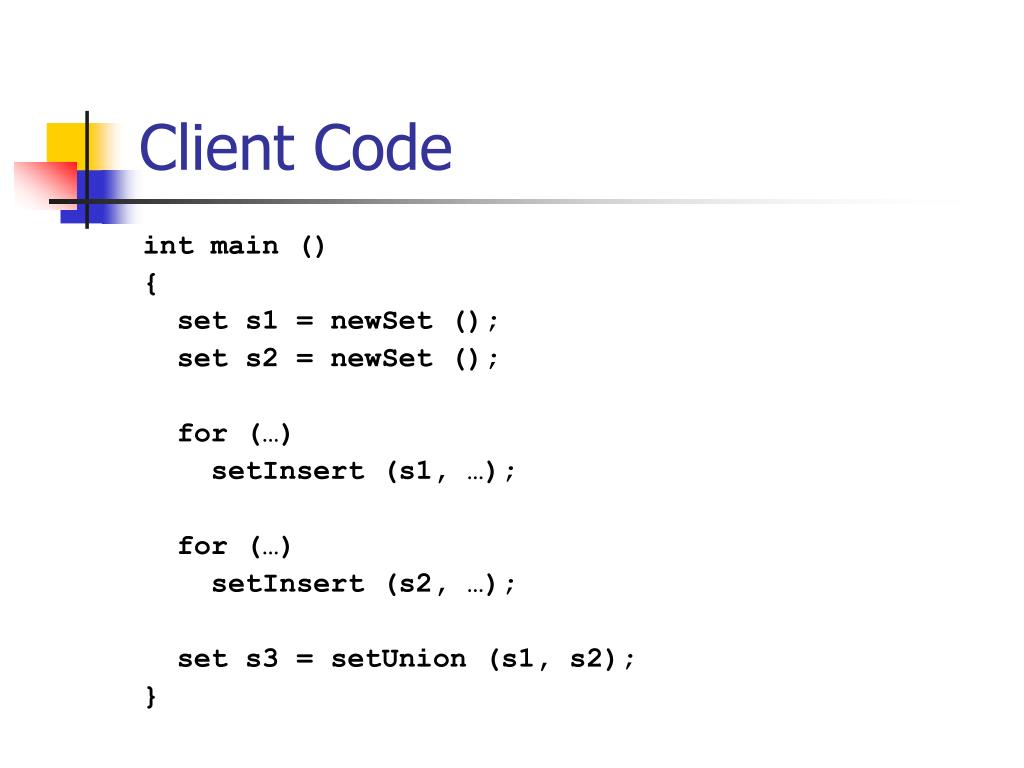

  20. Client Code int main () { set s1 = newSet (); set s2 = newSet (); for (…) setInsert (s1, …); for (…) setInsert (s2, …); set s3 = setUnion (s1, s2); }

  21. Summary So Far set set set set set

  22. Set in Java

  23. Interface in Java public interface SetInter // the type “set” { int size (); // “Object” is very polymorphic… void insert (Object x); SetInter union (SetInter s); … } // Follow this, all the stuffs are essentially // same with those in C

  24. Or Using Generic // Type “set”, with type argument “X” public interface SetInter<X> { int size (); void insert (X x); SetInter<X> union (SetInter<X> s); … } // We’ll discuss this strategy in following // slides

  25. Implementation in Java public class Set<X> implements SetInter<X> { // any concrete internal representation Set () // constructor { // code goes here } int size () { // code goes here } … }

  26. Sample Impl’ Using Linked List import ….linkedList; public class Set<X> implements SetInter<X> { private linkedList<X> list; Set () { this.list = new LinkedList<X> (); } }

  27. Sample Impl’ Using Linked List import ….linkedList; public class Set<X> implements SetInter<X> { private linkedList<X> list; int size () { return this.list.size (); } }

  28. Sample Impl’ Using Linked List import ….linkedList; public class Set<X> implements SetInter<X> { private linkedList<X> list; void insert (X x) { if (exists (x)) // equality testing? return; this.list.insert (x); return; } }

  29. Client Code import ….Set; public class Main { public static void main (String[] args) { SetInter<String> s1 = new Set<String> (); SetInter<String> s2 = new Set<String> (); s1.size (); s1.union (s2); } }

  30. Bit-Vector

  31. Bit-Vector Interface interface type bitArray bitArray newBitArray (int size); void assignOne (bitArray ba, int index); bitArray and (bitArray ba1, bitArray ba2); … end

  32. Interface in C #ifndef BITARRAY_H #define BITARRAY_H typedef struct bitArray *bitArray; bitArray newBitArray (int size); void assignOne (bitArray ba, int index); bitArray and (bitArray ba1, bitArray ba2); … #endif

  33. Implementation in C #include “bitArray.h” // a not-so efficient one struct bitArray { int *array; int size; };

  34. Operations bitArray newBitArray (int i) { bitArray ba = malloc (sizeof (*ba)); ba->array = malloc (sizeof (*(ba->array)) * i); for (int k=0; k<i; k++) (ba->array)[i] = 0; ba->size = i; return ba; }

  35. Operations bitArray and (bitArray ba1, bitArray ba2) { if (ba1->size != ba2->size) error (…); bitArray ba = newBitArray (); for (…) assignOne (ba, …); return ba; }

  36. Bit-Array in Java

  37. In Java // I omit the interface for simplicity public class BitArray { private int[] array; BitArray (int size) { this.array = new int[size]; } }

  38. Other Methods public class BitArray { private int[] array; BitArray and (BitArray ba2) { if (this.size () != ba2.size ()) throw new Error (…); BitArray ba = new BitArray (this.size()); … return ba; } }

  39. Bit-Vector-based Set Representation

  40. Big Picture Universe set set set set

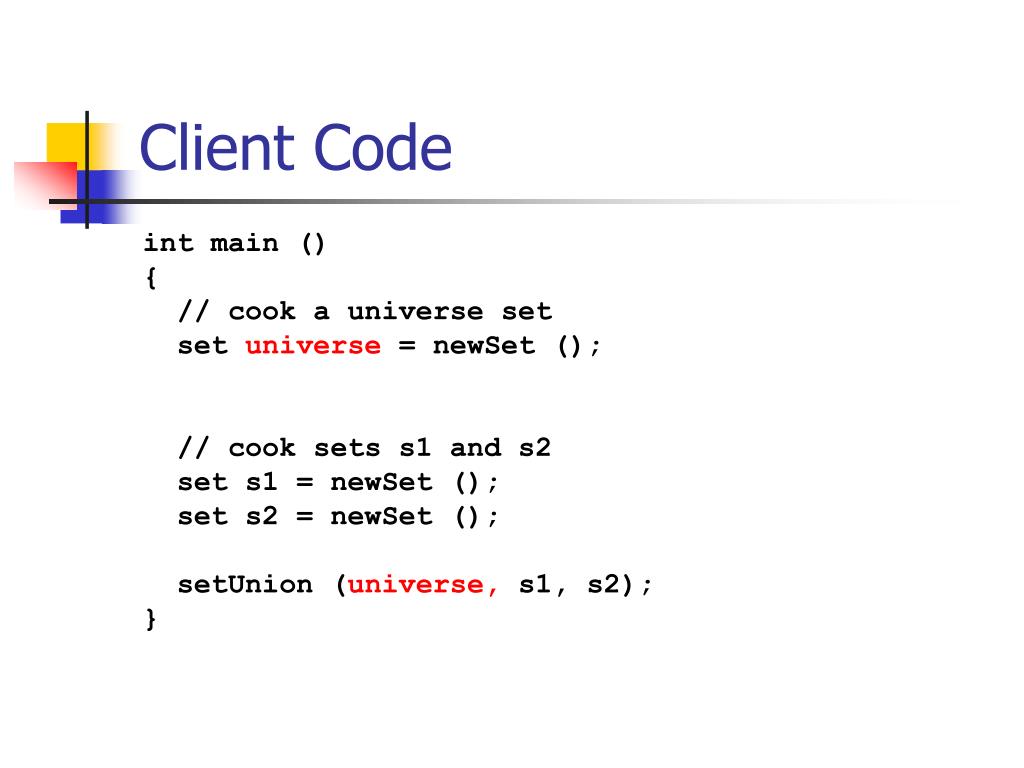

  41. Client Code int main () { // cook a universe set set universe = newSet (); // cook sets s1 and s2 set s1 = newSet (); set s2 = newSet (); setUnion (universe, s1, s2); }

  42. What does the Universe Look Like? Universe is a set of (element, index) tuple. For instance: Universe = {(“a”, 0), (“b”, 3), (“c”, 1”), (“d”, 2)} Question: How to build such kind of universe from the input set element? Answer: associate every set element e a unique (and continuous) integer i (i will be used as an index in the bit-vector. Details leave to you.

  43. Big Picture {(“a”, 0), (“b”, 3), (“c”, 1”), (“d”, 2)} 1. Build the bit-array from the universe {“a”} {“d”}

  44. Big Picture {(“a”, 0), (“b”, 3), (“c”, 1”), (“d”, 2)} 1. Build the bit-array from the universe baSet1 = [0, 0, 0, 0] baSet2 = [0, 0, 0, 0] {“a”} {“d”}

  45. Big Picture {(“a”, 0), (“b”, 3), (“c”, 1”), (“d”, 2)} 1. Build the bit-array from the universe baSet1 = [0, 0, 0, 0] baSet2 = [0, 0, 0, 0] 2. Build bit-array from set baSet1 = [1, 0, 0, 0] baSet2 = [0, 0, 1, 0] {“a”} {“d”}

  46. Big Picture {(“a”, 0), (“b”, 3), (“c”, 1”), (“d”, 2)} 1. Build the bit-array from the universe baSet1 = [0, 0, 0, 0] baSet2 = [0, 0, 0, 0] 2. Build bit-array from set baSet1 = [1, 0, 0, 0] baSet2 = [0, 0, 1, 0] {“a”} {“d”} 3. Bit-vector operations baSet3 = or (baSet1, baSet2) baSet3 = [1, 0, 1, 0] 4. Turn baSet3 to ordinary set How? Leave it to you.

  47. How to Store the Universe? // Method 1: stored in separate memory int main () { // cook a universe set set universe = newSet (); // cook two sets s1 and s2 set s1 = newSet (); set s2 = newSet (); setUnion (universe, s1, s2); // ugly }

  48. How to Store the Universe? // Method 2: shared Universe set set set set

  49. How to Make Things Shared? • In C: extern variables • In C++ or Java: static fields • What’s the pros and cons?

  50. Client Code int main () { // cook a universe set set universe = newUniverse (); // cook two sets s1 and s2 set s1 = newSet (); set s2 = newSet (); setUnion (s1, s2); // hummm, no universe AT ALL! }
