Presentation Transcript


  1. Chain Length Effects on Nisin Adsorption to Polyethylene Oxide Layers Mitchell Truong Dr. Joseph McGuire, Bioengineering Oregon State University HHMI 2010

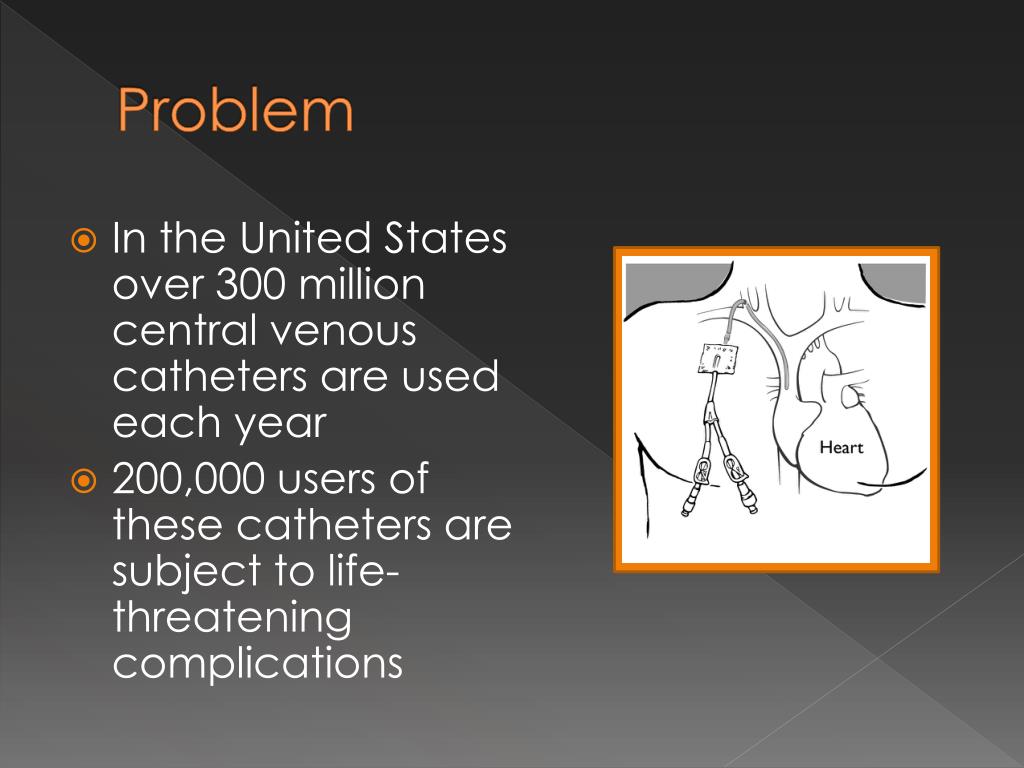

  2. Problem • In the United States over 300 million central venous catheters are used each year • 200,000 users of these catheters are subject to life-threatening complications

  3. Solution HYDROPHILIC • Polyurethane catheters can be coated with polyethylene oxide (PEO) brush layers • Hydrophobic association • PEO brush layers can resist adsorption of human blood proteins • Can also resist adhesion of bacteria HYDROPHOBIC PEO PEO HYDROPHOBIC SURFACE PPO

  4. Solution • Brush layers can be loaded with nisin • Lantibiotic • Effective against Gram positive bacteria • Does not give rise to resistant strains

  5. Solution BACTERIA PROTEIN HYDROPHOBIC

  6. Purpose • To see if PEO brush layers will retain steric repulsive character when loaded with nisin. • To better understand nisin adsorption and elution behavior based on PEO chain length.

  7. Hypothesis • If PEO chains are in the brush configuration, a nisin-loaded PEO layer will retain its steric-repulsive character. • If the outermost nisin molecules are eluted from a nisin-loaded PEO layer, the PEO segments extending beyond the level of entrapped nisin will regain their ability to provide a steric repulsive barrier to blood protein adsorption.

  8. Methods • Prepare model hydrophobic surfaces by coating (1 micron) silica microspheres with trichlorovinylsilane (TCVS). • Coat derivatized surfaces with PEO-containing triblock polymer chains (BASF Pluronic ®) of varying lengths, and stabilize with gamma irradiation

  9. Zeta Potential Analysis • Experimental Design • Contacted with sodium lauryl sulfate (SDS) • Contacted with fibrinogen only • Contacted with nisin and subsequently with fibrinogen • Detect surface changes using zeta potential • Bare silanized surface has a strongly negative charge • Polymer coated surface has a more neutral charge • Nisin has a positive charge • Fibrinogen has a negative charge (lesser)

  10. Results, SDS Challenge

  11. Results, Fibrinogen Challenge

  12. Results, Nisin and Fibrinogen Challenge

  13. Energy dispersive spectroscopy (EDS) • Experimental design • Contacted F108 coated spheres with nisin • Can detect surface composition • Uses electron beam to excite electrons of atoms in sample • Energy released indicates presence of specific atoms • Can take images of sample, scanning electron microscope (SEM)

  14. Results, EDS

  15. Results, SEM TCVS Silanized F108 coated F108 coated w/nisin

  16. X-ray photoelectron spectroscopy (XPS) • Experimental design • Contacted with nisin • Can detect surface composition • Uses x-ray beam to excite electrons of atoms in sample • Kinetic energy of ejected electrons is indicative of specific elements • More sensitive than EDS • Can differentiate between same atoms with different bond types

  17. Results, XPS

  18. Conclusion • Zeta potential analysis showed: • F108 Pluronic attached in a stable fashion to microspheres • The F108 was in a steric repulsive brush configuration • EDS and SEM analyses showed: • F108 presence on surface of Pluronic coated microspheres • Could not detect nisin adsorption in brush layers • XPS showed: • F108 presence on surface • Nisin adsorption detected

  19. Future Research • Continue chain length study using other surface analytical approaches • Study the potency, over time, of nisin against bacteria when loaded in F108 brush layers • Study molecular factors that affect peptide integration into PEO brush layers

  20. Acknowledgements Special thanks to: • Dr. Joseph McGuire • Dr. Karl “Rat” Schilke • Ben Steyer • Dr. Woo Kul Lee • Brynn Livesay • Julie Auxier • Steve Golledge (Camcor) • Dr. Kevin Ahern • Dr. Skip Rochefort • Howard Hughes Medical Institute • Johnson Scholars
