Principales grandeurs c aractérisant u n signal variable sinusoïdal

Principales grandeurs c aractérisant u n signal variable sinusoïdal. Amplitude. Notation : Û ou Î. Valeur efficace. Notation : U ou I U=Û/ 2 I = Î/ 2. Période et fréquence. T en secondes. Fréquence f : f = 1/T f en Hz. Valeur instantanée. Notation : u ou i

reegan
Download Presentation

Principales grandeurs c aractérisant u n signal variable sinusoïdal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

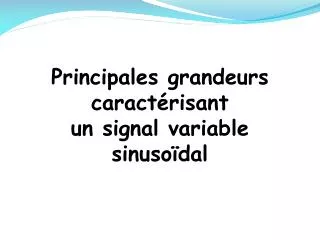

  1. Principales grandeurs caractérisant un signal variable sinusoïdal

  2. Amplitude Notation : Û ou Î

  3. Valeur efficace Notation : U ou I U=Û/ 2 I = Î/ 2

  4. Période et fréquence T en secondes Fréquence f : f = 1/T f en Hz

  5. Valeur instantanée Notation : u ou i u = Û sin 2π t T Temps t

  6. Valeur moyenne Aire positive A U = A - A T Aire négative A Période T

  7. Déphasage Déphasage φ: φ = d x 360° D Ici : φ = 0,62x360 5 φ = 45° d D = 360°
