  1. PeopleSoft High Performance and MAA Guidelines on Oracle Exalogic and Oracle Exadata' [CON7985] LathaKrishnaswamy| Director, Product Management | Exalogic Dennis McCormick, Systems Manager at City and County of San Francisco Aaron DeLosreyes, Director, Oracle Technology, Cognizant Oct 2nd, 2014 Oracle Confidential – Restricted

  2. Oracle Confidential – Restricted

  3. Program Agenda 0 1 PeopleSoft on Exalogic - Anti-pattern traps to avoid…. What is Exalogic Elastic Cloud Software? Exalogic Elastic Cloud Software – PeopleSoft Optimizations PeopleSoft Reference Architecture on Exalogic MAA Best practices PeopleSoft on Exalogic Case Studies – City of San Francisco, Cognizant Demo Summary 2 3 4 5 6 7 Oracle Confidential – Restricted

  4. PeopleSoft on Exalogic: Anti-Patterns Observed… • Multiple PeopleSoft Environments • Port conflict, session state • Hardware (F5) & Software Load Balancers (Apache) vs OTD on Exalogic • Non-separation of JVMs • PIAs for FS, TE, HR – traffic crisscrossing • Integration Broker on same JVM as PIA • Scheduler logs • For recovery & DR, log file share locations and continuous replications • Choice of protocol • Not TCP over JDBC, but rather SDPoIB • JOLT over RDMA - PT 8.53+ • PeopleTools mid-tier • Shared storage use by different VMs • Patching/upgrading multiple VMs • COBOL is chatty. Scheduler on Exalogic. • PeopleSoft Application database • PUM, SYS DB, SES DB, migrate to Exadata Let’s begin our journey to embark on best ways to onboard PeopleSoft workload on Exalogic & Exadata……. Oracle Confidential – Restricted

  5. Program Agenda What is Exalogic Elastic Cloud Software? 1 Exalogic Elastic Cloud Software – PeopleSoft Optimizations PeopleSoft Reference Architecture on Exalogic MAA Best practices PeopleSoft on Exalogic Case Studies – City of San Francisco, Cognizant Demo Summary 2 3 4 5 6 7 Oracle Confidential – Restricted

  6. Exalogic Elastic Cloud System Software Enterprise Manager Middleware and Business Applications Coherence WebLogic Tuxedo Traffic Director Exalogic Control Exabus Integration Exabus Integration Exabus Integration Exabus Integration Physical Oracle Linux/Solaris Oracle Linux Guest OS Oracle VM 3 for Exalogic Exabus Exalogic Elastic Cloud Hardware = Exalogic Elastic Cloud Software

  7. PeopleSoft on Exalogic – Building Blocks Enterprise Manager PeopleSoft Mid-Tier Deployment Application Server Tuxedo PIA WebLogic Scheduler/ Integration Broker Traffic Director Exalogic Control Exabus Integration Exabus Integration Exabus Integration Exabus Integration Physical Oracle Linux/Solaris Oracle Linux Guest OS Oracle VM 3 for Exalogic Exabus Exalogic Elastic Cloud Hardware = Exalogic Elastic Cloud Software

  8. Exalogic Elastic Cloud Software Optimizations for PeopleSoft Workloads Oracle Confidential – Restricted

  9. Tuxedo on Exalogic Increased Performance from Exabus StandardHardware • Eliminates BRIDGE process as bottleneck • Enables greater scalability of Tuxedo domains • 7x throughput • No application changes needed Exalogic 7X 95,595 BRIDGE Single TCP Connection Over Ethernet EECS 1.02.0X 13,680 Exabus BRIDGE dge Tuxedo Applications

  10. Sockets Direct Protocol (SDP) SupportBypasses TCP/IP Stack Tuxedo Domain 2 Tuxedo Domain 1 Node 1 WebLogic Server Server 1 Server 2 /WS Clients Node 1 Server 3 Node 2 Server 4 Server 1 Jolt Clients DB Server 2

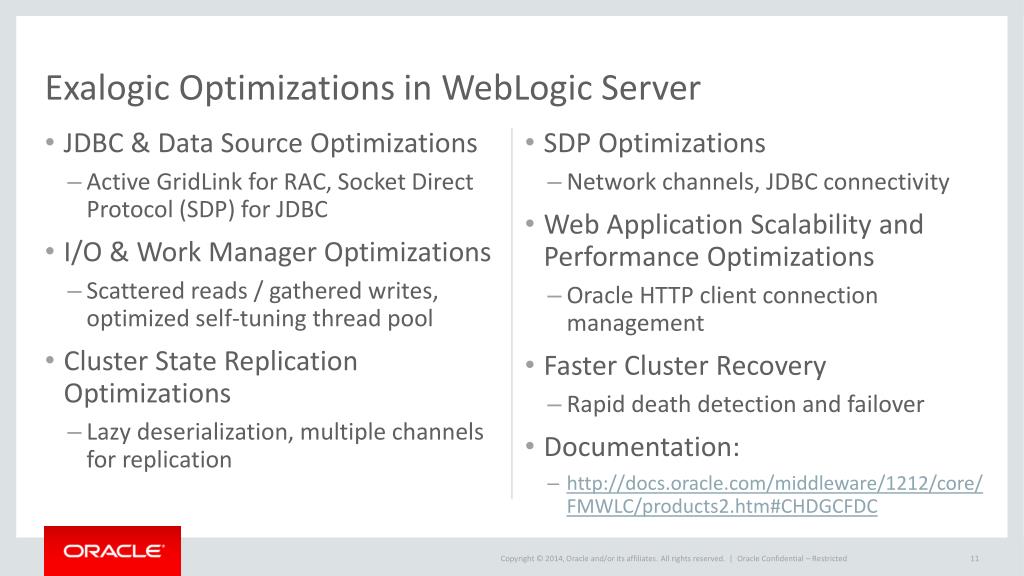

  11. Exalogic Optimizations in WebLogic Server • JDBC & Data Source Optimizations • Active GridLink for RAC, Socket Direct Protocol (SDP) for JDBC • I/O & Work Manager Optimizations • Scattered reads / gathered writes, optimized self-tuning thread pool • Cluster State Replication Optimizations • Lazy deserialization, multiple channels for replication • SDP Optimizations • Network channels, JDBC connectivity • Web Application Scalability and Performance Optimizations • Oracle HTTP client connection management • Faster Cluster Recovery • Rapid death detection and failover • Documentation: • http://docs.oracle.com/middleware/1212/core/FMWLC/products2.htm#CHDGCFDC Oracle Confidential – Restricted

  12. Exalogic Optimizations in Coherence and Tuxedo • Coherence Optimizations • Coherence*Web caching performance optimizations • Use of optimized point-to-point communications in Coherence clusters • IMB transport option on Linux • Documentation: • http://docs.oracle.com/middleware/1212/coherence/COHAG/deploy_checklist.htm#COHAG5300 • Tuxedo Optimizations • Efficient algorithm for Self-Tuning Lock Mechanism (SPINCOUNT) • Optimized performance of intra-node communication (shared memory instead of IPC queue, reduced buffer copies) • Documentation: • http://docs.oracle.com/cd/E53645_01/tuxedo/docs12cr2/exalogic/exalogic.html#wp1092546 Oracle Confidential – Restricted

  13. Oracle Traffic Director – Overview Built-in Application Delivery Controller for Load Balancing over InfiniBand High Availability Quality of Service • Built-in HA on engineered systems • Dynamic reconfiguration • Request, content-based routing • Request rate acceleration • Request rate & connection limiting • Quality of service tuning High Performance Security • Built-in HTTP, TCP load balancing • Native Exabus integration • SSL & TLS offloading • Content caching & HTTP Compression • Throughput • HTTP Reverse proxy • Support for SSL 3.0 and TLS 1.0 • Web-application firewall Oracle Confidential – Internal

  14. High Performance – PeopleSoft on Exalogic & Exadata Performance Test Results + Anecdotes Commodity http://moafshar.blogspot.com/2013/10/middleware-optimizations-for-exalogic.html Blog Entry URL: https://blogs.oracle.com/wernerwatschke/ Oracle Confidential – Restricted

  15. Program Agenda 1 What is Exalogic Elastic Cloud Software? Exalogic Elastic Cloud Software – PeopleSoft Optimizations PeopleSoft Reference Architecture on Exalogic MAA Best practices PeopleSoft on Exalogic Case Studies – City of San Francisco, Cognizant Demo Summary 2 3 4 5 6 7 Oracle Confidential – Restricted

  16. PeopleSoft on Exalogic (Virtual) & ExadataReference Architecture • vServers on Exalogic • Infiniband connection • Shared Storage (ZFSSA) • Common PeopleTools • VM Templates • Multiple PIA - WLS • Multiple AppServers • Multiple Schedulers • Multiple DB (App, SES) • Multiple Workloads • Application Isolation • Better consolidation • Patch/Upgrade faster • Database RAC nodes • …… Oracle Confidential – Restricted

  17. PeopleSoft F5, PIA, OTD configuration on Exalogic virtual • SSL Configured on F5 and OTD • PeopleSoft PIA’s use F5 virtual address for SSL config • PIA, Tuxedo, OTD Admin Node servers deployed • on Exalogic Infiniband channel • OTD Failover groups configured on EoIB Channel • OTD used in Active – Passive configuration Oracle Confidential – Restricted

  18. PeopleSoft OVM Template for Exalogic Simplified Provisioning, Easy Patching and High Performance • Supports PeopleTools8.53, 8.54 • Rapidly test drive new PeopleTools release features: Fluid UI, Activity Guides • Includes PIA and App Server – Weblogic 11g and Tuxedo 10gR3 • Application agnostic – can support any PeopleSoft App Tier • New template for every patch-set simplifying patching going forward • High Performance – parity with bare metal • Complete Instance Management • Reconfigure and save Gold images

  19. Apps Life Cycle on Exalogic - Simplified • Patch apps using OVM Template Apps Patch sets - save 100s of hours and ensure consistency across App, Middleware and Hardware • Manage Apps, Middleware, DB, Servers and Storage from single EM console • Scale Up and Scale down app instances on Exalogic using EM and Apps OVM Templates • Platinum Services resolve issues faster and reduce risk Application Operations EM for Apps Drill Through Views Data Center Operations - EM for Exalogic

  20. Program Agenda 1 What is Exalogic Elastic Cloud Software? Exalogic Elastic Cloud Software – PeopleSoft Optimizations Reference Architecture MAA Best practices PeopleSoft on Exalogic Case Studies – City of San Francisco, Cognizant Demo Summary 2 3 4 5 6 7 Oracle Confidential – Restricted

  21. VMs with shared storage on Exalogic virtualSave Time, Eliminate Mistakes, Follow Best Practices • Shared PS_HOME, PS_APP_HOME on ZFSSA • Facilitates patching & upgrading • Can scale up VMs depending on load • Typical Issues during Load Test • Port locking • Crisscrossing of OTD failover groups for PIAs • PeopleSoft MAA Best practices • Clear demarcation of VMs for each PIA • PIA, AppServer per env i.e. FS, TE, HR • Integration Broker on their own VMs • OTD Active Passive setup • Storage Replication • ZFS storage shares scheduled replication • Scheduler logs continuous replication • PeopleSoft MAA OTN White Paper Oracle Confidential – Restricted

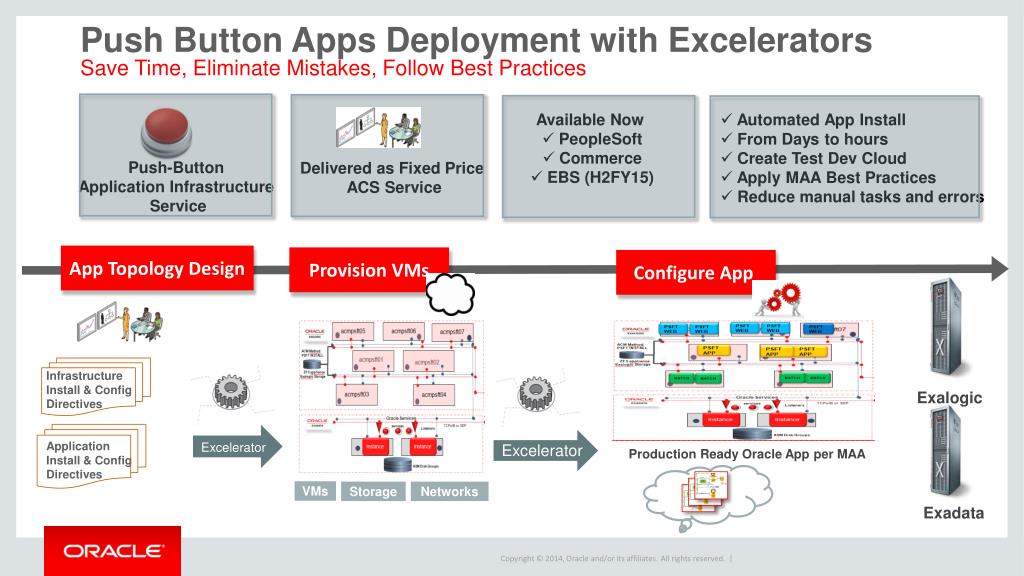

  22. Push Button Apps Deployment with ExceleratorsSave Time, Eliminate Mistakes, Follow Best Practices App Topology Design Provision VMs Configure App • Available Now • PeopleSoft • Commerce • EBS (H2FY15) • Automated App Install • From Days to hours • Create Test Dev Cloud • Apply MAA Best Practices • Reduce manual tasks and errors Push-Button Application Infrastructure Service Application Infrastructure Install & Config Directives Exalogic Application Install & Config Directives Excelerator Excelerator Production Ready Oracle App per MAA VMs Storage Networks Exadata Test-Dev App Cloud Delivered as Fixed Price ACS Service

  23. Program Agenda 1 What is Exalogic Elastic Cloud Software? Exalogic Elastic Cloud Software – PeopleSoft Optimizations Reference Architecture MAA Best practices PeopleSoft on Exalogic Case Studies – City of San Francisco, Cognizant Demo Summary 2 3 4 5 6 7 Oracle Confidential – Restricted

  24. San Francisco’s Exa Story • San Francisco Overview • Exa Upgrade Objectives and Criteria • Exa Upgrade Implementation Timeline • Then and Now • Performance • Maximum Availability Architecture • Looking Back: Challenges and Lessons Learned • Final Thoughts

  25. City of San Francisco • PeopleSoft 9.0 (Ben, HR, TL, Absence, Payroll,eSuites) • Original 9.0 Implementation: Aug 2012 • 25 Environments on HCM 9.0 and HCM 9.2 (Upgrade) • Production= 211 GB (compressed) 6 GB growth biweekly • 30k employees, 100,000k covered lives, $100m payroll • Controller’s eMerge (PeopleSoft) Division = 40 FTE • Responsible for application (4 FTE), OS (2 FTE) and hardware • Department of Technology: =200 FTE • Responsible for database, storage, network and datacenters

  26. Upgrade Project Objectives • Refresh Hardware • Move to new Production Data Center • Move to new Disaster Recovery/Test/Dev Data Center • Simplify Architecture

  27. San Francisco’s Exa Implementation Timeline Upgrade Exadatas to 1/4 rack Exalogic new 1/8rack Inception Excite Process Kickoff May 9th Install at New Production Data Center Dec 12th -20th Install at New Test/DEV/DR Data Center Feb 10-21st Go-Live June 6th Vendor Selected November 5th RFQ Issued October 25th Datacenter Lease Signed July 10th Apply July Patch Aug. 15th-28th 1G Connection Established Jan 17th Apply April Patch May 19-22nd • Operating/Database System • Upgraded from PT 8.5.0 to 8.5.3 • Implemented RAC • Implemented Active Dataguard • Expanded OEM usage • Implemented GoldenGate • Infrastructure • Moved to 2 new data centers • Built Test/DEV/DR from floor-up • Established connectivity • Hardware • 2 1/8 rack Exadatas • 2 1/8 rack Exalogics • UCS for Windows

  28. Reference Architecture • Simplify the visio!

  29. Hardware Refresh: Key Criteria • Create a stable, scalable base for future work • Increase performance • Implement MAA/DR • Reduce Total Cost of Ownership: How? • Simplify architecture across data centers: reduce training time • Increased automation via OEM: more time for value added work • One vendor: less time troubleshooting • Increased performance: less overtime, more time for Q/A • Other options considered: new blades, Vblock, hybrid model

  30. MAA: Highlighted Examples • Rolling patching: no overtime and no outages for end users • Failover: DR test was planned and implemented in a few hours, SunGard test took months of planning time • Replaced parts in production chassis during workweek • Exachecks: proactive monitoring, great Oracle Support • Use of ZFS Exalogic Shares via Vservers to manage images of PeopleSoft HOME & Oracle HOME: makes everything easy

  31. Performance • More than just run time improvements…. • Trouble shooting is much faster and smoother • End User Experience: “the pages jump at you” • Templates: spun up PeopleSoft 9.2 Environments in ½ a day, previous lifecycle would have been months or weeks • Increased from 1,000 end users in June to 3,00o today, with plans to grow to 30,000 in early 2015

  32. Performance Improvements

  33. Payroll Processing Improvements: how we used the 7 hours • Return to more normal work life balance • More time for quality assurance and data entry tasks • Will return slack time to end user departments: goal is 1:00 PM on Thursday

  34. Looking Back…. • Recommendations… • Plan for growth from day one • Training should be “just in time” hard to relate to scale of change • Don't deviate from best practice; listen don’t do it the old way • Develop documentation and procedures that work for your organization there is no one size fits all • Oracle to do… • Improve documentation for first timers • 800 page user manuals are too dense: need quick reference guides • Improve Platinum Gateway experience • Issues with 8.53.10 template during initial move and build

  35. Final Thoughts • Are we confident we made the right decision? YES • Why? • Total Cost of Ownership • Scalability: ability to scale up and scale down is a game changer • One vendor is really, really nice • What’s next? • Purchased two new Exadata 1/8 racks and new Exalogic 1/8 rack for Oracle Identity Manager and other applications

  36. Maximum Availability Architecture at Cognizant PeopleSoft Systems • Aaron De Los Reyes • Sr. Director, Oracle Technology • Cognizant, Inc Oct 2, 2014

  37. Cognizant’s PeopleSoft ESA, Fin, HR on Exalogic MAA Global Large Critical • And, got problematic • Peak time slowness • More and more servers • Lack of ability to scale • Longer maintenance window

  38. Oracle Exalogic Solution? Exalogic upgrade on web layer Lintel / Weblogic Benefits 50% improved downstream integration processing Server consolidation – 5:1 Maintenance window reduced to few hours Support effort down 50% Better CPU utilization – 3:1

  39. Didn’t quite stop there… Oracle Exadata • Performance woes • 10-15 slow incidents/month • Batch failures / over runs • Slow online pages due to DB2 table locking • Long running SQLs • Inability to scale for 2015+ volume DB2/AIX 3 Options, 1 Pick DB Layer upgrade to Exadata

  40. Implementation, Outcomes & Benefits Strict timelines Conversion of ~6,000 SQLs Constantly changing production system Only <3 days available for cut over Full DR 60 hours cut over DR upgraded same time as production No major post production issues • Financials close batch jobs complete 56% faster • Payment batch jobs run 93% faster • Customer billing batch jobs run 55% faster • RTO for DR down rom hours to near-zero • Transactions with <1s response 75% from 30% • Batch window reduced to ~4 hours from 10+ hours • Huge floor, and power saving • 24x7 availability

  41. Cognizant’s Application Landscape PeopleSoft Suite Cognizant’s PeopleSoft Implementation for Corporate functions include - • PeopleSoft Financials/Enterprise Services Automation - GL, AP, AR, AM, CM, PO , T&E, CA, BI, RM, PC • PeopleSoft HCM – Core HR, Absence Management, Time and Labor, Payroll, ePerformance, Self-Service, Workforce Administration, Recruitment, eCompensation, Profile Management • PeopleSoft ELM for Cognizant Academy • User base – 180K , World wide • Database size : ESA – 2 .5 TB, HCM – 1 TB, ELM – 800 GB • Peak user load: ESA – 15K bi-weekly, HCM – 40K semi-annually, ELM – 10K (irregular peaks)

  42. Architecture Technology Components Deployment for 3 Applications (Financials, HCM, ELM) Primary: App Tier: ½ Rack Exalogic DB Tier: ¼ Rack Exadata (High Performance) Stand by: App Tier: 1/8th Exalogic DB Tier: ½ Rack Exadata (High capacity) Applications: PS HCM 9.1, PS Financials 9.1, PS ELM 9.1 Environment Management Oracle EM for PeopleSoft Applications Monitoring for Health & Perf: Oracle EM for PeopleSoft and Oracle Real User Experience (RUEI)

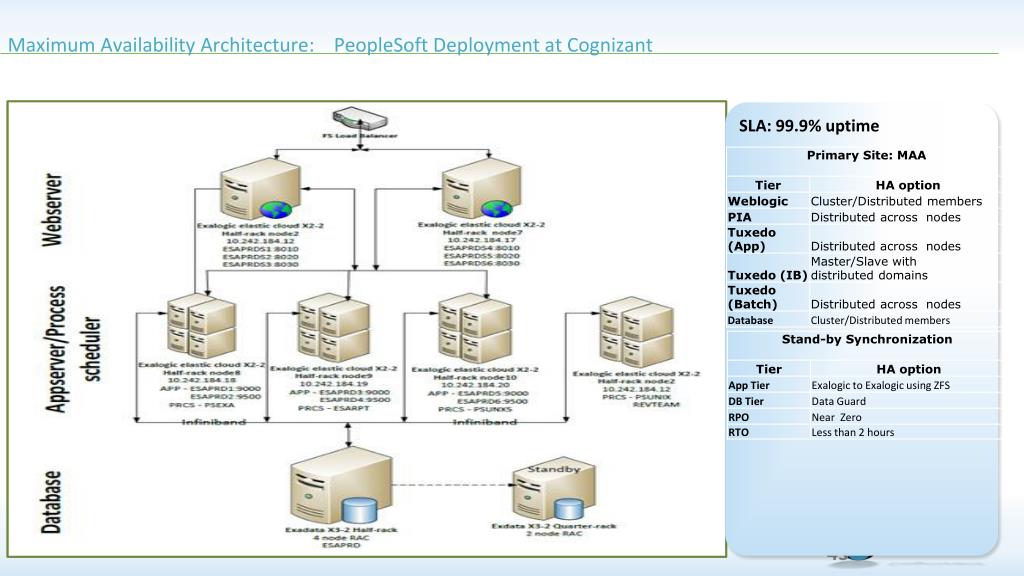

  43. Maximum Availability Architecture: PeopleSoft Deployment at Cognizant SLA: 99.9% uptime

  44. Maximum Availability at Cognizant

  45. Summary • Exalogic is engineered systems platform ideal for PeopleSoft workloads • Software optimizations and shared storage help scale & serve multiple envs • Virtual servers house various components of PeopleSoft – PIA, Tuxedo, integration broker, process scheduler… • Multiple VMs ensure High Availability & Workload Isolation • PeopleSoft MAA best practices ensure lower Recovery times (RTO) • PeopleSoft Exalogic Virtual Templates available for PeopleTools release • PeopleSoft Excelerator for rapid provisioning using automation Oracle Confidential – Restricted

  46. Oracle Confidential – Restricted
