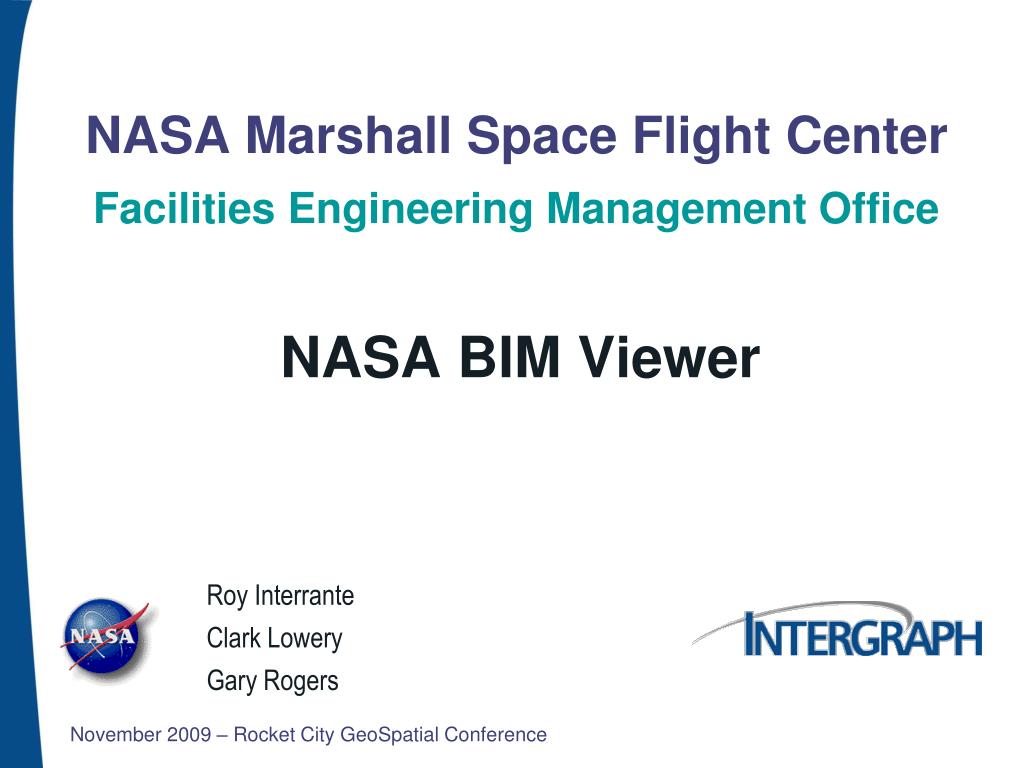

  1. NASA Marshall Space Flight CenterFacilities Engineering Management Office NASA BIM Viewer Roy Interrante Clark Lowery Gary Rogers November 2009 – Rocket City GeoSpatial Conference

  2. NASA BIM Viewer • BIM – Building Information Modeling • Data Integration Techniques • GeoSpatial Concepts and Technologies

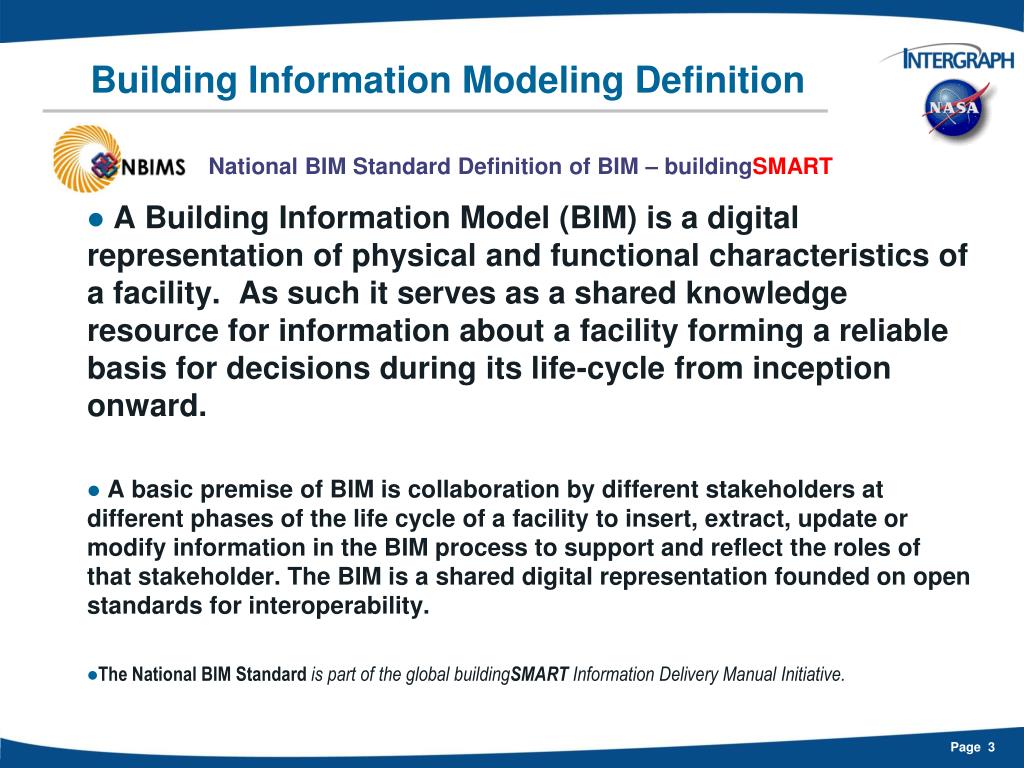

  3. Building Information Modeling Definition National BIM Standard Definition of BIM – buildingSMART • A Building Information Model (BIM) is a digital representation of physical and functional characteristics of a facility.  As such it serves as a shared knowledge resource for information about a facility forming a reliable basis for decisions during its life-cycle from inception onward. • A basic premise of BIM is collaboration by different stakeholders at different phases of the life cycle of a facility to insert, extract, update or modify information in the BIM process to support and reflect the roles of that stakeholder. The BIM is a shared digital representation founded on open standards for interoperability. • The National BIM Standard is part of the global buildingSMART Information Delivery Manual Initiative.

  4. BIM in Action All Stakeholders Participate Financial Data Geospatial Data Legal Data Designer Data BIM Specifier Data Owner / Occupier Data Sustainers Data Environmentalist Data Courtesy of NIBS National Building Information Modeling Standards Committee

  5. Before – Collection of Information Space Management Mapping Department Planning Department Utilities Department Maintenance and Operations Architecture/CAD Department

  6. Database Application Application Maximo ArcGIS Business Process Business Process Business Process Business Process Data Files Independent Data Sets • No Data Linkages • Specially trained users. • Complex Software • Stove Pipe Solutions Map Data (SDE) Asset Mgmt (Oracle)

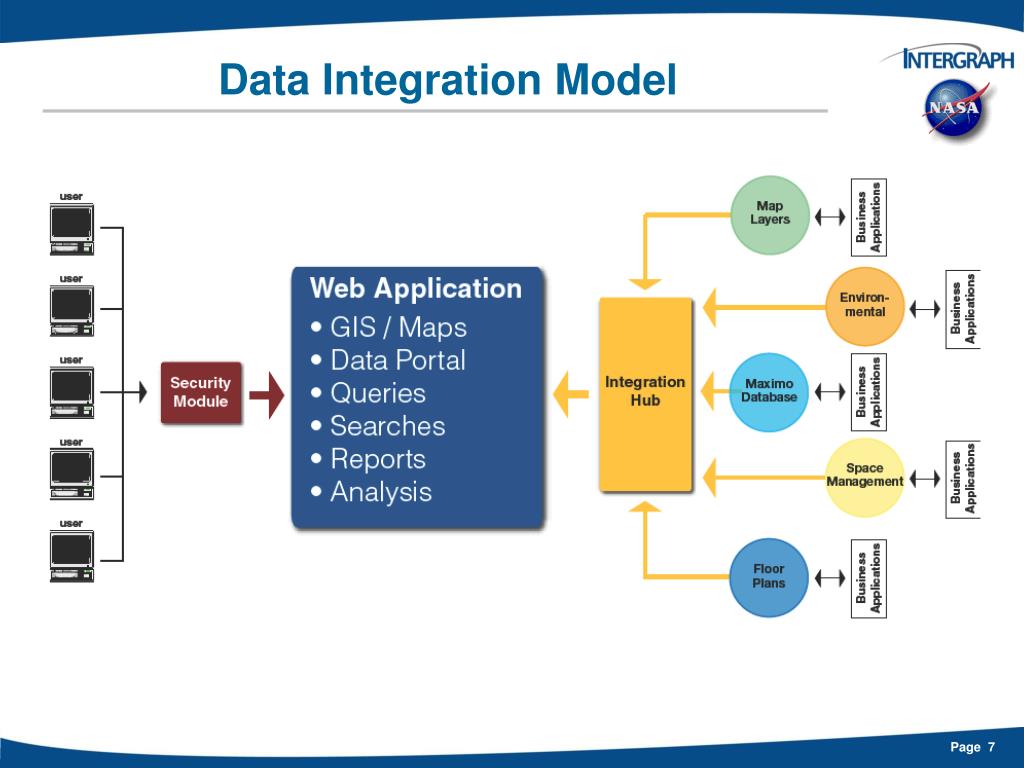

  7. Data Integration Model

  8. Engineering Systems Maximo Environmental BIM Viewer Web Application UCS Utility Control Systems Real Property Floor Plans Space Utilization Mapping/ Utilities Data Integration Objective

  9. Space Utilization Reports Space Utilization Floor Plans Building Photos MicroStation Files JPEG Files Master Floor Plans NASA MicroStation Real Property File s Integrated Enterprise Databases Roof Management Utility Control SDE SPUT System System SQL Server Space Utilization MicroStation Facilities MicroStation Files Database and Real Files Minor Work Property GIS Database Request Web Application BIM Viewer Web Application CMMS Aerials Oracle MrSID files Database Facilities Environmental Work Order MEDIS GIS MIW / MAMS Information Security Web Application Marshall Assets Web Application Database Management System Utility Maps HPGas Archived As- Documentation MicroStation Base Map Database builts Repository MicroStation Access MicroStation Web Application Application Files and Database Facilities Facilities Work Component Minor Work Data Integration to FacGIS Order Roof Specification Utility Request Information Management Sheet Control Direct Linkage Web Application System System Web Application Web Page DPR Files Indirect Linkage DPR Files HyperLink

  10. GeoSpatial Concepts and Technology • View Tabular Information from a Spatial/Location Perspective • Correlate Floor Plans & Maps with Asset Databases • GeoSpatial Tools • Navigate to Data (zoom & pan) • Search and Find Location • Thematic Drawings (color coding) • Mouse Over for Information • Measure Tools • Redlining Notes

  11. Application – Snap Shot

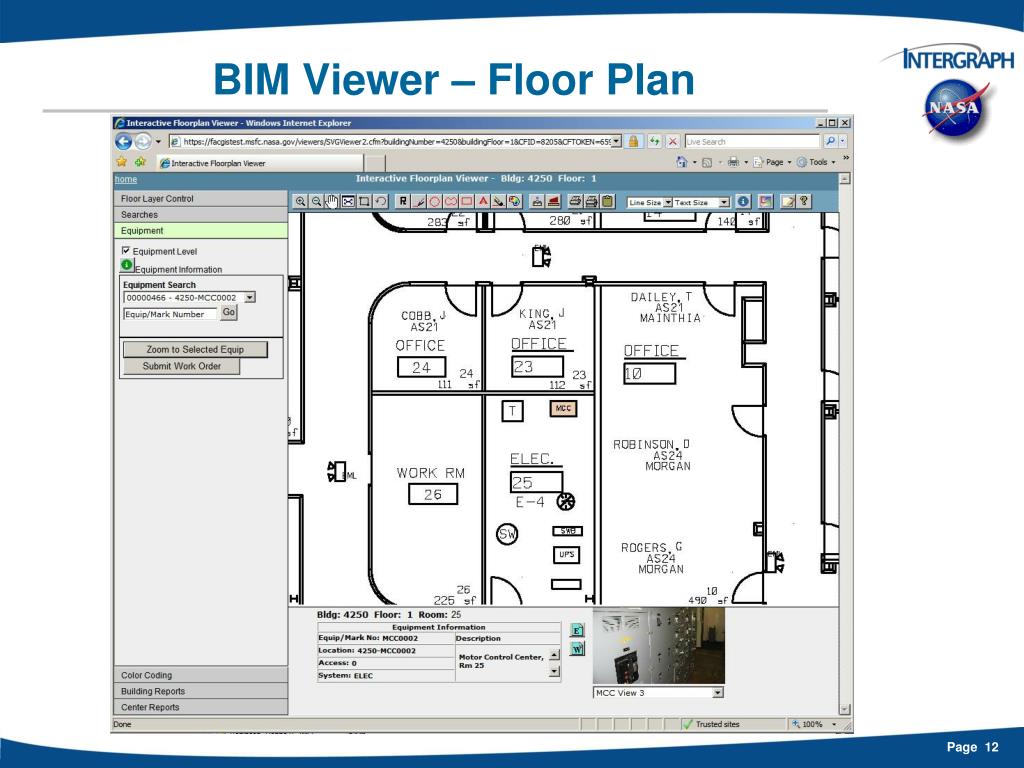

  12. BIM Viewer – Floor Plan

  13. Equipment Report Work Orders Photographs Data Connections Manuals Schematics

  14. Decision Makers Results – Access to Pertinent Information • Utility Maps • Architecture Floor Plans • Space Management • Asset Reports • Work Orders • Room Data • O&M Equipment Data • Environmental Maps • Master Planning Maps • Support Maps BIM Viewer

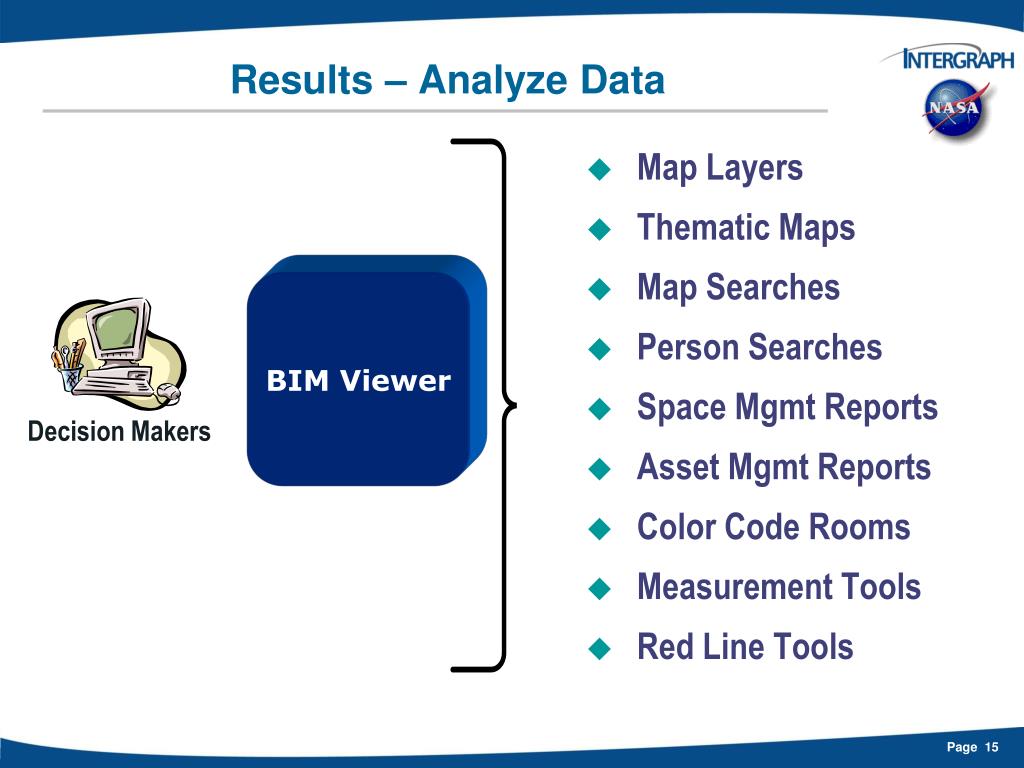

  15. Decision Makers Results – Analyze Data • Map Layers • Thematic Maps • Map Searches • Person Searches • Space Mgmt Reports • Asset Mgmt Reports • Color Code Rooms • Measurement Tools • Red Line Tools BIM Viewer

  16. Decision Makers Results – Benefits (ROI) • Access All Data • Rapid Data Retrieval • Save Time and Dollars • Make Better Decisions • Leverage Existing Systems • Reduced Licensing Requirements • Create Spatial View of Data • Reduce Data Collection Hours • Reduce Wrench Time BIM Viewer
