Voltz Remote Power Panels

The Voltz Remote power panel is a versatile and adaptable solution that supports a wide range of input and output voltage configurations. Read more- https://bit.ly/3SsCMkE

raptorpowersystems
Download Presentation

Voltz Remote Power Panels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

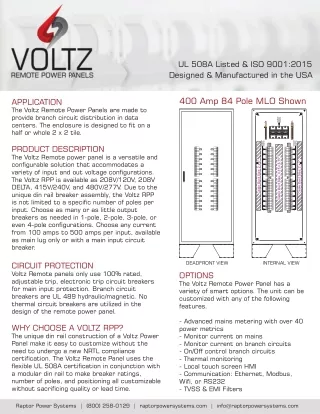

  1. UL 508A Listed & ISO 9001:2015 Designed & Manufactured in the USA 400 Amp 84 Pole MLO Shown APPLICATION The Voltz Remote Power Panels are made to provide branch circuit distribution in data centers. The enclosure is designed to fit on a half or whole 2 x 2 tile. INCOMING FROM TOP CABLES N E OUTGOING OUTGOING FROM TOP FROM TOP CABLES CABLES PRODUCT DESCRIPTION The Voltz Remote power panel is a versatile and configurable solution that accommodates a variety of input and out voltage configurations. The Voltz RPP is available as 208V/120V, 208V DELTA, 415V/240V, and 480V/277V. Due to the unique din rail breaker assembly, the Voltz RPP is not limited to a specific number of poles per input. Choose as many or as little output breakers as needed in 1-pole, 2-pole, 3-pole, or even 4-pole configurations. Choose any current from 100 amps to 500 amps per input, available as main lug only or with a main input circuit breaker. Q1 Q2 Q3 Q4 Cable Duct Size: 3.15 x 3.15" Q5 Q6 Cable Duct Size: 2 x 3" Cable Duct Size: 2 x 3" Q7 Q8 Q9 Q10 Q11 Q12 Q13 Q14 Q15 Q16 Q17 Q18 Q19 Q20 Q21 Q22 Q23 Q24 Q25 Q26 DEADFRONT VIEW INTERNAL VIEW CIRCUIT PROTECTION Voltz Remote panels only use 100% rated, adjustable trip, electronic trip circuit breakers for main input protection. Branch circuit breakers are UL 489 hydraulic/magnetic. No thermal circuit breakers are utilized in the design of the remote power panel. OPTIONS The Voltz Remote Power Panel has a variety of smart options. The unit can be customized with any of the following features. - Advanced mains metering with over 40 power metrics - Monitor current on mains - Monitor current on branch circuits - On/Off control branch circuits - Thermal monitoring - Local touch screen HMI - Communication: Ethernet, Modbus, Wifi, or RS232 - TVSS & EMI Filters WHY CHOOSE A VOLTZ RPP? The unique din rail construction of a Voltz Power Panel make it easy to customize without the need to undergo a new NRTL compliance certification. The Voltz Remote Panel uses the flexible UL 508A certification in conjunction with a modular din rail to make breaker ratings, number of poles, and positioning all customizable without sacrificing quality or lead time. Raptor Power Systems | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com

  2. UL 508A Listed & ISO 9001:2015 Designed & Manufactured in the USA 250 Amp Basic and Smart MLO RPPs RPS-RPP-250A-MLO RPS-RPP-250A-MLO-S Enclosure Type Free Standing NEMA 1 Free Standing NEMA 1 Enclosure Size 12"D x 24"W x 48"H 12"D x 24"W x 60"H ENCLOSURE Entry Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Exit Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Voltage Range 208V/120V, 415V/240V, 480V/277V 208V/120V, 415V/240V, 480V/277V Current 250 Amps 250 Amps Phase 3 Phase DELTA or WYE 3 Phase DELTA or WYE INPUT Frequency 60Hz 60Hz Circuit Protection N/A N/A Wire Size 4 AWG - 4/0 (larger upon request) 4 AWG - 4/0 (larger upon request) Termination Style Hardwire to PDB Hardwire to PDB Number of Poles Supported 72 Poles 72 Poles OUTPUT Circuit Breakers UL 489 HY/MAG Switched UL 489 HY/MAG Switched Output Wiring Standard 4 x 4 Wire Basket Trough Standard 4 x 4 Wire Basket Trough Control N/A On/O? Each Circuit Breaker (optional) Monitoring N/A Current per Pole or mains (optional) INTELLIGENCE HMI N/A LCD Screen for Power Metrics and Control Ethernet/Network Compliance Quality Control N/A UL508A Listed ISO 9001:2015 Ethernet, Wi?, Modbus, RS232 (optional) UL508A Listed ISO 9001:2015 COMPLIANCE Raptor Power Systems | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com

  3. UL 508A Listed & ISO 9001:2015 Designed & Manufactured in the USA 250 Amp Basic and Smart Main Circuit Breaker RPPs RPS-RPP-250A-MCB RPS-RPP-250A-MCB-S Enclosure Type Free Standing NEMA 1 Free Standing NEMA 1 Enclosure Size 12"D x 24"W x 48"H 12"D x 24"W x 60"H ENCLOSURE Entry Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Exit Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Voltage Range 208V/120V, 415V/240V, 480V/277V 208V/120V, 415V/240V, 480V/277V Current 250 Amps 250 Amps Phase 3 Phase DELTA or WYE 3 Phase DELTA or WYE INPUT Frequency 60Hz 60Hz Circuit Protection 250 Amp 100% Rated Adjustable ETU 250 Amp 100% Rated Adjustable ETU Wire Size 4 AWG - 4/0 (larger upon request) 4 AWG - 4/0 (larger upon request) Termination Style Hardwire to PDB Hardwire to PDB Number of Poles Supported 72 Poles 72 Poles OUTPUT Circuit Breakers UL 489 HY/MAG Switched UL 489 HY/MAG Switched Output Wiring Standard 4 x 4 Wire Basket Trough Standard 4 x 4 Wire Basket Trough Control N/A On/O? Each Circuit Breaker (optional) Monitoring N/A Current per Pole or mains (optional) INTELLIGENCE HMI N/A LCD Screen for Power Metrics and Control Ethernet/Network Compliance Quality Control N/A UL508A Listed ISO 9001:2015 Ethernet, Wi?, Modbus, RS232 (optional) UL508A Listed ISO 9001:2015 COMPLIANCE Raptor Power Systems | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com

  4. UL 508A Listed & ISO 9001:2015 Designed & Manufactured in the USA 400 Amp Basic and Smart MLO RPPs RPS-RPP-400A-MLO RPS-RPP-400A-MLO-S Enclosure Type Free Standing NEMA 1 Free Standing NEMA 1 Enclosure Size 18"D x 24"W x 60"H 18"D x 24"W x 60"H ENCLOSURE Entry Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Exit Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Voltage Range 208V/120V, 415V/240V, 480V/277V 208V/120V, 415V/240V, 480V/277V Current 400 Amps 400 Amps Phase 3 Phase DELTA or WYE 3 Phase DELTA or WYE INPUT Frequency 60Hz 60Hz Circuit Protection N/A N/A Wire Size 1 AWG -500 MCM 1 AWG -500 MCM Termination Style Hardwire to PDB Hardwire to PDB Number of Poles Supported 84 Poles (more upon request) 84 Poles (more upon request) OUTPUT Circuit Breakers UL 489 HY/MAG Switched UL 489 HY/MAG Switched Output Wiring Standard 4 x 4 Wire Basket Trough Standard 4 x 4 Wire Basket Trough Control N/A On/O? Each Circuit Breaker (optional) Monitoring N/A Current per Pole or mains (optional) INTELLIGENCE HMI N/A LCD Screen for Power Metrics and Control Ethernet/Network Compliance Quality Control N/A UL508A Listed ISO 9001:2015 Ethernet, Wi?, Modbus, RS232 (optional) UL508A Listed ISO 9001:2015 COMPLIANCE Raptor Power Systems | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com

  5. UL 508A Listed & ISO 9001:2015 Designed & Manufactured in the USA 400 Amp Basic and Smart Main Breaker RPPs RPS-RPP400A-MCB RPS-RPP-400A-MCB-S Enclosure Type Free Standing NEMA 1 Free Standing NEMA 1 Enclosure Size 18"D x 24"W x 60"H 18"D x 24"W x 60"H ENCLOSURE Entry Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Exit Point Top/Side Gland Plate or Bottom Top/Side Gland Plate or Bottom Voltage Range 208V/120V, 415V/240V, 480V/277V 208V/120V, 415V/240V, 480V/277V Current 400 Amps 400 Amps Phase 3 Phase DELTA or WYE 3 Phase DELTA or WYE INPUT Frequency 60Hz 60Hz Circuit Protection 400 Amp 100% Rated Adjustable ETU 400 Amp 100% Rated Adjustable ETU Wire Size 1 AWG -500 MCM 1 AWG -500 MCM Termination Style Hardwire to PDB Hardwire to PDB Number of Poles Supported 84 Poles (more upon request) 84 Poles (more upon request) OUTPUT Circuit Breakers UL 489 HY/MAG Switched UL 489 HY/MAG Switched Output Wiring Standard 4 x 4 Wire Basket Trough Standard 4 x 4 Wire Basket Trough Control N/A On/O? Each Circuit Breaker (optional) Monitoring N/A Current per Pole or mains (optional) INTELLIGENCE HMI N/A LCD Screen for Power Metrics and Control Ethernet/Network Compliance Quality Control N/A UL508A Listed ISO 9001:2015 Ethernet, Wi?, Modbus, RS232 (optional) UL508A Listed ISO 9001:2015 COMPLIANCE Raptor Power Systems | (800) 258-0129 | raptorpowersystems.com | info@raptorpowersystems.com
