Classroom presentations to accompany understanding earth 3rd edition

Classroom presentations to accompany Understanding Earth, 3rd edition

prepared by

Peter Copeland and William Dupré

University of Houston

Chapter 19

Exploring Earth’s Interior


Exploring earth s interior

Exploring Earth’s Interior


Structure of the earth

Structure of the Earth

  • Seismic velocity depends on the composition of material and pressure.

  • We can use the behavior of seismic waves to tell us about the interior of the Earth.

  • When waves move from one material to another they change speed and direction.


Refraction and reflection of a beam of light

Refraction and Reflection of a Beam of Light

Refraction

Reflection

Fig. 19.1


Classroom presentations to accompany understanding earth 3rd edition

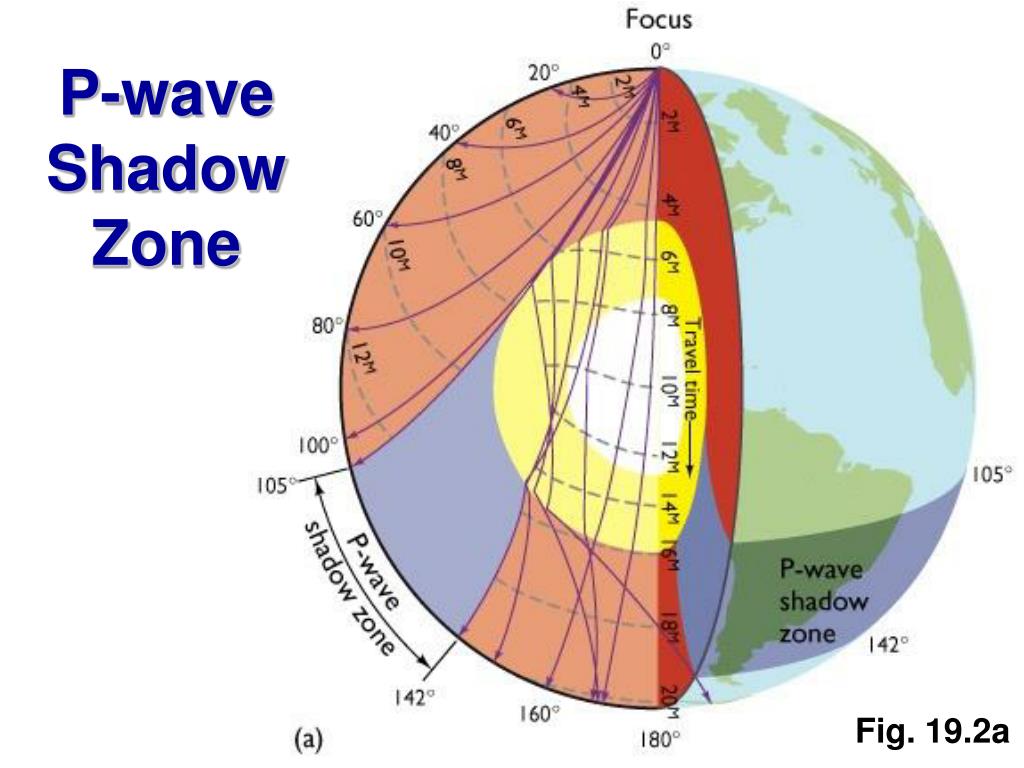

P-wave Shadow Zone

Fig. 19.2a


S wave shadow zone

S-wave Shadow Zone

Fig. 19.2b

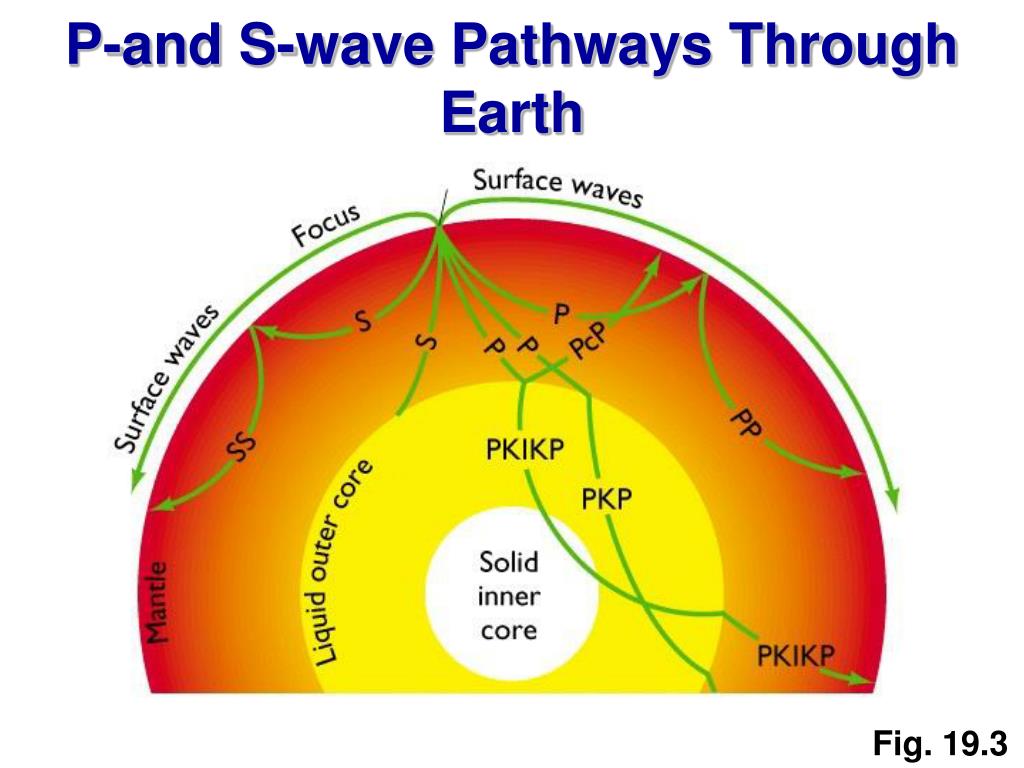

P and s wave pathways through earth

P-and S-wave Pathways Through Earth

Fig. 19.3

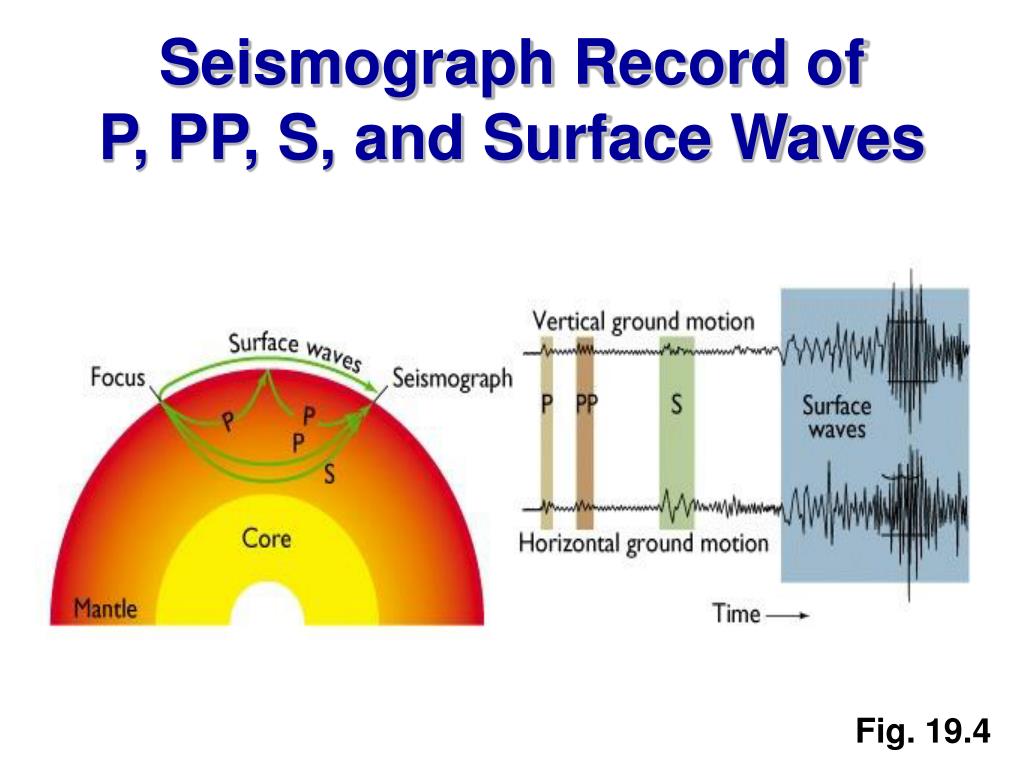

Seismograph record of p pp s and surface waves

Seismograph Record of P, PP, S, and Surface Waves

Fig. 19.4


Changes in p and s wave velocity reveal earth s internal layers

Changes in P-and S- wave Velocity Reveal Earth’s Internal Layers

Fig. 19.5


Structure of the earth1

Structure of the Earth

Study of the behavior of seismic waves tells

us about the shape and composition of the

interior of the Earth:

  • Crust: ~10–70 km, intermediate composition

  • Mantle: ~2800 km, mafic composition

  • Outer core: ~2200 km, liquid iron

  • Inner core: ~1500 km, solid iron


Composition of the earth

Composition of the Earth

Seismology tells us about the density

of rocks:

  • Continental crust: ~2.8 g/cm3

  • Oceanic crust: ~3.2 g/cm3

  • Asthenosphere: ~3.3 g/cm3


Isostasy

Isostasy

  • Buoyancy of low-density rock masses “floating on” high-density rocks; accounts for “roots” of mountain belts

  • First noted during a survey of India

  • Himalayas seemed to affect plumb

  • Two hypotheses: Pratt and Airy


The less dense crust floats on the less buoyant denser mantle

The less dense crust “floats” on the less buoyant, denser mantle

Mohorovicic

Discontinuity

(Moho)

Fig. 19.6

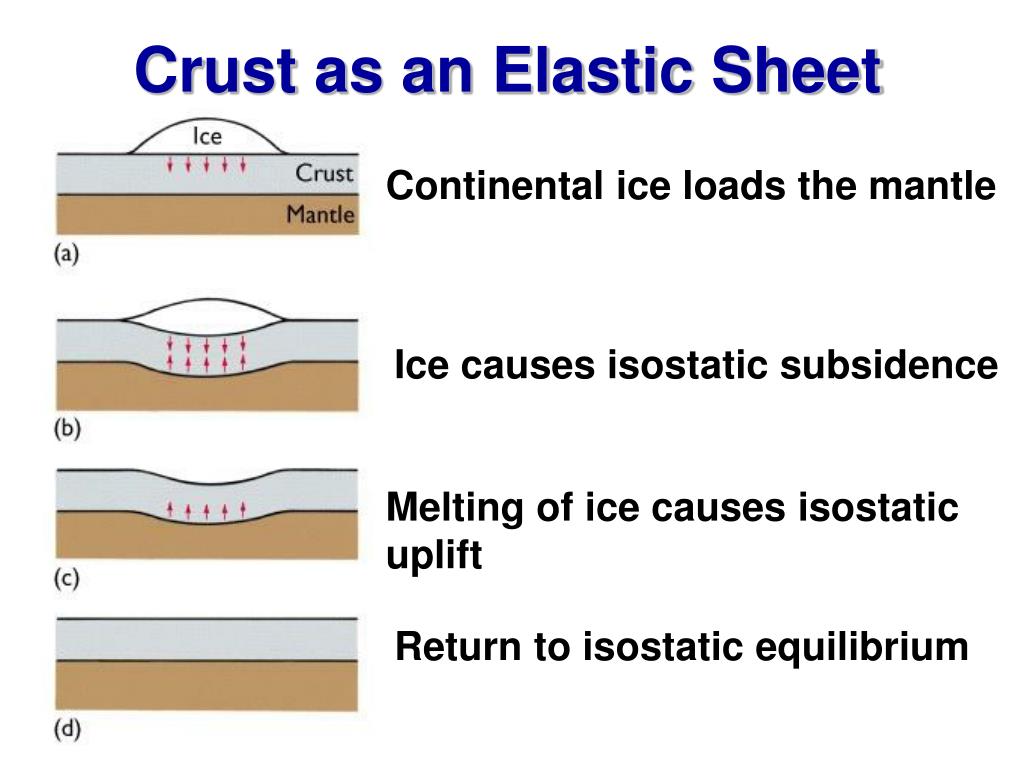

Crust as an elastic sheet

Crust as an Elastic Sheet

Continental ice loads the mantle

Ice causes isostatic subsidence

Melting of ice causes isostatic

uplift

Return to isostatic equilibrium


Structure of the crust and upper mantle

Structure of the Crust and Upper Mantle

Fig. 19.7


Earth s internal heat

Earth’s internal heat

  • Original heat

  • Subsequent radioactive decay

  • Conduction

  • Convection


Upper mantle convection as a possible mechanism for plate tectonics

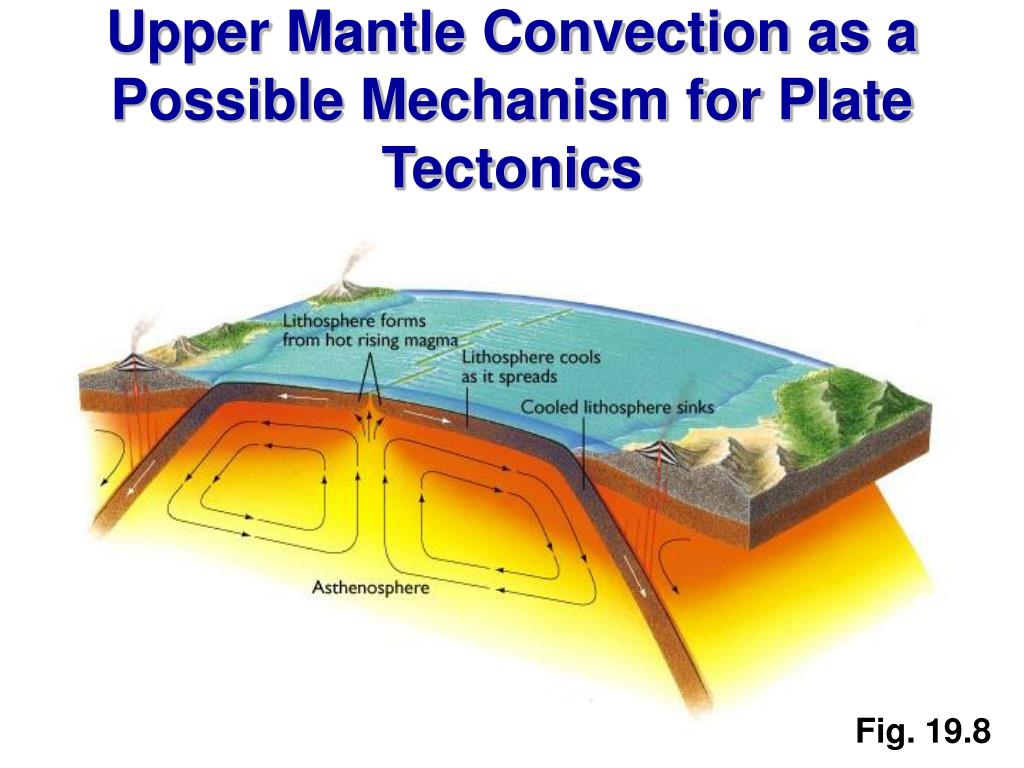

Upper Mantle Convection as a Possible Mechanism for Plate Tectonics

Fig. 19.8

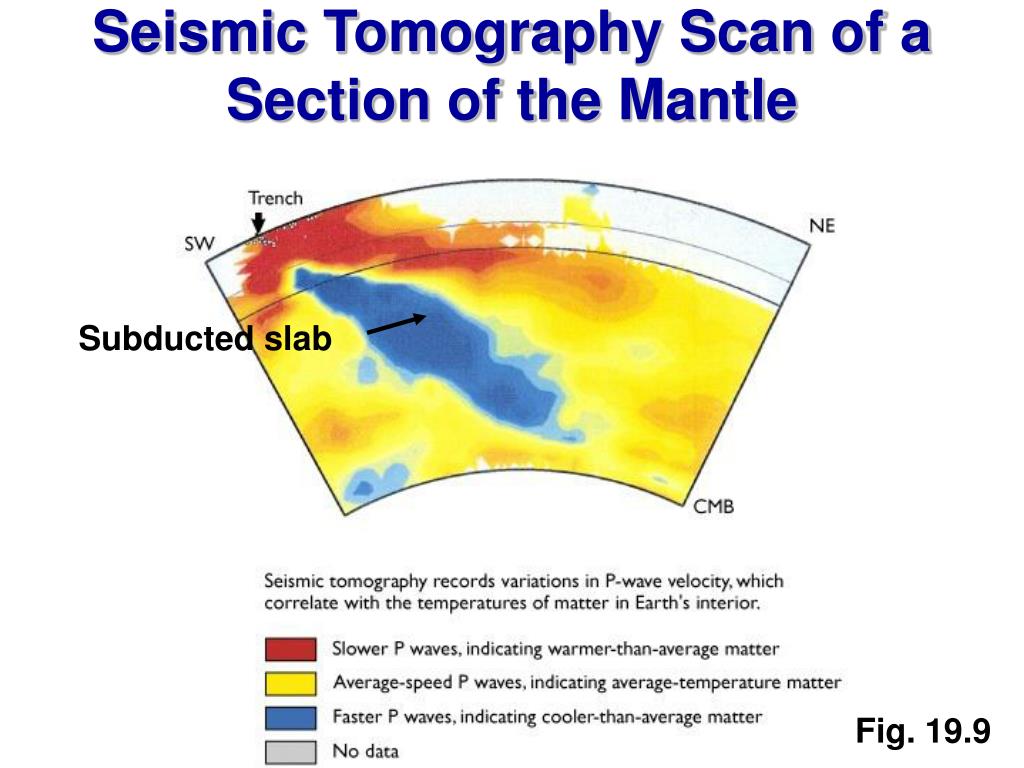

Seismic tomography scan of a section of the mantle

Seismic Tomography Scan of a Section of the Mantle

Subducted slab

Fig. 19.9

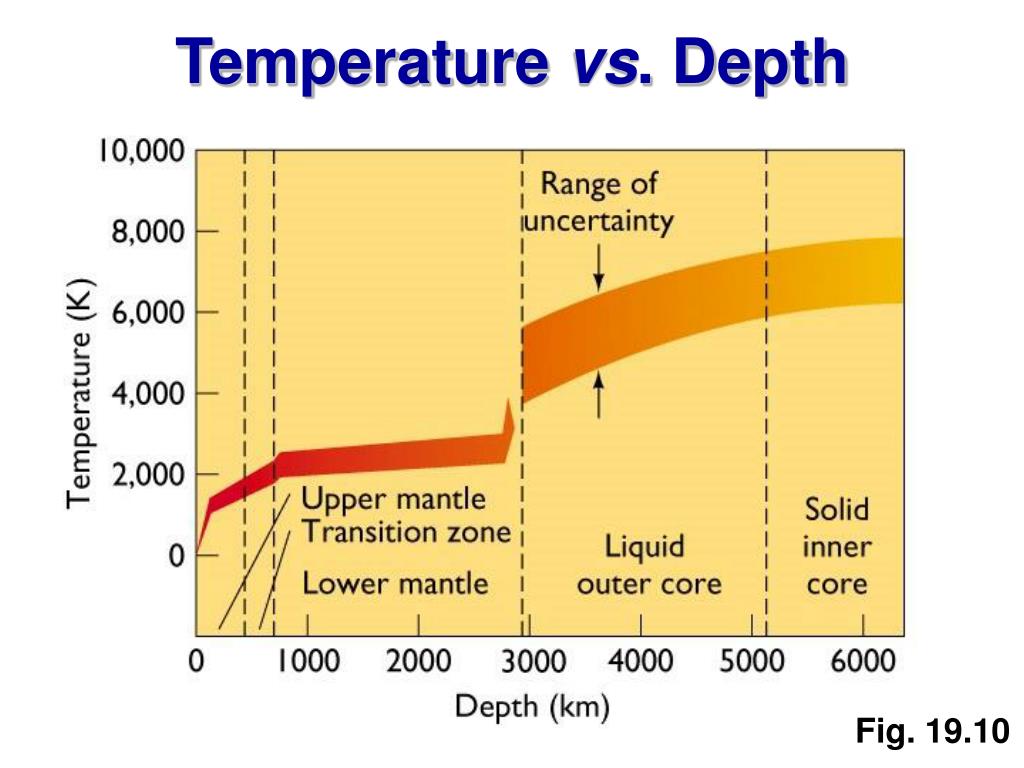

Temperature vs depth

Temperature vs. Depth

Fig. 19.10


Paleomagnetism

Paleomagnetism

  • Use of the Earth's magnetic field to investigate past plate motions

  • Permanent record of the direction of the Earth’s magnetic field at the time the rock was formed

  • May not be the same as the present magnetic field


Classroom presentations to accompany understanding earth 3rd edition

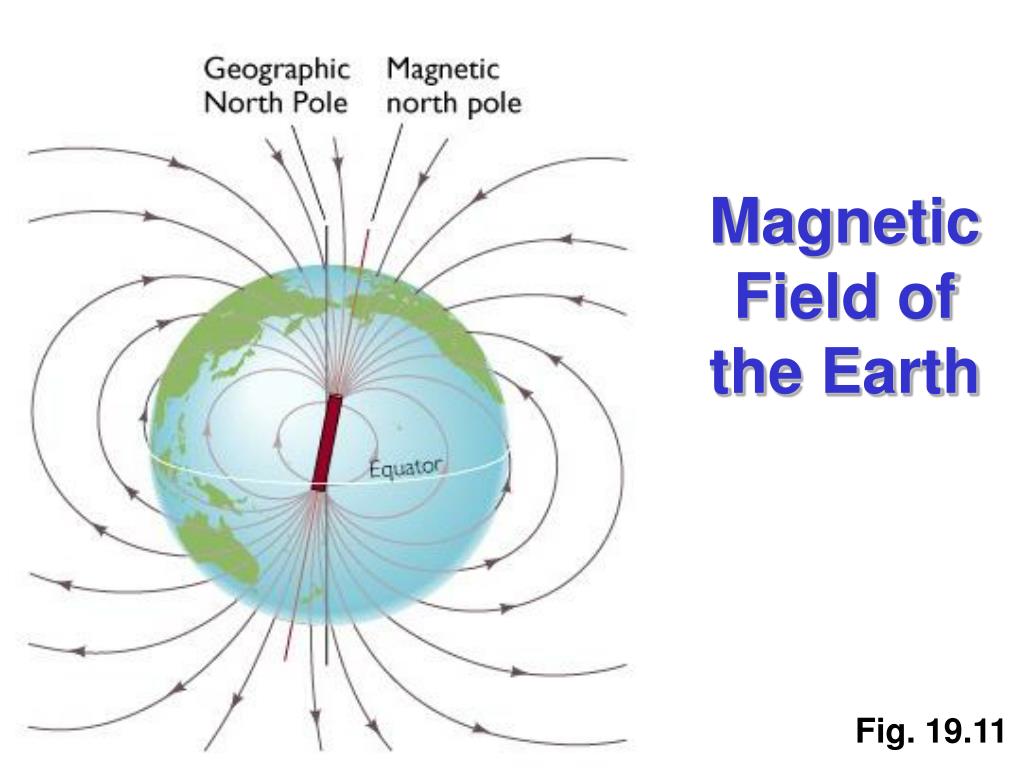

Magnetic Field of the Earth

Fig. 19.11


Magnetic field of a bar magnet

Magnetic Field of a Bar Magnet

Fig. 19.11


Use of magnetism in geology

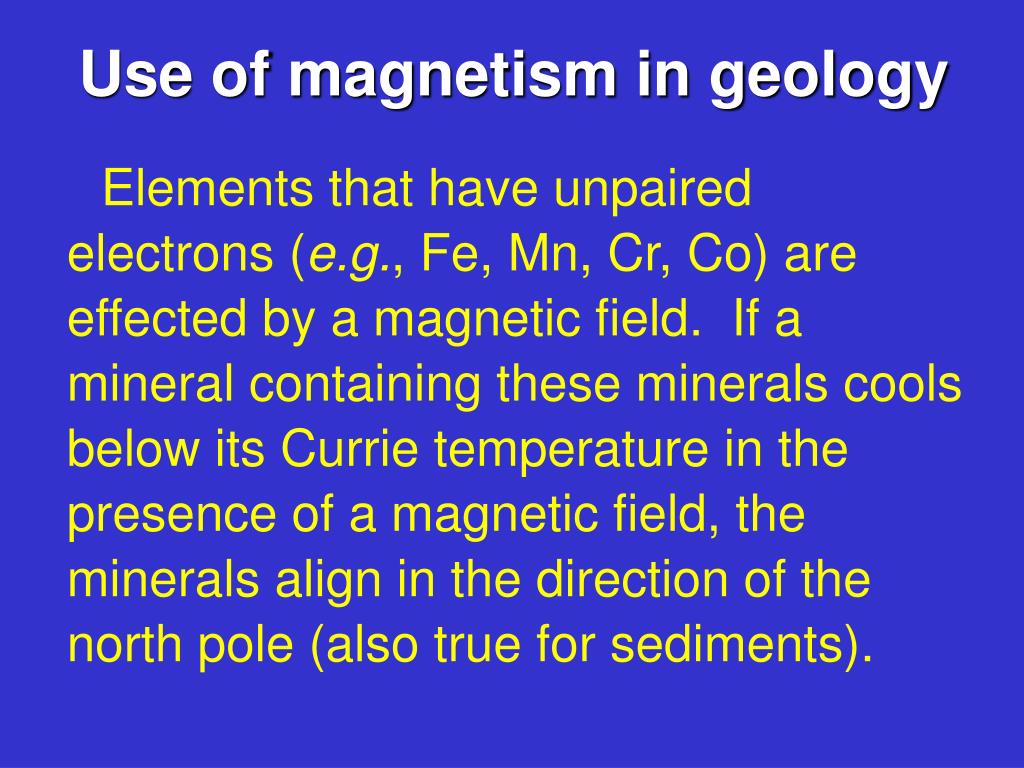

Use of magnetism in geology

Elements that have unpaired electrons (e.g., Fe, Mn, Cr, Co) are effected by a magnetic field. If a mineral containing these minerals cools below its Currie temperature in the presence of a magnetic field, the minerals align in the direction of the north pole (also true for sediments).


Earth s magnetic field

Earth's magnetic field

The Earth behaves as a magnet whose poles are nearly coincident with the spin axis (i.e., the geographic poles).

Magnetic lines of force emanate from the magnetic poles such that a freely suspended magnet is inclined upward in the southern hemisphere, horizontal at the equator, and downward in the northern hemisphere

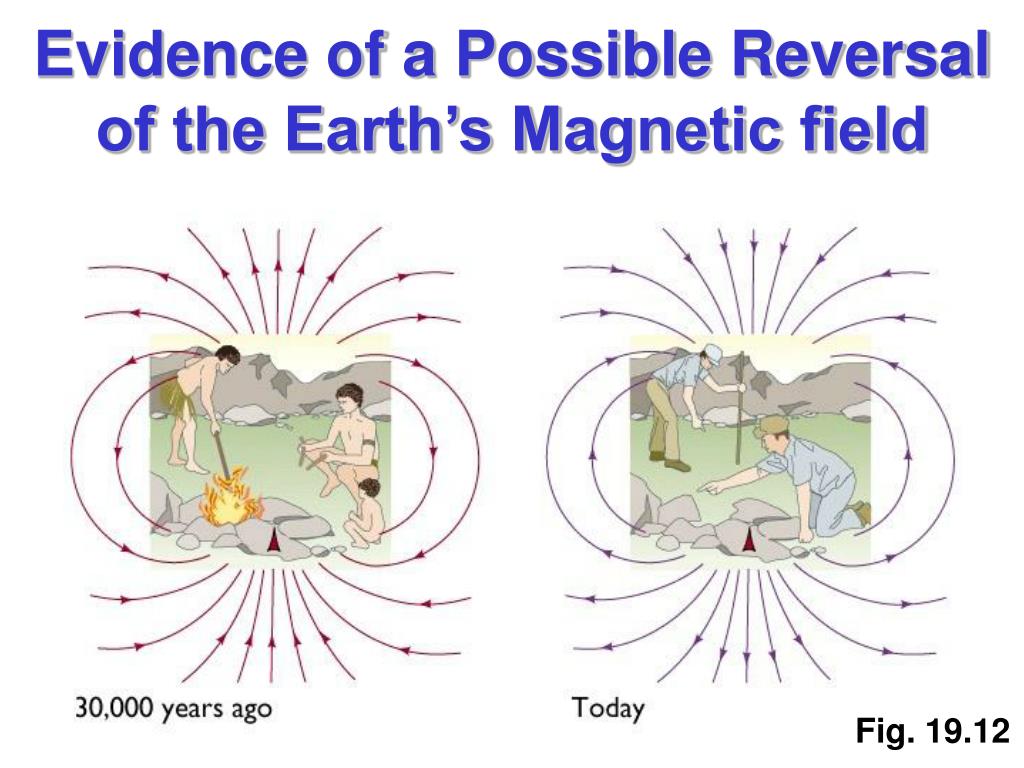

Evidence of a possible reversal of the earth s magnetic field

Evidence of a Possible Reversal of the Earth’s Magnetic field

Fig. 19.12


Earth s magnetic field1

Earth's magnetic field

declination: horizontal angle between magnetic N and true N

inclination: angle made with horizontal

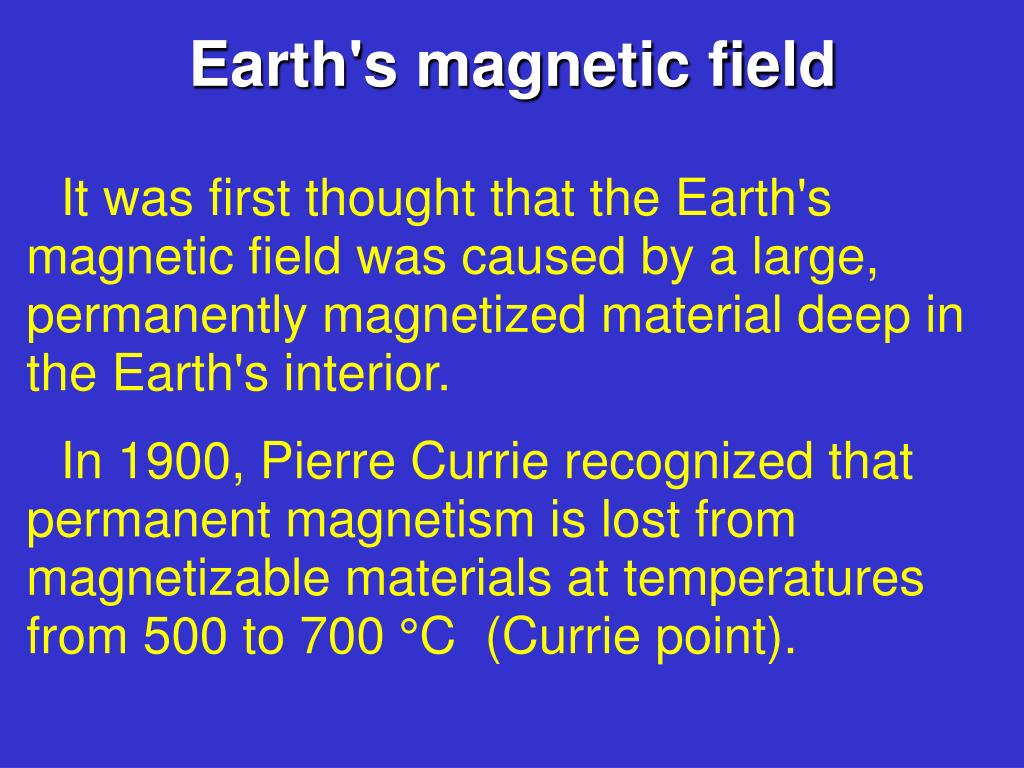

Earth s magnetic field2

Earth's magnetic field

It was first thought that the Earth's magnetic field was caused by a large, permanently magnetized material deep in the Earth's interior.

In 1900, Pierre Currie recognized that permanent magnetism is lost from magnetizable materials at temperatures from 500 to 700 °C (Currie point).


The earth s magnetic field

The Earth's magnetic field

Since the geothermal gradient in the Earth is ≈ 25°C/km, nothing can be permanently magnetized below about 30 km.

Another explanation is needed.


Classroom presentations to accompany understanding earth 3rd edition

Magnetic Field of the Earth

Fig. 19.11

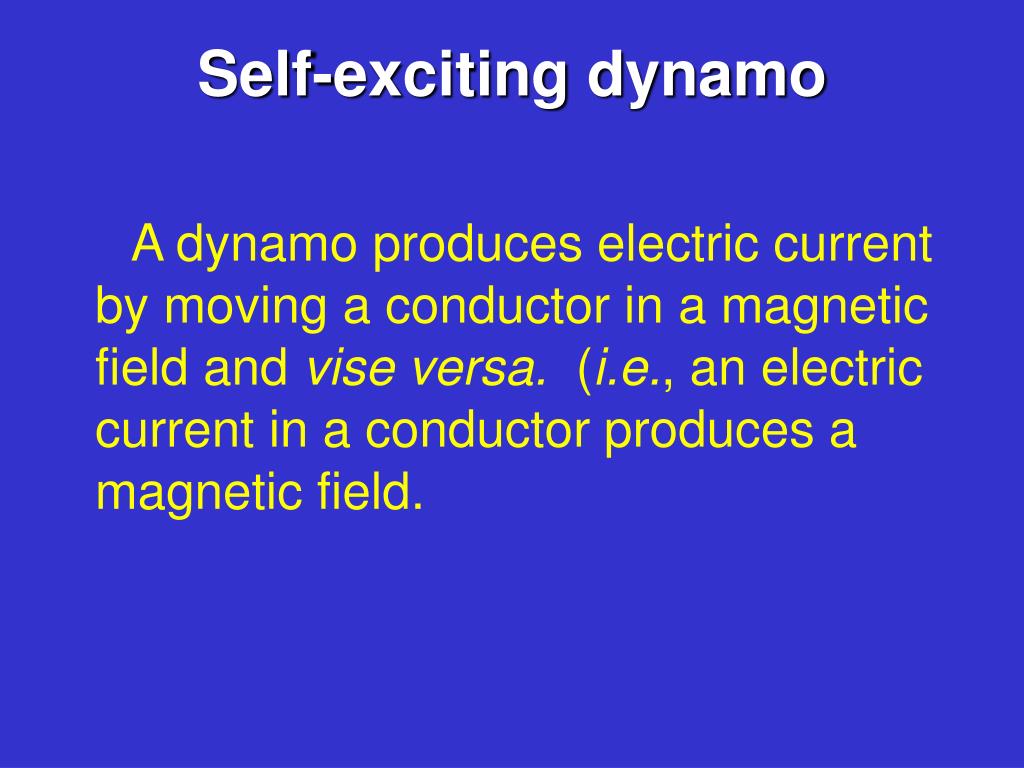

Self exciting dynamo

Self-exciting dynamo

A dynamo produces electric current by moving a conductor in a magnetic field and vise versa. (i.e., an electric current in a conductor produces a magnetic field.

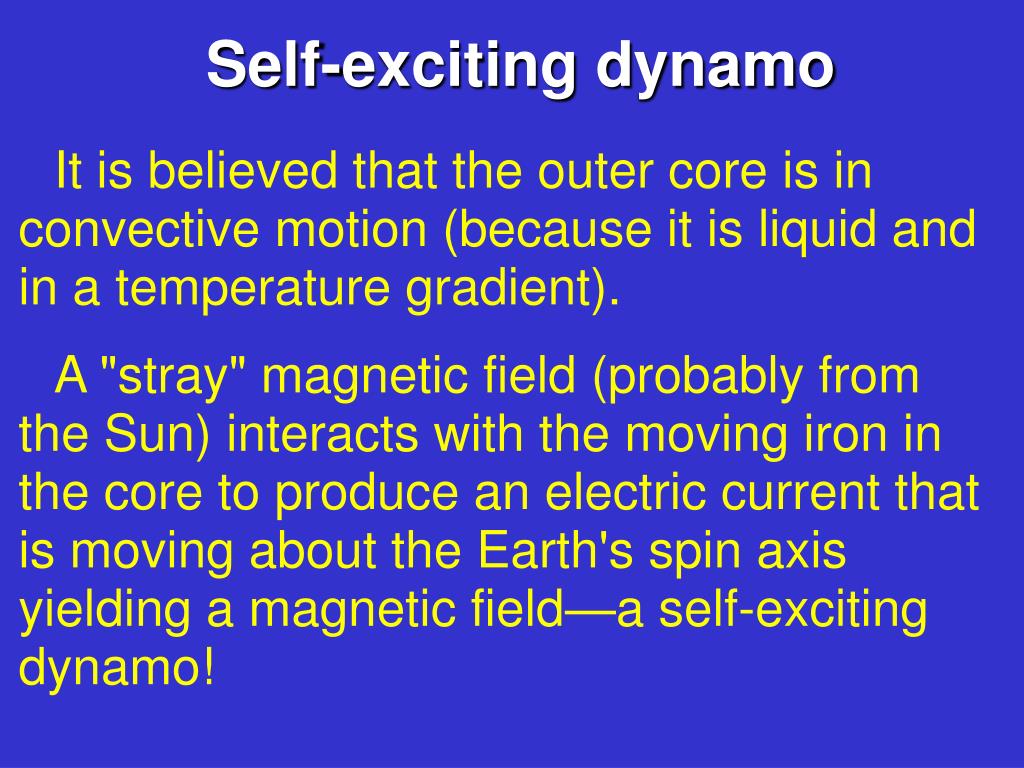

Self exciting dynamo1

Self-exciting dynamo

It is believed that the outer core is in convective motion (because it is liquid and in a temperature gradient).

A "stray" magnetic field (probably from the Sun) interacts with the moving iron in the core to produce an electric current that is moving about the Earth's spin axis yielding a magnetic field—a self-exciting dynamo!


Self exciting dynamo2

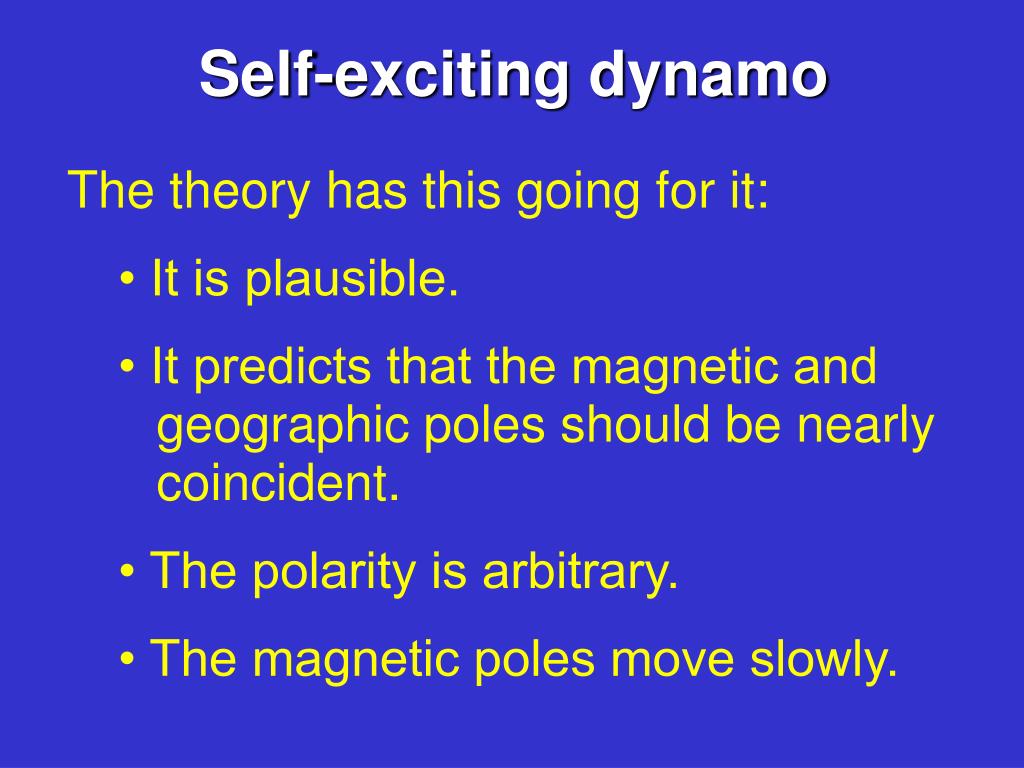

Self-exciting dynamo

The theory has this going for it:

• It is plausible.

• It predicts that the magnetic and geographic poles should be nearly coincident.

• The polarity is arbitrary.

• The magnetic poles move slowly.


Self exciting dynamo3

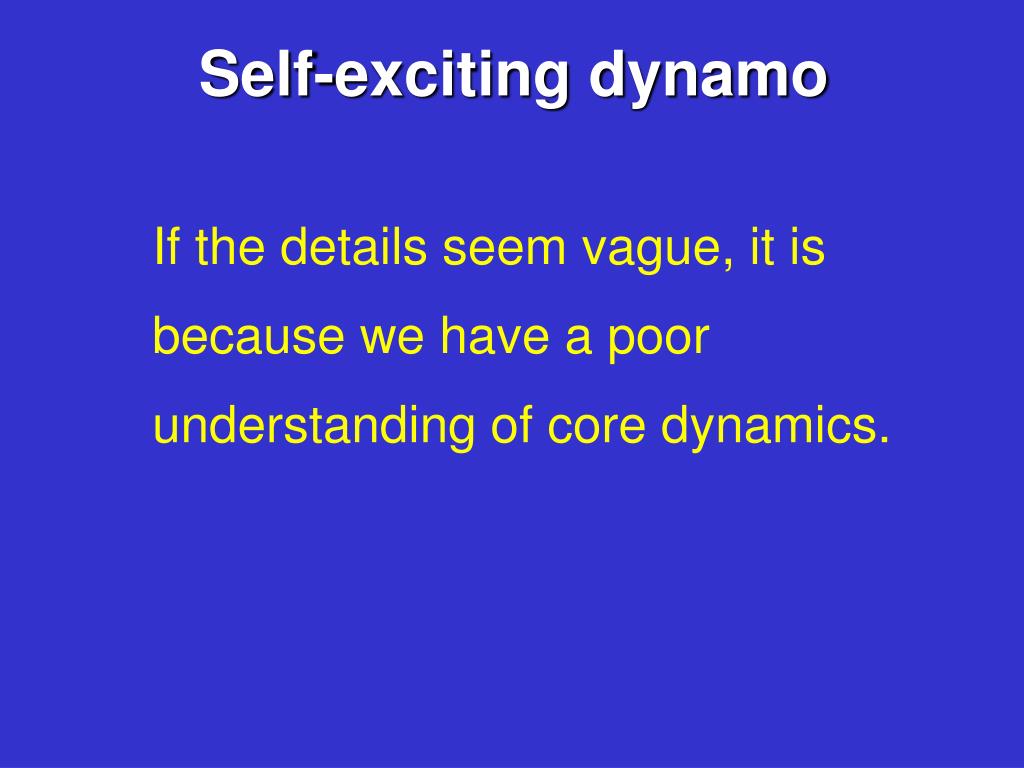

Self-exciting dynamo

If the details seem vague, it is

because we have a poor

understanding of core dynamics.


Magnetic reversals

Magnetic reversals

  • The polarity of the Earth's magnetic field has changed thousands of times in the Phanerozoic (the last reversal was about 700,000 years ago).

  • These reversals appear to be abrupt (probably last 1000 years or so).


Magnetic reversals1

Magnetic reversals

  • A period of time in which magnetism is dominantly of one polarity is called a magnetic epoch.

  • We call north polarity normal and south polarity reversed.


Magnetic reversals2

Magnetic reversals

  • Discovered by looking at magnetic signature of the seafloor as well as young (0-2 Ma) lavas in France, Iceland, Oregon and Japan.

  • When first reported, these data were viewed with great skepticism

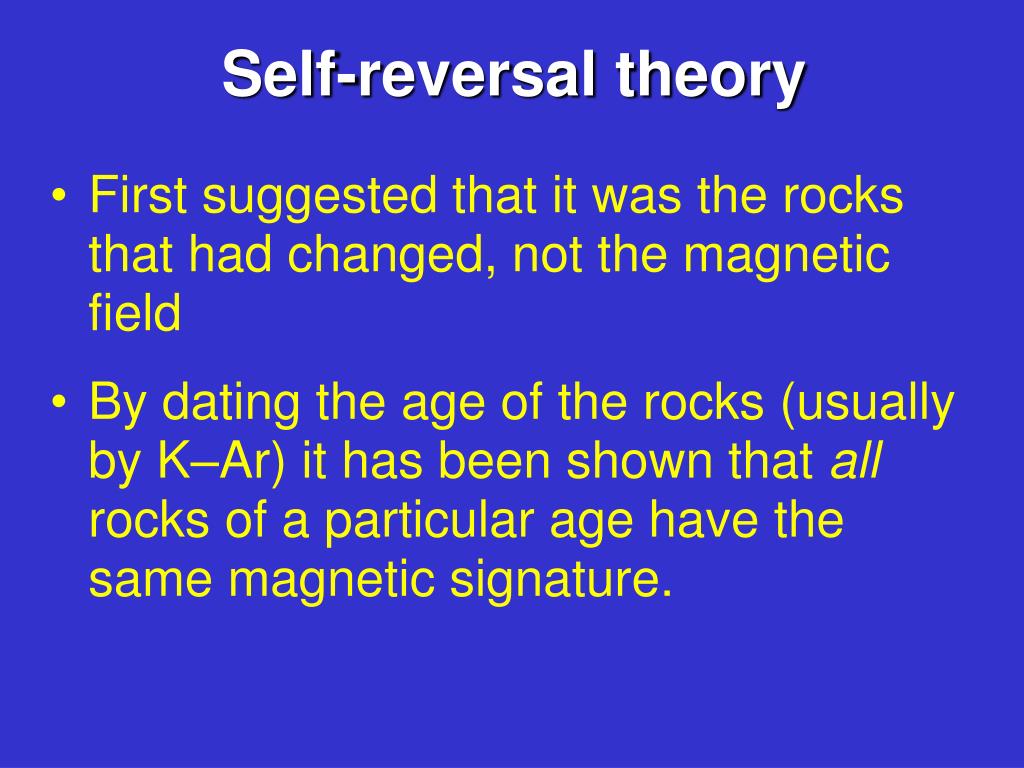

Self reversal theory

Self-reversal theory

  • First suggested that it was the rocks that had changed, not the magnetic field

  • By dating the age of the rocks (usually by K–Ar) it has been shown that all rocks of a particular age have the same magnetic signature.


Recording the magnetic field in newly deposited sediment

Recording the Magnetic Field in Newly Deposited Sediment

Fig. 19.13


Lavas recording reversals in earth s magnetic field

Lavas Recording Reversals in Earth’s Magnetic Field

Fig. 19.14


Magnetic reversals3

Magnetic reversals

We can now use the magnetic

properties of a sequence of rocks to

determine their age.


The geomagnetic time scale

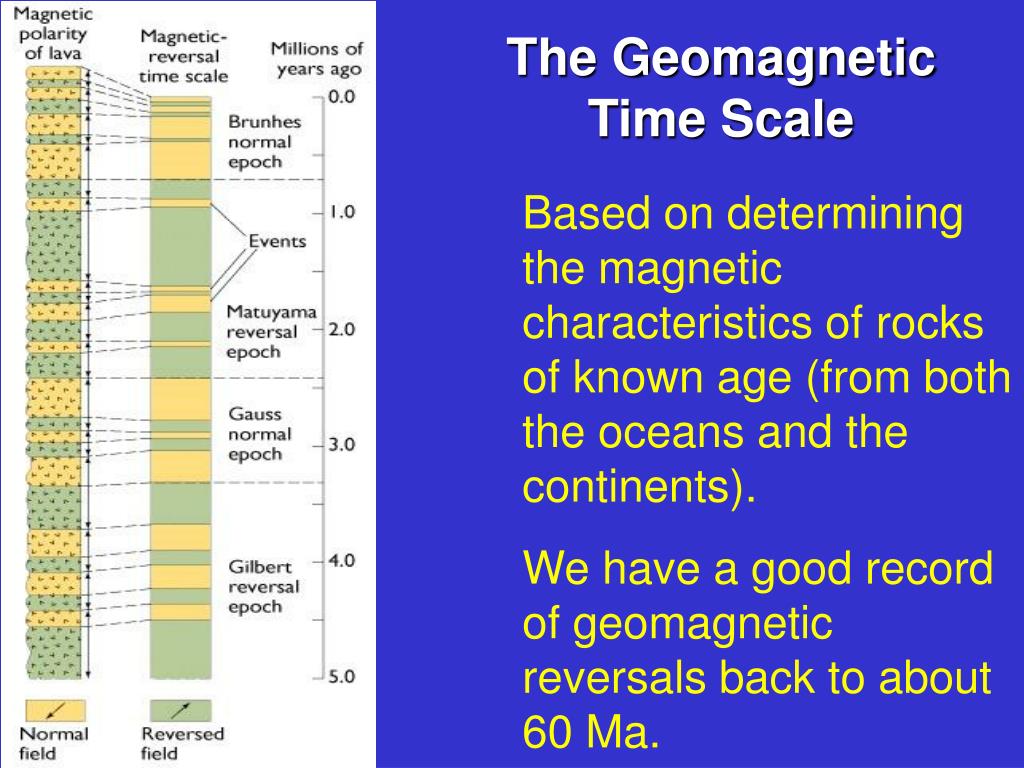

The GeomagneticTime Scale

Based on determining the magnetic characteristics of rocks of known age (from both the oceans and the continents).

We have a good record of geomagnetic reversals back to about 60 Ma.
