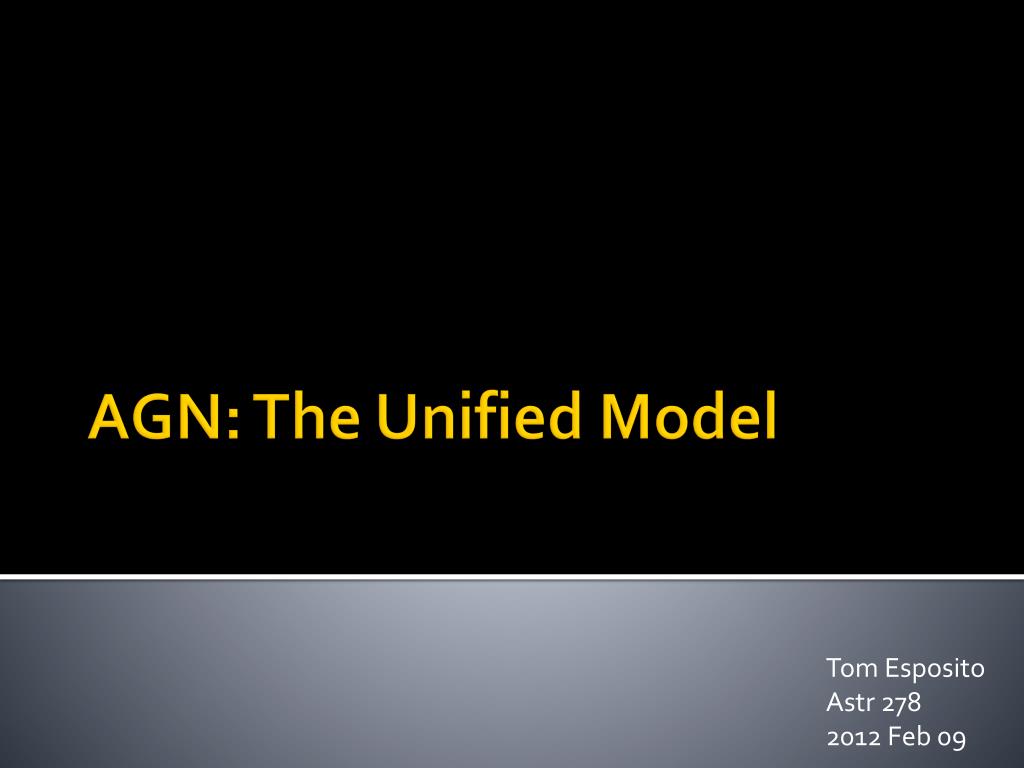

AGN: The Unified Model

Tom Esposito

Astr 278

2012 Feb 09


Many different types of agn have been observed

Many different types of AGN have been observed

Seyfert1, Seyfert 2, QSO, QSO2, LINER, FR I, FR II, Quasars, Blazars, NLXG, BALQ…


How can we explain this variety

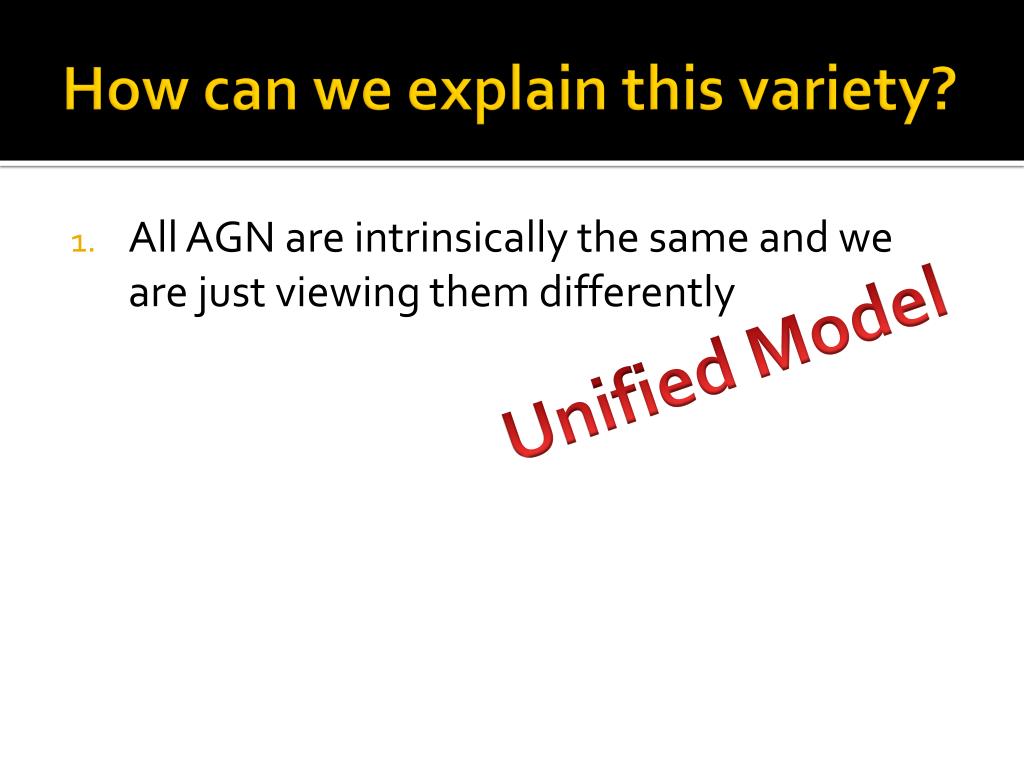

How can we explain this variety?

  • All AGN are intrinsically the same and we are just viewing them differently

    OR

  • Each type of AGN is a distinct phenomenon

    OR

  • Some combination of 1 and 2

Unified Model


Unified model consists of 2 schemes radio quiet radio loud

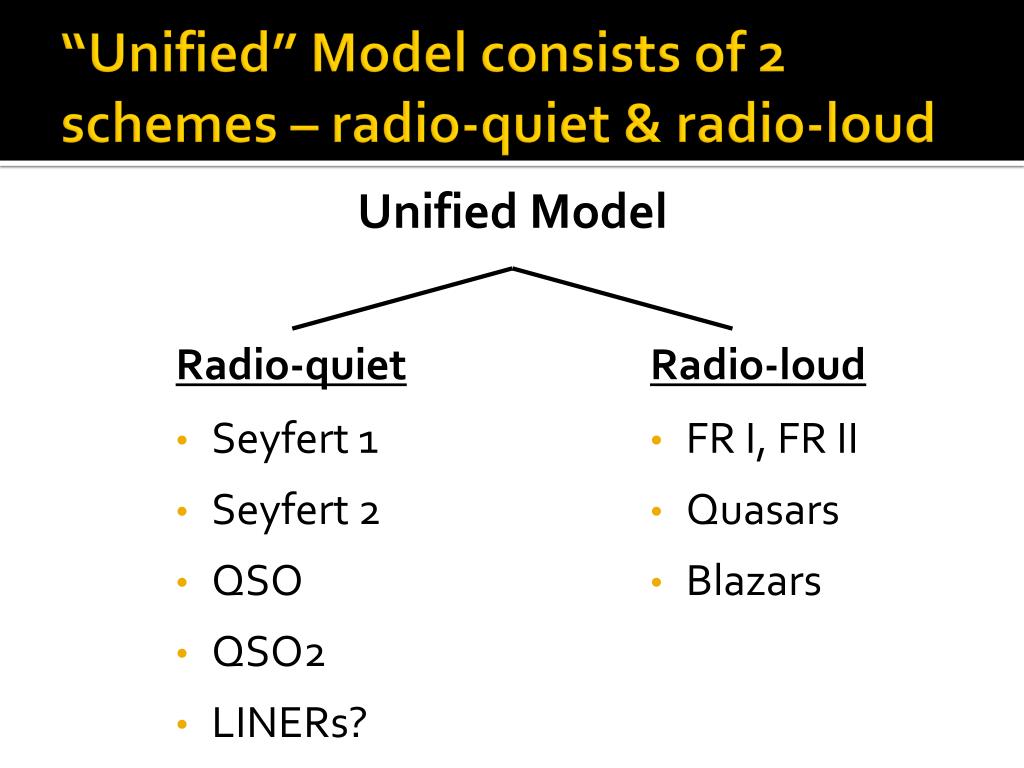

“Unified” Model consists of 2 schemes – radio-quiet & radio-loud

Unified Model

Radio-quiet

  • Seyfert 1

  • Seyfert 2

  • QSO

  • QSO2

  • LINERs?

Radio-loud

  • FR I, FR II

  • Quasars

  • Blazars


All radio quiet agn have the same central engine

All radio-quiet AGN have the same central engine

Supermassive black hole + hot accretion disk at center

SMBH

Accretion

Disk

Credit: C. M. Urry and P. Padovani


Blr gas excited by uv photons emits broad optical lines

BLR gas excited by UV photons emits broad optical lines

Supermassive black hole + hot accretion disk at center

Hot, high velocity, dense gas clouds near BH form broad-line region


Dust gas torus may obscure central regions of agn

Dust & gas torus may obscure central regions of AGN

Supermassive black hole + hot accretion disk at center

Hot, high velocity, dense gas clouds near BH form broad-line region

Compton-thick dusty torus surrounds engine and broad-line region


Hot electrons outside torus and blr scatter nuclear emission

Hot electrons outside torus and BLR scatter nuclear emission

Supermassive black hole + hot accretion disk at center

Hot, high velocity, dense gas clouds near BH form broad-line region

Compton-thick dusty torus surrounds engine and broad-line region

Hot electrons scatter polarized continuum + broad-line emission


Narrow emission lines from gas within ionization cones

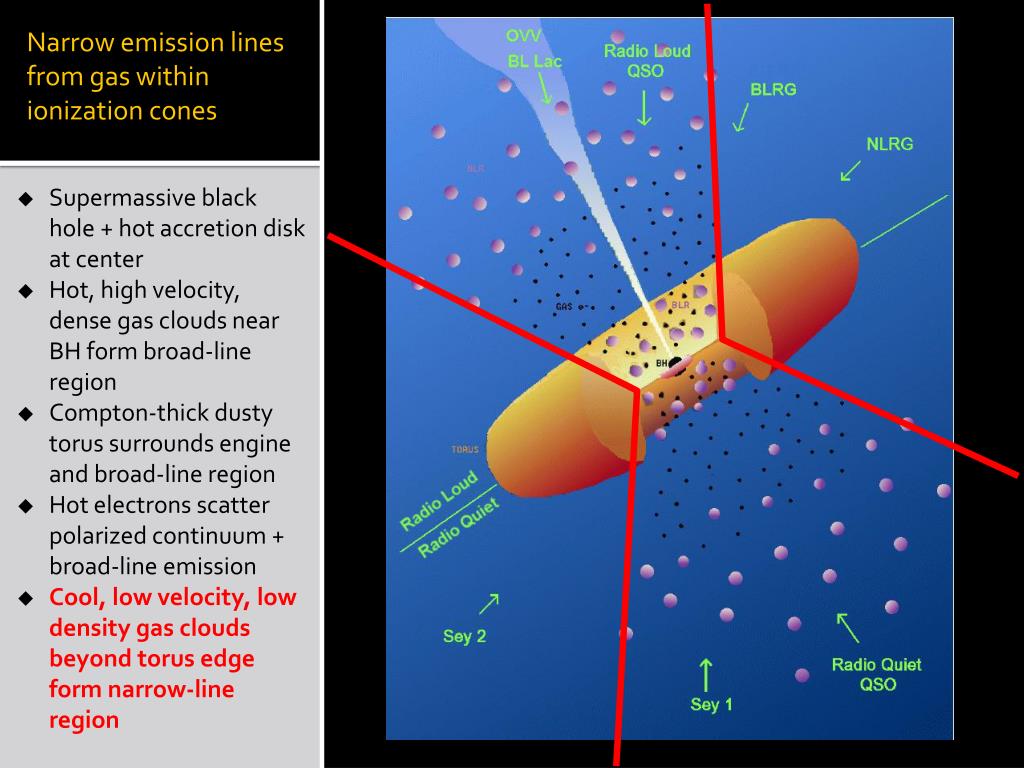

Narrowemission lines from gas within ionization cones

Supermassive black hole + hot accretion disk at center

Hot, high velocity, dense gas clouds near BH form broad-line region

Compton-thick dusty torus surrounds engine and broad-line region

Hot electrons scatter polarized continuum + broad-line emission

Cool, low velocity, low density gas clouds beyond torus edge form narrow-line region


Orientation is the only factor that determines if we see a type 1 or type 2 agn

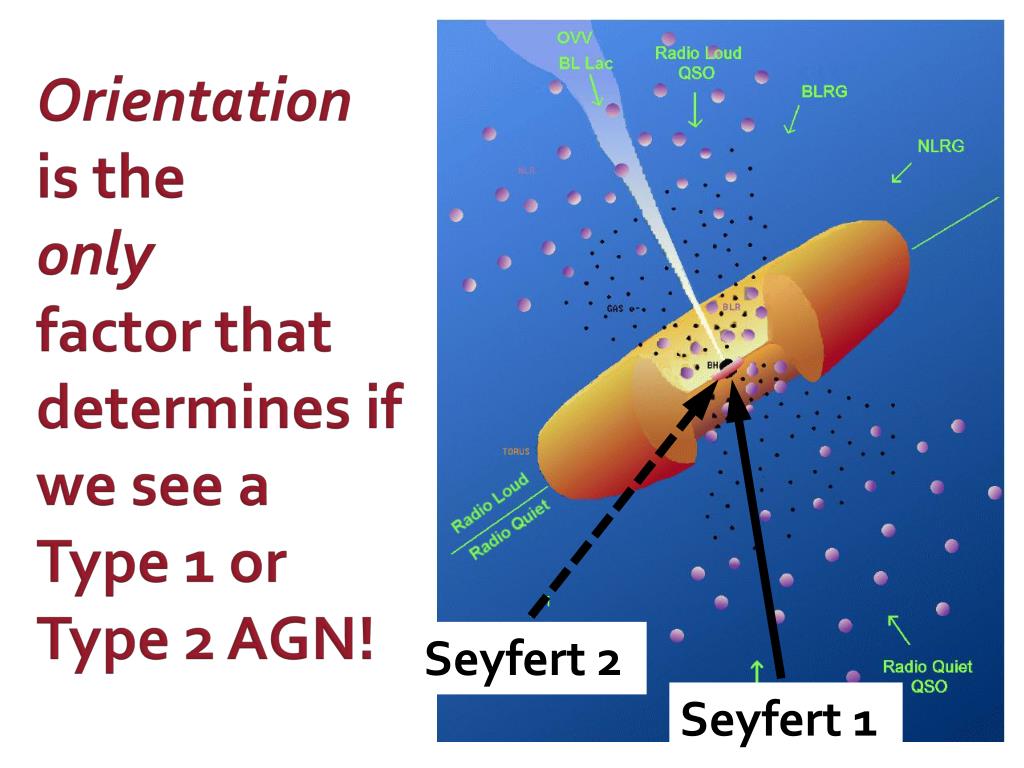

Orientationis the onlyfactor that determines if we see aType 1 or Type 2 AGN!

Seyfert 2

Seyfert 1


All agn are intrinsically type 1

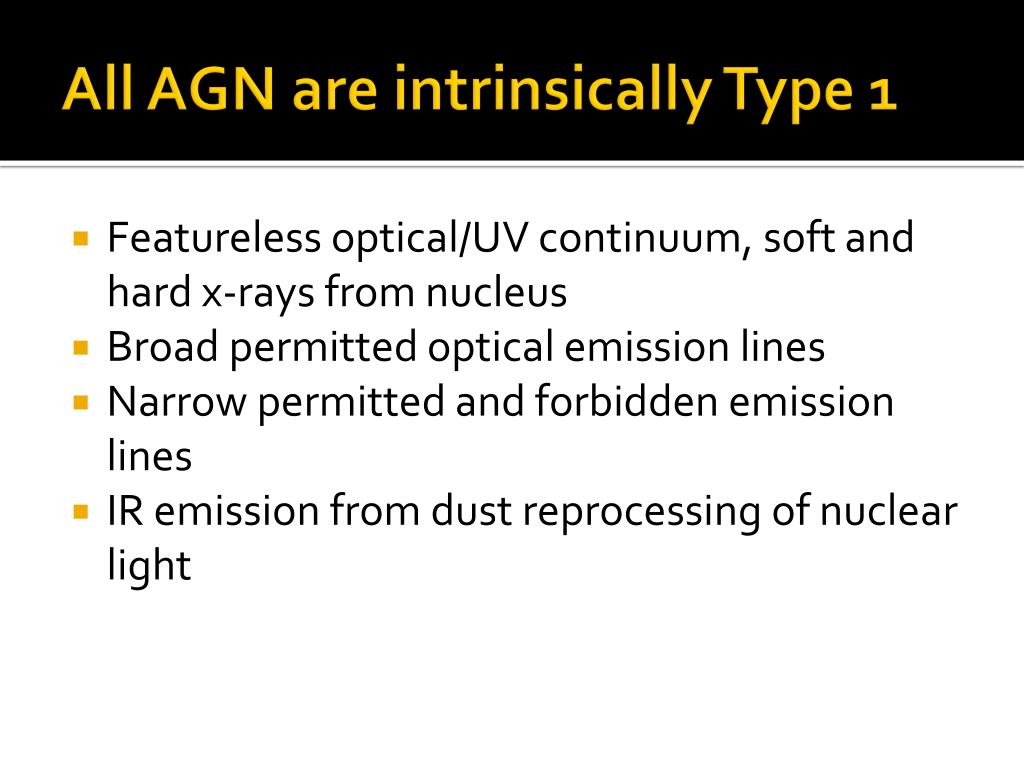

All AGN are intrinsically Type 1

  • Featureless optical/UV continuum, soft and hard x-rays from nucleus

  • Broad permitted optical emission lines

  • Narrow permitted and forbidden emission lines

  • IR emission from dust reprocessing of nuclear light


Direct imaging of disk shaped dust around suspected agn

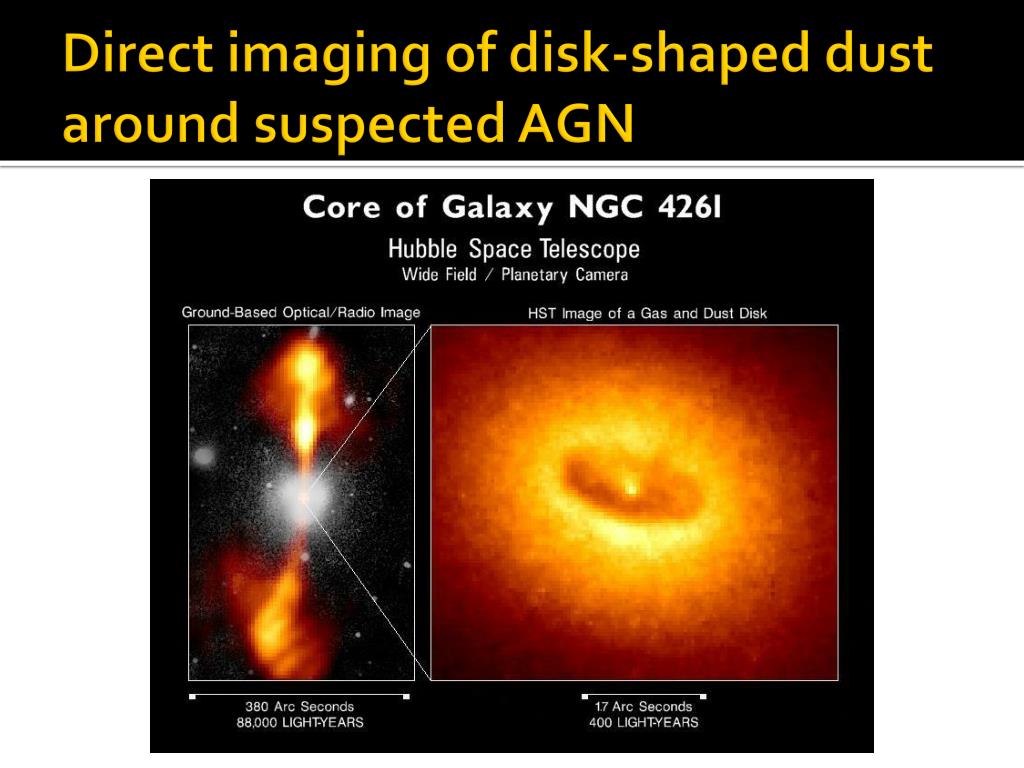

Direct imaging of disk-shaped dust around suspected AGN


Direct imaging of disk shaped dust around suspected agn1

Direct imaging of disk-shaped dust around suspected AGN


Spectropolarimetry suggests that type 2 agn are obscured type 1 s

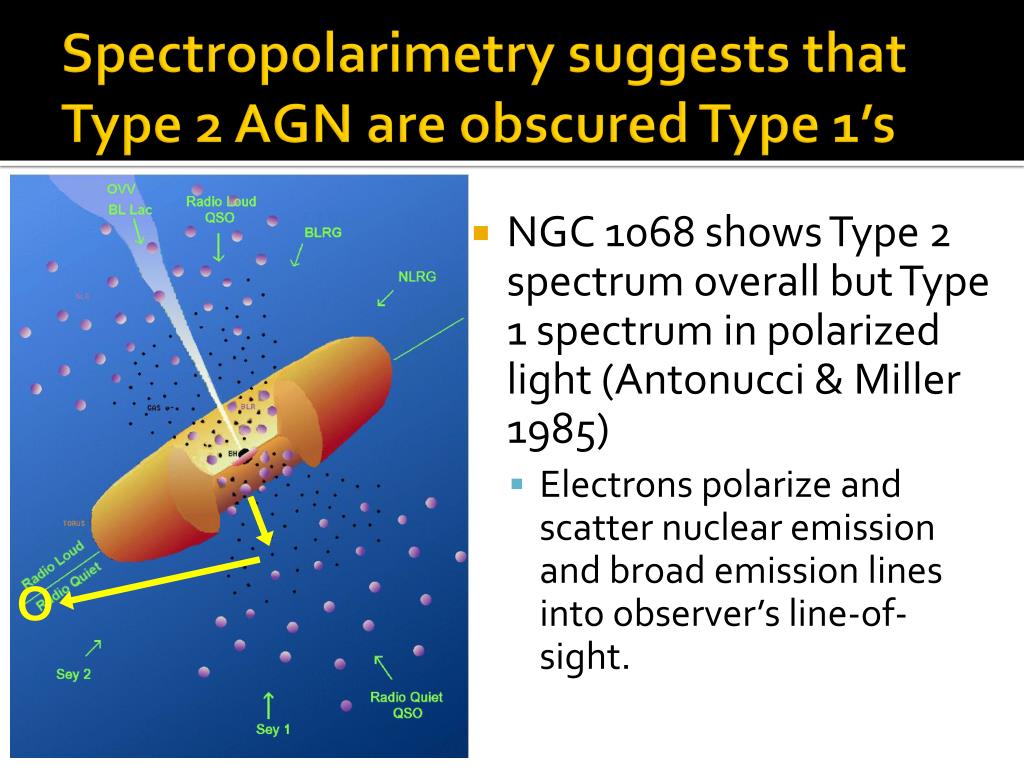

Spectropolarimetry suggests that Type 2 AGN are obscured Type 1’s

  • NGC 1068 shows Type 2 spectrum overall but Type 1 spectrum in polarized light (Antonucci & Miller 1985)

    • Electrons polarize and scatter nuclear emission and broad emission lines into observer’s line-of-sight.

O


2 10 kev x ray flux is reduced in type 2 agn by torus absorption

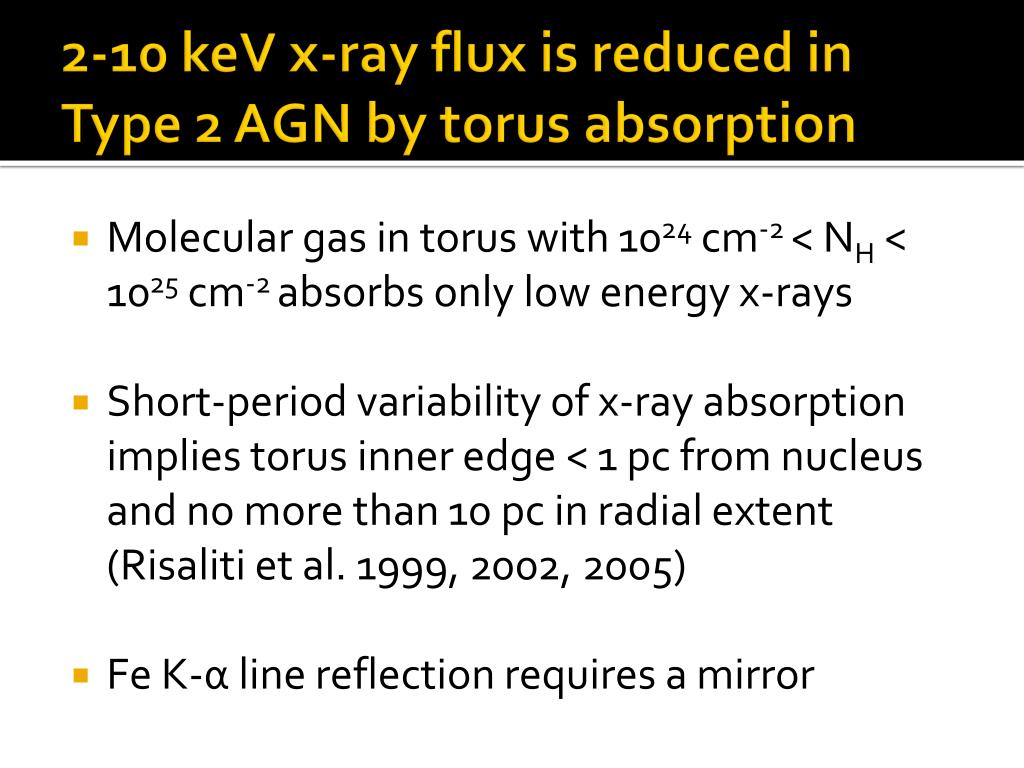

2-10 keV x-ray flux is reduced in Type 2 AGN by torus absorption

  • Molecular gas in torus with 1024 cm-2 < NH < 1025cm-2 absorbs only low energy x-rays

  • Short-period variability of x-ray absorption implies torus inner edge < 1 pc from nucleus and no more than 10 pc in radial extent (Risaliti et al. 1999, 2002, 2005)

  • Fe K-α line reflection requires a mirror


Other observational evidence is less substantial

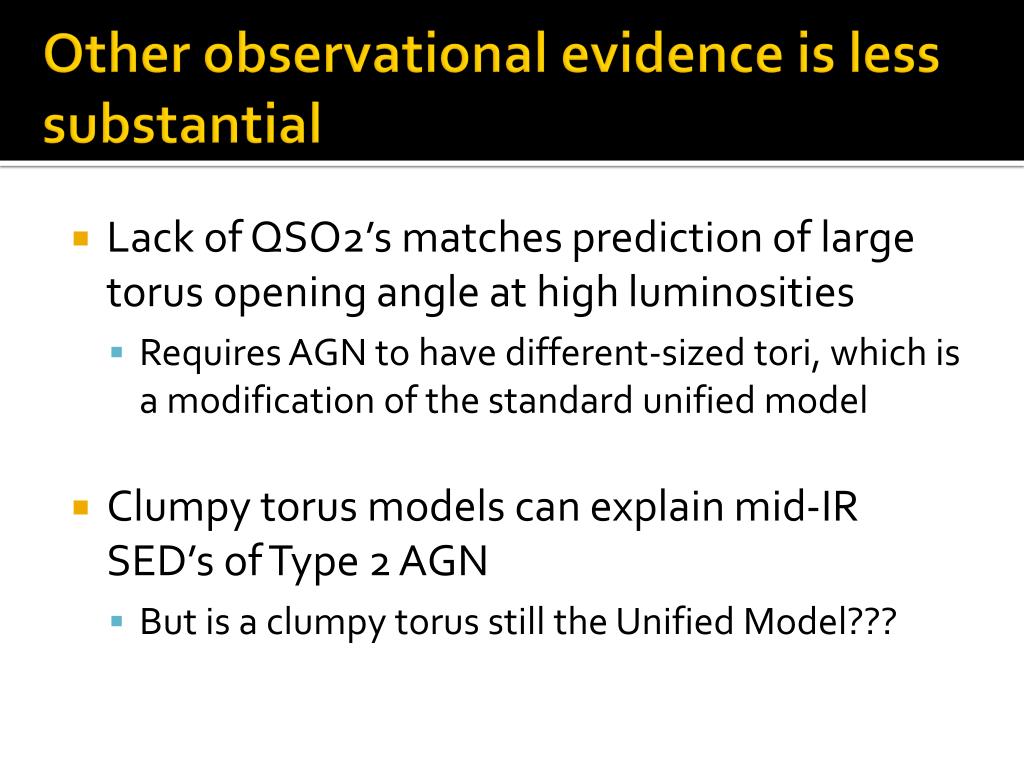

Other observational evidence is less substantial

  • Lack of QSO2’s matches prediction of large torus opening angle at high luminosities

    • Requires AGN to have different-sized tori, which is a modification of the standard unified model

  • Clumpy torus models can explain mid-IR SED’s of Type 2 AGN

    • But is a clumpy torus still the Unified Model???


Radio loud u nification similar to radio quiet but with radio emission

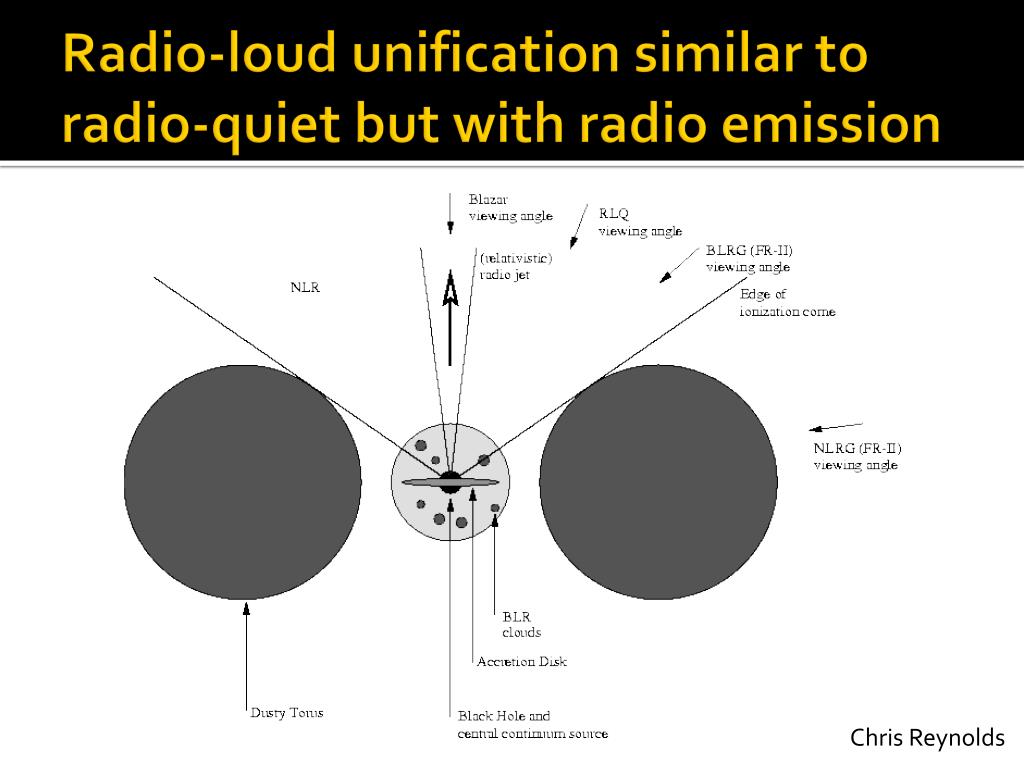

Radio-loud unification similar to radio-quiet but with radio emission

Chris Reynolds


Evidence against the unified model or not

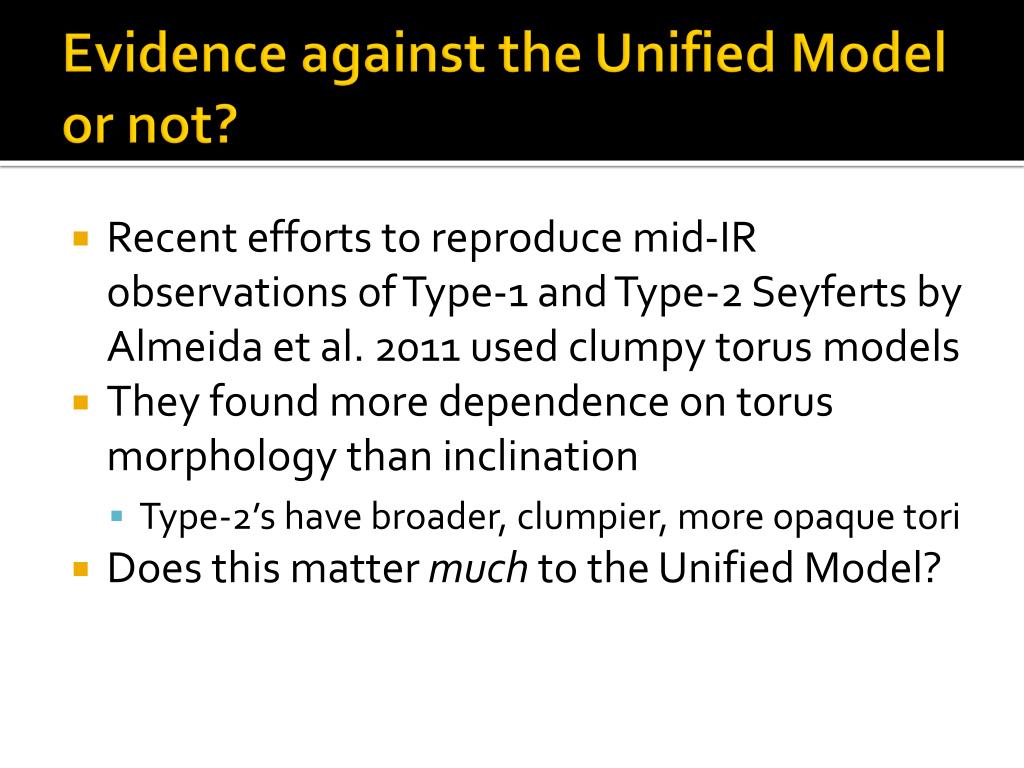

Evidence against the Unified Model or not?

  • Recent efforts to reproduce mid-IR observations of Type-1 and Type-2 Seyferts by Almeida et al. 2011 used clumpy torus models

  • They found more dependence on torus morphology than inclination

    • Type-2’s have broader, clumpier, more opaque tori

  • Does this matter much to the Unified Model?


Summary

Summary

  • Unified Model asserts that differences between Type 1 and Type 2 AGN are due to viewing angle only!

  • Optical/UV, IR, and x-ray observations support this model to a degree

  • Radio-loud AGN are unified with similar scheme to radio-quiet but with less certainty
