Pharmacokinetic Models

Pharmacokinetic Models. Physiologic Models Compartmental Modeling - Catenary Models - Mammillary Models. One-Compartment Open Model. I.V. bolus. D B 1 Cp 1 Vd. k 10. K 10 = overall elimination rate constant. I.V. Bolus. Compartment Modeling - Stochastic Approach.

rane
Download Presentation

Pharmacokinetic Models

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Pharmacokinetic Models • Physiologic Models • Compartmental Modeling - Catenary Models - Mammillary Models

  2. One-Compartment Open Model I.V. bolus DB1 Cp1 Vd k10 K10 = overall elimination rate constant

  3. I.V. Bolus

  4. Compartment Modeling - Stochastic Approach • http://vam.anest.ufl.edu/simulations/firstorderstochasticsim.html#sim • http://vam.anest.ufl.edu/simulations/secondorderstochasticsim2.html#sim

  5. Two-compartment Open Model tissue Cp1 VC Dp k12 Dt Ct Vt I.V. bolus k21 k10

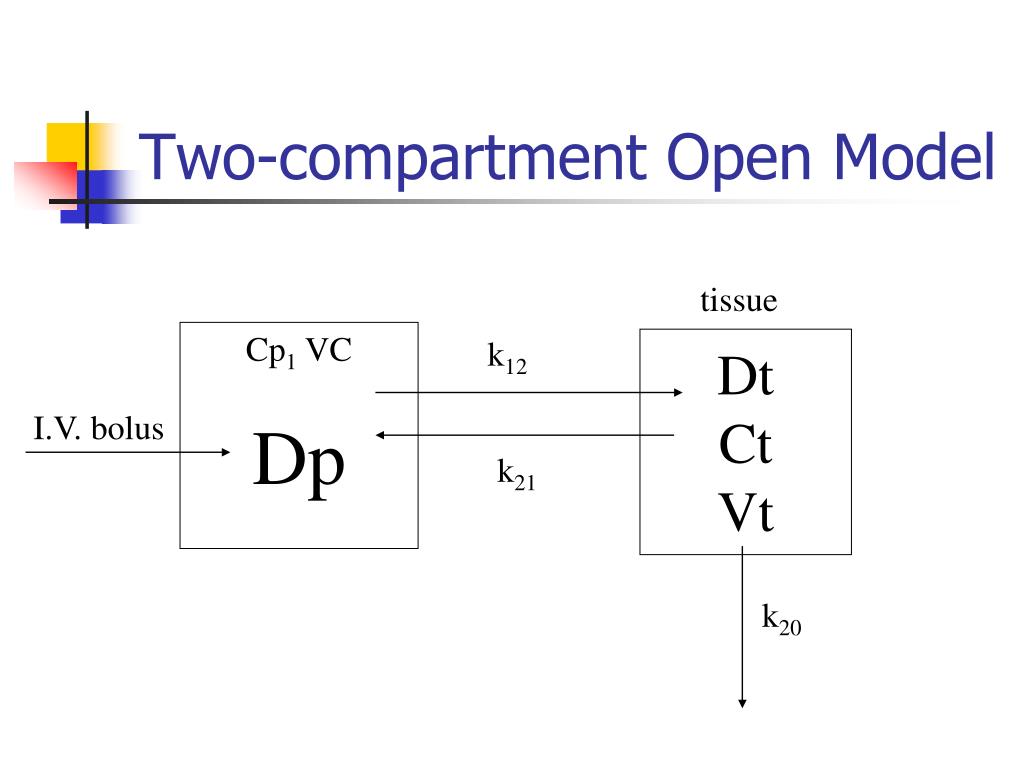

  6. Two-compartment Open Model tissue Cp1 VC Dp k12 Dt Ct Vt I.V. bolus k21 k20

  7. Two-compartment Open Model tissue Cp1 VC Dp k12 Dt Ct Vt I.V. bolus k21 k10 k20

  8. Two-compartment Open Model tissue Cp1 VC Dp k12 Dt Ct Vt I.V. bolus k21 k10

  9. One/Two Compartments

  10. Two-compartment Model

  11. Method of Residuals (Feathering) C1 λ2 C2 b λ1 a

  12. Two-compartment Model Cp = C1e-λ1t + C2e-λ2t α β α-phase: distribution phase β-phase: elimination phase

  13. Two-compartment Model

  14. Digoxin Plasma & Tissue Concentrations

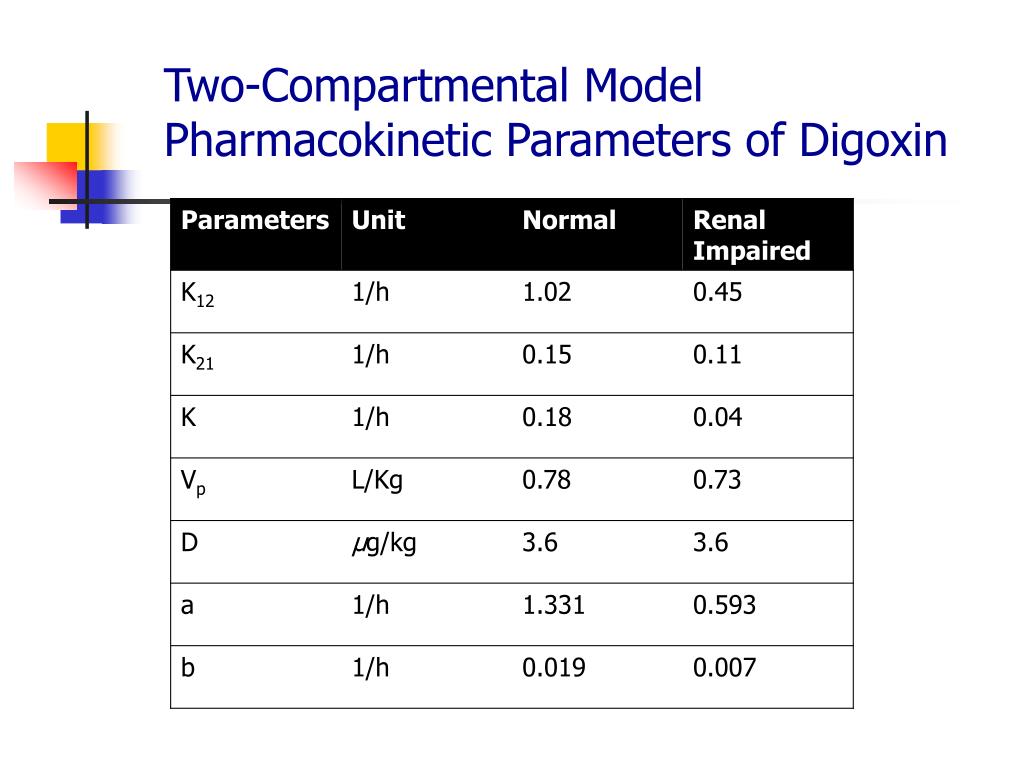

  15. Two-Compartmental Model Pharmacokinetic Parameters of Digoxin

  16. Example – Method of Residuals Conc (ug/ml) Time (hr)

  17. Example – Method of Residuals Conc (ug/ml) Time (hr)

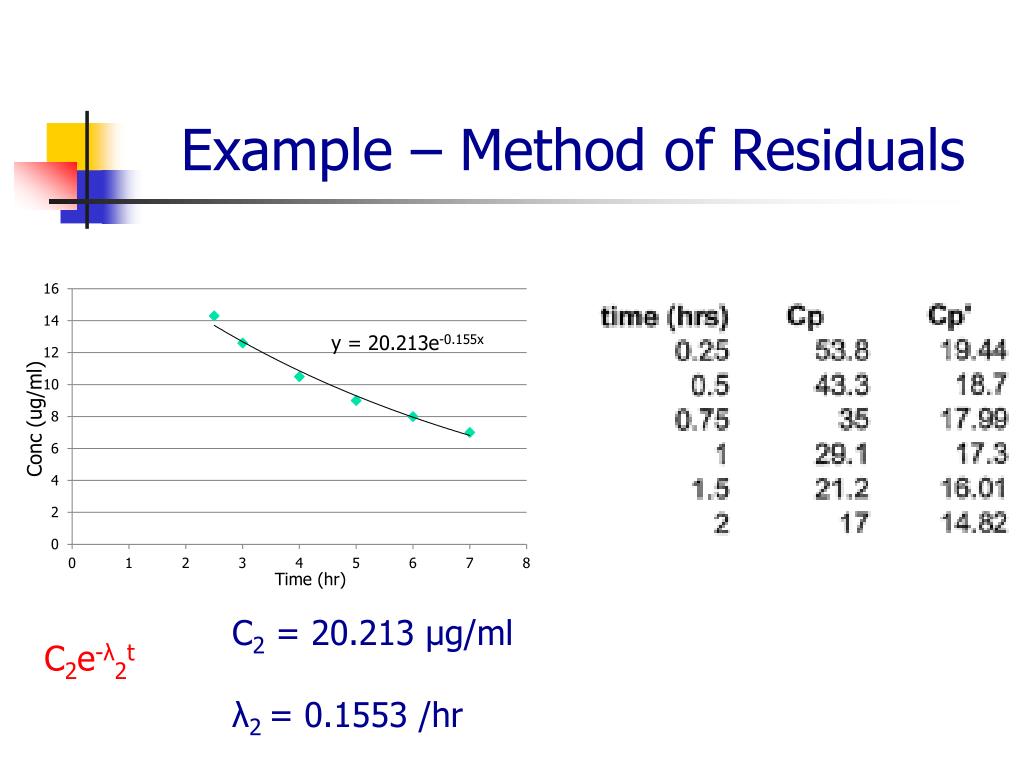

  18. Example – Method of Residuals Conc (ug/ml) Time (hr) C2 = 20.213 μg/ml λ2 = 0.1553 /hr C2e-λ2t

  19. Example – Method of Residuals Conc (ug/ml) C1 = 54.182 μg/ml λ1 = 1.581 /hr Cpr = Cp- Cp’ C1e-λ1t

  20. Example – Method of Residuals Conc (ug/ml) Time (hr) Cp = C1e-λ1t + C2e-λ2t Cp = 54.182e-1.581t + 20.213e-0.155t

  21. Example – Method of Residuals AUC = ? One Compartment - AUC = Cp0/K10 Conc (ug/ml) AUC = C1/λ1+C2/λ2 AUC = 54.182/1.581+ 20.21/0.155 = 164.66 (μg/ml).hr Time (hr) Cp = C1e-λ1t + C2e-λ2t Cp = 54.182e-1.581t + 20.213e-0.155t

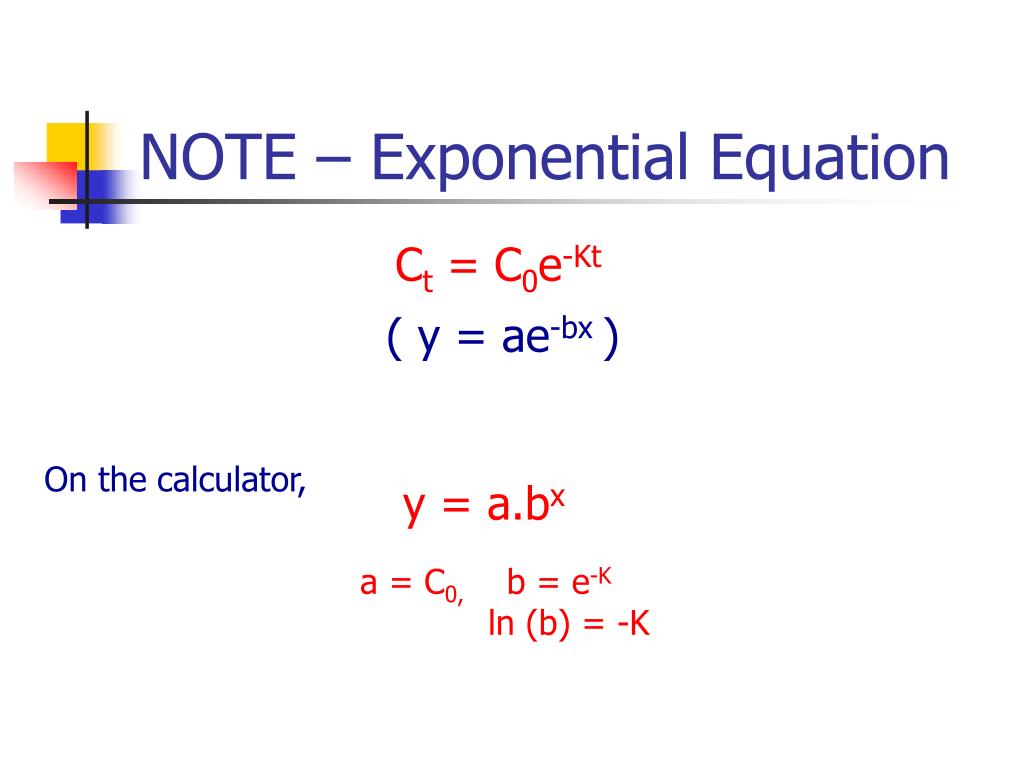

  22. NOTE – Exponential Equation Ct = C0e-Kt ( y = ae-bx ) On the calculator, y = a.bx a = C0, b = e-K ln (b) = -K

  23. Nimita Dave, Ph.D. Email: davend@mail.uc.edu Desk: Room 210
