  1. SCIENCE SKILLS

  2. Chapter Two: Science Skills • 2.1 Mass and Volume • 2.2 Density • 2.3 Graphing • 2.4 Solving Problems

  3. Section 2.1 Learning Goals • Explain the meaning of mass and describe the units for measuring mass. • Distinguish between mass and weight. • Define volume and explain how the volume of matter is measured.

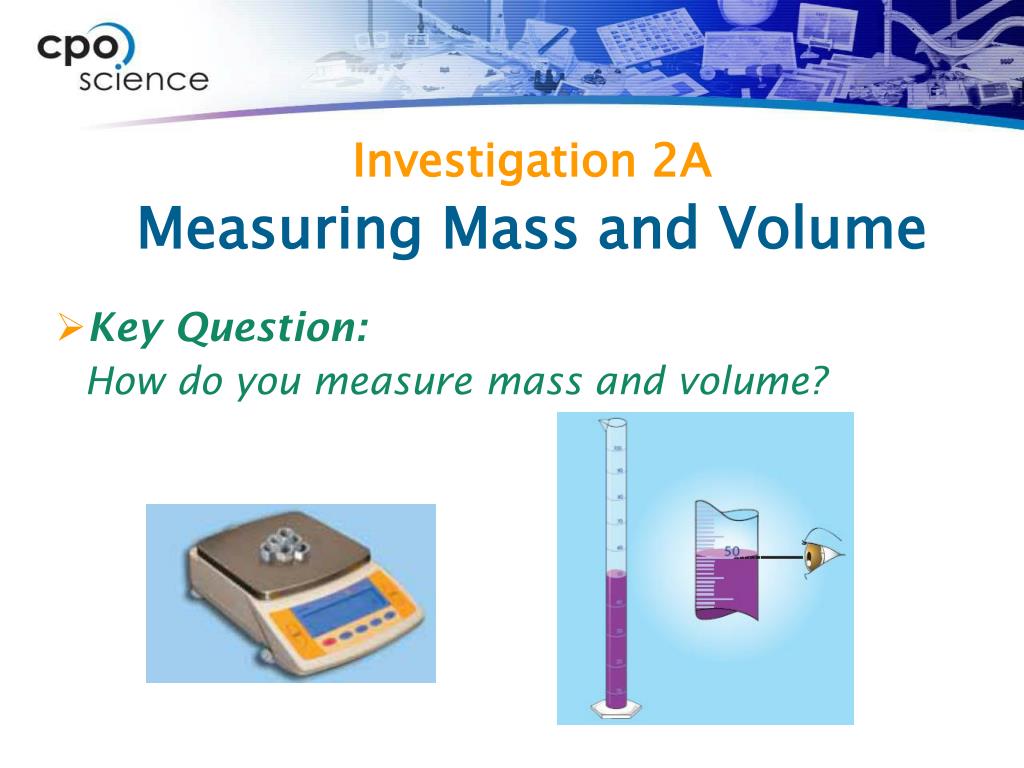

  4. Key Question: How do you measure mass and volume? Investigation 2A Measuring Mass and Volume

  5. 2.1 Measuring mass • Mass describes the amount of matterin an object. • The SI unit for mass is the kilogram (kg). • The kilogram is too large a unit to be convenient for small masses. One gram (g) is one-thousandth of a kilogram. What is the estimated mass of ONE zinc nut?

  6. 2.1 Matter • Matter is anything that has mass and takes up space. • All matter has mass. • Steel, plastic, rubber, and glass are different kinds of matter. A car has a lot more of each kind of matter than a bike.

  7. 2.1 Mass and weight are different • We tend to use the terms mass and weight interchangeably, but they are not the same thing. • Mass is the amount of matter in an object. • Weight is a measure of the pulling force of gravity on an object.

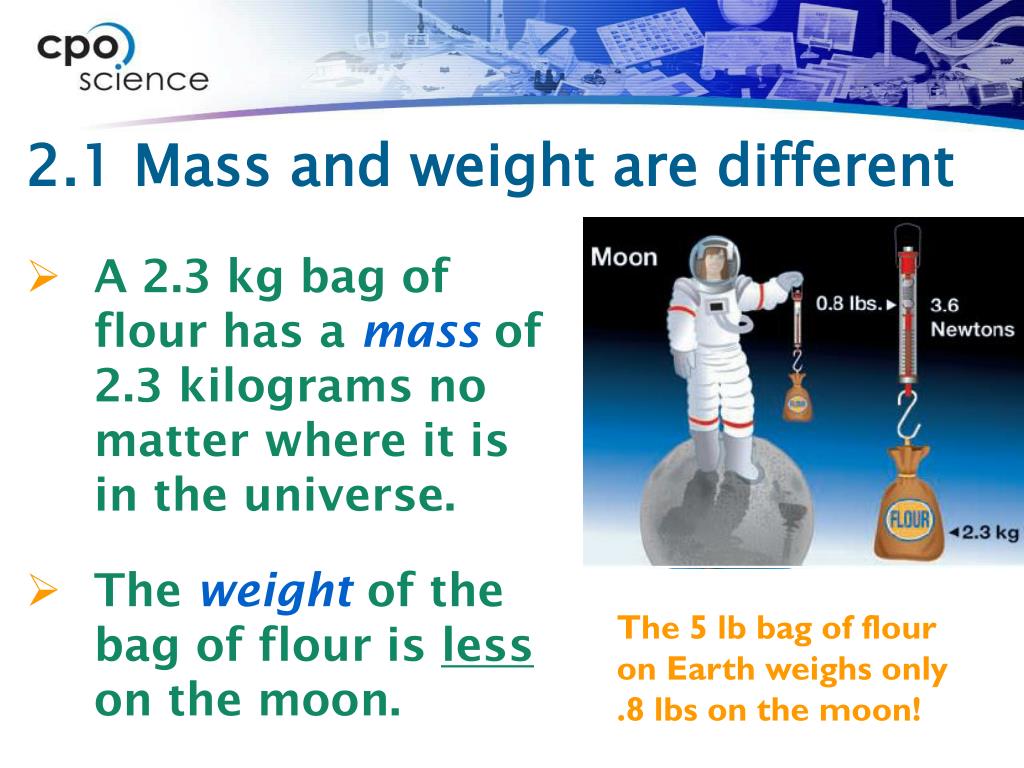

  8. 2.1 Mass and weight are different • A 2.3 kg bag of flour has a mass of 2.3 kilograms no matter where it is in the universe. • The weight of the bag of flour is less on the moon. The 5 lb bag of flour on Earth weighs only .8 lbs on the moon!

  9. 2.1 Volume • Volume is the amount of space an object takes up. • The fundamental unit of volume in SI is the cubic meter (m3). • More convenient smaller units are cubic centimeters (cc or cm3), liters (L) and milliliters (mL).

  10. 2.1 Volume • Measuring the volume of liquids is easy. • Pour the liquid into a graduated cylinderand read the meniscus at eye level.

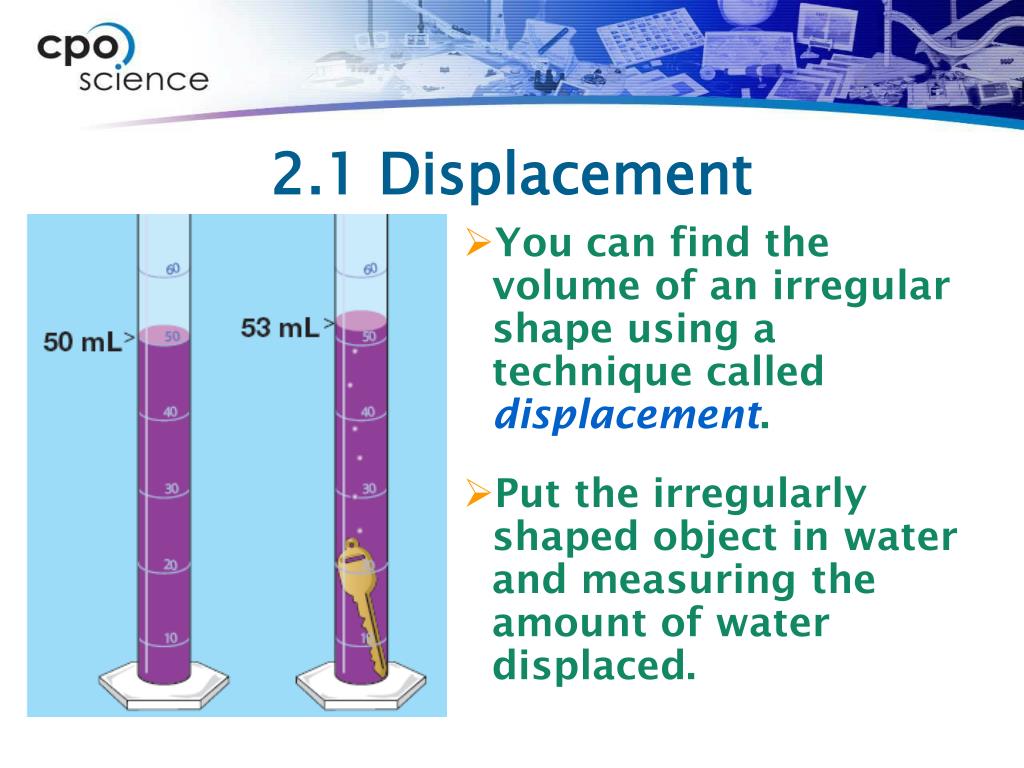

  11. 2.1 Displacement • You can find the volume of an irregular shape using a technique called displacement. • Put the irregularly shaped object in water and measuring the amount of water displaced.

  12. 2.1 Comparing mass and volume • Mass and volume are two different properties of matter. • Size does not always indicate an object’s mass! • How the matter is packed into space is more important.

  13. Chapter Two: Science Skills • 2.1 Mass and Volume • 2.2 Density • 2.3 Graphing • 2.4 Solving Problems

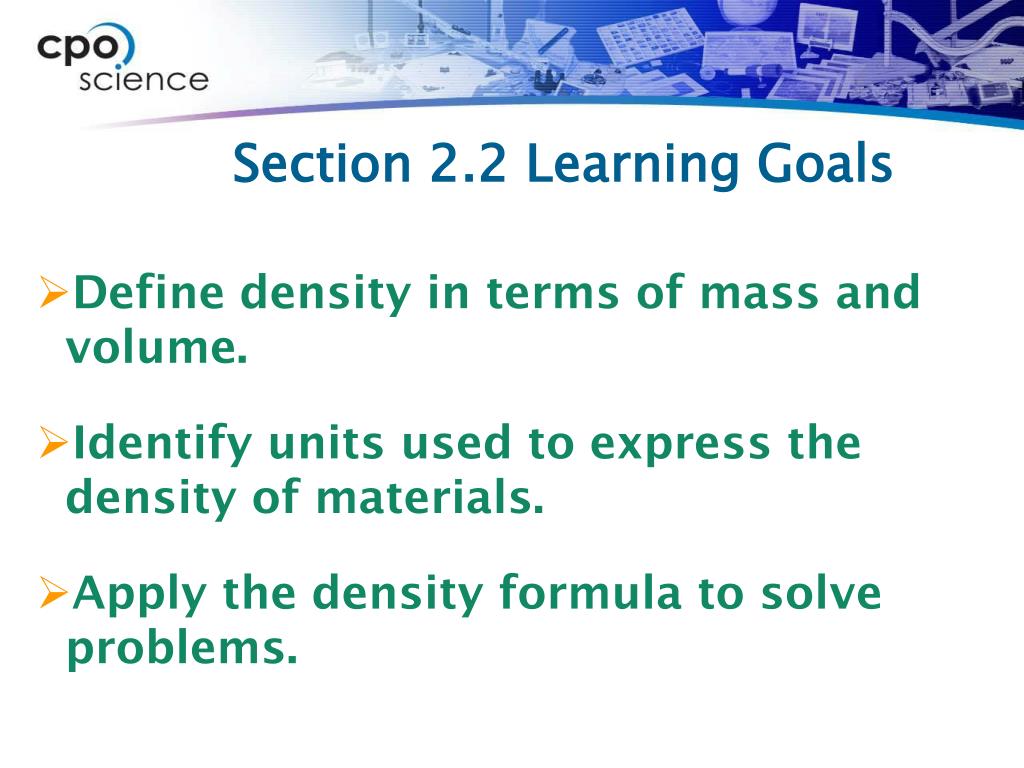

  14. Section 2.2 Learning Goals • Define density in terms of mass and volume. • Identify units used to express the density of materials. • Apply the density formula to solve problems.

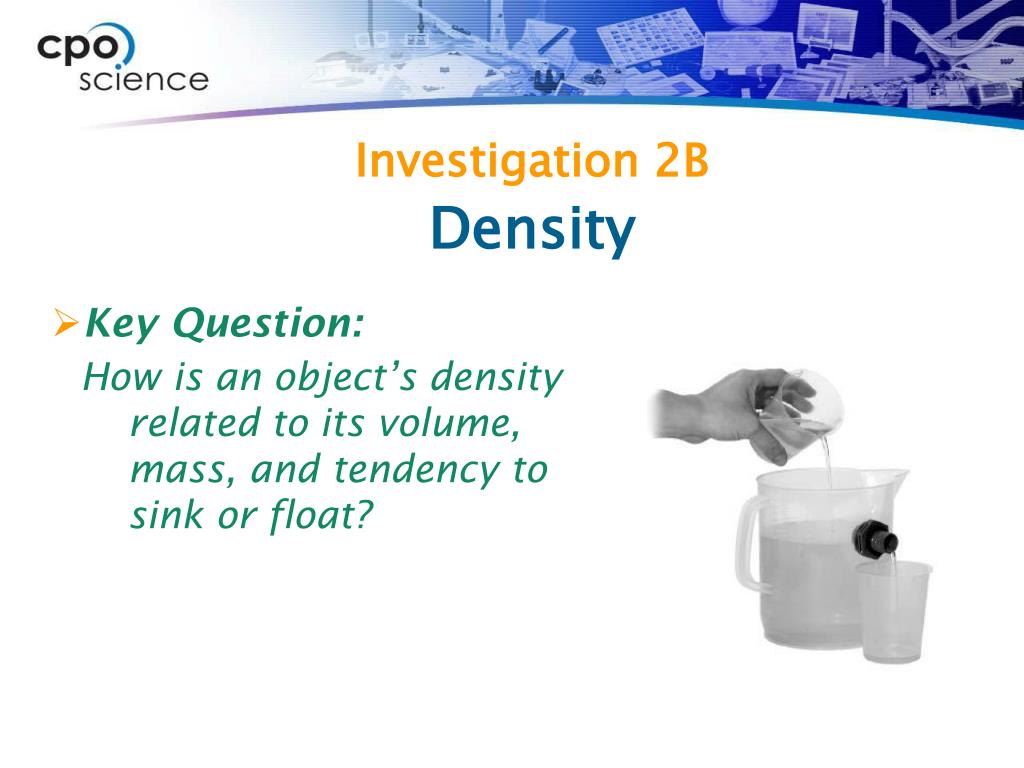

  15. Key Question: How is an object’s density related to its volume, mass, and tendency to sink or float? Investigation 2B Density

  16. 2.2 Density • Density describes how much mass is in a given volume of a material.

  17. 2.2 Density • Solids, liquids and gases are matter, so they all have density. • The density of water is about one gram per cubic centimeter.

  18. 2.2 Density • The units used for density depend on whether the substance is solid or liquid. • For liquids use units of grams per milliliter (g/mL) • For solids use density in units of g/cm3 or kg/m3.

  19. 2.2 Density of common materials • Density is a property of material independent of quantity or shape.

  20. 2.2 Density of common materials • Liquids tend to be less dense than solids of the same material. • Ex. solder (“sodder)

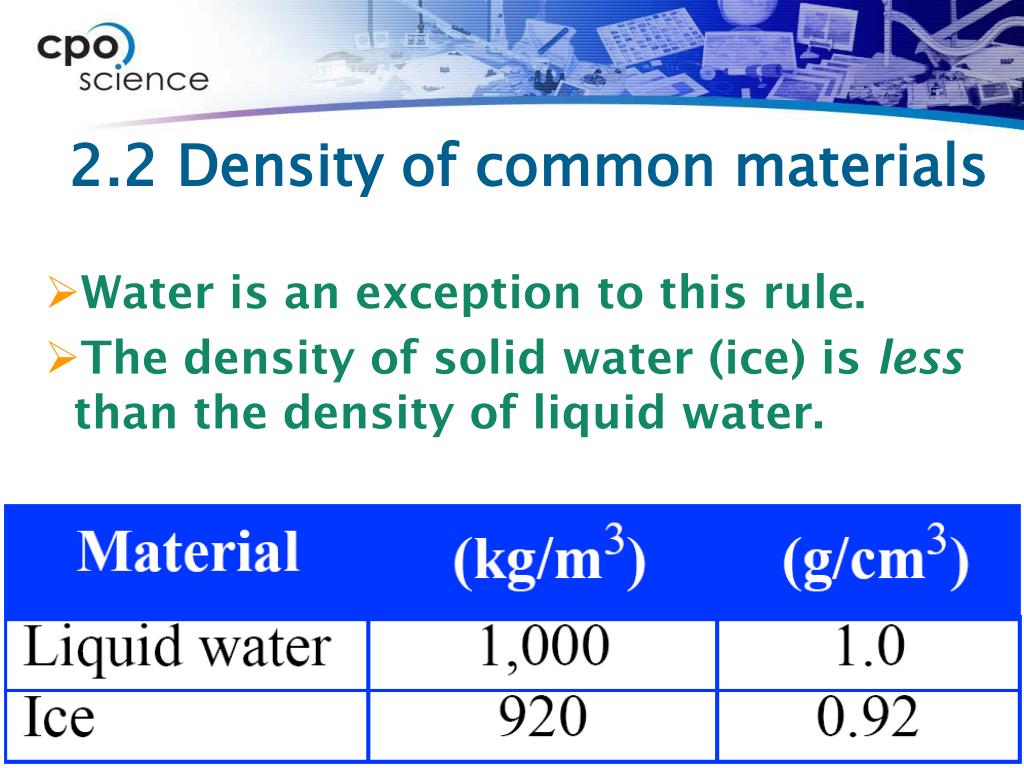

  21. 2.2 Density of common materials • Water is an exception to this rule. • The density of solid water (ice) is less than the density of liquid water.

  22. 2.2 Determining Density • To find the density of a material, you need to know the mass and volume of a solid sample of the material. • Mass is measured with a balance or scale. • Use the displacement method or calculate the volume.

  23. 2.2 Density Density changes for different substances because: • Atoms have different masses. • Atoms may be “packed” tightly or loosely.

  24. Solving Problems Calculating Density • Looking for: • …the density of the candle • Given: • …mass = 1500 g; volume = 1700 mL • Relationship: • D = m/V • Solution: • 1,500 g ÷ 1,700 mL = 0.8823529 g/mL # Sig. fig = .88 g/mL

  25. Chapter Two: Science Skills • 2.1 Mass and Volume • 2.2 Density • 2.3 Graphing • 2.4 Solving Problems

  26. Section 2.3 Learning Goals • Use graphs to create a visual representation of data. • Analyze trends on a graph. • Explain the difference between a direct relationship and an inverse relationship.

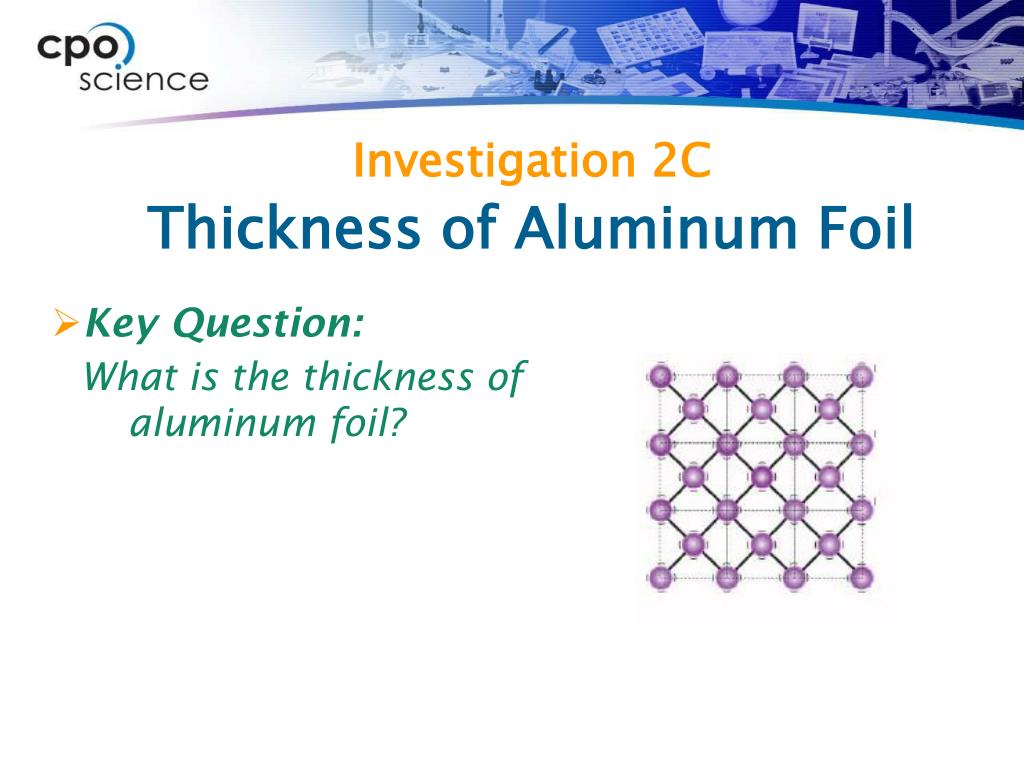

  27. Key Question: What is the thickness of aluminum foil? Investigation 2C Thickness of Aluminum Foil

  28. 2.3 Graphing • A graph is a visual way to organize data. • A scatterplot or XY graphis used to see if two variables are related.

  29. 2.3 Graphing • A bar graphcompares data grouped by a name or category.

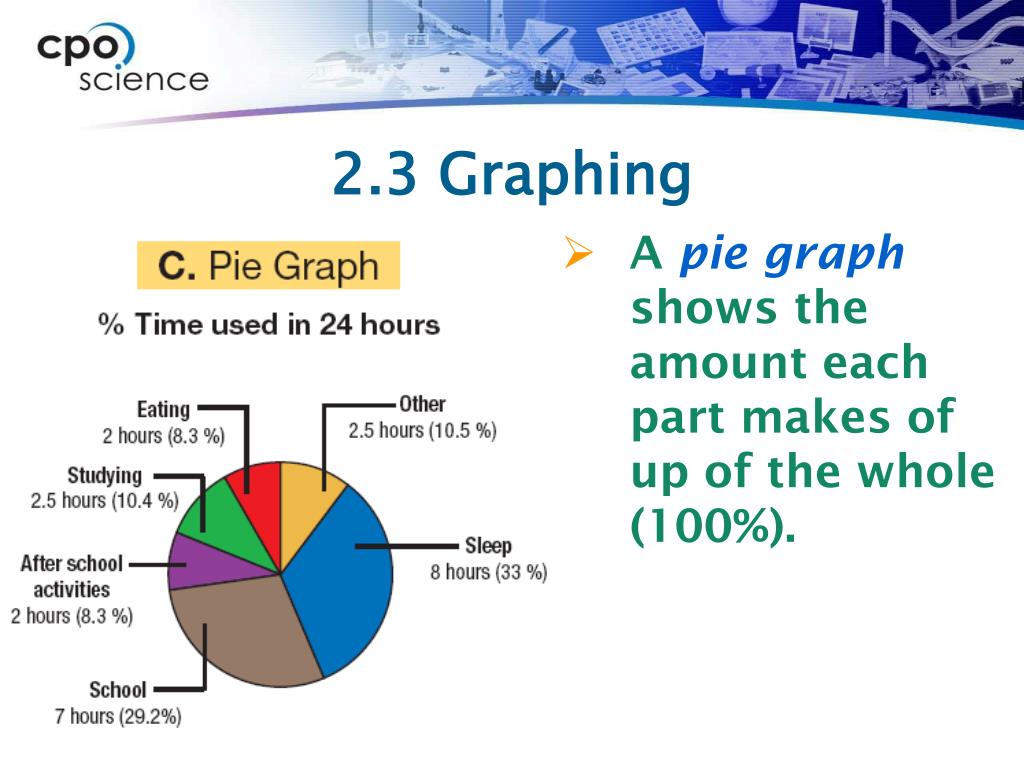

  30. 2.3 Graphing • A pie graph shows the amount each part makes of up of the whole (100%).

  31. 2.3 Graphing • A “connect-the-dots” line graph is often used to show trends in data over time.

  32. 2.3 How to make an XY graph • Scatterplotsshow how a change in one variable influences another variable. • The independent variable is the variable you believe might influence another variable. • The dependent variable is the variable that you hope will change as a result of the experiment.

  33. 2.3 How to make an XY graph • Pressure is critical to safe diving. • How does an increase in depth affect the pressure? • What sort of graph would best show the relationship between pressure and depth?

  34. 2.3 How to make an XY graph • Choose x and y-axis • Depth is the independent variable = x axis • Pressure is the dependent variable = y axis • Make a scale • Most graphs use ones, twos, fives or tens • OR calculate the value per box • Plot your data • Create a title * Exception- when time is a variable

  35. 2.3 Identifying graph relationships • In a direct relationship, when one variable increases, so does the other. The speed and distance variables show a direct relationship.

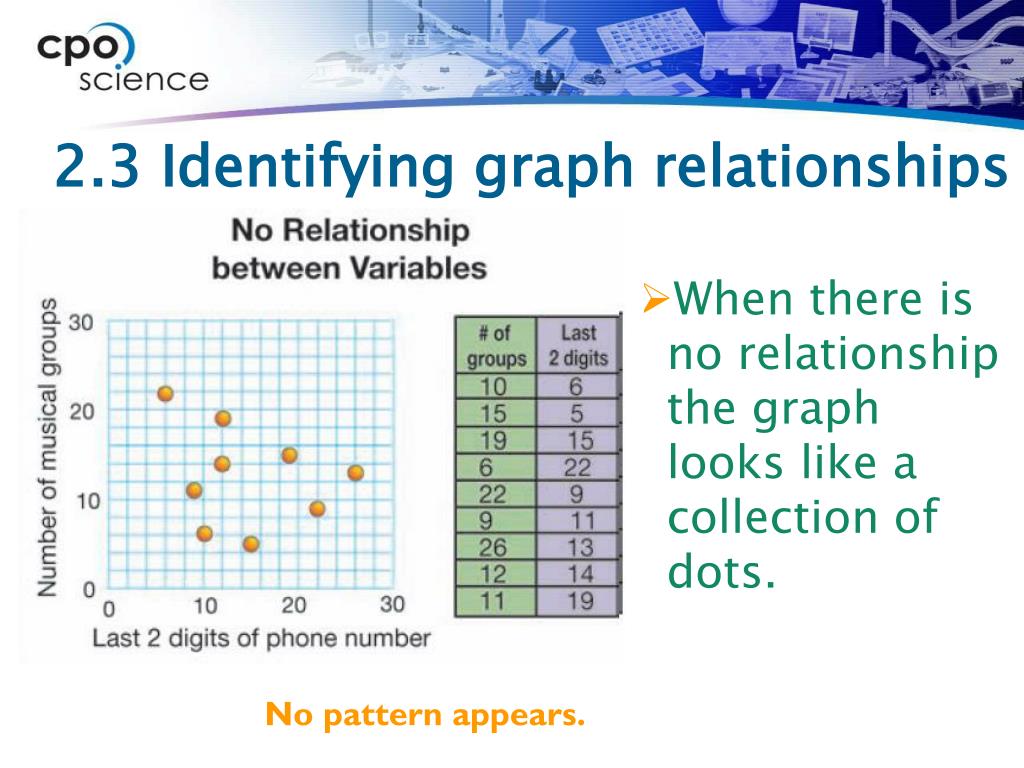

  36. 2.3 Identifying graph relationships • When there is no relationship the graph looks like a collection of dots. No pattern appears.

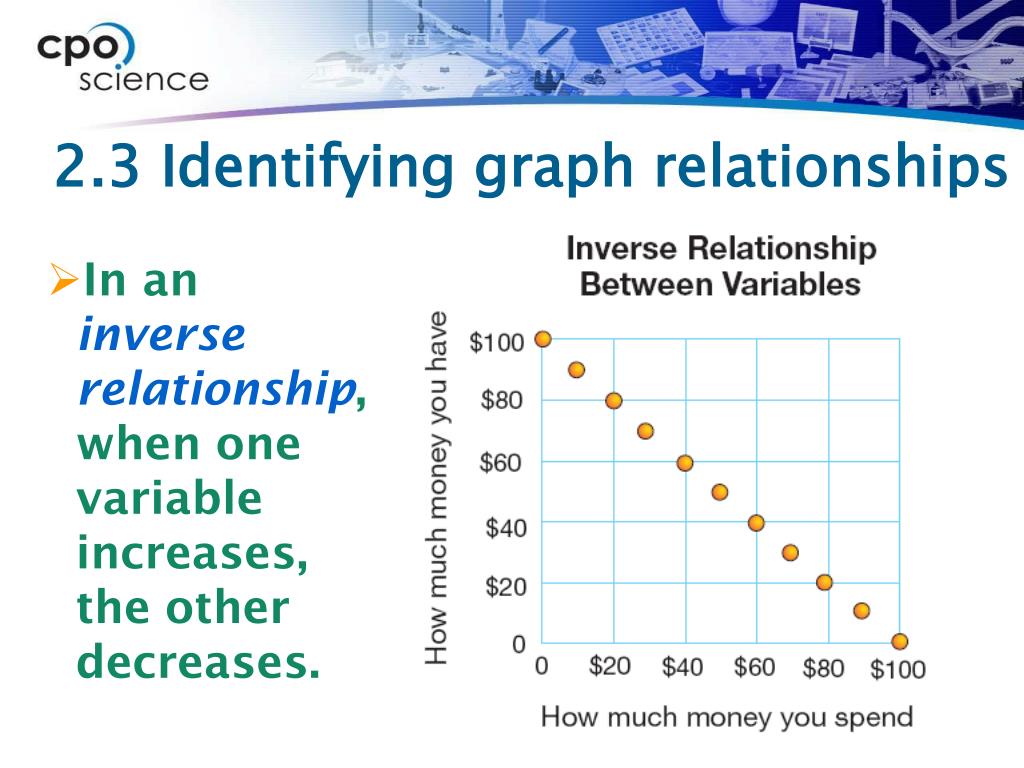

  37. 2.3 Identifying graph relationships • In an inverse relationship, when one variable increases, the other decreases.

  38. 2.3 Reading a graph What is the speed of the car at 50 cm? • Find the known value on the x axis • Position = 50 cm • Draw a line vertically upward from 50 cm until it hits the curve. • Draw a line across horizontally to the y-axis from the same place on the curve. • Read the speed using the y axis scale. • Speed = 76 cm/s

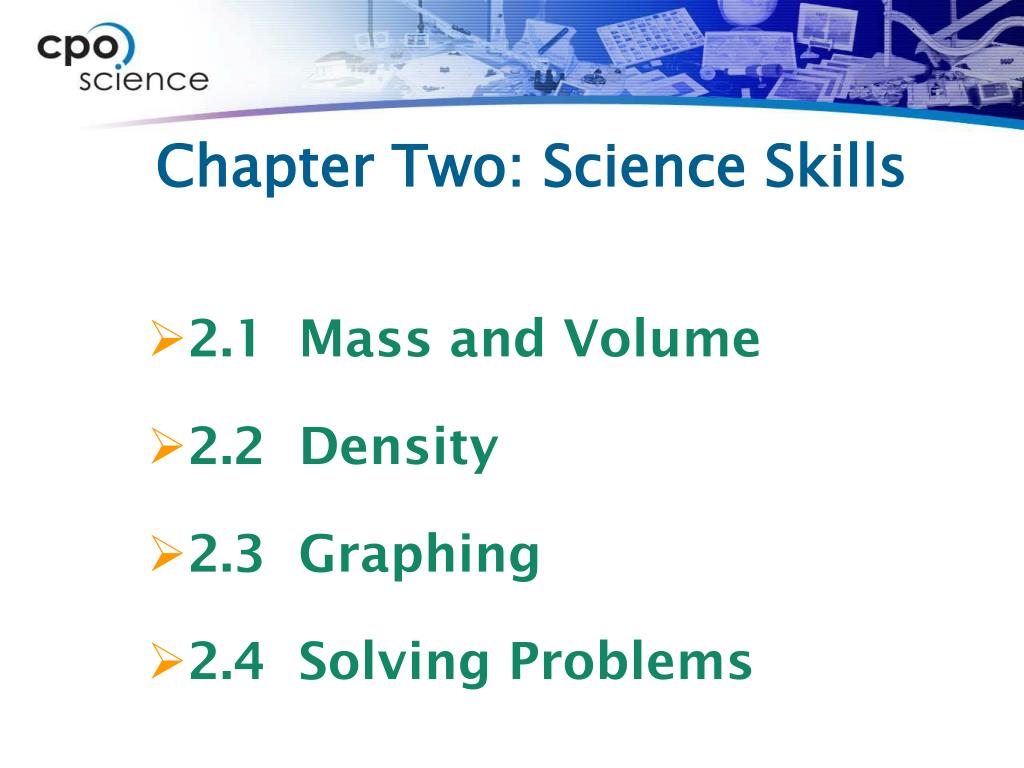

  39. Chapter Two: Science Skills • 2.1 Mass and Volume • 2.2 Density • 2.3 Graphing • 2.4 Solving Problems

  40. Section 2.4 Learning Goals • Apply a four-step technique to solve problems. • Use the design cycle to solve problems.

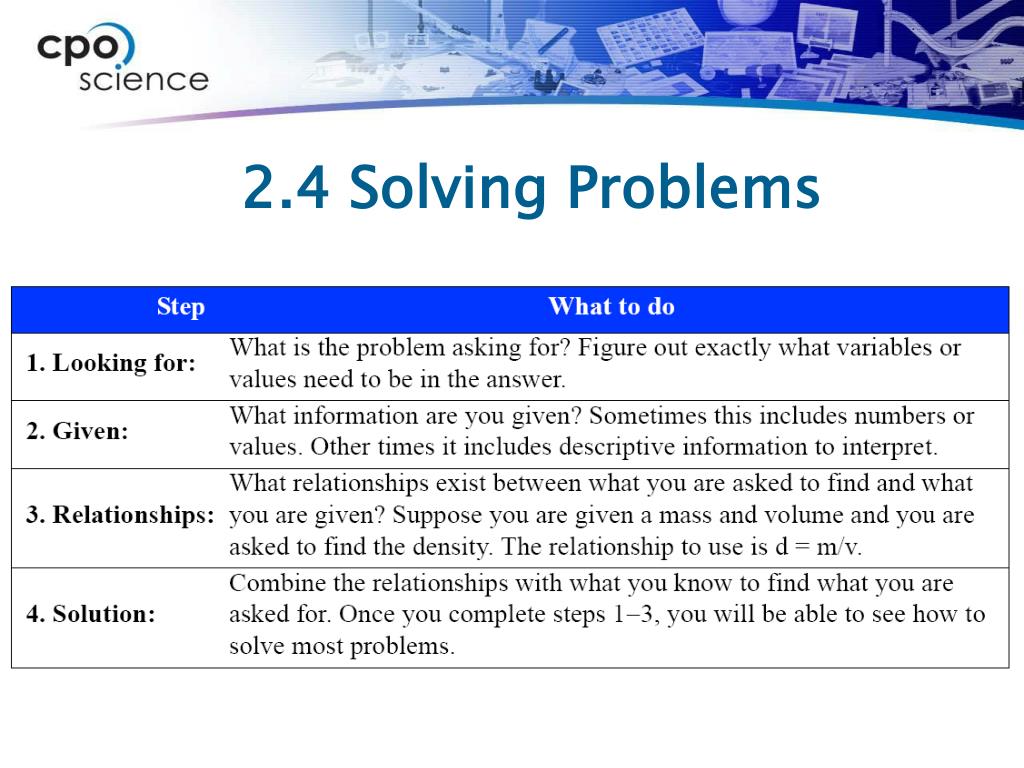

  41. 2.4 Solving Problems
