Deoxyribonucleic acid

Deoxyribonucleic acid. Structure and Function. Components of DNA. Sugar = Deoxyribose Ribose is missing hydroxyl group (- OH ) from 2’C Phosphate = PO 4 3- Links to the sugar @ either its 3’C or its 5’C Water (H OH ) is lost in the condensation reaction Nitrogenous base

ramla
Download Presentation

Deoxyribonucleic acid

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

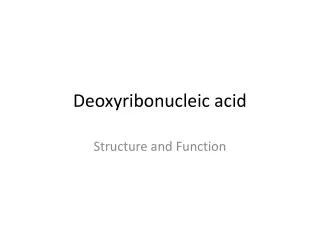

  1. Deoxyribonucleic acid Structure and Function

  2. Components of DNA • Sugar = Deoxyribose • Ribose is missing hydroxyl group (-OH) from 2’C • Phosphate = PO43- • Links to the sugar @ either its 3’C or its 5’C • Water (HOH) is lost in the condensation reaction • Nitrogenous base • Attaches to the 1’C of the deoxyribose • Purine (2-ring structure) = Adenine & Guanine • Pyrimidine (single-ring) = Thymine & Cytosine

  3. Structure

  4. Complementary Base Pairing • Chargaff’s Rules • Noticed % thymine = % adenine • Noticed % cytosine = % guanine • Single-ringed pyrimidine pairs with double-ringed purine • Guanine (purine) : cytosine (pyrimidine) • Held together with 3 hydrogen bonds • Adenine (purine) : thymine (pyrimidine) • Held together with 2 hydrogen bonds

  5. Double Helix • The leading strand goes 5’ (five prime) to 3’ • The lagging strand goes 3’(three prime) to 5’ • Hydrogen bonding links the 2 strands • Convention allows sequences to be shown with single-letter abbreviations of nucleotides • 5’ T A C CC G A T T C G C C G G A AA T A C G A 3’ • 3’ A T G GG C T A A G C G G C C T TT A T G C T 5’

  6. History • James Watson , Francis Crick, & Maurice Wilkins won Nobel Prize in Medicine (1962) for elucidation of DNA structure (double helix) • Nucleotides H-bond with opposite strand • They relied on Wilkins’ & Rosalind Franklin’s x-ray diffraction studies of DNA • Diffraction is a wave property seen when waves bend when passing by/ around edge of objects.

  7. http://news.yahoo.com/genetic-twist-4-stranded-dna-lurks-human-cells-124030861.htmlhttp://news.yahoo.com/genetic-twist-4-stranded-dna-lurks-human-cells-124030861.html 4-stranded DNA 2-stranded DNA

  8. Replication • In order to be replicated, each origin of replication must be bound by: an Origin Recognition Complex of proteins (ORC). These remain on the DNA throughout the process. • Accessory proteins called licensing factors. These accumulate in the nucleus during G1 of the cell cycle. They include: • Cdc-6 and Cdt-1, which bind to the ORC and are essential for coating the DNA with • MCM proteins. Only DNA coated with MCM proteins (there are 6 of them) can be replicated

  9. DNA Replicationhttp://users.rcn.com/jkimball.ma.ultranet/BiologyPages/D/DNAReplication.html
