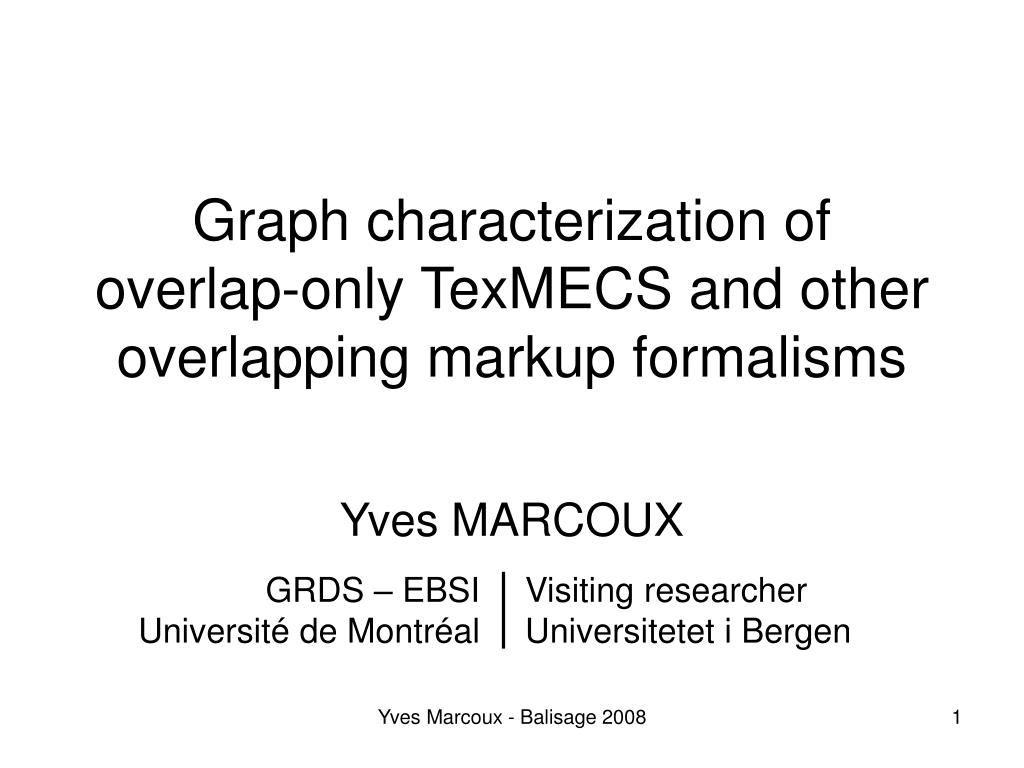

  1. Graph characterization of overlap-only TexMECS and other overlapping markup formalisms Yves MARCOUX GRDS – EBSI Université de Montréal Visiting researcher Universitetet i Bergen Yves Marcoux - Balisage 2008

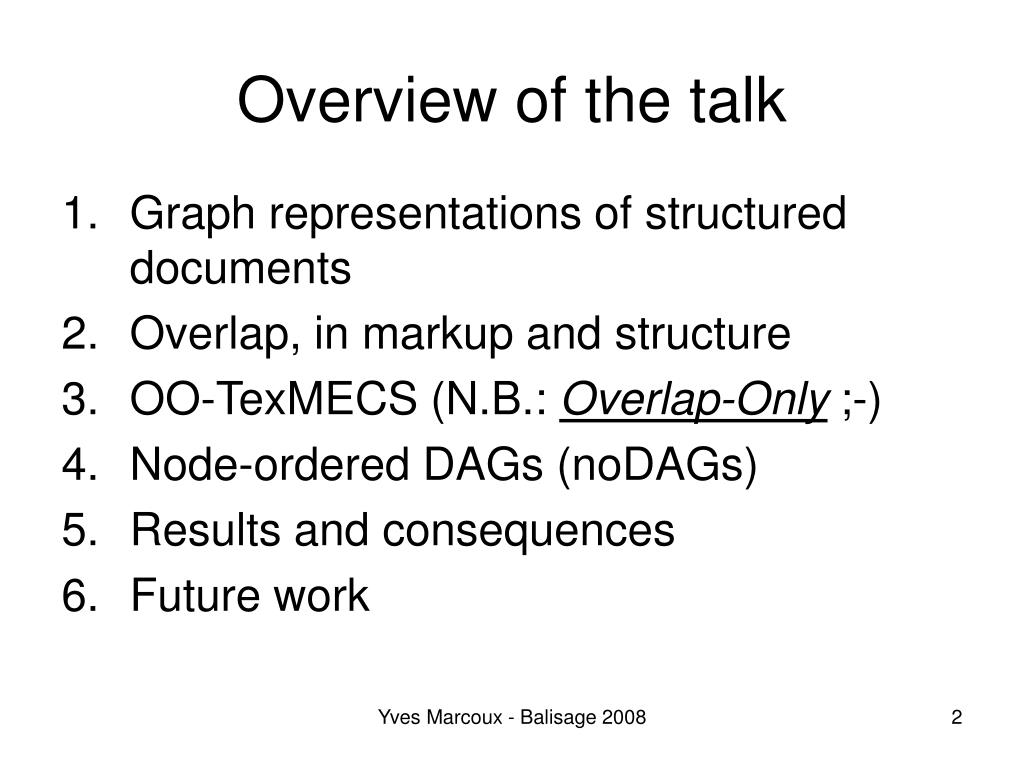

  2. Overview of the talk • Graph representations of structured documents • Overlap, in markup and structure • OO-TexMECS (N.B.: Overlap-Only ;-) • Node-ordered DAGs (noDAGs) • Results and consequences • Future work Yves Marcoux - Balisage 2008

  3. 1. Graph representations of structured documents Yves Marcoux - Balisage 2008

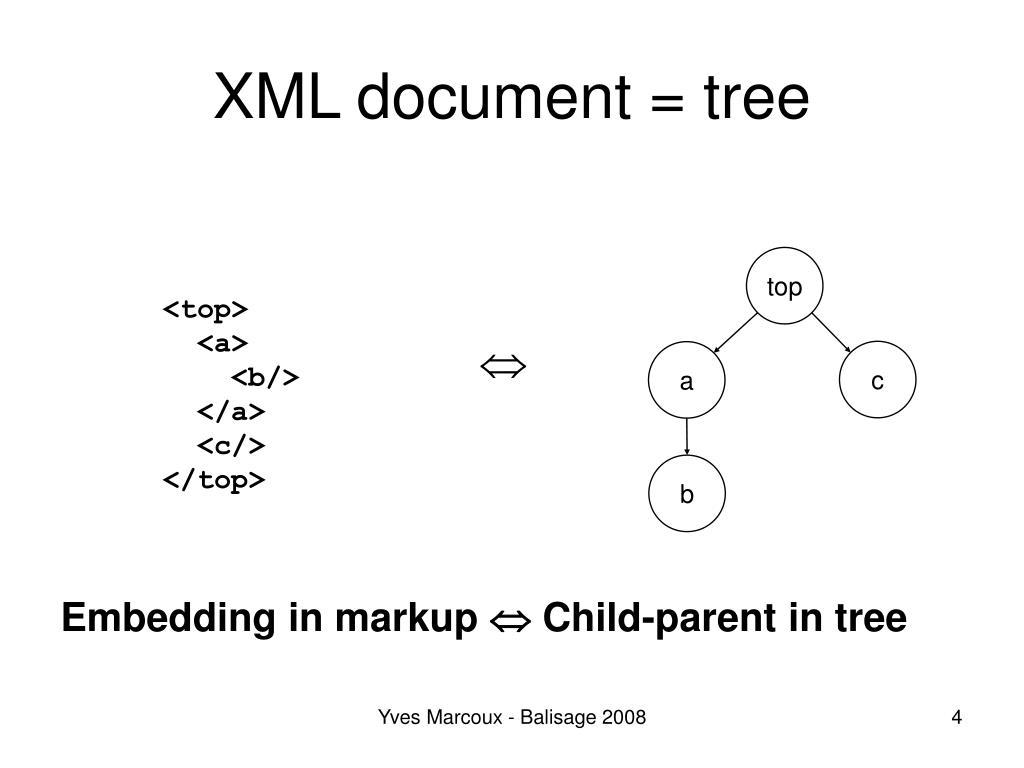

  4. XML document = tree top <top> <a> <b/> </a> <c/> </top> Û c a b Embedding in markup Û Child-parent in tree Yves Marcoux - Balisage 2008

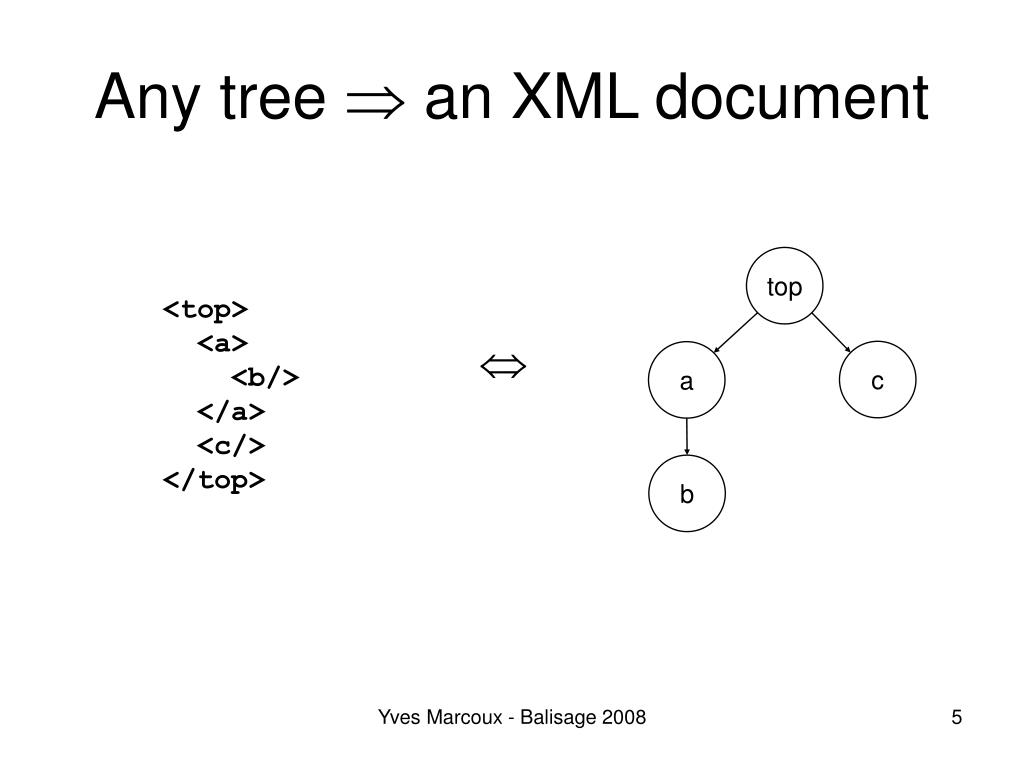

  5. Any tree  an XML document top <top> <a> <b/> </a> <c/> </top> Û c a b Yves Marcoux - Balisage 2008

  6. Any tree  an XML document top <top> <a> <b/> <d><e/></d> </a> <c/> </top> Û c a b d e Perfect isomorphism ! Yves Marcoux - Balisage 2008

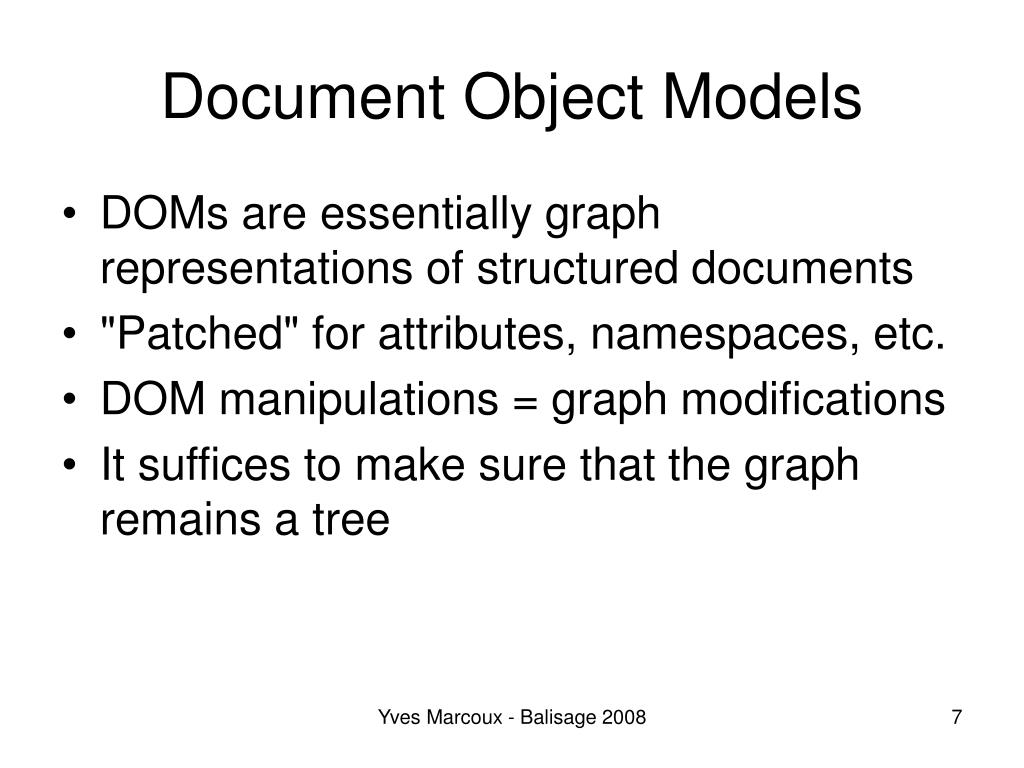

  7. Document Object Models • DOMs are essentially graph representations of structured documents • "Patched" for attributes, namespaces, etc. • DOM manipulations = graph modifications • It suffices to make sure that the graph remains a tree Yves Marcoux - Balisage 2008

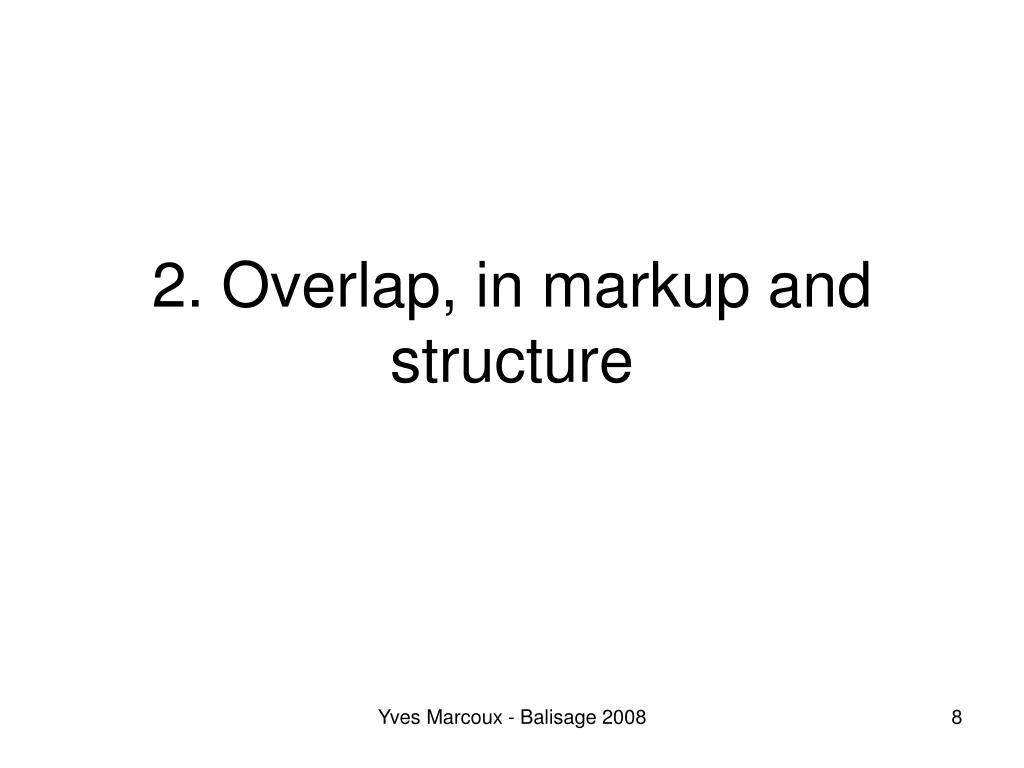

  8. 2. Overlap, in markup and structure Yves Marcoux - Balisage 2008

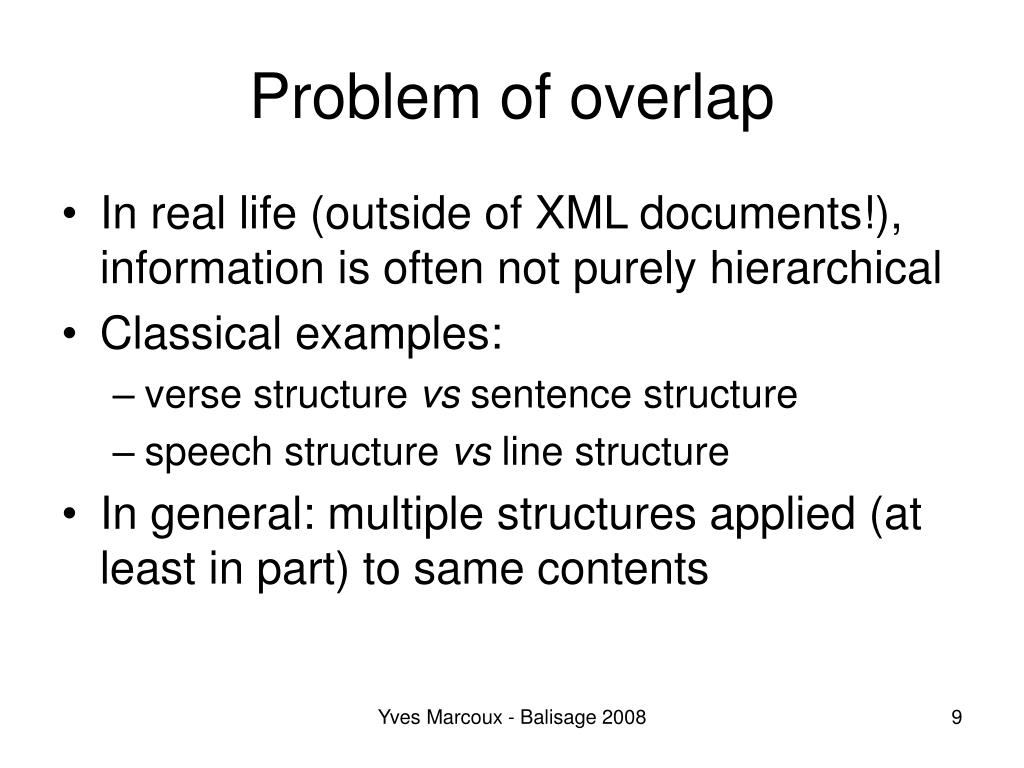

  9. Problem of overlap • In real life (outside of XML documents!), information is often not purely hierarchical • Classical examples: • verse structure vs sentence structure • speech structure vs line structure • In general: multiple structures applied (at least in part) to same contents Yves Marcoux - Balisage 2008

  10. Overlap Yves Marcoux - Balisage 2008

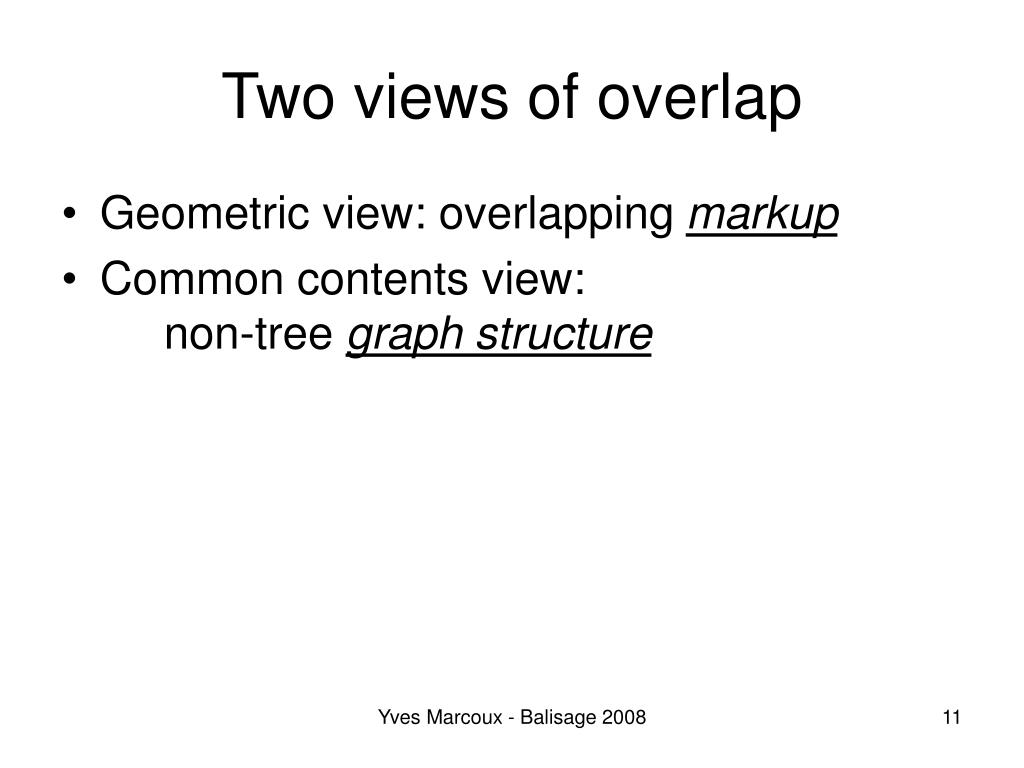

  11. Two views of overlap • Geometric view: overlapping markup • Common contents view: non-tree graph structure Yves Marcoux - Balisage 2008

  12. Example (markup) (Peer) Hvorfor bande? (Åse) Tvi, du tør ej!Alt ihob er tøv og tant! <vers> <peer>Hvorfor bande?</peer><åse>Tvi, du tør ej!</vers><vers>Alt ihob er tøv og tant!</åse></vers> Yves Marcoux - Balisage 2008

  13. Example (graph) (Peer) Hvorfor bande? (Åse) Tvi, du tør ej!Alt ihob er tøv og tant! vers vers åse peer Hvorfor bande? Tvi, du tør ej! Alt ihob er tøv og tant! Yves Marcoux - Balisage 2008

  14. Embedding  Child-parent <vers> <peer>Hvorfor bande?</peer><åse>Tvi, du tør ej!</vers><vers>Alt ihob er tøv og tant!</åse></vers> vers vers åse peer Hvorfor bande? Tvi, du tør ej! Alt ihob er tøv og tant! Yves Marcoux - Balisage 2008

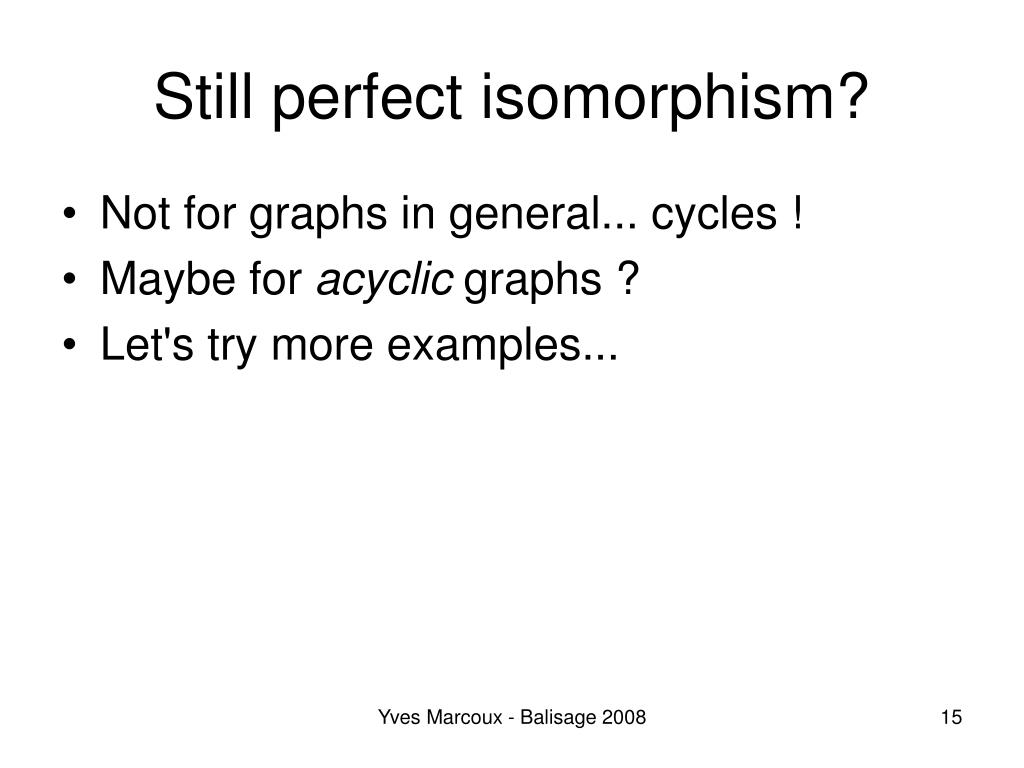

  15. Still perfect isomorphism? • Not for graphs in general... cycles ! • Maybe for acyclic graphs ? • Let's try more examples... Yves Marcoux - Balisage 2008

  16. What if the last verse is saidin chorus by Peer & Åse ? vers vers åse peer Hvorfor bande? Tvi, du tør ej! Alt ihob er tøv og tant! Yves Marcoux - Balisage 2008

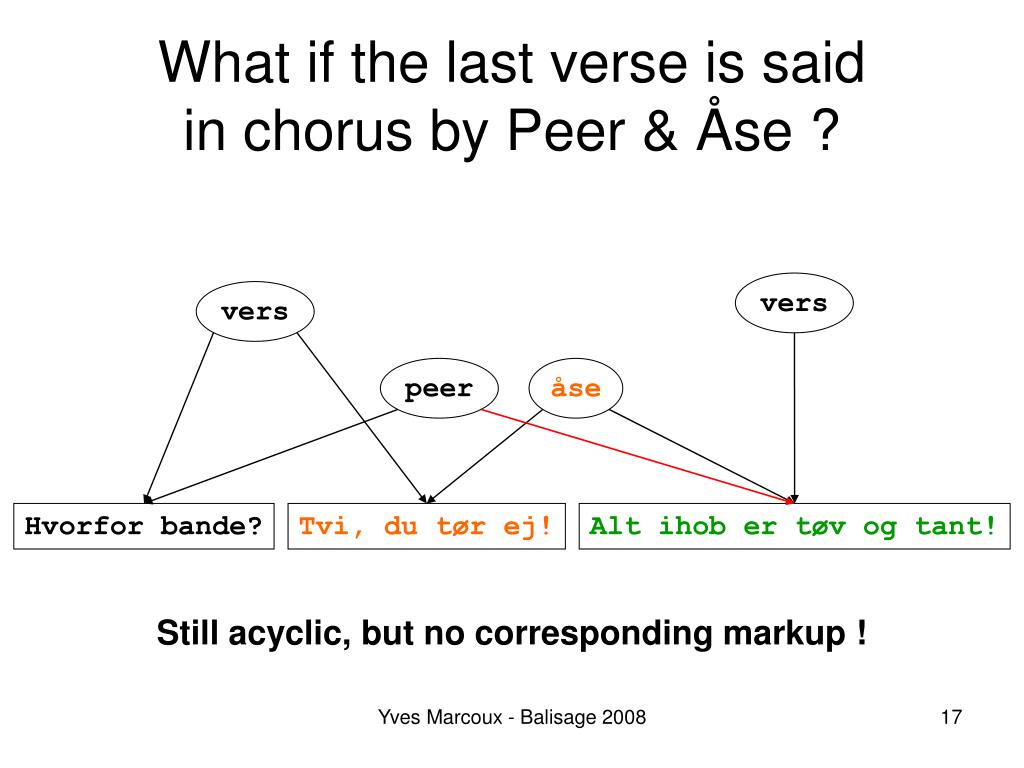

  17. What if the last verse is saidin chorus by Peer & Åse ? vers vers peer åse Hvorfor bande? Tvi, du tør ej! Alt ihob er tøv og tant! Still acyclic, but no corresponding markup ! Yves Marcoux - Balisage 2008

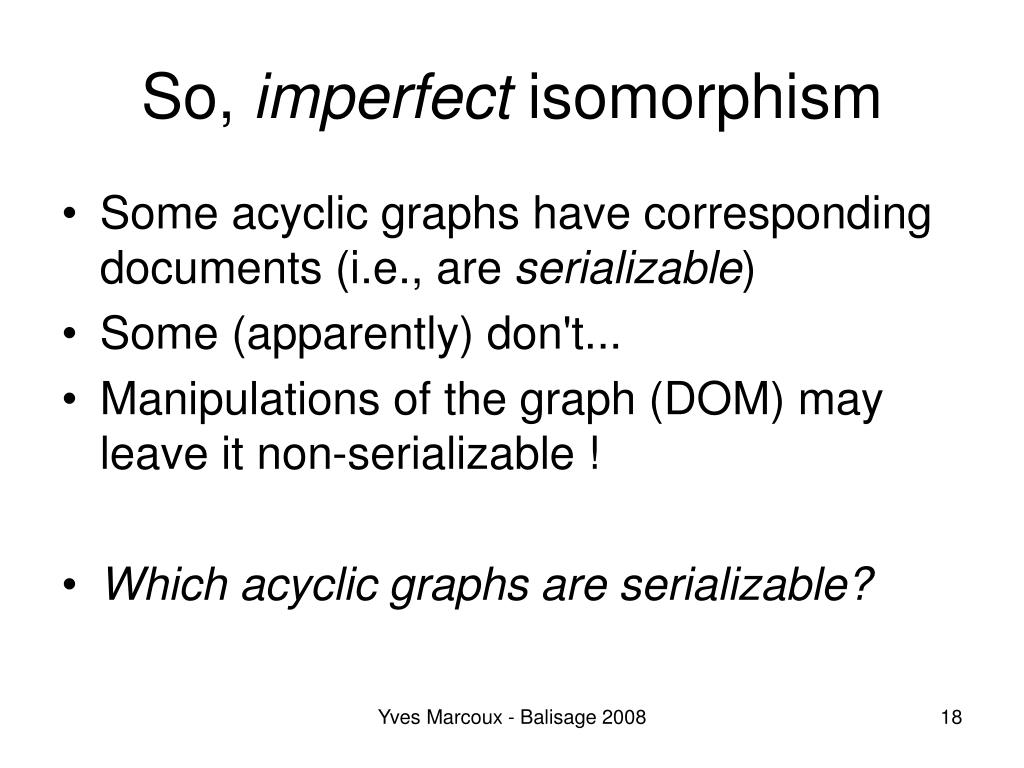

  18. So, imperfect isomorphism • Some acyclic graphs have corresponding documents (i.e., are serializable) • Some (apparently) don't... • Manipulations of the graph (DOM) may leave it non-serializable ! • Which acyclic graphs are serializable? Yves Marcoux - Balisage 2008

  19. 3. OO-TexMECS Yves Marcoux - Balisage 2008

  20. TexMECS • A particular proposal to address the overlap problem with overlapping markup • MECS (Huitfeldt 1992-1996) • Multi-element code system • TexMECS (Huitfeldt & SMcQ 2003) • "Trivially extended MECS" • Markup Languages for Complex Documents (MLCD) project Yves Marcoux - Balisage 2008

  21. Overlap-only TexMECS • TexMECS allows overlapping markup... • but also much more: • virtual elements, interrupted elements, etc. • OO-TexMECS 101 • Start-tags: <a| • End-tags: |a> • Overlapping elements allowed • Natural notion of well-formedness Yves Marcoux - Balisage 2008

  22. 4. Node-ordered DAGs (noDAGs) Yves Marcoux - Balisage 2008

  23. Contents ordering • In a serialized document, contents appears in some order • The order is often significant • Procedure steps, verses in a poem, etc. • Thus, the order must be present in graph representations • XML: children ordered in the tree Yves Marcoux - Balisage 2008

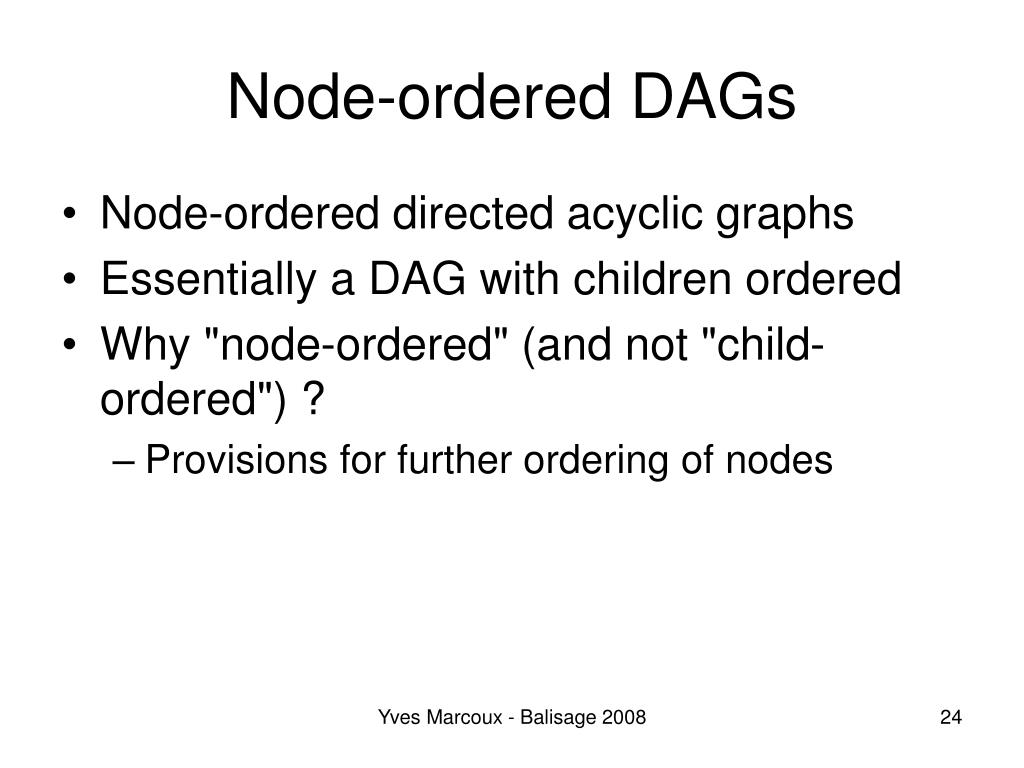

  24. Node-ordered DAGs • Node-ordered directed acyclic graphs • Essentially a DAG with children ordered • Why "node-ordered" (and not "child-ordered") ? • Provisions for further ordering of nodes Yves Marcoux - Balisage 2008

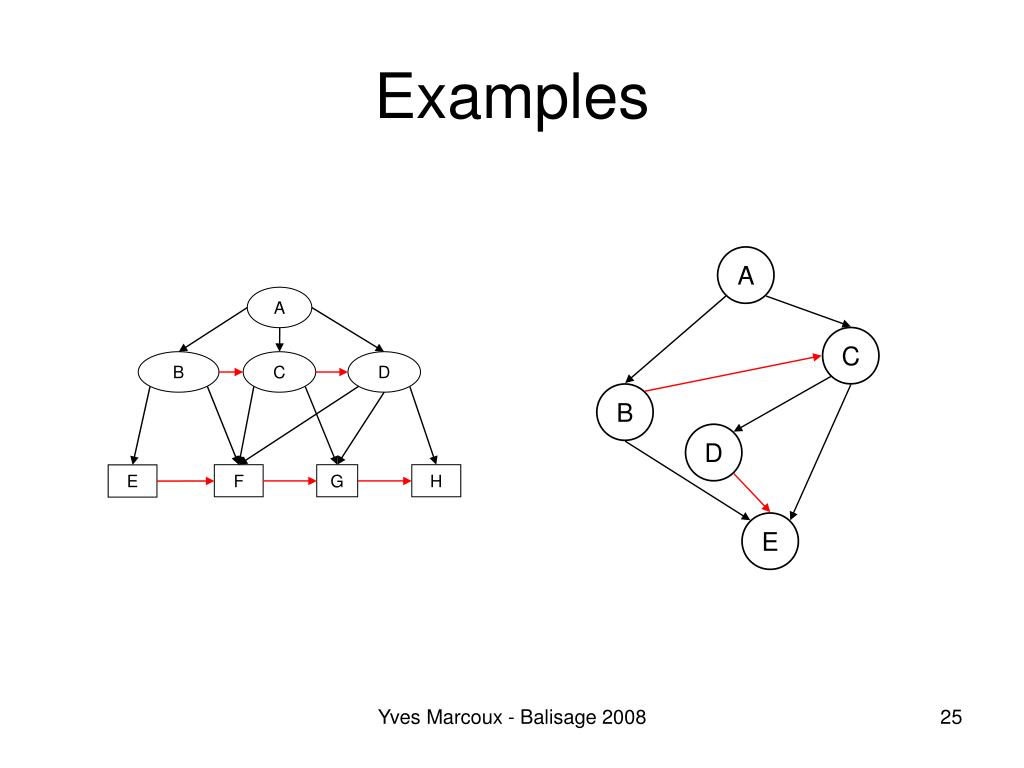

  25. Examples A A C B C D B D F G H E E Yves Marcoux - Balisage 2008

  26. 5. Results and consequences Yves Marcoux - Balisage 2008

  27. Main results • A noDAG is serializable in OO-TexMECS iff it is completion-acyclic (essentially) • Any OO-TexMECS well-formed document can be obtained by serializing some completion-acyclic noDAG • You don't gain any expressivity by allowing node-ordering over and above children-ordering Yves Marcoux - Balisage 2008

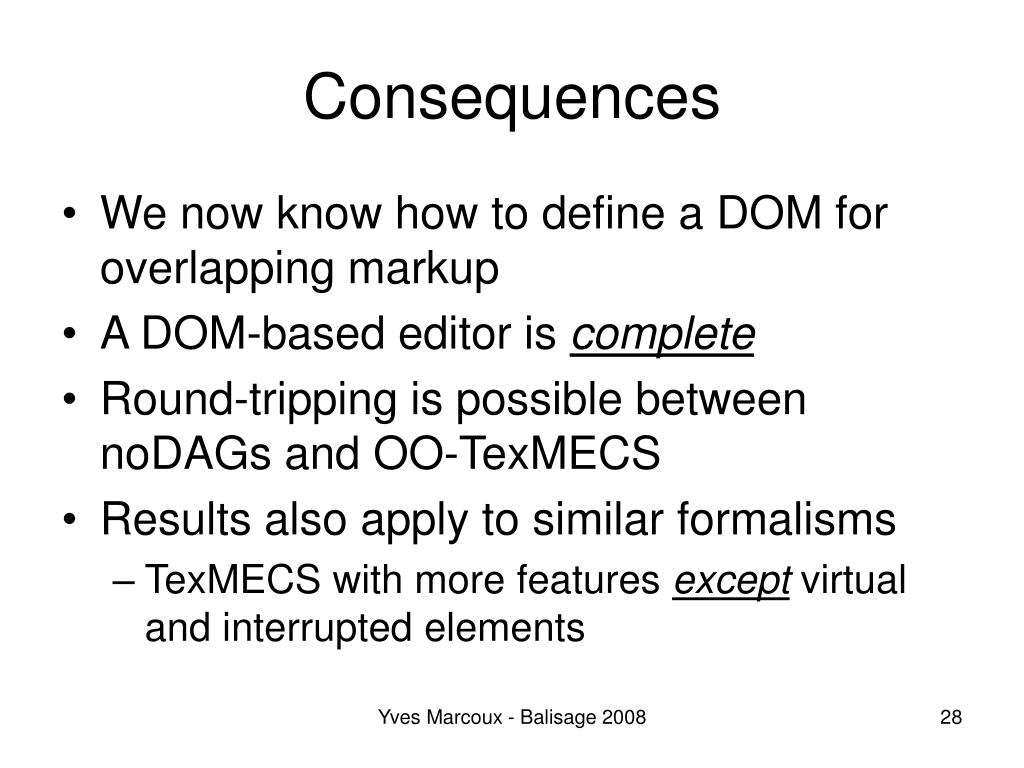

  28. Consequences • We now know how to define a DOM for overlapping markup • A DOM-based editor is complete • Round-tripping is possible between noDAGs and OO-TexMECS • Results also apply to similar formalisms • TexMECS with more features except virtual and interrupted elements Yves Marcoux - Balisage 2008

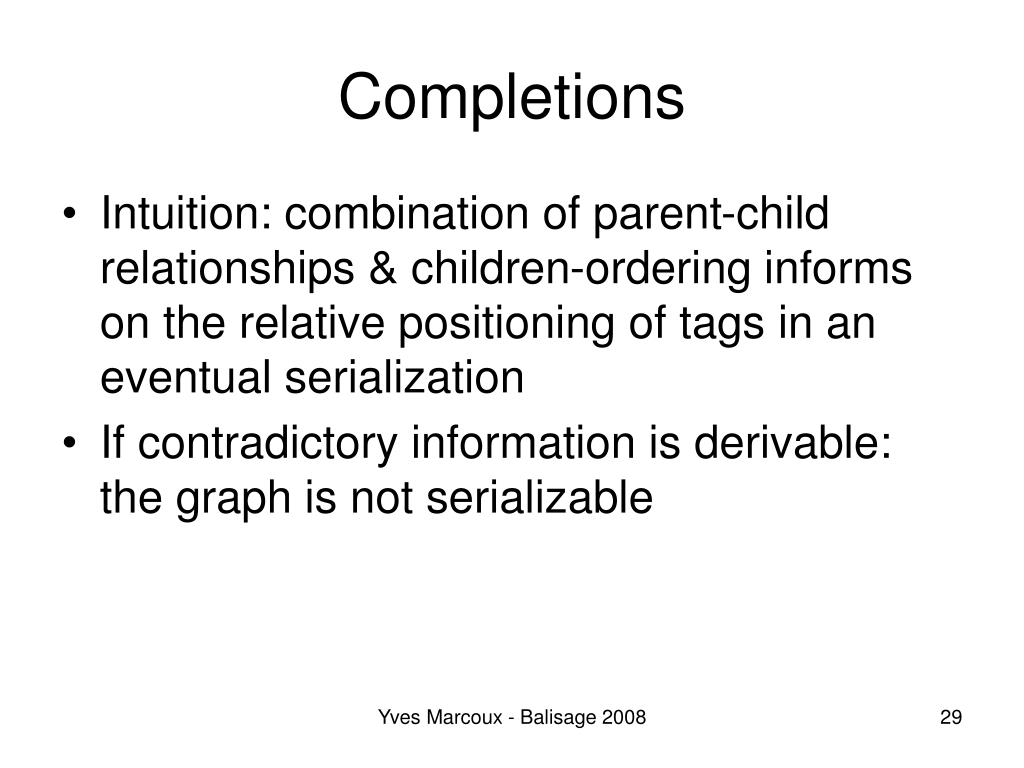

  29. Completions • Intuition: combination of parent-child relationships & children-ordering informs on the relative positioning of tags in an eventual serialization • If contradictory information is derivable: the graph is not serializable Yves Marcoux - Balisage 2008

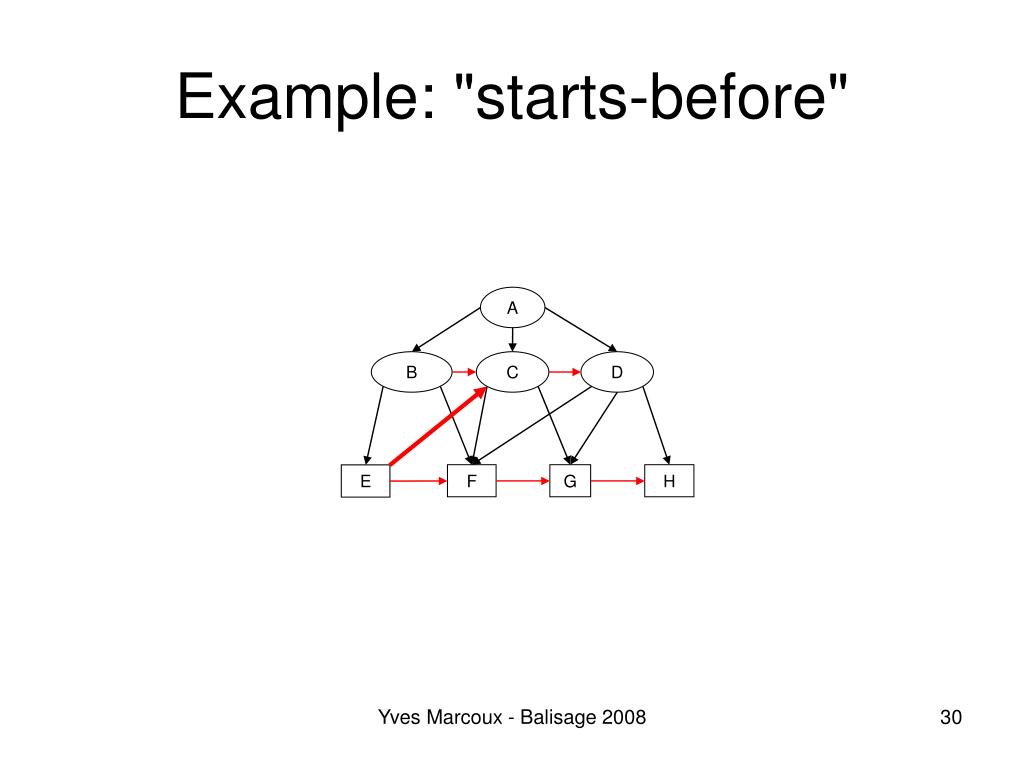

  30. Example: "starts-before" A B C D F G H E Yves Marcoux - Balisage 2008

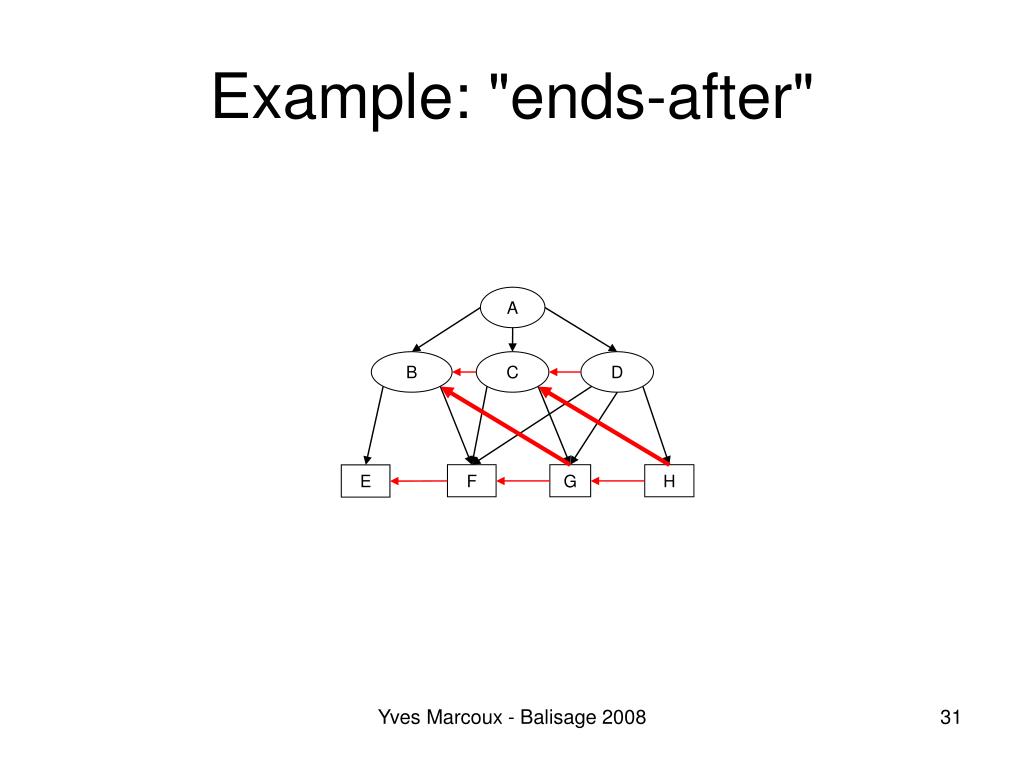

  31. Example: "ends-after" A B C D F G H E Yves Marcoux - Balisage 2008

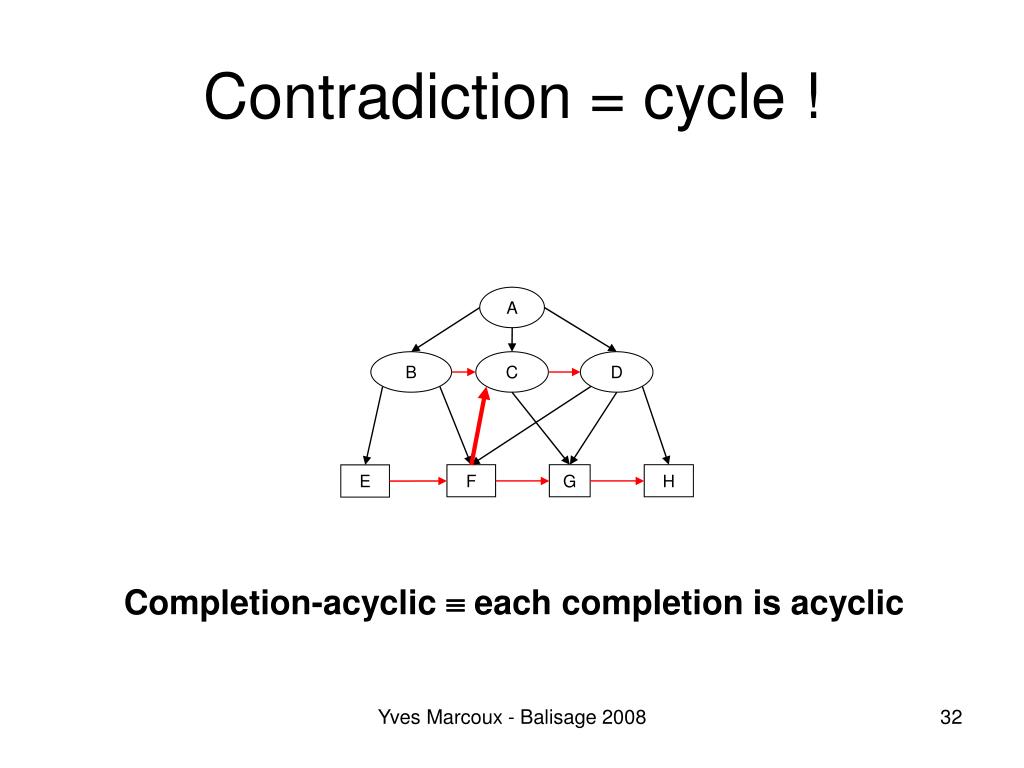

  32. Contradiction = cycle ! A B C D F G H E Completion-acyclic  each completion is acyclic Yves Marcoux - Balisage 2008

  33. Future work • Optimal algorithm for verification • Optimal serialization algorithm • Relaxing conditions on the graph • Relationships with GODDAGs (SMcQ & Huitfeldt 2004) • And, yes... • Intertextual semantics of overlap ! Yves Marcoux - Balisage 2008

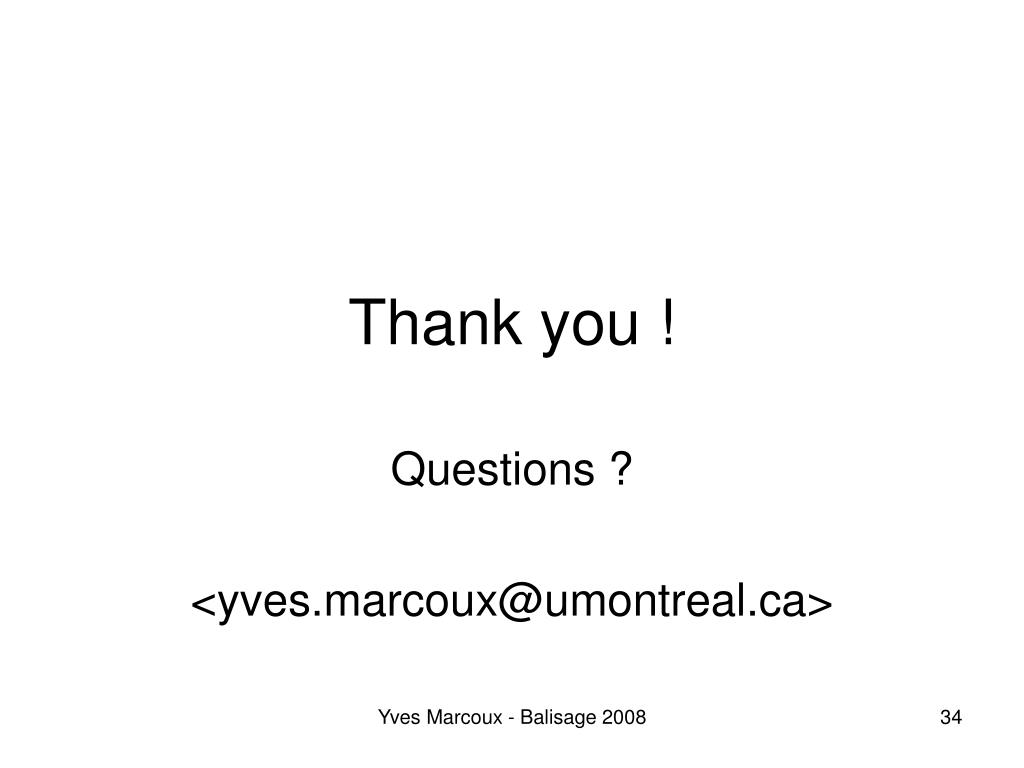

  34. Thank you ! Questions ? <yves.marcoux@umontreal.ca> Yves Marcoux - Balisage 2008
