Presentation Transcript

  1. Where I Want to be..... +

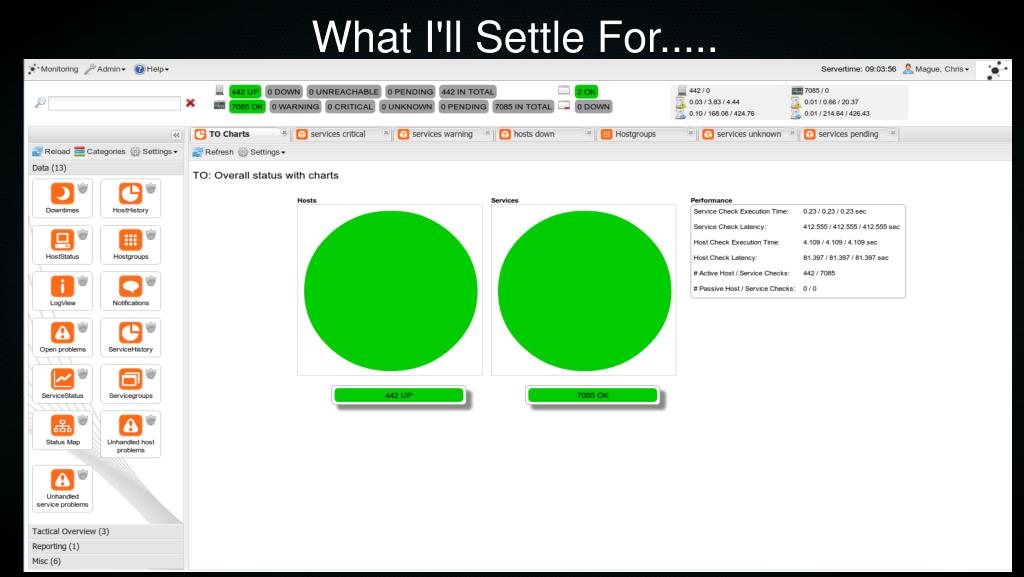

  2. What I'll Settle For.....

  3. Requirements • Rock solid stability • Automated node addition (discovery) • Scales horizontally • Service dependency models • Easy to write plugins • Promotes sane workflows • Unified front end view • Flexible configuration

  4. Tool Stack

  5. What????but #monitoringsucks and #ihatenagiosHow could you?

  6. In defense of Nagios • Been around since 1996 • Has Service dependencies • Easy to write plugins • Easy-ish to troubleshoot • ROCK SOLID

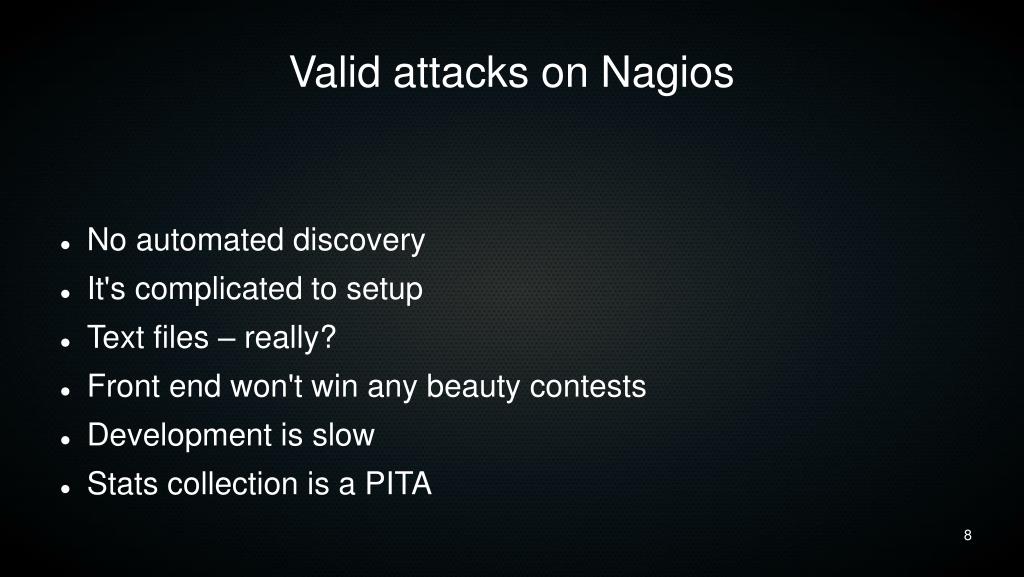

  7. Valid attacks on Nagios • No automated discovery • It's complicated to setup • Text files – really? • Front end won't win any beauty contests • Development is slow • Stats collection is a PITA

  8. Solutions • Use Icinga! • Use Puppet to auto configure • Stats – leave it to graphite. It's really good at that • Big boys and girls learn their tools

  9. Icinga • Fork of Nagios • Configurations are compatible • More solid architecture ( core, API, Web, IDODB ) • Nice front end, nice mobile front end • Can use NRPE

  10. High Level View

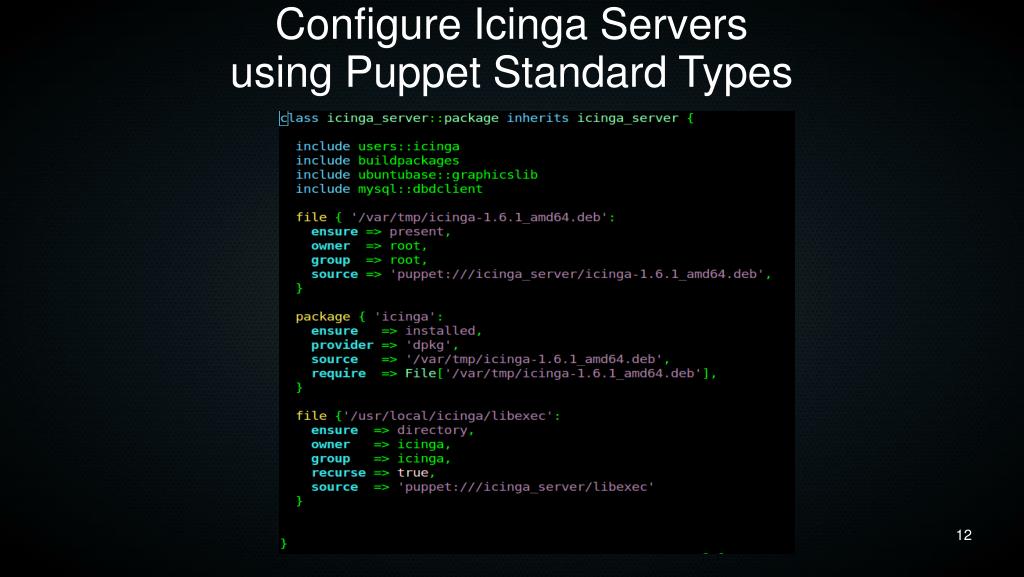

  11. Configure Icinga Servers using Puppet Standard Types

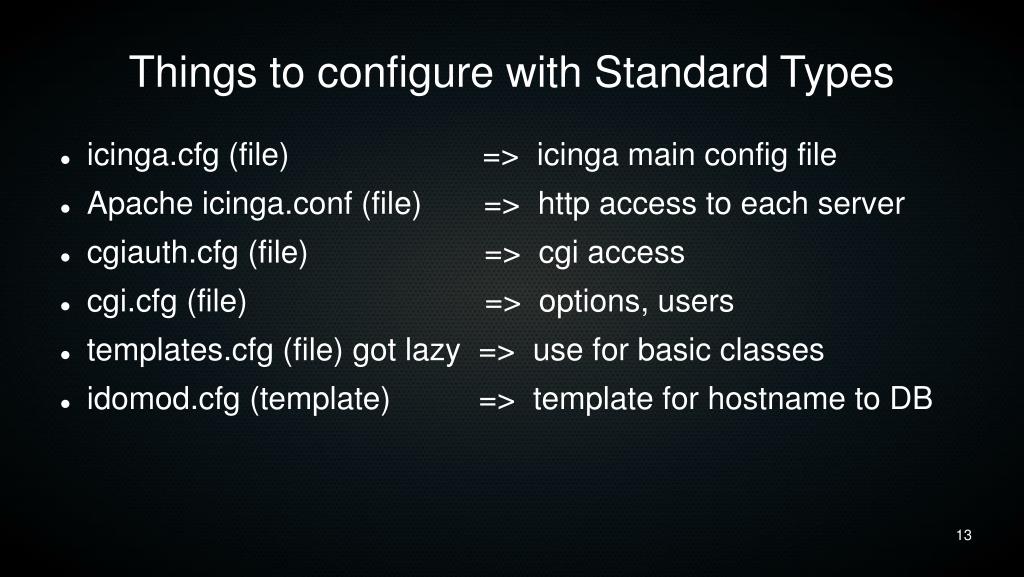

  12. Things to configure with Standard Types • icinga.cfg (file) => icinga main config file • Apache icinga.conf (file) => http access to each server • cgiauth.cfg (file) => cgi access • cgi.cfg (file) => options, users • templates.cfg (file) got lazy => use for basic classes • idomod.cfg (template) => template for hostname to DB

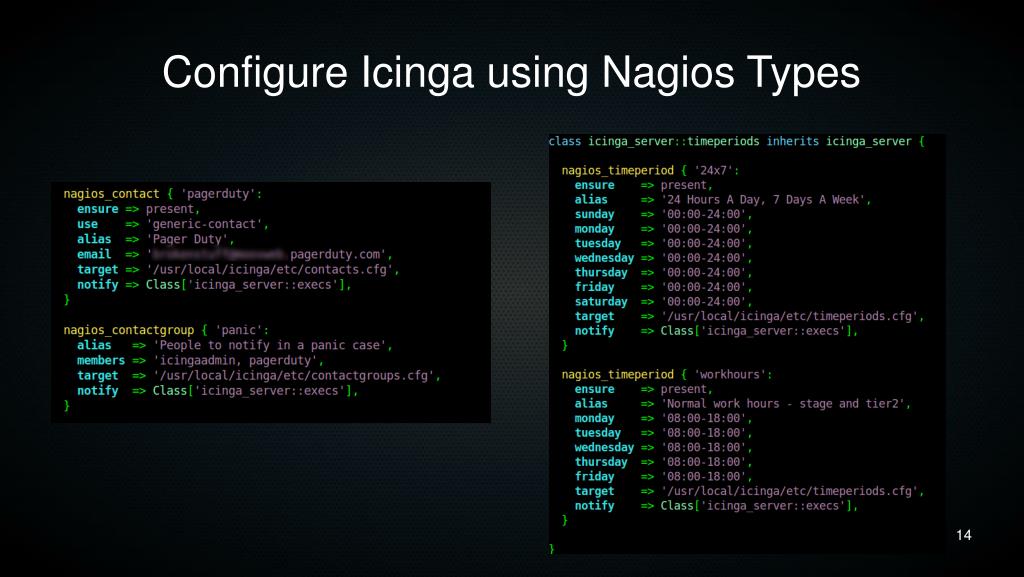

  13. Configure Icinga using Nagios Types

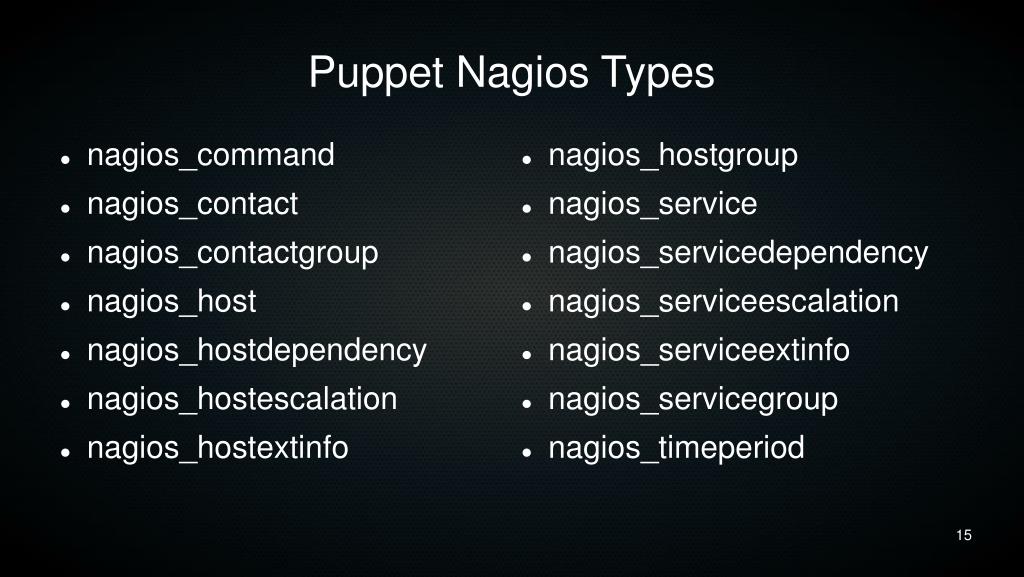

  14. nagios_hostgroup nagios_service nagios_servicedependency nagios_serviceescalation nagios_serviceextinfo nagios_servicegroup nagios_timeperiod Puppet Nagios Types • nagios_command • nagios_contact • nagios_contactgroup • nagios_host • nagios_hostdependency • nagios_hostescalation • nagios_hostextinfo

  15. Configuring Hosts

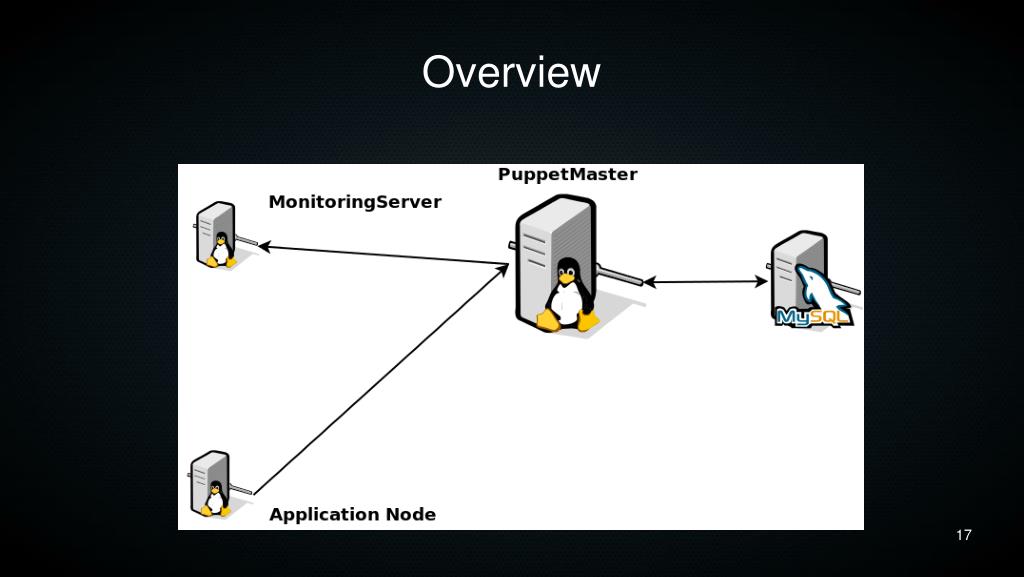

  16. Overview

  17. Detailed Overview

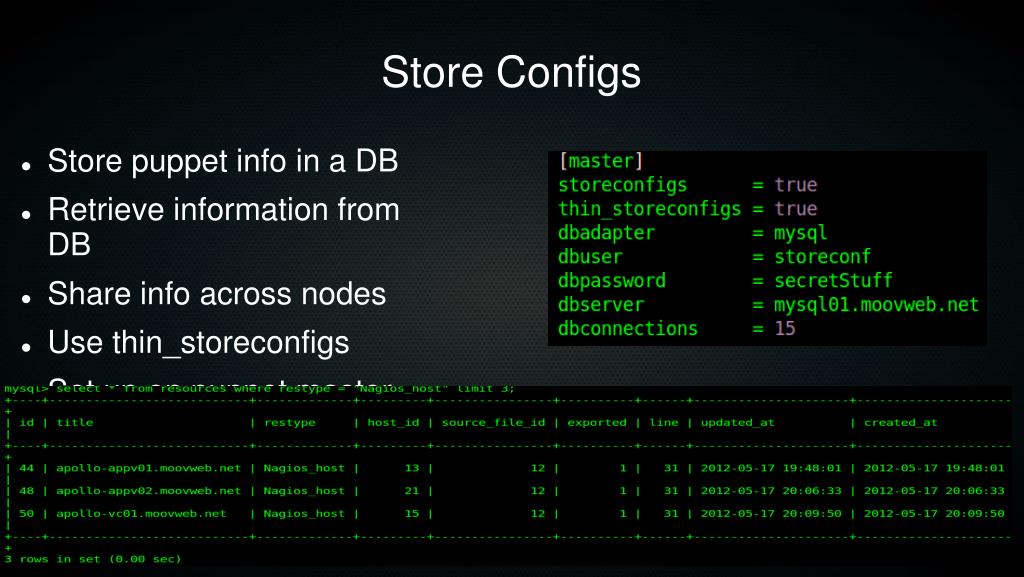

  18. Store Configs • Store puppet info in a DB • Retrieve information from DB • Share info across nodes • Use thin_storeconfigs • Set up on puppet master

  19. Exporting Nagios_host Resources • Export = Save to DB • Use facter for dynamic data • PRO TIP: use ENC • PRO TIP: use targets • PRO TIP: hostgroups • PRO TIP: use tags

  20. PRO TIP: Use your ENC

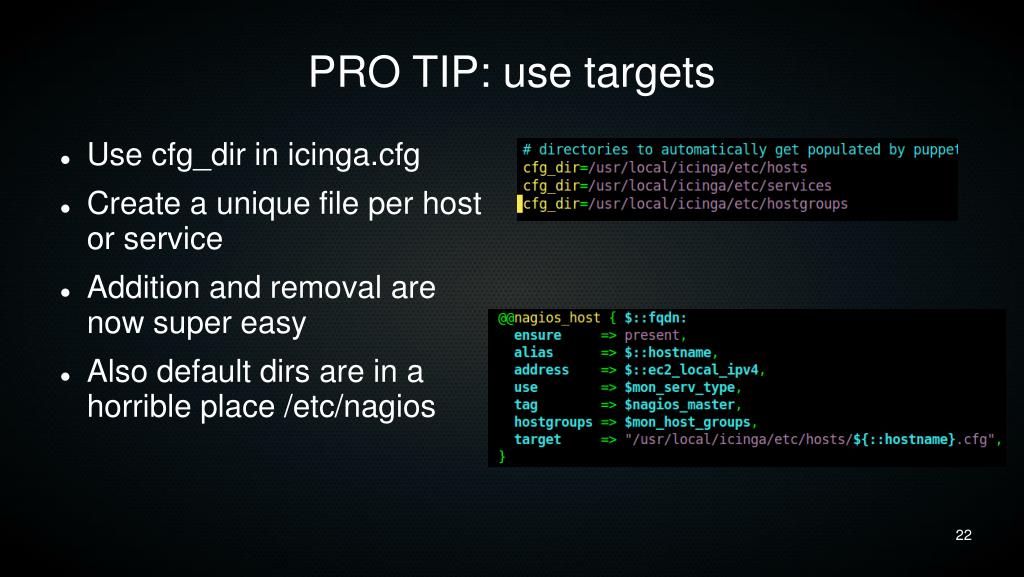

  21. PRO TIP: use targets • Use cfg_dir in icinga.cfg • Create a unique file per host or service • Addition and removal are now super easy • Also default dirs are in a horrible place /etc/nagios

  22. PRO TIP: hostgroups • Add machines to a hostgroup • Add services to a hostgroup • New machines inherit all of the services associated with a hostgroup

  23. PRO TIP: use tags Tags allow you to filter resources so that you only realize those resources that you need

  24. Configuring Services/Commands

  25. Icinga Services • OR 'Stuff I want to monitor' • Associate with a hostgroup • Use a target

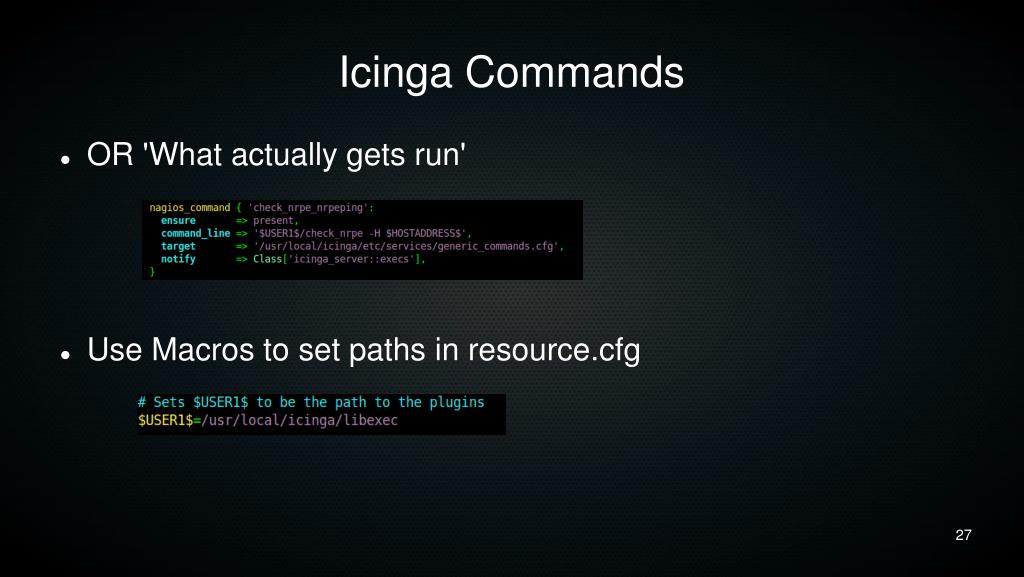

  26. Icinga Commands • OR 'What actually gets run' • Use Macros to set paths in resource.cfg

  27. Dependencies

  28. PRO TIP: Dependencies • Unreliable services • Cut down on the number of alerts • Tell me what's really wrong • Route alerts accordingly

  29. Nagios_servicedependencies

  30. NRPE

  31. NRPE • Runs on client • Secured via SSL • Has ACLs • Runs as nobody • Can run commands • Useful for other things...

  32. Configuring NRPE

  33. NRPE Checks

  34. Plugins

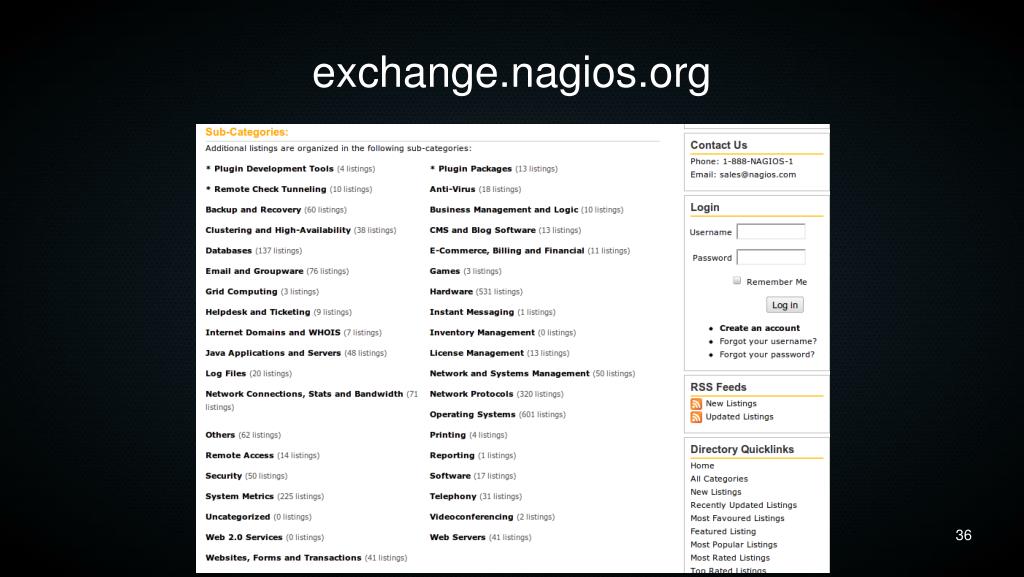

  35. exchange.nagios.org

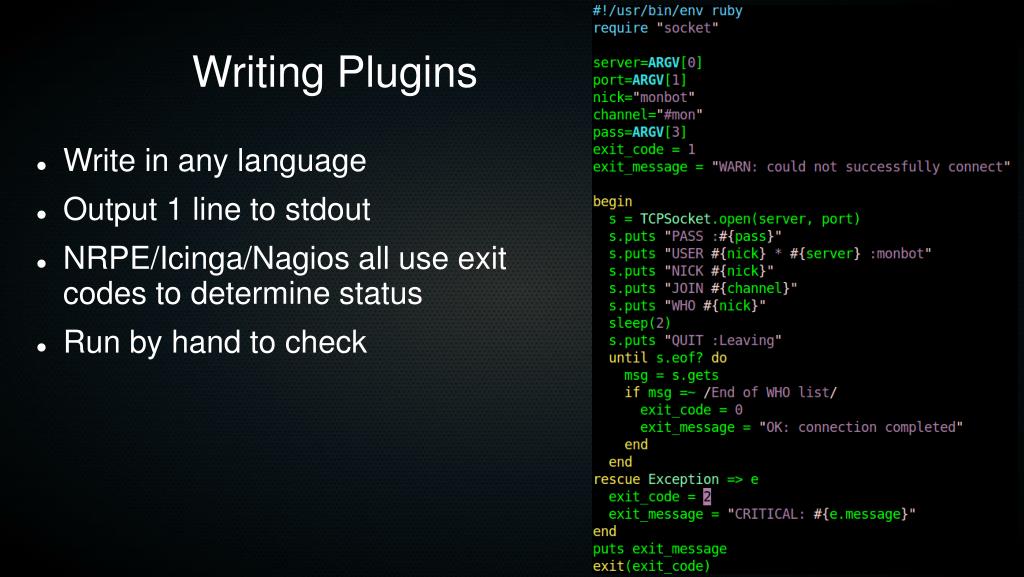

  36. Writing Plugins • Write in any language • Output 1 line to stdout • NRPE/Icinga/Nagios all use exit codes to determine status • Run by hand to check

  37. Workflows

  38. Watching Monitoring

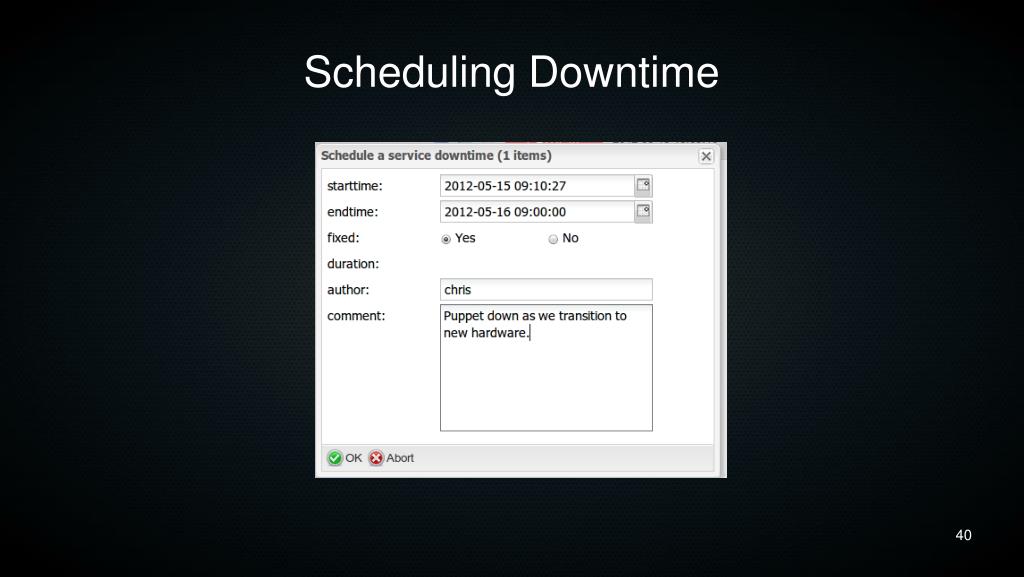

  39. Scheduling Downtime

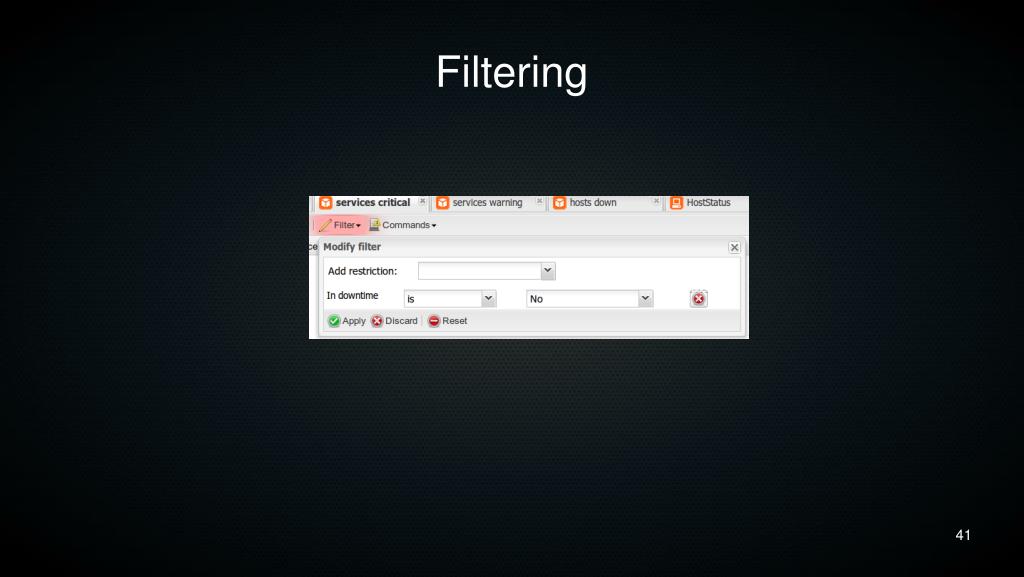

  40. Filtering

  41. Alerting

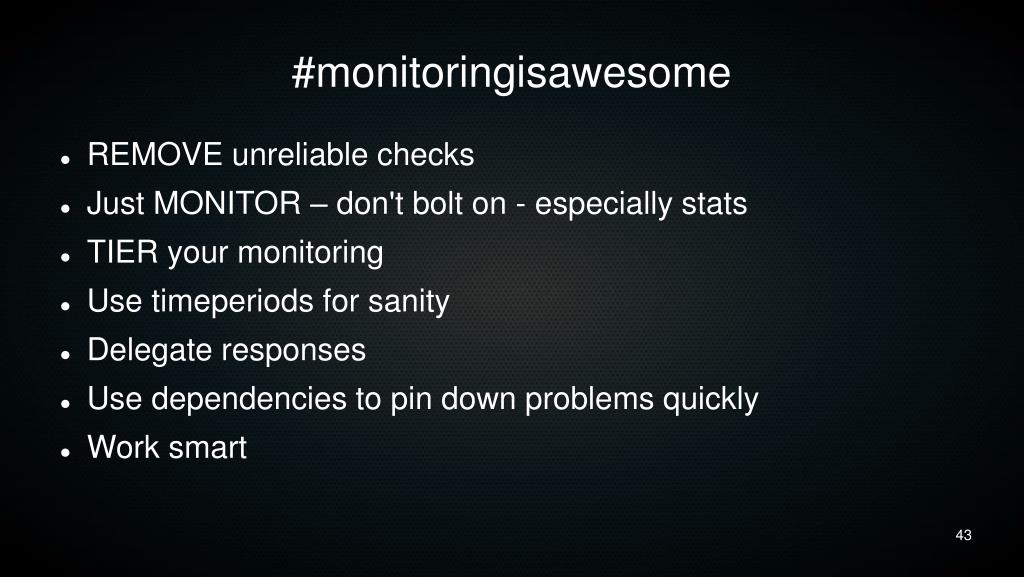

  42. #monitoringisawesome • REMOVE unreliable checks • Just MONITOR – don't bolt on - especially stats • TIER your monitoring • Use timeperiods for sanity • Delegate responses • Use dependencies to pin down problems quickly • Work smart

  43. Resources • Icinga http://icinga.org • Puppet http://docs.puppetlabs.com/references/latest/type.html#nagioscommand • NRPE http://nagios.sourceforge.net/docs/3_0/addons.html • IRC ##infra-talk, #icinga, #puppet • Contact christianmague@gmail.com, @maguec, #gaijin (freenode), http://blog.mague.com • Thanks Yvonne Kong, Michael Catlin, Juan Ortega, Anthony Kong, Puppet Labs, Icinga Team
