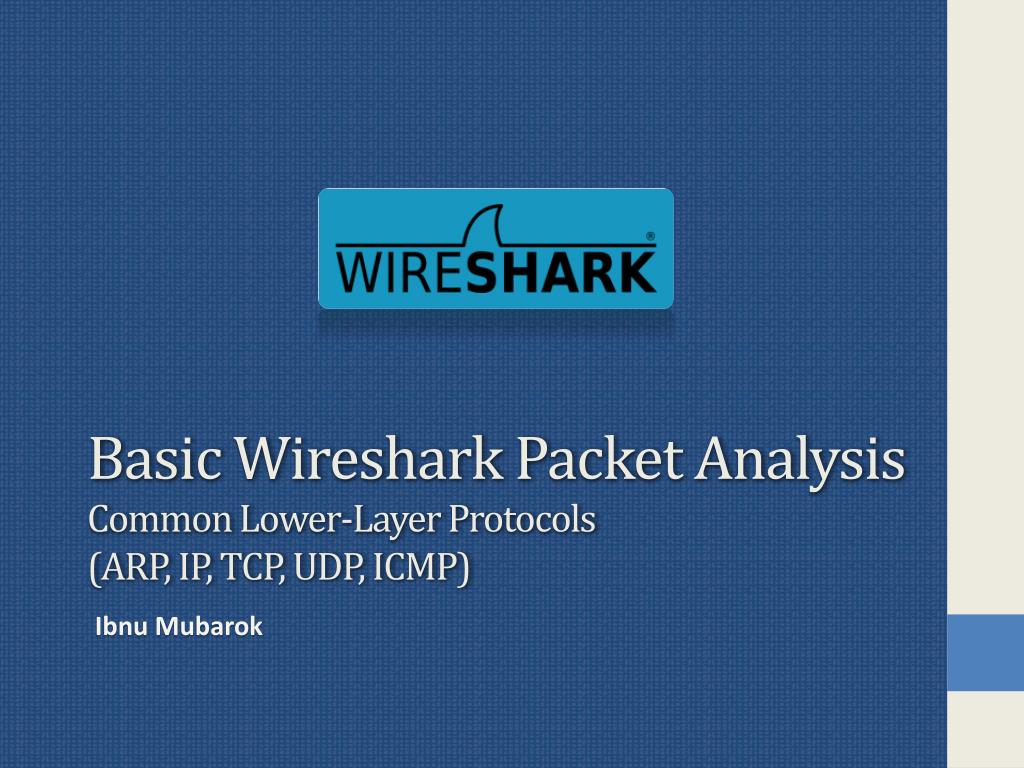

  1. Basic Wireshark Packet AnalysisCommon Lower-Layer Protocols(ARP, IP, TCP, UDP, ICMP) Ibnu Mubarok

  2. Wireshark • Network Packet Capture • Protocol Analyzer • Open source • Run on most Operating System

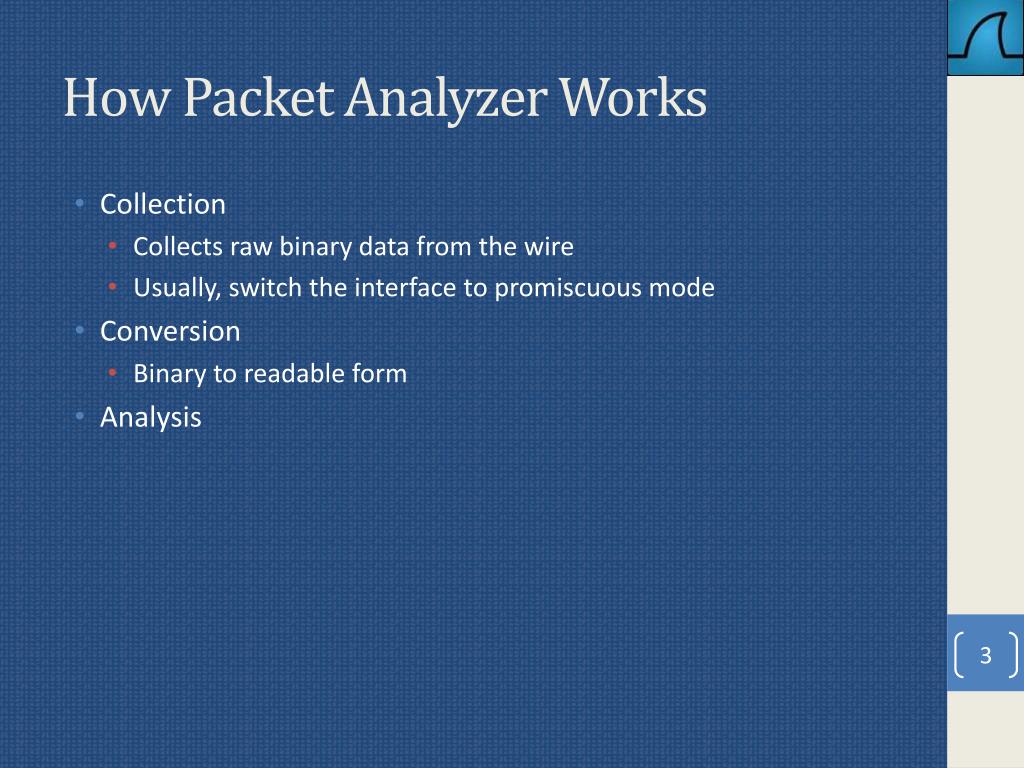

  3. How Packet Analyzer Works • Collection • Collects raw binary data from the wire • Usually, switch the interface to promiscuous mode • Conversion • Binary to readable form • Analysis

  4. Who use wireshark? • Network administrators use it to troubleshoot network problems • Network security engineers use it to examine security problems • Developers use it to debug protocol implementations • Testers use it to detect defects • People use it to learn network protocol internals

  5. Wireshark User Interface Packet List Packet Details Packet Bytes

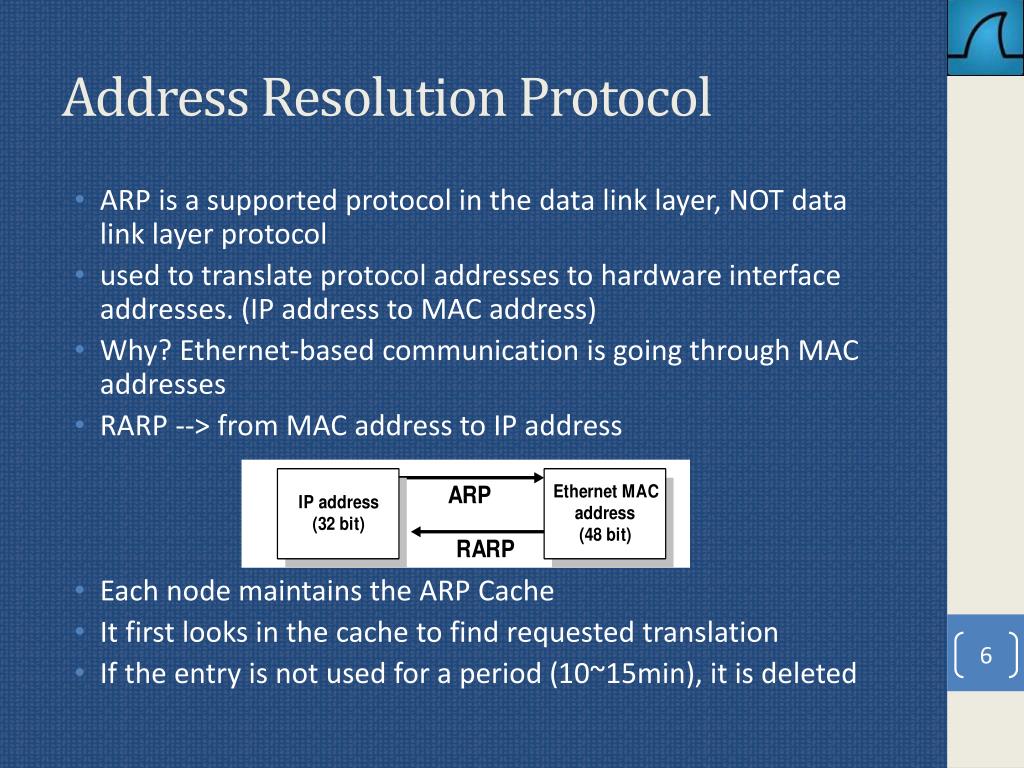

  6. Address Resolution Protocol • ARP is a supported protocol in the data link layer, NOT data link layer protocol • used to translate protocol addresses to hardware interface addresses. (IP address to MAC address) • Why? Ethernet-based communication is going through MAC addresses • RARP --> from MAC address to IP address • Each node maintains the ARP Cache • It first looks in the cache to find requested translation • If the entry is not used for a period (10~15min), it is deleted

  7. ARP Mechanism

  8. ARP Security • There is no authentication who should reply a ARP request. • Any node can spoof a reply to an ARP Request • Receiving node will cache the reply • Overwrites existing entry • Adds entry if one does not exist

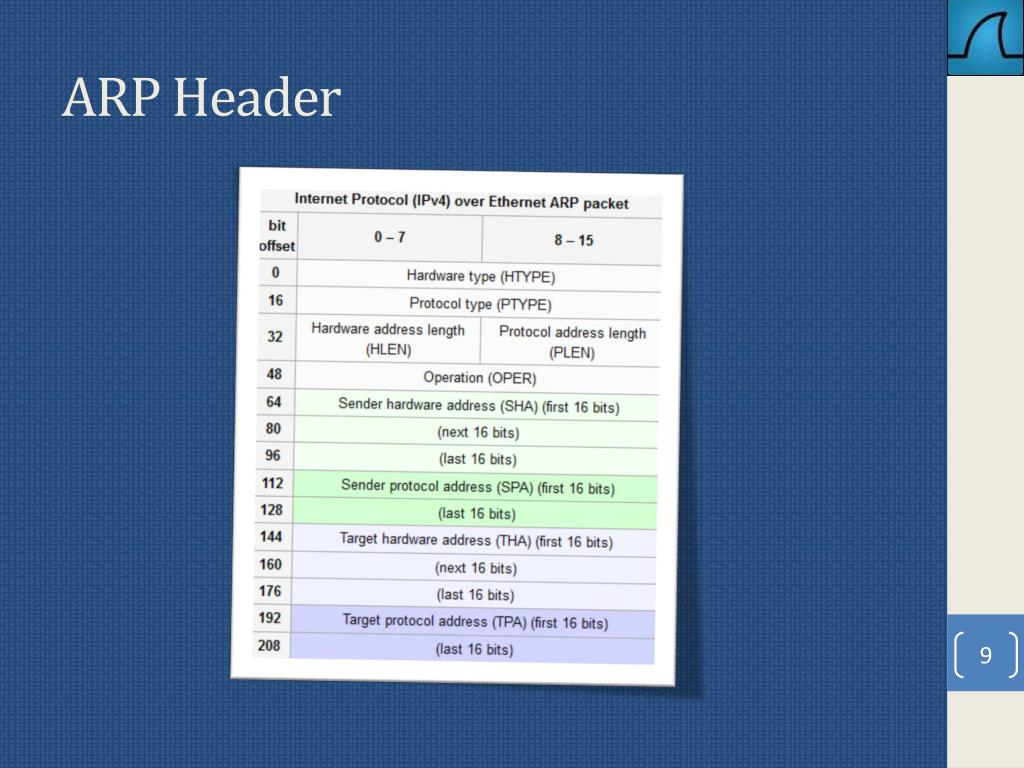

  9. ARP Header

  10. ARP in Wireshark • ARP Request - Reply

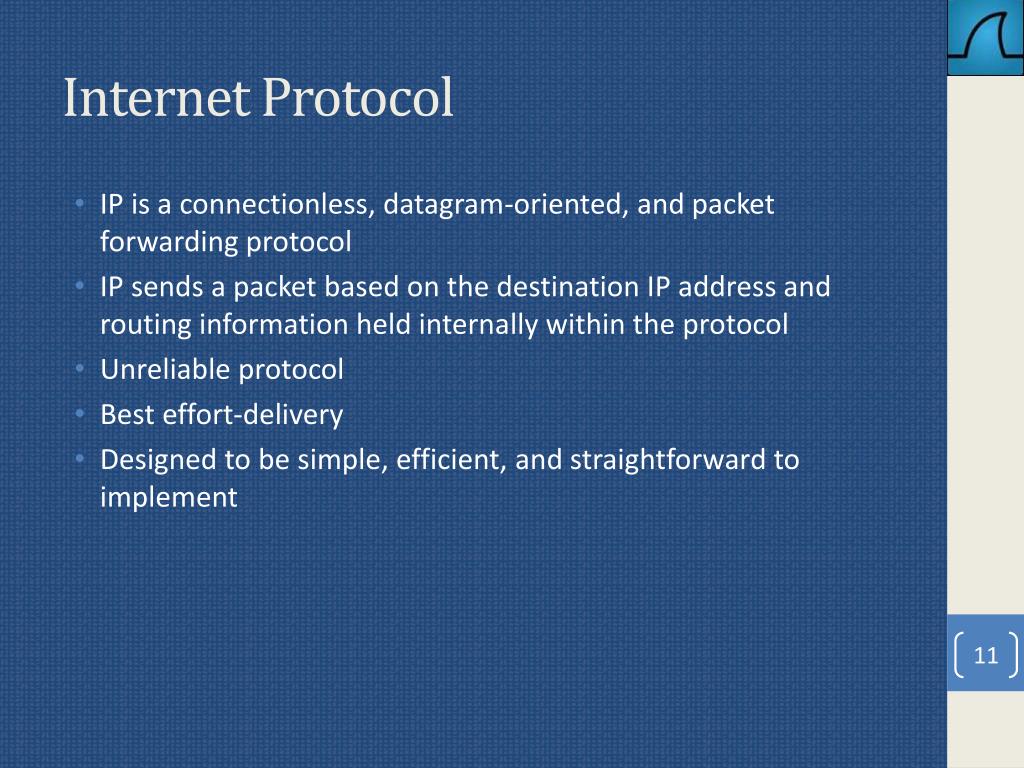

  11. Internet Protocol • IP is a connectionless, datagram-oriented, and packet forwarding protocol • IP sends a packet based on the destination IP address and routing information held internally within the protocol • Unreliable protocol • Best effort-delivery • Designed to be simple, efficient, and straightforward to implement

  12. IP Header • Service type field used by some routers when deciding how to forward datagram (quickest, cheapest, most reliable, or highest bandwidth) but also can set to No service type • IP options for routing preferences

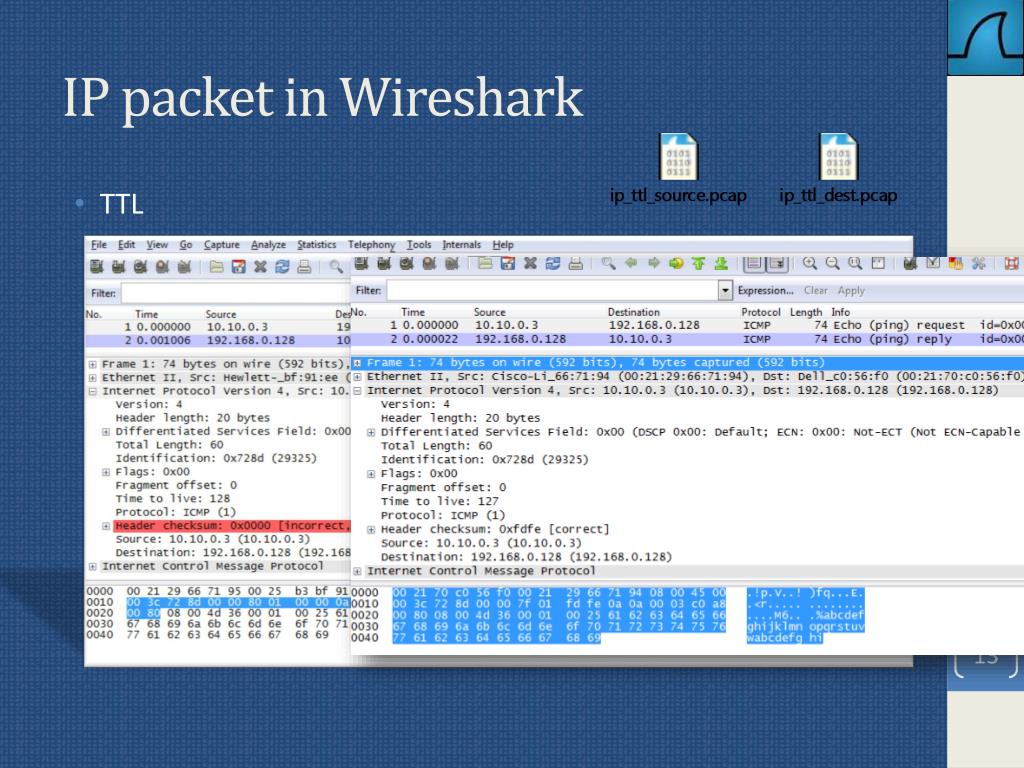

  13. IP packet in Wireshark • TTL

  14. IP packet in Wireshark • IP Fragmentation

  15. Transmission Control Protocol • TCP is a connection oriented protocol • The client and server must establish a connection before any data can be transferred between them • TCP Provides reliability • TCP knows that data it sends received at the other end, and that is received correctly • TCP uses checksum on both header and data • TCP ensures data which arrives out of sequence is put back into order

  16. TCP Header

  17. TCP Handshake • Client send SYN packet • Server reply with SYN, ACK packets • Client send ACK packet

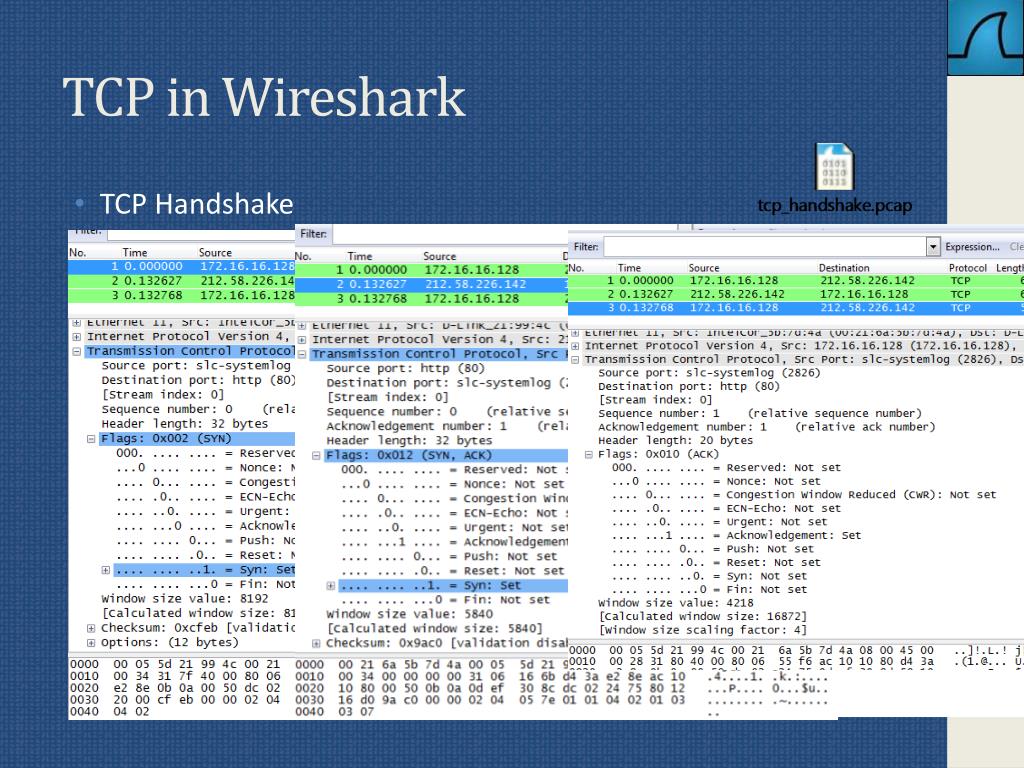

  18. TCP in Wireshark • TCP Handshake

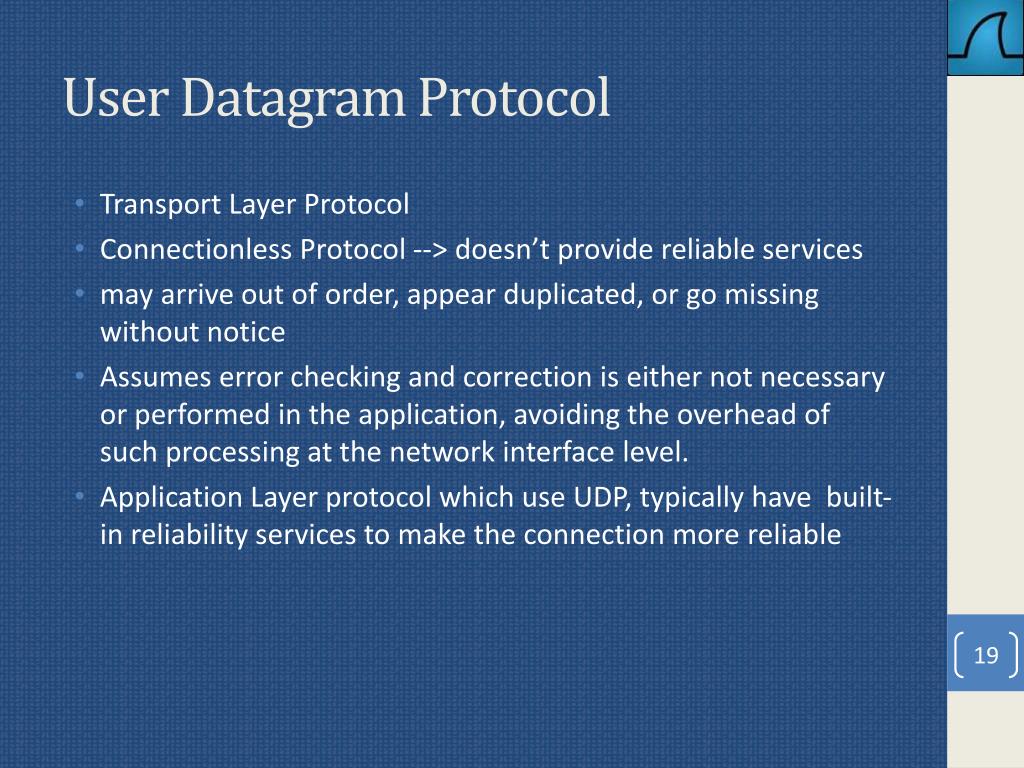

  19. User Datagram Protocol • Transport Layer Protocol • Connectionless Protocol --> doesn’t provide reliable services • may arrive out of order, appear duplicated, or go missing without notice • Assumes error checking and correction is either not necessary or performed in the application, avoiding the overhead of such processing at the network interface level. • Application Layer protocol which use UDP, typically have built-in reliability services to make the connection more reliable

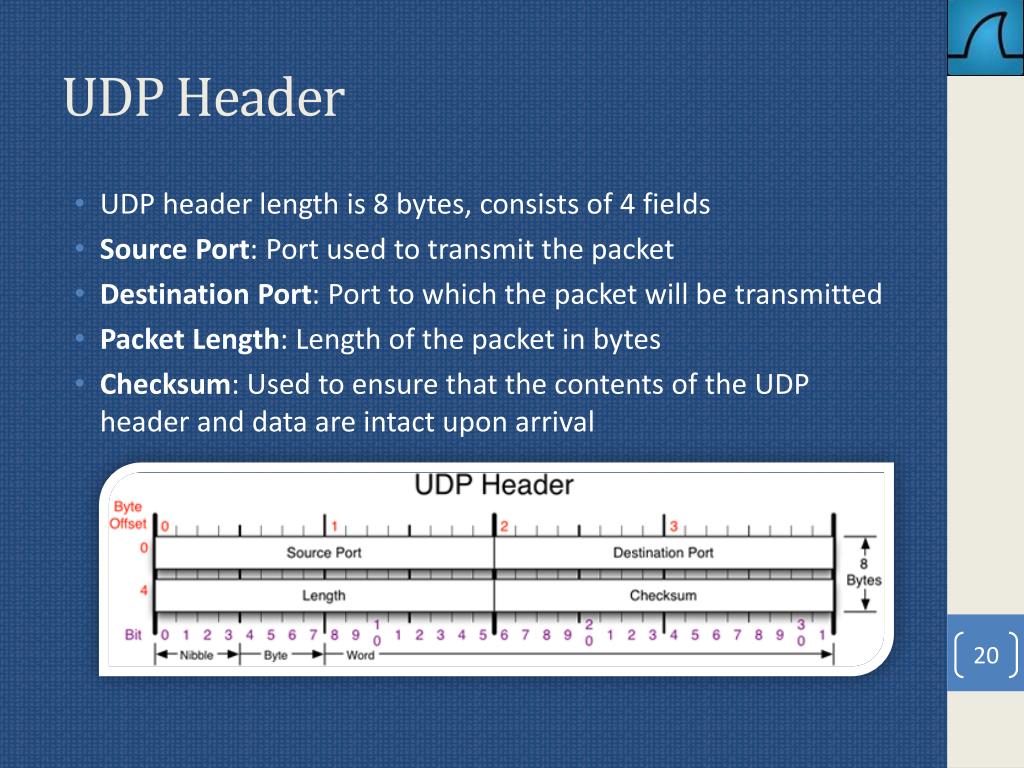

  20. UDP Header • UDP header length is 8 bytes, consists of 4 fields • Source Port: Port used to transmit the packet • Destination Port: Port to which the packet will be transmitted • Packet Length: Length of the packet in bytes • Checksum: Used to ensure that the contents of the UDP header and data are intact upon arrival

  21. UDP in Wireshark • DNS Request

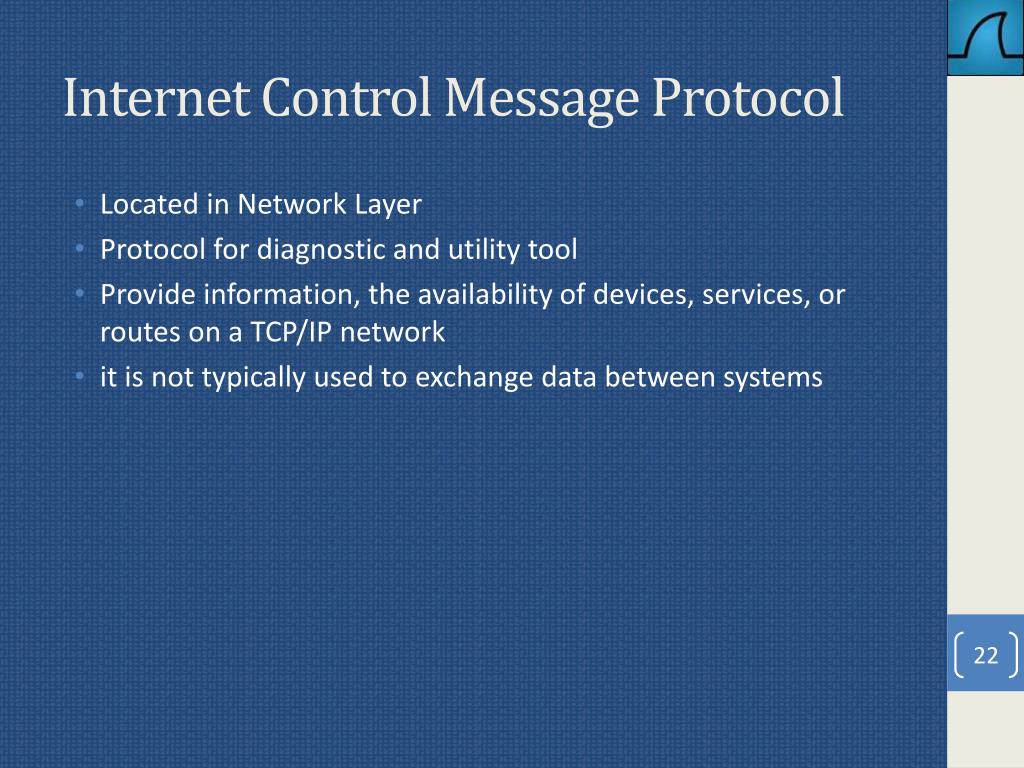

  22. Internet Control Message Protocol • Located in Network Layer • Protocol for diagnostic and utility tool • Provide information, the availability of devices, services, or routes on a TCP/IP network • it is not typically used to exchange data between systems

  23. ICMP Header • Type: Type or classification of the ICMP message • Code: Sub classification of the ICMP message • Checksum: to ensure ICMP Header & data are intact • Variable: a portion that depends on the Type and Code fields

  24. ICMP in Wireshark • Ping Request - Reply
