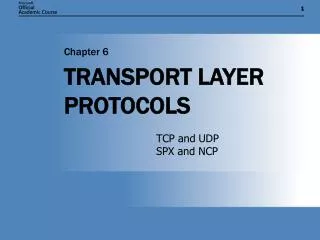

Chapter 6. TRANSPORT LAYER PROTOCOLS. TCP and UDP SPX and NCP. TYPES OF TRANSPORT LAYER PROTOCOLS. There are two types of transport layer protocols: Connection-oriented Transmission Control Protocol (TCP) Sequenced Packet Exchange (SPX) NetWare Core Protocol (NCP) Connectionless

akiva
Download Presentation

TRANSPORT LAYER PROTOCOLS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 6 TRANSPORT LAYER PROTOCOLS TCP and UDP SPX and NCP

  2. Chapter 6: TRANSPORT LAYER PROTOCOLS TYPES OF TRANSPORT LAYER PROTOCOLS • There are two types of transport layer protocols: • Connection-oriented • Transmission Control Protocol (TCP) • Sequenced Packet Exchange (SPX) • NetWare Core Protocol (NCP) • Connectionless • User Datagram Protocol (UDP)

  3. Chapter 6: TRANSPORT LAYER PROTOCOLS TRANSPORT LAYER PROTOCOLS • There are two transport layer protocols in the Transmission Control Protocol/Internet Protocol (TCP/IP) suite: • TCP • UDP • There are two transport layer protocols in the Novell Internetwork Packet Exchange (IPX)/SPX suite: • SPX • NCP

  4. Chapter 6: TRANSPORT LAYER PROTOCOLS TRANSMISSION CONTROL PROTOCOL (TCP) • The TCP protocol (described in Request for Comments [RFC] 793) has the following characteristics: • Uses Internet Protocol (IP) ID 06 • Is a reliable, connection-oriented protocol • Provides guaranteed delivery of packets through sequencing and acknowledgments • Provides sliding-window flow control • Performs error detection and correction • Uses ports to identify the communicating process or application

  5. Chapter 6: TRANSPORT LAYER PROTOCOLS TCP HEADER AND FIELDS (PAGE 253)

  6. Chapter 6: TRANSPORT LAYER PROTOCOLS EXAMPLE OF A TCP HEADER

  7. Chapter 6: TRANSPORT LAYER PROTOCOLS ESTABLISHING A TCP CONNECTION THREE-WAY HANDSHAKE • Verify that both computers are operating and ready to receive data • Exchange initial sequence numbers (ISNs) • Exchange maximum segment sizes (MSSs) • Exchange port numbers

  8. TCP Connection Chapter 6: TRANSPORT LAYER PROTOCOLS ESTABLISHING A TCP CONNECTION THREE-WAY HANDSHAKE

  9. Chapter 6: TRANSPORT LAYER PROTOCOLS TCP CONNECTION TERMINATION

  10. Chapter 6: TRANSPORT LAYER PROTOCOLS USER DATAGRAM PROTOCOL (UDP) • UDP (described in RFC 768) has the following characteristics: • Uses IP ID 17 • Provides fast, connectionless delivery of data • Has less overhead than connection-oriented protocols • Uses ports to identify the communicating process or application

  11. Chapter 6: TRANSPORT LAYER PROTOCOLS UDP HEADER AND FIELDS (PAGE 266)

  12. Chapter 6: TRANSPORT LAYER PROTOCOLS PORTS & SOCKETS • A port number refers to a specific application or process running on a computer. • A socket is a combination of a port number and an IP address. (ex: 192.168.2.10:21) this socket addresses port 21 on the system with address 192.168.2.10 • The Internet Assigned Numbers Authority (IANA) assigns well-known port numbers to common Internet applications.

  13. Chapter 6: TRANSPORT LAYER PROTOCOLS CLIENT AND WELL-KNOWN PORTS • There are two types of TCP and UDP ports: • Client ports • Variable ports with a value from 1024 through 65,534 • Server (well-known) ports • Commonly used by applications and services • Port values with a value from 1 through 1023

  14. Chapter 6: TRANSPORT LAYER PROTOCOLS EXAMPLES OF WELL-KNOWN PORTS (TABLE 6-2 Page 268) • TCP ports • File Transfer Protocol (FTP) 20 and 21 • Telnet 23 • Simple Mail Transfer Protocol (SMTP) 25 • UDP ports • Trivial File Transfer Protocol (TFTP) 69 • Domain Name System (DNS) 53 • Bootstrap Protocol/Dynamic Host Configuration Protocol (BOOTP/DHCP) 67

  15. Chapter 6: TRANSPORT LAYER PROTOCOLS SOCKETS

  16. Chapter 6: TRANSPORT LAYER PROTOCOLS NOVELL SPX AND NCP • Novell’s NetWare operating system has two connection-oriented protocols that function at the transport layer: • SPX • NCP

  17. Chapter 6: TRANSPORT LAYER PROTOCOLS SPX Characteristics • SPX is the acronym for Sequenced Packet Exchange. • SPX is a connection-oriented protocol. • It provides packet acknowledgment and flow control. • It is used infrequently by NetWare. • Messages are carried in Internet Packet Exchange (IPX) datagrams.

  18. Chapter 6: TRANSPORT LAYER PROTOCOLS NCP Characteristics • NCP is the acronym for NetWare Core Protocol. • NCP is used for NetWare file sharing traffic. • It is much more frequently used than SPX. • Messages are carried in IPX datagrams. • NCP requires an acknowledgment for each transmitted message.

  19. Chapter 6: TRANSPORT LAYER PROTOCOLS SUMMARY • Connection-oriented transport layer protocols like TCP, SPX, and NCP provide guaranteed, reliable delivery of datagrams. • They all exhibit the same characteristics: sequencing, acknowledgments, flow control, error correction and detection, session establishment, and teardown. • Connectionless transport layer protocols like UDP provide fast but unreliable delivery of datagrams. • They do not use sequencing, acknowledgments, flow control, or error correction. • There is no session establishment or teardown.
